Nanocarbons (also indicated as nano-structured carbons) indicate carbon materials having a tailored nanoscale dimension and functional properties critically depending on their nano-scale features and architecture [ 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 ]. The role of the nanostructure in determining the performance and catalytic behavior of carbon materials is well known [ 1, 14, 15 ],and thus these materials open interesting opportunities for catalysis.
Nanocarbons include many different types of carbon materials such as nano-fibers,-coils,-diamond,-horns,-onion,fullerene,etc. They find increasing interests as catalysts and may be actually considered as a novel class of catalytic materials. The range of applications goes from electrocatalysis (being a conductive support) and photocatalysis to novel supports for metal particles (for applications going from environmental protection to catalytic syntheses). In addition,their use as metal-free catalysts or electrocatalysts (related to the specific type of active sites present on the surface of the nanocarbon,as consequence of defects,doping and surface treatments) was shown to offer new exciting possibilities [ 16, 17, 18, 19, 20, 21 ].
Their catalytic properties derive from their unique combination of chemical properties,inferred by sp,sp2,and sp3 hybridized bonds,with the several structural arrangements,i.e. linear,planar,or tetrahedrical geometries [ 22 ]. Metal-free nanocarbons show interesting catalytic properties in various reactions,going from alkane activation and oxidative dehydrogenation [ 23, 24, 25 ] to the selective gas-phase oxidation of acrolein to acrylic acid [ 26 ].
In the latter reaction,for example,the sp2 carbon acts as a bifunctional catalyst: the nucleophilic oxygen atoms terminating the graphite (0001) surface abstract the formyl hydrogen and the activated aldehyde gets oxidized by epoxide-type mobile oxygens. In general,for sp2 nanocarbons,high-energy sites provided by the dangling bond of the sp2 hybridization are located at the edges (prismatic sites). These sites are saturated by heteroatoms (depending on the pre-treatment),providing a rich surface catalytic reactivity for both acid-base and redox chemistry. If the graphitic sheets contain defects in form of pentagonal,heptagonal,or larger non-hexagonal units,an additional charge present can assist the activation or dissociation of adsorbing molecules. In addition,if the graphitic sheets are curled,then the strain on the sp2 centers leads to charge localization and increases the poor reactivity of the basal plane.
The nanostructure,type of surface species,and hybridization of surface carbon atoms,which may be enhanced from the presence of strains and curvatures as well as degree of graphitization,are all aspects determining the catalytic performance. An example is the synthesis of phosgene,which is still produced using carbon as industrial catalyst in an annual amount of about 5-6 million tons,in spite of the well-known safety issues (high toxicity of the products and hazardous reaction conditions) [ 27 ]. Phosgene is a chemical intermediate used in the manufacture of important industrial products such as polyurethanes,polycarbonates,pharmaceuticals,and agrochemicals. Metal-free carbon catalysts show better performance than other materials,but the specific nature of the carbon strongly influences the performance [ 28 ],although the exact nature of the active sites is still unknown. In fact,Cl2 dissociation and further CO halogenation are probably the first steps in the reaction of phosgene synthesis from CO and Cl2,and it is known that reaction mechanism considerably depends on the nanocarbon stucture [ 29 ].
In addition to specific nanostructure properties,the carbon-based catalysts should possess porosity characteristics different from those necessary in other relevant areas of application of carbon materials (i.e. sorption,molecular separations,and gas storage),because microporosity may reduce catalyst effectiveness. Mass transport,particularly in fast reactions,can significantly limit the reaction rate,but equally relevant,in strongly exothermic reactions,is heat transport,which may result detrimental not only in catalytic performance (especially selectivity),but also in long-term stability of the carbon catalyst. The degree of graphitization is a way to improve heat transfer and control surface reactivity. For this reason,the specific nanostructure and surface nature of carbon catalysts play a specific role in their performance for phosgene synthesis [ 28 ].
Carbon nanospheres are a novel type of nanocarbon materials,which attracted interest for the presence of different hybridized bond surface sites and of curling planes,which may change the reactivity of graphitic sheets. Several papers have been published on these materials,for applications going from manufacture of electrodes to catalysis [ 30, 31, 32, 33, 34, 35, 36, 37, 38 ],showing how the graphitization degree of the carbon plays an important role in determining its properties. Nevertheless,a key issue is to avoid the destruction of the other important characteristics for reactivity,such as porosity and type of surface species (related to hybridized bond surface sites,defects,etc.).
Usually,the graphitization process is made by applying high current densities or temperatures (> 2500 °C) [ 39, 40, 41 ]. Apart the need to use a proper graphitizable carbon precursor such as CNF [ 42, 43 ],the main disadvantages of these processes are the high energy consumption,the low yield,and the surface area loss. There is also a change in the characteristic nanostructure. Briston et al. [ 44 ],for example,have analyzed the transformation of amorphous porous carbon nanospheres under Joule heating,observing significant carbon ordering resulting in the formation of a 3D network of buckled graphitic sheets. The peculiar carbon reactivity characteristics are thus lost in the process.
Hence,some attempts have been made in order to graphitize carbon at relatively low temperature (<1000 °C) by means of metals (Fe,Co,Ni,etc.),which accelerate the initiation [ 45, 46 ]. Despite the wide application of these methodologies,the encapsulation of such metals into the framework leads to the need of further purification steps.
Therefore,in this work we discuss a method to graphitize amorphous carbon nanospheres,obtained by hydrothermal decomposition of glucose,without using metals and with a procedure allowing to maintain high the surface area minimizing changes in the surface nanostructure. The goal is to obtain a crystalline arrangement with onion-like structure,without surface area loss. We investigated here the role of the main experimental parameters in the treatment (annealing temperature at 750 or 1000 °C,type of inert carrier gas,time of stream in the 2-6 h range) and how they influence the morphological characteristics of the carbon materials obtained as well as their nanostructure.
Pure glucose (10 wt%) was dissolved in 180 mL of distilled water to form a clear solution and placed in a Teflon-sealed autoclave at 200 °C for 20 h. The product was then separated by filtration and washed several times with hot water,acetone,and ethanol solvents. Then it was dried at 100 °C and further treated at 200 °C for 2 h. The quantitative yield was about 20 wt%. This sample is indicated as CHT.
For each graphitization procedure,ca. 200 mg of CHT were put in a vertical fixed bed reactor,as schematically shown in Fig. 1. In each experiment,only a single parameter was changed,i.e.,annealing temperature (750 or 1000 °C),isotherm time on stream (2 or 6 h),or carrier of He or N2 gas flow (100 STP mL/min). For the more prominent sample,the concentration of oxygen in N2 stream and the evolution of gases (CO2,H2O) during annealing treatment was followed by use of a Hyden Mass Spectrometer HP 2-N,operating in SEM mode. The samples were indicated as X-Y-Z,where X is type of carrier gas (He or N2),Y the reaction temperature (°C),and Z the isotherm time on stream.
Samples were characterized by X-ray powder diffraction (XRD) using a Philips X-Pert diffractometer with a monochromatic Cu Kα (λ = 1.54056 Å) radiation at 40 kV and 30 mA. Data were collected over a 2θ range of 10°-100°,with a step size of 0.04° at a time per step of 3s. The morphology of the samples was investigated by scanning electron microscopy (SEM) using a Philips XL-30-FEG SEM at an accelerating voltage of 5 kV. To improve the quality of images,the samples were previously treated with Au using a gold sputter coater device. For elemental analysis,the energy dispersive X-ray (EDX) analyzer was employed by using not pre-treated samples. Carbon morphology structure was also investigated by transmission electron microscopy (TEM) using a Philips CM12 microscope (resolution 0.2 nm),provided with a high resolution camera,at an accelerating voltage of 120 kV. Suitable specimens for TEM analyses were prepared by ultrasonic dispersion in i-propyl alcohol adding a drop of the resulting suspension onto a holey carbon supported grid. The surface areas were calculated from BET equation from the adsorption branch of the isotherms,obtained at -196 °C on a Quantachrome sorption analyzer. Prior to the measurements,samples were heated in N2 flow at 350 °C for 1 h. The micropore area and volume were evaluated by the t-plot method.
Raman spectra were recorded by using a Renishaw Raman Microscope spectrometer. An Ar+ laser emitting at 514 nm was used,in which the output power was limited in order to avoid sample damage. The photons scattered by the sample were dispersed by a 1800 lines/mm grating monochromator and simultaneously collected on a CCD camera; the collection optic was set at 50 x objective. The spectra were obtained by collecting 30 acquisitions (each of 20 s) on a powdered sample in air.
FT-IR spectra were collected on powder samples diluted in KBr (1:1) at 4 cm-1 resolution,using an Equinox 55 spectrometer equipped with an MCT detector and an environmental channel operating in diffuse reflectance mode. Prior to spectra collection at r.t.,a thermal treatment of the samples at 150 °C in Ar flow (20 STP mL/min) was carried out.
X-ray photoelectron spectroscopy (XPS) data were obtained using a Physical Electronics GMBH PHI 5800-01 spectrometer operating with a monochromatized Al-Karadiation with a power beam of 300 W. The pass energy for determination of the oxidation state and concentration of surface species was 11.0 and 58.0 eV,respectively. The BE regions of C 1s (280-300 eV) and O 1s (524-544 eV) were investigated,taking the Al 2p line (73.0 eV) of aluminum standard as reference for signal calibration. Ar+ 2 kW small beam sputtering was performed in order to remove adventious carbon.
SEM/TEM images of CHT samples before and after graphitization are shown in Fig. 2. It is noticeable that by hydrothermal synthesis it is possible to obtain spherical carbon particles,with main diameter in the 200-400 nm range,but also the presence of larger ones can be detected (Figs. 2(a) and (b)). This distribution is probably due to the reaction conditions,i.e. the absence of an homogeneous mixing during the synthesis. Nevertheless,this hydrothermal procedure allows to obtain morphologically more uniform carbon particles with respect to carbon particles obtained by hydrocarbon pirolysis,as reported in Ref. [ 47 ]. After all the different investigated thermal treatments,the spherical shape and morphology were retained although some differences in the ordering degree can be noted.
After the less severe treatment (N2-750-2h,Fig. 2(c)) no indication of ordering is observed,while for the samples treated in N2 at 1000 °C the graphitization of a fraction of amorphous carbon takes place as a function of time on stream,resulting in the formation of a certain amount of a more ordered carbon (Figs. 2(d) and (e)).
This type of carbon is graphitic like,with a characteristic nano-onion carbon structure at the surface. In our previous works and as confirmed by Nieto-Márquez [ 47, 48 ],we concluded that the rearrangement initiates at the particle surface and propagates inside by forming concentric shells of C sp2-bonded atoms from the spherical or cylindrical shape of the original amorphous precursor.
This process is thermodynamically driven but is influenced also by the presence of surface functional groups on carbons,which depend on the temperature and type of precursor during the carbonization stage. In our CHT sample,obtained from glucose carbonization in mild conditions (200 °C),the O2 content,estimated by EDX,is about 10 at%. As it is known [ 1, 49, 50 ],the annealing process leads to both a dramatic reduction in the oxygen amount and the modification in the distribution of oxygen species towards the more thermally stable ones,such as anhydride and lactone groups,with both H2O and CO2 release due to this arrangement (Fig. 3).

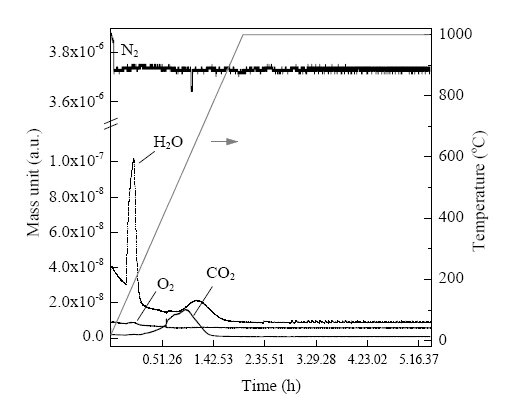

In fact,at temperatures above 750 °C,when graphitization starts to occur,the amount of surface oxygen species is reduced. As confirmed in Fig. 3,the presence of small traces of oxygen in the inert stream (less than 0.01 vol%) plays an important role in maintaining these species,and at the same time preventing the possibility of combustion of carbon. This explains why the treatment in N2 at 1000 °C allows the graphitization of the sample,with a carbon yield of 70 wt%,while the same effect is absent when He is used as carrier under the same conditions (Fig. 2(f); 1000 °C,6 h).

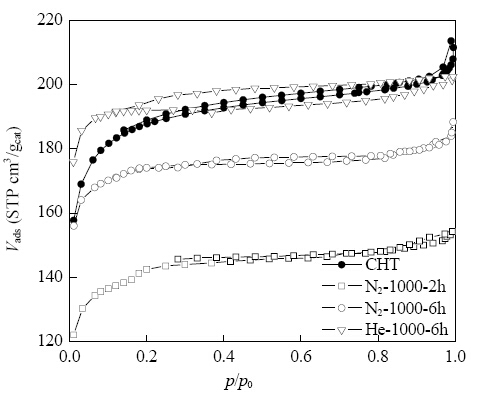

The nitrogen sorption isotherms for the CHT samples after different annealing treatments are shown in Fig. 4. All samples gave rise to type II nitrogen gas sorption isotherms,according to IUPAC classifications,with typical H4 hysteresis loops,generally observed in complex materials containing both micropores and mesopores,and a characteristic step-down in the desorption branch associated to the hysteresis loop closure.
The filling of the narrow micropores takes place at low relative pressures (at p/p0 < 0.01). This process has been termed “primary micropore filling”,while filling of the wider micropores may occur over a broader range of relative pressure (p/p0 ≈ 0.01-0.2) [ 51 ]. Additionally,the slight rise of N2 uptake in the adsorption isotherms at higher relative pressures,p/p0 > 0.8,indicates that only a slight contribution of inter particle porosity associated with the meso- and macrostructures of the sample are present [ 52 ].
Surface areas (S.A.),pore volumes,and average pore sizes are summarized in Table 1. It is noticeable that the CHT sample has a very high surface area (635 m2/g) with a high contribution of the micropore fraction (503 m2/g). Upon N2 treatment at 1000 °C for 2 h,the S.A. decreases (about -28%) with a contemporaneous relative increase of microporosity from the original 80% in the starting sample to about 88% in the samples after 2 h of treatment at 1000 °C. This suggests that essentially a sintering process occurs up to 2 h. For longer times on stream (6 h) at 1000 °C,the situation is different. There is an increase both in S.A. (further +28% with respect to the sample after 2 h) and microporosity (about 95% of the whole porosity). This is consistent with the observed reorganization due to graphitization discussed before,which occurs together with the loss of less stable carbon species present in the amorphous carbon (as typically occurs in preparing activated carbons). In agreement,the treatment in He instead of N2 at 1000 °C for 6 h (Table 1) leads to a similar S.A. of the starting sample,as well as similar fraction of microporosity (about 80%).
In principle,some interstitial N atoms in the carbon structure may form during the annealing process at 1000 °C in the presence of N2 (although we have no metals in our sample prepared from pure glucose). Antonov et al. [ 53 ] observed that differently from nitrogen atoms substituting carbon atoms,which hardly move at 750 °C,interstitial nitrogen atoms are mobile during annealing at high temperature. This process may decrease the activation energy to initialize the graphitization process,according to Norfolk et al. [ 54 ]. However,we believe that this is an unlikely mechanism because it requires to dissociate N2. It is thus more reasonable that the difference in the behavior is associated with the presence of traces of oxygen in the N2 flow,which modifies the amount of oxygen functional groups during the high temperature annealing (see Fig. 3). This different surface situation is responsible for the easier graphitization in the presence of N2 rather than He.

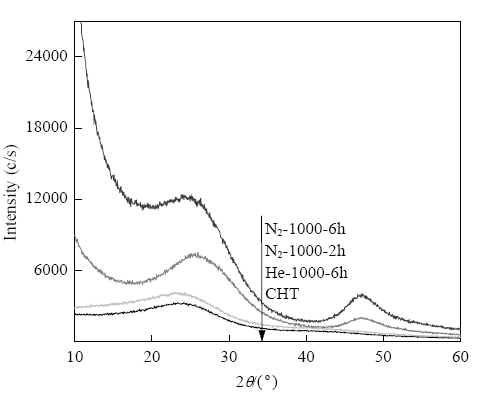

XRD is widely used for the microstructural characterization of carbon materials by peak profile analysis [ 55 ]. Figure 5 shows the XRD patterns for the starting sample (CHT) and those treated at 1000 °C in N2 (2 and 6 h) and He (6 h). It is confirmed that the use of N2 instead of He as carrier gas during the thermal treatment favors the graphitization,which is instead nearly absent in the case of He. Elaboration of these XRD patterns,after correction for background baseline and instrumental broadening,allows to estimate the average values of the interlayer spacing d002,the height of layered stacking (Lc),and the basal plane length (La). The above parameters were used to estimate their graphitic structural order. The average interlayer spacing is measured through the position of the (002) peak by applying the Bragg’s equation. The height of layered stacking is estimated from the (002) and (110) peaks using the Scherrer’s formula. The layer dimension in the plane of the layer can be calculated from the peak width at half of the maximum intensity (B) in the formulas La = 1.84λ/Bcosθ [ 55 ] and Lc = 0.89λ/Bcosθ. Notice that the peaks of the two- dimensional lattice (100) reflections are displaced toward higher angle (46° rather than 43°) [ 56 ]. The absolute value of this displacement is greater the smaller the layer dimension La, i.e. the effective dimension of the graphite layers in the plane of the layer. The peaks are also rather broad. Both these aspects are consistent with the presence of large structural disorder in the graphitic layers stacking,in agreement with micrograph indications.
Table 2 summarizes the lattice values for the two N2-treated samples,e.g. of the two samples for which we have evidence of graphitization. They show an increase in the intensities of the (002) and (110) reflections,proportional to the time on stream of the thermal treatment. For both samples,the calculated d002 spacing are 0.357 and 0.349 nm,respectively,slightly higher than for pure graphite (0.335 nm),suggesting the incipient,but not complete,formation of a graphitic layer. Note that,for example,for carbon graphitic materials after ball milling,an increase of the d002 spacing from 0.335 nm to 0.360-0.370 nm has been observed,proportionally to the time of ball milling. The data in Table 2 thus indicate that the sample treated at 1000 °C in N2 for 2 h shows a large amount of faulted stacking layers,and that this amount decreases after 6 h,although still remaining not-negligible.
The values of La and Lc give,on the contrary,an indication of the ordered graphitic regions. The effective dimension L of the graphitic microcrystallites can be determined as follows: L = (π/4∙La2∙Lc)1/3 [ 57 ]. The values obtained for the two analyzed samples,2.4 and 2.56 nm,indicate the presence of rather small ordered domains,suggesting the very large orientational disorder of the graphite planes,an aspect essential for enhancing the reactivity of these materials and explaining the reason of maintaining a high surface area and porosity even for severe annealing procedures (1000 °C,6 h).

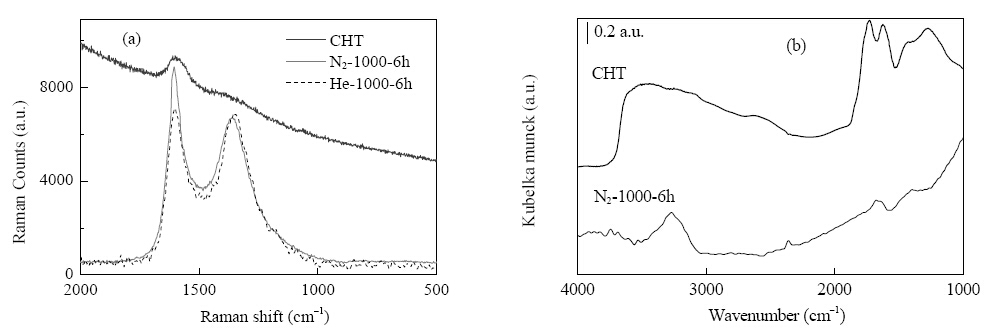

More prominent highlights of crystalline and amorphous features of CHT,and those treated in He or N2 under the same conditions are also extracted by vibrational spectroscopies,such as Raman and infrared (Fig. 6(a) and (b),respectively). Concerning the Raman spectra,for the CHT sample a reasonable signal-to-noise ratio is hardly achieved,having carbon a broad fluorescence background [ 58, 59 ],caused by its organic nature,impurities,and surface defects,which obscured the spectrum. For the other two samples,two main features appear at 1586 and 1344 cm-1,respectively,changing the relative intensities into the different samples [ 60 ]. In particular,the G peak around 1580-1600 cm-1 and the D peak around 1350 cm-1 usually are assigned to zone center phonons of E2g symmetry and K-point phonons of A1g symmetry,respectively. In general,they can be attributed to many forms of sp2-bonded carbons with various degrees of graphitic ordering,ranging from microcrystalline graphite to amorphous carbon [ 61 ],because in general this latter can also have any mixture of sp3,sp2,and even sp1 sites. However,while the G peak involves the in-plane bond-stretching motion of pairs of C sp2 atoms,and not necessarily in the presence of six fold rings,but in general of at all sp2 sites,the D peak is forbidden in perfect graphite and becomes active in the presence of more disordered structure [ 60, 61 ]. Therefore,what is more relevant is the intensity ratio between the two bands (ID/IG) that allows to determine the relative order degree. In the case of N2-100-6h,the ID/IG is equal to 0.77,while this value increases for He-100-6h (0.97),associated with an increase of disorder. According to the TK model,which implies the correlation occurring betwee n this ratio and La value obtained from XRD measurement to evaluate the size of graphite cluster size,our values lie within the range where ID/IG is α1/La, i.e. in the crystalline range [ 60 ].
Figure 6(b) shows the FT-IR spectra recorded on CHT and N2-1000-6h samples. The IR spectrum of CHT belongs from either the absence of symmetry in amorphous carbon or the higher sp2 content in the network [ 61 ]. A broad band ranging from 3800 to 3000 cm-1 is dominated by H-related bands. Very intense features at 1744 cm-1 appear,assigned to the stretching of C=O belonging to the oxygen contamination,and bands at 1434 and 1280 cm-1 are assigned to C-C skeleton and CH2 bending modes [ 62 ]. Finally,a band at 1626 cm-1 could represent the bending mode of H2O present in the material,which is not desorbed at the treatment temperature. Upon N2 treatment,the spectrum changes significantly. In the 3800 to 3000 cm-1 region,a main peak centered at 3300 cm-1 is present,which is univocally assigned to N-H stretching mode. The features of carbonyl groups are still detectable,with less extent and slightly red-shifted (1670 cm-1),due to conjugation effects [ 61, 63 ],as well as the C-H features.

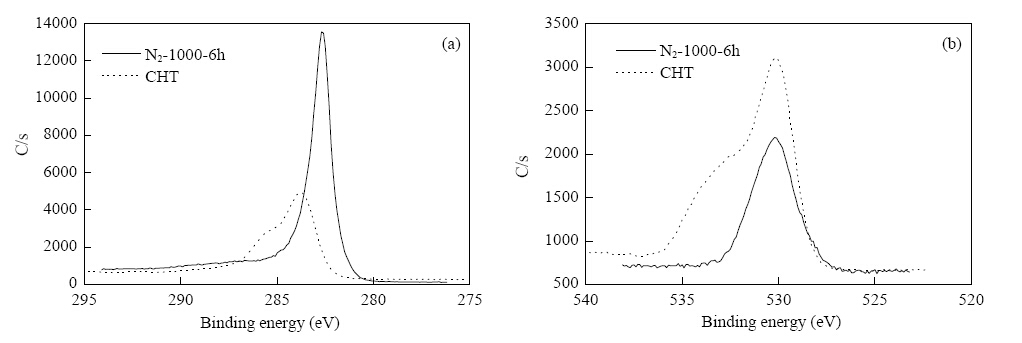

Finally,in order verify the presence of oxygen functionalities in both CHT and annealed sample,the C 1s and O 1s XPS spectra of CHT and N2-1000-6h samples were compared. The changes in C 1s spectrum are shown in Fig. 7(a). The CHT sample presents a right shoulder in comparison with the sharp and symmetric graphitic C 1s peak present for N2-1000-6h,reasonably due to the presence of functional C-OH,C=O,and COOH groups [ 64 ],as already shown. The same trend is observed for the O 1s (Fig. 7(b)) peaks,which present a feature centered at 530.03 eV representing that one strongly C-bonded,and a right shoulder due to oxygen functionalities,which are evacuated during treatment in form of CO2 or H2O (see Fig. 3).
Finally,the quantitative analysis of the O1s and C1s relative abundance s is reported in Table 3. It is clearly visible that CHT presents the majority of carbon,with an oxygen content in agreement with that calculated by EDX. Upon N2 annealing,the surface oxygen is reduced (about 35%),as a consequence of the rearrangement of the surface functionalities leading to a partial CO2 removal. However,the still existence of oxygen into the surface would suggest that these species are those stabilized by strong interaction with carbon.
The results presented here indicate the possibility to graphitize amorphous carbon nanospheres,prepared by glucose carbonization,maintaining the round-shaped macro morphology,a high surface area and porosity,and especially a large structural disorder in the graphitic layers stacking,with the presence of rather small ordered domains. These are characteristics rather interesting for catalytic applications,which are under investigation. The key in obtaining these properties is the thermal treatment in a flow of N2. It was demonstrated that the use of He rather than N2 does not allow to obtain the same results. The effect is attributed to the presence of traces of oxygen,enough to create the presence of oxygen functional groups on the surface at higher temperatures (>750 °C),when graphitization occurs. These oxygen functional groups favor the graphitization process,while the oxygen concentration remains low to avoid the combustion of carbon.
The authors thank Dr. Francesca Bonino and Matteo Signorile of NIS Centre of Excellence and INSTM-University of Turin for their support and valuable discussion of Raman spectra
