Aldehydes with a linear aliphatic carbon chain have desirable olfactory properties and they found several industrial applications in the production of perfumes and essences [ 1, 2, 3, 4 ]. For example,n-octanal (present in lemon oil),n-capraldehyde (C10) (present in sweet orange,lemongrass,coriander),and n-dodecanal (present in oils and lemon) are so effective that they markedly affect the feature of the perfume to which they are incorporated [ 5 ]. These aldehydes can be found in natural products such as essential oils and fruits of plants,but the growing market demand has made the synthetic route increasingly attractive. The selective oxidation of the corresponding long chain alcohols constitutes a highly convenient alternative [ 5 ]. For environmental and economic reasons,replacing stoichiometric oxidants with heterogeneous catalysts and molecular oxygen,as a green and selective oxidant,is very desirable [ 1, 2, 3, 4 ]. Many heterogeneous catalytic systems have been reported for the selective oxidation of aliphatic alcohols. However,the most part of the catalysts,in particular those based on Au [ 6, 7, 8, 9 ],Pt [ 10, 11, 12, 13 ],Pd [ 11, 14 ],and Ru [ 15, 16, 17, 18, 19 ] have been only tested in the base free oxidation of 1-octanol,as representative of the non-activated long chain aliphatic primary alcohol.
Ru based catalysts seem to be the most promising for the typical high selectivity to carbonyl compounds instead of carboxylic ones. Different groups showed,for example,that Ru nanoparticles supported on hydroxyapatite [ 15, 16 ] or graphene nanosheets [ 19 ] are very efficient in the 1-octanol oxidation with a selectivity to aldehyde of >95%. We recently showed that it is possible to enhance the catalytic performance of Ru catalysts by alloying Au nanoparticles,maintaining a high selectivity to octanal (>99%) [ 18 ].
Conversely,only a few examples of selective catalytic oxidation concerning long aliphatic chain alcohol (>C10) have been reported [ 5 ],and very low yields to the desired aldehyde are usually achieved. For example,a 10% commercial Ru/AC catalyst was able to convert 1-decanol using toluene/H2O as solvent (90 °C,1 atm O2) with decanoic acid as main product (59%) [ 20 ]. Musawir et al. [ 21 ] reported the oxidation of 1 dodecanol in toluene at 100 °C using a Ru-Co binary oxide with the addition of 2,6-di-tert-butyl-p-cresol,yielding to a maximum conversion of 52% with a selectivity of 83% to aldehyde. Mori et al. [ 22 ] reported the oxidation of 1-dodecanol to 1-dodecanoic acid without any formation of the corresponding aldehyde using RuHAP-γ-Fe2O3 and toluene as solvent (90 °C,O2 flow). Therefore,it appears clear that the development of an efficient catalytic system able to oxidize long chain aliphatic alcohols to the corresponding aldehyde is still challenging.
In this paper,different aliphatic alcohols (1-octanol,1-decanol,and 1-dodecanol) have been considered with the aim to correlate the length of the chain to the activity,selectivity and stability in the oxidation reaction. The effect of the nature of the metal (Ru and Pt) as well as the beneficial effect of Au addition,already evidenced in the 1-octanol and glycerol oxidation,have been investigated. The effect of solvent was also studied. Indeed,it has been recently shown that the presence of water is particularly beneficial and is able to speed up the reaction up in the case of Pt/AC in the selective oxidation of 1-octanol [ 13 ].
NaAuCl4·2H2O and K2PtCl4 were obtained from Aldrich (99.99% purity),NaBH4 of purity >96% from Fluka and polyvinylalcohol (PVA) (Mw = 13000-23000,87%-89% hydrolyzed) from Aldrich were used. Gaseous oxygen and hydrogen from SIAD was 99.99% pure. Stock aqueous solutions of PVA (1%,wt/wt) and NaBH4 (0.1 mol/L) were prepared. 1-octanol,1-decanol and 1-dodecanol (99.5%) and all the intermediates were from sigma Aldrich. Commercial Ru/AC (Escat 40,5%wt) was from Engelhard.
Au/AC: solid NaAuCl4·2H2O (0.051 mmol) and PVA (Au/PVA = 1:1 wt/wt) solution were added to 100 mL of H2O. The solution was stirred for 3 min,0.1 mol/L NaBH4 (Au/NaBH4 = 1:4 mol/mol) solution was added to the yellow solution under vigorous magnetic stirring. A ruby red Au(0) sol was immediately formed. Within few minutes from their generation,the colloids (acidified at pH 2,by sulphuric acid) were immobilized by adding the support under vigorous stirring. The amount of support was calculated as having a gold loading of 1 wt%. The catalysts were filtered,thoroughly with distilled water (neutral mother liquors) and dried at 80 °C for 4h.
Pt/AC: K2PtCl4 (Au:0.051 mmol) was dissolved in 100 mL of H2O,and PVA was added (Pt/PVA = 1:1 wt/wt). The solution was stirred for 3 min,after which 0.1 mol/L NaBH4 (Pt/NaBH4 = 1:16 mol/mol) was added under vigorous magnetic stirring. The light-grey Pt(0) sol was formed after 30 min. Within 1h of sol generation,the Pt sol was immobilized by adding the support (acidified to pH 2 by sulphuric acid) under vigorous stirring. The amount of support was calculated as having a Pt loading of 1 wt%. After 2 h,the slurry was filtered and the catalyst washed thoroughly with distilled water (neutral mother liquors) and dried at 80 °C for 4h.
AuRu/AC: Bimetallic system was prepared as reported in [ 18 ],immobilizing PVA stabilized AuNPs on commercial Ru/AC (i.e. AuRu/AC). Preparation of PVA stabilized AuNPs: solid NaAuCl4·2H2O (0.051 mmol) and PVA (Au/PVA = 1:1 wt/wt) solution were added to 100 mL of H2O. After 3 min,0.1M NaBH4 (Au/NaBH4 = 1:4 mol/mol) solution was added to the yellow solution under vigorous magnetic stirring. A ruby red Au(0) sol was immediately formed. Within few minutes from their generation,the colloid (acidified at pH 2,by sulphuric acid) was immobilized by adding the Ru/AC under vigorous stirring. The amount of support was calculated in order to obtain a final metal loading of 1 wt% (on the basis of quantitative loading of the metal on the support) and Au/Ru ratio of 1/10 mol/mol. The catalyst was filtered,washed on the filter and dried at 80 °C for 4 h.
AuPt/AC: NaAuCl4·2H2O (Au: 0.031 mmol) was dissolved in 60 mL of H2O,and PVA (1 wt%) was added (Au/PVA = 1:1 wt/wt). The yellow solution was stirred for 3 min,after which 0.1 mol/L NaBH4 (Au/NaBH4 = 1:4 mol/mol) was added under vigorous magnetic stirring. The ruby-red Au(0) sol was formed immediately. Within a few minutes of sol generation,the gold sol was immobilized by adding the support (acidified to pH = 2 by sulphuric acid) under vigorous stirring. The amount of support was calculated as having a gold loading of 0.60 wt%. After 2 h,the slurry was filtered and the catalyst washed thoroughly with distilled water (neutral mother liquors). The Au/support was dispersed in 40 mL of water,with K2PtCl4 (Pt: 0.02 mmol) and PVA solution (Pt/PVA = 1:1 wt/wt) added. H2 was bubbled (50 mL/min) under atmospheric pressure and room temperature for 2 h. After an additional 18 h,the slurry was filtered and the catalyst washed thoroughly with distilled water,and dried at 80 °C for 4h. The total metal loading was 1 wt%.

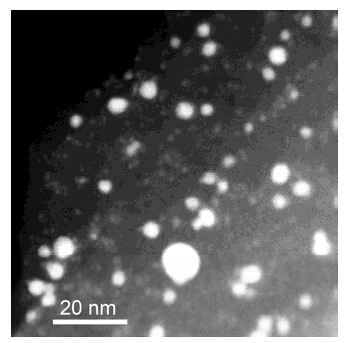

The Au@(Ru/AC) catalyst was examined in a FEI Titan 80-300 electron microscope equipped with CEOS image spherical aberration corrector,Fischione model 3000 HAADF STEM detector and EDAX SUTW EDX detector. The microscope was operated at an accelerating voltage of 300 kV in TEM mode for HRTEM and in STEM mode for STEM and EDX spectrum imaging. The Pt@(Au/AC) catalyst was examined in a Philips CM200 FEG microscope equipped with an EDAX DX4 analyzer for EDX spectra acquisition. The electron microscope was operated at an accelerating voltage of 200 kV. The actual metal content was checked by ICP analysis on a Jobin Yvon JY24.
Reactions were carried out in a 30 mL glass reactor equipped with a thermostat and an electronically controlled magnetic stirrer connected to a 5000 mL reservoir charged with oxygen (300 kPa). The oxygen uptake was followed by a mass-flow controller connected to a PC through an A/D board,plotting a flow time diagram. Alcohol oxidation: alcohol and the catalyst (alcohol/total metal = 100 mol/mol) were mixed in the solvent (toluene,dioxane or dioxane water 70/30 vol/vol) (alcohol 0.6 mol/L; total volume,10 mL). The reactor was pressurized at 200 kPa of oxygen and set to 100 °C. The reaction was initiated by stirring. Periodic removal of samples from the reactor was performed. Recycling tests were carried out under the same conditions (alcohol/metal: 100 mol/mol,100 °C,2 atm O2,1250 r/min,alcohol 0.6 mol/L). Three different methodologies were adopted. In the first,the catalyst was recycled in the subsequent run after filtration without any further treatment. In the second one,the catalyst was thoroughly washed with toluene before the further reaction. In alternative,the catalyst was regenerated in H2 at 300 °C for 3 h.
Identification and analysis of the products were done by comparison with the authentic samples by GC using a HP 7820A gas chromatograph equipped with a capillary column (HP-5 30 m x 0.32 mm,0.25 µm Film,by Agilent Technologies) and TCD detector. Quantification of the reaction products was done by the external calibration method.
Au and Pt monometallic catalysts were synthesized by a previously described procedure of sol immobilization using polyvinyl alcohol as protective agent [ 11, 23, 24 ],whereas a commercial Ru/AC catalyst (Escat 40) was used. AuPt/AC was prepared using a two-step procedure that was demonstrated to produce AuPt alloyed NPs of similar composition with multiply twinned structure highly dispersed on activated carbon [ 11 ] (Fig. 1).

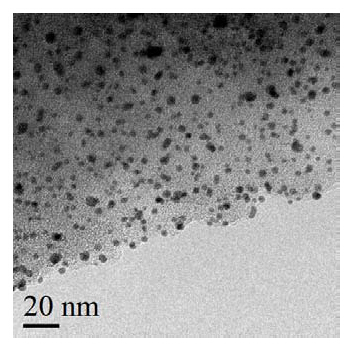

For the synthesis of AuRu/AC,commercial Ru/AC (Escat 40) was used as starting material where Ru NPs act as seed for the subsequent deposition of Au PVA protected nanoparticles following the procedure report in ref [ 18 ]. In this case,however,a very inhomogeneous distribution,with the segregation of small particles principally composed by Ru and larger bimetallic particles enrich of Au have been obtained (Fig. 2).
All the catalysts are composed by small nanoparticles with an average diameter of 3-3.6 nm except for AuRu where slightly bigger particles of 4.2 nm are present (Table 1).
The catalysts were first tested in the oxidation of 1-octanol,1-decanol,and 1-dodecanol using toluene as solvent (0.6 mol/L in toluene,metal/alcohol ratio 1/100 (mol/mol),T =100 °C,p(O2) = 2 kPa) (Table 2). Table 2 reported the initial activity of the catalysts,expressed as moles of alcohol converted per hour per mol of metal and calculated after 15 min reaction,and the conversion after 12 h. On the base of the initial activity,as expected,it can be observed that increasing the length of the chain,from C8 to C12 the reactivity of the alcohol decreases (Table 2),and Au/AC did not show any significant activity.
Pt/C was superior than Ru/AC,in the oxidation of 1-octanol,showing an activity of 141 with respect to 114 (mol mol-1 h-1),reaching a conversion of 75% and 55% after 12 h,respectively. On the contrary Ru/AC resulted more active than Pt/AC in the oxidation of 1-decanol and 1-dodecanol,with an activity of 84 and 68 (mol mol-1 h-1) in the C10 oxidation and 65 and 46 (mol mol-1 h-1) in the C12 oxidation,respectively. In other words,the activity of Ru catalysts appeared less sensitive to the increasing of the chain length.
In terms of selectivity,Ru/AC always exhibited a very high selectivity to aldehydes (>95%),whereas Pt/AC promoted the formation of carboxylic acids and esters (Table 2). In particular,the amount of carboxylic acid increases with the increasing of the length of the chain,becoming the main product in the oxidation of 1-decanol (50%) and 1-dodecanol (54%).
The addition of Au to Ru or Pt has a detrimental effect on the initial activity,resulting,for 1-octanol,in an activity loss of 10 and 50% for AuPt/AC and AuRu/AC,respectively,compared to the corresponding monometallic. However,two important differences have to be highlighted.
The first is that the detrimental effect of Au drastically increased with the chain length in the case of Pt/AC,reaching a 60% of initial activity loss in the case of decanol (Table 2). On the contrary,the loss of activity for Ru/AC decreased by increasing the chain length. Indeed,the initial activity for AuRu/AC was almost the same for 1-octanol (63 h-1),decanol (59 h-1) and dodecanol (61 h-1).

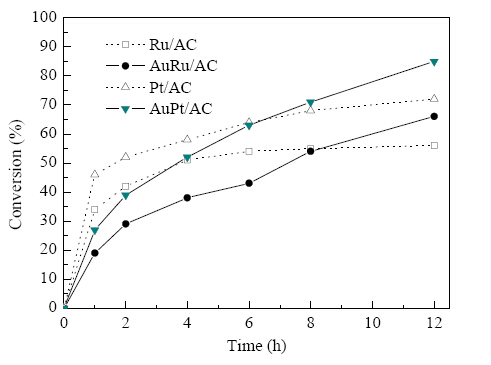

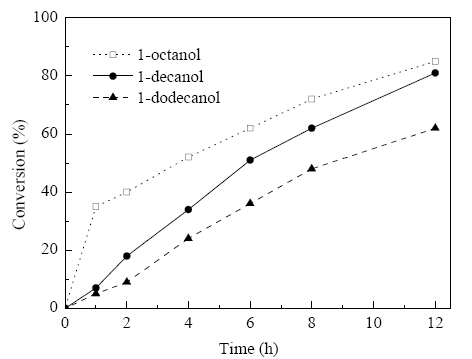

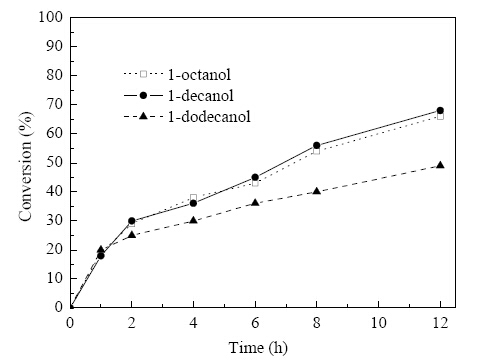

The second interesting aspect lies on the reaction profiles. In all the cases the addition of Au has a beneficial effect on the durability of the catalyst reactivity. Figure 3 represents the reaction profiles for the four catalysts in the oxidation of 1-octanol. Moreover,it should be noted that the effect of the length of the C-chain resulted almost negligible for AuRu/AC (Fig. 4),whereas is more pronounced for AuPt/AC (Fig. 5).
Of particular importance for the present application is the fact that the addition of Au to Ru/AC does not alter significantly the selectivity to aldehyde (>95%) for all the three substrates. On the contrary,the addition of Au to Pt considerably increases the amount of ester formed at the expense of the acid. This difference is particularly evidenced in the oxidation of 1-decanol and 1-dodecanol. Using Pt/AC,the acid is the main product (50%) whereas using AuPt/AC the acid is almost absent and the ester becomes the main product (50%) (Table 2). The promotion of ester formation operated by Au has been already reported in liquid phase oxidation. Hutchings’ group [ 25 ] showed that the addition of Au to Pd/TiO2 enhanced the formation of methyl lactate during the oxidative esterification of 1,2-propanediol in methanol. More recently,Haruta et al. [ 7 ] showed that Au catalyst promotes the formation of octyl octanoate during the 1-octanol oxidation compared to Pd catalyst. Moreover,the same authors reported that the support plays a fundamental role in improving the selectivity,obtaining 91% of octyl octanoate using CeO2 supported Au nanoparticles.
In order to increase the activity of the tested catalysts,we also investigated the possible solvent effect. It is indeed reported that the activity of Pt/AC in the 1-octanol oxidation can be increased of one order of magnitude using a 7:3 dioxane/water solvent system [ 13 ]. The substitution of toluene with dioxane as solvent negatively affects the activity except the one of AuPt/AC (Table 3).
In the case of Ru based catalysts,a negative effect was also observed in the selectivity toward aldehyde that decreased from 99% to 90%-91%. Pt/AC showed almost the same selectivity to aldehyde as using toluene as solvent (about 45%),but the octanoic acid amount is increased at the expense of the one of ester. AuPt/AC showed a peculiar behavior compared to the other three catalysts. Indeed,the use of dioxane as solvent leads not only to an increase of the activity (115 and 87 mol mol-1 h-1 for dioxane and toluene,respectively) but also to the selectivity to aldehyde (84% and 60% for dioxane and toluene,respectively) (Table 3).
The addition of water promotes as expected the activity of Pt and also the one of AuPt catalysts (Table 3). Indeed,the two catalysts were able to fully oxidize 1-octanol in only 4 h whereas,using toluene as the solvent,12 h of reaction were required to reach 90% conversion. Besson et al. [ 13 ] ascribed the beneficial effect of water in 1-octanol oxidation using Pt/AC to the modification of the affinity of the substrate for the hydrophobic catalyst surface of carbon,favouring the adsorption of the alcohol and the desorption of the carbonyl compound. In addition,water,a weak base,may assist the first step of the reaction,i.e. the H-abstraction from the alcohol during the dissociative chemisorption of the alcohol molecule on the catalyst surface [ 10, 13 ]. The beneficial effect of water addition was also observed in the case of Ru catalysts. This positive effect was stronger in the case of Pt/AC than in Au/Pt/AC. However,we also observed a drastic effect on the selectivity,with the formation of a higher amount of carboxylic acid (Table 3). The possible explanation is that water promotes the hydration of the aldehyde to geminal diol thus improving the subsequent rapid dehydrogenation to acid [ 1, 2 ].
Summing up the results,in view of a possible application of a catalytic route for fragrance syntheses from the corresponding alcohol,Ru based catalysts appeared the most promising catalytic systems. The enhanced stability obtained by the addition of Au to Ru/AC can be also fruitfully valorized in the catalyst recycling. We then performed recycling test on 1-octanol comparing Ru/AC to AuRu/AC. The test was first performed by filtering the catalyst and reusing it without any further treatment for the successive run (Table 4).
Both Ru/AC and AuRu/AC catalysts showed a consistent drop of activity in the second run. According to the literature,deactivation phenomena in alcohol oxidation could be mainly attributed to the leaching of the metal species,passivation of the metal by oxygen or by blockage of the active sites by irreversible adsorbed molecules [ 1, 2 ]. To explore the possibility of blocked active sites as possible cause of the catalyst deactivation,used Ru/AC and AuRu/AC were then thoroughly washed with the solvent (toluene) at 100 °C and then recycled. The washing treatment was not beneficial in the case of Ru/AC whereas in the case of AuRu/AC the initial activity was almost restored (58% of conversion instead 66% of the fresh catalyst) (Table 4).
These results clearly indicate that,in the case of the bimetallic catalyst,the main reason of the deactivation can be attributed to the irreversible adsorption of the products. A treatment with H2 at high temperature (300 °C,3 h) was performed in order to reduce the possible oxidized species. After the reduction treatment,also the activity of Ru/AC was almost restored (51% of conversion instead of 55% of the fresh catalyst). Therefore,the tests evidenced two different reasons for the deactivation of Ru/AC and AuRu/AC. In the case of the monometallic catalyst,both overoxidation by O2 and deactivation by adsorbed species probably occur,whereas in AuRu/AC only deactivation due to irreversible adsorption is observed. The improvement of catalyst resistance obtained by gold addition could be then ascribed to the beneficial effect of gold addition against Ru overoxidation. This finding is in agreement with the related effect already observed for Au addition to Pd and Pt catalysts in alcohol and polyol oxidations [ 11, 12 ].
Carbon supported Ru and Pt based catalysts have been tested for the oxidation of 1-octanol (C8),1-decanol (C10),and 1-dodecanol (C12) in the presence of molecular oxygen and toluene as the solvent. The activity of the catalysts seems to be influenced by the length of the aliphatic chain being C8>C10>C12. Strong deactivation phenomena have been observed,possibly due to the over-oxidation of the metal and the irreversible adsorption of the products on the active sites. The restoring of AuRu/AC catalyst activity by simply washing with the solvent evidenced that in this case deactivation phenomena can be mainly ascribed to strongly adsorbed species. On the contrary,Ru/AC needs an additional high temperature reduction treatment to restore the initial activity,highlighting the beneficial effect of Au in maintaining Ru in the metallic state. In term of selectivity,Ru/AC and AuRu/AC showed very high selectivity to aldehyde (>95%) whereas Pt/AC promotes the over-oxidation to acid and AuPt/AC the formation of the ester. When dioxane instead of toluene was used as solvent,a detrimental effect in term of activity and selectivity was observed. Moreover,the addition of water to dioxane speeds up the reaction rate in all cases. This positive effect in the reaction rate is better evidenced with Pt based catalysts than on Ru ones but concomitantly with the decrease in aldehyde selectivity an increase to the acid selectivity is observed.
TEM characterisation was carried out in KIT and sponsored by Karlsruhe Nano Micro Facility (KNMF).
