The size of nanoparticles (NPs) plays a crucial role in their performance. Smaller particle sizes offer higher surface-to- volume ratios,and thus,larger amounts of high energy sites on surfaces. For example,controlling the size of particles used in energy applications can lead to significantly enhanced surface-to-volume ratios and short transport lengths for the mobile charges [ 1 ]. Nano-sized NiO showed a higher capacity and energy efficiency in lithium-ion batteries when compared with sub-micro-sized NiO [ 2 ]. The reduced particle size was responsible for the reduction in the charge-discharge hysteresis loop,and thus,higher reversible capacity and more stable cycle performance. Exceptional behaviors may also emerge at specific size ranges or in particular particle shapes [ 3 ]. For instance,it is well known that Au is highly active for low-temperature CO oxidation when the size of the Au particles is in the range 2-5 nm [ 4, 5 ].
Iron family metals (Fe,Co,Ni) are attracting more and more interest for their low prices and excellent performance in catalysis,such as hydrogenation [ 6 ],CO oxidation [ 7 ],alcohol oxidation [ 8 ],and electrochemistry [ 9 ]. The preparation of size-controllable Fe,Co,and Ni metal/metal oxide NPs can contribute much to the design of highly active non-noble catalysts. For Fe catalysts used in Fischer-Tropsch (FT) synthesis,the specific activity may increase 6 to 8-fold while the average iron carbide size decreases from 7 to 2 nm [ 10 ]. However,for Co catalysts,the specific activity of FT processes does not depend on the Co particle size when in the range 9-200 nm. For particles smaller than 7 nm,larger Co particles result in increased turnover frequency and C5+ selectivity [ 11 ]. Yang et al. [ 12 ] reported that Co NPs dispersed in the mesoporous carbon exhibited a higher selectivity with decreasing particle size in the CO hydrogenation reaction. Pina et al. [ 13 ] reported that the hydrodechlorination of aromatic compounds over Ni/SiO2 catalysts was dependent on the Ni particle size. Larger particles favor the specific Cl removal,owing to the intrinsic electronic properties and metal/support interactions.
Graphene is widely used as an excellent support for highly dispersed metal nanocatalysts owing to its excellent electronic,thermal,and mechanical properties and high surface area [ 18 ]. Graphene oxide (GO),a derivative of graphene,possesses abundant oxygen-containing groups and defects,making it suitable for anchoring NPs. The resulting nanocomposites are promising in catalysis [ 19, 20 ],energy conversion and storage [ 21, 22 ],electronics and sensors [ 23 ]. A number of methods have been used to synthesize graphene-metal nanoparticle composites. The simplest approach is the direct growth from metal precursors on the surface of GO by electrostatic interaction at elevated temperatures [ 24 ]. The oxygenated functional groups anchor the metal ions for nucleation and GO is reduced during the depletion of the functional groups. In many cases,reducing agents,such as NaBH< sub>4 [ 25 ],L-ascorbic acid [ 26 ],and hydrazine hydrate [ 27, 28 ] were needed to reduce the ions to metal particles. NH3·H2O is commonly employed to aid the hydrolysis of metal ions [ 29 ],followed by reduction or decomposition of the metal hydroxide in a certain atmosphere to obtain metal/oxide-graphene composites. So far,efforts have been made to control the sizes of Fe,Co,and Ni NPs supported on graphenes by varying the starting precursor concentration [ 30 ],reaction time [ 31 ],annealing temperature [ 32 ],and the thickness of the additive agents [ 33, 34 ]. However,the composites obtained by the above methods differ not o nly in the particle size,but also the metal loading,materials composition,and the reduction degree of GO.
When GO is used as a support,the abundant oxygen- containing groups on its surface provides sufficient absorbing and nucleation sites for metal ions. Thus,the dispersion of the supported NPs can be controlled by adjusting the amount of the functional groups. Our previous studies showed that metal oxide NPs can be dispersed on carbon nanotubes (CNTs) by a H2O2 homogeneous oxidative precipitation (HOP) method [ 8 ],in which ultrafine oxide particles can be easily loaded on CNTs under mild conditions,without using any surfactants or corrosive reagents and without any emissions from the process except water. Herein,we present Fe,Co,and Ni metal oxide NPs grown on reduced GO (RGO) with the H2O2 HOP method. By comparing with direct impregnation and ammonia- catalyzed hydrolysis,the influence of the deposition method on the particle size distribution was investigated and their catalytic performances were tested in the oxidation of benzyl alcohol.
As one of the most important reactions for the synthesis of valuable chemical intermediates,the aerobic oxidation of benzyl alcohol in the liquid phase has attracted much research interest. The most commonly used catalysts for this reaction are precious metals,such as Au,Pt,Ru,and Pd [ 41 ]. Some base transition metal (Fe,Co,Ni) catalysts were prepared to replace the noble metals [ 42 ]. The size and shape dependency of catalysts for reaction performance has been discussed [ 43 ],indicating that fine particle sizes (< 5 nm) is favored by the liquid phase benzyl alcohol oxidation. However,the preparation of size-controllable non-precious catalysts and the impact of size have not been investigated clearly and need further research. Therefore,in this paper,the influence of preparation conditions on the metal NP size and the size effect on the alcohol oxidation performance will be studied.
Graphite oxide was prepared by a modified Hummers method with natural flake graphite as the carbon source (325 mesh,Alfa Aesar) [ 34, 44 ]. First,3 g of graphite was added to a solution of concentrated H2SO4 (30 mL),K2S2O8 (10 g),and P2O5 (10 g) and heated at 80 °C for 4.5 h. After cooling to room temperature,the mixture was diluted with deionized (DI) water,filtered and dried. The pre-oxidized graphite was added to 120 mL of concentrated H2SO4. Fifteen grams of KMnO4 was added slowly whilst keeping the mixture below 20 °C. The mixture was then stirred at 35 °C for 2 h,diluted with 250 mL of DI water and stirred for an additional 2 h. After adding 700 mL of DI water,30% H2O2 solution (20 mL) was injected dropwise. The color of the solution turned to a bright yellow. The product was collected by filtration and washed by 1 L of H2O/HCl solution (10:1,v/v). The product was then re- dispersed in DI water at 8 g/L and dialyzed for 1 week until the dialysate pH was neutral,to obtain graphite oxide. GO was prepared by exfoliating graphite oxide in DI water using sonication for 2 h. The concentration of the suspension was 1 mg/mL.
To prepare FeOx/RGO,15 mL of 12 mmol/L FeSO4 aqueous solution was added into the GO/H2O suspension dropwise while stirring. After ultrasonication for 2 h,the suspension was stirred at room temperature overnight for ion exchange. Subsequently,1.6 mL of H2O2 aqueous solution (30 wt%) was added to the suspension dropwise,followed by stirring at 80 °C for 4 h to obtain the Fe(OH)x/GO precursor. The solids,denoted here as Fe(OH)x/GO-HP,were collected by centrifugation and lyophilization. For comparison,the impregnated sample,denoted as Fe(OH)x/GO-I,was prepared without adding H2O2. We also used 0.1 mL NH3·H2O solution (25 wt%) to assist the hydrolysis of Fe2+ and form the metal hydroxide precursor on GO. The resulting composites were denoted as Fe(OH)x/GO-N. Similarly,Co(OH)x/GO-HP,N,I and Ni(OH)x/GO-HP,N,I were prepared by substituting Co(OAc)2·4H2O or Ni(OAc)2·4H2O for FeSO4·7H2O with the same concentration. The hydroxide precursors were heated rapidly (~80 °C/min) to 500 °C in Ar and reduced in 10% H2/Ar at that temperature for 2 h. After cooling to room temperature and exposing to air,the resulting composites,denoted as MeOx/RGO (Me = Fe,Co,Ni),were obtained. Table 1 lists the nomenclature,metal oxide loadings,and textural properties of the catalysts used in this work.
Low- and high-resolution transmission electron microscopic (HRTEM) images were taken on FEI Tecnai G2 12 and JEOL JEM-2010 transmission electron microscopes operated at 100 and 200 kV,respectively. Fourier transform infrared (FTIR) spectra were recorded in the 4000-400 cm−1 region on a Nicolet 6700 spectrometer by pelletizing with KBr. X-ray photoelectron spectroscopy (XPS) was performed on an Axis Ultra DLD (Kratos) spectrometer equipped with an Al Kα X-ray source. All spectra were calibrated by setting the C 1s signal to the binding energy of 284.6 eV,fitting with Gaussian peaks and subtracting a Shirley type background. N2 adsorption measurements were conducted on a Micromeritics ASAP 2010 apparatus. X-ray diffraction (XRD) data were obtained by a D8 Advance X-ray diffractometer (German Bruker) with Cu Kα radiation (40 kV,40 mA) at a scan rate of 0.02°/17.7 s. The loading of metal oxides was determined by thermogravimetric analysis (TGA) under air from room temperature to 900 °C.
Catalysts (10 mg) were mixed with 5 mL of CH3CN to form homogeneous suspensions by sonication,and then 100 mg benzyl alcohol and 0.4 mL t-butyl hydroperoxide (TBHP,70%) were added. Mixtures were heated in a flask to 80 °C and stirred at 500 r/min under ambient pressure for 1-6 h. The conversion was analyzed on a FuLi 9790 gas chromatograph.

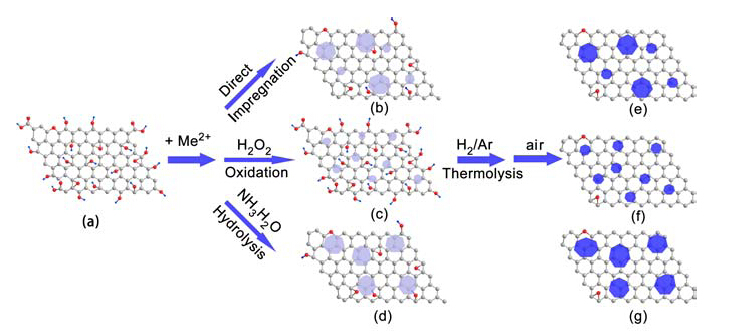

The numbers of defects and oxygen-containing functional groups on the surfaces of GO determine the adsorption and nucleation of metal ions. To controllably form nano-sized particles on graphenes,it is desirable to harness the amount and evolution of the defects and functional groups during the synthesis. Three approaches were conducted to prepare MeOx/RGO nanocomposites,i.e.,the direct impregnation,H2O2 HOP and the hydrolysis with NH3·H2O. Figure 1 illustrates the two-step growth of metal oxide on GO by the three methods. The direct impregnation resulted in the spontaneous oxidation and hydrolysis of precursors on GO while GO was reduced owing to the oxygen exchange between functional groups and adsorbed metal ions [ 45 ]. However,the depletion of oxygen- containing groups may result in inhomogeneity in the nucleation of particles. The final size distribution was determined by the Ostwald ripening in solution and the subsequent H2 reduction step. As a result,some large particles were formed owing to the agglomeration of small nuclei to reduce the system energy. To improve the homogeneity of the formation of nanoparticles,the oxygen-containing groups should be kept abundant on GO surfaces. Based on this idea,hydrogen peroxide was used to increase the number of oxygen-containing groups during adsorption and nucleation. Hydrogen peroxide has been widely reported as an oxidant to modify carbon materials [ 46, 47 ]. By continuously oxidizing the GO surface,new sites for adsorption and nucleation were created a nd thus improved the dispersion. Besides achieving a homogeneous distribution of sites to anchor particles,the formation of nanoparticles can also be tuned by altering the nucleation process. Assisted by ammonia,the precursors hydrolyzed rapidly to form numerous tiny crystallite nuclei in solution,which were subsequently adsorbed and grew on the GO surface.

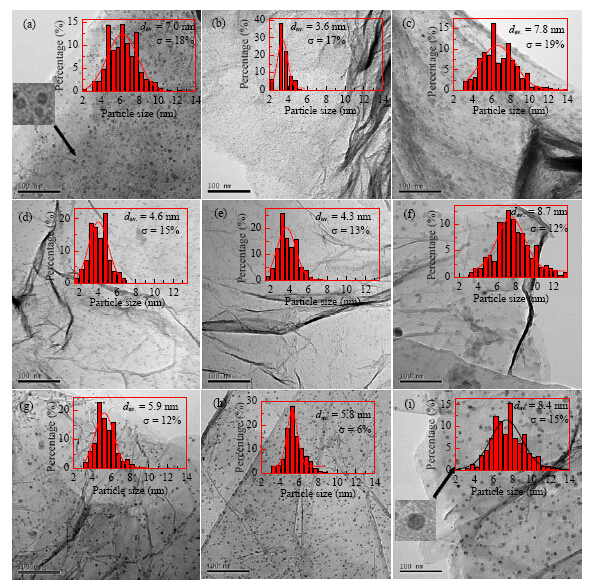

Figure 2 shows the TEM images and size distributions of Fe,Co,and Ni NPs on RGO obtained by the three methods. The wrinkled and transparent sheet structure indicates the presence of thin graphene layers. It was found that the heating conditions during the thermolysis step have great influence on the structure of graphene. When the composites were rapidly heated,the products expanded in the porcelain boat,owing to the gases (CO2,CO) released by the decomposition of oxygen-containing groups. The conventional heating (ramping rate of 10 °C/min) resulted in restacking and agglomeration among graphene sheets,leading to quite a low surface area (< 1 m2/g). The TEM images of FeOx NPs prepared with direct impregnation,H2O2 HOP and NH3·H2O hydrolysis are presented in Fig. 2(a)-(c). The impregnation with FeSO4 generated NPs on RGO with a mean size of 7.0 nm,while aggregates of NPs were occasionally observed. The introduction of oxidative H2O2 effectively improved the homogeneity of NPs. Fine and uniform NPs with an average size of 3.6 nm and a standard deviation (σ) of 17% were formed by the H2O2 HOP method. Speeding up the hydrolysis with ammonia significantly increased the particle size and inhomogeneity. When NH3·H2O was used,the mean diameter of NPs increased to 7.8 nm with a wider distribution (σ = 19%). Similar trends were found in CoOx (Fig. 2(d)-(f)) and NiOx (Fig. 2(g)-(i)) catalysts. These results were consistent with the previous prediction that the highest NP dispersion could be achieved by the H2O2 HOP method,emphasizing the crucial role of oxygen-containing groups of RGO. Meanwhile,the comparative study among the three methods established a library for synthesizing RGO supported NPs with different sizes for diverse applications involving react ions with size effects.
Interestingly,particles with larger diameters exhibited obvious hollow and core-void-shell morphology,as shown in the insets of Fig. 2(a) and (i). They were formed during the process from reduction by air exposure. When metal NPs are exposed to air,small metallic NPs may be completely oxidized to metal oxides [ 48 ]. For larger particles,the nanoscale Kirkendall effect,originating from the mismatched outward diffusion rates of metal cations,led to voids or core-void-shell structures in the particles. The hollow structures offer larger amounts of active sites on the nanoparticles [ 18 ].

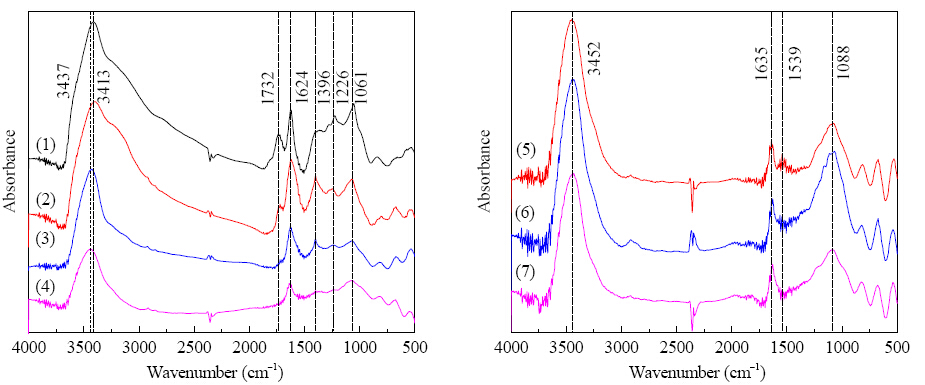

FTIR (Fig. 3) was applied to investigate the variation of oxygen-containing groups on GO during the precursor deposition and thermal reduction. Figure 3(a) shows the abundant functionalities on GO [ 49 ]. The broad and intense absorption band at 3413 cm-1 is from the O-H stretching vibration of absorbed water molecules. The characteristic band at 1732 cm-1 can be assigned to C=O stretching vibration from O=C-H groups. The peak at 1624 cm-1 is attributed to aromatic C=C stretching. The bands at 1396,1226,and 1061 cm-1 correspond to the O-H stretching vibrations of C-OH,C-O of epoxy,and C-O of alkoxy groups,respectively. After Co(OH)x was deposited on GO,most of the IR bands were retained,but the peak intensities of C=O (1732 cm-1),C-OH (1396 cm-1),and epoxy (1226 cm-1) groups decreased,indicating that the metal precursor occupied their positions to form nuclei. As a result,the C=O peak at 1732 cm-1 of Co(OH)x/RGO-N,I (Fig. 3(c),(d)) almost disappeared. However,a stronger C=O peak was observed in Co(OH)x/RGO-HP,demonstrating the effect of H2O2 on in-situ forming oxygen-containing groups as aforementioned. After treating in H2/Ar (Fig. 3(e)-(g)),the absorbance bands at 1732,1396,and 1226 cm-1,which were related to functional groups on GO,had completely vanished and indicated a thorough thermal reduction of GO to RGO. Owing to the 2-D structure of graphenes and the anchoring effect of oxygen-containing groups [ 49 ],the NPs on graphenes can be stabilized to fulfill the requirements of catalytic tests. Taking CoOx/RGO-I as an example,a strong 200 W ultrasonic bath for up to 1 h resulted in a leaching of only 5.7 wt% Co from the catalyst,suggesting the stability of NPs on graphenes.

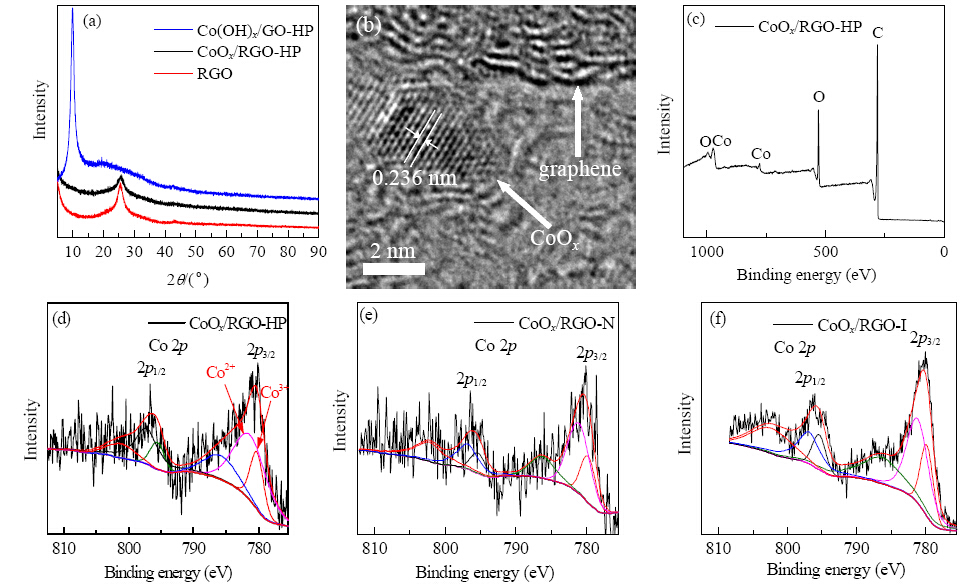

The composition of the Co catalyst was analyzed by XRD (Fig. 4(a)). In the CoOx/RGO-HP composite,no characteristic peaks ascribed to the cobalt phase were detected,suggesting that cobalt oxides formed on RGO were amorphous or very small owing to the line boardening of nano-crystallites [ 50 ]. HRTEM was applied to investigate the structure of the nanoparticles (Fig. 4(b)). Lattice fringes with 0.236 nm intervals corresponded to the (311) facets of Co3O4 or (111) facets of CoO. XPS was used to further determine the oxidation state of cobalt in the composite (Fig. 4(c)). Co was detected on the surfaces of CoOx/RGO-HP at 4.2 wt%,which was slightly less than the content determined by TG analysis (6.3 wt%),indicating a high dispersion of the cobalt species. Figure 4(d) shows the high-resolution peaks of Co 2p3/2 and Co 2p1/2 at 780.3 and 796.3 eV,respectively. The existence of Co0 can be excluded where Co0 typically shows a binding energy at ~778.2 eV [ 10 ]. The deconvoluted peak of Co3+ at 779.6 eV and that of Co2+ at 780.6 eV indicated the presence of Co3O4. Meanwhile,the shake-up satellite at 786.3 eV is in accordance with CoO [ 51 ]. Thus,the sample is proposed to be a mixture of 40% Co3O4 and 60% CoO. To rule out the effect of the Co oxidation state on performance,the high-resolution Co 2p spectra of CoOx/RGO-N and CoOx/RGO-I were examined (Fig. 4(e) and (f)). It can be seen that CoOx/RGO-N and CoOx/RGO-I were composed of CoO and Co3O4,with 56% and 57% CoO in the cobalt oxide mixture,respectively,being very close to that of CoOx/RGO-HP. These results indicated that the CoOx/RGO catalysts all had similar composition.

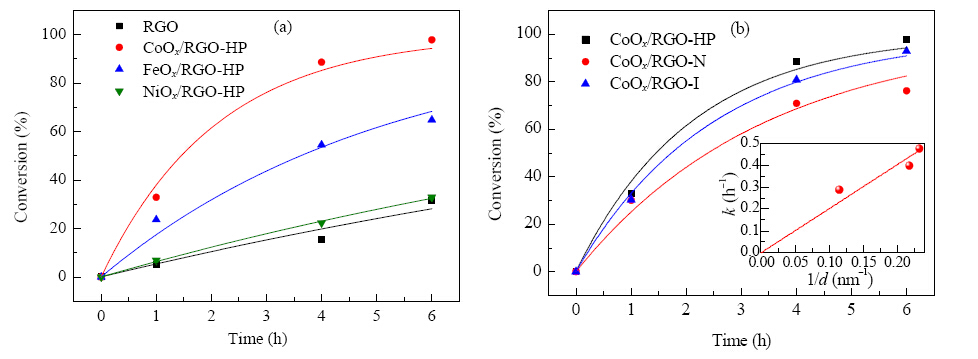

The oxidation of benzyl alcohol was employed as a probe reaction to investigate the performance of the catalysts. CoOx/RGO exhibited nearly complete conversion of benzyl alcohol within 6 h. FeOx/RGO and NiOx/RGO showed moderate and quite low conversions,respectively. The results are in agreement with the previous reports. Co and Fe oxides were reported as the promising catalysts for aerobic oxidation of benzyl alcohol. NiO showed poor activity,while Ni(OH)2 was more efficient than NiO,owing to the formation of Ni-alkoxide on the Ni(OH)2 catalyst [ 52 ]. Owing to the high activity of Co catalysts,the effect of the synthesis method on the activity was investigated for Co catalysts. All CoOx samples exhibited considerable conversion (Fig. 5(b)). The activity decreased in the order CoOx/RGO-HP > CoOx/RGO-I > CoOx/RGO-N and is consistent with the increasing order of Co catalyst particle sizes revealed in Fig. 2. Currently,the precise turnover frequency of the Co catalysts cannot be extracted owing to the lack of information on the amount and structure of the catalytic sites on the oxide surface. However,a comparison can be made by using the reciprocal diameter of catalyst particles as a relative measure
of active sites. As shown in Fig. 5(b),a good correlation between the pseudo-first-order rate constant and 1/d demonstrated that the activity of CoOx catalysts was dependent on the exposed catalytic surface. The highest activity,corresponding to CoOx/RGO-HP,can be ascribed to the small and uniform particle size. In this work,we took the oxidation of benzyl alcohol as a model reaction,where no structural sensitivity was considered. However,it is clear that the particle sizes of CoOx,FeOx,and NiOx can be controlled by using different synthesis methods and that the catalytic activity can be tuned. This phenomenon is important to processes with unique size effects,such as FT synthesis,where extraordinary selectivity and activity were observed for iron and cobalt catalysts. Smaller particle sizes of iron carbide lead to higher methane selectivities in the FT synthesis of lower olefins [ 53 ]. However,larger cobalt NPs in the range of 4-15 nm were found to favor the dissociation of CO in FT reactions [ 54 ]. It is thus expected that the size-controlled Co,Fe,and Ni NP catalysts may be good candidates for numerous catalytic reactions,such as CO oxidation [ 55 ],cathodic oxygen reduction reactions for fuel cells [ 56 ] and Li-O 2 batteries [yes],water-splitting [yes],and benzene hydrogenation [yes].
In summary,the particle sizes and distributions of RGO supported metal oxides can be controlled by maintaining the oxygen-containing groups of GO or adjusting the nucleation speed. The deposition method assisted by H2O2 was optimal for growing highly dispersed iron,cobalt and nickel oxide NPs with mean diameters of 3.6,4.3,and 5.8 nm,respectively. The catalytic relevance of the particle size was demonstrated in the oxidation of benzyl alcohol,showing the crucial role of effective methods for size-controlled nanocatalysts on GO.
