In recent years, there has been renewed interest in the synthesis of solid acid catalysts for use in organic reactions because they exhibit many advantages over traditional liquid mineral acids, including the ease with which they can be recovered and recycled, as well as their efficiency, operational simplicity, and non-corrosive and environmentally friendly nature. All these characteristics represent important factors that need to be considered carefully when selecting a catalytic system for industrial application, and solid acid catalysts could therefore play a significant role in the development of clean synthetic industrial technologies.
Among the various supports available for synthetic reagents and intermediates, such as silica, montmorillonite, organic polymer, and zeolite, polymer-supported reagents have been the subject of increasing levels of attention in organic chemistry because they can be readily separated from the reaction media and recycled, as well as being non-toxic and showing improved levels of selectivity towards various organic reactions. Cross-linked poly(vinylpyridine) (PVPy) is one of the most commonly used heterogeneous polymeric supports in organic chemistry, where it has been used as a support for numerous reagents and catalysts because of its commercial availability, stability, high loading capacity, good swelling characteristics, and good physicochemical properties, as well as the ease with which it can be functionalized [1]. PVPy has also been recognized as an attractive support for the immobilization of mineral acids because of the basic nature of its pyridine groups, and a variety of different PVP-supported reagents have been designed in this context to catalyze a range of organic reactions [2, 3, 4, 5].
Heterocyclic compounds are widely distributed in nature and are essential to life. Coumarins, in particular, are an important class of heterocyclic compounds that have been incorporated into a wide variety of therapeutic agents in the pharmaceutical industry because they exhibit a wide range of biological properties such as anti-bacterial [6], anti-HIV [7], anti-Hepatitis C [8], antitumor [9], and anticancer [10] activity. Biscoumarins, which are the bridged substituted dimers of coumarin, have also been used as anti-inflammatory, anticoagulant, antipyretic, antifungal, anticoagulant, and antiseptic agents [11, 12], as well as urease inhibitors [13]. 3,3'- Arylmethylene-bis-4-hydroxycoumarins are an important class of biscoumarins that are derived from the condensation of aldehydes with 4-hydroxycoumarin, and a variety of different catalysts and reagents have been developed to facilitate this reaction [12, 13, 14, 15, 16, 17, 18, 19, 20].
Indoles represent another important class of heterocyclic compounds because of their broad range of biological activity [21]. Among them, bis(indolyl)alkane derivatives have been the subject of considerable levels of interest because of their numerous applications in pharmaceutical and biological research, where they have been reported to show antitumor [22], antileishmanial [23], antihyperlipidemic [24], and anticancer [25] activity. In light of their potential therapeutic applications, the development of new strategies and methodologies for the synthesis of these compounds continues to attract significant levels of interest from synthetic organic chemists. One of the simplest and most straightforward methods reported for the synthesis of bis(indolyl)methanes [26, 27, 28] involves the condensation of aldehydes with indoles, and a variety of catalysts, including I2 [29], sulfamic acid [30], benzyltriphenylphosphonium tribromide [31], ceric ammonium nitrate [32], [hmim]HSO4 acidic ionic liquid [33], zirconyldodecylsulfate [34], ZrOCl2·8H2O, camphor sulphonic acid [35], PEG-SO3H [36], and succinimide‐ N‐sulfonic acid (SuSA) [37], have been reported for this reaction.
Although these procedures generally provide efficient access to the coumarin and indole structures, many of these catalysts and activators suffer from disadvantages such as their requirement for long reaction times, harsh reaction conditions, and the use of large excesses of toxic reagents. Furthermore, most of these catalysts cannot be recovered and reused. Based on these limitations, there is therefore an urgent need for the development of a simple, efficient, and mild procedure for the synthesis of compounds belonging to these structural classes involving the use of a recyclable solid catalyst system that can be readily separated from the reaction mixture and reused without any discernible loss in its activity.
All the chemicals used here were purchased from Merck, Aldrich, and Fluka and used without further purification. The reaction products were characterized on the basis of their physical properties and through a comparison with authentic samples. The reactions were monitored by thin layer chromatography (TLC) using silica gel SIL G/UV 254 TLC plates (Germany). Infrared (IR) spectra were recorded on a Perkin Elmer 781 spectrophotometer (Germany). 1H NMR spectra were recorded on a Bruker Avance 400 MHz instrument (Germany) and the 13C NMR data were collected on a Bruker Avance 100 MHz instrument. All the chemical shifts from the NMR spectra have been reported relative to TMS using deuterated solvent. Melting points were recorded on a Büchi B-545 apparatus (Germany) in open capillary tubes.

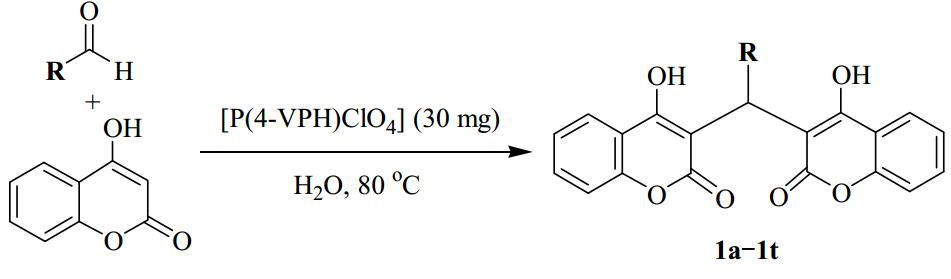

A mixture of 4-hydroxycoumarin (2 mmol), aldehyde (1 mmol), Poly(4-vinylpyridinium) perchlorate ([P(4-VPH)ClO4], poly(4-vinylpyridine) cross-linked with 2% DVB, ~60 mesh, MW 60000; Fluka) (30 mg), and water (5 mL) was placed in a round-bottomed flask and heated at 80 °C. Upon completion of the reaction, as determined by TLC analysis, the mixture was cooled to room temperature and filtered, and the filter-cake was washed with ethanol (10 mL) to give the catalyst. Water was then added to the filtrate until precipitation occurred, and the resulting solid was collected by filtration to give the desired product in high purity. The spectral data of the new compounds are shown below.
Compound 1m.1H NMR (CDCl3, 400 MHz): δ = 2.50 (3H, s, CH3), 6.08 (1H, s, CH), 7.16 (2H, d, J = 8.0 Hz), 7.23 (2H, d, J = 8.4 Hz), 7.39-7.45 (4H, m), 7.6 (2H, td, J1 = 7.6 Hz, J2 = 1.6 Hz), 8.02-8.11 (2H, m), 11.34 (1H, s, OH), 11.55 (1H, s, OH).
Compound 1r. 1H NMR (DMSO-d6, 400 MHz): δ = 6.43 (1H, s, CH), 7.26 (2H, t, J = 7.6 Hz), 7.3 (2H, d, J = 8.0 Hz), 7.56 (2H, td, J1 = 7.6 Hz, J2 = 1.2 Hz), 7. 82 (2H, dd, J1 = 7.8 Hz, J2 = 1.2 Hz), 7.94 (1H, td, J1 = 7.0 Hz, J2 = 2.0 Hz), 8.37 (1H, d, J = 8.0 Hz), 8.66 (1H, s), 8.72 (1H, d, J = 5.2 Hz), 16.93 (bs, OH); 13C NMR (DMSO-d6, 100 MHz): δ = 35.1, 102.9, 116.2, 119.9, 123.6, 124.6, 127.1, 132.0, 139.5, 140.7, 143.3, 145.3, 153.2, 164.5, 168.5.
Compound 1s. 1H NMR (DMSO-d6, 400 MHz): δ = 6.49 (1H, s, CH), 7.23 (2H, t, J = 7.2 Hz), 7.28 (2H, d, J = 8.4 Hz), 7.5 (2H, t, J = 7.2 Hz), 7.81-7.83 (4H, m), 8.6 (2H, d, J = 6 Hz), 16.97 (bs, OH); 13C NMR (DMSO-d6, 100 MHz): δ = 38.3, 101.8, 116.1, 119.8, 123.5, 124.6, 125.7, 131.8, 141.2, 153.2, 164.6, 165.6, 168.6.

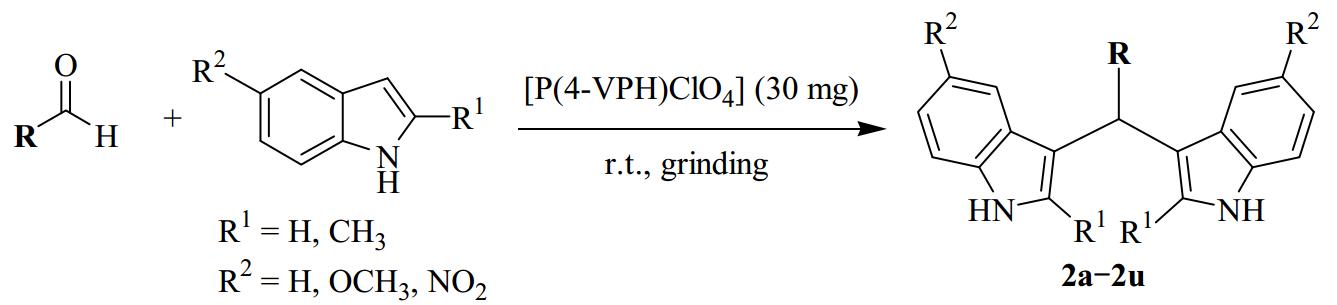

A mixture of aldehyde (1 mmol), indole (2 mmol), and [P(4-VPH)ClO4] (30 mg) was vigorously mixed with a pestle and mortar at room temperature, and produced a syrup-like material that solidified on standing. Upon completion of the reaction (as determined by TLC), ethanol (10 mL) was added to the mixture to precipitate the catalyst, which was collected by filtration. Water was then added to the filtrate until precipitation occurred, and the resulting solid was collected by filtration to give the desired product in high purity. The spectral data for the new compounds are shown below.
Compound 2r. 1H NMR (DMSO-d6, 400 MHz): δ = 3.58 (6H, s, OCH3), 5.94 (1H, s, CH), 6.7 (2H, dd, J1 = 8.8 Hz, J2 = 2.4 Hz), 6.79 (2H, d, J = 2.4 Hz), 6.89 (2H, s), 7.26 (2H, d, J = 8.8 Hz), 7.42-7.47 (2H, m), 7.57 (1H, dd, J1 = 8.4 Hz, J2 = 1.6 Hz), 7.79-7.87 (4H, m), 10.72 (s, NH); 13C NMR (DMSO-d6, 100 MHz): δ = 55.7, 101.9, 111.0, 112.5, 117.9, 124.9, 125.7, 126.3, 127.5, 127.9, 128.0, 128.1, 132.2, 132.3, 133.5, 143.2, 153.2.
Compound 2s. 1H NMR (DMSO-d6, 400 MHz): δ = 6.50 (1H, s, CH), 7.24 (2H, s), 7.57 (2H, d, J = 8.8 Hz), 7.68 (2H, d, J = 8.8 Hz), 8.0 (2H, dd, J1 = 9.0 Hz, J2 = 2.0 Hz), 8.22 (2H, d, J = 8.8 Hz), 8.40 (2H, d, J = 2.4 Hz), 11.9 (s, NH); 13C NMR (DMSO-d6, 100 MHz): δ = 38.4, 112.6, 116.5, 117.3, 119.7, 124.3, 126.0, 128.3, 129.9, 140.1, 140.8, 146.6, 152.3.
Compound 2t. 1H NMR (DMSO-d6, 400 MHz): δ = 3.73 (3H, s, OCH3), 6.15 (1H, s, CH), 6.89 (2H, d, J = 8.4 Hz), 7.12 (2H, s), 7.30 (2H, d, J = 8.8 Hz), 7.55 (2H, d, J = 9.2 Hz), 7.98 (2H, dd, J1 = 9 Hz, J2 = 2 Hz), 8.32 (2H, d, J = 2.4 Hz), 11.67 (s, NH); 13C NMR (DMSO-d6, 100 MHz): δ = 38.1, 55.4, 112.5, 114.2, 116.7, 117.1, 121.4, 126.2, 127.8, 129.6, 136.1, 140.2, 140.6, 158.1.
Following our successful application of [P(4-VPH)ClO4] as a polymer-supported acidic catalyst for the synthesis of biscoumarins, we investigated the application of this catalyst system to the synthesis of bis(indolyl)methanes via the condensation of indoles with aldehydes. The reaction between 4- nitrobenzaldehyde and indole to give the corresponding bisindole was selected as a model reaction for this study and screened under a variety of different conditions to identify the optimum conditions for this transformation. The results revealed that the best results were obtained using a grinding method with 30 mg of the [P(4-VPH)ClO4] catalyst at room temperature under solvent-free conditions (Scheme 3).
With the optimized conditions in hand, we proceeded to investigate the scope of this method by reacting a broad range of aromatic and heterocyclic aldehydes with different indole derivatives, including indole, 2-methyl indole, 5-nitro indole, and 5-methoxy indole under the optimized conditions to give the corresponding bis(indolyl)methanes in high yields over short reaction times (Table 2). Aromatic aldehydes containing electron-withdrawing (i.e., Cl, Br, and NO2) or electron- donating (i.e., OCH3 and OH) groups, as well as α,β-unsaturated (i.e., cinnamaldehyde), polycyclic aromatic (i.e., 2-naphthaldehyde), and heterocyclic (i.e., indole-3-carbaldehyde and isatin) aldehydes, all reacted smoothly with indole in the presence of the [P(4-VPH)ClO4] catalyst to give the corresponding products in good yields over short reaction times (Table 2, entries 1-13). This method was also found to be applicable to the dialdehyde terephthaldialdehyde, which reacted successfully with four equivalents of indole to give di-bis(indolyl)methane in good yield (Table 2, entry 14). 2-Methyl indole, 5-methyl indole, and 5-nitro indole were also successfully converted to the corresponding bis(indolyl)methanes under the optimized conditions (Table 2, entries 15-20). It is clear from the results that indoles bearing an electron-donating substituent (i.e., CH3 and OCH3) were converted to the desired products over a shorter reaction time than indoles bearing an electron-withdrawing substituent (i.e., NO2). Furthermore, the application of the optimized reaction conditions to ketones such as acetophenone did not result in any reaction, which highlighted the chemoselectivity of the current protocol towards aldehydes, which are more reactive than ketones because of their higher electrophilicity (Table 2, entry 21).

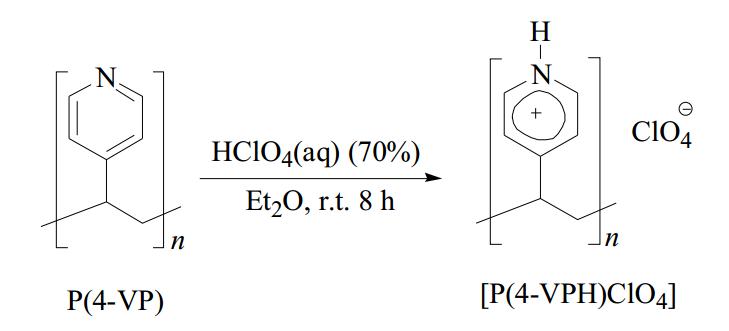

As part of our ongoing research into the application of solid acid catalysts in organic reactions [38, 39, 40], and in light of the growing interest in the use of indole and coumarin derivatives in medicinal chemistry, we recently became interested in investigating the use of the newly reported polymer-based solid acid catalyst [P(4-VPH)ClO4] (Scheme 1) [41] for the synthesis of 3,3'-(arylmethylene)bis(4-hydroxycoumarins) and bis (indolyl) methanes.
At first, we focused our attention on the synthesis of biscoumarin compounds using the [P(4-VPH)ClO4] catalyst, and the reaction between 4-nitrobenzaldehyde and 4- hydroxycoumarin to give the corresponding biscoumarin was selected as a model reaction to optimize the reaction conditions, including the amount of the catalyst, solvent, and reaction temperature. Several different solvents were screened against the model reaction, including dichloromethane, diethyl ether, ethanol, and water, which gave the best results in terms of the yield and reaction time. Following a period of screening, the optimal reaction conditions for the model reaction were determined to be 1 mmol aldehyde, 2 mmol 4- hydroxycoumarin, and 30 mg of the [P(4-VPH)ClO4] catalyst in 5 mL of H2O at 80 °C, as shown in Scheme 2. It is noteworthy that further increases in the amount of catalyst or temperature did not lead to any improvements in the reaction time or yield.
With the optimized conditions in hand, we proceeded to investigate the general scope and acceptability of this method using a variety of simple and readily available aldehydes (Table 1). Pleasingly, a wide range of aromatic aldehydes containing an electron-withdrawing (i.e., Cl, Br, and NO2) or electron- donating (i.e., CH3, OCH3, N(CH3)2, SCH3, and OH) group at the ortho, meta, or para position of their benzene ring were readily converted to the corresponding 3,3'- (arylmethylene) bis(4- hydroxycoumarins) in good to excellent isolated yields over short reaction times under the optimized conditions (Table 1, entries 1-14). The results revealed that the nature of the substituent on the aromatic ring did not have a significant effect on the yields or reaction time, although ortho substituted benzaldehydes tended to require longer reaction times because of steric hindrance (Table 1, entries 2, 9, and 14). The α,β- unsaturated aldehydes cinnamaldehyde and 2- nitrocinnamaldehyde also reacted smoothly under the optimized conditions to give the corresponding products in high yields without the isomerization of a double bond (Table 1, entries 15 and 16). The optimized conditions were also successfully applied to several heterocyclic aldehydes, including indole-3- carbaldehyde, pyridine-3-carbaldehyde, and pyridine-4-carbaldehyde, as well as the aliphatic aldehyde 2-phenylpropionaldehyde, with the corresponding products being formed in good yields (Table 1, entries 17-20).
To highlight the merits of our newly developed procedures, we have compared our results for the synthesis of 3,3'- (4- nitrophenylmethylene)-bis-(4-hydroxycoumarin) and 3,3'- (phenylmethylene)-bis-(1H-indole) using the [P(4- VPH)ClO4] catalyst with the results of several other catalytic systems reported in the literature for the same transformation. As shown in Table 3, the newly developed methods avoid some of the disadvantages associated with the other procedures such as long reaction time, harsh reaction conditions, toxic reagents, high temperature, organic solvents, large excesses of reagents, and low yields.
The reusability of the catalyst was also evaluated for both types of reaction. Briefly, the model reactions were studied under the optimized reaction conditions. Upon completion of the reactions, the catalyst was separated by filtration, washed with diethyl ether, dried under vacuum, and used again in the same reaction. This process was repeated over five runs for each type of reaction, and the results showed that the reactions proceeded efficiently to give the desired products without any significant changes in yield of the products. These results therefore clearly demonstrated the practical recyclability of the [P(4-VPH)ClO4] catalyst (Table 4).

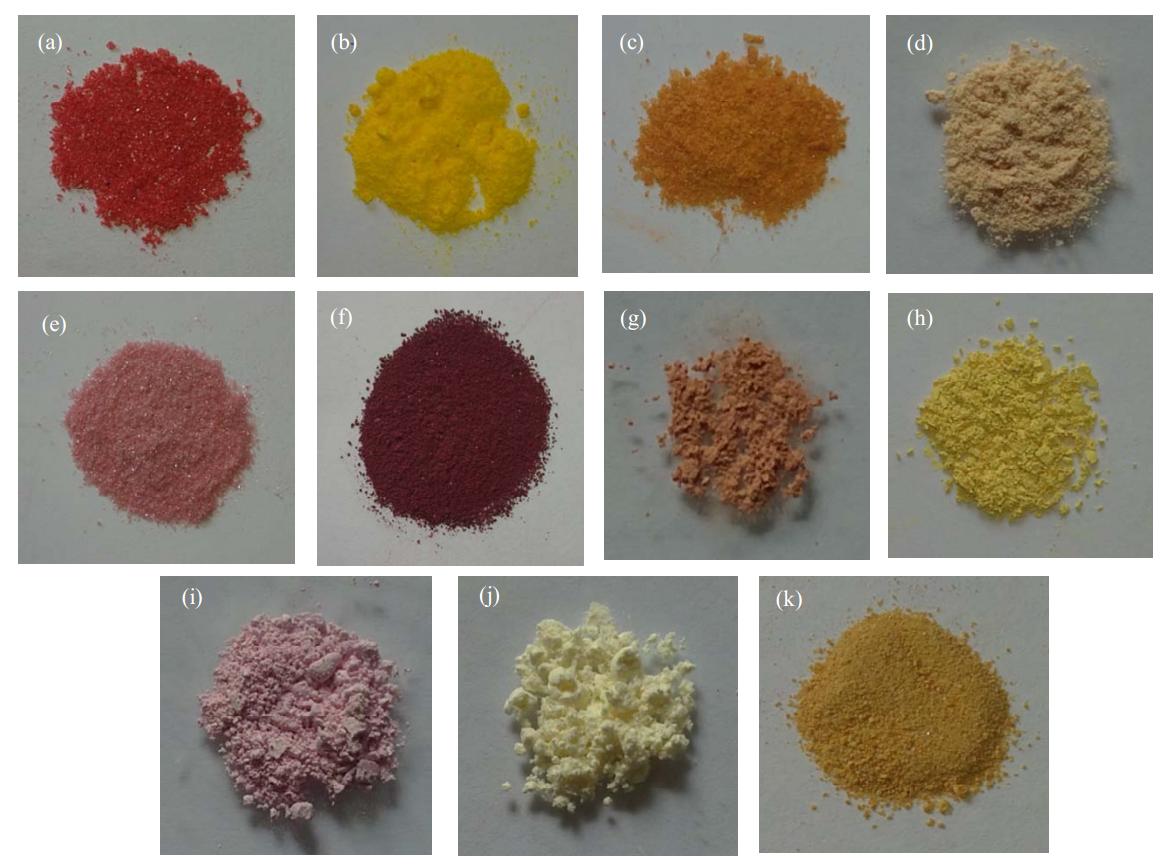

It is noteworthy that most of the bis(indolyl)methane and biscoumarin derivatives were highly colored compounds. The colors of some of these compounds are shown in Fig. 1.
[P(4-VPH)ClO4] has been used as a powerful solid acid catalyst for the simple and efficient synthesis of bis(indolyl) methane and biscoumarin derivatives. There are several advantages to the current procedure over existing catalytic systems, such as high reaction rates, ease of preparation and handling of the catalyst, simple and green experimental procedures, and use of an inexpensive and reusable catalyst. Furthermore, this process avoids the problems associated with the use of organic solvents, high temperatures and liquid acids, and therefore represents an attractive synthetic strategy for the synthesis of bis(indolyl)methane and biscoumarin derivatives from an economic and environmental perspective.
We are thankful to the University of Guilan Research Council for the partial support of this work.
