All the voltammetric measurements were performed using an Autolab PGSTAT 302N potentiostat/galvanostat (Utrecht, the Netherlands) connected to a three-electrode cell, and a Metrohm (Herisau, Switzerland) Model 663 VA stand linked to a computer (Pentium IV, 1,200 MHz). Autolab software was also used. A platinum wire was used as the auxiliary electrode. The MWCNTPE and Ag/AgCl/KCl_sat were used as the working and reference electrodes, respectively. The electrode prepared with CNTs was characterized by scanning electron microscopy (SEM) (Seron Tech. AIS 2100). A digital pH/mV-meter (Metrohm model 710) was used for pH measurements. Spectrally pure graphite powder (particle size < 50 μm) from Merck and MWCNTs (> 90% MWCNTs basis, d × l = (90-70 nm) × (5-9 μm) from Fluka were used as the substrate for the preparation of the carbon paste electrode.

Phosphate buffer (NaH₂PO₄-Na₂HPO₄-NaOH, 0.1 mol/L) solutions (PBS) with different pH values were used.

All chemicals used were of analytical reagent grade and purchased from Merck (Darmstadt, Germany) unless otherwise stated. Doubly distilled water was used throughout. L-cysteine and 3,4-DHCA were purchased from Merck.

Graphite powder (0.900 g) was dissolved in diethyl ether and hand mixed with 0.100 g CNTs in a mortar and pestle. The solvent was evaporated by stirring. A syringe was used to add paraffin to the mixture, which was mixed well for 50 min until a uniformly wetted paste was obtained. The paste was then packed into a glass tube. Electrical contact was made by pushing a copper wire down the glass tube into the back of the mixture. When necessary, a new surface was obtained by pushing excess paste out of the tube and polishing it with weighing paper.

Urine samples were stored in a refrigerator immediately after collection. Each sample (10 mL) was centrifuged for 10 min at 2000 r/min. The supernatant was filtered using a filter (0.45 μm) and then diluted 100 times with universal buffer solution (pH = 7.0). The solution was transferred to a voltammetric cell for analysis without any further pretreatment. The standard addition method was used for the determination of L-cysteine in the real samples.

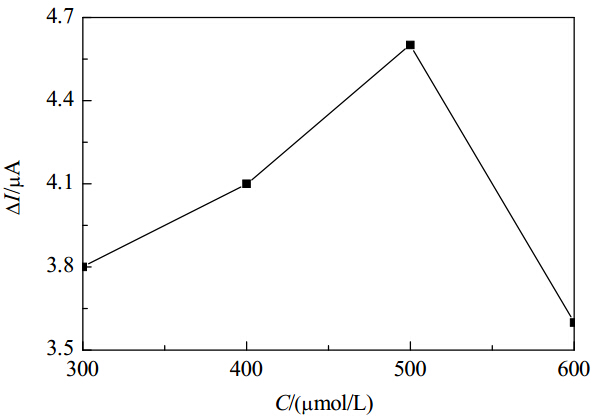

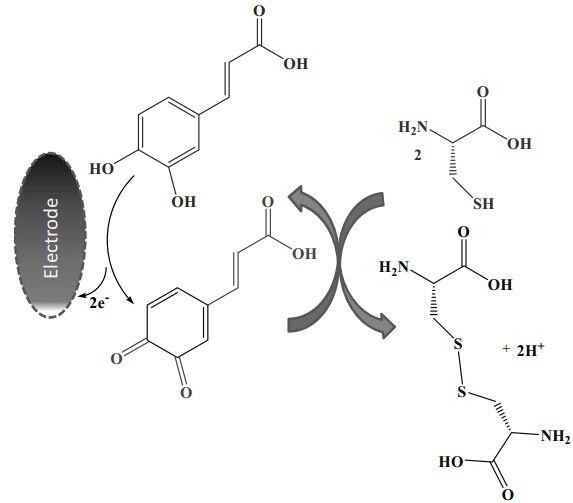

The influence of 3,4-DHCA concentration on the electrocatalytic oxidation peak current was studied at pH = 7.0, and in the range of 300 to 800 μmol/L 3,4-DHCA. As shown in Fig. 1, by increasing the concentration of 3,4-DHCA up to 500 μmol/L the net electrocatalytic peak current increased, whereas higher concentrations of 3,4-DHCA caused a decrease of the magnitude of the peak current, which may be due to the formation of 3,4-DHCA aggregates. Therefore, a 3,4-DHCA concentration of 500 μmol/L was selected for further study.

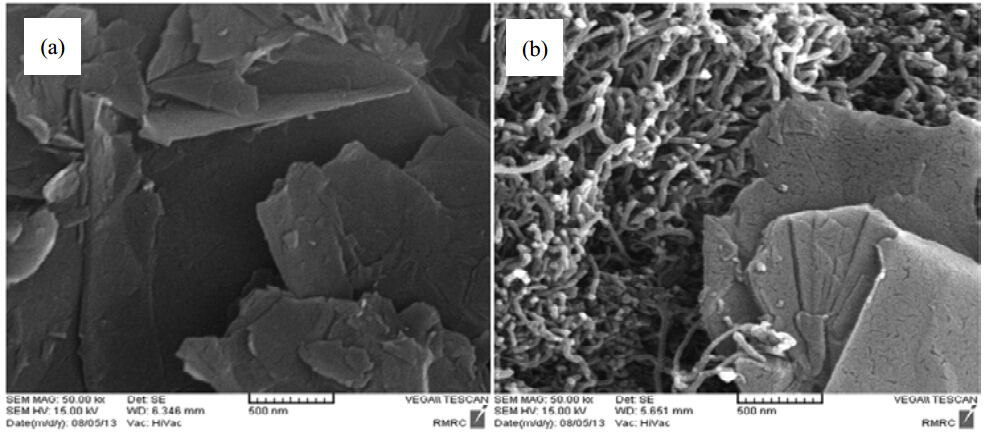

Figure 2 shows SEM images of CPE and MWCNTPE. On the surface of the CPE, a layer of irregular flakes of graphite powder was present and they were isolated from each other. After MWCNTs were added to the carbon paste, the MWCNTs were distributed on the surface of the electrode in a special three-dimensional structure, indicating that the MWCNTs successfully modified the electrode.

The active surface areas of the modified electrodes were estimated from the slope of a I_p vs ν^1/2 plot for a known concentration of K₂Fe(CN)₆, based on the Randles-Sevcik equation:

where I_pa refers to the anodic peak current, n is the electron transfer number, A is the surface area of the electrode, D_R is the diffusion coefficient, C₀ the concentration of K₂Fe(CN)₆, and ν is the scan rate. For C₀ = 1.0 mmol/L in a KCl electrolyte (0.10 mol/L) with n = 1 and D_R = 7.6 × 10^-6 cm/s and from the slope of the I_p-ν^1/2 relationship, the microscopic areas were calculated. The active surface areas were 0.055 and 0.10 cm² for the CPE and the MWCNTPE, respectively. The results show that the presence of the MWCNTPE increased the active surface of the electrode.

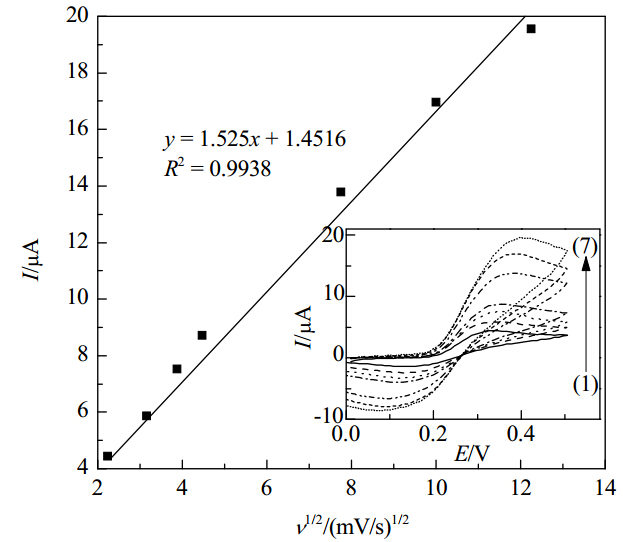

The electrochemical behavior of the mediator was characterized by cyclic voltammetry. Figure 3 (inset) shows cyclic voltammograms of 3,4-DHCA at the modified electrode in PBS (pH = 7.0) at various scan rates in the range of 5-150 mV/s. The experimental results indicate well-defined and reproducible anodic and cathodic peaks related to the 3,4-DHCA(red)/ 3,4-DHCA(ox) redox couple with quasi-reversible behavior and with a peak separation potential of ΔE_p (E_pa - E_pc) = 240 mV. These cyclic voltammograms were used to examine the variation in peak currents versus ν^1/2. The plot of the anodic peak current was linearly dependent on ν^1/2 with a correlation coefficient of 0.9938 at all scan rates (Fig. 3).

To optimize the electrocatalytic response of the sensor to L-cysteine oxidation, we investigated the effect of solution pH on the electrocatalytic oxidation of L-cysteine PBS at different pH values (5.0 < pH < 8.0) using 3,4-DHCA as the mediator on the surface of the MWCNTPE. The influence of pH on both the peak current and peak potential was assessed by examining the electrode response in buffer solutions. The results show that the maximum electrocatalytic current was obtained at pH = 7.0. Therefore, pH = 7.0 was chosen for the determination of L-cysteine at the MWCNTPE in the presence of 3,4-DHCA.

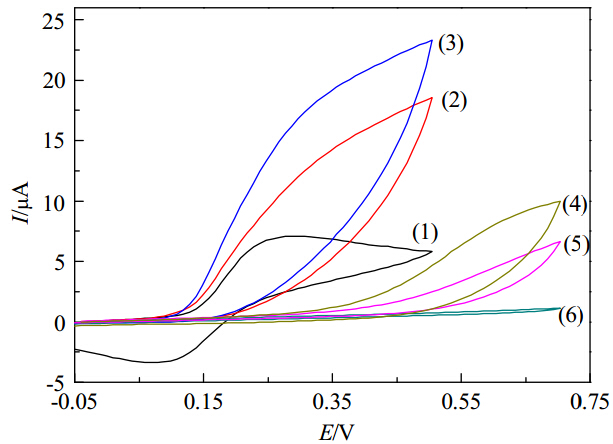

Figure 4(1) shows the voltammetric behavior of 3,4-DHCA in the buffer solution (pH = 7.0). We obtained the cyclic voltammetric response for the electrochemical oxidation of L-cysteine (700 μmol/L) on the surface of the MWCNTPE (Fig. 4(3)), and on the surface of the CPE (Fig. 4(2)) in the presence of the mediator. Conversely, Fig. 4(4) and (5) were obtained in the absence of 3,4-DHCA. These results show that the sensor produces a large anodic peak current in the presence of L-cysteine without a cathodic counterpart (Fig. 4, curves (3) and (2)). The current observed is associated with L-cysteine oxidation and not the oxidation of the modifier, which is shown by comparing the current without L-cysteine with that in the presence of L-cysteine. At the surface of the MWCNTPE and the CPE without a mediator, L-cysteine was oxidized at around 250 mV. The electroactivity of L-cysteine on the MWCNTPE and the CPE in the presence of a mediator was significant (Fig. 4 curves (2) and (3)), with a strongly defined peak potential around 580 mV vs. the Ag/AgCl/KCl_sat electrode. Thus, a decrease in the overpotential and an enhancement of the peak current for L-cysteine oxidation were achieved with the MWCNTPE and the CPE in the presence of the mediator. Such behavior is indicative of an electrocatalytic (EC) mechanism (see Scheme 1) ^{[31, 32, 33, 34]}. Similarly, when we compared the oxidation of L-cysteine on the surface of the MWCNTPE and the CPE with a mediator, a dramatic enhancement of the anodic peak current was apparent for the MWCNTPE versus that obtained for the CPE. In the presence of a mediator, the oxidation of L-cysteine can occur at the potential of the mediator, and the MWCNTs increased its oxidation current. These results clearly showed that the combination of the MWCNTPE and the mediator improved the characteristics of the electrode for the oxidation of L-cysteine.

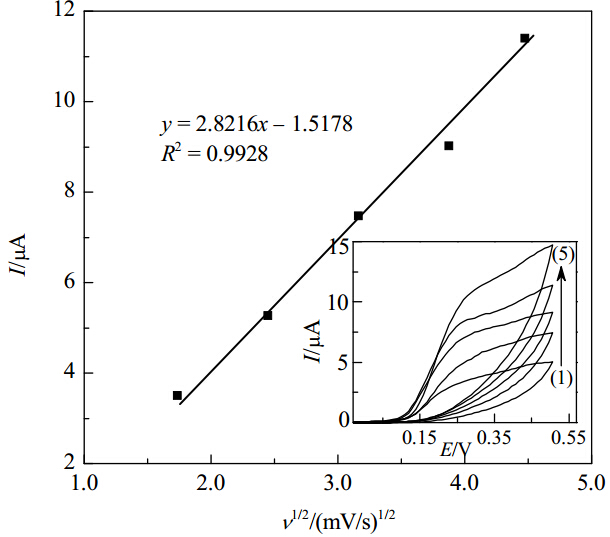

The effect of scan rate on the electrocatalytic oxidation of L-cysteine (700 μmol/L) at the modified electrode was investigated by linear sweep voltammetry (Fig. 5 inset). The oxidation peak potential shifts with increasing scan rate toward a more positive potential, confirming the kinetic limitations of the electrochemical reaction.

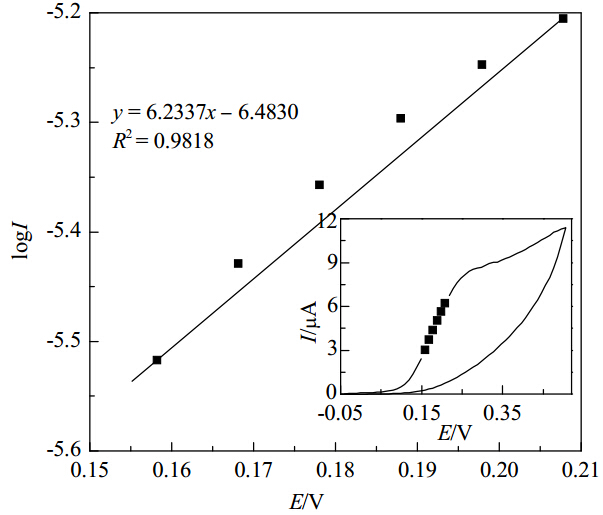

A plot of peak height (I_p) against ν^1/2 in the range 3-20 mV/s was compiled and found to be linear. This suggests that at sufficient overpotential the process is diffusion rather than surface controlled (Fig. 5). To obtain further information on the rate determining step, a Tafel plot was compiled for L-cysteine at the MWCNTPE in the presence of a mediator using the data derived from the rising part of the current-voltage curve (Fig. 6). The slope of the Tafel plot is equal to n(1-α)F/2.3RT, which is 6.2337 V^-1 decade. We calculated n_α to be 0.63, and if it is assumed that n = 1 then α = 0.63.

In addition, the value of αn_α (n_α is the number of electrons involved in the rate-determining step) was calculated for the oxidation of L-cysteine at pH = 7.0 for both the MWCNTPE in the presence and in the absence of the mediator using the following equation:

where E_P/2 is the potential corresponding to I_P/2. The values for αn_α were found to be 0.63 and 0.25 for the MWCNTPE in the presence and in the absence of the mediator, respectively. The results show that the over-potential of L-cysteine oxidation is reduced at the MWCNTPE in the presence of 3,4-DHCA, and that the rate of the electron transfer process is greatly enhanced. This phenomenon was confirmed by the larger I_pa values obtained during the cyclic voltammetry of the MWCNTPE.

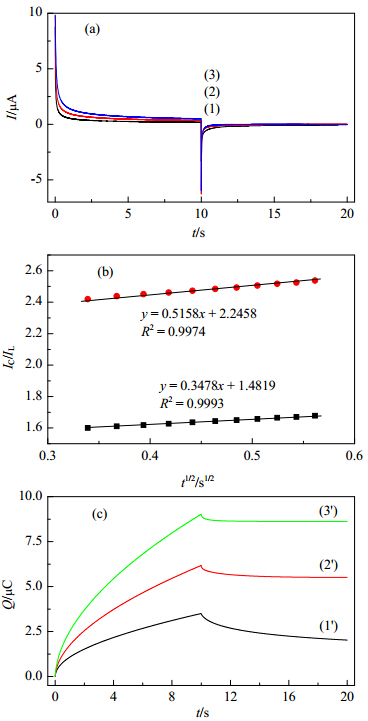

Chronoamperometric measurements of L-cysteine at the MWCNTPE in the presence of the mediator were carried out by setting the working electrode potential to 0.0 V (at the first potential step) and to 0.4 V (at the second potential step) vs. Ag/AgCl/KCl_sat for 200 and 300 μmol/L of L-cysteine in buffered aqueous solutions (pH = 7.0) (Fig. 7(a)). The rate constant (k_h) of the chemical reaction between 3,4-DHCA and L-cysteinewas determined according to the method of Galus ^[35]:

where I_C is the catalytic current of 3,4-DHCA in the presence of L-cysteine and I_L is the limiting current in the absence of L-cysteine. From the slope of I_C/I_L versus t^1/2 for two different concentrations of L-cysteine, the average value of k_h was calculated to be 2.37 × 10² mol^-1 L s^-1 (Fig. 7(b)). This rate constant explains the sharp catalytic peak observed for the oxidation of L-cysteine on the surface of the MWCNTPE in the presence of the mediator.

Figure 7(c) shows double-potential step chronocolougrams for the mediator in the absence and presence of different concentrations of L-cysteine on the surface of the MWCNTPE. The results show that forward and backward potential step chronocoloumetry in a blank buffer solution yields very symmetrical chronocolougrams. These reveal almost equal charge consumption for both oxidation and reduction in the redox system of the mediator on the surface of the MWCNTPE. However, in the presence of L-cysteine, the charge value associated with forward chronocoulometry was significantly higher than that observed for backward chronocoulometry. This behavior is typically expected for electrocatalysis at chemically modified electrodes ^{[36, 37, 38, 39, 40, 41, 42, 43, 44]}.

Linear sweep voltammetry (LSV) was used for the determination of L-cysteine. The LS voltammograms clearly showed a linear dynamic range wherein the plot of the peak current versus L-cysteine concentration was linear for 0.4-115 μmol/L with a regression equation of I_p (μA) = (0.024 ± 0.003)C + (3.0909 ± 0.7021) (R² = 0.9958, n = 9), where C is the concentration of L-cysteine (μmol/L) and I_p is the peak current. The detection limit was determined to be 0.25 μmol/L of L-cysteine according to the definition: Y_LOD = Y_B + 3σ.

Interference studies were carried out using several chemical substances before the application of the proposed method for the assay of L-cysteine in urine and serum. The influence of various substances as potential interference compounds during the determination of L-cysteine (5.0 μmol/L) under optimum conditions was studied. The tolerance limit was defined as the maximum concentration of an interfering substance that caused an error less than 5% for the determination of L-cysteine. The results are given in Table 1, which shows that the peak current of L-cysteine is not affected by any conventional cations, anions, or organic substances.

The repeatability and stability of the MWCNTPE in the presence of the mediator were investigated by LSV measurements of L-cysteine (5.0 μmol/L). The relative standard deviation (RSD%) for five successive assays was 1.5%. When using five different electrodes, the RSD% for the five measurements was 2.5%. When the electrode was stored in the laboratory, the modified electrode retained 96% of its initial response after a week and 93% after 35 d. These results indicate that the MWCNTPE has good stability and reproducibility, and can be used for L-cysteine analysis.

To evaluate the applicability of the proposed method to the determination of HCy in real samples, we analyzed for L-cysteine in water, serum, and urine. The standard addition method was used to measure L-cysteine concentrations in real samples. The proposed method was also compared with a published method ^[2], and the results are given in Table 2. It indicates that the determination of L-cysteine using the electrode is effective and can be applied to the detection of L-cysteine in real samples.
