Rare earth (RE) elements contain the lanthanide elements with atomic number from 57 to 71, and scandium and yttrium, which have similar electronic structures and chemical properties to lanthanide elements. Rare earth elements possess 4f orbitals without full electron occupancy and lanthanide contraction. This characteristic results in theirunique chemical properties when they are used as catalysts or catalytic components. This is especially evident for cerium (Ce) and lanthanum (La). Since the middle of the 1960s, the catalytic performance of RE catalytic materials has been studied widely in the world. Their applications in the chemical processing field include the petroleum chemical industry, the catalytic combustion of fossil fuels, automotive emissions control, the purification of industrial waste air, olefin polymerization, and fuel cells (solid oxide fuel cells). Based on their material composition, RE catalytic materials can be divided into the RE composite oxides, RE-noble metal catalysts, RE-zeolite catalysts, and so on. The presence of RE materials in catalysts can improve their ability to store oxygen, the lattice oxygen reactivity of the materials, and the dispersion of active metals on the supports; reduce the noble metal dosage; and enhance their thermal stability. This leads to a significant improvement in catalyst performance.

The applications and recent progress made with RE catalytic materials or in RE catalysis in several important processes related to energy production and utilization, and in environmental protection have been reviewed in this paper. Relative theoretical research and challenges in the development of novel RE catalytic materials have also been discussed.

Fluid catalytic cracking (FCC) is an important procedure in petroleum refining, in which zeolite catalysts have been used widely because of their high surface area, highly ordered pore structure, high acid density, shape selectivity, and so on. As early as the 1960s, RE-exchanged Y zeolites were used as cracking catalysts instead of amorphous silica-alumina catalyst, thereby increasing the gasoline yield by more than 10%. This has been termed the revolution of the oil refining industry.

The introduction of RE materials into zeolites can be used to adjust the amount and intensity distribution of the acid sites. The amount and method of RE³⁺ introduction influences the zeolite acid properties significantly and results in different zeolite-based FCC catalyst activities ^{[1, 2]}. The high Brönsted acidity of RE-Y is related to its high RE content owing to the hydrolysis reaction, RE³⁺ + H₂O ↔ [REOH]²⁺ + H⁺, that occurs in the zeolitic cavities. For example, there is ~17% RE₂O₃ in RE-Y vs. 6%-7% RE₂O₃ in RE-ultrastable Y (RE-USY) and none in USY (RE = Ce or La), and the RE-Y catalyst exhibits a higher FCC activity ^{[3, 4]}.

FCC catalysts are generally used at high temperatures and in hydrothermal environments in the petroleum industry. These conditions usually induce a decline in the crystal degree, a deterioration of the aluminum leaching framework and even a collapse in the zeolite structure, which results in a deactivation of zeolite-based FCC catalysts. The introduction of RE materials into the zeolite results in a retention of the aluminum framework and an improved zeolite structure stability ^{[5, 6, 7, 8]}. As shown in Fig. 1, La³⁺ has replaced Na⁺ or H⁺ in the Y zeolite and is situated inside the β cage ^[8]. As a result, it stabilizes the Y zeolite framework and improves the hydrothermal stability.

Fig.1 Distribution of RE3+ inside β cage of RE-Y zeolite [9].

To produce lead-free gasoline, RE-Y cracking catalysts with high RE content have transited to RE-exchanged ultrastable Y with low RE content. As a result, the olefin content in the FCC gasoline is high (~40%-45%, and up to 65%), which does not conform to current global requirements for the development of clean fuel. In contrast, compared with Y zeolite, ZSM-5 zeolite has a small pore size and can cause the olefin in the gasoline to crack selectively to C3 and C4 olefins. This increases the propylene content in FCC gasoline, and is accompanied by a decrease in olefin content ^[9]. For the RE-exchanged Y zeolite, the introduction of RE material into ZSM-5 zeolites can also effectively adjust the amount and intensity distribution of acid sites to reduce the olefin content in FCC gasoline ^{[10, 11, 12]}. For example, the ZSM-5 zeolite modified with La possessed more strong acid sites compared with ZSM-5 zeolite. Olefin conversion and propylene selectivity increased in the cracking reaction of FCC gasoline for the La-modified ZSM-5 zeolite, and resulted in an olefin conversion of 74.3%, an olefin mass fraction of 18.2% in cracking gasoline, and a propylene selectivity of 45.9% at 550 °C, at atmospheric pressure and with steam ^[13]. Similarly, in the post-treatment of naphtha using monolithic catalysts with zeolite washcoat, the introduction of RE material into ZSM-5 zeolite by ion-exchange or precipitation could promote the conversion of olefin in naphtha and also increase propylene selectivity. The gaseous products consisted mainly of up to 60% propylene and C4 olefin and the propylene yield was ~31%, while the olefin content in naphtha could be reduced to 15% ^[14].

Table 1 Catalytic performance of Ce/AlPO‐5 for cyclohexane oxidation [20]. Catalyst Time (h) Atmosphere (MPa) Conversion (%) Selectivity (%) Cyclohexanol Cyclohexanone AlPO-5 4 N2/0.5 — — — Ca(A)/AlPO-5 4 N2/0.5 — — — Ca(A)/AlPO-5 4 O2/0.5 13.5 42 50 Ca(A)/AlPO-5a 4 O2/0.5 13.0 40 51 Ca(B)/AlPO-5 4 O2/0.5 12.0 35 58 Ca(C)/AlPO-5 4 O2/0.5 11.5 30 60 Mn/AlPO-542 24 Air/1.0 6.0 19 43 Mn/AlPO-542b 24 Air/1.0 16.5 20 43 CeO2 4 O2/0.5 7.0 30 52 Reaction conditions: 18.5 mmol cyclohexane, 10 mg catalyst, at 140 °C. a After using repeatedly 4 times. b Small amounts (3 wt% cyclohexane) of hydroquinone (free-radical scavenger) added.

Table 1 Catalytic performance of Ce/AlPO‐5 for cyclohexane oxidation [20].

In addition to their irreplaceable role in zeolite-based FCC catalysts, RE elements are also important co-catalysts, and play an important role in ethanol catalytic dehydration to ethylene ^[15], lactic acid dehydration to acrylic acid ^[16], the direct transformation of n-butane to iso-butene ^[17], double bond position isomerization ^[18] and the acylation of toluene ^[19]. RE materials can also be used as the main active component in many catalysts. For example, Ce/AlPO-5 showed high catalytic performance in the oxidation of cyclohexane without solvent. As shown in Table 1, at 0.5 MPa O₂ and 140 °C for 4 h, the conversion of cyclohexane was 13.5%, and the total selectivity of cyclohexanol and cyclohexanone was above 92%. However, trace amount of oxidative products were detected over the pure AlPO-5 catalyst ^[20]. Similarly, almost 13% cyclohexane conversion can be achieved over the Gd-AlPO-5 catalyst at 0.5 MPa O₂, 140 °C and 4 h reaction. The total selectivity to cyclohexanol and cyclohexanone was up to 92% ^[21].

The catalytic combustion of natural gas has been attracting the most attention among natural gas, liquefied petroleum gas, and coal gas. Catalysts for the combustion of natural gas can be classified as follows: (1) supported noble metal (Pt, Pd) catalysts, (2) supported non-noble metal (Ni, Co, Mn, Cu, and Fe) oxide catalysts, and (3) composite oxide catalysts (perovskite, spinel, and hexaaluminate containing the RE elements). Among these catalysts, supported noble metal catalysts, especially Pd, are recognized as the best catalysts for the catalytic combustion of natural gas ^{[24, 25]}. Recently, Cargnello et al. ^[26] exploited modular Pd@CeO₂ core-shell subunits on functionalized Al₂O₃ (Fig. 2). The special configuration of the hierarchical catalyst led to exceptionally high performance for the catalytic combustion of methane with reduced amounts of Pd and ceria (CeO₂). The complete conversion of CH₄ was observed for a gas stream of 0.5 vol% CH₄ and 2.0 vol% O₂ in Ar at a space velocity of 200000 ml g⁻¹ h⁻¹ at ~400 °C. However, the nature and character of the support affects the interaction between Pd and the support significantly, and results in different catalyst activities for methane combustion ^{[27,28,29,30]}. Although PdO particles dispersed on the oxide support exhibit the highest activity for methane combustion, they still suffer from deactivation at high temperature (above 700 °C) because of the formation of metallic Pd from PdO particles ^[31]. One possible approach for avoiding the formation of metallic Pd is to disperse Pd on reducible supports, such as CeO₂ ^{[32, 33]}. Hoflund et al. ^[34] tested the effect of semiconductor properties of CeO₂ on the reactivity of Pd/CeO₂ for methane oxidation, and the reactivity order was obtained as follows, Pd/nanocrystalline CeO₂ > nanocrystalline CeO₂ > Pd/polycrys talline CeO₂. Furthermore, the incorporation of metal ions with low valency into CeO₂ can increase the oxygen vacancy concentration and mobility, and enhance its catalytic activity for methane combustion ^{[35, 36]}. The non-steady activity behavior of supported noble-metal catalysts used in methane combustion has received little attention, even though methane combustion over the supported noble-metal catalysts has been the subject of a considerable number of recent publications. The introduction of CeO₂ into Pd/Al₂O₃ catalysts can restrain oscillatory behavior from the reciprocal transformation between PdO and Pd in methane combustion, because of the oxygen storage/release capacity of CeO₂ ^[37].

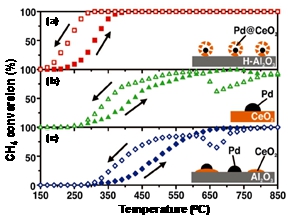

Fig.2 Heating and cooling (10 °C/min) light-off curves of CH4 conversion against temperature for the three catalyst formulations used [24, 25]. (a) Pd@CeO2/Al2O3 core-shell catalyst; (b) Pd/CeO2 prepared by incipient wetness impregnation; (c) Pd/CeO2/Al2O3 prepared by impregnation.

Although supported noble metal catalysts show a high activity for the catalytic combustion of methane, they deactivate gradually at high temperature owing to the sintering or evaporation of noble metals. In contrast, oxide catalysts exhibit excellent thermal stability and have attracted increasing attention.

Hexaaluminate has an excellent structural stability and its activity for catalytic oxidation can be improved when transition metal ions with two or more different charges displace those ions in A and B sites to form A_1-xA*B_xAl_12-xO₁₉ ^{[38,39,40,414243]}. Zarur and Ying ^[44] prepared discrete barium hexaaluminate (BHA) nanoparticles by the reverse microemulsion method, which displayed excellent methane combustion activity, owing to their high surface area and high thermal stability. Light-off of a stream of 1 vol% CH₄ in air at a high space velocity of 60000 h⁻¹ was observed at a low temperature of ~400 °C (Fig. 3) over the CeO₂-BHA nanocomposite catalyst.Similarly, M-RE-Ba-Al-O hexaaluminate prepared by the fibrin template method also showed a high surface area and high thermal stability; after being calcined at 1050 °C for 15 h in a 10% H₂O atmosphere, its specific surface area exceeded 90 m²/g ^[45]. The urea combustion method can reduce the temperature and decrease the time needed to prepare the La _xSr_1-xMnAl₁₁O₁₉ (x = 0.2−0.8) hexaaluminates compared with conventional preparation methods, leading to its higher specific surface area and higher activity for methane combustion ^[46].

Fig.3 Catalytic methane oxidation activities of sol-gel-derived conventional BHA (a), reverse-microemulsion-derived BHA nanoparticles (b), and reverse-microemulsion-derived CeO2-BHA nanocomposite (c). The reactant stream consisted of 1 vol% CH4 in air (space velocity, 60000 h−1) [44].

Perovskite-structured oxide (ABO₃) is another important oxide catalyst for methane combustion, because of its excellent thermal stability. Displacing some of the A or B ions with other metals can improve its catalytic activity, because different metal ion diameters can produce oxygen defects or vacancies. LaMnO₃ and LaCoO₃, as well as doped oxides, are the most representative among the perovskite-structured oxides. Because perovskite-structured oxides are usually prepared at high temperature, their specific surface area is low (≤ 10 m²/g), which affects their activity and limits their application. It has been reported that the catalytic activity of perovskites for methane combustion is linearly dependent on its specific surface area in a certain range of specific surface area values ^{[47, 48]}. Therefore, a technique to increase the specific surface area of perovskite-structured oxide has been of great research interest. One method is to design particular syntheses methods to increase the specific surface area and catalytic activity for methane combustion ^[49,50,51]. For example, ordered mesoporous LaCoO₃ perovskite with a high BET surface area of 96.7 m²/g was synthesized by a nanocasting strategy using ordered mesoporous cubic (Ia3d) vinyl silica as the template ^[52]. This perovskite showed a much higher activity for methane combustion than the conventional bulk LaCoO₃ perovskite. The light-off temperature (T₁₀) and the half-conversion temperature (T₅₀) were 335 and 470 °C, respectively. Furthermore, La_0.5Ba_0.5MnO₃ nanocubes prepared by the hydrothermal method also showed a much higher catalytic activity and thermal stability in methane combustion compared with nanoparticles prepared by the co-precipitation method ^[53]. After running at 560 °C for 50 h under the reaction conditions in methane combustion, the specific surface area of the nanoparticles decreased significantly, but the nanocubes maintained their specific surface area well.

Another route is to support perovskite oxide on supports (such as Al₂O₃, SiO₂, ZrO₂) with high surface area ^{[54, 55, 56]}. Cimino et al. ^[57] supported LaMnO₃ on La/γ-Al₂O₃ washcoated cordierite monoliths by using the deposition-precipitation method and investigated its catalytic activity for the autothermal combustion of lean methane mixtures. After 120 h of reaction at 800-1000 °C, the fresh catalyst maintained its high stability and activity. Yi et al. ^[58] prepared crystalline LaCoO₃ perovskite particles by a novel microwave-assisted process in the host pores of mesoporous SBA-15 silica. The resulting material exhibited considerably higher catalytic activity in methane combustion than the LaCoO₃/SBA-15 sample prepared by a conventional method, owing to a higher density of lattice defects achieved on the high surface area LaCoO₃ nano- crystallites synthesized by the microwave-assisted process.

In recent years, the global automotive industry has developed rapidly and automotive emissions have increased the amount of atmospheric contaminants. Reducing single vehicle emissions and installing catalytic converters are the most efficient methods to control and purify automotive emissions, respectively. Therefore, the development of three-way catalysts with high performance to meet stricter emission standards would be of significant importance.

The composition of automotive emissions depends on used fuel (such as gasoline, diesel oil, liquefied petroleum gas, and compressed natural gas). In the case of diesel emission control, the treatment of particles and NO_x is more difficult than CO and unburned hydrocarbons (HC) ^{[59, 60, 61]}. When using compressed natural gas or liquefied petroleum gas as fuel, although the emission of CO and HC is much lower than that of ordinary automobile gasoline, NO_x treatment is insufficient ^{[62, 63, 64]}. For the treatment of exhaust emission from lean-burn gasoline engines, the main difficulty is the selective reduction of NO_x under oxygen-rich conditions ^[65].

Based on developmental trends, challenges in the development of purification catalysts for automotive emissions are as follows: (1) to improve the selectivity of NO_x reduction for a wide range of air-fuel (A/F) ratios, especially under oxygen-rich conditions; (2) to lower the ignition temperature and reduce pollutant emissions during cold startup, and for this purpose, close-couple catalysts and catalysts for HC compound sorption have been developed ^{[66, 67]}; and (3) to improve the endurance and high temperature stability of the catalysts. Nishihata et al. ^[68] prepared the Pd-perovskite catalyst LaFe_0.57Co_0.38Pd_0.05O₃ by the alkoxide method. Pd can move reversibly into and out of the perovskite lattice when the catalyst operates alternately between the oxidative and reductive atmospheres that are encountered typically in exhaust gas. This movement suppresses the growth of metallic Pd particles, and hence the catalyst retains its high activity during long-term use and ageing, as shown in Fig. 4.

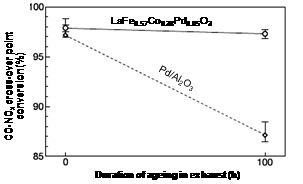

Fig.4 Change in catalyst activity during ageing showing ageing dependence of the CO-NOx cross-over point conversion for LaFe0.57Co0.38Pd0.05O3 (Pd-perovskite catalyst and impregnated Pd/γ-Al2O3 catalyst) [65].

Three-way catalysts for automotive emission control are made up of three constituents: the catalyst support (cordierite honeycomb support, metal support), washcoating (or active coating, the second support, which is composed mainly of Al₂O₃, BaO, CeO₂, and ZrO₂), and active components (Pd, Pt, Rh). RE oxides have been used widely as catalysts for automotive emission control, since catalysts containing RE materials were developed to reduce automotive emissions by Libby in 1971. CeO₂-ZrO₂ solid solution (CZO) is an important constituent in three-way catalysts, and it can enhance the oxygen storage ability; widen the operating window; improve the thermal stability of washcoating with large specific surface area; and improve the dispersion, anti-poisoning, and long-lasting properties of noble metals ^{[69, 70, 71]}. Therefore, CeO₂-ZrO₂ solid solutions are studied most intensively to improve their oxygen storage ability and thermal stability.

The oxygen storage capacity (OSC) of CZO comprises two parts: the total OSC and the dynamic OSC. To date, more attention has been given to studies of the total oxygen storage capacity of CZO and the influence of factors on its properties (Fig. 5) ^{[72, 73, 74]}. In general, it is believed that structural homogeneity and pretreatment conditions affect the total OSC of CZO significantly ^{[75, 76]}. In contrast, factors that affect the dynamic OSC of CZO have rarely been studied. The ¹⁸O/¹⁶O isotopic exchange system combined with CO oxidation can be used to evaluate the dynamic oxygen release rate and the OSC ^[77]. Kašpar et al. ^[72] studied the dynamic OSC of the Ce_0.67Zr_0.33O₂ catalyst by CO-He pulses and CO-O₂ dynamic pulses after redox and hydrothermal treatment, and reported that the dynamic OSC was related closely to the specific surface area of CZO with the same constituents ^[78].

Fig. 5. Total OSC value of CeO2-zirconia mixed oxides as a function of zirconia content in the specimens: (1) R-CZ, reduced at 1200 °C by CO in the presence of graphite, followed by oxidation at 500 °C in air; (2) S-CZ, attrition-milled in ethanol; (3) M-CZ, heated at 700 °C in air [77].

Stability is another main factor in CZO performance. To improve the stability and OSC of CZO, CZO is often modified with other components to form three- or four-component CeO₂- based oxygen storage materials, such as the CZO that contains La/Pr/Nd/Y/Sm and that was developed by Engelhard and Delphi companies ^[79] and the CZO that contains Al₂O₃ (ACZ) and that was developed by TOYOTA company ^{[75, 80]}. CeO₂-ZrO₂-La₂O₃ (Ce/Zr/La = 1/1/0.06, mol) was also prepared by inverse microemulsion in our laboratory. Its specific surface area can reach 126 m²/g after calcination at 1000 °C, which shows excellent thermal stability ^[81].

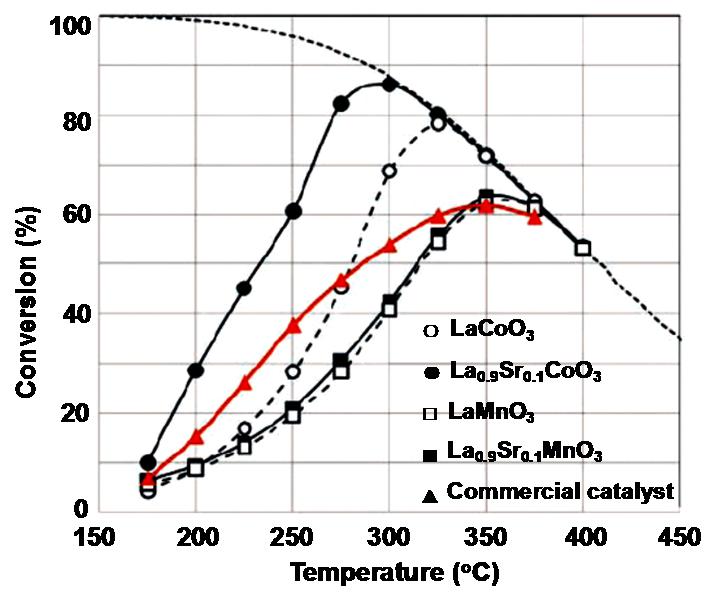

NO_x abatement from diesel engine exhausts is a major challenge. The selective catalytic reduction (SCR) of NO_x with NH₃ (NH₃-SCR) is one of the most promising technologies for NO_x removal from diesel engines. V₂O₅-WO₃(MoO₃)/TiO₂ has been used widely for NO_x removal from stationary sources and has been introduced into the market for diesel vehicles ^[82]. However, this SCR catalyst has at least two drawbacks: the toxicity of vanadium species and the rapid decrease of SCR activity at high temperature. Subsequently, metal-exchanged or loaded zeolites, such as Cu-ZSM-5 and Fe-ZSM-5, have also been studied extensively for NH₃-SCR in recent years ^{[83, 84]}. However, the low SCR activity at low temperature and the poor hydrothermal stability at high temperature limit their practical application. Therefore, significant efforts have been made to develop novel NH₃-SCR catalysts with high SCR activity and N₂ selectivity over a wide temperature range. Recently, Ce-W mixed oxide catalysts that were prepared by homogeneous precipitation exhibited nearly 100% NO_x conversion from 250 to 425 °C for the selective catalytic reduction of NO_x with NH₃ under an extremely high gas hourly space velocity (GHSV) of 500000 h^{-1 [85]}.

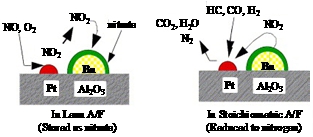

Besides the selective catalytic reduction of NO_x, NO_x storage reduction (NSR) catalysts have also attracted much attention. Takahashi et al. ^{[86, 87]} studied NSR catalysts for the first time, i.e. BaO/Al₂O₃, over which NO_x was adsorbed and oxidized to form nitrates under oxidizing conditions. Subsequently, the adsorbed NO_x was released and reduced to N₂ under reducing atmosphere. NO_x storage and the reduction mechanism of NSR catalysts is shown in Fig. 6. Current research has shown that CeO₂ has a good NO_x storage ability below 400 °C, which broadens the temperature range of the NSR catalysts for NO_x purification of exhaust gas from lean-burn engines. Subsequently, much attention has been given to NSR catalysts using CeO₂ or composite oxides containing Ce as a support. Piacentini et al. ^[88] studied Pt-Ba catalysts supported on Al₂O₃, CeO₂, SiO₂, and ZrO₂. Pt-Ba catalysts supported on CeO₂ and ZrO₂ exhibit high catalytic performance because of their ability to stabilize carbonates. The Ce-Zr composite oxide was also usually used as an NSR catalyst support because of its high thermal stability ^{[89, 90]}. On the other hand, NO oxidation to NO₂ is an important step in NSR, because NO must be oxidized to NO₂ before adsorption on the NSR catalyst storage components. Recently, Kim et al. ^[91] prepared a series of perovskite catalysts including La_1-xSr_xCoO₃ and La_1-xSr_xMnO₃ catalysts by the citrate method. LaCoO₃ and LaMnO₃ catalysts have a high catalytic activity for NO oxidation, and LaCoO₃ is more active than LaMnO₃, as shown in Fig. 7. However, the catalytic activity of LaCoO₃ can be enhanced further by 10 mol% substitution for Sr, over which a NO conversion of 86% was obtained at 300 °C, which represents a higher activity than that of the commercial Pt-based catalyst. The perovskite catalysts also show the potential to substitute Pt-based catalysts in lean NO_x trap catalysts.

Besides automotive emissions, SO_x, NO_x, and volatile organic compounds (VOCs) from industrial processes are the main atmospheric pollutants. The key to solving the emission problem is to develop economic and highly efficient purification techniques, among which catalytic purification is the most effective method.

Flue gas desulfurization techniques can be classified into wet or dry methods on the basis of different desulfurizers. Owing to the limitations of wet desulfurization, dry desulfurization has been developed rapidly in recent years, and RE oxides have been used widely as absorbents or catalysts ^{[92, 93]}. For example, CeO₂/Al₂O₃ has been used as an absorbent to remove SO₂ and NO_x in flue gassimultaneously, and the efficiency of desulfurization and denitrification were both higher than 90% ^[94]. In catalytic oxidation desulfurization, CeO₂ can oxidize SO₂ to SO₃ and adsorb SO_x to form sulfate, and then sulfate converts to elemental sulfur through reduction and the Claus reaction ^[95]. Therefore, CeO₂ has been applied widely in the catalytic oxidation desulfurization of the fluid catalytic cracking unit ^[96]. Concurrently, La or Ce-based composite oxides with perovskite or fluorite-structure have also been studied widely in flue gas reduction desulfurization ^{[97, 98, 99]}.

The catalytic oxidation of VOCs has been considered to be the most effective technique for the purification of organic exhaust gas with high concentration, because of its low operating temperature, high purification efficiency, and no secondary pollutants. In recent years, the catalytic purification of the following organic compounds has been studied: (1) benzene, toluene, and xylene; (2) chlorinated volatile organic compounds (CVOCs); and (3) polycyclic aromatic hydrocarbons (PAHs), such as naphthalene and anthracene. In catalysts for VOC purification, the presence of rare earth elements can improve catalytic activity and thermal stability, and reduce the noble metal dosage. For example, catalysts containing rare earth oxide show higher activities for the purification of chlorinated organic compounds, including catalytic decomposition in the vapor (Fig. 8) ^{[100, 101]} and catalytic combustion at low temperature ^{[102, 103]}.

Fig. 8. Catalytic conversion of chlorinated hydrocarbons over alumina-supported alkaline earth metal and lanthanide oxides [102, 103]. (a) Conversion of CCl4 (1), CHCl3 (2), and CH2Cl2 (3) over alumina- supported alkaline earth metal and lanthanide oxides after 7 h of operation at 350 °C and a GHSV of 800 h−1, the chlorinated hydrocarbon concentrations were 48000, 847000, and 105000 ppm, respectively; (b) Catalytic conversion of CCl4 over 10 wt% La2O3/Al2O3 catalysts in the presence and absence of steam at various reaction temperatures as a function of reaction time (GHSV = 800 h−1 and inlet concentration of CCl4 = 47000 ppm): (1) T = 250 °C, (2) 300 °C, (3) 350 °C, (4) 350 °C; switching off the steam, and (5) T = 350 °C with steam switched on.

Recently, CeO₂ has been found to exhibit a high catalytic activity for the catalytic combustion of chlorinated aliphatic hydrocarbons with low molecular weight and chlorinated aromatic hydrocarbons ^{[103, 104]}. However, its activity diminishes rapidly because of the strong adsorption of HCl or Cl₂ produced from the decomposition of CVOCs on the CeO₂ surface, and a blocking of the active sites. Catalysts used in the catalytic combustion of CVOCs contain noble metals, transition metal oxides, and solid acid catalysts, and transition metal oxide catalysts can generally resist deactivation by chlorine poisoning. Therefore, CeO₂-based composite oxide catalysts were studied and developed to improve the stability and activity of CeO₂ catalysts. For instance, the MnCeO_x mixed oxide prepared by the sol-gel method exhibits a high catalytic activity and stability in the catalytic combustion of chlorobenzene, as shown in Fig. 9 ^{[105, 106]}. The catalytic activity and stability of the MnCeO_x catalyst are related to the particle size of the MnCeO_x solid solution, which has a fluorite-like structure with a large amount of surface oxygen that can adequately supply the oxidation reaction for the final removal of the formed chloride species. After incorporating La into the MnCeO_x solid solution, the stability of MnCeO_x can be improved further, because La enhances the oxygen mobility for the removal of adsorbed Cl species ^[107]. In addition to CeO₂-based composite oxides, Ce-modified zeolites also exhibit high activity for the catalytic combustion of chlorinated hydrocarbon, especially Y zeolite ^{[108, 109]}. The synergy between CeO₂ species and Y zeolite leads to a more suitable combination of acidity and redox properties, and results in an enhancement of its catalytic activity. Furthermore, the addition of CeO₂ to Y zeolite can adjust the surface acid properties and decrease coke deposition, which improves the durability of the catalysts ^{[110, 111]}.

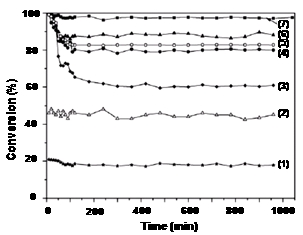

Fig. 9. Catalyst stability tests with different ratios of Mn/Mn+Ce for the catalytic combustion of chlorobenzene at 350 °C [116]. (1) CeO2; (2) MnOx; (3) 0.27; (4) 0.5; (5) 0.69; (6) 0.78; (7) 0.86. Gas composition: 1000 ppm chlorobenzene, 10% O2, balance of N2; GHSV = 15000 h-1.

In the photocatalysts, the incorporation of rare earth materials into TiO₂ can also extend light absorption from the ultraviolet to the visible region efficiently, which promotes the efficient application of TiO₂ in air purification for indoor conditions of dim and visible light ^{[112, 113, 114]}. The combination of adsorption materials and photocatalysts can integrate the advantages of adsorption purification and photocatalytic purification, and thus provides a breakthrough for air purification techniques with high efficiency.

Fuel cells can transform chemical energy to electrical energy directly with a high energy conversion efficiency, and they are not restricted by the Carnot cycle. However, they hardly emit NO_x and SO_x, and have CO₂ emission that are less than 60% that from ordinary power plants. According to the electrolyte type, fuel cells can be classified into alkaline fuel cells, phosphoric acid fuel cells, proton exchange membrane fuel cells (PEMFCs), molten carbonate fuel cells and solid oxide fuel cells (SOFCs). Because the operating temperature is high (800-1000 °C), and the residual heat can be used in combination with gas and steam turbines, the energy utilization by SOFCs is the highest among the fuel cells. Concurrently, noble catalysts are not required and many kinds of fuels (such as hydrogen, methane, and hydrocarbons) can be used in SOFCs. Therefore, SOFCs have been become very topical in fuel cell research after PEMFCs ^[115]. Park et al. ^[116] prepared SOFCs with Cu-CeO₂ anodes, and their open circuit voltages (OCVs) were 0.9 V in the direct electrochemical oxidation of hydrocarbons (methane, ethane, butane, and toluene) at 700 or 800 °C, in which the final products were CO₂ and H₂O. The key components of SOFCs are mainly electrolyte, cathode, anode, and bipolar plate or interconnecting material (Fig. 10), and the rare earth elements play an important role in all the materials above.

In the case of the SOFC electrolytes, electrolytes with fluorite structure are mainly ZrO₂ that is stabilized with Y₂O₃ (YSZ), Ce-based composite oxides, and Bi₂O₃-based materials. Among these materials, YSZ is the most widely used. Wang et al. ^{[117, 118]} found that adding CeO₂ into scandia-stabilized zirconia (ScSZr) could improve its electrical conductivity significantly. The electrical conductivity of (CeO₂)_0.01-(Sc₂O₃)_0.10- (ZrO₂)_0.89 can reach 0.084 S/cm at 800 °C, while that of YSZ is only ~0.04 S/cm under the same conditions. Bi₂O₃-based materials are one of the oxygen ion conductors with the highest ion conductivity, and their conductivity can also be improved substantially by doping rare earth elements. For example, the conductivity of (Bi₂O₃)_0.8(Er₂O₃)_0.2 can reach 2.3 S/cm at 500 °C, and 37 S/cm at 700 °C ^[119]. Recently, composite oxide electrolytes with perovskite structure have also been developed rapidly, such as LaGaO₃ (La_1-xSr_xGa_1-yMg_yO₃, La_1-xSr_xGa_1-yCo_yO₃) and LnCoO₃ ^{[120, 121]}.

Electrode materials include cathode and anode materials. Cathode materials generally possess the following characteristics: excellent electrocatalytic activity, oxygen semi- permeability, mixed electronic-ionic conducting properties, and thermal expansion coefficient similar to solid oxide electrolyte. RE-based perovskite oxides, such as La_1-xSr_xCo_1-yB_yO₃ (B = Ni, Cu), La_1-xSr_xMn_1-xSc_xO₃, ^{[122, 123, 124]} and Ba_1-xSr_xCo_0.8Fe_0.2O_3-d, ^{[125, 126, 127]} can meet these requirements. Bi-layered composite cathodes of La_0.8Sr_0.2MnO₃(LSM)-YSZ and LSM-La_0.4Ce_0.6O_1.8 (LDC) were also fabricated for anode-supported solid oxide fuel cells with a thin YSZ electrolyte film ^[128]. The cell with bi-layered composite cathode exhibits a better performance than that with the corresponding single-layered composite cathode of LSM-LDC or LSM-YSZ. Anode materials generally possess the following characteristics: a high electrical conductivity, excellent electrocatalytic activity and gas permeability, excellent chemical compatibility, and thermal expansion compatibility with electrolyte materials. The anode of SOFC was mainly a Ni-based metal-ceramic composite electrode including NiO/YSZ and doped materials, such as Ni-Cu-YSZ and Ni-Y₂O₃-ZrO₂-TiO₂. However, Morales et al. ^[129] prepared an oxide anode of lanthanum-substituted strontium titanate (La-SrTiO₃), in which the oxygen stoichiometry was controlled to create phases with considerable disordered oxygen defects and some Ti was replaced with Ga and Mn to increase its redox activity. This anode is applicable in SOFCs for methane oxidation at high temperature, and the OCVs are over 1.2 V, as shown in Fig. 11.

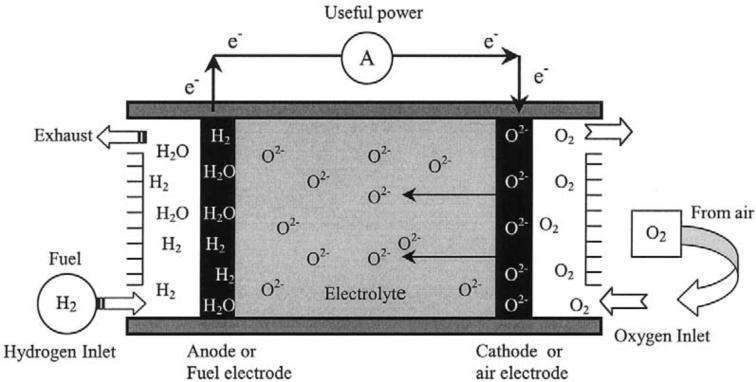

Fig. 10. Conceptual diagram of SOFC based on oxygen-ion conductors [129].

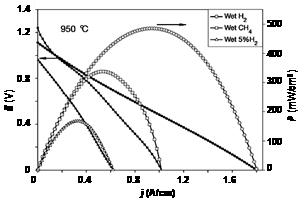

Fig. 11. Fuel cell performance plots for different fuel gas compositions each containing 2.3% water at La4Sr8Ti11Mn0.5Ga0.5O37.5 anode on a 330-µm-thin YSZ electrolyte, with La0.8Sr0.2MnO3 cathode in unhumidified oxygen [133].

Interconnecting materials are mainly alloys (Ni-Cr) with high temperature resistance and doped perovskite-type composite oxides (La_1-xCa_xCrO₃ or La_0.8Sr_0.2Cr_0.9Ti_0.1O₃) ^{[130, 131]}. To avoid the shortcomings of composite oxides, i.e. inferior sintering properties and their being difficult to shape, oxide-alloy composite interconnecting materials have attracted more attention, such as (La, Sr) CoO₃ thin film/Fe-Cr alloy and LCC/stainless steel.

Theoretical research on RE catalysis by simulation involves mainly the crystal and surface properties, and OSC of rare earth oxides (mainly CeO₂), as well as the interaction between the rare earth oxides and noble metals. The crystal properties of CeO₂ have been studied extensively using different theoretical methods, such as the interatomic potential function, generalized gradient approximation based on density functional theory (DFT), local density approximation based on DFT, DFT with a correction for on-site Coulomb interactions (DFT+U), and Hartree-Fock theory. The DFT methods used to calculate the electronic structures of CeO₂ include: (1) the core-state model (CSM), in which Ce-4f electrons, as a part of the core, do not participate in bonding; (2) the valence-band model (VBM), in which Ce-4f electrons participate in bonding as valence electrons ^[132]; (3) DFT+U, in which the Hubbard-U Coulomb correction term is introduced on the basis of the VBM. The CSM can describe the structural properties and the electronic structure of Ce₂O₃, but it is not applicable to CeO₂. In contrast, the VBM can describe the structural properties of CeO₂, but it cannot describe the electronic structure of Ce₂O₃ and partially reduced CeO_2-x. In a combined CSM and VBM, the distribution and addition of Ce³⁺ and Ce⁴⁺ in CeO_2-x must be determined artificially, and the structural properties of CeO₂ are difficult to determine accurately. The introduction of Hubbard-U into DFT breaks the symmetrical distribution of 4f electrons around Ce⁴⁺ to favor a localized distribution of 4f electrons, and then describes the electronic structure of the Ce-O system.

Oxygen species on the surface and in the bulk of CeO₂ can be consumed through reaction with the reactants, which results in the formation of oxygen vacancies. The formation and elimination of oxygen vacancies in CeO₂ occur by the release and storage of oxygen, respectively. Therefore, the oxygen vacancy is an important parameter and active species for CeO₂, which contains the formation and diffusion of oxygen vacancy.

Skorodumova et al. ^[133] found that the formation of oxygen vacancies on CeO₂ was facilitated by a simultaneous condensation of two electrons into localized f-level traps on two cerium atoms. Based on a molecular mechanics study, Consa ^[134] and Sayle et al. ^[135] suggested that oxygen vacancies formed easily on the CeO₂ surface and were more stable on (110) and (211) than on (111) facets. However, Yang et al. ^[136] revealed that the preferred vacancies were located in the subsurface layer (the second O-atomic layer) for the CeO₂ (111) facet compared with the top-surface layer. Esch et al. ^[137] used DFT+U calculations and high-resolution scanning tunneling microscopy (STM) to investigate the local structure of surface and subsurface oxygen vacancies on the CeO₂ (111) facet, and the formation and distribution of oxygen vacancies. The formation energy for two kinds of defects (within 10 meV per vacancy) at the surface and subsurface was found to be equivalent. Recently, we also studied the formation of oxygen vacancies on CeO₂(111) by a DFT+U calculation, and found that the formation of subsurface vacancies were energetically more favored by comparing the formation energies between the top-surface and the subsurface single oxygen vacancy on CeO₂(111) ^[138]. It was suggested that the localized 4f electrons, which were induced by the missing of a single oxygen, distributed at second- rather than at first-neighbor Ce³⁺.

The diffusion of oxygen vacancy is also crucial for the OSC of CeO₂. Namai et al. ^[139] reported on single oxygen vacancy mobility even at room temperature. These results are in contrast with Esch’s observations ^[137] that the direct diffusion of vacancies (i.e., hopping of the lattice oxygen) on this surface requires temperatures above 400 °C. Recently, we revealed a two-step exchange mechanism for the diffusion of oxygen vacancies, which is described in Fig. 12 ^[140]. In this mechanism, a subsurface O near a top-surface O vacancy moves to fill the latter vacancy. A nearby top-surface O then moves to fill the newly formed subsurface O vacancy and in turn, generates a new top-surface O vacancy.

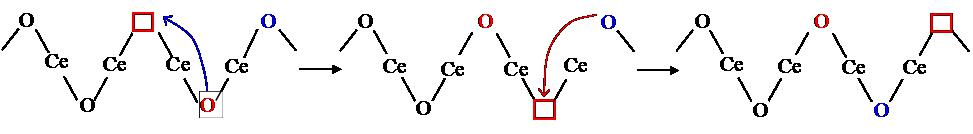

Fig. 12. Two-step exchange mechanism. Red boxes show O vacancies. Blue and red arrows indicate O diffusion from the sub- and top-surface positions to the O vacancies, respectively [145, 146].

The introduction of Zr⁴⁺ in CeO₂ can reduce the formation energy of the surface oxygen vacancy, and vacancy clusters can form without subsurface oxygen vacancies. For example, after the introduction of one Zr⁴⁺ into the CeO₂ bulk with a 96-atom supercell, the O vacancy formation energy is lowered substantially from 3.03 to 2.38 eV when the O vacancy is created next to the Zr dopant ^[141]. Dutta et al. ^[142] considered that the introduction of Zr induced the formation of strong and weak-bonded oxygen, and that the latter was responsible for the higher oxygen storage capacity in the mixed oxides than in pure CeO₂. Our research results based on DFT+U calculations for the formation of O vacancies in a series of Ce_1-xZr_xO₂ materials show that the formation energy of the O vacancy is dependent on the bond energy (E_bond) and relaxation energy (E_relax), as shown in Fig. 13 ^[143]. The relaxation energy is the dominating term and is determined by local topological structures around the O vacancy. On the basis of this model, we can pin down the key properties underlying the outstanding OSC of k-Ce₂Zr₂O₈ at the atomic level ^[144].

Fig. 13. Variations of O vacancy formation energies, EVf, and related electrostatic (Ebond) and structural relaxation (Erelax) terms with respect to ZrO2 molar content in Ce1-xZrxO2 [136].

For the conversion of small molecules over rare earth oxides, Neurock et al. ^{[145, 146]} studied the effect of O^2-, O^-, O₂^2-, point defect, and Sr²⁺-doped surface sites on methane activation over the La₂O₃ (001) facet by DFT calculation. A possible mechanism for the oxidative coupling of methane over the La₂O₃ (001) facet has been suggested, in which surface peroxides are the active oxygen source. Yang et al. ^[136] studied different adsorption forms of CO on CeO₂ (111) and CeO₂ (110) by DFT calculation within the generalized gradient approximation. Nolan et al. ^{[147, 148]} calculated the energies for the conversion of CO to CO₂, NO₂ to NO, and NO to N₂ over the CeO₂ (111), (110), and (100) facets. Lattice oxygen on the (110) facet was the most favorable for the conversion of CO to CO₂, and NO₂ was easily reduced to NO over the (111) facet with oxygen vacancy defects. This is the reason for the higher catalytic activity of CeO₂ nanowires for CO oxidation than that of CeO₂ micro-particles, because the former exposes the (110) and (100) facets preferentially and the latter exposes the (111) facet preferentially.

CeO₂ can be used as a catalyst, and also as a support for the noble metal and transition metal catalysts. To investigate the effect of the interaction between CeO₂ and the noble metals on catalyst activity, Jung et al. ^[149] studied CO adsorption over Pd₄ and Pt₄ clusters supported on the CeO₂ (111) facet, and clarified the effect of the support on CO activation. Liu et al. ^[150] studied the water-gas-shift (WGS) reaction over Au/CeO₂ using DFT calculation (Fig. 14), and found that the presence of empty localized nonbonding 4f orbitals in CeO₂ could promote the conversion of Au to Au^δ+, and enable subsequent CO adsorption. Au^δ+ combined with oxygen vacancies therefore became the active source for the WGS reaction, and Au/CeO₂ was more favorable for the WGS reaction. We studied Au nanoclusters (Au trimer, Au₃) supported on the CeO₂ surface by DFT+U calculation ^[151] and found that Au₃ can adsorb strongly on the CeO₂ surface and reduce the CeO₂ support partially by filling the originally empty 4f orbital of one surface Ce with an electron. Localized 4f electrons can occur at different surface Ce atoms near the Au₃ cluster corresponding to different surface relaxation configurations that are caused by Au₃ adsorption. A calculation of the adsorption of O₂ showed that only the surface Ce atoms at Au₃/CeO₂(110) are capable of binding and activating O₂.

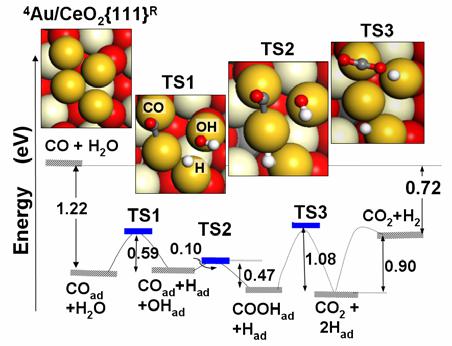

Fig. 14. Overall total-energy profile of CO + H2O → CO2 + H2 reaction on a four-atom Au cluster that anchors on an O vacancy of CeO2 (111) [2].

Rare earth oxides play an irreplaceable role in many important catalysts, especially in solid catalysts or adsorbents, mainly as supports and additives. Although localized f electrons of rare earth elements make mathematical formulations and first-principle calculations difficult, which hinders research into the theoretical simulation of rare earth catalysis, the development of theoretical studies in this field is important and can help us to understand the nature of the rare earth catalysis.

Catalytic science and technology based on catalytic materials are the foundation for modern chemical industry development. Approximately 90% of chemical processes are dependent on catalysts. Every discovery of novel catalytic materials can promote step-change developments in the chemical industry. Therefore, research on catalytic materials is an important area in the chemical industry and in material science. Rare earth materials play an important and irreplaceable role in many catalytic materials, such as in three-way and FCC catalysts, because of their unique properties.

The introduction of rare earth materials into molecular sieves can adjust the amount and intensity distribution of acid sites to improve product distribution, and improve their structural stability. These are important for the practical application of zeolite catalysts for FCC.

For composite oxides, the introduction of rare earth materials: (1) regulates the acid-base properties of the catalyst surface; (2) strengthens the thermal stability of the oxide catalysts, especially their hydrothermal stability; (3) improves the oxide catalyst activity in catalytic combustion through the formation of perovskite-structured or hexaaluminate oxides; (4) increases the conductivity and electrocatalytic properties of the oxide, such as LaGaO₃ and La_1-xSr_xMnO₃; and (5) improves the oxygen storage/release capacity to broaden the operating window of purification catalysts for automotive emissions, such as cerium zirconium solid solution and its derivatives.

In rare earth-noble metal catalysts, rare earth materials also play an important role in (1) improving the activity, selectivity, and catalyst stability, including: (2) improving the dispersion of the active metal, and decreasing the amount of noble metals to reduce catalyst costs; (3) improving poison tolerance and prolonging the catalyst life; (4) enhancing the catalyst coke- resistance; and (5) enhancing the adaptability of the catalyst to a rapid change in oxidation/reduction atmosphere.

Many challenges exist, such as how rare earth materials can play a greater role in catalytic materials, especially energetically and environmentally catalytic materials, as particular functional components or important promoters, and how to exploit their usage in novel catalytic processes or catalysts. For example, do the unique catalytic properties of rare earth elements result from their 4f electrons, and if so, what is the role of 4f electrons? Under what chemical reaction circumstances can rare earth elements better play a role in catalytic materials? What is the interaction mechanism between rare earth elements and other oxides, transition metals or noble metals? With the development of nanotechnology, materials science and modern characterization methods, investigations of the role of rare earth elements in catalytic materials at the molecular or atomic level are becoming possible. This presents new opportunities to design and prepare rare earth catalytic materials with high performance, to develop novel rare earth catalytic materials with an exciting structure and function, and to exploit new application fields.
