Gasoline consumption is increasing annually, and the legislative restrictions regarding quality are becoming more severe. It is necessary not only to decrease the sulfur content greatly, but also to restrict the olefin content of gasoline. A high olefin content may increase the emission of particulate matter from automobiles, and cause environmental pollution [1]. Naphtha obtained by fluid catalytic cracking contains about 70 wt% C5-C7 olefins, which are mainly present in linear and monosubstituted forms [2]. The hydrogenation of these olefins to the corresponding normal alkanes during hydrodesulfurization (HDS) significantly decreases the gasoline octane number (for example, the octane number of 1-hexene is 76, whereas that of n-hexane is only 26). An alternative way to solve this problem is skeletal isomerization of linear olefins to branched ones, followed by hydrogenation to isoalkanes with high octane numbers (for example, the octane number of 2,2- dimethylbutane is 92). However, it is usually difficult for catalysts to exhibit excellent activities for HDS and skeletal isomerization of olefins simultaneously. Industrially, olefins are usually saturated during deep HDS, and alkylation and isomerization are performed with other catalysts to redeem the octane number losses during HDS [3]. It is therefore important to develop catalysts that exhibit excellent activities for HDS and skeletal isomerization of olefins simultaneously. If this is achieved, the two processes can be performed in one step, significantly reducing the operating costs.
The skeletal isomerization of olefins itself is also important in petroleum industries. For example, isopentene and isobutene are the raw materials for the production of tert-amyl methyl ether and methyl tert-butyl ether, respectively, which are widely used as additives for improving the quality and octane number of gasoline [4]. These two olefins are mainly produced industrially by skeletal isomerization of the corresponding linear olefins [5, 6]. The hydration of olefins to the corresponding alcohols is another field that attracts the attention of both industry and academia [7], but the hydration of linear olefins is much more difficult than that of the branched ones containing tertiary carbons [8]. The skeletal isomerization of linear olefins to branched ones is therefore an important process.
The mechanism of skeletal isomerization of a linear olefin to a branched one involves adsorption of the linear olefin on a Brønsted acid site to form a carbenium cation intermediate, followed by rearrangement of the skeletal carbon atoms [9]. Other catalytic systems for the skeletal isomerization of olefins include zeolites (e.g., SAPO-11 [10], MCM-41 [11], β-zeolites [12], and HFER zeolites [13]), Pt supported on sulfated or tungstated zirconia [14], and sulfated mesoporous transition-metal oxides [15, 16]. Shi et al. [17] found that Co-MCM-41 catalysts exhibited good activities for the skeletal isomerization of 1-hexene during HDS. However, MCM-41-type materials are expensive, because they are synthesized using templating agents [18]. Co-Si-O mixed oxides could therefore act as substitutes. The preparation of Co-Si-O mixed oxides has been reported in the literature. Methods such as sol-gel [19] and hydrothermal syntheses [20] have been used. Tetraethoxysilane is usually used as the silica source for the preparation of nanomaterials with special morphologies. In our current work, cheap Na2SiO3 was used as the silica source, and a simple coprecipitation method combined with an n-butanol drying process was used to prepare Co-Si-O mixed oxides. The surface areas were high, even for mixed oxides with high Co contents. In addition, these materials had large pores and pore volumes, and could be used as catalysts and catalyst supports.
Co-Si-O mixed oxides with different Co/Si atomic ratios were prepared by coprecipitation. In a typical synthesis of Co-Si-O with a nominal Co/Si ratio of 1, Co(NO3)2·6H2O (29.1 g, 0.1 mol) was dissolved in an aqueous solution of HNO3 (1.8 mol/L, 100 mL). Na2SiO3·9H2O (28.4 g, 0.1 mol) was dissolved in deionized water (10 mL). The two solutions were added dropwise to deionized water (400 mL) under stirring at 363 K, during which a purple precipitate formed. After stirring for another 0.5 h, the mixture was sealed, using a plastic film, in the beaker and aged at 363 K for 12 h without stirring. The precipitate was filtered and washed thoroughly with deionized water. It was then added to n-butanol (200 mL) and heated at 353 K, during which the water evaporated with the n-butanol. It was further dried at 393 K for 12 h. The obtained solid sample was calcined at 673 K for 3 h, and denoted by CS10. Other samples with nominal Co/Si ratios of 0.1, 0.2, and 0.4 were prepared in the same way, and denoted by CS1, CS2, and CS4, respectively.
For comparison, a CoOx/SiO2 sample (denoted by I-CS10) was prepared using an impregnation method; it contained the same amount of Co as CS10. Commercial SiO2 (504 m2/g) was used as the support. After drying at 393 K, the sample was calcined at 673 K for 3 h.
N2 adsorption-desorption measurements were carried out at 77 K using a Micromeritics Gemini V 2380 autosorption analyzer. The specific surface areas were calculated using the BET equation, and pore-size distributions were determined using the BJH method. Samples were degassed in flowing N2 at 473 K for 5 h before the measurements.
X-ray diffraction (XRD) patterns were obtained with a Shimadzu XRD-6000 powder diffractometer (Japan), using Cu Kα radiation (l = 0.15418 nm). The 2θ scans covered the range 10° to 80°, with a step of 0.02°.
Microcalorimetric adsorption of NH3 was performed using a Setaram Tian-Calvet C-80 heat-flux microcalorimeter connected to a gas-handling system equipped with a Baratron capacitance manometer for precise pressure measurements. Samples were evacuated at 573 K for 3 h before the measurements. Microcalorimetric adsorption was performed at 423 K.
Laser Raman spectra of the samples were obtained at room temperature in air, using an Invia Raman microscope spectrometer (Renishaw) equipped with a charge-coupled device detector. The 514.5-nm line of an Ar+ laser was used as the excitation source, with 10 mW intensity.
Temperature programmed reduction (TPR) was performed by using a quartz U-tube reactor loaded with about 50 mg of a sample. All samples were directly used for the TPR measurements without the further pretreatment. A mixture of N2 and H2 (5% H2 by volume) was used as the reducing agent and the flow rate was maintained at 40 ml/min. The hydrogen consumption was monitored using a thermal conductivity detector (TCD). The temperature was raised at a programmed rate of 10 K/min from 285 to 1273 K.
Transmission electron microscope (TEM) was performed using a JEOL JEM-2100 high-resolution microscope operating at 200 kV. The samples were dispersed in 5% ethanol solution and dropped onto a copper grid coated with a carbon film. Scanning electron microscopy (SEM) images were captured using a Hitachi S-4800 field-emission microscope operated at 5 kV.
The chemical compositions of the catalysts were determined using X-ray fluorescence (XRF) spectroscopy (ARL- 9800).
The skeletal isomerization of 1-hexene was carried out in a fixed-bed reactor. The reaction solution contained 20 wt% 1-hexene, 500 ppmw sulfur (thiophene), and balance heptane (solvent). Before the catalytic tests, the catalysts were sulfided with 2% CS2 in heptane, first at 503 K for 2 h and then at 593 K for 4 h. The isomerization reactions were carried out from 493 to 573 K at 1.5 MPa, with a liquid hourly space velocity (LHSV) of 2 h−1 and an H2/oil ratio of 300 (v/v). The reaction products were analyzed using an SP-2000B gas chromatograph equipped with SE-30 capillary columns. Flame ionization and flame photometric detectors were used for the analysis of hydrocarbons and organic sulfur compounds, respectively.

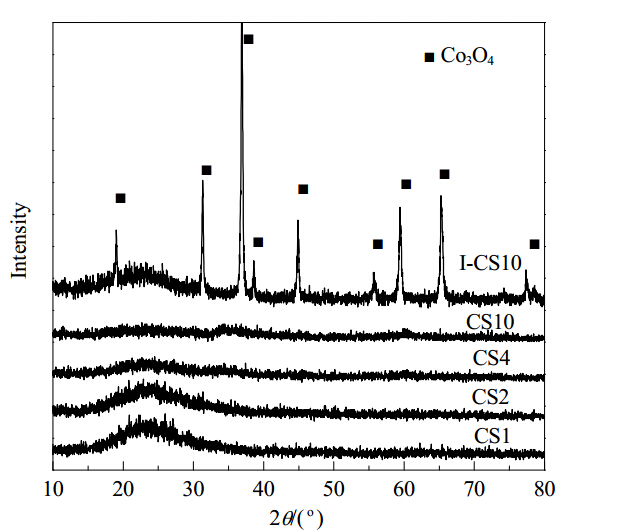

A series of samples (CS1, CS2, CS4, and CS10) with different Co/Si nominal ratios were prepared. Figure 1 shows the XRD patterns of these samples. Samples CS1 and CS2 exhibited only a broad peak at 23.5°, corresponding to amorphous SiO2 [21]. This broad peak was very small for CS4 and disappeared for CS10 (with a Co/Si nominal ratio of 1), indicating that almost no SiO2 clusters remained in these two samples. In addition, no diffraction peaks for Co species were observed for the samples. The Co and Si atoms were therefore homogeneously mixed in CS10. In contrast, the sample I-CS10, prepared using an impregnation method, displayed sharp diffraction peaks corresponding to crystallized Co3O4 (PDF 74-2120), indicating large particles of Co3O4 dispersed on SiO2. A broad XRD peak for SiO2 was also observed for I-CS10.

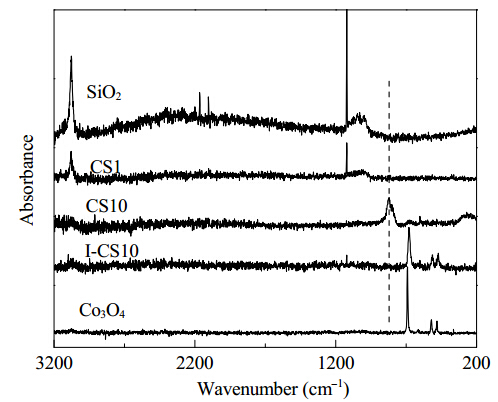

Figure 2 shows the Raman spectra of CS1, CS10, and I-CS10, and those of SiO2 and Co3O4, for comparison. SiO2 exhibited two sharp bands at 3080 and 1120 cm−1, and a broad band at 1020 cm−1. Co3O4 displayed three sharp bands at 685, 520, and 475 cm−1 [22]. CS1, with a nominal Co/Si ratio of 0.1, contained mainly SiO2 (~90 atom%), with a small amount of Co (~10 atom%). This sample showed two sharp bands at 3080 and 1120 cm−1, and a broad band at 1020 cm−1, similar to those for SiO2. No Raman bands for Co3O4 were observed for CS1, indicating that the Co species were atomically dispersed in the SiO2 matrix in CS1. The Co content of CS10 was much higher than that of CS1, and only very weak Raman bands from SiO2 (~3080 cm−1) and Co3O4 (~680 cm−1) were observed for CS10. Si and Co might therefore both be mainly atomically dispersed in CS10. However, a new broad band at 815 cm−1 appeared in the Raman spectrum of CS10. This band was very weak in the Raman spectrum of CS1, suggesting that it might be related to some Co-O-Si clusters with concentrated cobalt cations. As expected, I-CS10 exhibited three Raman bands similar to those of Co3O4 [22], but these bands were broadened as a result of dispersion of Co3O4 on SiO2. The XRD and Raman results therefore confirmed high dispersion of Co cations in the Co-Si-O mixed oxides prepared in this work.
Further studies showed that the activities of CS1 and CS2 were low in the hydrogenation of 1-hexene. In addition, the surface area of CS4 was low compared with those of the other samples in the CS series, and it is at present difficult to explain the trends in the changes with composition in the structures, and chemical and catalytic properties for the CS series of samples. We therefore focus on CS10 in the following discussion. This sample was unique, because it had a high surface area (562 m2/g, see Table 1) and atomically mixed Co-O-Si networks containing high amounts of Co (~34 wt%). Shi et al. [17] previously synthesized Co-MCM-41 samples, and the highest Co content in the MCM-41 framework was about 15 wt%.
The Co contents of CS10 and I-CS10 were analyzed using XRF, and estimated to be about 34.2 and 31.1 wt%, corresponding to Co/Si ratios of 0.65 and 0.56, respectively. The Co/Si ratio of CS10 was lower than 1, indicating that some of the Co was not deposited during precipitation.
The BET surface areas and BJH pore-size distributions of the samples were obtained through N2 adsorption-desorption measurements at 77 K. Table 1 summarizes the surface areas, pore volumes, and average pore diameters of CS10 and I-CS10. CS10 had a high surface area of about 560 m2/g. In comparison, I-CS10, prepared by impregnation, had a surface area of about 240 m2/g, much lower than that of its support (504 m2/g). After the reactions, the surface area of CS10 decreased from 562 to 226 m2/g, but was still much higher than that of I-CS10 (144 m2/g).

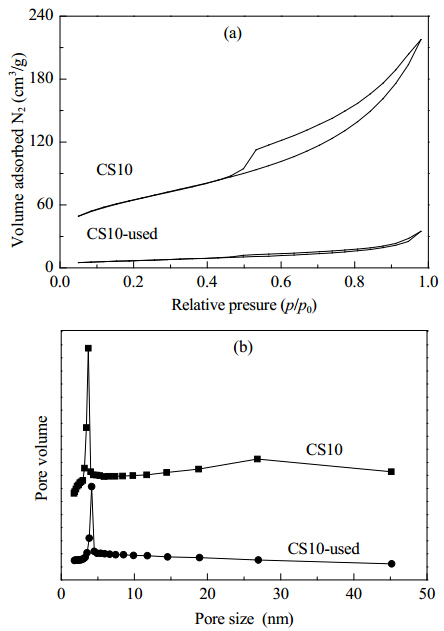

The N2 adsorption-desorption isotherms and pore-size distribution curves for CS10 before and after sulfidation and reactions are shown in Fig. 3. Both the fresh and used samples exhibited type-IV isotherms [23] with H3 model hysteresis loops, indicating the presence of mainly mesopores. Figure 3(b) shows the corresponding pore-size distribution curves for CS10 and CS10-used. They possessed mainly mesopores, with pore diameters around 3.8 nm.

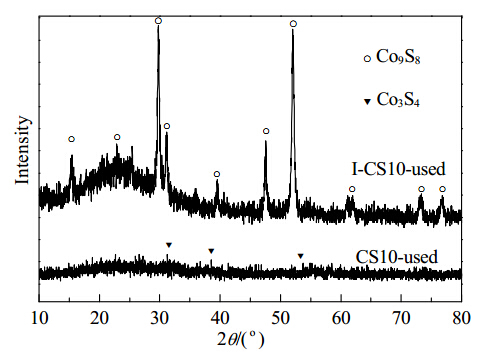

Figure 1 shows intense diffraction peaks for Co3O4 in I-CS10, but no diffraction peaks for Co species were observed for the fresh CS10 sample. After sulfidation and reactions, the Co3O4 species in I-CS10 were completely converted to Co9S8, as shown by the intense diffraction peaks (PDF 75-2023) in Fig. 4. Only traces of diffraction peaks for Co3S4 (PDF 75-1561) were observed for the used CS10, again indicating that the Co species were highly dispersed in CS10.

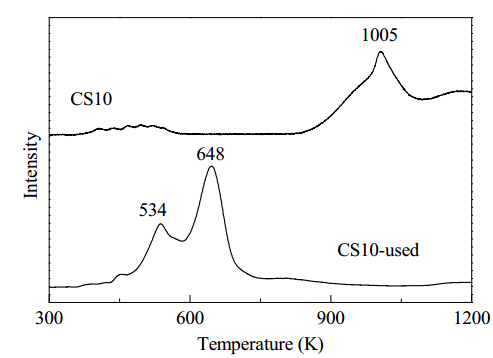

The diffraction peaks were very weak for the used CS10, therefore the extent of sulfidation of this sample had to be confirmed using another technique; temperature-programmed reduction (TPR) was used, and the results are shown in Fig. 5.
It has been reported that the reduction of unsupported Co3O4 proceeds through two steps, i.e., Co3+ to Co2+ and then to Co0, in the temperature range 473-673 K [24]. The fresh sample of CS10 displayed two reduction peaks at much higher temperatures (>900 K), which could be attributed to the reduction of highly dispersed Co cations from Co3+ to Co2+ and then to Co0 species [25]. After sulfidation and reactions, the used CS10 discharged from the reactor might be oxidized in air. The temperatures of the reduction peaks for the used CS10 decreased significantly, to lower than 700 K, compared with those of the fresh samples. These reduction peaks indicated the presence of cobalt sulfides and/or oxides in the used CS10 (oxides could be formed by exposure of the used samples to air). Importantly, these reduction peaks were intense and no reduction peaks appeared at temperatures higher than 750 K, indicating that highly dispersed Co cations, which were difficult to reduce in the fresh sample, were no longer present in the used CS10. In other words, the Co species in CS10 must have been reduced and sulfided during sulfidation and reactions. The XRD patterns and TPR profiles therefore suggest that cobalt sulfide particles must be highly dispersed in the used CS10.
Figure 6 shows scanning electron microscopy (SEM) images of CS10 before and after sulfidation and reactions. Fine particles can be seen for CS10 before and after the reactions. Figure 7 shows transmission electron microscopy (TEM) images for the used CS10 and I-CS10. Some finely dispersed particles with diameters around 2 nm can be seen in the used CS10, whereas large particles can be observed in the used I-CS10.

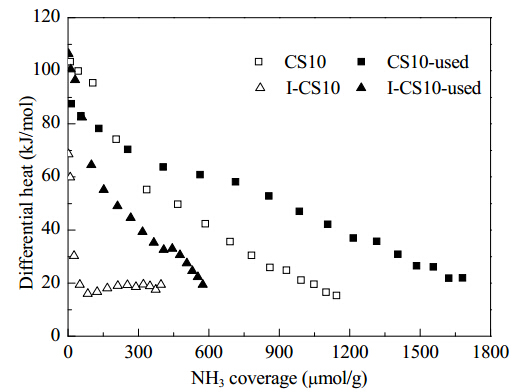

Surface acidities were investigated using microcalorimetric adsorption of NH3 [26]. Figure 8 shows the results for microcalorimetric adsorption of NH3 on CS10 and I-CS10 before and after sulfidation and reactions. The surface acidity of fresh CS10 was strong, because the initial heat (about 103 kJ/mol) and coverage (about 1144 mmol/g) were high for NH3 adsorption. After sulfidation and reactions, CS10-used exhibited a lower initial heat (87 kJ/mol) and significantly higher coverage (1680 mmol/g) for NH3 adsorption. This shows that the surface acidity of CS10-used was also strong, and this might be responsible for the skeletal isomerization of 1-hexene. The results for the microcalorimetric adsorption of NH3 showed that the surface acidities of I-CS10 and I-CS10-used were much lower than those of their counterparts (CS10 and CS10-used).
The catalysts were sulfided with CS2 (in n-heptane) before the reactions. The reactants consisted of 20% 1-hexene, 500 ppmw thiophene sulfur, and balance n-heptane. The HDS of thiophene and conversion of 1-hexene were studied simultaneously. 1-Hexene could be directly hydrogenated to n-hexane over the sulfided cobalt, or isomerized to isomers over acidic sites (both skeletal and double bond isomerizations) followed by the hydrogenation to branched and normal hexanes. The direct hydrogenation and skeletal isomerization of 1-hexene were competing reactions, depending on the relative activities of the cobalt sulfides and surface acidity.

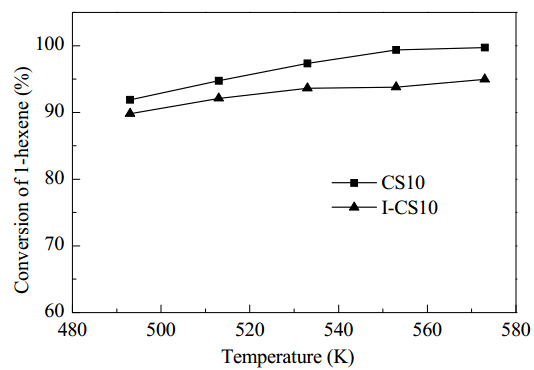

Figure 9 shows the conversions of 1-hexene over CS10 and I-CS10 at different temperatures. Both catalysts exhibited high activities for 1-hexene conversion. The conversion of 1-hexene reached nearly 100% over CS10 at 573 K.

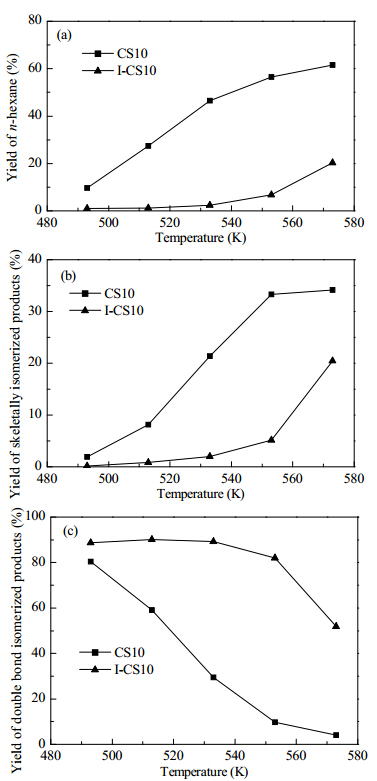

Figure 10 shows the yields of n-hexane (the product from direct hydrogenation) and isomerization products. It can be seen that the activities of I-CS10 for the direct hydrogenation of 1-hexene and skeletal isomerization were low. This catalyst mainly exhibited selectivity for double-bond isomerization products. The selectivities for directly hydrogenated and skeletally isomerized products were therefore low on this catalyst. The behavior of CS10 in the conversion of 1-hexene was different from that of I-CS10. CS10 exhibited high conversion of 1-hexene (100%), high selectivity for n-hexane (the direct hydrogenation product; 61%), moderate selectivity for the skeletal isomerization products (35%), and low selectivity for the double-bond isomerization products (4%) at 573 K.
The XRD patterns showed low dispersion of supported Co in I-CS10, which might account for the low activity for direct hydrogenation of 1-hexene to hexane on this catalyst. In addition, microcalorimetric adsorption of NH3 indicated that this catalyst had weak surface acidity, which might explain its high activity in double-bond isomerization, but low activity in skeletal isomerization of 1-hexene. In contrast, characterization studies revealed highly dispersed cobalt sulfide and strong surface acidity for CS10, which might be responsible for its high activities in hydrogenation and skeletal isomerization of 1-hexene.
The distribution of products from the conversion of 1-hexene on CS10 at 573 K is shown in Table 2. It can be seen that about 61.5% of 1-hexene was directly hydrogenated to n-hexane. The products 2-methylpentane (19%) and 3- methylpentane (12.9%) were produced by skeletal isomerization of 1-hexene, followed by hydrogenation to branched alkanes. Other products were various hexenes, including unconverted 1-hexene, and isohexenes produced by double-bond and skeletal isomerization reactions. These hexenes and branched hexanes (~38.4%) were valuable compounds with high octane numbers. CS10 could therefore be used for the skeletal isomerization of olefins during the HDS of gasoline, to reduce the octane number loss caused by the simultaneous hydrogenation of olefins.
In industry, HDS of organic sulfur compounds in gasoline is usually carried out on Co-Mo-S catalysts [27], in which Mo is the main active component [28] and Co acts as a promoter. However, it has been reported that Co itself is an active component for HDS reactions if an appropriate method is used for loading Co on a suitable support [29, 30, 31]. Venezia et al. [29] found that a single-Co catalyst, 5% Co/ASA (ASA = amorphous aluminosilicate), deposited using Na2CO3, was almost as active as the bimetallic catalyst 1.6% Co-6.4% Mo/ASA, prepared by impregnation, for HDS of thiophene.

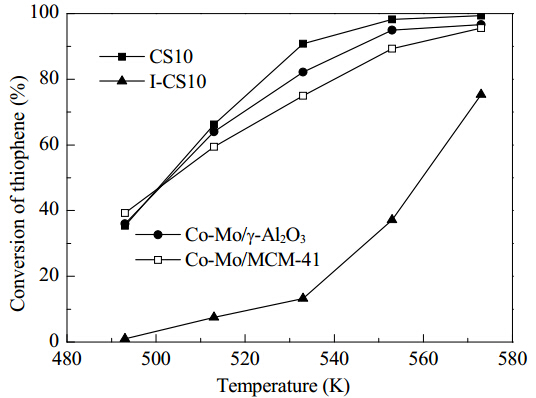

Figure 11 shows that the conversion of thiophene reached 99.4% at 573 K on the sulfided CS10 prepared in this work; conversions of 96.6% and 95.6% were achieved industrially on Co-Mo/γ-Al2O3 [17] and Co-Mo/MCM-41 [22], respectively, under the same reaction conditions. The single-Co catalyst CS10, without the presence of Mo, was therefore highly active for HDS of thiophene, even more active than traditional Co-Mo-S catalysts. This might be because CS10 (Co-O-Si) simultaneously has a high Co content and high surface area. Moreover, the catalyst exhibited high activity for the skeletal isomerization of 1-hexene. The yield of skeletally isomerized products from 1-hexene reached 35% at 573 K on the catalyst, which was much higher than that (2%) on industrial Co-Mo/γ-Al2O3, but lower than that (54%) on Co-Mo/MCM-41 (Table 3). However, the Co-Mo/MCM-41 contains Mo, and the synthesis of MCM-41 needs a template and is therefore costly. In contrast, the Co-O-Si catalyst (CS10) was easily synthesized, without the use of a template, and contained only Co as the active component.
The coprecipitation of sodium silicate with cobalt nitrate, combined with an n-butanol drying process, led to the formation of a Co-O-Si complex material (CS10) with a high surface area of about 560 m2/g. The complex consisted of atomically mixed Co-O-Si networks with high Co contents (~34 wt%) and strong surface acidity. In contrast, a sample (I-CS10) with a similar Co content prepared by impregnation had a significantly lower surface area and weaker surface acidity.
XRD and TPR showed that after sulfidation with CS2, the Co in the CS10 framework was converted to cobalt sulfide (Co3S4). The cobalt sulfide was highly dispersed on the surface and exhibited high activity for HDS of thiophene and direct hydrogenation of 1-hexene to n-hexane. In addition, CS10 had strong surface acidity, and therefore catalyzed the skeletal isomerization of 1-hexene with 35% selectivity. In contrast, the Co in CoOx/SiO2 (I-CS10), prepared by impregnation, was converted to Co9S8, which was poorly dispersed on the surface, and displayed low activity in HDS of thiophene and direct hydrogenation of 1-hexene. In addition, the sulfided I-CS10 had low surface acidity and therefore low activity in the skeletal isomerization of 1-hexene. Double-bond isomerizations of 1-hexene were the main reactions on sulfided I-CS10. The CS10 prepared in this work exhibited high activity in HDS of thiophene, compared with industrial Co-Mo/γ-Al2O3 and recently reported Co-Mo/MCM-41 catalysts.
CS10 is therefore a precursor of an excellent sulfided catalyst for HDS of thiophene and skeletal isomerization of 1-hexene, even without the presence of Mo. The highly dispersed cobalt sulfide plays a bifunctional role in hydrogenation reactions and skeletal isomerization of olefins. Sulfided Co-O-Si could therefore be used for the skeletal isomerization of linear olefins during deep HDS of organic sulfur compounds in gasoline, so that the octane number losses caused by saturation of olefins could be reduced.
