Mesoporous ZSM-5 (MZSM-5), normally referred to ZSM-5 with both micropore and mesopore systems, is supposed to combine the benefits of each separate pore size regime and has great potential to improve the efficiency of zeolite catalysis, enhance the accessibility to active sites, and reduce the diffusion obstacle [1, 2, 3, 4]. Therefore, considerable efforts have focused on the synthesis of MZSM-5.
A wide variety of synthesis strategies have been proposed to create mesopores in ZSM-5 crystals. Various post-treatment methods, including heat treatment [5], acid leaching [6, 7, 8], steaming treatment [6, 7], alkaline leaching [9, 10], and other chemical treatments [11], have proven to be efficient in creating mesopores in ZSM-5 crystals. Another strategy for the synthesis of ZSM-5 crystals containing mesopores is crystallization using a dual-templating method, which includes both ZSM-5 templates and mesopore structure directing agents. In the dual-templating method, both hard templates, such as carbon nanoparticles or nanotubes [12, 13], poly(methyl methacrylate) (PMMA) nanospheres [14], nano CaCO3 [15], and polymer beads [16], and soft templates, such as cationic surfactants (CTABs) [17, 18], nonionic alkyl poly(ethylene oxide) surfactants [19], organosiliane [20], cationic polymer [21], silylated polymer [22], and natural products [23], have attracted considerable attention because of their high efficiency in creating mesopores in ZSM-5. Recently, Ryoo et al. [24, 25, 26] made progress in synthesizing MZSM-5 using an organic surfactant equipped with a multi-ammonium headgroup, which could serve as both a zeolitic template and a mesogenous structure directing agent. Synthesis methods involving the development of new surfactants for mesoporous zeolite synthesis are still of interest in the field of hierarchical materials.

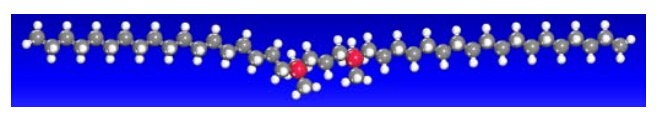

In this study, we report a facile and highly efficient synthesis route to prepare MZSM-5 using a new gemini surfactant, [C18H37(CH3)2-N+-(CH2)3-N+-(CH3)2C18H37]Cl2 (C18-3-18), as the mesopore directing agent. Scheme 1 shows the structure model of C18-3-18. To the best of our knowledge, the synthesis of MZSM-5 using C18-3-18 as the mesopore directing agent has not been reported. The formation mechanism of MZSM-5 templated from C18-3-18 is also discussed based on experimental observations.
All of the chemical reagents in this article (NaAlO2 (41 wt% Al2O3), tetraethyl orthosilicate (TEOS, 98.0%,), tetrapropylammonium bromide (TPABr, 98.0%), NaOH (96.0%), and C18-3-18 (95.0%)) were commercial products of analytical grade, and were used as received without further purification.
The MZSM-5 samples were synthesized with the hydrothermal method using C18-3-18 as the mesogenous template and a gel with the molar composition of 40 SiO2:1 Al2O3:20 NaOH: 10 TPABr:x C18-3-18:7000 H2O with different crystallization temperatures and times. In a typical synthesis procedure, 0.26 g NaAlO2, 0.80 g NaOH, and 2.80 g TPABr were dissolved in 135 g H2O. Then, 8.93 g TEOS and 3.33 g C18-3-18 (here, x = 4) were added into the synthesis gel under agitation. After mixing, the synthesis gel was transferred into a 200 mL Teflon-lined stainless steel pressure vessel, sealed, and heated under autogenic pressure with vigorous stirring. After crystallization, the as-synthesized sample was centrifugally separated, washed, dried at 120 °C for 12 h, and calcined at 600 °C for 6 h. Herein, the sample synthesized at 150 °C for 36 h is denoted MZSM-5-A, the sample synthesized at 130 °C for 120 h is denoted MZSM-5-B, and the sample first synthesized at 120 °C for 48 h and then at 175 °C for 6 h is denoted MZSM-5-C. For comparison, conventional ZSM-5 was also synthesized starting from the synthesis gel with the same composition but without add ing C18-3-18, and this sample is referred to as ZSM-5. The crystallization conditions of ZSM-5 were 175 °C for 48 h.
X-ray diffraction (XRD) patterns were obtained with a D/max-rb X-ray diffractometer, using Cu Kα radiation (λ = 1.5405 Å) at room temperature with instrumental settings of 40 kV and 40 mA. The relative crystallinity was calculated based on the intensity of the five peaks with 2θ = 22°-25°.
Scanning electron microscopy (SEM) images were obtained for morphological identification using a KYKY AMRAY-1000B scanning microscope. Transmission electron microscopy (TEM) images were obtained with a JEOL JEM-2000Ex electron microscope at 120 kV.
N2 adsorption-desorption experiments were performed at -196 °C on a NOVA 4000 gas adsorption analyzer (Quantachrome Corp.). Each sample was evacuated at 130 °C for 1 h and then at 350 °C for 3 h before adsorption.
27Al magic angle spinning (MAS) nuclear magnetic resonance (NMR) measurements were performed on a 600 MHz Bruker Avance III equipped with a 4 mm MAS probe. 27Al MAS NMR spectra were recorded using one pulse sequence with a spinning rate of 12 kHz. 100 scans were accumulated with a π/8 pulse width of 0.75 μs and a 2 s recycle delay. The chemical shifts were referenced to (NH4)Al(SO4)2∙12 H2O at -0.4 ppm.

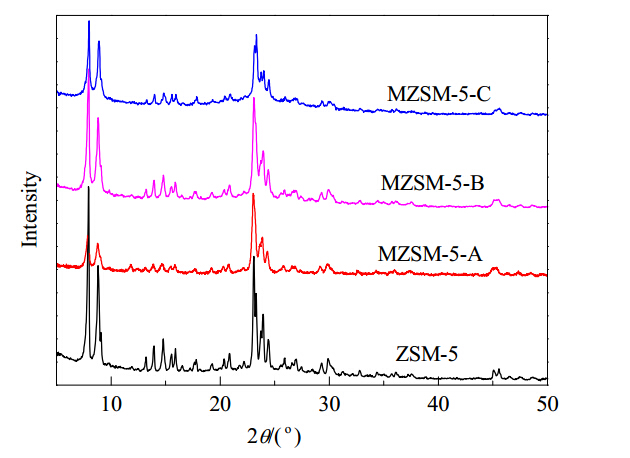

The XRD patterns of the samples synthesized using different crystallization temperature routes are shown in Fig. 1 and compared with the XRD pattern of conventional ZSM-5. The intrinsic lattice structure of the MFI topology was observed for all samples, and no other phases were formed during the synthesis. Furthermore, even starting from the gel with the same composition using dual templates (TPABr and C18-3-18) there was still some difference in the relative crystallinity of the synthesized MZSM-5 samples, which can be attributed to the different crystallization temperatures. Among the three MZSM-5 samples, MZSM-5-A and MZSM-5-C had low relative crystallinity. MZSM-5-B had the highest relative crystallinity and very close to that of conventional ZSM-5, indicating that the crystallization procedure for MZSM-5-B (130 °C for 120 h) had the optimal conditions for the synthesis of MZSM-5.

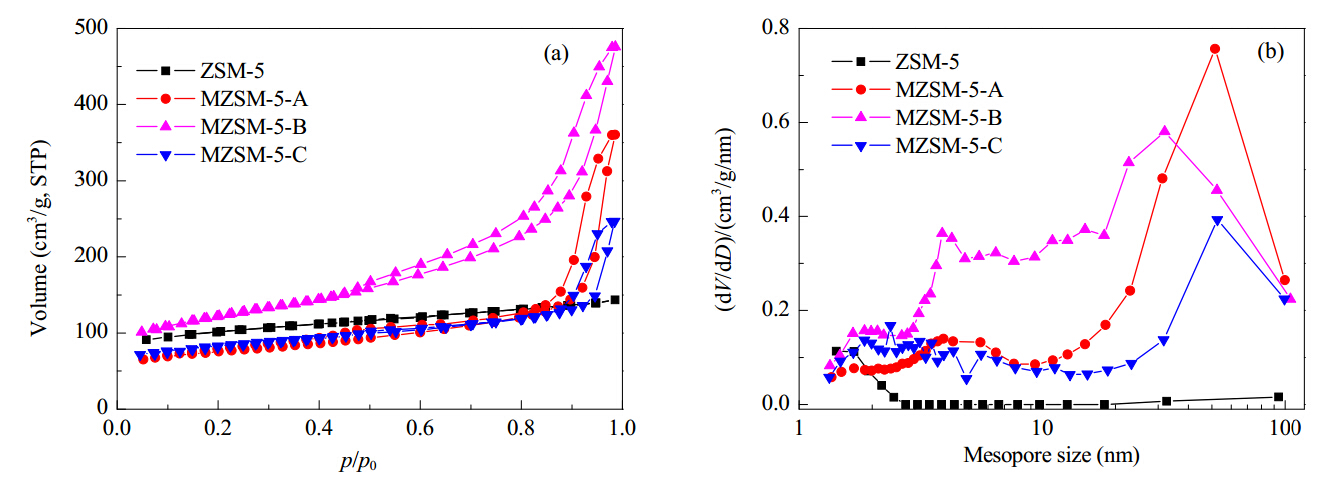

The N2 adsorption-desorption isotherms of ZSM-5 and the MZSM-5 samples are shown in Fig. 2(a). The curves of the pore size distribution, which were calculated from the adsorption branches using the BJH model, are shown in Fig. 2(b). As shown in Fig. 2(a), ZSM-5 shows a representative Type I (Langmuir) isotherm according to the classification of IUPAC, with no obvious increase in the adsorbed N2 amount and no distinct hysteresis loop at high relative pressure, which is characteristic of microporous materials with no mesoporosity. This is verified by the BJH pore size distribution curve of ZSM-5 (Fig. 2(b)), where there is no obvious peak in the mesoporous range, indicating only microporosity in ZSM-5. As listed in Table 1, the BET surface area and total pore volume of ZSM-5 are 328 m2/g and 0.16 cm3/g, while the mesoporous surface area and pore volume are very low, only 59 m2/g and 0.03 cm3/g, respectively.
For the MZSM-5 samples, the N2 adsorption-desorption isotherms are greatly different from that of conventional ZSM-5. As shown in Fig. 2(a), the N2 adsorption-desorption isotherms of the MZSM-5 samples are mixed Type I and Type IV isotherms, indicating the existence of both microporosity and mesoporosity in the three samples (MZSM-5-A, MZSM-5-B, and MZSM-5-C) synthesized by the dual-templating method at different crystallization temperatures. The other important features include a dramatic increase in the adsorption amounts at high relative pressure compared with the conventional ZSM-5 isotherm. In addition, a hysteresis loop confirms the generation of mesopores. Because of the generation of mesopores in the three samples, their mesoporous surface areas and mesoporous volumes are larger than those of ZSM-5. However, the increase in mesoporosity of the MZSM-5 samples is accompanied with a decrease of microporosity (Table 1). The pore size distributions of the MZSM-5 samples calculated from the adsorption branches using the BJH model show a wide range of pore sizes, which suggests the possible generation of inter-crystalline mesopores. As shown in Fig. 2(b), the mesopore sizes of MZSM-5-A, MZSM-5-B, and MZSM-5-C vary from 2 to 100 nm. Most of the mesopores in MZSM-5-A and MZSM-5-C are around 50 nm, while the peak of mesopores around 50 nm in MZSM-5-B is relatively low intensity. However, the number of mesopores in the range 2 to 10 nm is significantly larger for MZSM-5-B than for MZSM-5-B and MZSM-5-C.
The representative SEM images of ZSM-5 and the MZSM-5 samples are given in Fig. 3. Microporous ZSM-5 appears to be composed of crystals with different sizes from 0.6 to 1 μm. MZSM-5-A is also composed of crystals of different sizes. The larger crystals with a size of ∼10 μm seem to be the aggregation of smaller crystals of ∼1 μm. As shown in Fig. 3(e), MZSM-5-B is composed of different sized particles, and its enlarged image (Fig. 3(f)) shows that the grainy surface of MZSM-5-B is the aggregation of many small ZSM-5 crystals. In addition, it should be mentioned that the aggregation of ZSM-5 crystals into particles can induce the formation of some inter-crystalline mesopores in MZSM-5-B, which can be seen in Fig. 3(f). This result is consistent with the N2 physical adsorption measurement. Correspondingly, Fig. 3(g) and (h) indicate that MZSM-5-C, like MZSM-5-A and MZSM-5-B, is composed of different sized particles, which are composed of small ZSM-5 crystals. Among the three MZSM-5 samples, MZSM-5-B has a more regular morphology, which may result from the relatively low crystallization temperature.
Based on the characterizations mentioned above, it can be concluded that the different crystallization routes carried out at different temperatures affect the morphology and the textural properties of synthesized MZSM-5. A relatively low crystalline temperature, such as 130 °C, seems to be the optimal crystallization temperature for the synthesis of MZSM-5 with high mesoporous surface area, high mesoporous volume, and regular morphology, as well as good relative crystallinity from the formation of the MFI phase during the synthesis. The relatively low crystallization temperature required to synthesize MZSM-5 using C18-3-18 as a mesopore directing agent may originate from its unique -N+-(CH2)3-N+- group, which still needs further investigation.
The amount of mesoporous structure directing agent usually affects the relative crystallinity, morphology, and textural properties of the synthesized MZSM-5. Thus, the effect of the amount of C18-3-18 was also investigated in the MZSM-5 synthesis following the optimized crystallization route confirmed in Section 3.1 (crystallization at 130 °C for 96 h). The molar composition of the starting gel was 40 SiO2:1 Al2O3:20 NaOH:10 TPABr:x C18-3-18:7000 H2O, in which x represents the amount of C18-3-18 used in the synthesis gel.

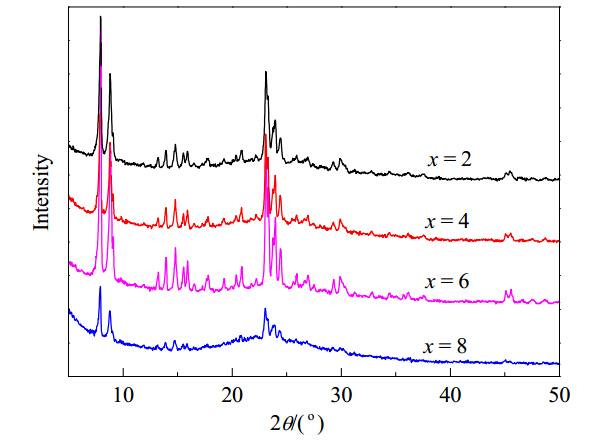

The XRD patterns of the samples synthesized using different amounts of C18-3-18 are shown in Fig. 4. Even varying the amount of mesoporous structure directing agent, the intrinsic lattice structure of the MFI topology was identified for all four samples, and no other phases were formed during the synthesis of the MZSM-5 samples. Furthermore, when C18-3-18 was added in amounts of x = 2 and 4, there was almost no difference in the relative crystallinity of the two synthesized MZSM-5 samples. When more C18-3-18 was added (x = 6), the relative crystallinity of the synthesized MZSM-5 structure was higher than with x = 2 or 4. Further increasing the amount of C18-3-18 (x = 8) resulted in a decrease of the relative crystallinity of the synthesized MZSM-5 sample compared with x = 6. This is usually observed during the synthesis of MZSM-5 using the dual-templating method. Under most circumstances, the two different templating systems, i.e., the ZSM-5 structure directing agent (TPABr) and the mesoporous template (C18-3-18), work in a competitive rather than a cooperative manner. If too much C18-3-18 is added into the synthesis gel, even though the mesoporous phase can be generated, the very slow formation of the MFI phase results in it being difficult to transform the generated mesoporous phase to crystallized ZSM-5. Therefore, more of the mesoporous phase remains, which results in a low relative crystallinity.

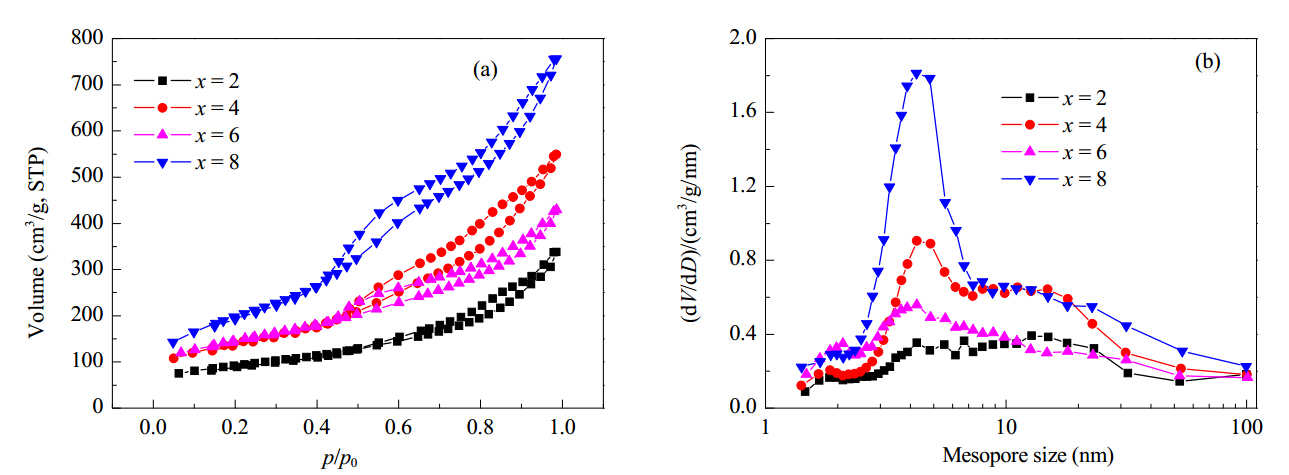

The N2 adsorption-desorption isotherms, the pore size distribution curves, and textual properties of the samples synthesized using different amounts of C18-3-18 are shown in Fig. 5 and Table 2. As shown in Fig. 5a, all of the N2 adsorption and desorption isotherms of the MZSM-5 samples are mixed Type I and Type IV isotherms, indicating the coexistence of micropores and mesopores. With increasing added amount of C18-3-18 from x = 2 to 6, the total surface area (SBET) increased from 325 m2/g to 515 m2/g. Among the three samples, the total pore volume of the sample synthesized with x = 4 (0.82 cm3/g) was higher than the other two samples (0.52 cm3/g for x = 2 and 0.66 cm3/g for x = 6), which may stem from its rich mesoporosity. The relatively low pore volume of the sample synthesized with x = 6 can be explained by the generation of more micropores, resulting in the loss of mesopores. Further increasing the amount of C18-3-18 to x = 8, resulted in the obtained MZSM-5 having the highest surface area and pore volume among the four samples, which is because of the generation of a highly mesoporous structure. However, considering its very low relative crystallinity and microporous surface area, the addition of too much of the mesopore directing agent is not beneficial for the generation of MZSM-5.
The abovementioned results indicate that under the present experimental conditions, the addition of a moderate amount of C18-3-18 during the synthesis (x = 4 and 6) favors the synthesis of MZSM-5 with good relative crystallinity and relatively good mesopore generation.
The pore size distributions of the four MZSM-5 samples (Fig. 5(b)) indicate that the generated mesopores have a wide range of sizes (2-30 nm) when adding a moderate amount of C18-3-18 (x = 2, 4, and 6) into the synthesis gel. Increasing the amount of C18-3-18 to x = 8 results in the generated mesopores having a narrow size range centered at 4 nm.
To investigate the formation process of MZSM-5, the synthesis was carried out for different crystallization times using the same amount of C18-3-18 (x = 4) at 130 °C. Samples were synthesized and characterized for crystallization times of 8, 24, 48, 72, 96, and 120 h. The samples synthesized for 96 and 120 h have been mentioned above, the sample with x = 4 in Section 3.2 and MZSM-5-B in Section 3.1.

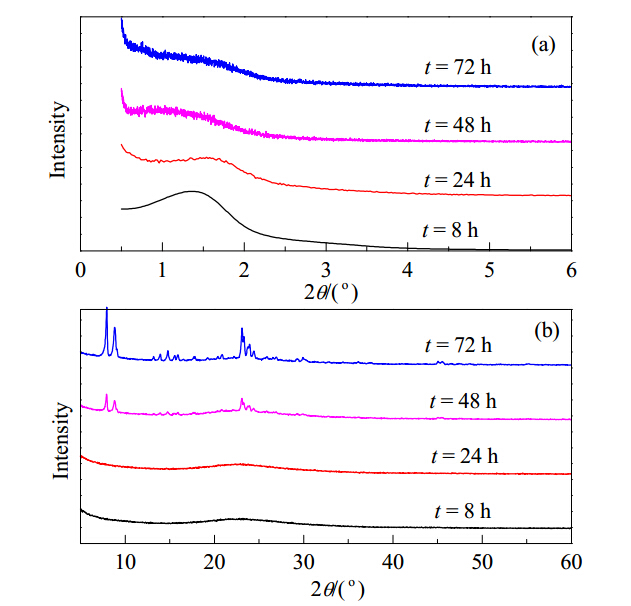

The small-angle and the wide-angle powder XRD patterns of the samples synthesized for different crystallization times are shown in Fig. 6. When the synthesis was performed for 8 or 24 h, no diffraction peaks are present in the wide-angle powder XRD pattern of the solid samples. However, a peak is present in their small-angle powder XRD patterns, suggesting the two samples are mesoporous materials. For the samples synthesized for more than 24 h, ZSM-5 is detected as the only crystalline phase during the crystallization process. This indicates the slow crystallization character of ZSM-5 under the given experimental conditions, in which an induction period in the early stage is required for the crystallization process. Diffraction peaks of ZSM-5 become evident after crystallization for 48 h, and the intensity of the peaks greatly increases when increasing the crystallization time to 72 h.

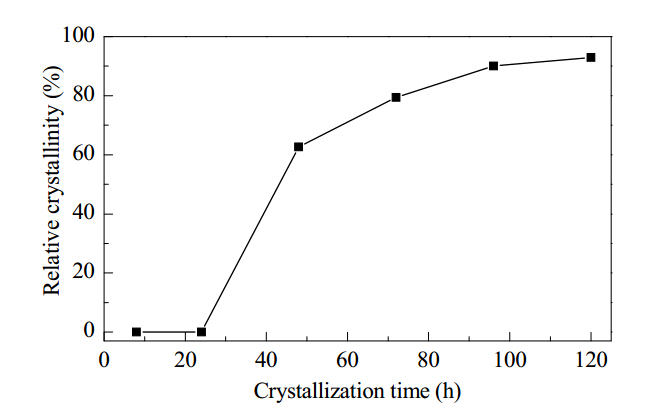

The crystallization curve based on the relative crystallinity calculated from Fig. 6 is shown in Fig. 7. The reference sample used here is conventional ZSM-5, whose relative crystallinity was defined as 100%. During the initial 24 h, there is an induction period and no ZSM-5 phase forms. For a crystallization time of 48 h, the relative crystallinity sharply increases to 63%. Then, the relative crystallinity gradually increases from 63% to 93% with increasing crystallization time from 48 to 120 h.

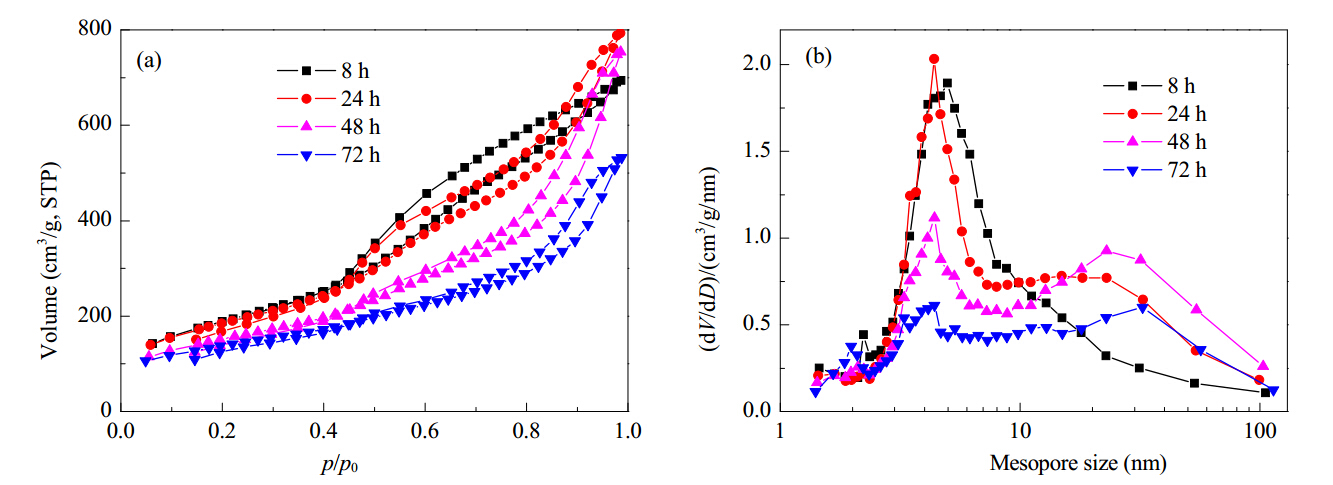

N2 adsorption-desorption experiments were conducted to investigate the change of the textural properties of the synthesized samples during the crystallization process. The N2 adsorption-desorption isotherms and the pore size distribution curves of the samples synthesized at different crystallization times are shown in Fig. 8. All of the N2 adsorption-adsorption isotherms of the samples crystallized for more than 8 h have a typical Type IV isotherm, indicating mesoporous structures. The pore size is centered at 4.5 nm. Mesopores with pore diameter greater than 10 nm are also present. When increasing the crystallization time to 24 h, the synthesized sample is still mostly mesoporous, although a small number of micropores are formed, as indicated in Fig. 8(b) and Table 3. The pore size distribution also changes, and more mesopores of ~20 nm in diameter are present. As the crystallization time is further increased to 48 and 72 h, the corresponding N2 adsorption-desorption isotherms change and pore size distribution show a remarkable decrease in the number of ∼4 nm diameter mesopores, and an increase in the number of ~30 nm diameter mesopores.
The textural properties of the samples synthesized for different crystallization times are listed in Table 3. With the generation of the MFI phase in the synthesized samples, the microporous surface area and volume increase while the surface area and pore volume associated with the mesoporous surface decrease. SBET and SMeso of the samples decrease with increasing crystallization time while SMicro tends to increase. The variation of the pore volume shows almost the same trend as that of the surface areas except for the slightly lower total pore volume at 8 h. From the XRD characterizations, both the samples synthesized for 8 and 24 h are mesoporous. The small difference in the pore volumes indicates that the mesoporosity developed during this period.
To clarify the structural change process of the samples synthesized for different crystallization times, TEM images were obtained. Figure 9 shows the TEM images of the samples synthesized for different crystallization times.As shown in Fig. 9(a), only mesoporous material with an irregular lamellar structure was formed during the initial 8 h, which is in good agreement with the XRD results (Fig. 6(a)). After synthesis for 24 h, the obtained sample still retains the mesoporous phase, as indicated in the XRD pattern, while the corresponding TEM image (Fig. 9(b)) indicates that the sample grows into a hollow structure. This change in the structure confirms the development of mesopores during the synthesis period from 8 to 24 h, which may lead to the difference in pore volume (Table 3). Further increasing the crystallization time to 48 h leads to a rapid transformation from the mesoporous structure with hollow morphology to the crystalline phase. As shown in Fig. 9(c), a large number of crystals are observed, although the shell part of the hollow structure remains untransformed. Upon heating the synthesis gel for 72 h, there is no amorphous phase and only crystals are observed (Fig. 9(d)). In addition, the ZSM-5 crystals aggregate to form particles, which is consistent with the SEM results.
To obtain more information about the zeolite framework formation and the local coordination environment of Al species during the synthesis process, 27Al MAS NMR experiments were conducted. Since the MFI phase was confirmed to form after crystallization for 48 h, only the samples synthesized for 8, 48, and 120 h were used for the 27Al MAS NMR investigation.

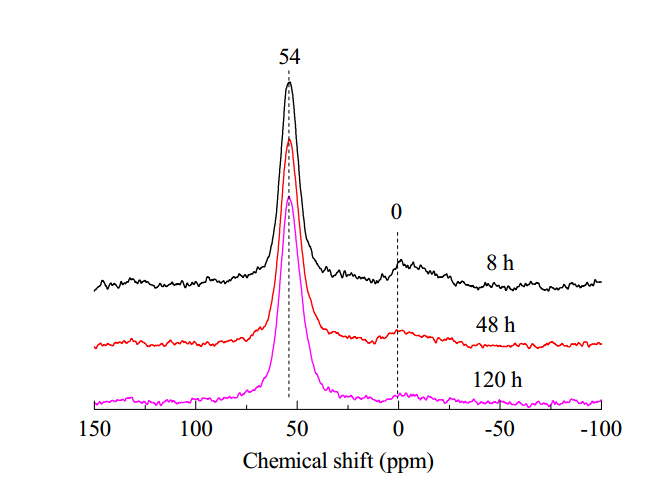

Figure 10 shows the 27Al MAS NMR spectra of samples synthesized for crystallization times of 8, 48, and 120 h. Two peaks are present in the spectra of all three samples. The peak centered at ~54 ppm corresponds to tetrahedral Al of framework Al species. The other peak, centered at ~0 ppm with lower intensity, is ascribed to octahedral Al, which is normally associated with non-framework Al species. Furthermore, from Fig. 10, the peaks at ~54 ppm for all three samples have high intensity, which indicates that large amounts of tetrahedral Al are present in the ZSM-5 framework, even at the early stage of the synthesis (8 h). Furthermore, the intensity of the peak at ~0 ppm slowly decreased with the increase of the crystallization time from 8 to 120 h. This indicates that an increasing amount of octahedral Al in the non-framework Al species are converted into tetrahedral Al and located in the framework of the MZSM-5 with increasing crystallization time.

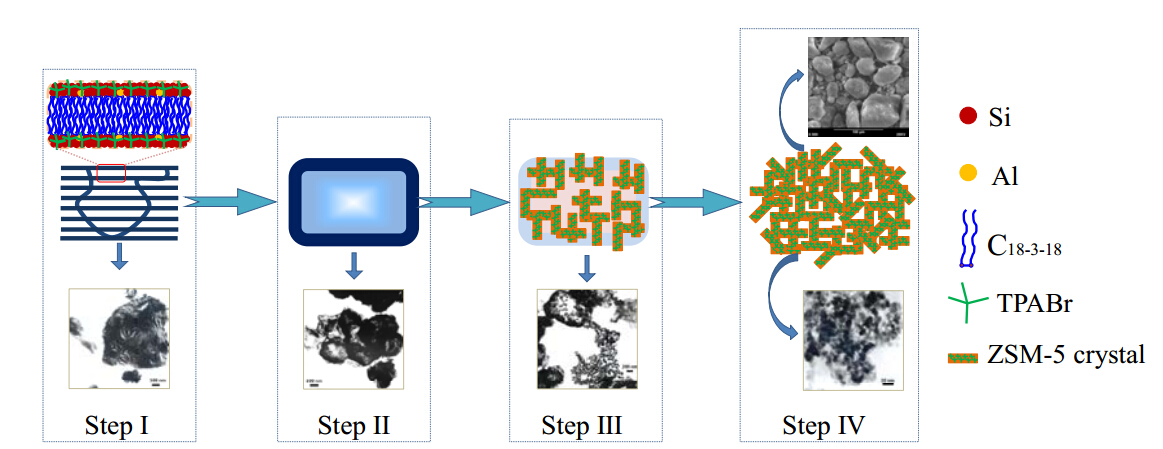

Based on the analysis of the results above, a possible mechanism to explain the formation of MZSM-5 using C18-3-18 as a mesopore directing agent for the crystallization transformation process is shown in Scheme 2. During the early stage (Step I), a mesoporous irregular lamellar structure is formed from the starting synthesis gel under the structure directing function of C18-3-18. The mesoporous phase then changes from the irregular lamellar structure to a hollow structure (Step II). As the hydrothermal synthesis proceeds (Step III), the mesoporous hollow structure crystallizes into ZSM-5 crystals (MFI phase) with the involvement of the TPABr microporous template. Finally, the generated ZSM-5 crystals grow and aggregate to form MZSM-5 particles with large diameter mesopores (>10 nm) between the crystal particles (Step IV), and the initially formed mesopores of ∼4 nm in size are destroyed with crystallization.
In summary, MZSM-5 with inter-crystalline mesopores was successfully synthesized by a dual-templating hydrothermal method using a new gemini surfactant, C18-3-18, as a mesopore directing agent. This synthesis method was confirmed to be effective at different crystallization temperatures. A low crystallization temperature, such as 130 °C, was better for the synthesis of MZSM-5 with good crystallinity, high mesoporous surface area, high mesoporous volume, and regular morphology. The relatively low crystallization temperature required may originate from the unique -N+-(CH2)3-N+- group of the C18-3-18 mesopore directing agent. The amount of C18-3-18 used in the synthesis affected the relative crystallinity and the textural properties of the obtained MZSM-5. Optimizing the ratio of mesoporous directing agent (C18-3-18) to microporous template (TPABr) ensured the synthesis of MZSM-5. Detailed investigation showed that the formation of MZSM-5 followed a crystallization transformation process. C18-3-18 caused the formation of mesoporous material during the early stage, which was subsequently converted into MZSM-5 crystals by the function of TPABr as the template for the formation of the MFI phase. As the synthesis proceeded, the MZSM-5 crystals aggregate into particles by weak interactions. C18-3-18 as a mesopore directing agent could be extended to the synthesis of other mesoporou s zeolites.
B. L. Su acknowledges the Chinese Central Government for an “Expert of the State” position in the program of “Thousands Talents” and the Chinese Ministry of Education for a Changjiang Scholar position at the Wuhan University of Technology.
介孔ZSM-5分子筛通常是指同时具有微孔和介孔孔道的ZSM-5晶体材料, 它结合单一的微孔和介孔孔道的优点, 进而增加催化剂活性中心的可接触性、并减少在应用中的扩散限制, 提高分子筛催化效率[1, 2, 3, 4]. 由于其潜在的应用前景, 介孔ZSM-5分子筛的合成引起了广泛关注.
迄今为止, 已经提出大量的合成策略用于在传统ZSM-5分子筛晶体中引入介孔. 研究证明, 高温加热处理[5]、酸处理[6, 7, 8]、水蒸气热处理[6, 7]、碱处理[9, 10]和其它化学试剂处理[11]都是非常有效的在ZSM-5分子筛晶体中创造介孔的手段. 还有研究采用双模板的方法进行晶化, 即在合成体系中同时含有ZSM-5结构导向剂和介孔模板剂. 其中, 介孔模板剂可以是硬模板, 包括碳纳米颗粒或碳纳米管[12, 13]、聚甲基丙烯酸甲酯(PMMA)纳米球[14]、纳米CaCO3[15]、高分子微球[16]等; 也可以是软模板, 如阳离子表面活性剂(CTAB)[17, 18]、非离子烷基聚(环氧乙烷)表面活性剂[19]、有机硅烷[20]、阳离子高分子[21]、硅烷化高分子聚合物[22]和一些天然产物[23]等. 这些介孔模板剂能够非常有效地在ZSM-5分子筛晶体中产生介孔, 吸引了众多学者的关注. 近来, Ryoo等[24, 25, 26]采用一种具有多头季铵盐基团的有机表面活性剂合成了介孔ZSM-5分子筛. 该有机表面活性剂可以同时用作分子筛的晶体结构导向剂和介孔导向剂. 这是介孔分子筛合成领域的一个重大进展. 由此可见, 介孔分子筛的新合成方法的发展和新的表面活性剂的探索依然是等级结构材料领域的研究重点.
本文采用一种新颖的Gemini型表面活性剂, 丙撑基双(十八烷基二甲基氯化铵) [C18H37(CH3)2-N+ - (CH2)3-N+-(CH3)2C18H37]Cl2 (C18-3-18), 作为介孔模板剂, 简洁有效地合成了介孔ZSM-5分子筛. 图式1给出了C18-3-18的结构模型. 据我们所知, 采用C18-3-18作为介孔模板剂合成介孔ZSM-5分子筛的研究尚未见报道. 在对实验结果表征和论证的基础上, 对以C18-3-18作为介孔模板剂的介孔ZSM-5分子筛的形成机理也进行了探讨.
所有的化学试剂, 包括NaAlO2 (41 wt% Al2O3)、正硅酸乙酯(TEOS, 98.0%,)、四丙基溴化铵(TPABr, 98.0%)、NaOH (96.0%)和(C18-3-18, 95.0%)均为商业分析纯试剂, 且不经纯化直接使用.
以C18-3-18作为介孔模板剂, 采用水热法合成介孔ZSM-5分子筛. 起始合成溶液的凝胶比为40 SiO2:1.0 Al2O3:20 NaOH:10 TPABr:x C18-3-18:7000 H2O. 水热合成温度为130-175 ºC. 具体合成步骤如下: 将0.26 g NaAlO2, 0.80 g NaOH, 2.80 g TPABr溶解到135 g H2O中, 在搅拌状态下加入8.93 g TEOS和3.33 g C18-3-18 (x = 4), 充分搅拌之后, 合成溶胶移入200 mL不锈钢合成釜中. 合成釜经密封之后, 移入烘箱, 在搅拌、加热和自生压力下晶化一定时间. 晶化结束后, 得到的样品经过反复水洗和离心分离, 最后得到的样品移入 烘箱在120 ºC干燥12 h, 600 ºC焙烧6 h. 其中将在150 ºC晶化36 h的样品命名为MZSM-5-A; 在130 ºC晶化120 h的样品命名为MZSM-5-B; 在120 ºC先晶化48 h, 再升温到175 ºC晶化6 h的样品命名为MZSM-5-C. 为了比较, 同法制备了传统的微孔ZSM-5分子筛, 只是没有加介孔模板剂, 在175 ºC晶化48 h制得, 记为ZSM-5.
采用日本理学D/max-rb型X射线衍射(XRD)仪测试样品的晶相, 测定条件: 室温, Cu靶, Kα辐射源(λ = 1.5405 Å), 电压40 kV, 电流40 mA. 根据ZSM-5分子筛样品在2θ = 22°-25°之间五指峰强度确定其相对结晶度.
采用KYKY-AMRAY-1000B型扫描电子显微镜(SEM)观测样品的表面形貌. 采用JEOL JEM-2000Ex型透射电子显微镜(TEM)来研究催化剂的孔道结构信息.
采用美国Quantachrome公司NOWA4000型物理吸附仪在-196 ºC对分子筛样品进行N2物理吸附性能表征. 实验前, 样品需在真空条件下130 ºC处理1 h, 350 ºC处理2 h.
27Al固体核磁共振(NMR)实验在Bruker Avance III 600型核磁共振波谱仪上进行. 27Al MASNMR谱图是在4 mm三共振探头进行, 27Al的共振频率为156.4 MHz, 采用π/8脉冲宽度为0.75 μs和2 s的弛豫延迟, 转速为12 kHz, 累加100次. 27Al的化学位移以NH4Al(SO4)2·12H2O为二次参考外标(δAl = -0.4 ppm).
图1为不同晶化温度下所合成介孔ZSM-5和微孔ZSM-5样品的XRD谱. 由图可见, 所有样品均呈现出MFI的典型结构, 且再无其它杂相的峰生成. 还可以看出, 尽管起始凝胶比和所采用的双模板剂完全一样, 但不同晶化温度所制介孔ZSM-5分子筛的相对结晶度略有差异, 其中在150 ºC晶化36 h得到的MZSM-5-A和先在120 ºC晶化48 h, 后175 ºC晶化6 h得到的MZSM-5-C具有低的相对结晶度, 而在130 ºC晶化120 h得到的MZSM-5-B相对结晶度最高, 接近于传统ZSM-5分子筛. 这表明MZSM-5-B的晶化条件(130 ºC, 120 h)更为适宜.
图2为传统ZSM-5和各介孔ZSM-5的N2吸附-脱附等温线和相应的孔分布曲线. 孔分布曲线是通过BJH模型, 采用吸附分支计算得到. 表1列出了它们的织构性质. 如图2(a)所示, 传统ZSM-5分子筛的N2吸附-脱附曲线为典型的I型(Langmuir), 其N2吸附量在吸附相对压力较高时没有明显增加, 且没有吸附滞后环. 这些都是无介孔的微孔沸石分子筛的典型特征. 如图2(b)所示, 传统ZSM-5分子筛不含有介孔(2 nm以上); 其总比表面积和总孔体积分别为328 m2/g和0.16 cm3/g (表1), 但其中介孔比表面积和介孔孔体积分别仅为59 m2/g和0.03 cm3/g.
介孔ZSM-5分子筛样品的N2吸附-脱附曲线明显不同于传统ZSM-5分子筛, 呈现出I型和IV型复合形状的曲线. 这表明在采用双模板法在不同晶化温度下合成的样品同时存在着微孔和介孔. 另外, 由于介孔的产生, 使得这三个介孔ZSM-5分子筛样品的N2吸附量在相对压力较高吸附时急剧增加, 并形成吸附滞后环, 这证实了介孔的产生. 随着介孔的产生, MZSM-5-A, MZSM-5-B和MZSM-5-C的介孔比表面积分别增加到133, 268和141 m2/g, 相应的介孔体积则分别增加到0.49, 0.66和0.32 cm3/g (表1). 同时, 它们的微孔比表面积分别降低到121, 150和138 m2/g, 相应的微孔体积则分别降低到0.06, 0.07和0.06 cm3/g. 如图2(b)所示, 介孔ZSM-5分子筛的孔分布曲线较宽, 位于2-100 nm, 表明所产生的介孔可能是来自于晶间孔, 其中MZSM-5-A和MZSM-5-C的介孔大部分位于50 nm左右, 而MZSM-5-B中50 nm左右的介孔比例明显降低, 在2-10 nm之间的介孔大大增加.
图3为传统ZSM-5和各介孔ZSM-5分子筛的代表性SEM照片. 由图可见, 传统ZSM-5分子筛为0.6-1 μm的晶体颗粒; 150 ºC晶化36 h所得到的样品MZSM-5-A也呈现出颗粒大小不均一的晶体. 稍微大一点的晶粒约为10 μm, 是由~1 μm的小晶体颗粒聚集而成的. 图3(e)给出了低倍率的MZSM-5-B的SEM照片. 可以看出, MZSM-5-B为尺寸大小不均一的块状颗粒. 从放大的图3(f)可见, 尺寸大小不均一的块状颗粒是由很多小的ZSM-5的晶粒聚集而成的, 由此产生了晶粒间的介孔. 这与N2物理吸附结果一致. 相应地, MZSM-5-C样品与MZSM-5-A和MZSM-5-B的类似, 也呈现出尺寸大小不均一的块状颗粒. 这些颗粒也都是由小的ZSM-5晶粒聚集而成. 在三个微孔-介孔复合ZSM-5分子筛样品中, MZSM-5-B具有相对较为规整的形貌. 这也说明在使用C18-3-18作为介孔模板剂时, 相对低温的晶化合成路线更有利于介孔ZSM-5的合成.
综上可见, 不同的晶化温度会影响最终得到的介孔ZSM-5分子筛的形貌、比表面积和孔结构, 相对较低的晶化温度(130 ºC)比较适宜, 在该温度下晶化120 h合成的样品具有较高的结晶度、介孔比表面积和介孔孔体积以及较为规整的形貌. 使用C18-3-18作为介孔模板剂可以在较低的温度(130 ºC)下实现介孔ZSM-5分子筛的合成, 这可能是由于Gemini型表面活性剂C18-3-18中独特的-N+-(CH2)3-N+-基团造成的. 在低温下, 这种独特的基团结构的存在加速分子筛晶化的原因仍需进一步研究.
在水热合成中, 介孔模板剂的加入量常常可影响最终得到的介孔ZSM-5分子筛的结晶度、形貌和相关的比表面积和介孔孔道结构. 因此, 本文考察了C18-3-18的使用量对介孔ZSM-5分子筛合成的影响, 所采用的合成条件为130 ºC水热晶化96 h, 起始合成凝胶的摩尔比为40 SiO2:1.0 Al2O3:20 NaOH:10 TPABr:x C18-3-18:7000 H2O, 其中x代表C18-3-18的加入量.
图4为使用不同量的介孔模板剂C18-3-18合成的介孔ZSM-5分子筛样品的XRD谱. 由图可见, 各样品均呈现出MFI独特的拓扑结构, 且无其它物相的峰. 当C18-3-18的使用量x = 2和4时, 所得分子筛样品的相对结晶度接近; 至6时则略有升高, x增至8时, 所得分子筛样品的相对结晶度急剧下降. 这是在使用双模板法合成微孔-介孔复合分子筛时的正常现象. 在通常的水热合成体系下, 所采用的双模板体系, 即微孔模板剂TPABr和介孔结构导向剂C18-3-18, 在合成过程中是以一种相互竞争、而不是协同合作的方式在发挥作用. 如果在水热合成体系加入过多介孔模板剂C18-3-18, TPABr和C18-3-18的竞争作用较强, 导致MFI晶相的形成速度比较慢, 即降低了ZSM-5生成的速度, 使得合成体系中大量的合成凝胶未能及时转变成ZSM-5, 而以无定形的状态保留了下来, 因而所得样品的相对结晶度大大降低.
图5为上述介孔ZSM-5分子筛样品的N2吸附-脱附等温线和孔分布曲线, 相应的织构性质列于表2. 可以看到, 所有样品的N2吸附-脱附等温线均为I型和IV型复合形状, 表明同时存在着微孔和介孔. 如表2所示, 随着介孔模板剂加入量x依次增加到2, 4和6, 所合成的介孔ZSM-5分子筛的比表面积(包括微孔比表面积和介孔比表面积)相应增至325, 491和515 m2/g, 其中x = 4时的总孔体积Vtotal (0.82 cm3/g)要大于样品x = 2 (0.52 cm3/g)和x = 6 (0.66 cm3/g). 这表明该样品含有较为丰富的介孔. 而x = 6时的样品相对较低的总孔体积很可能因为其中的微孔更多. x进一步增至8, 所得样品的比表面积和孔体积可达最高. 然而考虑到其较低的相对结晶度和较小的微孔比表面积, C18-3-18的使用量太大并不利于介孔ZSM-5分子筛的生成.
上述结果表明, 在合成凝胶中加入不同量的介孔模板剂C18-3-18, 可以影响到生成的介孔ZSM-5分子筛的相对结晶度、比表面积和孔体积等性质. 总体而言, C18-3-18加入量x = 4和6相对较好.
如图5(b)所示, 当C18-3-18加入量x = 2, 4和6时, 所得ZSM-5分子筛介孔分布较宽, 位于2-30 nm, 至x = 8时, 所得样品的介孔集中于~4 nm.
为了阐明介孔ZSM-5分子筛的形成过程, 我们选用介孔模板剂C18-3-18的用量x = 4, 于130 ºC分别晶化8, 24, 48, 72, 96和120 h来观察微孔和介孔的产生和变化趋势, 其中, t = 96和120 h时所得样品分别为3.2节中的样品(x = 4)和3.1节中的MZSM-5-B. 相应的表征在各节中已经分别给出. 在这里仅选用这六点的相对结晶度绘制晶化曲线.
图6为不同晶化时间所得样品的小角和广角XRD谱. 由图可见, 当晶化至8和24 h时, 所得样品在广角XRD谱中没有衍射峰, 但在小角XRD谱中存在一个衍射峰, 表明它们均为介孔材料. 当晶化超过24 h时, 样品中仅出现MFI结构. 这也说明在130 ºC水热合成ZSM-5具有缓慢晶化的特征. 即采用C18-3-18作为介孔模板剂在130 ºC水热合成ZSM-5的初期, 需要一个诱导期来诱导晶化的发生. 当进行到48 h时, 所合成样品的ZSM-5峰型非常明显, 至72 h时, 所得样品的ZSM-5峰强度进一步增加.
图7为微孔-介孔ZSM-5分子筛的晶化曲线, 它是基于不同晶化时间所得样品的相对结晶度而得. 在相对结晶度的计算中, 以传统ZSM-5样品为基准, 将其相对结晶度定义为100%. 如图7所示, 在使用介孔模板剂C18-3-18进行合成的初期(24 h), 并未生成ZSM-5相, 是一个诱导阶段. 当晶化时间持续到48 h, ZSM-5相开始形成, 所得样品的相对结晶度快速升至63%; 至72 h时为79%, 96 h时达90%. 当晶化时间为120 h时, 所得样品的相对结晶度达到了93%.
图8为不同晶化时间所得样品的N2吸附-脱附等温线和孔分布曲线. 可以看出, 晶化8 h所得样品的吸附脱附等温线为典型的IV型, 表明存在介孔, 其孔径大部分分布在4.5 nm, 也有部分孔径大于10 nm. 当晶化时间延长到24 h, 所得样品依然是介孔材料, 但已出现少量的微孔(表3); 另外, 它还存在20 nm左右的介孔. 当晶化至48和72 h, 所得样品的N2吸附-脱附等温线继续发生改变, 相应地, 4 nm的介孔的比例减少, 而~30 nm介孔比例增加.
如表3所示, 随着样品中MFI相的生成, 样品的微孔比表面积和微孔孔体积增加, 介孔比表面积和介孔孔体积减少. 随着晶化时间的延长, 所得样品的SBET和SMeso减少, SMicro增加. 除了在8 h得到的样品, 其余样品的微孔和介孔部分的孔体积也呈现出类似的变化趋势. 在晶化8 h所得样品的总孔体积Vtotal略低于晶化24 h时的样品. 由XRD结果可知, 晶化8和24 h所得的样品都是介孔材料, 其孔体积的差异暗示了当晶化时间从8 h进行到24 h时, 样品的介孔孔道结构可能发生了改变.
为了进一步弄清楚介孔ZSM-5分子筛晶化过程中样品孔道结构的转变, 采用TEM对上述样品进行表征. 如图9(a)所示, 在晶化初期(前8 h), 所得样品具有不规则海绵状介孔孔道, 与XRD结果一致; 至24 h时, 所得样品依然是介孔材料(图6和图8), 但形貌发生了转变, 即变成了一个空心结构的介孔材料. 这可能是晶化8 h得到的样品的总孔体积Vtotal低于晶化24 h (图9(b))的原因. 当晶化时间延长到48 h, 样品从空心结构转变为MFI结晶相(图9(c)), 尽管空心结构的壳层部分还没有完全转化, 但有大量的ZSM-5晶体在空心结构的内部生成. 继续增加晶化时间到72 h, 无定形相完全转化, 只观测到大量的ZSM-5晶体颗粒(图9(d)). 之后, ZSM-5晶粒聚集成大块颗粒, 与SEM结果一致.
为了更好地研究介孔ZSM-5分子筛晶化过程中骨架的形成和Al物种化学配位环境的改变, 本文采用27Al MAS NMR对上述样品进行了表征. 综上可见, 晶化达48 h时, MFI相开始形成. 因此, 选用晶化时间t = 8, 48和120 h的样品来进行27Al MAS NMR对比实验, 结果见图10. 由图可见, 所有样品均呈现两个峰. 其中位于~54 ppm处的峰可归属于四配位Al, 也就是分子筛骨架铝引起的; 另外一个强度较弱的峰出现在~0 ppm, 通常归属为八面体Al, 是分子筛非骨架铝的信号峰. 还可以看出, 这三个样品在~54 ppm的峰都具有很高的强度, 表明在合成的初始阶段(t = 8 h), 就已经有大量的四配位铝生成. 由此可见, 在给定的合成条件下, 四配位铝的生成速度很快. 同时, 随着晶化时间从8 h延长到120 h, 三个样品在~0 ppm的峰强度逐渐减弱, 八配位Al转变为四配位Al, 即从非骨架Al转变成骨架Al. 这与前文结果一致.
综上可以认为, 使用介孔模板剂C18-3-18合成介孔ZSM-5分子筛的过程是一个转晶过程. 其示意图见图式2. 步骤I: 在合成初期阶段, 在介孔模板剂C18-3-18的结构导向作用下形成了具有不规则海绵状孔道结构的介孔材料; 该材料的孔径约为4 nm. 步骤II: 随着合成时间的继续, 介孔相被保留, 但其已经从海绵状转变为中空状. 步骤III: 随着水热合成过程的进行, 中空的介孔结构在TPABr的导向作用下开始晶化, 转变为MFI相的ZSM-5晶粒. 所产生的ZSM-5晶粒是从中空的介孔结构的内部开始产生. 随着合成的继续进行, 在步骤Ⅳ, 所产生的ZSM-5晶粒进一步长大, 并由于聚集开始形成块状颗粒. 聚集的ZSM-5颗粒之间产生~30 nm的晶间孔, 原来4 nm的介孔因晶化过程的发生而被破坏.
采用一种新型Gemini表面活性剂C18-3-18作为介孔导向剂, 使用双模板水热法成功合成出具有晶体间介孔的微孔-介孔复合ZSM-5分子筛. 结果表明, 该模板剂对于微孔-介孔复合ZSM-5分子筛的合成在130-175 ºC温度范围内都有效, 相对低的晶化温度(130 ºC)较为适宜, 所合成的样品具有较好的相对结晶度、较高的介孔比表面积、介孔孔体积和较为规整产物形貌. 介孔模板剂C18-3-18中独特的-N+-(CH2)3-N+-基团可能是在较低的晶化温度下实现介孔ZSM-5合成的原因. 合 成凝胶中介孔模板剂C18-3-18的加入量将影响所制微孔-介孔复合ZSM-5分子筛的相对结晶度和孔结构性质. 优化的介孔模板剂与MFI相结构模板剂的比例确保了介孔ZSM-5分子筛的合成. 深入的研究表明, 使用C18-3-18和TPABr合成介孔ZSM-5分子筛是一个转晶过程. 在合成初期阶段, 在介孔模板剂C18-3-18的结构导向作用下形成介孔材料; 此后, 形成的介孔结构在TPABr的导向作用下开始晶化, 转变为MFI相的ZSM-5晶粒; 随后进一步长大并聚集形成块状颗粒并产生晶间介孔. C18-3-18作为介孔导向剂也可能应用于其它介孔分子筛的合成中.
致谢 苏宝连教授特别感谢中国政府给予的首批国家“千人计划”特聘专家职位, 特别感谢中国教育部给予的在武汉理工大学的长江学者讲座教授职位.
