Aromatic compounds such as benzene, toluene, and xylene, which are generally produced by oil cracking, are important organic chemicals. China lacks oil but is rich in coal, so the methanol-to-aromatic (MTA) technique, in which methanol derived from the coal chemical industry is directly converted to aromatic compounds, has attracted much attention in recent years [1, 2, 3, 4]. The HZSM-5 zeolite is widely used as a catalyst for aromatization reactions because of its shape selectivity, high activity, and good hydrothermal stability in aromatization [5, 6, 7]. To improve the yields of aromatization products, various methods have been used to modify the HZSM-5 catalyst to improve its catalytic performance. The modification of HZSM-5 with salts of metals such as Zn, Ga, and Ag is an efficient method of enhancing the aromatization performance [8, 9, 10, 11, 12, 13, 14, 15, 16, 17]. Zn salts, which are inexpensive, do not suffer from metal loss, have good stability, are among the most effective modifiers, and Zn(NO3)2 has been widely studied as a modifier; however, an understanding of the effects of modification with Zn salts is still lacking. In this study, ZnSO4, Zn(AcO)2, Zn(NO3)2, and ZnCl2 were used to modify HZSM-5. The acid properties of the Zn-modified HZSM-5 catalysts and their aromatization performance were studied. An effective Zn modification method was developed, and the surface acid site distribution was investigated.
An HZSM-5 zeolite catalyst (Nankai University, SiO2/Al2O3 = 38) was modified with ZnSO4, Zn(AcO)2, Zn(NO3)2, and ZnCl2 (AR, Tianjin Kemiou Chemical Reagent Co., Ltd.) solutions with certain concentrations using an incipient impregnation method. The samples with 5 wt% Zn loadings obtained after drying at 120 °C were denoted by ZnSO4/HZ-5, Zn(AcO)2/HZ-5, Zn(NO3)2/HZ-5, and ZnCl2/HZ-5, respectively. The samples obtained after calcining at 550 °C for 4 h were denoted by Zn(S)/HZ-5, Zn(Ac)/HZ-5, Zn(N)/HZ-5, and Zn(Cl)/HZ-5, respectively.
The MTA performance over the catalysts was investigated using a laboratory-scale fixed-bed reaction system. The catalysts were pelletized, crushed, and sieved to 40-60 mesh. In each run, the catalyst (1 g) was loaded into the reactor; after activation for 1 h in He at 550 °C, the temperature was quickly decreased to 480 °C. The methanol feedstock was fed into the reactor using a micro-metering pump, with a methanol mass hourly space velocity of 2 h-1. The reaction product was incubated in a gas chromatograph (Bruker 450 GC, flame ionization detector), and the non-aqueous product distribution was obtained by online analysis. The product selectivity was defined as the mass percentage of each substance in the product with respect to the total mass of hydrocarbons obtained.
X-ray diffraction (XRD) patterns were obtained with a PANalytical X’Pert PRO X-ray diffractometer using Cu Kα (λ = 0.15418 nm) radiation and Ni filtration at room temperature, at 40 kV and 40 mA. The scanning range was 2θ = 5°-80°.
N2 adsorption experiments were carried out using a Micromeritics ASAP 2020 physical adsorption instrument (USA).
Thermogravimetric analysis-mass spectrometry (TG-MS) was performed using a Q600 SDT simultaneous thermogravimetric analyzer. The sample mass loss was determined by raising the temperature from room temperature to 850 °C at a rate of 10 °C/min in an air flow of 100 mL/min. An OmniStar mass spectrometer was used to detect the decomposition products online.
Transmission electron microscopy (TEM) was performed using a JEM-2100 transmission microscope.
NH3 temperature-programmed desorption (NH3-TPD) was conducted using a Micromeritics Autochem 2920 chemisorption instrument. The catalyst (100 mg) was pretreated at 600 °C for 40 min in a He flow of 10 mL/min, and then cooled to 100 °C before exposure to NH3 until saturation. The chromatographic thermal conductivity detector was first purged with He until the baseline was stable, and then NH3-TPD was performed in a He flow (10 mL/min) by raising the temperature to 600 °C at a rate of 10 °C/min. The desorbed NH3 was detected using a thermal conductivity detector.
Pyridine adsorption infrared (Py-IR) spectroscopy was carried out in situ using a Bruker Optics XF808-04 Fourier transform (FT) IR spectrometer. First, a small amount of catalyst was finely ground and pelletized to give a translucent wafer of diameter 13 mm, pretreated at 450 °C for 1 h under high vacuum, exposed to pyridine for 5 min, and then cooled to room temperature. The wafer was heated again at 200 °C for 1 h and cooled to room temperature, and then the IR spectrum was obtained. The wafer was then heated at 450 °C for 1 h and cooled to room temperature, and the IR spectrum was again obtained.

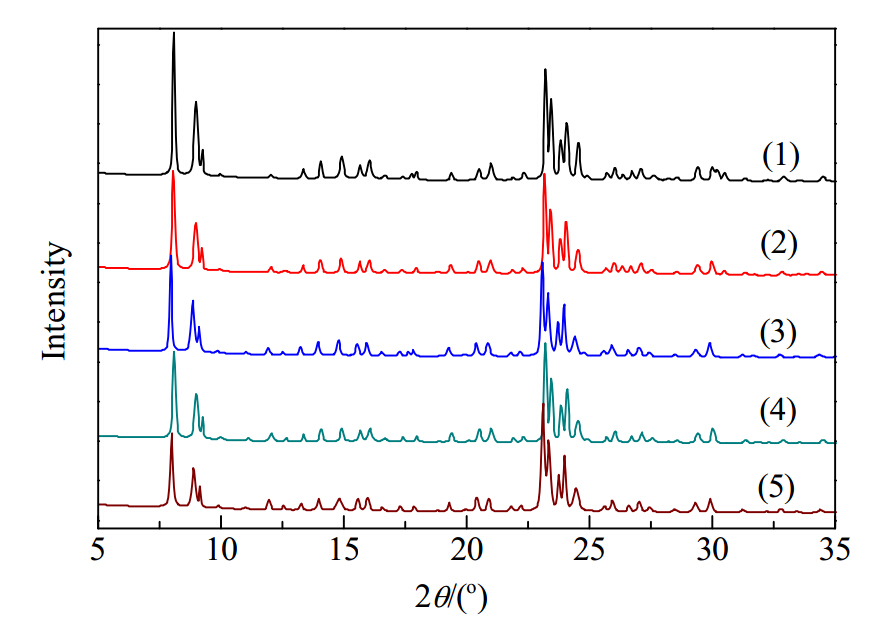

Figure 1 shows the XRD patters of the parent and Zn-modified HZSM-5 zeolite catalysts. The diffraction peaks corresponding to the MFI topological structure were observed before and after modification of the HZSM-5 zeolite, suggesting that Zn modification does not change the zeolite crystal structure. No peaks corresponding to Zn compounds were observed after modification, indicating that the Zn species were well distributed on the HZSM-5 zeolite.
In the XRD patterns, A and B are respectively defined as the sums of the calculated intensity of the two diffraction peaks at 2θ = 7.5° -9.5°, and of the three diffraction peaks at 2θ = 23.0°- 24.5°, respectively; the corresponding sums of the intensity of the peaks of the parent HZSM-5 zeolite catalyst are defined as A0 and B0, which are used as comparison standards; the relative crystallinity, is defined as the ratio of the two corresponding sums. The calculated results for the relative crystallinity of the catalysts modified with Zn salts are listed in Table 1. The data show that, compared with the parent HZSM-5 zeolite catalyst, the intensitiy of the diffraction peaks of the catalysts modified with Zn salts is lower, particularly the peaks at 2θ = 7.5°-9.5°. In particular, for the Zn(Cl)/HZ-5 catalyst, the relative crystallinity of the corresponding peaks decreased to 51%. The relative crystallinity of the peaks at 2θ = 23.0°-24.5° decreased less, and all the values were above 80%. The results indicated that after modification the loaded Zn species are mostly distributed in the main channels of the HZSM-5 zeolite catalyst, resulting in partial breakdown of the skeletal structure of the modified HZSM-5 catalyst.
The N2 physical adsorption results for the HZSM-5 zeolite catalyst and the Zn-modified catalysts are also listed in Table 1. The results show that the Zn-modified HZSM-5 catalysts have lower specific surface areas and reduced pore volumes, but the average pore diameter is barely changed. This may be caused by blockage of the main channels of the zeolite because the loaded Zn species are distributed on both the internal and external surfaces of the channels. The specific surface area of the ZnCl2-modified catalyst (Zn(Cl)/HZ-5) decreases significantly. The XRD results show that this may be caused by partial breakdown of the zeolite skeletal structure in the Zn(Cl)/HZ-5 catalyst.

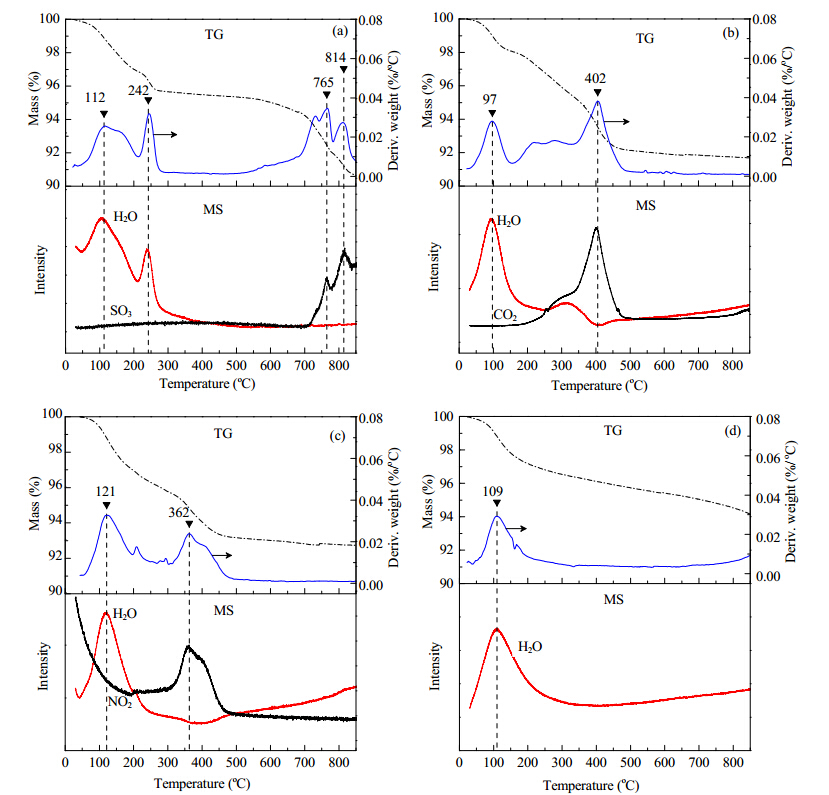

To determine the forms of the Zn species on the modified HZSM-5 catalysts, the Zn-salt-modified precalcined samples, i.e., ZnSO4/HZ-5, Zn(AcO)2/HZ-5, Zn(NO3)2/HZ-5, and ZnCl2/ HZ-5, were investigated using TG-MS; the results are shown in Figure 2.
It can be seen that the decomposition temperatures of the HZSM-5 changed, depending on the Zn salt, showing that the form of the Zn species directly affects the catalysts. The ZnSO4/HZ-5 catalyst began to lose adsorbed water and crystallization water at about 60 °C, and water began to volatilize at 100 °C, i.e., the boiling point; all the crystallization water was lost at about 240 °C. Because of the stability of ZnSO4, mass loss caused by decomposition appears at 680 °C, with the formation of Zn3O(SO4)2, and further decomposition products, i.e., ZnO and SO3, are formed at 765 and 814 °C, respectively. This demonstrates that under the current catalyst preparation conditions (calcination at 550 °C), Zn species may be present in the form of ZnSO4 on the Zn(S)/HZ-5 catalyst. The maximum dehydration peaks appear at 97 and 121 °C for the Zn(AcO)2/ HZ-5 and Zn(NO3)2/HZ-5 samples, respectively, corresponding to the removal of adsorbed water from the sample. The crystallization water was desorbed gradually with increasing temperature, followed by decomposition and mass loss of loaded Zn(AcO)2 and Zn(NO3)2 at 402 and 362 °C, respectively, indicating lower thermal decomposition temperatures for Zn(AcO)2 and Zn(NO3)2. This shows that under the current catalyst preparation conditions, Zn species are mainly present as ZnO on the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts. For ZnCl2/HZ-5, the maximum dehydration appeared at 109 °C, corresponding to the removal of adsorbed water from the sample, followed by continuous mass loss with increasing temperature. The mass loss may be a result of the low melting point of ZnCl2, which starts to melt at 275 °C and volatilizes as the temperature increases; thermal decomposition only occurs above 850 °C, even in the presence of both air and water vapor; therefore, under the current catalyst preparation conditions, for the Zn(Cl)/HZ-5 catalyst, the Zn species may be distributed on the catalyst surface in the form of ZnCl2.

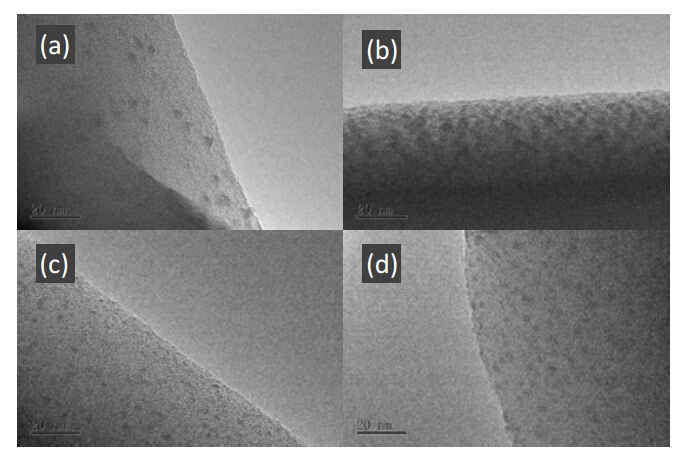

Figure 3 shows TEM images of the catalysts modified with Zn salts. It can be seen that there are many particles of Zn species on all the modified catalyst surfaces, and the distributions of particles with different morphology differ. For the Zn(S)/HZ-5 and Zn(Cl)/HZ-5 catalysts, the Zn species are present as Zn salts, so the loaded particle size is large, and the dispersion uniformity is poor (Figure 3(a) and (d)). For the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts, the Zn species are present as ZnO, so the loaded particles are small, and they can be distributed on both the internal and external surfaces of the zeolite channels and are highly dispersed (Figure 3(b) and (c)).

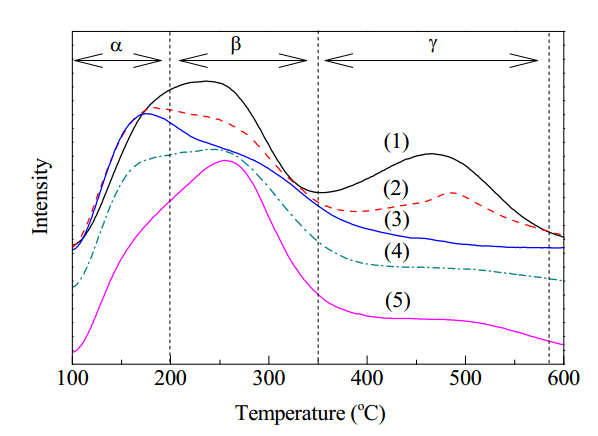

Figure 4 shows the NH3-TPD profiles of HZSM-5 catalysts modified with Zn salts. Three NH3 desorption peaks are clearly observed in the ranges 100-200, 200-350, and 350-570 °C, respectively, corresponding to weak acid sites α, medium strength acid sites β, and strong acid sites γ on the HZSM-5 catalysts. Compared with the parent HZSM-5 zeolite catalyst, the amounts of strong acid sites on the modified catalysts decrease significantly. There are only a few strong acid sites on the Zn(S)/HZ-5 and Zn(Cl)/HZ-5 catalysts and this can be ascribed to the increased exchange rate between Zn2+ and H+ as a result of the large amount of Zn species loaded on the catalyst surfaces. The collapse of the skeletal structure of the Zn(Cl)/HZ-5 catalyst also causes loss of some strong acid sites. The strong acid sites almost disappear completely from the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts possibly because the strong acid sites can be easily covered by ZnO. In contrast, there are many weak acid sites and few medium strength acid sites on the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts; this can be ascribed to the formation of ZnOH+ from ZnO species loaded on the catalyst surface and strong H+ acid sites, resulting in conversion of strong acid sites to weak acid sites [18]. However, the increased amount of weak acid sites and medium strength acid sites on the Zn(Cl)/HZ-5 catalyst, together with the increase in the desorption peak temperature, show that the strength of the medium strength acid sites is enhanced; this may be related to the formation of [ZnCl2(NH3)2]2+ or [Zn(NH3)4]2+ complexes from ZnCl2 and NH3 on the catalyst surfaces.

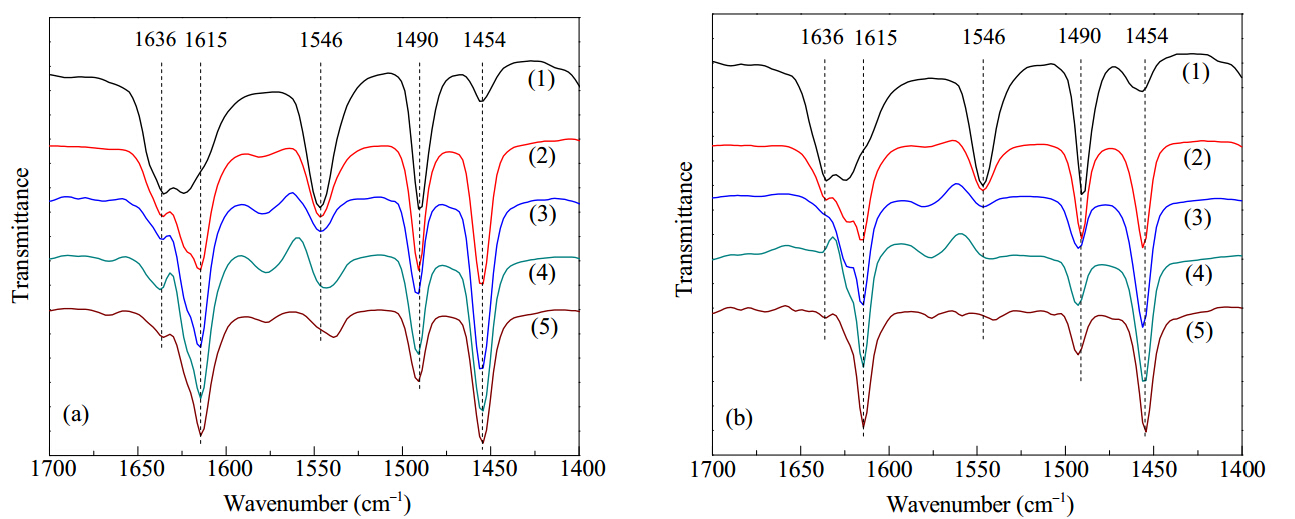

Py-IR measurements were performed at different desorption temperatures to investigate the acid site distributions of the catalysts modified with Zn salts; the results are shown in Figure 5. In general, the two absorption peaks appeared at around 1450 and 1540 cm-1 correspond to the characteristic vibration peaks of pyridine molecules adsorbed on Lewis and Brönsted acid sites, respectively. The absorption peaks at around 1490 and 1635 cm-1 are usually classified as Brönsted and Lewis acid sites, and these can have synergistic effects. The strong absorption peak at 1616 cm-1 is ascribed to ZnOH+ species formed between Zn species and Brönsted acids [19], usually denoted by Zn-L. The desorption peak areas of the Brönsted and Lewis acid sites at different temperatures for the HZSM-5 zeolite catalyst before and after modification with Zn salts were obtained by Gaussian function fitting and integration of the Py-IR spectra; the results are shown in Table 2.
For a desorption temperature of 200 °C, there are fewer Lewis acid sites and more Brönsted acid sites present on the parent HZSM-5 zeolite catalyst, showing that most of the acid sites on the HZSM-5 zeolite catalyst are Brönsted acid type. The characteristic peaks denoting Lewis acid sites (1454 cm-1) on all the modified catalysts are stronger, and those denoting Brönsted acid sites (1546 cm-1) are weaker, demonstrating that the amounts of Lewis acid sites increased and those of Brönsted acid sites decreased, because Zn species loaded on the surfaces mainly covered the Brönsted acid sites of the HZSM-5 zeolite catalysts, or some Brönsted acid sites were converted to Lewis acid sites by interactions between Zn species and Brönsted acid sites. Zn species can also interact with the Al skeleton to produce new Lewis acid sites. In contrast, except in the case of the Zn(S)/HZ-5, all the peaks at around 1490 and 1636 cm-1 showing the synergistic effects of Brönsted acid and Lewis acid are weakened; this may be caused by the significantly reduced number of Brönsted acid sites on the catalysts.
At a desorption temperature of 450 °C, more of the pyridine molecules adsorbed on the weak acid sites are removed; this further shows the distribution of strong acid sites on the catalyst surfaces. The characteristic peaks of the Brönsted and Lewis acids are weaker on all the catalysts modified with Zn salts; there are still some Brönsted acid sites on the Zn(S)/HZ-5 catalyst, but all the other peaks ascribed to Brönsted acid sites (1546 cm-1) are weakened significantly after the modification. For the Zn(Cl)/HZ-5 catalyst, the unit area of the peak from Brönsted acid sites with adsorbed pyridine decreases to 0.15 (Table 2). In addition, the areas of the peaks from Lewis acid sites (1454 cm-1) and Zn-L acid sites (1615 cm-1) decrease although there is still a significant amount of acid sites. These results combined with the NH3-TPD results confirm that the medium strength acid sites are mainly Lewis acid and Zn-L acid sites on the catalysts modified with Zn salts, but there are a few relatively strong Brönsted acid sites available on the Zn(S)/HZ-5 catalyst.
Catalytic MTA performace was investigated over HZSM-5 catalysts modified with Zn salts in a fixed-bed reaction system; the results are shown in Table 3. The methanol conversion reached 100% over all the catalysts. It can be seen from the product distribution that the total aromatic selectivity reached 46.9 wt% over the parent HZSM-5 zeolite catalyst, and except for a slight decrease over the Zn(Cl)/HZ-5 catalyst, the total aromatic selectivity over all the other catalysts increased, particularly for the ZnSO4-modified Zn(S)/HZ-5 catalyst, which gave a selectivity of 77.9 wt%. In addition, for the parent HZSM-5 zeolite catalyst, the content of low hydrocarbons (C1-C5) reached 53.1 wt%; the major component was alkanes (45.7 wt%) and the minor component was olefins (7.4 wt%). However, the olefin component increased significantly over the Zn-modified catalysts, and the olefin selectivity was 37.9 wt% over the Zn(Cl)/HZ-5 catalyst, with a low- hydrocarbon (C1-C5) content of 58.2 wt%.

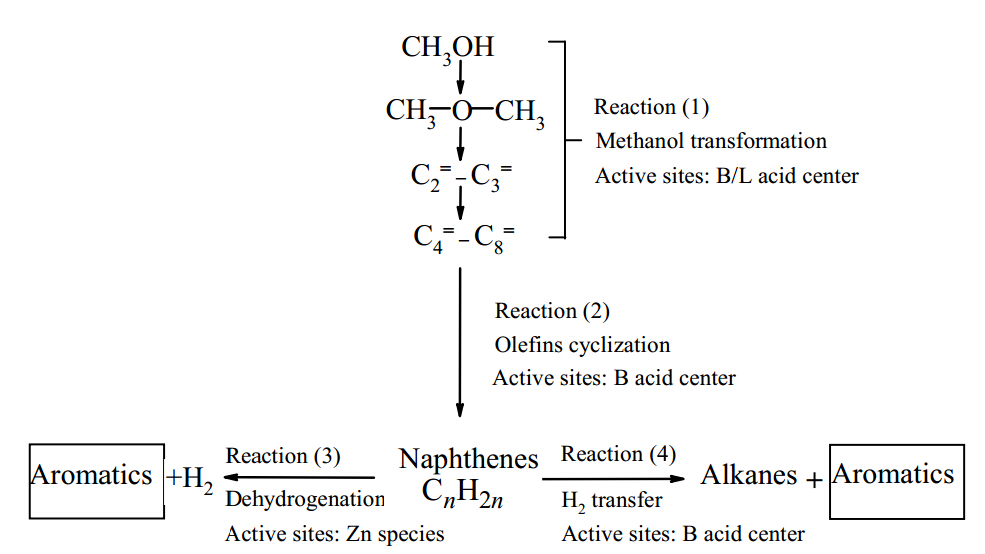

Methanol aromatization reactions are acid catalyzed reactions [20, 21], which occur via dehydration and polymerization, as shown in Scheme 1. Methanol is first converted to low hydrocarbons (Reaction (1)), which are converted to naphthenes via olefin cyclization (Reaction (2)), and then to aromatics and H2 via naphthene dehydrogenation (Reaction (3)). The naphthenes react with the olefins via hydrogen transfer, producing aromatics and alkanes (Reaction (4)). The total aromatic selectivity on the parent HZSM-5 zeolite catalyst is about 46 wt%. Both the Py-IR analysis and NH3-TPD profiles show that there is a large amount of Brönsted acid sites present on the surface of the HZSM-5 zeolite catalyst; this confirms that Brönsted acid sites can facilitate the methanol-cracking reaction (Reaction (1)), the cyclization of light olefins (Reaction (2)), and hydrogen transfer (Reaction (4)) to produce aromatics. There are Lewis acid sites and medium strength Brönsted acid sites present on the Zn(S)/HZ-5 catalyst, and both these types of acid site can catalyze the complete conversion of methanolto light olefins. Brönsted acid sites can catalyze the cyclization of light olefins and hydrogen transfer, and Zn species loaded on the catalyst surface facilitate dehydrogenation; the total aromatic selectivity is therefore 77.9 wt% over Zn(S)/HZ-5. The amount of alkanes in the low hydrocarbons decreases; this might be caused by weakening of the hydrogen transfer reaction as a result of the decreased amount of Brönsted acid sites. The decrease in the amount of Brönsted acid sites results in a decrease in the amount of aromatics produced by hydrogen transfer; however, hydrogen transfer on the catalyst surface becomes the major pathway for methanol conversion. There are more Lewis acid sites, but fewer medium strength acid sites, available on the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts. The 100% methanol conversion shows that the Lewis acid and Brönsted acid sites have similar catalytic effects on methanol conversion. Although the reduced amount of Brönsted acid sites decreases the extents of cyclization of light olefins and hydrogen transfer, the total aromatic selectivity is still higher than that of the parent HZSM-5 zeolite catalyst because dehydrogenation of naphthenes by Zn species loaded on the catalyst surface is facilitated. The low-hydrocarbon alkane selectivity is greatly increased because the reduced amount of medium strength Brönsted acid sites weakens hydrogen transfer. There are a large number of Lewis acid sites but only a small amount of weak Brönsted acid sites on the Zn(Cl)/HZ-5 catalyst. Although methanol can be completely converted to low hydrocarbons via Reaction (1), which is catalyzed by Lewis acid sites, the disappearance of Brönsted acid sites may weaken olefin cyclization significantly, leading to generation of negligible amounts of naphthenes. The disappearance of Brönsted acid sites also lowers the incidence of hydrogen transfer, resulting in a significant decrease in total aromatic selectivity, although Zn species loaded on the catalyst surface can promote the dehydrogenation of naphthenes. The low- hydrocarbon olefin selectivity reached 37.9 wt%, which shows that the hydrogen transfer on Brönsted acid sites was greatly weakened.
The above results show that in the MTA reaction, Brönsted acid or Lewis acid sites can catalyze methanol cracking to produce low hydrocarbons (Reaction (1)), and medium strength Brönsted acid sites can promote the cyclization (Reaction (2)) of light olefins to naphthenes. The generated naphthenes are converted to aromatics via two routes. One is the formation of aromatics and alkanes via hydrogen transfer (Reaction (4)) on medium strength Brönsted acid sites, and the other is aromatic formation via naphthene dehydrogenation (Reaction (3)), facilitated by Zn species loaded on the catalyst surface, which greatly improves the aromatic selectivity. The factor that determines the total aromatic selectivity of the MTA reaction is therefore the result of synergy between medium strength Brönsted acid sites and Zn dehydrogenation species. The decrease or disappearance of medium strength Brönsted acid sites reduces the amount of light olefins and their cyclization (Reaction (2)), and the amount of naphthenes generated, and this directly influences the production of aromatics. Tian et al. [22] observed similar results in stability studies for catalysts, i.e., a decrease in the total aromatic selectivity as a result of loss of Brönsted acid sites.

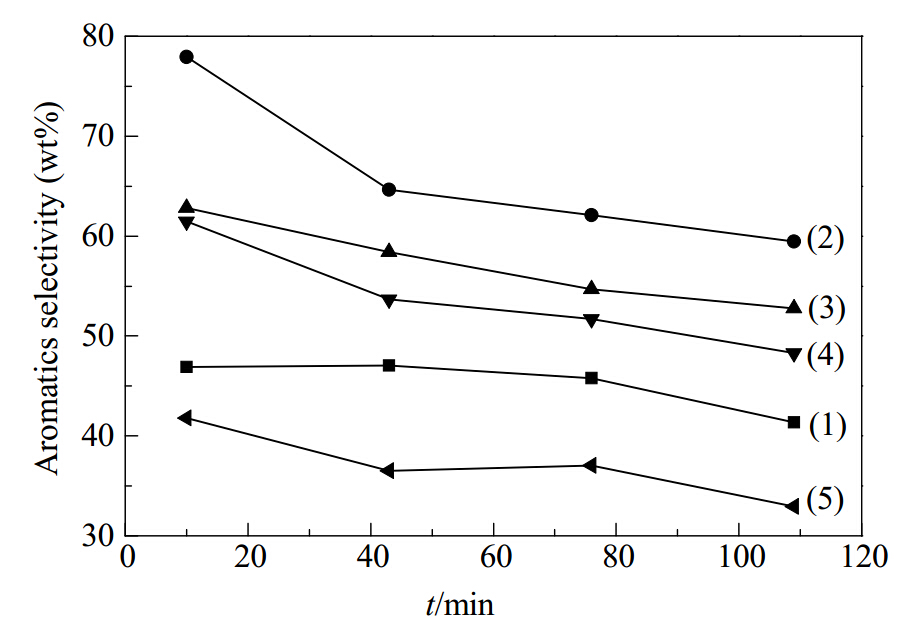

Figure 6 shows the trends in the total aromatic selectivity in continuous MTA reactions over HZSM-5 catalysts modified with Zn salts; 100% methanol conversion is achieved during the reaction. Initially, the total aromatic selectivity on the Zn(S)/HZ-5 catalyst is the highest, but it quickly decreases and the reaction slows down, possibly because rapid coke deposition on the medium strength Brönsted acid sites weakens olefin cyclization at the beginning of the reaction. There are fewer medium strength Brönsted acid sites on the Zn(Ac)/HZ-5 and Zn(N)/HZ-5 catalysts, and the total aromatic selectivity is slightly lower. The total aromatic selectivity barely decreases on the Zn(Cl)/HZ-5 catalyst, with almost no medium strength Brönsted acid sites available. Although coke is formed on medium strength Brönsted acid sites, there are more Brönsted acid sites present on the parent HZSM-5 zeolite catalyst, therefore the total aromatic selectivity changes little in a short time.
The normalized total aromatic distributions of the MTA reactions are presented in Table 4. Compared with the parent HZSM-5 zeolite catalyst, the selectivity for benzene and toluene in the total aromatics is lower, whereas the selectivity for xylene and C9+ aromatics is higher, on the catalysts modified with Zn salts. Combined with the Py-IR results, this shows that there are more strong Lewis acid sites on the catalysts after modification, but the amounts of medium strength Brönsted acid sites are reduced significantly, and medium strength Brönsted acid sites almost disappear completely for the Zn(Cl)/HZ-5 catalyst. This shows that an increased amount of Lewis acid sites on the modified catalyst surface can further promote the alkylation of benzene and toluene, converting the light aromatics in the total aromatic products to heavy aromatics; this not only reduces the economic value of the aromatics, but also consumes a large amount of carbon resources in the methanol.
In summary, medium strength Brönsted acid sites on the catalysts for the MTA reaction not only generate light olefins via methanol cracking and olefin cyclization, but can also catalyze the conversion of naphthenes to aromatics via hydrogen transfer. The dehydrogenation components loaded on the catalyst surface can promote the dehydrogenation of naphthenes and thus increase the overall yield of aromatics. However, the modified species reduce the number of Brönsted acid sites on the catalyst surfaces and increase the amount of Lewis acid sites. The increased number of Lewis acid sites promotes the alkylation of benzene and toluene, resulting in an increase in the amount of heavy aromatics and a decrease in the economic value of the aromatics. The catalytic performance for the MTA reaction over the Zn(Cl)/HZ-5 catalyst shows that although the presence of Lewis acid sites can facilitate methanol cracking to low hydrocarbons, the reduced amount of medium strength Brönsted acid sites lowers the reaction performance in terms of light olefin cyclization and hydrogen transfer, resulting in lower total aromatic selectivity. It can therefore be presumed that if more medium strength Brönsted acid sites can be retained simultaneously with an increase in dehydrogenation components and generation of fewer Lewis acid sites in the modified HZSM-5 catalysts, the MTA reaction performance will be increased.
The form of the Zn species on HZSM-5 catalysts modified with Zn salts directly affects the strength and distribution of acid sites on the catalyst surface. The MTA reaction is the result of synergy between medium strength Brönsted acid sites and dehydrogenation species on the catalyst surface. The presence of medium strength Brönsted acid sites and Zn species on the surface of the Zn(S)/HZ-5 catalyst effectively enhances the MTA performance, giving a total aromatic selectivity of 77.9 wt%. The introduction of a dehydrogenation component on the modified HZSM-5 catalysts, with simultaneous retention of more medium strength Brönsted acid sites, is an effective route to developing high-performance catalysts for methanol aromatization.
苯、甲苯和二甲苯(BTX)等芳烃是重要的有机化工原料, 主要来源于石油. 我国是一个石油资源相对短缺而煤炭资源相对丰富的国家, 近年来一种将煤化工下游产品甲醇直接转变成芳烃的甲醇芳构化(MTA)技术已成为许多研究者关注的热点[1-4]. HZSM-5分子筛具有独特的择形性和较强的芳构化活性以及良好的水热稳定性和抗积碳性能, 被广泛应用于MTA反应中[5-7]. 为了增加芳烃产率, 研究者们对HZSM-5分子筛进行了一系列改性, 以不同金属Zn, Ga和Ag等盐溶液改性制备的HZSM-5催化剂表现出良好的甲醇芳构化性能[8-17], 其中金属Zn盐以其价 格低廉、不易流失且稳定性好等特点已成为人们重点研究的对象. 但在改性过程中一般均采用Zn的硝酸盐, 而对于不同Zn盐改性的研究还未见报道. 本文选用了不同Zn盐ZnSO4, Zn(AcO)2, Zn(NO3)2和ZnCl2分别对HZSM-5分子筛进行了改性, 考察了不同Zn盐改性的HZSM-5催化剂上表面酸性分布及其MTA反应性能, 提出了较佳的Zn盐改性方法以及表面酸性分布特征.
采用等量浸渍法使用一定浓度的ZnSO4, Zn(AcO)2, Zn(NO3)2和ZnCl2 (天津市科密欧化学试剂有限公司, 分析纯)溶液对HZSM-5分子筛(南开大学, SiO2/Al2O3 = 38)进行改性, Zn担载量为5%. 浸渍后的样品在120 °C干燥后分别标记为ZnSO4/HZ-5, Zn(AcO)2/HZ-5, Zn(NO3)2/ HZ-5和ZnCl2/HZ-5; 然后样品在550 °C焙烧4 h得到不同Zn盐改性的HZSM-5催化剂, 分别记为Zn(S)/HZ-5, Zn(Ac)/HZ-5, Zn(N)/HZ-5和Zn(Cl)/HZ-5.
在小型固定床反应装置上进行MTA反应性能评价. 催化剂经压片、破碎筛分得到40-60目样品, 称取1 g催化剂装入反应器中, 在He气氛中升温至550 °C活化1 h, 然后降温至反应温度480 °C. 甲醇原料通过微量计量泵泵入反应器中, 甲醇质量空速2 h-1. 反应后产物经保温进入气相色谱仪(Bruker 450 GC, FID检测器)在线分析得到非水产物分布, 产物选择性为烃类总产物中各物质的质量分数.
X射线衍射(XRD)分析采用荷兰PANalytical公司X’Pert PRO型X射线衍射仪, 分析条件: Cu靶, Kα辐射源(λ = 0.15418 nm), Ni滤波, 扫描范围2θ = 5°-80°, 电压40 kV, 电流40 mA.
N2物理吸附实验在美国Micromeritics公司ASAP2020型物理吸附仪上进行.
热重-质谱(TG-MS)分析采用Q600 SDT型同步热分析仪, 取一定量的样品在100 mL/min空气气氛中以10 °C/min升温速率从室温升至850 °C, 考察样品失重情况, 同时采用OmniStar质谱仪在线检测分解产物.
采用JEM-2100型透射电镜(TEM)观测样品的形貌.
NH3程序升温脱附(NH3-TPD)采用Micromeritics公司Autochem 2920型化学吸附仪. 催化剂装填量100 mg左右, 首先在10 mL/min He流中程序升温至600 °C, 恒温处理40 min, 然后降温至100 °C吸附NH3至饱和, 再用He吹扫至色谱基线平稳后, 在10 mL/min He中以10 °C/min的升温速率开始程序升温至600 °C, 由热导池检测脱附的NH3.
吡啶吸附红外光谱(Py-IR)分析在德国Bruker Optics公司XF808-04型原位红外光谱仪上进行. 将待测样品研细, 取少量压成直径13 mm的半透明状原片, 置于450 °C下高真空预处理1 h, 待温度降到室温后吸附吡啶5 min, 然后在真空状态下升温至200 °C脱附1 h, 降至室温后测试其红外谱图; 继续升温至450 °C脱附1 h, 降至室温后再测试其红外谱图.
图1是HZSM-5分子筛催化剂及不同Zn盐改性后催化剂的XRD谱. 可以看出, HZSM-5分子筛催化剂和改性后各催化剂的衍射峰均具有MFI拓扑结构类型, 改性制备的催化剂样品均保持了较好的晶体骨架结构, 表明Zn盐改性没有对分子筛的晶体结构产生明显的影响. 同时, 与HZSM-5分子筛催化剂的谱图相比, 改性后的催化剂谱图上没有观察到Zn物种的特征峰, 说明在此负载量下, Zn物种可以较好地分散在HZSM-5上.
根据XRD谱, 计算得到2θ = 7.5°-9.5°处2个特征衍射峰的峰强度之和A和2θ = 23.0°-24.5°处3个特征衍射峰的峰强度之和B, 并分别将母体HZSM-5分子筛催化剂相应衍射峰的峰强度之和A0和B0作为比较标准, 二者的百分比值定义为相对结晶度. 不同Zn盐改性后催化剂的相对结晶度计算结果列于表1. 可以看出, 与母体HZSM-5分子筛催化剂相比, 不同Zn盐改性后催化剂衍射峰的峰强度均有所降低, 其中, 7.5°-9.5°处2个衍射峰的峰强度降低幅度最为明显, 特别是经ZnCl2改性后的Zn(Cl)/HZ-5催化剂上, 该处衍射峰对应的相对结晶度下降到了51%; 此外, 23.0°-24.5°处的3个衍射峰对应的相对结晶度降低较少, 均在80%以上. 结果表明, HZSM-5分子筛催化剂经不同Zn盐改性后, 所负载的Zn物种可能主要分布在HZSM-5分子筛催化剂主孔道中, 并对分子筛骨架结构造成了部分破坏.
表1还同时列出了HZSM-5分子筛催化剂及不同Zn盐改性后催化剂的N2物理吸附表征结果. 可以看出, HZSM-5分子筛催化剂经不同Zn盐改性后, 比表面积和孔体积均有所减小, 而平均孔径几乎没有改变, 这可能是由于负载的Zn物种分布在分子筛孔道的内外表面, 造成部分主孔道堵塞所致; 特别是经ZnCl2改性后的Zn(Cl)/HZ-5催化剂, 其比表面积大幅降低, 结合XRD分析结果可知, 这可能是ZnCl2改性过程中部分破坏了HZSM-5分子筛骨架结构引起的.
为了确定不同Zn盐改性后催化剂上Zn物种的存在形式, 对负载Zn盐干燥后未焙烧处理的ZnSO4/HZ-5, Zn(AcO)2/HZ-5, Zn(NO3)2/HZ-5和ZnCl2/HZ-5样品进行了TG-MS分析, 结果如图2所示.
可以看出, 不同Zn盐负载后的HZSM-5分子筛样品的分解温度存在较大差异, 直接影响Zn物种的存在形式. ZnSO4/HZ-5催化剂在60 °C左右开始失去吸附水和结晶水, 在100 °C达到熔点后开始熔融挥发, 在240 °C左右失去全部结晶水; 由于ZnSO4较稳定, 直到680 °C以上才出现ZnSO4分解失重峰, 首先分解为硫酸氧锌(未检测), 在765和814 °C左右分解为氧化锌和三氧化硫. 这表明在催化剂制备条件(550 °C空气中焙烧)下, 经ZnSO4负载改性的Zn(S)/HZ-5催化剂上, Zn物种可能是以ZnSO4的形式存在. Zn(AcO)2/HZ-5和Zn(NO3)2/HZ-5样品分别在97和121 °C出现最大失水峰, 对应着样品吸附水的脱除; 随着温度的升高, 样品逐渐失去结晶水; 随后, 负载的Zn(AcO)2和Zn(NO3)2分别在402和362 °C开始分解失重. 这表明Zn(AcO)2和Zn(NO3)2具有较低的热分解温度, 在催化剂制备条件下, 经Zn(AcO)2和Zn(NO3)2负载改性的Zn(Ac)/HZ-5和Zn(N)/HZ-5催化剂上, Zn物种主要以ZnO的形式存在. ZnCl2/HZ-5样品则在109 °C出现最大失水峰, 对应着样品吸附水的脱除; 之后随着温度升高呈持续失重状态. 这可能是由于ZnCl2熔点较低, 在275 °C达到熔点温度后开始熔化, 并随温度升高挥发失重所致; 而且, ZnCl2非常稳定, 即使在空气和水汽存在条件下, 直到850 °C以上才可能发生热分解反应, 因此在催化剂制备条件下, 经ZnCl2负载改性的Zn(Cl)/HZ-5催化剂上Zn物种可能是以ZnCl2的形式分散在催化剂表面.
图3为不同Zn盐改性后催化剂的TEM照片. 可以观察到, 改性后的催化剂上均有Zn物种颗粒存在, 但颗粒分布形态有所不同. Zn(S)/HZ-5和Zn(Cl)/HZ-5上的Zn物种是以Zn盐形式存在, 所以负载颗粒尺寸较大, 而且分散均匀度也较差(图3(a)和(d)); 而Zn(Ac)/HZ-5和Zn(N)/HZ-5上的Zn物种是以ZnO形式存在, 可在分子筛催化剂外表面和孔道内呈现高分散状态, 而且负载颗粒尺寸较小(图3(b)和(c)).
图4是HZSM-5分子筛催化剂及不同Zn盐改性后各催化剂的NH3-TPD谱. 可以看出, HZSM-5分子筛催化剂分别在100-200 °C, 200-350 °C和350-570 °C区间内出现3个明显的NH3分子脱附峰, 分别对应于催化剂的弱酸中心(α)、中强酸中心(β)和强酸中心(γ). 与母体HZSM-5分子筛相比, 不同Zn盐改性后各催化剂的强酸中心γ均大幅度减少. 其中, Zn(S)/HZ-5和Zn(Cl)/HZ-5上只有较少的强酸中心, 这可能是由于表面负载的大量Zn盐物种使得部分Zn2+与H+ 交换的几率增加, 造成强酸中心数目明显减少; 此外, Zn(Cl)/HZ-5上存在着骨架结构的坍塌现象, 也可能造成部分强酸中心损失. 而Zn(Ac)/HZ-5和Zn(N)/HZ-5催化剂上的强酸中心几乎完全消失, 这可能是由于表面负载的ZnO极容易覆盖在强酸中心造成的. 另一方面, 经不同Zn盐改性后, Zn(Ac)/HZ-5和Zn(N)/HZ-5催化剂上均保留了较多的弱酸中心α, 中强酸中心β略有减少, 这可能是由于表面负载的ZnO物种极易与强酸中心H+结合形成ZnOH+物种, 使得部分强酸中心变成了弱酸中心所致[18]; 然而, Zn(Cl)/HZ-5上弱酸中心α和中强酸中心β均增多, 而且脱附峰温度升高, 说明中强酸中心强度有所增加, 这可能与催化剂表面负载的ZnCl2可与NH3形成[ZnCl2(NH3)2]2+或[Zn(NH3)4]2+等配合物有关.
为了进一步考察不同Zn盐改性催化剂表面酸性的分布特征, 在不同脱附温度条件下进行了Py-IR分析, 结果如图5所示. 通常, 1450和1540 cm-1附近的吸收峰分别对应于吸附在L酸中心和B酸中心上吡啶分子的特征振动峰; 1490和1635 cm-1附近的吸收峰往往用于表征可形成协同作用的B酸和L酸中心; 1616 cm-1附近出现的较强特征吸收峰对应于Zn物种与B酸中心形成的ZnOH+[19], 常被标记为Zn-L. 将HZSM-5分子筛催化剂和不同Zn盐改性催化剂的Py-IR谱利用高斯函数拟合后进行积分计算处理, 可得到不同脱附温度下B酸和L酸中心的峰面积, 结果列于表2.
在200 °C脱附温度下, 母体HZSM-5分子筛具有较少的L酸中心和较多的B酸中心, 说明HZSM-5上大部分的酸中心为B酸; 经不同Zn盐改性后, 各催化剂上表征L酸中心的特征峰(1454 cm-1附近)均增强, 表征B酸中心的特征峰(1546 cm-1附近)均减弱, 这表明经不同Zn盐改性的催化剂上L酸中心增多, 而B酸中心减少. 这是由于表面负载的Zn物种可能主要对HZSM-5分子筛催化剂的B酸中心形成了覆盖, 或者是Zn物种可能与B酸中心作用使其转变为L酸中心; 此外, Zn物种还可能与骨架铝相互作用产生了新的L酸中心. 另一方面, 除Zn(S)/HZ-5催化剂以外, 表征B酸和L酸协同作用的1490和1636 cm-1附近的特征峰均减弱, 这可能主要是催化剂上B酸中心数目大幅减少的结果.
在450 °C脱附温度下, 部分吸附于弱酸中心上的吡啶进一步被脱除, 可进一步阐明催化剂表面强酸中心的分布特征. 经不同Zn盐改性后, 各催化剂上表征B酸和L酸的特征峰均变小, 除Zn(S)/HZ-5上仍具有一定数量的B酸中心外, 其他改性催化剂上表征B酸中心的特征峰均大大减弱, Zn(Cl)/HZ-5上表征B酸中心的吡啶吸附特征峰单位峰面积甚至降至0.15 (表2); 此外, 表征L酸中心的特征峰和表征Zn-L酸中心的特征峰峰面积均减小, 但仍存在较多的酸性中心数目. 结合NH3-TPD谱图结果, 证实了经不同Zn盐改性后催化剂上的中强酸中心主要为L酸中心和Zn-L酸中心, 仅在Zn(S)/HZ-5催化剂上还存在一定数量较强的B酸中心.
在固定床反应器上考察了HZSM-5分子筛催化剂和不同Zn盐改性催化剂上甲醇芳构化反应性能, 结果如表3所示. 可以看出, 所有催化剂上甲醇转化率均可以达到100%; 从产物分布可知, 母体HZSM-5分子筛上总芳烃选择性为46.9 wt%, 除了Zn(Cl)/HZ-5催化剂上小幅下降以外, 其他改性催化剂上总芳烃选择性均有所增加, 特别是Zn(S)/HZ-5催化剂上总芳烃选择性可达77.9 wt%. 此外, 母体HZSM-5分子筛上低碳烃(C1-C5)组分含量为53.1 wt%, 而且烷烃组分含量较多, 达到了45.7 wt%, 烯烃组分含量较少, 仅为7.4 wt%; 而经Zn盐改性后催化剂上烯烃组分均大幅上升, 特别是Zn(Cl)/HZ-5催化剂上, 可在58.2 wt%低碳烃(C1-C5)组分中选择性生成37.9 wt%的烯烃.
甲醇芳构化反应属于酸催化反应[20, 21], 如图式1所示. 甲醇首先在酸催化下脱水、聚合生成低碳烯烃(甲醇转化反应(1)), 低碳烯烃进一步经由烯烃环化反应(2)形成环烷烃, 然后环烷烃通过脱氢反应(3)生成芳烃和H2; 同时环烷烃可以和烯烃发生氢转移反应(4), 生成芳烃并副产烷烃. 在母体HZSM-5分子筛催化剂上, 反应产物分布中的总芳烃选择性约为46 wt%, 结合Py-IR和NH3-TPD谱可知, HZSM-5表面存在大量的B酸中心, 证实B酸中心可同时促进甲醇裂解反应(1)、低碳烯烃环化反应(2)以及氢转移反应(4)生成芳烃. Zn(S)/HZ-5催化剂兼具L酸中心和少量的中强B酸中心, 由于这两类酸中心均可催化甲醇转化反应(1), 使甲醇完全转化生成低碳烯烃, 同时B酸中心可以催化低碳烯烃环化反应(2)和氢转移反应(4), 再辅以表面负载的Zn物种对环烷烃脱氢反应(3)的促进作用, Zn(S)/HZ-5上可获得最高的总芳烃选择性77.9 wt%; 此外, 低碳烃组分中烷烃含量下降, 这可能是由于B酸中心的减少使得氢转移反应被削弱造成的; 同时, 由于B酸中心减少使得氢转移反应生成的芳烃量必然有所降低, 而在催化剂表面Zn物种上发生的脱氢竞争反应成为芳构化主反应. Zn(Ac)/HZ-5和Zn(N)/HZ-5上有较多的L酸中心, 但中强B酸中心数进一步减少; 100%的甲醇转化率表明L酸中心与B酸中心对甲醇转化反应(1)具有类似的催化作用, 虽然中强B酸中心的减少将在一定程度上降低低碳烯烃环化反应(2)和氢转移反应(4), 但在催化剂表面负载的Zn物种对环烷烃脱氢反应(3)的促进作用下, 总芳烃选择性仍较母体HZSM-5催化剂上有所提高; 同时, 低碳烃组分中烯烃选择性大大提高, 这是由于中强B酸中心的减少造成氢转移反应(4)被削弱所致. Zn(Cl)/HZ-5催化剂上仅有极少量弱B酸中心和较多的L酸中心, 虽然在L酸中心作用下可以催化甲醇转化反应(1), 促进甲醇完全转化生成低碳烃, 但B酸中心的消失可能使得烯烃环化反应(2)进行的程度大大削弱,造成反应体系中环烷烃生成量过少; 而且B酸中心的消失也降低了氢转移反应(4)的发生几率, 尽管催化剂表面负载的Zn物种对环烷烃脱氢反应(3)有一定的促进作用, 但仍造成总芳烃选择性大幅降低; 同时, 低碳烃组分中烯烃选择性达到了37.9 wt%, 这进一步表明经由B酸中心上氢转移反应(4)被大幅削弱.
从上述结果可知, 甲醇芳构化反应中, B酸或L酸中心可促进甲醇裂解反应(1)生成低碳烃, 而中强B酸中心可进一步促进低碳烯烃环化反应(2)生成环烷烃; 随后, 生成的环烷烃可以通过两种途径生成芳烃, 一种是经由中强B酸中心通过氢转移反应(4)生成芳烃和烷烃, 另一种则是经由催化剂表面负载的Zn物种促进环烷烃脱氢反应(3)生成芳烃, 使得芳烃选择性大大提高. 因此, 甲醇芳构化反应总芳烃选择性的决定因素应该是中强B酸中心和Zn脱氢物种协同作用的结果, 中强B酸中心的减少或消失降低了低碳烯烃环化反应(2)的发生几率, 从而造成环烷烃生成量减少, 这直接影响到芳烃产物的生成, 田涛等 [22]从催化剂稳定性研究中也提出了总芳烃收率的降低是由于B酸中心损失的相似结果.
图6是HZSM-5分子筛催化剂和不同Zn盐改性催化剂上甲醇芳构化连续反应中总芳烃选择性的变化趋势, 在该反应时间内, 甲醇转化率均为100%. 可以看到, 在Zn(S)/HZ-5催化剂上反应产物中总芳烃初始选择性最高, 但反应初期快速降低, 随后减缓, 这可能是中强B酸中心在反应初期积炭较快消弱了烯烃环化反应造成的; Zn(Ac)/HZ-5和Zn(N)/HZ-5催化剂上中强B酸中心较少, 总芳烃选择性降低幅度也有所减小; 由于Zn(Cl)/HZ-5催化剂几乎没有中强B酸中心, 因此总芳烃选择性变化不大. 在母体HZSM-5分子筛催化剂上, 总芳烃选择性变化也较小, 这可能是由于虽然在中强B酸中心会有积炭生成,但HZSM-5分子筛催化剂上具有较多的B酸中心, 因此在较短的反应时间内对芳烃选择性影响较小.
将芳烃产物归一化后得到的总芳烃产物分布如表4所示. 可以看出, 与母体HZSM-5分子筛催化剂相比, 经不同Zn盐改性后的催化剂上, 总芳烃产物中的苯和甲苯选择性均降低, 二甲苯及C9以上重芳烃选择性升高. 结合Py-IR分析可知, 改性后催化剂上L酸中心明显增多且酸性较强, 但中强B酸中心大大减少, 特别是Zn(Cl)/HZ-5上中强B酸中心几乎完全消失. 这表明经不同Zn盐改性后, 催化剂表面增加的L酸中心可促进苯和甲苯的进一步烷基化反应, 使得总芳烃产物中轻芳烃向重芳烃转移, 这不仅降低了芳烃的经济价值, 又大量消耗了甲醇的碳资源.
综上所述, 甲醇芳构化反应中催化剂表面中强B酸中心不仅能够使甲醇裂解生成低碳烯烃和烯烃环化, 而且可以通过氢转移反应使环烷烃转化为芳烃, 催化剂表面负载的脱氢组分促进了环烷烃脱氢, 因而可大大提高总芳烃收率. 但是改性物种一方面使得催化剂表面B酸中心减少, 另一方面却增加了L酸中心数, 较多的L酸中心促进了苯和甲苯烷基化反应使得芳烃产物中重芳烃增多, 降低了芳烃产品的经济价值. 从Zn(Cl)/HZ-5催化剂上甲醇芳构化性能可知, 虽然L酸的存在可促使甲醇裂解为低碳烃, 但中强B酸中心减少会使低碳烯烃环化及氢转移反应性能降低, 从而造成总芳烃选择性降低. 因此可以推测, 如果对HZSM-5分子筛催化剂的改性在增加脱氢组分的同时能够保留催化剂表面的中强B酸中心, 降低L酸中心 生成数量, 将会进一步提高甲醇芳构化反应性能.
不同Zn盐改性HZSM-5催化剂上Zn物种存在方式不同, 直接影响了催化剂表面酸中心强度与分布. 甲醇芳构化反应是催化剂表面中强B酸中心和脱氢物种协同作用的结果, 经ZnSO4改性后的Zn(S)/HZ-5催化剂表面中强B酸中心和Zn物种的存在可有效提高甲醇芳构化反应性能, 产物中总芳烃选择性可达77.9 wt%. 在改性HZSM-5催化剂上引入脱氢组分并保留较多中强B酸中心将是开发高性能甲醇芳构化催化剂的有效途径.
