Transition metal catalyzed cross-coupling reactions between aryl/alkyl halides and organometallic reagents have been widely used to synthesize complex molecules and manufacture fine chemicals in modern organic chemistry ^{[1, 2, 3]}. Pd complexes are the most commonly used catalysts for many cross-coupling reactions such as the Suzuki reaction, Negishi reaction, Kumada reaction, and Heck reaction ^{[4, 5, 6]}. In contrast, Ni catalysts have been less developed for these transformations although they are lower cost alternatives to Pd catalysts. To overcome the limitation of Ni catalysis, Ni catalyzed cross- coupling reactions have been extensively investigated over the last decade, and a number of new transformations have been developed that have unique reactivity and selectivity ^{[7, 8, 9, 10]}. More important is that many new Ni catalyzed reactions such as C-O activation ^{[11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23]}, alkyl-alkyl cross-coupling ^{[14, 15, 16, 17]}, and enantioselective cross-coupling ^{[18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28]}do not have Pd- catalyzed counterparts, showing that Ni catalysis has a unique place in organic synthesis. Compared to the rapid progress in experimental findings, many mechanistic aspects of the newly developed Ni catalyzed reactions remain to be elucidated. Mechanistic studies of Ni catalyzed cross-coupling reactions would give a more accurate understanding of how the Ni catalyzed cross-coupling reactions take place and provide important insights into the development of more efficient and selective synthesis methods.

Historically, Ni catalyzed cross-coupling reactions were first reported in the 1970s ^{[29, 30]}. Kochi et al.^[31] studied the mechanism of the oxidative addition of aryl halides to Ni(0) complexes in detail. As Ni is less electronegative than Pd, the oxidative addition over Ni was easier, and the reductive elimination on the other hand was more difficult than Pd in the same oxidation state ^[32]. Thus Ni catalysts allow activation of less reactive electrophiles such as phenol derivatives, alkyl halides, and aryl fluorides ^[33]. In addition, β-hydride elimination with Ni was reported to be slower than with Pd ^[34] or thermodynamically disfavored ^[35]. The catalytic cycle of Pd-catalyzed reactions is usually a Pd(0)/Pd(II) polar (non-radical) mechanism ^{[36, 37, 38, 39]}. Similarly, many Ni catalyzed reactions are also based on a Ni(0)/Ni(II) transformation. However, some Ni catalyzed reactions involve a Ni(I)/Ni(III) transformation or some more complicated catalytic cycles ^[40]. The facile accessibility of Ni(I) or Ni(III) complexes provides novel modes of reactivity and radical mechanisms ^{[41, 42, 43]}.

In the present review, we summarized recent advances on the mechanism of Ni catalyzed cross-coupling reactions. Hu ^[44] recently wrote an excellent review of the mechanistic studies of Ni catalyzed reactions of alkyl halides. Sigman’s group ^[45] also comprehensively summarized the progress in the Ni catalyzed cross-couplings of alkyl organometallic reagents. Thus in the present review we focused on the studies reported in the literature between 2011 and 2014. The contents are arranged according to the different types of Ni catalyzed reactions including conventional cross-coupling, reductive cross-coupling, and C-H functionalization. Important compounds and intermediates mentioned in the text are numbered as 1, 2, 3, etc. according to the order of appearance. Calculated transition states are named as TS_i-j where i and j are the intermediates that precede and follow the transition state.

Fu’s group ^{[46, 47]} reported an efficient Ni catalyzed cross-coupling reaction between a non-activated secondary alkyl halide with alkylboranes using L1 (trans-N,N’-dimethyl- 1,2-cyclohexanediamine) and L2 (trans-N,N’-dimethyl-1,2- diphenylethane-1,2-diamine) as ligands (Scheme 1). A Ni^I-Ni^III catalytic cycle was proposed that consisted of three key steps, namely, transmetallation, oxidative addition, and reductive elimination (Fig. 1). The same activation mode of alkyl halides was also proposed in a recent study by us for the Ni catalyzed borylation reaction of primary and secondary alkyl bromides ^[48].

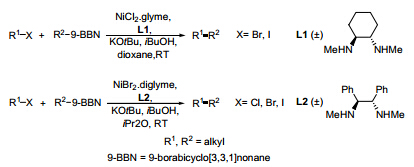

Scheme 1. Ni catalyzed alkyl-alkyl Suzuki cross-coupling.

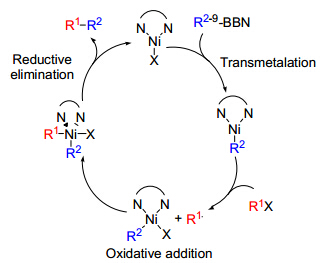

Fig. 1. Mechanism of Ni catalyzed alkyl-alkyl Suzuki cross-coupling.

To elucidate the mechanism and explain the reactivity of this reaction, theoretical calculations have been conducted ^[49]. The favored mechanism was proposed to consist of three steps (Fig. 2): 1) transmetallation of [Ni^I(L1)X] (1) with (9-BBN)R₁ to produce [Ni^I(L1)(R₁)] (3), 2) oxidative addition of R₂X with [Ni^I(L1)(R₁)] to produce [Ni^III(L1)(R₁)(R₂)X] (6) in a radical pathway, and 3) C-C reductive elimination to generate the final product and [Ni^I(L1)X]. For both primary and secondary alkyl bromides, the transmetallation step was suggested to be the turnover determining step via TS_1-2. The barrier of transmetallation was decreased by Koi-Bu which formed a potassium alkyl boronate salt with alkyl borane. The low reactivity of tertiary alkyl halides was explained by the high barrier of reductive elimination (+34.7 kcal/mol) compared to secondary alkyl halides (+20.9 kcal/mol). The Ni⁰-Ni^II catalytic cycle is unfavorable because reductive elimination from both singlet and triplet dialkyl Ni complexes are very difficult.

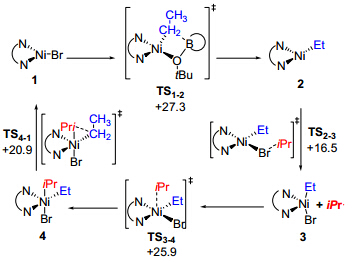

Fig. 2. Calculated free energy profile for the cross-coupling between alkyl halides and alkyl borane.

The oxidative addition of the C-O bond of allylic N,O-acetals to Ni(0) was reported by Doyle’s group ^[20] to proceed through an ionic S_N1-like mechanism facilitated by boronic acid in Suzuki cross-coupling (path i in Fig. 3). The stoichiometric reaction between Ni catalyst and substrate 5 does not take place if phenyl boroxine is absent (Fig. 4). Thus the S_N2(’) pathway ii was excluded. To distinguish between pathways i and iii, the reaction between enantio-enriched complex 9 and 0.17 equiv. phenyl boroxine was conducted. The product is racemic 8a, which is consistent with pathway i. The racemization was also shown to take place but this was not through the Ni(0) mediated displacement of the Ni-allyl complex because the concentration of Ni(0) did not influence the stereochemistry. Moreover, the product from enantio-enriched substrate 9 and MeMgBr has a conserved configuration, indicating that the configuration of Ni-allyl complex was stable. The secondary kinetic isotope effect (KIE) of 2-d₁-5 was measured to be 1.13±0.02, which is larger than a typical S_N2-type oxidative addition (0.94 to 1.05). A KIE value as high as 1.53 has been observed in previously reported oxidative addition reactions with the S_N1 or radical mechanism. The fact that radical traps such as TEMPO (2,2,6,6-tetramethylpiperidine-N-oxide) and dihydroanthracene did not decrease the yield of 8a under otherwise standard conditions disproved a radical mechanism. These results indicated that the oxidative addition proceeded by the stepwise pathway i, in which the Lewis acidic boroxine abstracts the alkoxide leaving group to generate a quinolinium intermediate, and then the Ni catalyst attacks it from either of its prochiral faces.

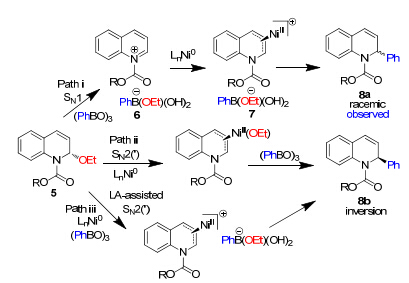

Fig. 3. Mechanism for the oxidative addition of 7 over a Ni catalyst.

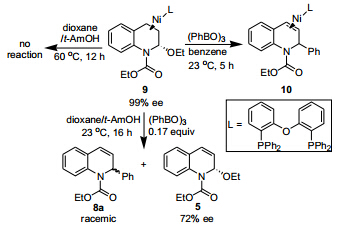

Fig. 4. Stoichiometric reactions between 9 and boronic acid.

The mechanism of Ni catalyzed cross-coupling of aryl fluorides (11) and aryl boronate ester (12) was studied by Chatani’s group ^[50] (Scheme 2). ZrF₄ was identified as the optimal additive affording the cross-coupling product 13 in 80% yield, whereas ZrCl₄ led to no cross-coupling product. The reaction did not occur at all without the addition of CsF, even in the presence of ZrF₄. This implied that ZrF₄ is not a simple fluoride donor that converts boronate ester into the activated tetra-coordinated borate species. The electronic nature of aryl fluoride has a significant impact on the reaction yield. Aryl fluorides with electron withdrawing substituents such as CF₃, ester, and ketone afford good yields. Interestingly, substituents with strong resonance effects, including para-ketone, phenyl and phenyl ketone groups, gave higher yields than that with p-CF₃ in phenyl fluoride. However, electron-rich aryl fluorides gave low yields under the same reaction conditions (e.g., 28% for 4-fluoroanisole). An alternative method to facilitate C-F activation is to utilizeortho-directing groups. The cross- coupling between 2-(2-fluorophenyl)pyridine and boronic ester afforded 88% yield of product in the absence of metal fluoride salts. Both electron-rich and electron-poor aryl boronic esters can undergo this cross-coupling reaction efficiently. The cross-coupling between fluorobenzene and a mixture of electron-deficient and electron-rich boronic esters (R³ = CF₃ and NMe₂ in Scheme 2) produced the corresponding biaryls in a ratio of 51:49. In contrast, the competitive reaction using 2-(2-fluorophenyl)pyridine mainly gave the product from the electron-deficient boronic ester with a ratio of 70:30. This difference implies a change in the turnover limiting step.

Scheme 2. Ni catalyzed Suzuki cross-coupling of aryl fluorides.

A mechanism similar to the typical cross-coupling reaction mechanisms was proposed for this reaction ^[50]. This mechanism consists of three main steps (Fig. 5): oxidative addition of the C-F bond to NiL_n (14) (step i), transmetallation (step ii), and reductive elimination (step iii). For aryl fluorides without directing groups, the oxidative addition was proposed to be the turnover determining step. For substrates bearing directing groups, the formation of a stable cyclometalated complex 16b was proposed to promote the oxidative addition, which renders steps ii and iii kinetically more favorable. This rationale was supported by the fact that the cross-coupling of bromo- and iodobenzene, in which transmetallation would be rate limiting, generated products from electron-deficient boronate esters much faster than from electron-rich boronate esters. The higher reactivity of electron-deficient boronate esters in the transmetallation step can be explained by the more facile formation of the activated boronate 18 although the opposite electronic effects have also been reported ^[51].

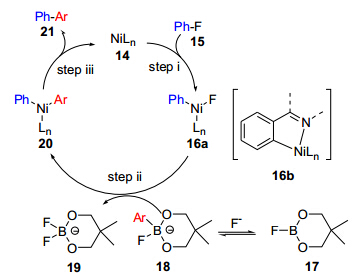

Fig. 5. Mechanism of Ni catalyzed cross-coupling between aryl fluoride and aryl boronic ester.

Zhao’s group ^[52] in a theoretical study proposed that potassium phosphate is directly involved in the transmetallation step in Ni catalyzed Suzuki reaction. The mechanism of Ni catalyzed cross-coupling of aryl phosphates with aryl boronic acids was proposed to consist of three steps: oxidative addition, transmetallation, and reductive elimination (Fig. 6). The catalytic cycle starts with the dissociation of one PCy₃ ligand from Ni(PCy₃)₂ (22) to generate the complex Ni(PCy₃)[η²-PhOP(O) (OEt)₂] by coordination of the substrate PhOP(O)(OEt)₂{Jana, 2011 #1088}. The following oxidative addition step generates Ni(PCy₃)(Ph) [OP(O)(OEt)₂] (23), which reacts with aryl boronic acid in the transmetallation step. Aryl boronic acid was proposed to bind to potassium phosphate to form borophosphate (24) as the active species in the transmetallation (Path i in Fig. 6). The overall barrier of this transmetallation was calculated to be +30.2 kcal/mol, a value consistent with the experimental temperature at 110 °C. Finally, the C-C reductive elimination step proceeds via a monophosphine pathway due to large steric repulsion between two PCy₃ ligands.

Fig. 6. Ni catalyzed cross-coupling between aryl fluoride and aryl boronic ester.

A molecular (Ni^I/Ni^III) mechanism was proposed for the cross-coupling between aryl halides (27) and diarylzinc reagents (28) catalyzed by NiCl₂ and a 1,1′,1′′-(phosphanetriyl) tripiperidine ligand (Scheme 3) ^[53]. The nanoparticle mechanism which usually operates in the aminophosphine-based nickel catalytic system was excluded because of following experimental observations: (1) large excess of metallic mercury did not affect the rate or product yield; (2) excess (3.0 equiv.) CS₂ only decreased the rate and yield slightly; (3) an additional amount (0.1 or 0.5 equiv.) of ligand had no effect on the rate or yield of the reaction; (4) the presence of NBu₄Br did not affect either the rate or yield; (5) sigmoidal-shaped kinetics with an induction period which would indicate metal particle formation and autocatalytic surface growth was not observed; (6) UV/Vis spectra of the reaction mixture showed no evidence of nickel nanoparticles. Additional experimental observations indicated that the mechanism was a Ni^I/Ni^III catalytic cycle involving radicals: (1) nitro-substituted aromatic halides inhibited the reaction; (2) the addition of (chloromethyl)benzene to the reaction mixture produced dibenzyl that was possibly formed from a single electron transfer from the metal center to the organic halide; (3) radical scavengers such as galvinoxyl, TEMPO, or dibenzyl viologen decreased the yield significantly; (4) the activity dropped dramatically when the reaction was performed under dioxygen.

Scheme 3. Ni catalyzed cross-coupling between aryl halides and diarylzinc.

The mechanism proposed for this reaction is shown in Fig. 7 ^[53]. The active catalyst [Ni^I(PR₃)₂(X)] (30) is generated either by the comproportionation of [Ni^II(PR₃)₂(X)₂] with [Ni⁰(PR₃)₂] or from the decomposition of [Ni^III(PR₃)₂(Ar)(X)]^•+, which was generated from the single electron transfer from [Ni(PR₃)₂(Ar)(X)] to the aryl halide ^[54]. From [Ni^I(PR₃)₂(X)], two possible pathways (i) and (ii) were proposed. In catalytic cycle (i), the oxidative addition of 30 with ArX generates pentacoordinated complex [Ni^III(PR₃)₂(X)₂(Ar)] (31). Competition experiments between different para-substituted aryl bromides and diarylzinc reagents showed a linear correlation between log(k/k_H) and the Hammett substituent constants. The reaction rate decreased in the order p-CF₃ > p-C(O)CH₃ > p-F > H > p-OMe > p-NMe₂. These observations strongly indicated that the oxidative additi on step is the rate determining step. Complex 31 can undergo transmetalation with diarylzinc reagents to produce [Ni^III(PR₃)₂(X)(Ar)(Ar′)] (32), which generatesthe cross-coupling product, Ar-Ar′ through a reductive elimination to complete the catalytic cycle. The catalytic cycle (ii) is less likely because the oxidative addition of (2,2′-bipyridine)(methyl)nickel(I) (similar to 33) to phenyl iodide was calculated to be less favored in computational studies ^[43]. However, a Ni⁰/Ni^II mechanism consisting of the oxidative addition of aryl halide to [Ni⁰(PR₃)₂] and the formation of [Ni^II(PR₃)₂(Ar)(X)], subsequent transmetalation with diarylzinc to form [Ni^II(PR₃)₂(Ar)(Ar′)], and reductive elimination to produce the cross-coupling product cannot be excluded. Nevertheless, this mechanism is less likely because the reductive elimination of [Ni^II(PR₃)₂(R)(R′)] was reported not to occur without it being oxidized to [Ni^III(PR₃)₂(R)(R′)]^•+ by aryl halides ^{[55, 56]}. A similar Ni^II/Ni^IV mechanism was not considered because the oxidative addition of a ryl halides to [Ni^II(PR₃)₂(R)(R’)] is unlikely ^[43].

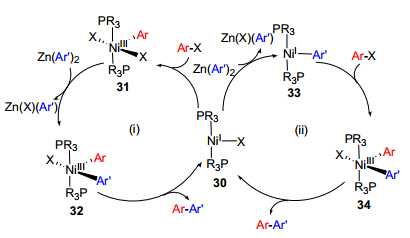

Fig. 7. Mechanism of Ni catalyzed cross-coupling between aryl halides and diarylzinc.

In addition, aryl halides and N-sulfonyl aziridines were reported to undergo cross-coupling with organozinc reagents by Doyle et al. ^[57] (Scheme 4). The major enantiomer in the product has an inverse configuration relative to the starting aziridine. Moreover, the ee value of the recovered reactant remained unchanged throughout the course of the reaction. For the indene-derived aziridine 37, the n-butyl group is introduced on the same face of the indenyl ring as the sulfonamide via a metallacycle intermediate 38. For aziridine 40, the major diastereomer is generated from the more stable trans- azametallacycle 41. Sulfonamide coordination may also play an important role in preventing β-H elimination by constraining the conformation of the alkylnickel intermediates. A Ni^I/Ni^III pathway was proposed to be unfavorable because Ni^II-azametallacycle 43 is a feasible substrate. The dimethyl fumarate ligand was expected to accelerate reductive elimination by coordination to the metal center.

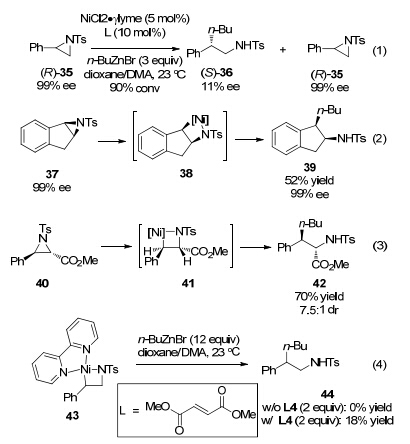

Scheme 4.Ni catalyzed cross-coupling between styrenyl aziridines and alkylzinc.

Two possible mechanisms were proposed based on the experimental observations ^[57]. One involves an S_N2-type oxidative addition followed by the reversible homolysis of the benzylic Ni-C bond (Fig. 8, path a). The other starts with an irreversible SET oxidative addition (Fig. 8, path b). The Hillhouse’s ^[58] and Wolfe’s ^[59] groups have demonstrated that the S_N2 mechanism is favored for the oxidative addition of Ni to aliphatic N-Ts aziridines. However, aliphatic aziridines are unreactive and the regioselectivity is opposite to what is expected in an S_N2 process. The substrate scope and regioselectivity are similar to those in Ni catalyzed cross-coupling of alkyl halides, which have radical mechanisms. Nevertheless, it remains unclear how the SET mechanism would lead to dominant inversion of the configuration.

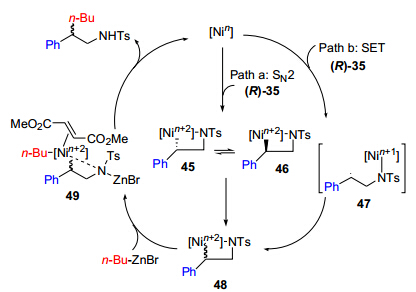

Fig. 8. Mechanism of the cross-coupling between styrenyl aziridines and alkylzinc.

In the Ni catalyzed Kumada-Corriu cross-coupling reaction of aryl halides, the oxidative addition of the C-X bond to the Ni complex requires an initial complex formation between the substrate and the Ni center. Recently, Locklin’s group ^[60] studied the π-complexation between Ni(0) catalysts and haloarenes employing both the kinetic isotope effect (KIE) and DFT calculations. In the KIE experiment, an increased KIE of an atom indicates that this site is involved in the first irreversible step (FIS). The ¹³C KIEs of all the carbons of the phenyl ring of o-bromotoluene and o-chlorotoluene were measured to increase in the cross-coupling with aryl or alkyl magnesium halides catalyzed by Ni(dppp) (dppp = 1,3-bis (diphenylphosphino) propane) (Scheme 5). This indicated that the π-complexation is the FIS, and once the Ni catalyst reacts with the aryl halides then the intramolecular oxidative addition occurs without dissociation of Ni(0). The binding energies of π-complexation were calculated by DFT methods to be 14-17 kcal/mol. The barrier of the ring walking steps was only 3-7 kcal/mol. Thus Ni(dppp) coordinates to the substrate in an η² fashion followed by ring walking (C1 to C6 in Fig. 9) and Ni insertion (TS).

Scheme 5.KIEs of o-bromotoluene and o-chlorotoluene.

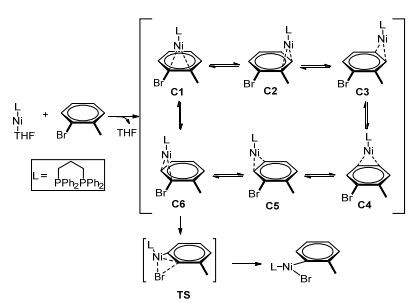

Fig. 9.Ring walking of Ni catalyst before oxidative addition.

A series of three-coordinate Ni(I) complexes with six-, seven-, and eight-membered ring N-heterocyclic carbenes were synthesized by Whittlesey’s group ^[61] to investigate their catalytic activity. Complexes 50-53 were produced by the comproportionation reaction between [Ni(cod)₂] and [Ni(PPh₃)₂Br₂] in the presence of appropriate carbene ligands (Scheme 6). The X-ray crystal structures showed that these Ni(I) complexes have distorted trigonal-planar geometries at the Ni center with C_carbene-Ni-Br angles much larger than 120°. Complexes 50-53 were examined as catalyst precursors for the cross-coupling reactions between electron-rich p- chlorotoluene and PhMgCl. Complex 50 was identified as the most effective catalyst. With a larger ring size and N-substituents, the catalyst activity decreased. The bulkier MesMgBr reagent was less reactive than PhMgCl under these catalytic conditions. These Ni(I) precursors were also tested in the cross-coupling between Ar-F substrates and ArMgX. However, the yields were very low (under 30%). At present, it is not clear what oxidation states of Ni are present in the catalytic cycle.

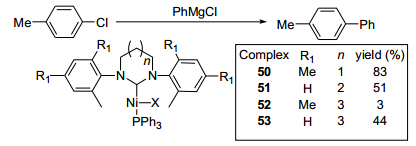

Scheme 6. Ni(I) complexes with NHC ligands as catalyst for Kumada cross-coupling.

Hu’s group ^[62] recently proposed a mechanism involving a bimetallic oxidative addition through radical intermediates for the alkyl-alkyl Kumada coupling catalyzed by a Ni(II) pincer complex, [(N₂N)Ni-Cl] (Fig. 10). Complex 54 and one equivalent of R²MgCl produces a pre-equilibrium complex [(N₂N)NiCl](R²MgCl) (56), which combines another equivalent of R²MgCl to form the transmetallation product [(N₂N)NiR²](R²MgCl) (57a). Complex 57a is in equilibrium with [(N₂N)NiR²] (57b), which is thermodynamically more stable but less reactive towards alkyl halides. The oxidative addition of complex 57a to R¹X by an inner sphere single electron transfer step forms the alkyl radical R¹• and Ni(III) complex [(N₂N)Ni(R²)X] (58). R²MgCl may dissociate from the Ni complex in this step. The R¹• radical escapes from the solvent cage and then attacks another molecule of complex 57a or 57b to afford [(N₂N)Ni(R¹)(R²)] (59). The reductive elimination of 58 gives the cross-coupling product R¹-R² and the formal Ni(I) complex [(N₂N)Ni] (60). The following comproportionation reaction between complexes 60 and 58 produces [(N₂N)NiX] (55) and [(N₂N)NiR²] (57b) to regenerate the catalyst. Complex 57b has been isolated and shown to be a competent catalyst. However, 57b is not the active catalyst for the activation of alkyl halide. On the other hand, complex 57a was proposed to be the key intermediate for the oxidative addition of alkyl halide. The binding of Mg²⁺ to 57b is essential because alkyl lithium reagents cannot generate equally active species to that from Grignard reagen ts. Complex [(N₂N)NiX] was the resting state according to UV-Vis spectroscopy.

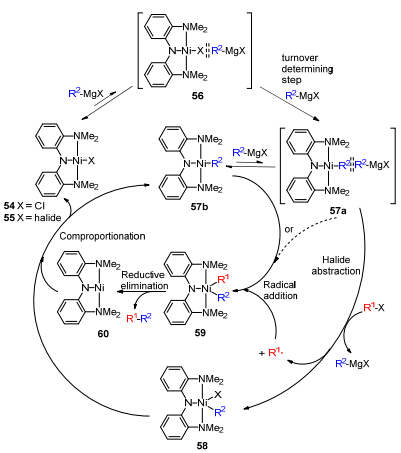

Fig. 10.Mechanism of alkyl-alkyl Kumada cross-coupling catalyzed by Ni complex 54.

Several Ni(III) complexes have recently been characterized and studied in the context of cross-coupling reactions ^[63]. Complex 61 was synthesized by the oxidative addition of aryl halides to Ni(COD)₂ in the presence of the ligand (Scheme 7). The geometry of complex 61 is a distorted octahedral with the tetradentate ligand. Complexes 61 and 62 can be oxidized to 61⁺ and 62⁺ by 1 equiv. of ferrocenium hexafluorophosphate [Fc⁺]PF₆. Complexes 61⁺ and 62⁺ are paramagnetic with effective magnetic moments μ_eff of 2.11-2.03 μ_b corresponding to one unpaired electron. DFT calculations showed that 61⁺ is a metal-based radical with >98% spin density on the Ni center. Complex 61 reacts with MeMgCl to generate the transmetallation product 63 [(L)Ni^II(PhF)Me] with a square planar geometry for the Ni center (Scheme 8). The dissociation of the two axial N of the ligand in 63 is presumably due to the presence of two strong σ-donor organic ligands. When 63 is oxidized by [Fc⁺]PF₆ in MeCN, C-C reductive elimination occurs to form p-F-C₆H₄-Me in 61% yield. Complex 63⁺ is proposed to be the intermediate for this process. The reaction between 61⁺ and MeMgI also generates 63⁺, which affords p-F-C₆H₄-Me upon warming.

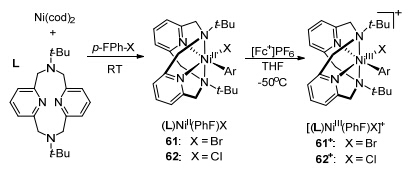

Scheme 7. Synthesis of Ni(III) complexes.

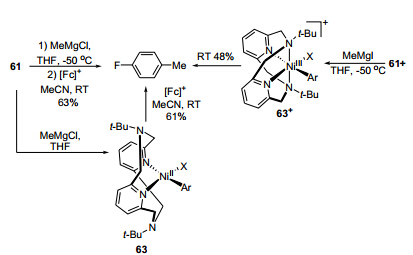

Scheme 8. Reactions between Ni(III) complexes and MeMgCl.

Complexes 61 or 61⁺ were found to be active catalysts for Kumada and Negishi cross-coupling reactions (Scheme 9) ^[63]. The cross-coupling of iodotoluene with PhMgBr has non- optimized yields of 70% when catalyzed by 61 or 61⁺, whereas the coupling between iodoheptane and an alkyl Grignard has 27% yield when catalyzed by 61⁺. Negishi coupling between iodoethylbenzene and 1-octylzinc bromide catalyzed by 61 or 61⁺ have yields of 23% and 20%, respectively. It is interesting that when 61 was treated with iodoethylbenzene, the EPR spectrum indicated the presence of [Ni^III(aryl)(halide)] and [Ni^III(aryl)(alkyl)] species. In addition, for the above cross- coupling reactions, adducts between the organonickel intermediates and the solvent were observed. These observations supported radical mechanisms for both cross-coupling reactions. This study of Ni(III) complexes provided possibilities to further investigate the detailed mechanisms of Ni catalyzed cross- coupling reactions.

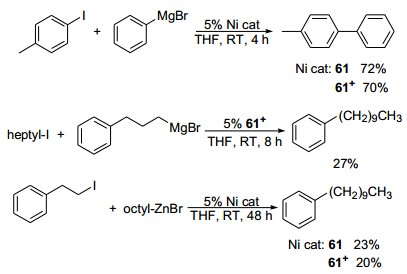

Scheme 9.Negishi reactions catalyzed by Ni(III) complexes.

Jarvo’s group ^[64] has reported Ni catalyzed enantiospecific intramolecular Heck reactions of secondary benzylic ethers (Scheme 10). The stereochemistry of the cyclization product of trans-(±)-64 is consistent with configuration inversion at the benzylic stereogenic carbon. This indicated configurational inversion in the oxidative addition step to generate the benzylnickel complex 65. The substrate cis-(±)-64 did not undergo Heck cyclization nor Kumada coupling. This observation is consistent with the binding of the olefin to the Ni catalyst before the oxidative addition. The stereochemistry of the olefin insertion and β-H elimination steps implied that the mechanisms of these steps are similar to classical Heck reactions. The substrates (E)-67 and (Z)-67 afford (E)-68 and (Z)-68 with a high stereospecificity at both the double bond and the benzylic carbon (Scheme 11). Thus Ni complexes 69 and 70 were proposed as the intermediates prior to β-H elimination.

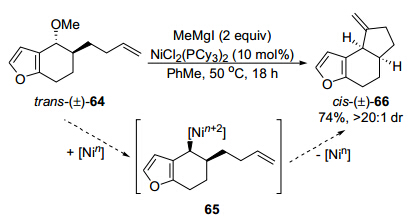

Scheme 10.Ni catalyzed enantiospecific intramolecular Heck reactions of secondary benzylic ethers.

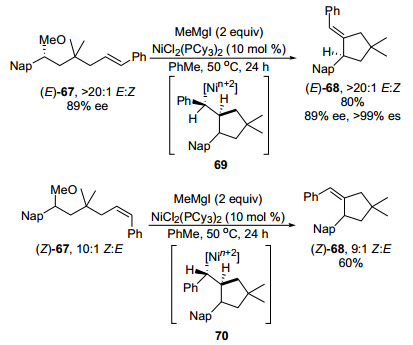

Scheme 11.Ni catalyzed enantiospecific intramolecular Heck reactions of (E)/(Z)-67.

Hartwig’s group ^[65] synthesized complexes 71 and 72 to investigate the elementary steps of Ni catalyzed Sonogashira reactions (Scheme 12). Complex 71 was synthesized by the reaction between SiCHSi (see the structure of ECHE, E=Si, Ge, and P in Scheme 12) and NiBr₂(dme) (dme = 1,2- dimethoxyethane) under basic conditions. Complex 72 can also be synthesized by this reaction in a lower yield, or by the reaction of GeCBrGe and Ni(cod)₂. Both 71 and 72 have a square planar geometry. An isoelectronic P^III complex [PCP]NiBr (73) was also synthesized for comparison. The C_ipso-Ni bonds of 71 and 72 are 5-8 pm longer than that of 73 because the σ-donor strengths of Ge and Si are stronger than P^III. This effect is less for the Ni-Br bond lengths where an increment of about 1 pm was observed in the order of Si > Ge > P.

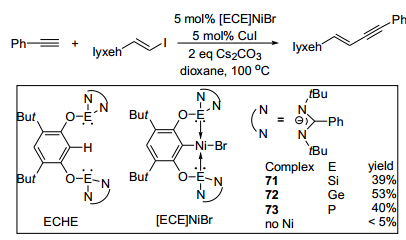

Scheme 12.[ECE]NiBr catalyzed Sonogashira cross-coupling.

Complexes 71-73 were found to be catalysts for the Sonogashira cross-coupling reaction with moderate yields ^[65]. The stoichiometric reactions between 71 or 72 and copper phenyl acetylides produce Ni phenylacetylide complexes [ECE]Ni-C≡C-terPh→CuBr (74 and 75 in Scheme 13), which have been successfully characterized by X-ray diffraction. The addition of (E)-1-iodo-1-octene to the solution of 74 generates the C-C cross-coupling product in high yield together with [SiCSi]NiI. Although no other reaction intermediates were isolated in this reaction, the mechanism was proposed to consist of three main steps: the transmetallation between [ECE]NiX and copper phenylacetylide, the following oxidative addition of alkenyl halide to [ECE]Ni-C≡C-Ar→CuBr complex, and reductive elimination to produce [ECE]NiX and the cross-coupling product.

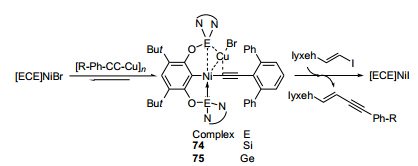

Scheme 13.Mechanism of [ECE]NiBr catalyzed Sonogashira cross- coupling.

We recently reported the first Ni catalyzed Sonogashira reaction of non-activated secondary alkyl bromides and iodides using readily available bis(oxazoline) ligands (Scheme 14) ^[66]. The scope of this reaction included both cyclic and acyclic alkyl halides. Both aryl and alkyl alkynes can be transformed. Common functional groups such as ketal, amide, amine, carbamate, and heterocycles were compatible with this reaction. The reaction between 6-iodoheptene 76 and alkyne 77 produced 15% yield of the linear product 78 and 50% yield of the cyclization product 79 which implied a 5-exo-cyclization process. The cross-coupling of (bromomethyl)cyclopropane 80 and alkyne 81 afforded the ring opening product 82 alone in 65% yield. Based on the above observations, a radical mechanism was proposed: the catalytic cycle begins with an alkynyl-Ni^I complex which is oxidized by a ligand-based one electron process to generate the Ni^II complex, and the following oxidative radical addition produces the Ni^III complex which undergoes C-C reductive elimination to afford the cross-coupling product and regenerates the Ni^I complex to initiate the next catalytic cycle. This mechanism was supported by the observed stereochemistry in the cross-coupling between terminal alkynes and 1,3- and 1,4- substituted cyclohexyl iodides. In addition, TEMPO was found to be a potent inhibitor of this reaction.

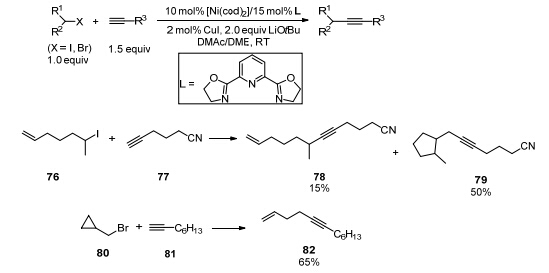

Scheme 14.Ni catalyzed Sonogashira reaction of non-activated secondary alkyl halides.

Itami’s group ^[67] reported the Ni(cod)₂/dcype (dcype = 1,2-bis(dicyclohexylphosphino)ethane) catalyzed cross- coupling reactions between aryl esters and azoles to produce the decarbonylative C-H coupling products (Scheme 15). The same catalyst can also be applied to the C-O/C-H cross-coupling reaction between phenol esters and azoles ^[68]. For the decarbonylative C-H cross-coupling, a mechanism consisting of oxidative addition of C(aryl)-O bond, CO migration, azole C-H nickelation, reductive elimination, and CO extrusion was proposed ^[67] (Fig. 11). For the C-O/C-H cross-coupling, the catalytic cycle was suggested to involve the oxidative addition of C(phenyl)-O bond, C-H nickelation, and reductive elimination steps ^[68].

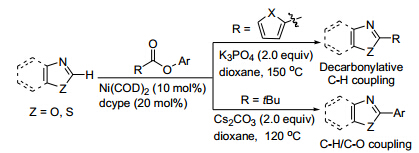

Scheme 15.Chemoselectivity of Ni catalyzed cross-coupling reactions between aryl esters and azoles.

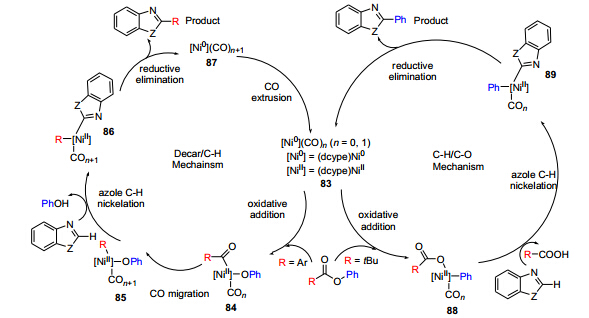

Fig. 11.Mechanism of Ni catalyzed cross-coupling reactions between aryl esters and azoles.

To investigate the origin of this interesting chemoselectivity, theoretical studies on the mechanism of Ni catalyzed coupling reactions between azoles and aryl carboxylates have been separately conducted by Houk’s group ^[69] and Fu’s group ^[70]. Houk et al. found that C(acyl)-O activation by Ni catalyst with a bidentate phosphine ligand is more feasible than the C(aryl)-O bond because the low bond dissociation energy of the C(acyl)-O bond leads to a lower distortion energy of the transition state. In contrast, Ni(0) complex with a monophosphine ligand favors C(aryl)-O bond cleavage because the vacant coordination site on Ni provides a stabilizing interaction with the substrate. For aryl pivalates, Ni(0) complex with a bidentate phosphine favors C(acyl)-O activation over C(aryl)-O activation. However, the decarbonylation step after the C(acyl)-O activation has a very high barrier. Thus the subsequent C-H activation of azoles only occurs after C(aryl)-O activation.

Fu’s group ^[70] found that the CO migration step was the turnover determining step for decarbonylative C-H cross- coupling and it occurs after the C-H activation of azole in the decarbonylative C-H cross-coupling reaction. The reason is that the Ni(II) center (85) generated by the CO migration step would be too electron deficient for subsequent C-H activation to occur. For the C-O/C-H cross-coupling, a catalytic pathway similar to Itami’s original proposal was calculated to be favored. The base-promoted C-H activation of azole was found to be the turnover determining step. The calculated difference of the barriers was consistent with the experimental chemoselectivity. Furthermore, the steric effect of the acyl moiety has a significant influence on the barrier of CO migration in the decarbonylative C-H coupling mechanism. To the contrary, the overall energy demand is independent on the acyl moiety in the C-H/C-O coupling mechanism because the carboxylate is released before the turnover determining step. As a result, the decarbonylative C-H cross-coupling is favored for C-O electrophiles with bulky aryl esters, while the C-H/C-O cross-coupling prevails with more bulky phenol esters such as phenyl pivalate and triflate.

Hiyama’s group ^[71] reported a Ni catalyzed hydroheteroarylation of vinlyarenes. The regioselectivity of this reaction was controlled by the substituent on the alkenes: the additions of fluoroarenes or heteroarenes 90 to aryl olefin produce Markovnikov adduct 91, whereas the addition product of alkyl olefin is anti-Markovnikov 92 (Scheme 16). The mechanism was proposed to begin with the reversible oxidative addition of Ar-H bond from 93 to 94 (Fig. 12), followed by reversible hydronickelation of olefins from 94 to 96 and irreversible C-C reductive elimination.

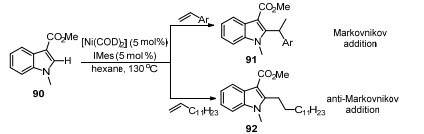

Scheme 16.Ni catalyzed hydroheteroarylation of vinlyarenes.

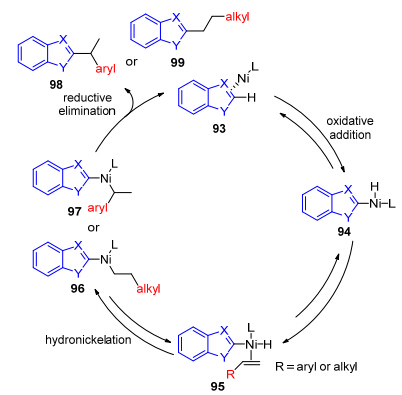

Fig. 12.Mechanism of Ni catalyzed hydroheteroarylation of vinlyarenes.

In a following theoretical study, Shi’s group ^[72] found that the calculated catalytic pathway was consistent with the experimental evidence with C-C reductive elimination as the turnover determining step. Furthermore, they found that the Markovnikov product of aryl olefin was facilitated by the secondary orbital overlap between Ni and the aryl moiety in the transition state of the C-C reductive elimination. It was predicted that electron deficient para-substituents on the aryl olefin would enhance the Markovnikov selectivity. On the other hand, there is no secondary orbital interaction in the C-C reductive elimination step of the reaction between alkyl olefin and heteroarenes. More bulky alkyl substituents were calculated to favor anti-Markovnikov selectivity.

The cross-coupling of an aryl halide and an alkyl halide is a versatile synthetic method without the need of a carbon nucleophile. Weix’s group ^[73] studied the mechanism of Ni catalyzed cross-coupling of aryl halides with alkyl halides (Scheme 17). The mechanism was proposed to begin with the selective oxidative addition of bypridine-ligated Ni(0) to iodobenzene over alkyl iodide to produce an arylnickel(II) complex [(L)Ni(Ph)I] (100) (Fig. 13). This complex 100 is the resting state of the catalyst and reacts with an alkyl radical RCH₂• to generate a diorganonickel(III) complex [(L)Ni(RCH₂)(Ph)I] (101). The following C-C reductive elimination produces the cross-coupling product Ph-CH₂R and [(L)NiI] (103). Complex 103 reacts with alkyl iodide to produce the RCH₂• radical and [(L)NiI₂] (104). Then 104 is reduced by manganese to regenerate the Ni(0) catalyst. The initiation step has not been studied in detail. However, the RCH₂• radical can be generated by the reaction between 100 and alkyl iodide. The resulting complex [(L)Ni(Ph)I₂] (102) can undergo C-I reductive elimination to produce iodobenzene and 103. If this step is reversible, the inhibition of the reaction rate at high iodobenzene concentration can be explained. The selectivity stems from two steps: selective oxidative addition of iodoarene over iodoalkane, and selective formation of an alkyl radical over an aryl radical. This is consistent with the observations that highly reactive alkylhalides such as benzyl bromide and poorly reactive arylhalides such as iodomesitylene result in low yields of the cross- coupling product.

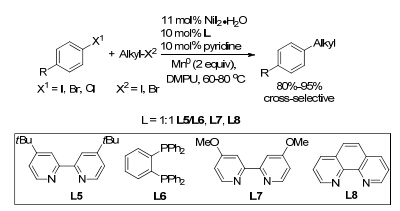

Scheme 17.Ni catalyzed reductive cross-coupling of an aryl halide and an alkyl halide.

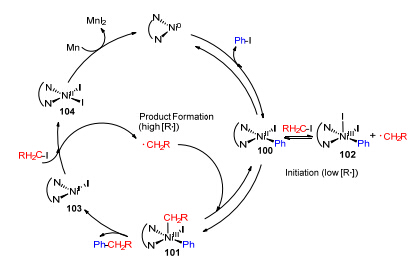

Fig. 13.Mechanism of Ni catalyzed reductive cross-coupling of an aryl halide and an alkyl halide.

A number of novel Ni catalyzed cross-coupling reactions featuring the transformation of alkyl reagents, C-O activation, and C-H activation were reported in recent years. The mechanisms of these reactions are often different from the corresponding Pd catalyzed reactions. Several properties of Ni complexes may be the reasons why Ni catalysts are superior in some cross-coupling reactions: (1) the Ni atoms in low valent Ni complexes are less electronegative than Pd in the corresponding Pd complexes, which prompts the activation of inert C-X bonds; (2) β-H elimination from some [(L)Ni(alkyl)] intermediates are reported to be difficult ^{[34, 35]}, an observation that can be attributed again to the low electronegativity of the Ni atom; (3) radical mechanisms that facilitate the activation of alkyl halides are common in Ni catalyzed cross-coupling of alkyl reagents. For these reasons, Ni catalysts can give many unique applications not available with the more popular Pd catalysts, and they have a promising future in organic synthesis.

There are still a large number of mechanistic questions in the field of Ni catalyzed cross-coupling reactions. The factors controlling the stereoselectivity in the cross-couplings are still elusive. Many proposed radical intermediates have not been definitively characterized. The consistency between the bimetallic mechanism and apparent kinetic behavior needs to be further examined. Further exploration of the mechanisms is very important to develop new Ni catalyzed cross-couplings with better efficiency and selectivity. We envision that future mechanistic studies require both experimental and theoretical endeavors to explain the reactivity and selectivity of Ni catalyzed cross-couplings. Furthermore, Ni catalyzed stereospecific cross-couplings are still in its early stage of development, which provides good opportunities for mechanistic studies. New types of bond activation such as C-H, C-O, and C-F need better understanding of the reactivity of Ni complexes. The mechanistic studies of Ni catalysis will provide helpful insights into the development of new and better Ni catalyzed reactions.
