Fischer-Tropsch synthesis: Characterizing and reaction testing of Co2C/SiO2 and Co2C/Al2O3 catalysts
Yanpeng Peia,c, Yunjie Dinga,b , Juan Zanga,c, Xiangen Songa,c, Wenda Donga,c, Hejun Zhua, Tao Wanga, Weimiao Chena
a Dalian National Laboratory for Clean Energy, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, Liaoning, China;
b State Key Laboratory for Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, Liaoning, China;
c University of Chinese Academy of Sciences, Beijing 100049, China
Received: 2014-10-24. Accepted: 2014-11-16. Published: 2015-02-20.
* Corresponding author.Tel/Fax:+86-411-84379143;E-mail:dyj@dicp.ac.cn
Abstract: SiO2- and Al2O3-supported Co2C catalysts were prepared by carburizing supported Co precursors with CO. The catalysts were characterized by N2 physisorption, X-ray diffraction and H2 temperature-programmed reduction techniques, and evaluated by the Fischer-Tropsch (F-T) reaction. The results showed that SiO2- and Al2O3-supported Co2C catalysts could be successfully obtained but sufficient carburization time was required. All of the as-prepared supported Co2C catalysts exhibited activity and selectivity towards alcohols. It is considered that surface metallic Co species contributed to the activity, surface Co2C species were responsible for the formation of alcohols, and bulk Co2C species were inert during the F-T reaction.
© 2014, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Supported cobalt carbide     Fischer-Tropsch synthesis     Alcohols     Surface sites

1. Introduction

Because of the depletion of petroleum resources and the deterioration of the environment, Fischer-Tropsch (F-T) synthesis has attracted great attention because it can be used to produce clean liquid fuels from coal, natural gas, and biomass by catalytic conversion of a synthesis gas intermediate. Many metals, such as Fe, Co, Ni, and Ru, can be used as active catalysts for F-T synthesis, and Fe and Co are the most commonly used [1, 2, 3, 4]. One interesting phenomenon that occurs on the supported Fe- and Co-based catalysts is the formation of iron and cobalt carbide during the reaction. The formation of iron carbides is easy, because the apparent activation energy of carbon diffusion in iron (43.9-69.0 kJ/mol) is substantially lower than for the F-T reaction (89.1 ± 3.8 kJ/mol), which makes it difficult to identify whether iron carbides or iron metal are the real active sites for F-T synthesis [3, 4]. In contrast, the consensus is that the real active site for Co catalysts is metallic Co, and the formation of the Co2C phase would result in deactivation of the Co catalysts [1, 5, 6, 7, 8]. However, Volkova et al. [9] suggested that the appearance of cobalt carbide on Cu-Co catalysts was responsible for the formation of alcohols during the F-T reaction and it followed a CO insertion mechanism. Liu et al. [10] attributed the synthesis of higher alcohols from syngas over LaFeO3-supported Co-Cu catalysts to nano-sized Co2C. We have reported that the synthesis of C1-C18 linear alcohols could be achieved over activated carbon-supported Co catalyst in the presence of Co and Co2C species [11, 12, 13]. Recently, we showed that linear alcohols can be directly synthesized from syngas over unsupported Co2C catalysts, and found that the reactivity and selectivity of the catalysts were closely related to surface Co and Co2C active sites [14, 15].

Some density functional theory (DFT) studies have given a better understanding of the relationship between the structure and catalytic properties of Co2C in F-T synthesis and alcohol formation [16, 17, 18]. However, understanding of the Co2C phase is still inadequate and the following question remains to be answered in the field: why is the appearance of Co2C responsible for the deactivation of the supported Co catalysts? To the best of our knowledge, supported Co2C as catalysts for F-T synthesis has not been reported. In this paper, we report the synthesis and performance of SiO2- and Al2O3-supported Co2C catalysts. We also discuss the role that Co2C species play in supported Co catalysts.

2. Experimental
2.1. Sample preparation

Two types of SiO2 supports were purchased from Qingdao Haiyang Chemical Co., Ltd. (Qingdao, China), and are denoted as SiO2(1) and SiO2(2). The Al2O3 support was obtained from Qingdao Meigao Chemical Co., Ltd. (Qingdao, China). The supports were impregnated using an incipient wetness impregnation method with an appropriate Co(NO3)2·6H2O solution. Co loading was kept constant at approximately 15 wt.% (as metal Co). Following drying at 100 °C for 6 h, the catalyst precursors were calcined in flowing Ar at 350 °C for 4 h. All of the samples were then reduced at 250 °C in flowing H2 (60 mL/min) for 24 h and carburized with CO (1 atm, 60 mL/min) at 220 °C. The SiO2(1), SiO2(2), and Al2O3 supported catalyst precursors were carburized for 140, 145 and 120 h, and are denoted as Co2C/SiO2(1), Co2C/SiO2(2), and Co2C/Al2O3, respectively. For comparison, a SiO2(1) supported Co2C sample carburized for 72 h was prepared and is denoted as Co2C*/SiO2(1).

2.2. Catalyst characterization

The surface area, average pore diameter, and pore volume of the supports and catalysts were measured with nitrogen physisorption at −196 °C using a Micromeritics instrument (Autosorb-1). Prior to the measurements, the samples were degassed in flowing He at 200 °C for 2 h. The average pore diameter and pore volume were determined with the BJH method, and the specific surface area was estimated with the BET method.

The crystalline phases of the catalysts were examined by X-ray diffraction (XRD) with Cu Kα1 radiation on a PANalytical X’Pert PRO diffractometer at 40 kV and 40 mA. The spectra were recorded from 30° to 60° at a scanning rate of 10°/min. For the measurements, the catalysts were ground into a fine powder and placed inside a dish.

H2 temperature-programmed reduction (H2-TPR) experiments were conducted on an Altamira Instruments AMI-300 unit. The sample (150 mg) was treated with a 10% H2/Ar gas mixture at a flow rate of 50 mL/min, and the reduction temperature was increased from room temperature to 900 °C at a heating rate of 10 °C/min. The desorbed exit-gases were continuously monitored using an online mass spectrometer (MS) (Oministar, Pfeiffer Vacuum).

2.3. F-T synthesis

The F-T reaction was performed in a stainless-steel fixed-bed microreactor (9 mm i.d. and 450 mm length). The catalyst (4 mL) was diluted with quartz sand to a volume ratio of 1:1 in the reactor. After loading the catalysts into the reactor, the gas was switched from air to syngas (H2/CO = 1, GHSV = 500 h−1) at 3.0 MPa and the temperature was increased at a 0.3 °C/min heating rate to 220 °C. The reaction effluent passed through a condenser to collect the liquid products. The moment when the reactor reached the designed temperature was taken as the starting time. After 24 h stabilization, the liquid organic products and the aqueous products for another 24 h were off-line analyzed on an HP-6890 gas chromatograph (GC) with 5% PH ME capillary columns and a flame ionization detector after being carefully separated. The outlet gas was on-line analyzed using a HP-6890 GC with a Parapack-Q column and thermal conductivity detector.

3. Results and discussion
3.1. Performance of the F-T reaction

The activity and selectivity results of F-T synthesis over the supported Co2C catalysts are listed in Table 1. Normal hydrocarbons, CO2, and linear α-alcohols in the range of C1-C18 were produced over all the catalysts, which is in agreement with our previous results [11, 12]. The Co2C/SiO2(1) catalyst showed the highest CO conversion (43.9%) and alcohol selectivity (65.6%). The Co2C/SiO2(2) catalyst had only 8.8% CO conversion, but 61.0% alcohol selectivity. The Co2C/Al2O3 catalyst exhibited considerable CO conversion (16.4%) but negligible alcohol selectivity (8.2%).

The alcohols obtained on these catalysts were all linear, and their distribution is in agreement with an Anderson-Schulz -Flory (ASF)-type distribution (not shown here). This agrees with our previous results [11, 12]. Additionally, from Table 1, the proportion of C6+ alcohols in the alcohol fraction for the Co2C/Al2O3 catalyst was 19.7%, while for the Co2C/SiO2(1) and Co2CSiO2(2) catalysts it was only 4.2% and 2.0%, respectively. It is worth mentioning that the maximum alcohol carbon numbers for the Co2C/SiO2(1) and Co2CSiO2(2) catalysts were eight and seven, respectively, while for the Co2C/Al2O3 catalyst the number reached 18. We will further discuss the performance of all the catalysts in the later sections.

Table 1
Performance of the F-T reaction over the supported Co2C catalysts a.
3.2. Nitrogen physisorption measurements

The BET surface area, average pore diameter, and pore volume data of the supports and catalysts are listed in Table 2. The BET surface areas, average pore diameters, and pore volumes of the supported Co2C catalysts were considerably smaller than those of the corresponding supports, which is mainly because of pore blockage [19, 20].

Table 2
Textural properties of the supports and the supported Co2C catalysts.
3.3. XRD results

Fig. 1 shows the XRD patterns of the Co2C/SiO2(1), Co2C/SiO2(2), Co2C/Al2O3, and Co2C/SiO2(1) samples after preparation. The peaks at 2θ = 37.0° and 42.5° for all the samples can be attributed to the (110) and (111) planes of hexagonal Co2C, and the peak at 2θ = 45.7° for Co2C/Al2O3 can be assigned to the Co2C (021) plane (PDF 01-072-1369). No peaks corresponding to cobalt were observed in the patterns of the Co2C/SiO2(1), Co2C/SiO2(2), and Co2C/Al2O3 samples. However, for the Co2C/SiO2(1) sample, a peak at 2θ = 47.5° was observed, which can be ascribed to the (101) plane of hcp cobalt (PDF 00-001-1278). It is known that unsupported Co2C can be obtained by carburizing metallic Co with CO at 220 °C, but more than 500 h carburization time is required [21]. In the present work, the XRD results revealed that supported Co2C catalysts can be successfully prepared by carburizing supported Co precursor after reduction and significantly less carburization time was spent than for unsupported Co2C, but considerable carburization time was still necessary.

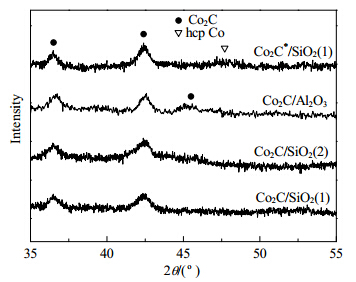

Fig. 1. XRD patterns of supported Co2C samples after preparation.

Fig. 2 shows the XRD patterns of the Co2C/SiO2(1), Co2C/SiO2(2), and Co2C/Al2O3 catalysts after reaction. The used Co2C/SiO2(1) and Co2C/SiO2(2) catalysts showed XRD peaks that can only be attributed to Co2C. However, for the used Co2C/Al2O3 catalyst, the characteristic Co2C peaks at 37.0° and 45.7° were observed, but the characteristic Co2C peak at 42.5° almost disappeared and new peaks at 44.3° and 47.5° appeared, which can be attributed to the (111) plane of fcc cobalt (PDF 00-00-1259) and the (101) plane of hcp cobalt (PDF 00-001-1278), respectively. It has been reported that Co2C species readily react with H2 to form CH4 and Co (Co2C + 2H2 ® 2Co + CH4) even at a low temperature of 150 °C [22]. Under real F-T reaction conditions, Co2C would be partially decomposed by H2 into cobalt, although the CO partial pressure would ensure the existence of Co2C species, as we previously reported [15]. Therefore, the metallic cobalt species that were present on the used Co2C/Al2O3 catalyst were derived from the partial decomposition of Co2C. Moreover, the disparate behavior of Co2C species on the SiO2 and Al2O3 supports indicated that, as expected, there may be a support effect that can influence the Co2C phase transition during the reaction. We will discuss this topic more extensively with the findings of the H2-TPR analyses in the next section.

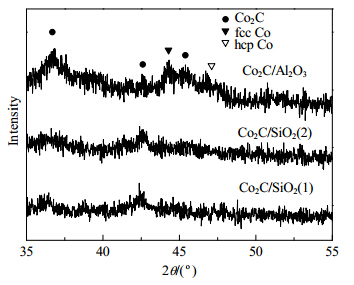

Fig. 2. XRD patterns of supported Co2C catalysts after reaction.
3.4. H2-TPR-MS results

As mentioned in Section 3.3, Co2C species can react with H2 to form CH4 and Co. Based on this, we attempted to use CH4 formed in situ during the catalysts’ H2-TPR process as a probe to investigate the state of Co2C species in contact with the supports. Fig. 3 shows the CH4 formation signals during the H2-TPR process of the supported Co2C catalysts after preparation. Three CH4 peaks appeared at 343, 407 and 556 °C for Co2C/SiO2(1), two CH4 peaks appeared at 343 and 814 °C for Co2C/SiO2(2), and two CH4 peaks appeared at 442 and 662 °C for Co2C/Al2O3. We suggest that the peak at 343 °C for Co2C/SiO2(1) and Co2C/SiO2(2) is because of hydrogenation of surface carbon, the peaks at 407 °C for Co2C/SiO2(2) and 442 °C for Co2C/Al2O3 are because of hydrogenation of subsurface carbon, and the peaks above 509 °C for all the catalysts are because of the hydrogenation of lattice carbon of Co2C strongly interacting with the supports. Based on this characterization and XRD results, we believe that the supported Co2C catalysts can be successfully prepared not only in bulk but also on the surface.

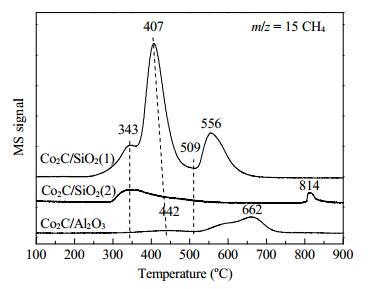

Fig. 3. H2-TPR profiles of the supported Co2C catalysts after preparation.

Fig. 4 shows the H2-TPR results of the three catalysts after reaction. CH4 peaks at 343 and 423 °C (probably because of hydrogenation of surface or subsurface carbon) were observed for the used Co2C/SiO2(1) and Co2C/SiO2(2) catalysts, respectively, but no such peaks were observed for the used Co2C/Al2O3 catalyst. This indicated that there were more surface or subsurface Co2C sites on the SiO2 supported catalysts than on the Al2O3-supported catalysts. Additionally, the CH4 formation peaks because of the hydrogenation of the lattice carbon of Co2C strongly interacting with the supports were observed on all the samples, but the temperature greatly differed compared with those on the fresh samples. This indicated that reconstruction of the bulk Co2C phase of all the catalysts may be induced during the reaction. Correlating the H2-TPR characterization with the performance of the supported Co2C catalysts, the alcohol selectivity was closely related to surface Co2C species. On one hand, for the used Co2C/SiO2(1) and Co2C/SiO2(2) catalysts, considerable Co2C species existed at the surface or subsurface and resulted in high alcohol selectivities, whereas nearly no Co2C species existed at the surface of the used Co2C/Al2O3 catalyst, leading to negligible alcohol yield. On the other hand, the areas of the CH4 formation peaks for the used Co2C/SiO2(1) and Co2C/SiO2(2) catalysts were similar, which indicated that there were almost the same amounts of surface or subsurface Co2C species on the catalyst surface, resulting in similar alcohol selectivity for both catalysts. It is well known that CO conversion of cobalt-based c atalysts is mainly related to the number of Co0 active sites. We previously reported that the activity of unsupported Co2C catalysts originated from the partial transition of the Co2C phase to the Co0 phase [15]. By comparing Figs. 3 and 4, for the Co2C/SiO2(1) catalyst, the CH4 peak at 343 °C decreased and the peak at 407 °C completely disappeared after the reaction. In contrast, for the Co2C/SiO2(2) and Co2C/Al2O3 catalysts, the CH4 peak attributed to surface or subsurface carbon did not significantly change. This indicated that a high number of Co0 active sites appeared on the Co2C/SiO2(1) catalyst, which was responsible for the high activity, whereas the low activity of the Co2C/SiO2(2) and Co2C/Al2O3 catalysts could be because of a low number of Co0 active sites, even though metallic Co phase was present on the used Co2C/Al2O3 catalyst. In the present paper, we only obtained a qualitative relationship between the catalyst activity and the number of Co0 active sites. Thus, more studies have to be carried out to quantitatively determine the number of Co0 active sites of Co2C catalysts under real F-T conditions. Note that, for the used Co2C/SiO2(2) and Co2C/Al2O3 catalysts, the bulk Co2C species that were in contact with the supports did not contribute to the catalyst activity, because both catalysts did not have high CO conversion. Therefore, we suggest that bulk Co2C species are inert. In addition, from Table 1, the production of long-chain alcohols (i.e., C6+ alcohols) was inhibited when the Co2C/SiO2(1) and Co2C/SiO2(2) catalysts exposed more Co2C sites on the su r face compared with the Co2C/Al2O3 catalyst. According to the literature [9, 11], alcohol formation on Co-based catalysts follows a CO insertion mechanism, Co0 is the active species for the C chain growth, and Co2C species can activate CO without rupture and insert CO into C chain intermediates, which leads to alcohol synthesis. Our results indicate that alcohol chain termination was favored when too many surface Co2C species were exposed on the catalyst surface. Of course, not only the role of Co2C but also the reasons for alcohol chain propagation need further study.

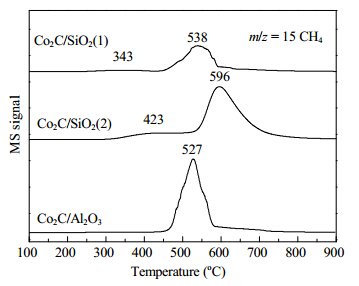

Fig. 4. H2-TPR profiles of the supported Co2C catalysts after reaction.
4. Conclusions

SiO2- and Al2O3-supported Co2C catalysts for F-T synthesis were successfully prepared by carburizing the corresponding supported Co precursors with CO, although more than 100 h carburization time was necessary. All of the as-prepared supported Co2C catalysts exhibited activity and selectivity for alcohol formation. It is considered that surface metallic Co originating from the decomposition of surface Co2C under reaction conditions contributed to the catalyst activity, surface or subsurface Co2C species were responsible for the formation of alcohols, and bulk Co2C species that interacted with the supports were inert during the F-T reaction.
