The textile, plastic, paper, and pulp industries generate streams of waste containing substantial amounts of organic dyes that are usually non-biodegradable and difficult to remove. Discharging this waste into water bodies without any prior treatment can have severe environmental consequences. The molecules in these effluents usually possess carcinogenic and mutagenic properties, so they can not only harm aquatic ecosystems but also actively or passively pose a major threat to human life [1, 2]. Various physical, chemical, and biological methods [3] have been used to treat dyes, including coagulation, flocculation, precipitation, ozonation, oxidation [4] and radiation [5].
Semiconductor photocatalysis has previously been described as a promising option to remove persistent pollutants from contaminated water. Photocatalysis involves the in situ generation and use of highly oxidizing agents, mainly hydroxyl radicals. Hydroxyl radicals can degrade organic pollutants in water to obtain complete mineralization into CO2, H2O and mineral acids such as sulfuric, hydrochloric, and nitric acids.
Silver selenide exists as a low-temperature phase (β-Ag2Se) and high-temperature phase (α-Ag2Se) with the phase transition point at 135 °C [6]. α-Ag2Se is a well-known superionic conductor that is useful as the solid electrolyte in photochargeable secondary batteries. Meanwhile, β-Ag2Se is a narrow-band-gap semiconductor and has been widely used as a photosensitizer in photographic films and thermochromic materials. Cao et al. [7] synthesized single-crystalline Ag2Se complex nanostructures via a solvothermal route and characterized their photocatalytic activity by photodegradation of rhodamine B (RhB) dye under ultraviolet (UV) light irradiation.
Graphene is a good support for semiconductor nanocrystals because of its unique electronic, mechanical, physical, and chemical properties [8, 9]. The flat monolayer structure and charge transfer ability of graphene make it a suitable candidate to anchor Ag2Se nanocomposites. In addition, graphene should help to improve the photocatalytic activity of the nanocomposites by suppressing charge recombination. Many approaches, such as hydrothermal [10] and sol-gel methods [11], have been developed to decorate graphene sheets with nanoparticles.
The synthesis of nanomaterials of uniform size and shape and high crystallinity is an important challenge. Various methods to prepare nanomaterials are available, including hydrothermal, microwave, sol-gel, microemulsion, and polyol techniques. However, each of these methods has its own limitations, such as long reaction time, formation of nanomaterials of nonuniform shape and size, particle agglomeration, and expensive solvent [12, 13].
Sonochemical synthesis can be used to rapidly prepare nanomaterials of uniform size and shape byemploying ultrasound at the frequency range of 18-100 kHz as a source of high energy to generate acoustic cavitation. This phenomenon involves the formation, growth and collapse of cavity bubbles that entrap dissolved gases or vapors surrounding water [14, 15]. Ultrasonication is important for the initiation or enhancement of catalytic reactions in both homogeneous and heterogeneous systems [16].
In this work, we report a simple, green way to prepare a reduced graphene oxide (RGO)-Ag2Se nanocomposite through ultrasonic treatment combined with hydrothermal synthesis. In this process, graphene oxide (GO) is mixed with Ag and Se precursor materials and the resulting solution is irradiated by ultrasonic waves. During the reaction, simultaneous reduction of graphite oxide to graphene and attachment of Ag2Se nanoparticles are observed. The evolution of reactive oxygen species is also investigated by the ability of the composite to oxidize 1,5-diphenylcarbazide (DPCI) into 1,5-diphenylcarbazone (DPCO), which can be extracted by organic solvents and displays an obvious absorption signature. The photocatalytic activities of RGO-Ag2Se nanocomposites are tested with a model organic dye RhB and industrial dye Texbrite BA-L (TBA) under visible-light radiation.
Ethylene glycol and anhydrous ethanol were purchased from Daejung Chemical Co. (Korea). GO was prepared using the Hummers-Offeman method [17]. AgNO3, Se metal powder and NH4OH (28%) were purchased from DaeJung Chemicals & Metal Co., Ltd (Korea). Titanium oxide nanopowder (P25, <25 nm, 99.7%) with anatase structure was purchased from Sigma-Aldrich Chemistry (USA) for use as a reference sample. TBA was purchased from Texchem Co. Ltd (Korea). RhB (C28H31ClN2O3, 99.99%) purchased from Samchun Pure Chemical Co., Ltd (Korea) was used as a model pollutant. All chemicals were used without further purification, and all experiments were carried out using distilled water.
Natural graphite powder (10 g) was mixed with concentrated H2SO4 (230 mL) at 0 °C with vigorous magnetic stirring. KMnO4 (30 g) was slowly added to the flask and the temperature was kept below 15 °C. The resulting mixture was stirred at 35 °C until it became a brownish paste, and then diluted to 150 mL with deionized (DI) water and kept stirring below 90 °C. After adding water, the container was sealed and kept at 100 °C with vigorous stirring for 30 min, followed by the dropwise addition of 20% H2O2 over 5 min. The mixture was washed sequentially several times with water, acetone and 10% HCl solution to remove residual metal ions. The mixture was then heat treated in a dry oven at 90 °C for 12 h to obtain graphite oxide powder. To prepare GO, graphite oxide powder (200 mg) was mixed in DI water (200 mL, 1 mg/mL), stirred for 30 min and then ultrasonicated for 1 h. The resulting solution was filtered, washed several times with hot water and dried in an oven for 6 h to give GO powder. To obtain graphene as a control sample, GO was reduced by a mild chemical method according to our previous research [18].
Ag2Se was synthesized by a hydrothermal method. First, solution A was prepared by adding crude Se powder (0.2 g) to ethylene glycol (50 mL) and stirring the mixture for 1 h using a magnetic stirrer to ensure homogenous mixing. Second, solution B was formed by adding an appropriate amount of AgNO3 powder to DI water (50 mL). Solutions A and B were mixed together and transferred to a Teflon-lined stainless steel autoclave that was then sealed. The contents were then heated at 160 °C for 12 h. The obtained sample was washed several times with distilled water and dried in a vacuum oven at 90 °C for 8 h.
A RGO-Ag2Se nanocomposite was prepared by a sonochemical-assisted hydrothermal method. In a typical synthetic procedure, GO (300 mg) and AgNO3 (22 mg) were dispersed in ethanol and water (1:1 v/v, 100 mL) by ultrasonication for 1 h using a digital sonifier to obtain a homogeneous GO nanosheet (GONS)/Ag+ solution. Here, AgNO3 was used as a source of Ag+ ions, which were obtained by the hydrolysis of AgNO3 in the presence of water and ethanol. Se powder and NH4OH (6 mL, 28 wt%) were added, and then the mixture was stirred rapidly at 100 °C for 8 h. The mixture was transferred to a Teflon-lined stainless steel autoclave that was then sealed. The contents were heated at 160 °C for 12 h. The reaction mixture was allowed to cool to room temperature and then the precipitate was filtered, washed with distilled water five times, and dried in a vacuum oven.
To determine the crystal phase and the composition of the as-prepared samples, X-ray diffraction (XRD) characterization was carried out at room temperature using a diffractometer (XD-D1, Shimata, Japan) with Cu Kα radiation (λ = 1.54056 Å) in the range of 2θ = 10°-80° at a scan speed of 1.2°/min. Scanning electron microscopy (SEM; JSM-5200, JEOL, Japan) was used to observe the surface state and morphology of the prepared nanocomposite. The morphology of samples was studied by energy-dispersive X-ray spectroscopy (EDX), which was also used for elemental analysis. Transmission electron microscopy (TEM; JEM-2010, JEOL, Japan) at an acceleration voltage of 200 kV was used to observe the surface state and structure of the photocatalyst composite. TEM was also used to examine the size and distribution of Ag2Se nanoparticles on the GONS. Fourier transform infrared (FT-IR) spectroscopy (FTS 3000MX, Biored Co., Korea) was used to characterize the functional groups of graphite oxide and the RGO-Ag2Se composites. Diffuse reflectance spectra were obtained using a scanning ultraviolet-visible (UV/Vis) spectrophotometer (Neosys-2000) equipped with an integrating sphere. Raman spectra of the samples were observed using a Raman spectrometer (NRS-3100, Jasco, Japan) with an excitation laser wavelength of 532.06 nm. Decomposition kinetics for the photocatalytic activity assessment were measured using a spectrometer (Optizen POP, Mecasys, Korea).

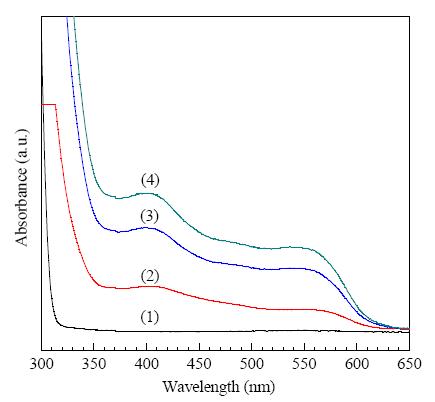

Experiments were performed according to a reported method [19]. First, four 100-mL transparent volumetric flasks were labeled (a-d). DPCI (10.00 mL, 0.1 mmol/L) was added to each of a-d, followed by 50 mg of sample 1, 2, 3, and 4 to a, b, c, and d, respectively. All of the four solutions were then diluted to 100 mL with double-distilled water. The final DPCI concentration and amount of RGO-Ag2Se were 1.00 mmol/L and 1.00g/L, respectively. After 120 min of irradiation, 10-mL aliquots were taken from each reactor and extracted with benzene. The extracted solutions were diluted to 10 mL with benzene and their UV-Vis spectra were recorded.
The photocatalytic activities of P25, pure Ag2Se, and RGO-Ag2Se nanocomposite were evaluated by the degradation of RhB solution under irradiation with visible light (8 W, Fawoo, Lumidas-H, Korea, λ ˃ 420 nm). In an ordinary photocatalytic test performed at room temperature, photocatalyst (0.05 g) was added to RhB solution (50 mL, 200 mmol/L), which is hereafter considered as the initial concentration (C0). To better assess the degradation activity of the RGO-Ag2Se nanocomposite, the industrial dye TBA was also degraded under the same conditions. Each mixture was sonicated for 10 min and then stirred for 120 min in the dark to reach adsorption-desorption equilibrium. The first sample was taken out of the mixture just before the light was turned on to determine the dye concentration in the solution after adsorption in the dark, which is henceforth considered as the initial adsorbed concentration (Cads). Samples were then removed from the reactor at 30, 60, 90, 120, and 150 min, and immediately centrifuged to separate any suspended solids. Each clean transparent solution was analyzed by UV-Vis spectroscopy (Optizen POP) in the wavelength range from 250 to 800 nm.

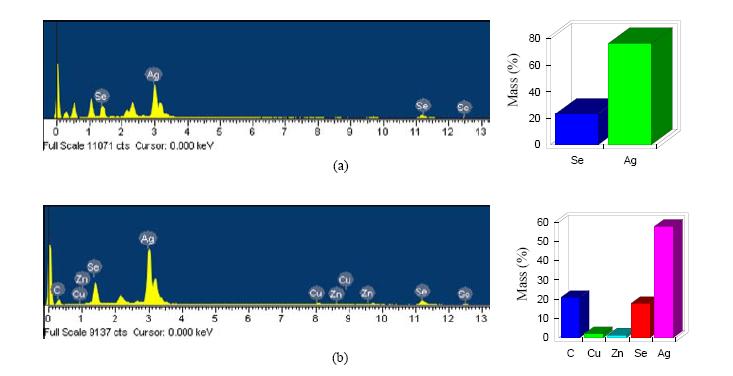

To obtain information about the composition of the prepared RGO-Ag2Se composite, it was examined by EDX. Fig. 1 shows the EDX microanalysis and elemental mass percentages determined for pure Ag2Se and the RGO-Ag2Se composite. The main elements were C, Ag, and Se, as expected. The strong C signal should mainly originate from the GONS. A very low concentration of impurities was present, which may originate from the experimental procedure. The EDX data confirm that a RGO-Ag2Se hybrid was successfully synthesized.

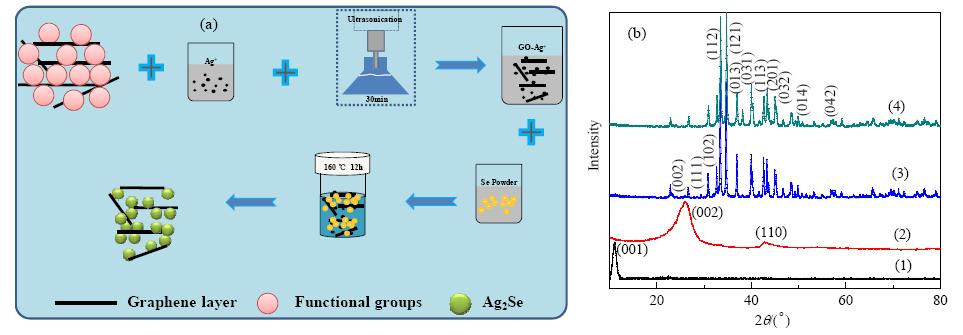

An illustration of the deposition of Ag2Se on the GONS is presented in Fig. 2(a). In this approach, Ag+ ions coordinated to hydroxyl groups, possibly epoxy or carboxyl groups, on GO [20]. Then, the Ag+ ions reacted with Se2− during hydrothermal treatment to form Ag2Se nanoparticles and GO was reduced simultaneously. Fig. 2(b) shows the XRD patterns of the precursors used in this procedure and the product obtained. Graphene exhibits peaks at 25.9° and 42.7° corresponding to the (002) and (100) reflections of graphite (JCPDS 01-0646), respectively. The XRD pattern of Ag2Se exhibits the characteristic (002), (112), (121), (103), (031), (200), (213), and (134) crystal planes originating from the orthorhombic Ag2Se phase, consistent with the results reported by Chen et al. [21], and lattice parameters of a = 0.4331 nm, b = 0.7061 nm, and c = 0.7763 nm (JCPDS 20-1063). No signals from any other phases of GO (001) or graphene (002) were detected in the RGO-Ag2Se composite, indicating that the oxygen intercalated into the interlayer spacing of graphite was largely removed by chemical reduction [19].

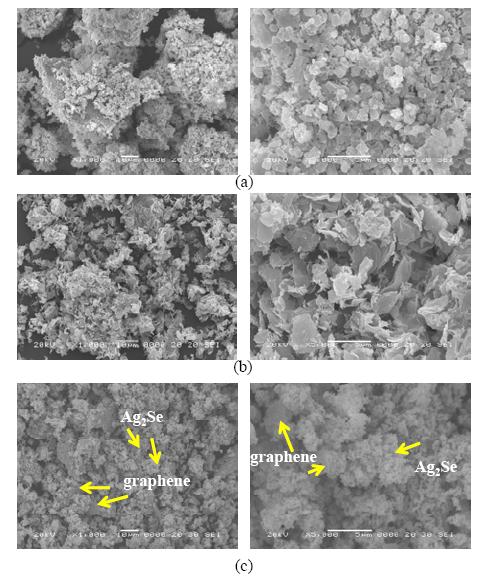

The typical microsurface structure and morphology of the samples were characterized by SEM and TEM, respectively. The SEM image in Fig. 3(a) shows that the Ag2Se particles are large squares with good dispersion. The GONS exhibited a flake-like morphology, reflecting its layered microstructure (Fig. 3(b)). The large interlayer spaces and thin-layer edges of graphene can be clearly observed. It is noteworthy that sonochemical synthesis of the RGO-Ag2Se composite yielded nanoscale Ag2Se particles, as observed in Fig. 3(c), with a favorable morphology and smaller size compared with that of pure Ag2Se synthesized by hydrothermal synthesis alone.

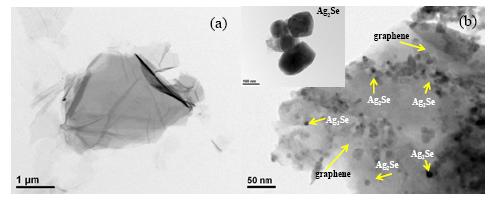

Typical TEM images of graphene, Ag2Se, and RGO-Ag2Se are displayed in Fig. 4. The morphology of graphene of thin stacked flakes with a well-defined few-layer structure at the edge is clear in Fig. 4(a). Nanoscale Ag2Se is observed in the RGO-Ag2Se composite as well-dispersed nanoparticles with an average size of 8-10 nm (Fig. 4(b)). Ag2Se synthesized by a hydrothermal method without ultrasound (inset of Fig. 4(b)) is polycrystalline with defined single crystals with sizes of up to 50-100 nm. These results show that our nanocomposite is composed of well-dispersed Ag2Se nanoparticles on GONSs. Therefore, ultrasonic-assisted synthesis of RGO-Ag2Se is advantageous over other synthesis methods, and should improve the photocatalytic properties of this material [22].

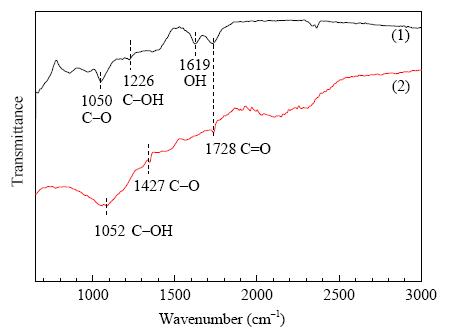

The FT-IR spectra of crystalline materials show distinct, sharp bands, whereas those of amorphous materials are less well resolved. Fig. 5 presents the FT-IR spectra measured for graphite oxide and the RGO-Ag2Se composite. Some carbon double bonds of graphite oxide nanosheets are oxidized after acidic intercalation and thermal treatment, resulting in the presence of oxygen-containing functional groups such as −COOH and −OH on the nanosheet surface [18, 23]. For GO, the peak at 1619 cm−1 can be assigned to the vibrations of adsorbed water molecules. In addition, GO exhibits a C=O carbonyl stretching mode at 1728 cm−1, C−OH stretching mode at 1226 cm−1, and C−O stretching mode at 1050 cm−1.
The amount and distribution of carboxylic groups on the GONS strongly influence the further modification of the sheets with nanoparticles. Positive metal ions in the system can interact with the carboxylic groups of the GONS via electrostatic attraction and serve as nucleation precursors [24]. In the FT-IR spectrum of the RGO-Ag2Se composite, the weak peak at 1052 cm−1 was assigned to C−OH groups. Peaks for C−O and C=O functional groups were observed at approximately 1427 and 1728 cm−1, respectively. Comparison of the spectra reveals lower peak intensity for functional groups in oxidized graphene compared with that for graphite oxide. This is because some of the functional groups combined with Ag2Se particles and were removed during reduction of GO to graphene [19].

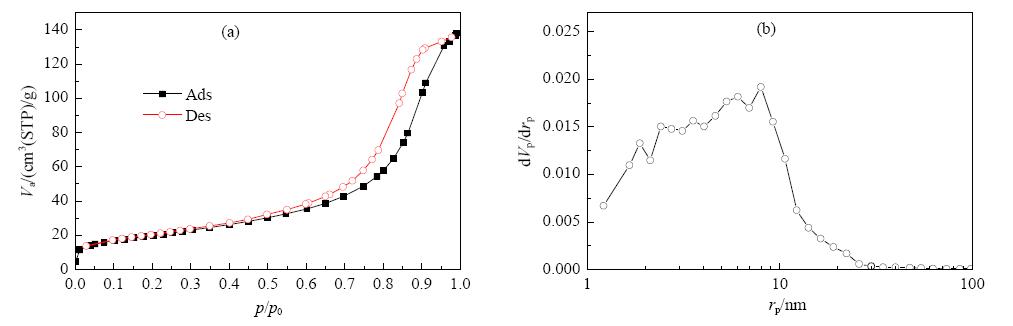

A N2 adsorption-desorption isotherm and pore-size distribution curve for the RGO-Ag2Se composite are depicted in Fig. 6. The formation of a type-IV adsorption isotherm confirmed the presence of numerous mesopores on the surface of the sample. Characteristic features of type-IV isotherms are hysteresis, which is associated with capillary condensation taking place in mesopores, and limited uptake at high p/p0. The initial part of the type-IV isotherm is attributed to monolayer- multilayer adsorption because it follows the same path as the corresponding part of a type-II isotherm obtained with the given adsorption on the same surface area of the adsorbent in a non-porous form. Type-IV isotherms are exhibited by many mesoporous industrial adsorbents [25]. This indicates that the RGO-Ag2Se composite was mesoporous, with some wider pores where capillary condensation occurred. Fig. 6(b) illustrates the BJH pore-size distribution for the RGO-Ag2Se nanocomposite. It reveals that the pores in RGO-Ag2Se possess a mean diameter of around 9 nm. It can therefore be inferred that the pore structure of RGO-Ag2Se is highly desirable because the internal parts of catalysts will be readily accessible to reactant molecules during photocatalysis [26].

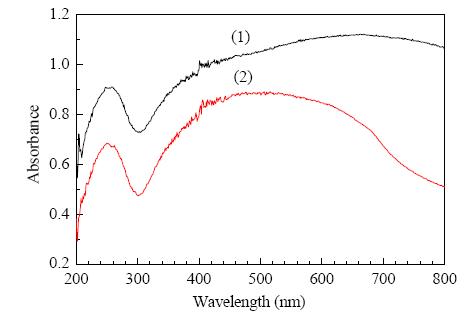

UV-Vis absorption spectra of the samples are presented in Fig. 7. The absorption edge for RGO-Ag2Se is large compared with that for Ag2Se. This means that the composite should have high photocatalytic activity under visible-light irradiation. The UV-Vis spectrum of RGO-Ag2Se showed a broad absorption peak centered at about 755 nm, corresponding to a photon energy of 1.64 eV, which is similar to that reported for an Ag2Se complex photocatalyst [7]. Ag2Se is a I-VI semiconductor that belongs to the family of superionic conductors with potential applications like IR detectors, photovoltaic cells, magnetic resistive sensors, electrochemical potential memory, and semiconducting optical devices for the visible region [27−29]. When Ag2Se is coupled with graphene, graphene absorbs photoelectrons, improving the excitation and injection of photoelectrons into the conduction band (CB) of Ag2Se [30]. This suggests that the absorption of RGO-Ag2Se in the visible region is caused by the well-dispersed GONS rather than modification of the bandgap of Ag2Se.
The photocatalytic activity of the as-prepared nanocomposite was evaluated by catalytic degradation of RhB. The photocatalytic decomposition of dyes involves two steps: the adsorption of dye molecules and subsequent photodegradation. To evaluate the adsorption ability of the as-prepared composite catalyst, solutions of RGO-Ag2Se and control materials P25 and Ag2Se containing RhB were stirred magnetically for 120 min in the dark to establish adsorption-desorption equilibrium. In RGO-Ag2Se, graphene acts as an adsorption support material because of its two-dimensional conjugated structure. Dye molecules adsorb on the surface of graphene via π-π interactions [31]. To ascertain the adsorption ability of P25, Ag2Se and RGO-Ag2Se, the changes of RhB concentration were recorded and are shown in Fig. 8.

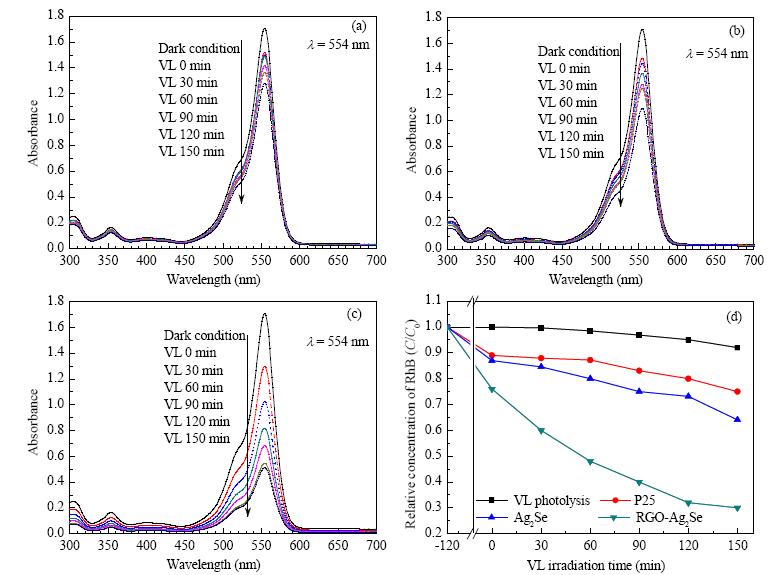

The photocatalytic performance of P25, Ag2Se and RGO-Ag2Se was determined by comparing the degradation efficiency of RhB under identical conditions of visible-light illumination (λ > 420 nm) (Fig. 8(d)); C is the absorption of RhB at 554 nm and C0 is the absorption of RhB after formation of an adsorption equilibrium on the photocatalyst before irradiation. A blank test (without any photocatalyst) exhibits little photolysis of RhB under visible light. Similarly, commercial P25 is obviously inactive under visible-light irradiation. In the case of RGO-Ag2Se, the photodegradation efficiency reaches nearly 70% after 150 min of irradiation, which is nearly 3.5 times that of commercially available TiO2 (P25).
Fig. 9 depicts UV-Vis spectra of DPCO extracts in the presence of RGO-Ag2Se under ultrasonic irradiation. DPCI can be oxidized to form DPCO. Under ultrasonic irradiation, some electrons transition from the valence band (VB) to the CB of DPCI. Simultaneously, electron-hole pairs form on the surface or inside RGO-Ag2Se. The electrons and holes react with the O2 dissolved in aqueous solution and H2O adsorbed on the surface of RGO-Ag2Se, respectively, producing superoxygen radical anions (•O2−) and hydroxyl radicals (•OH), respectively. •OH oxidizes DPCI into DPCO. DPCO can be extracted into benzene and absorbs at 560 nm, allowing the production of •OH to be easily detected. The absorption of extracts from this reaction solution depended on irradiation time, showing an obvious increase in DPCO concentration compared with that of the corresponding solution that was not irradiated [32]. The above results suggest that RGO-Ag2Se is efficient at generating ROS.

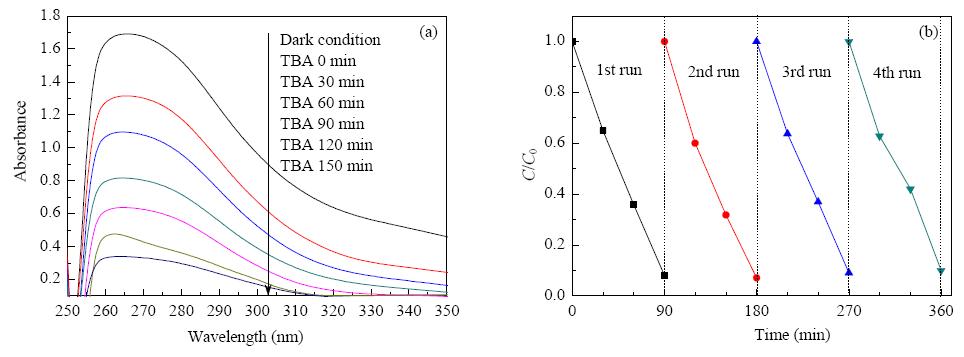

To demonstrate the photocatalytic activity and cycling performance of the RGO-Ag2Se photocatalyst, consecutive photocatalytic reactions to degrade TBA were conducted in the presence of RGO-Ag2Se under visible light. The color of the dye solution increasingly weakened as the dye concentration decreased. The decrease in concentration of TBA was evaluated at 375 nm, which is the λmax of TBA (determined from its absorption spectrum). After 150 min, RGO-Ag2Se degraded 74.2% of TBA, as shown in Fig. 10(a). Fig. 10(b) reveals that RGO-Ag2Se maintained its photocatalytic activity after four runs of TBA degradation. These results indicate that the RGO-Ag2Se photocatalyst has high stability and is not photocorroded during photocatalytic oxidation of TBA. Thus, RGO-Ag2Se is promising for practical photocatalyst applications in environmental purification. Graphene modification improves not only the photocatalytic performance but also the long-term stability of Ag2Se nanocrystals. These results are important from a practical viewpoint, because the enhanced photocatalytic activity and stability of RGO-Ag2Se will lead to more cost-effective operation.

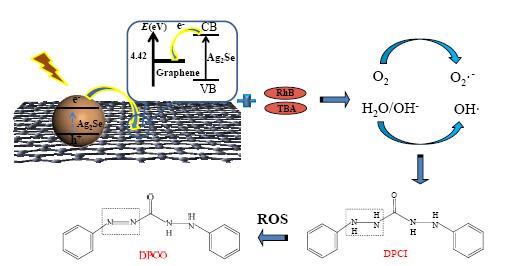

A schematic diagram of the charge transfer process between Ag2Se and graphene is illustrated in Fig. 11. When RGO-Ag2Se was illuminated with visible light, Ag2Se produced electrons and holes with sufficient energy or momentum to overcome the energy barrier (denoted as Eg). The electrons traveled from the VB to the CB, increasing the number of electrons in the CB and holes in the VB. Thus, a number of electrons and holes were generated in Ag2Se. Graphene attached to Ag2Se aided the transfer of electrons to the CB of Ag2Se, thereby increasing the number of excited electrons as well as the rate of electron-induced redox reactions. Based on the above discussion, the presence of graphene in the RGO-Ag2Se nanocomposite not only improved its visible-light absorption intensity but also enhanced photocatalytic activity because charge separation was facilitated by the synergistic interaction between graphene and Ag2Se. The generated electrons (e−) reacted with dissolved oxygen molecules to produce O2•−. Positively charged holes (h+) can react with OH− derived from H2O to form OH• [33]. RhB and TBA molecules can then be photocatalytically degraded by O2•− and OH• to form CO2, H2O and other mineralization products. The reactions involved in the charge transfer and mineralization of these dyes are as follows:
RGO-Ag2Se + VL (hυ) → RGO-Ag2Se+ + h+ + e− (1)
H2O → H+ + OH− (2)
h+ + OH− → OH• (3)
O2 + e− → O2•− (4)
RhB/TBA + OH•+ O2•− → CO2 + H2O + mineralized by-products (5)
A visible-light photocatalyst RGO-Ag2Se was prepared by a sonochemical-assisted hydrothermal method. XRD analysis of the RGO-Ag2Se composite suggested that the Ag2Se particles were predominantly orthorhombic crystalline phase. SEM images showed that Ag2Se nanoparticles were attached to the graphene sheets. EDX confirmed that the composite was mainly composed of Ag, Se, and C. The photocatalytic activity of RGO-Ag2Se was examined by degradation of organic and industrial dyes in aqueous solution under visible-light irradiation. These results reveal that graphene is an excellent supporting material for semiconductor nanoparticles because it acts as an electron acceptor and transporter. UV-Vis data revealed the large absorption edge of RGO-Ag2Se, which makes it useful as a photocatalyst that is active under visible light.
