Isobutene is the most versatile chemical intermediate among the C4 olefins, and is an important precursor for the production of oxygenates that are added to reformulated or oxygenated gasoline. Historically, isobutene has been generated using the same thermal and catalytic hydrocracking processes employed for gasoline production [1]. However, because of the growing demand for isobutene, the production rate obtained from such processes is no longer sufficient. This has led to a growing interest in catalytic dehydrogenation, a technique that can readily accept natural gas as a feed material [2, 3].
CrOx [4, 5, 6, 7, 8] and Pt-based [1, 3, 9, 10, 11, 12, 13] catalysts are typical of the materials normally applied to the direct dehydrogenation (DDH) of isobutane on a commercial scale, and their favorable properties are the result of a unique combination of metals, modifiers and supports. As an example, Korhonen et al. [4] proposed that zirconia deposition on chromium/alumina could decrease the Lewis acidity of the support as well as the rate of coke formation during DDH. Tasbihi et al. [3] found that the addition of potassium and lithium to Pt-Sn/Al2O3 resulted in catalysts that exhibited higher activity and greater stability.
Other metal oxide catalysts, however, are less active. Nesterenko et al. [14] employed gallium and iron supported on MCM-41 and found that the highest conversion of isobutane over these catalysts was 45.1%, with an isobutene selectivity of 52.1%. Ogonowski et al. [15] prepared a series of VMgOx catalysts with activated carbon as the support and obtained an isobutane conversion of approximately 42.0% with a selectivity for isobutene of 77.7%. Metal sulfide catalysts were also studied for this reaction. Wang et al. [16] found that the performance of these catalysts was superior to that of industrial catalysts under similar operating conditions, although the potential for sulfur loss and a means of sulfur replenishment remain to be resolved.
The dehydrogenation routes applied during industrial processes use metal catalysts that often undergo rapid deactivation, and consequently there is a need for periodic regeneration of the catalyst [17]. As an example, the CATADIENE process (ABB Lummus) employs a CrOx/Al2O3 catalyst that requires regeneration after 10 min on stream as a result of coke buildup [18]. In addition, the use of transition metals such as Cr and V can result in severe environmental pollution, and the cost of noble metals is relatively high.
Metal-free heterogeneous catalysis using carbon is an interesting alternative to the current catalytic systems and may help to mitigate these numerous issues [19]. To date, carbon has been used primarily as a support because it offers high surface areas and tunable adsorption properties. Recent advances, however, suggest that various forms of carbon, such as activated carbon [20, 21], carbon nanotubes [22, 23, 24], graphitic carbon [17, 25], graphene [22, 26], and nanodiamonds [23, 27, 28], can themselves act as catalysts generating high selectivity andstability during the oxidative dehydrogenation (ODH) reactions of alkanes. Some researchers have even suggested that, in the case of metal-based catalytic systems, the “active coke” formed during the initial stage of the reaction plays a primary role in the ODH process [29, 30, 31].
Although the ODH of isobutane typically generates a lower yield of coke and cracking products, the negative effects of having to use oxygen (O2) in the reaction mixture limit the industrial application of this reaction. To reduce associated explosion hazards, for example, it would be preferable to perform the reaction under an inert gas, which complicates purification of the final products. In addition, O2 will react with isobutene to inevitably produce CO, CO2, and other byproducts. One potential solution to this problem is to use alternative so-called soft oxidants, such as N2O [32, 33] and CO2 [34, 35], in place of O2, although it remains difficult to achieve satisfying yields and selectivity for the desired alkenes.
The current study first describes the use of a series of carbon materials for the DDH of isobutane without the addition of an oxidizing gas. In this work, coconut shell activated carbon (CSAC) showed encouraging catalytic activity and greater stability compared with metal catalysts. Furthermore, the effects of coke on carbon catalysts were systematically studied. In contrast to previous results [24, 36], we found that the active sites for the dehydrogenation of alkanes include not only surface oxygen-containing functional groups, but more importantly, the carbon itself, including the coke.
All chemicals were obtained from commercial sources and used without further purification. CSAC was purchased from the Ningxia Guanghua-Cherishmet Activated Carbon Co., Ltd., while carbon nanotubes (CNTs, 95%) were obtained from the Chengdu Organic Chemicals Co., Ltd. Charcoal activated carbon (CAC, A.R.), graphite (C.P.), aqueous ammonia (NH3·4H2O, 25%-28%), resorcinol (R, A.R.), hexamethylenetetramine (HMT, A.R.), chromic nitrate (Cr(NO3)3·9H2O, A.R.), and potassium nitrate (KNO3, A.R.) were obtained from the Sinopharm Chemical Reagent Co., Ltd. Pluronic F127 was purchased from the Sigma Chemical Co., Ltd., aluminum sesquioxide (Al2O3) was obtained from the Shandong Aluminum Co., Ltd., and the reactant gas (5% isobutane in nitrogen) was obtained from the Beijing Hua Yuan Gas Chemical Industry Co., Ltd.
The CNTs and graphite were used directly as catalysts without further treatment.
The CSAC and CAC were washed with aqueous ammonia prior to being applied to reactions. In a typical procedure, 20 g of activated carbon, 120 mL of deionized water, and 80 mL of aqueous ammonia were combined with vigorous stirring and heating (via a water bath) at 60 °C. After 6 h, the treated carbon was washed with deionized water until the pH of the wash water had a value of 7 and then dried overnight at 100°C.
The RF-1 catalyst was synthesized using R and HMT as precursors [37]. Approximately 11.00 g of Pluronic F127, 3.50 g of HMT, 5.50 g of R, 260 mL of ultrapure water, and 11.0 mL of aqueous ammonia were combined with stirring at room temperature for 1 h, and the resulting dark-green solution was further stirred with heating in a water bath at 80 °C. After continuously stirring for another 24 h, the solid, black product was collected by sedimentation separation and washed with ultrapure water. Following overnight drying at 100 °C, the sample was thermally treated at 900 °C for 2 h, applying a heating rate of 1 °C/min under a nitrogen atmosphere.
The Cr-K/Al2O3 catalyst was prepared using the impregnation method as a comparison sample for the carbon catalysts, applying Cr2O3 and K2O loadings of 10 and 2 wt%, respectively. Approximately 1 g of the Al2O3 support was impregnated with an aqueous solution of Cr(NO3)3·9H2O and KNO3 at the desired mass ratios. The resulting mixture was further stirred in a water bath until the water had completely evaporated. After additional drying at 80 °C for 5 h, the sample was treated at 600 °C for 2 h at a heating rate of 3 °C/min under an air atmosphere.
Catalytic tests were performed using a fixed glass tube reactor (6 mm in diameter). The reaction feed consisted of 5% isobutane in N2, and the combined gas flow rate was maintained at 20 mL/min (weight hourly space velocity (WHSV) of 6000 mL g-1 h-1). The reactants and products were analyzed using an Agilent 7890A gas chromatograph equipped with a Poropak N column (Agilent, HP-PLOT Al2O3 S) and a flame ionization detector, using N2 (99.99%) as the carrier gas.
The catalyst behavior was evaluated in terms of the following parameters, where F is the molar flow rate and subscripts i and o indicate values measured at the inlet and outlet, respectively [20]:
Conversion of isobutane = [Fi(isobutane) - Fo(isobutane)]/ Fi(isobutane) x 100%
Yield of isobutene = Fo(isobutene)/Fi(isobutane) x100%
Selectivity for isobutene = Fo(isobutene)/[Fi(isobutane) - Fo(isobutane)] x 100%
N2 adsorption-desorption isotherms were acquired atthe temperature of liquid nitrogen using a gas adsorption analyzer (ASAP 2020H). The specific surface areas were calculated using the BET method, and the pore volumes and pore size distributions were derived by employing the BJH model. All samples were degassed at 200 °C for 3 h prior to measurements.
Isobutane adsorption-desorption isotherms were obtained at 25 °C using an intelligent gravimetric analyzer (IGA, Hiden Isochema Ltd., Warrington, UK). The specific surface areas were also calculated using the BET method, which was valid over the range of p/p0 from approximately 0.05 to 0.25. All samples were degassed at 200 °C for 3 h before measurements.
X-ray photoelectron spectra (XPS) were recorded with a Thermo ESCALAB 250 instrument using Al Kα radiation at a base pressure of 50 nPa. Binding energies (BE) were calibrated using the C 1s peak of contaminant carbon (BE = 285 eV) as the standard and had a precision of ±0.2 eV.
Thermogravimetry (TG) and differential scanning calorimetry (DSC) data were obtained using a Mettler Toledo TGA/DSC-1 instrument and employing a sample size of approximately 8 mg, under a dynamic air atmosphere (100 ml/min) at a heating rate of 5 °C/min and over the temperature range from 25 to 700 °C.
Fourier transform infrared (FTIR) spectra were recorded on a Nicolet 8700 FTIR spectrometer over the range of 500 to 4500 cm-1 with a scanning step size of 2.14 cm-1. All samples were analyzed in the form of KBr pellets.
Field-emission scanning electron microscopy (FE-SEM) images were obtained on a Hitachi SU 8020 using a tungsten electron source and an accelerating voltage of 10 kV.

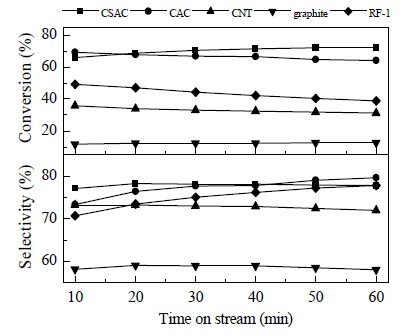

Various carbon materials were applied to the isobutane DDH reaction at 625 °C, and the resulting isobutane conversion and isobutene selectivity data are summarized in Fig. 1. Here the conversions are shown as functions of time-on-stream for the selection of catalysts. The main reaction byproducts were found to be methane and propene, which together accounted for 84% to 98% of all byproducts, depending on the carbon catalyst. Small amounts of ethane, ethane, and propane were also detected. A blank reaction trial over glass wool showed that the conversion of isobutane in the absence of the catalyst (about 4%) was negligible.
The CSAC catalyst exhibited good catalytic performance, with a 70% conversion and a selectivity for isobutene of approximately 78%. The other carbon materials were also efficient catalysts for this reaction. The conversions of isobutane over CAC, CNT, and RF-1 were 67%, 33%, and 45%, respectively, with the selectivities for isobutene ranging from 72% to 77%. Graphite had the lowest catalytic activity with a conversion of 12% and selectivity of only 58%.

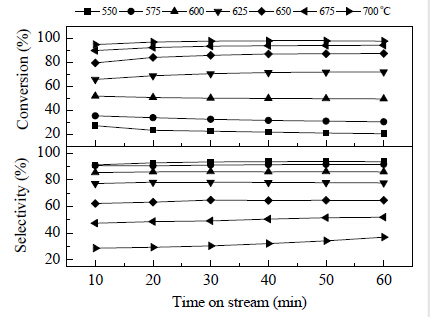

The effects of the reaction temperature and the amount of catalyst were evaluated, and the results are shown in Figs. 2 and 3, respectively. The isobutane conversions over the CSAC were about 22% and 97% at 550 and 700 °C, respectively, and thus increased with the reaction temperature. In contrast, the selectivity for isobutene showed an obvious decreasing tendency such that, at 700 °C, the selectivity was 30% with a yield of only 28%. The optimal reaction temperature was 625 °C, at which the yield and selectivity were 55% and 79%, respectively.

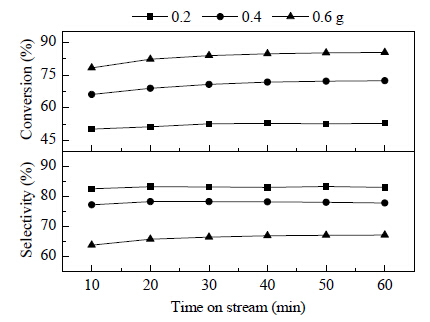

The conversion of isobutane over 0.2 g of the CSAC was only 52% with a yield of 43%, while the use of 0.4 g of the catalyst increased the conversion significantly, to 70%. Further increases in the amount of the catalyst did not generate any additional yield because of the decreased selectivity.

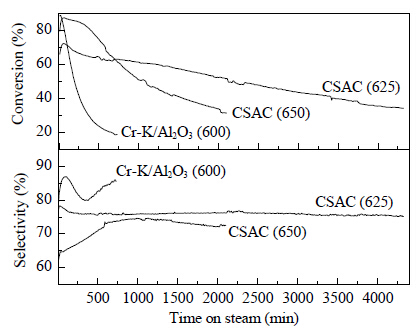

The stabilities of the catalysts are summarized in Fig. 4. For comparison, the typical catalyst Cr-K/Al2O3 was also assessed at 600 °C. Initially, the conversion of isobutane over this material was as high as 89% with a selectivity of 82%; however, a rapid deactivation occurred over time. The conversion of isobutane decreased to 19% in just 12 h, caused by rapid and heavy coke deposition during the reaction.
The CSAC showed significantly better stability at 625 °C. Over the course of 3 d, the conversion of isobutane slowly decreased from 71% to 34% while the selectivity remained at approximately 76%. It was also evident from these data that a higher reaction temperature improves the catalytic activity.

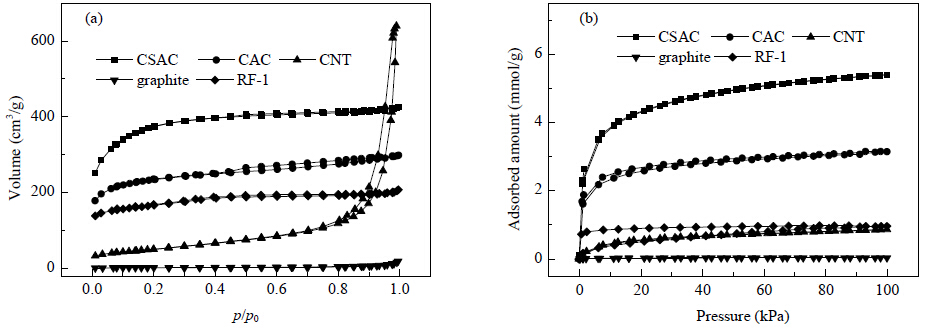

As presented in Table 1 and Fig. 5, the surface properties and porosities of various carbon catalysts were studied using N2 adsorption-desorption. Static adsorption studies using isobutane as the adsorbate were also performed to obtain another series of BET-specific surface areas for comparison, as also shown in Fig. 5.
The N2 and isobutane BET-specific surface areas of CSAC were 1190.2 and 754.6 m2/g, respectively, both of which are considerably larger than the values obtained for the other carbon materials. This may be associated with the higher catalytic activity of the CSAC.

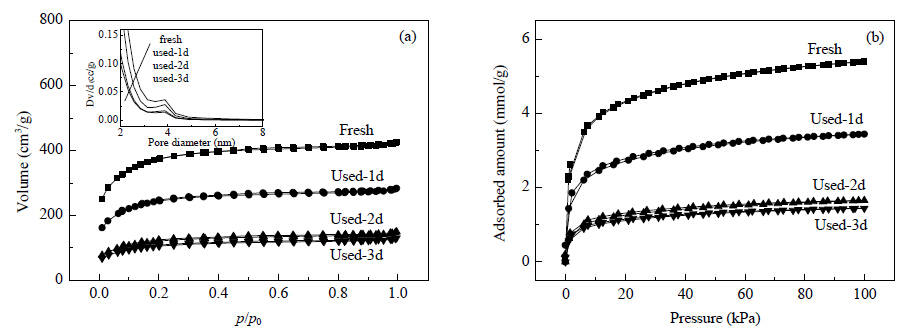

As shown in Table 2 and Fig. 6, a CSAC sample showed similar type I adsorption isotherms in both fresh and used states, according to the IUPAC classification system [38]. Following its use in the isobutane reaction, the adsorption capacity of the material decreased significantly after running for 3 d. The BET-specific surface area, average pore volume, and pore radius of the sample all decreased following its application to the reaction. This was attributed to the hard, dense coke covering the surfaces of the CSAC, and blocking its micropores [39, 40]. Based on the N2 adsorption-desorption results, the SBET and VP decreased to 343.3 m2/g and 0.20 cm3/g, respectively. This explains why the conversion of isobutane over the CSAC decreased with reaction time.

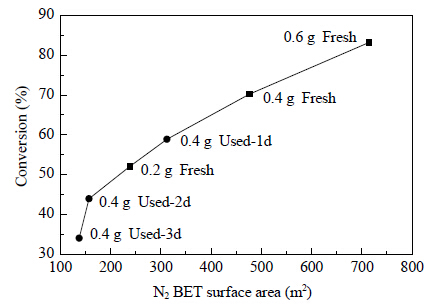

We subsequently investigated the correlation between the N2 surface areas of CSAC catalysts (calculated by multiplying the specific surface area by the amount of catalyst) and the isobutane conversion, with the results shown in Fig. 7. It is notable that the data from both fresh and used catalysts fall on the same plot, implying that the deposited coke might be catalytically active. A similar isobutane adsorption-desorption study provided similar results.

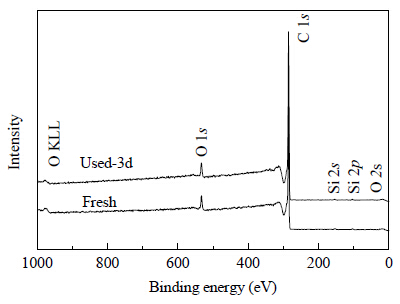

The XPS spectra and elemental compositions of a fresh and used CSAC catalyst are provided in Fig. 8 and Table 3. The samples exhibit a strong C 1s peak at a binding energy of approximately 284.6 eV and a weak peak at approximately 533.1 eV, assigned to O 1s. It was determined that the oxygen concentrations on the fresh and used CSAC were approximately 4.43% and 3.78%, respectively. This oxygen may have been due to the adsorption of water from the surrounding air. Traces of silicon and chlorine were also detected.

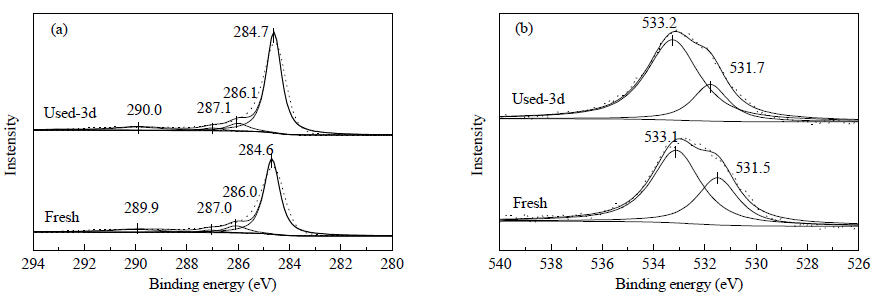

Fig. 9 provides more detailed plots of the XPS C 1s and O 1s peaks of the fresh and used CSAC catalyst. Deconvolution of the C 1s peak in Fig. 9(a) indicates that both specimens have similar spectra, in agreement with recent photoemission studies [41, 42, 43]. The main peak at 284.6 eV is attributed to a graphitic structure, while the peak at 286.1 eV results from defects in the surface structure and those at approximately 287.1 and 290.0 eV correspond to carbon atoms attached to different oxygen-containing groups. Following the reaction, the C 1s peak at 289.9 eV, attributed to carbonates, is seen to increase. Deconvolution of the XPS O 1s peak (Fig. 9(b)) confirms the presence of some carboxylic and hydroxyl functions on the CSAC surface based on the peaks at approximately 533.2 and 531.7 eV, respectively [41, 43]. Similarly, the peak at 533.1 eV resulting from carbonate functionalities is also more intense. These results indicate the deposition of coke during the reaction.

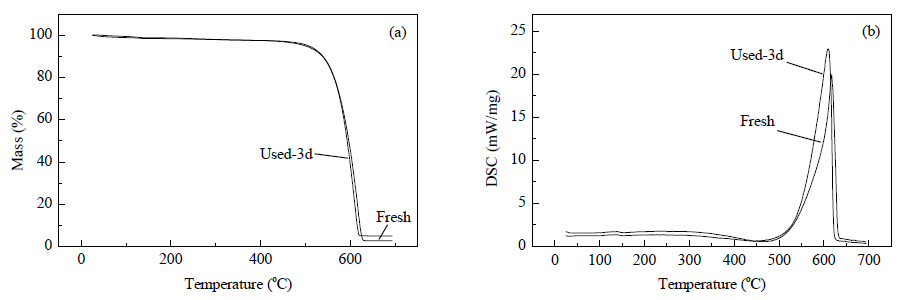

As shown in Fig. 10, both the fresh and used CSAC catalyst generated similar TG curves, suggesting that the samples were completely degraded prior to reaching 635 °C. The DSC curves indicate the occurrence of an exothermic event in the range of 465 to 635 °C, which may be attributed to decomposition of the catalyst. The fresh CSAC showed an exotherm at 617 °C but this was shifted to 609 °C after the reaction and the peak area was also observed to increase. These changes are attributed to the formation of coke during the reaction, representing a structurally less ordered form of carbon that is less resistant to oxidation than the CSAC [44].

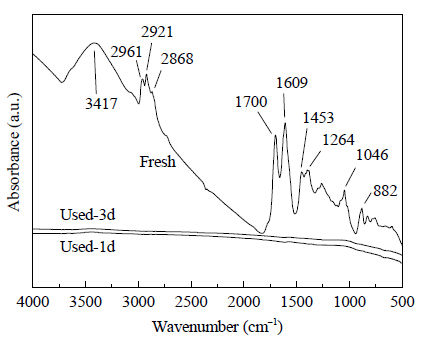

The FTIR spectra of the CSAC catalyst in the fresh state and after being applied to the reaction are shown in Fig. 11. The fresh catalyst generated peaks at 3417, 2961, 2921, 2868, 1700, 1609, 1453, 1382, 1046, and 882 cm-1, most of which have been previously attributed to active carbon [45, 46, 47, 48]. The band at 3417 cm-1 can be assigned to the -OH stretching vibration mode of hydroxyl functional groups, while the bands around 2900 cm-1 originate from the CH stretching vibration and those at 1700 and 1609 cm-1 are due to the stretching vibration of carboxyl groups. The peaks at 1453 and 1382 cm-1 are ascribed to C-O stretching and the band around 800 cm-1 may be attributed to out-of-plane bending in benzene derivatives.
Significant changes are observed in the spectra of the used catalysts such that nearly all of the absorbance bands disappear, indicating that the high reaction temperature resulted in a rapid disappearance of the functional groups on the CSAC surface. These data are in good agreement with the XPS results. While CSAC retained its catalytic activity after use, we conclude that the presence of various surface functional groups is not necessary for catalysis of the DDH reaction, in contrast to the conclusions of previous reports [24, 36].

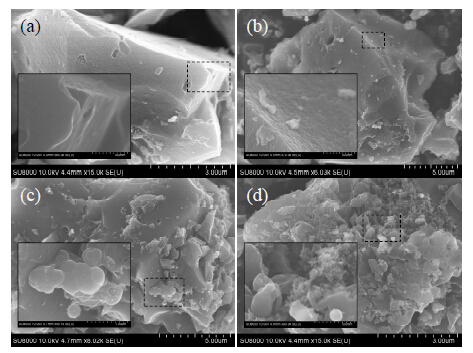

FE-SEM micrographs of the CSAC catalyst both fresh and after use are presented in Fig. 12 and show the effect of coke deposition on the surface of the catalyst during the reaction. In Fig. 12(a), the fresh CSAC catalyst has flat surfaces and sharp edge angles. In Fig. 12(b) and (c), after performing the reaction at 625 °C, the surfaces are rough and coke has accumulated on some parts to produce rounded structures, such that the surface is markedly different from that of the fresh CSAC. After reacting for 3 d, the round structures cover substantial portions of the catalyst surface, and flocculent coke is also observed, as shown in Fig. 12(d). These results suggest that, similar to metal catalysts, coke is deposited on carbon catalysts. This explains why the specific surface areas of CSAC catalysts slowly decrease with use.
The FTIR and XPS results suggest the rapid disappearance of the functional groups on the surface of CSAC, even though the CSAC continues to exhibit catalytic activity, indicating that the functional groups are not necessary for catalysis of the DDH reaction. More importantly, these results imply that carbon itself may be active for the DDH reaction and that the coke may be as active as the CSAC, CNT, and RF-1 used in this work.
Although coke deposition decreased the specific surface area of the CSAC, both fresh and used catalysts showed the same correlation between the surface area of catalysts and the conversion of isobutane, so it is not possible to say that the coke covered the original active sites. As such, the coke generated during the reaction must also be catalytically active. This finding is consistent with past studies that have shown that so-called “active coke” may play a primary role in the dehydrogenation reaction [29, 30, 31]. The specific surface area is therefore the main factor affecting the catalytic activity.
An efficient and practical means of promoting the DDH of isobutane to isobutene was realized based on the use of carbon materials, with an isobutane conversion of 70% over CSAC at 625 °C. This system showed encouraging catalytic performance without the use of additional oxidizing gases or the deposition of metal particles. In addition, the CSAC exhibited catalytic stability superior to that of conventional catalysts and was able to maintain a selectivity of approximately 76%. The most fundamental determinant of the catalytic activity of both fresh and used carbon catalysts was found to be the specific surface area. Deposited coke decreased the catalytic activity by reducing the specific surface area of the material, although carbon materials (including the deposited coke) without functional groups were shown to function as effective catalysts. The regeneration of carbon catalysts such as those included in this work should be explored in future studies.
