The selective oxidation of C-H and C=C bonds is one of the most widely used processes in the chemical industry for preparing value-added products. Propylene,which contains both C-H and C=C bonds,is used for the formation of various oxidation products such as acrolein,acrylic acid,and propylene oxide (PO),all of which are industrially important intermediates. However,the allylic hydrogen in the propylene molecule is more prone to attack by nucleophilic oxygen than the C=C bond is. Allylic oxidation therefore usually competes strongly with epoxidation [1].
Acrolein is typically manufactured using a bismuth molybdate catalyst and air as the oxidizing agent; 90% propylene conversion and 85% selectivity for acrolein are achieved. Bismuth-molybdenum catalysts for epoxidation reactivities have rarely been reported [2]. PO is usually produced industrially using either the chlorohydrin or Halcon process. These multistep liquid-phase routes involve the formation of stoichiometric amounts of by-products. Novel industrial routes using cumene hydroperoxide or hydrogen peroxide as the oxidant in the liquid phase have been reported [3]. In recent years,several alternative processes for propylene epoxidation have been developed,but the direct gas-phase epoxidation of propylene remains a challenge [4]. Unlike ethylene epoxidation,for which silver-based catalysts have been successfully used commercially for decades,the gas-phase epoxidation of propylene with air is impeded by the presence of a reactive allylic hydrogen atom in the propylene molecule. Propylene therefore tends to give acrolein as the oxidation product instead of PO [5]. Heavily modified silver-based catalysts give moderate propylene epoxidation,but the PO selectivity barely exceeds 50% even at low propylene conversions [6]. A continuous supply of chlorinated compounds can increase the selectivity for PO,probably by poisoning non-selective active sites on silver,but the use of chlorinated hydrocarbons causes complications and is not feasible in practical application [5].
A halogen-free,gas-phase reaction system with a copper-doped SBA-15 catalyst and air as the oxidant was reported to give up to 50% PO selectivity at propylene conversions below 5% [7]. Gold was reported to catalyze the epoxidation of propylene by molecular oxygen at atmospheric pressure with selectivity up to 50% at conversion not exceeding 1%; an increase in conversion,and an increase in the gold particle size,led to a drop in selectivity [8].
Titanosilicates are often used as catalysts for liquid-phase propylene epoxidation by hydrogen peroxide [9]. Other titanosilicate-based catalytic systems use a potentially hazardous mixture of H2/O2 instead of hydrogen peroxide as the oxidant [10]. Aluminum-containing titanosilicates were reported to catalyze the epoxidation of propylene with molecular oxygen,even without hydrogen as a coreactant,with PO yields up to 11.3%,but with moderate PO selectivity (up to 12.5%) [11].
Molybdenum oxides,which have diverse morphologies,depending on the preparation technique,are widely used because of their chemical,electrical,and optical properties [12]. Molybdenum oxides are used industrially as a component of the catalytic system for allylic oxidation of propylene to acrolein,and have also been used for propylene epoxidation. MoO2,which has an unusually high electrical conductivity for a metal oxide,was reported to epoxidize propylene with 42% PO selectivity,using N2O as the oxidizing agent. However,MoO2 is unstable under the reaction conditions used for propylene epoxidation with molecular oxygen. Its oxidation and morphological transformation to MoO3 in the presence of molecular oxygen results in catalyst deactivation [13, 14].
Silica-supported molybdenum oxide is the most active among Li,Mg,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Ga,Zr,Nb,Mo,In,W,Bi,Ce,and Sm oxides for gas-phase epoxidation of propylene with molecular oxygen. The most suitable molybdenum precursor is molybdic acid. PO selectivities up to 35% at propylene conversions up to 15% at 0.45 MPa have been reported. The conversion was proportional to the oxygen partial pressure. Crystalline MoO3 particles were deemed to be responsible for the epoxidation reactivity [15]. Bismuth molybdate is a well- known component of catalysts for propylene oxidation to acrolein [16]. However,its presence in crystalline form does not guarantee a good catalytic performance. Electron-donating interactions between the components of the catalyst are considered to be essential in the oxidation of propylene to acrolein. Enhanced activity in acrolein formation is attributed to electronic interactions between the (0 1 1) faces of α-Bi2(MoO4)3 and the surface of the MoO3 support [15, 17]. Supported bismuth-molybdenum mixed oxides showed high selectivity in propylene epoxidation,above 50%,using molecular oxygen as the oxidizing agent. The epoxidation reactivity over such catalysts is explained by the promoting effect of bismuth oxides on molybdenum oxide nanoparticles [2].
Various molybdenum precursors such as metallic molybdenum deposited using physical vapor deposition (PVD) [16],ammonium heptamolybdate (AHM) [16],oxoperoxo molybdenum species [18],α- and β-silicomolybdic acids [19],and organometallic precursors have been used to prepare various types of supported molybdenum oxide species.
Molybdenum uptake by silica from aqueous molybdate or molybdenum polyoxo solutions is generally low,except at low pH,at which silicomolybdates are formed. However,the silicomolybdates are not anchored to the silica surface,but are released into solution [18]. Subsequently,on calcination,the molybdates and silicomolybdates decompose on the catalyst surface,resulting in the formation of different molybdenum oxide agglomerates [20, 21]. Metastable monoclinic β-MoO3 or a more stable orthorhombic α-MoO3 phase is formed,depending on the severity of the calcination conditions [22]. In the oxidation of propylene to acrolein,two partial reactions,i.e.,abstraction of the allylic hydrogen and oxygen insertion into the hydrocarbon,occur on different crystal faces of α-MoO3,the former reportedly taking place on the (0 0 1) and (1 0 0) faces,and the latter on the (0 1 0) face [23]. The (0 1 0) face was proposed to be the only active one in the formation of CO2 [24]. In addition,the crystal structure of α-MoO3 comprises distinct forms of oxygen in terms of formal negative charges (influencing the nucleophilicity) and vacancy formation energy,the symmetric bridging oxygen atom being the most nucleophilic and most prone to vacancy formation [23]. These parameters,combined with the effects of crystallinity,and potentially of other doping metals,result in the presence of a large number of different active species on MoOx/SiO2 catalysts prepared from AHM,leading to different catalytic activity in propylene oxidation.
It has been suggested that to achieve higher dispersion of molybdenum oxide species on the silica surface,a molybdenyl acetylacetonate precursor is more suitable than AHM,because it gives better grafting of molybdenum via Si-O-Mo linkages [25]. Use of an SBA-15 support and MoO2(acac)2 leads to the formation of oligomolybdate and/or polymolybdate species at molybdenum contents <12 wt%; above this value,segregated polycrystalline MoO3 is formed [26].
Molybdyl chloride can serve as a catalyst for various Lewis-acid-catalyzed reactions,e.g.,acylations or redox processes (such as oxidation of alcohols),in the liquid phase or as a heterogenized homogeneous complex. In these liquid-phase application,molybdenyl chloride tends to form octahedral complexes MoO2Cl2L2 (L is a solvent molecule or ligand) almost exclusively [18]. Along with its Lewis acidity,MoO2Cl2 exhibits another promising property,which helps to anchor it on the support: in the solid state,its structure consists of a two- dimensional network of -O-Mo-O- chains,with hexacoordinated molybdenum atoms [27]. In comparison with the traditional AHM precursor,MoO2Cl2 is therefore a promising molybdenum source for depositing less-aggregated,better-anchored molybdenum species.
Molybdyl chloride is typically prepared with difficulty by the reaction of molybdenum oxide or sulfide using a dry oxygen-chlorine mixture at elevated temperatures,because MoO2Cl2 readily hydrolyzes to give MoO3:
However,under hydrothermal conditions,the equilibrium of reaction (1) can be shifted toward MoO2Cl2 [28]. Under ambient conditions,excess HCl in the solution can shift the equilibrium toward the oxychloride. The molybdenum in solid MoO3 forms polymeric [MoO6] octahedra,and upon depolymerization and hydration in HCl (6 mol/L),monomeric [MoO2Cl2(H2O)2] species are released into solution [29, 30].
Although molybdenum oxides have some epoxidation activity,the attribution of different forms of molybdenum oxide to preferred reaction routes in propylene oxidation needs further clarification. Some issues are addressed in the present paper: (i) the effect of the molybdenum precursor on the morphology of the resulting catalyst,(ii) the effect of the morphology of the supported molybdenum oxide phase on the catalytic activity,and (iii) the function of bismuth,i.e.,whether or not bismuth and molybdenum have a synergistic effect on epoxidation.
In the present work,we focused on supported molybdenum oxides as catalysts for the gas-phase oxidation of propylene with molecular oxygen. PVD and wet impregnation methods were used for the preparation of molybdenum catalysts deposited on fumed silica (Aerosil 200®),using different types of inorganic and organometallic molybdenum and bismuth precursors. The influence of the molybdenum precursor and preparation method on the formation of molybdenum oxides with different structure and catalytic properties was investigated.
For the catalysts prepared using PVD,a molybdenum layer was deposited by magnetron sputtering on oxidized silicon wafers of thickness 0.6 mm with a surface roughness of 0.6 nm,at a substrate temperature of −50 °C. Molybdenum deposition was performed in an argon atmosphere at 5 Pa. In the case of PVD-prepared bismuth-molybdenum samples,a bismuth layer was formed using the same procedure.
For the other catalysts,a fumed silica,i.e.,Aerosil 200,support was used. The support was dried overnight at 200 °C prior to deposition of molybdenum or bismuth precursors. The amount of deposited molybdenum precursor was calculated to correspond to 10% of MoO3 in the calcined samples.
AHM was deposited from aqueous solution (0.5%). A suspension of silica in the aqueous solution was stirred overnight,the solvent was evaporated under vacuum,and the residue was dried at 200 °C,milled,and calcined in static air at 600 °C for 5 h. MoO2Cl2(H2O)2 and MoO2Cl2 precursors were introduced similarly,using HCl solution (6 mol/L) as the solvent for the former and anhydrous toluene for the latter. MoO2(acac)2 was introduced using the same procedure as for the MoO2Cl2 precursor.
In the impregnated catalysts,bismuth was introduced from aqueous glycerol solution (0.5%) of bismuth nitrate,typically in an amount corresponding to a 1%-10% Bi2O3 loading in the final catalyst. In some cases,tetraethyl orthosilicate (TEOS) was added to the suspension,in a TEOS:SiO2 ratio of 1:10; the suspension was autoclaved at 150 °C for 24 h,the solvent was evaporated,and the residue was dried,milled,and calcined as described above.
The Aerosil 200-supported catalysts were pressed at 20 MPa and then crushed and sieved to a grain size of 0.3-0.6 mm.
The catalytic reactions were performed at 400 °C in a fixed-bed glass reactor loaded with 2 g of catalyst. The flow rates of air and propylene were 70 mL/min and 4 mL/min,respectively. The reaction products were identified using a Shimadzu Pyr-GCMS-QP 2010 Ultra system with a 50 m Crossbond capillary column,and analyzed on-line using a Chrompack gas chromatography system with Porapak and Carbosieve columns.
X-ray diffraction (XRD) patterns were obtained using a Bruker D8 Discover diffractometer in a parallel beam geometry with a parabolic Goebel mirror in the primary beam,in grazing incidence mode with an angle of incidence of 1.5°. Transmission electron microscopy (TEM) was performed using a JEOL 1200EX microscope operated at an accelerating voltage of 120 kV. Ultraviolet/visible (UV/Vis) spectra were obtained using a Shimadzu UV-2450 spectrometer. Voltammetric patterns were recorded using an Autolab PGSTAT-20 apparatus with a carbon paste working electrode,Ag/AgCl reference electrode,and platinum grid counter electrode,in acetate buffer (0.2 mol/L).

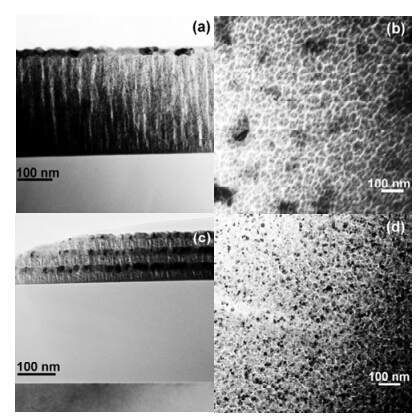

Silica-supported catalysts with molybdenum and bismuth oxides in close vicinity were prepared by depositing metallic molybdenum and bismuth on SiO2-coated silicon wafers by magnetron sputtering,followed by oxidation in air. In the first step,nanorods of metallic molybdenum were deposited using a previously reported procedure [14]. The use of a high pressure of argon,i.e.,5 Pa,during molybdenum deposition resulted in a discontinuous molybdenum film. Voids between molybdenum nanorods are thought to prevent the formation of large molybdenum oxide particles during subsequent oxidation of the nanorods. In the second step,a layer of bismuth was deposited on top of the discontinuous molybdenum film (Fig. 1(a)),and the sample was annealed in argon at 280 °C. Because of its low melting point,bismuth tends to migrate on the molybdenum film,forming islands of diameter 50-200 nm (Fig. 1(b)). To decrease the aggregation of metallic bismuth,a sandwich- structured sample was prepared with alternating molybdenum and bismuth layers,each of thickness 15-30 nm. This method limits the size of the bismuth islands to >25 nm (Fig. 1(c) and (d)). Oxidation of the resulting wafers led to crystallization of MoO3,Bi2O3,and Bi2(MoO4)3 phases (Fig. 5(4)).

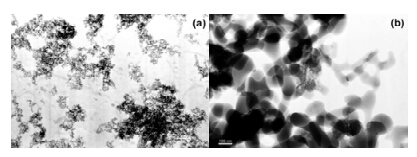

In the case of Aerosil 200-supported catalysts,the use of AHM led to collapse of the silica nanoparticle structure (Fig. 2). The silica nanospheres of the parent Aerosil 200 support,of diameter 12 nm,aggregated in aqueous AHM solution,giving agglomerates of sizes >500 nm. The dissolution of small silica particles via reaction (2) prevents the deposition of molybdenum oxides on nanosilica starting from the AHM precursor.
The uncontrolled dissolution of silica in the AHM solution and the uncontrolled thermal decomposition of silicomolybdates during calcination led to the formation of polycrystalline MoO3 particles,at least some of which were shown by XRD to have a well-defined α-MoO3 structure (Fig. 5(2)).

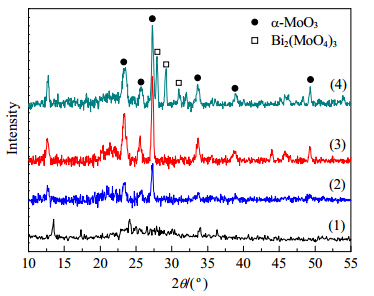

However,unlike SBA-15 (reported in [25]),the Aerosil 200 support failed to prevent MoO3 crystallization and resulted in a more pronounced crystallinity in the case of the AHM precursor (Fig. 5(3)). The deposition of molybdenyl acetylacetonate does not cause disintegration of the silica nanospheres and leads to the formation of large MoO3 particles,mostly separated from the silica particles (Fig. 3). It is worth noting that in the case of the AHM precursor,the MoO3 phase crystallizes adjacent to the deliquescent SiO2 support,as seen in Fig. 2.

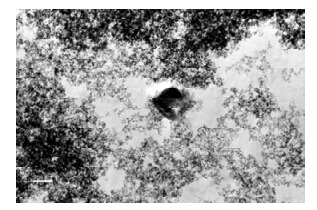

The deposition of MoO2Cl2 from anhydrous toluene solution does not affect the morphology of the support; the size and shape of the silica nanoparticles remain unchanged in the final catalyst. No particles other than those of the support are visible using TEM. The XRD patterns show only the background of amorphous silica,indicating the absence of any significant amounts of crystalline phases. In contrast,the MoO2Cl2(H2O)2 precursor,deposited from an aqueous solution of HCl,led to agglomeration of the silica support,as can be clearly seen in the TEM images (Fig. 4).

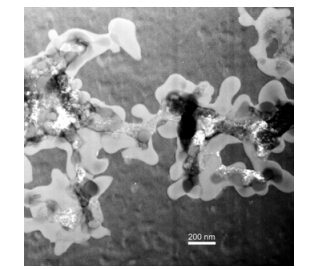

This agglomeration is attributed not to the molybdenum precursor itself,but to a dissolution-precipitation process,because the silica nanopowders themselves are partly soluble under strongly acidic conditions. Unlike AHM and molybdyl acetylacetonate,MoO2Cl2(H2O)2 led to formation of XRD-amorphous molybdenum species (Fig. 5(1)). For the MoO2(acac)2 and AHM precursors,a calcination temperature of 600 °C was high enough for theformation of crystalline MoO3,therefore crystallization of MoO3 in the case of the MoO2Cl2(H2O)2 precursor was hindered not because it was thermodynamically impossible,but because of the nature of the precursor.
The UV-Vis spectra indicate that in the case of anhydrous MoO2Cl2 as the molybdenum source,molybdenum oxide is practically absent from the catalyst,indicating sublimation of volatile anhydrous MoO2Cl2 instead of grafting on the silica surface.
When MoO2Cl2(H2O)2 was used as the molybdenum source,the amount of deposited molybdenum (which was proportional to the absorbance in the region 200-400 nm) did not differ from the amounts of molybdenum deposited using AHM or molybdyl acetylacetonate precursors,therefore an aqueous precursor prevents molybdenum loss caused by sublimation of the precursor.
Despite the apparently complete separation of the MoO3 and SiO2 phases,as seen in Fig. 3,some electronic interactions between these components should be observed for the acetylacetonate precursor. The absorption edge energy of the MoO2(acac)2-based sample resembles those of the AHM- and MoO2Cl2(H2O)2-based ones rather than that of a mechanical mixture of MoO3 and SiO2 (Fig. 6(d)).

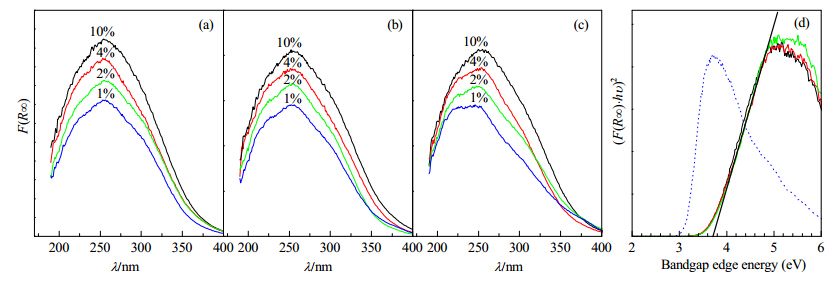

The UV-Vis spectra of the samples prepared from all three precursors show three overlapping absorption bands,at 220,250,and 320 nm,respectively (Fig. 6(a),(b),and (c)). Absorption bands below 300 nm are generally ascribed to tetrahedrally coordinated molybdenum species,and those at higher wavelengths are attributed to distorted octahedral coordination [15]. AHM concentrations in the range 1%-10% gave practically the same UV-Vis patterns,indicating the same molybdenum-support interactions in the concentration range tested (Fig. 6(a)). The distribution of particular forms of molybdenum was most concentration sensitive for the MoO2Cl2(H2O)2 precursor; at low MoO3 contents,the tetrahedral form dominated,with a shift toward the formation of octahedral species with increasing MoO3 concentration (Fig. 6(c)).
The absorption edge energy,determined from Tauc’s plots,for all the precursors at 10% MoO3 loadings,were in the narrow interval 3.6-3.7 eV. The edge energy for molybdenum oxides on silica supports usually range from 3.3 to 3.8 eV,approaching the value of 3.0 eV typical of bulk crystalline MoO3,showing the presence of more aggregated polyoxo species; a decrease in aggregation increases the edge energy [15]. However,the edge energy determined from the plots in Fig. 6(d) only reflects the nature of the absorption bands with the lowest edge energy,i.e.,the highest wavelengths. They therefore only represent octahedrally coordinated molybdenum. At MoO3 content of 10%,the amount of octahedral species does not greatly depend on the nature of the molybdenum precursor. In contrast,at higher molybdenum loadings,all the molybdenum precursors gave similar amounts of octahedral species,with similar absorption edge energy.
Supported and unsupported molybdenum oxides generally consist of mixtures of isolated tetrahedral and distorted octahedral sites. In the case of an SiO2 support,the isolated tetrahedral sites absorb in the region <300 nm,indicating stronger electronic interactions between molybdenum and silica and/or better distribution of the supported molybdenum species. However,it should be mentioned that octahedral molybdenum species lead to more moderate weakening of the C-C bonds in the adsorbed propylene molecules,and are therefore expected to perform better in propylene epoxidation [15, 31].
Tetrahedrally coordinated molybdenum species are stronger electron acceptors than octahedrally coordinated ones,therefore in the case of the MoO2Cl2(H2O)2 precursor at 1% MoO3 loading,a stronger electronic interaction between molybdenum and the support in the calcined sample is evident from the UV-Vis spectrum. In the cases of the AHM and MoO2(acac)2 precursors,which show some degree of crystallinity,as shown by TEM and XRD,the value of the bandgap edge energy,3.6-3.7 eV,is not surprising,and indicates the presence of octahedral polyoxo molybdenum species,which are,however,different from those found in a mechanical mixture of MoO3 and SiO2. However,as the MoO2Cl2(H2O)2 precursor did not result in any observable crystallinity,less aggregation of molybdenum species is expected for this precursor (catalyst samples using the MoO2Cl2(H2O)2 precursor were prepared and analyzed repeatedly,without observing the formation of a crystalline phase). The absence of crystallinity in this case,and the bandgap edge energy identical to those of catalysts showing crystallinity,necessitates the presence of similar molybdenum polyoxo domains in all cases; however,in the case of the MoO2Cl2(H2O)2 precursor,these domains lack long-range geometric order.

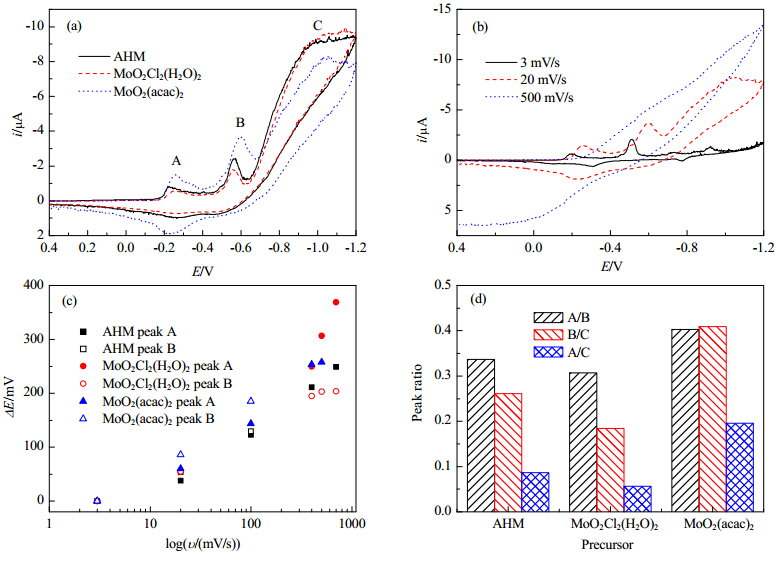

Voltammetric measurements were performed to qualitatively investigate the effect of a specific precursor on the nature of the resulting molybdenum oxides. The voltammetric responses of all three samples,at the same sweep rate (20 mV/s),show reduction peaks A,B,and C during the first voltammetric cycle (Fig. 7(a)). The first two peaks,A and B,are suggested to arise from intercalation of sodium cations from the electrolyte into polyoxo molybdenum structure [32, 33, 34]. The presence of several intercalation peaks suggests that Na+ insertion occurs at energetically distinct reaction sites within molybdenum oxide structure [33].

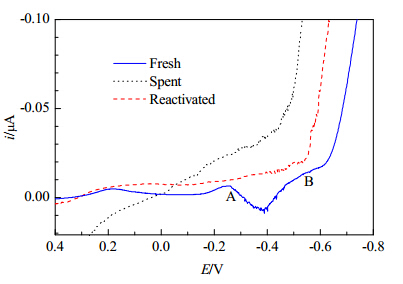

Peaks A and B broaden with increasing scan rate and become less intense (Fig. 7(b)). At high sweep rates,these insertion peaks almost disappear. Electroinsertion into the solid phase is limited by diffusion inside the MoO3 structure,therefore the peaks corresponding to intercalation in more ordered crystalline structure are expected to disappear at low scan rates,whereas the intercalation signals for more open structure disappear at higher scan rates. The rate of the decrease in the intercalation signal intensity with increasing sweep rate was therefore lowest for the sample prepared from the MoO2Cl2(H2O)2 precursor; the signal for this precursor disappeared at scan rates >700 mV/s,whereas for the other precursors it disappeared at scan rates of 400-500 mV/s.
Integration of the cathodic and anodic peaks after the first cycle indicates that the insertion process is almost irreversible (Fig. 7(a)). The anodic peak area,assigned to Na+ deinsertion,is smaller than the cathodic one by ca. 75%-90%,depending on the precursor,indicating that only 10%-25% of the insertion/deinsertion transfers are reversible. For reversible processes,the reduction potential is independent of the sweep rate,therefore the irreversibility is confirmed by the dependence of the reduction potential on the sweep rate (Fig. 7(b) and (c)). The observed irreversibility of intercalation cannot therefore be solely assigned to slow diffusion of Na+ into MoO3 structure.
The intercalated Na+ is trapped in the catalyst structure because of the electrochemically irreversible formation of molybdenum bronzes consisting of molybdenum species with various oxidation states [33]. The irreversible Na+ uptake can therefore be correlated with the proportion of molybdenum available in oxidation states other than +6. This proportion is expected to be highest in the case of the MoO2Cl2(H2O)2 precursor,because it has the highest dependence of the reduction potential on the sweep rate among the precursors tested (see Fig. 7(c)).
If a second consecutive scan is performed,a significant decrease in the reduction peak height and a slight positive potential shift are observed. The insertion of Na+ ions is energetically easier for molybdenum oxide species with some degree of structural disorder,causing decreases in the intensity of the intercalation peaks in consecutive scans [33, 34]. A comparison of the ratios of the heights of peaks A,B,and C in consecutive scans shows that the MoO2Cl2(H2O)2 precursor exhibits the most pronounced extinction of the intercalation peaks (Fig. 7(d)),indicating thepresence of a more open structure containing more oxygen vacancies. Because of the uncertainty regarding the amount of powder sample on the surface of the electrode,the absolute values of the peak heights cannot be directly compared.
Gradual deactivation was observed for all the catalysts,and the deactivated catalysts were characterized. The UV-Vis spectra of 10% MoO3 contents indicated the presence of only octahedrally coordinated molybdenum in both the fresh and used catalysts. Transformation of the octahedral coordination to other coordination states (e.g.,tetrahedral) can therefore be ruled out as the cause of deactivation. As the reaction temperature was well below the calcination temperature,no significant recrystallization was detected in the XRD patterns of the spent catalysts.
In an attempt to regenerate the spent MoO2Cl2(H2O)2-based catalyst,after 8 h of time on stream the temperature was raised to 570 °C and the reactant stream was switched to air for 3 h. This procedure removed virtually all the carbonaceous deposits,but this did not improve the catalytic activity or selectivity. The voltammetric patterns of the fresh,spent,and regenerated catalysts differed from each other in several ways. Unsurprisingly,the highest redox currents were observed for the spent catalyst (Fig. 8); the carbon deposits,which are electrically conductive and covered the catalyst surfaces,led to an increase in both the cathodic and anodic currents compared with the other two types of sample. For the regenerated catalysts,the currents at the most positive potentials were not higher than those for the fresh catalysts,therefore removal of the carbonaceous deposits during the regeneration step is presumed. However,for the spent,and,most significantly,the regenerated catalysts,clear suppression of peak A occurred at about −0.25 V. The regenerated catalysts showed higher electroactivity at more negative currents. It is well known that it is easier to remove an electron from kinks and steps than from well-developed crystals. For the same electroactive compound,therefore,the more negative the potential of a particular peak in the voltammogram is,the more ordered the structure is.
In the case of the MoO2Cl2(H2O)2 precursor,TEM and XRD show no evidence of crystallization,and the UV-Vis spectra indicate that there is still octahedrally coordinated molybdenum in MoO3; however,voltammetric analysis indicates the loss of kinks and steps in the spent catalyst,which leads to deactivation.
The use of AHM as a molybdenum source resulted in low epoxidation activity,and PO selectivity not exceeding 10%; the two main oxidation products were acrolein and CO2. The acroleine:CO2 yield ratio was constant,around 2:1,throughout the experiments (Fig. 9(c)).
Compared with the partly crystalline molybdenum species in the AHM-based catalyst,the mostly crystalline MoO3 in the MoO2(acac)2-based catalyst led to a decrease in the selectivity for acrolein formation and an increase in the selectivity for CO2 and allyl alcohol. The propylene conversion remained comparable to that observed in the case of the AHM-based catalyst,with a slight increase in the PO yield (Fig. 9(a)).

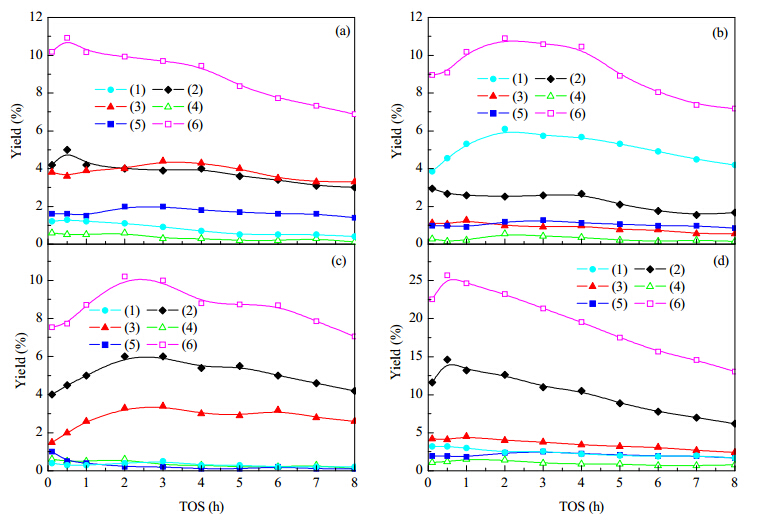

The product distribution in propylene oxidation over the MoO2Cl2(H2O)2-based catalyst,compared with those obtained using the other precursors,was clearly more favorable in terms of epoxidation activity; the PO selectivity increased to 45%-60% at 4%-6% PO yields (Fig. 9(b)). The propylene conversion observed using this molybdenum precursor was practically independent of the molybdenum loading; however,at low molybdenum loadings,the selectivity for PO deteriorated. At molybdenum loadings of 1% and 2%,the acrolein and acetone yields exceeded that of PO.
In principle,for propylene epoxidation over a bismuth- molybdenum mixed oxide catalyst,three distinct situations are possible: (i) bismuth and molybdenum oxides acting on their own,(ii) bismuth and molybdenum oxides existing as separate phases but interacting electronically,and (iii) bismuth and molybdenum occurring in a single phase. To the best of our knowledge,no significant evidence for case (iii) has been reported for propylene epoxidation.
Silica-supported bismuth oxide,introduced either via impregnation from bismuth nitrate solution or deposited during a gelation step with TEOS,i.e.,with bismuth as the only metallic component,was mostly unselective in propylene epoxidation; the main oxidation product was CO2,with selectivity above 70%. The PO yields achieved over bismuth-containing catalysts were an order of magnitude lower than those observed over molybdenum catalysts prepared from the MoO2Cl2(H2O)2 precursor.
The propylene conversion increased nearly two-fold for PVD-prepared bismuth-molybdenum catalysts compared with the Aerosil 200-supported ones (Fig. 9(d)). However,the product distribution of the as-prepared catalyst did not indicate significant epoxidation activity. The PO selectivity remained below 15%,and the main oxidation product was acrolein. Similar results were observed when the Aerosil 200-supported molybdenum-based catalysts,described above,were additionally impregnated with bismuth nitrate solution. These results indicate that although bismuth has some epoxidation activity,it is inferior to that of molybdenum. Moreover,the PVD-prepared bismuth-molybdenum catalysts showed enhanced propylene conversion,but this did not lead to an improvement in the epoxidation activity. Although we previously reported the promoting effects of bismuth oxides on the epoxidation reactivity over molybdenum oxides [2],in our experiments the addition of bismuth to the molybdenum catalysts (introduced either by impregnation or by deposition of molybdenum and bismuth oxide nanoparticles close to each other,using PVD) improved only the formation of acrolein.
In the present study,several types of silica-supported molybdenum oxide catalysts were prepared and tested. The morphology of the deposited molybdenum oxides strongly depended on the preparation method. Different types of molybdenum oxides favored the oxidation of propylene by molecular oxygen either to PO (i.e.,vinylic oxidation) or to acrolein,CO2,and other products by allylic oxidation. The most suitable form,an XRD-amorphous molybdenum oxide,which strongly interacted with the silica support,was prepared from an aqueous molybdenyl chloride precursor by wet impregnation,resulting in PO selectivities up to 61% at propylene conversions up to 10.8%. At low molybdenum loadings,this precursor resulted in pronounced deposition of tetrahedrally coordinated molybdenum species,whereas at higher molybdenum loadings,the octahedral form prevailed. This phenomenon was not observed for the other precursors studied. Partly or completely crystalline α-MoO3 led to PO selectivities of 15% or less. The structure of the silica support,which consisted of SiO2 nanoparticles of diameter 12 nm,was significantly altered by the molybdenum precursors,indicating that silica cannot be considered merely as an inert support. The anchoring of molybdenum species in the case of the molybdenyl chloride precursor apparently involves not only its interaction with the functional groups of the silica,but also a dissolution-precipitation pathway. The AHM precursor caused collapse of the support,therefore it changed the nanostructure to a macrostructure. The interactions of the MoO3 phase with the support seem to be more important than the MoO3 crystallinity,therefore the presence of an amorphous MoO3 phase does not guarantee better epoxidation reactivity. This amorphous MoO3 phase forms large agglomerates in the case of the AHM precursor,but for the MoO2Cl2(H2O)2 precursor it is homogeneously distributed on the support surface.
Although air as the sole oxidizing agent,without the presence of a coreductant,does not provide selectivity as high as those of the well-known H2/O2,TS-1 reaction systems [36, 37],an appropriate arrangement of the molybdenum species,with strong interactions with the silica support,significantly increases the epoxidation reactivity.
Bismuth oxide had low epoxidation reactivity as an isolated phase or finely distributed over molybdenum oxide moieties. Its effect on the oxidation of propylene therefore arises either from modification of the geometric structure of the active molybdenum oxide phase or from the formation of bismuth molybdate,which,however,does not lead to propylene epoxidation. The data derived from electrochemical analysis of the supported molybdenum oxides confirmed the presence of weakly ordered molybdenum oxide phases in the catalyst with the highest selectivity in propylene epoxidation. The most active molybdenum oxide phase for epoxidation was XRD amorphous,homogeneously distributed on the support,with the molybdenum atoms octahedrally coordinated,and electroactivity in the potential region about −0.25 V.
