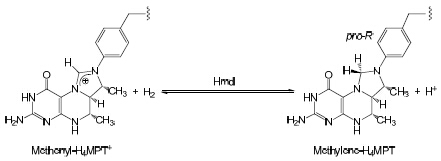

[Fe]-Hydrogenase (Hmd) participates in the methanogenic process of the reduction of CO2 to methane. In the presence of the substrate N5,N10-methenyl-tetrahydro-methnanopterin (methenyl-H4MPT+,or MPT+),the enzyme catalyzes the heterolytic cleavage of H2 (Scheme 1) [1, 2].
Methenyl-H4MPT+ accepts H+ ions and forms N5,N10- methylene-tetrahydromethanopterin (methylene-H4MPT,or HMPT) [2]. The other proton from H2 exchanges rapidly with the protons of the bulk water,while the immediate proton acceptor is unknown. In the active site of Hmd [3, 4, 5, 6, 7, 8],the Fe ion has the ligands of one cysteine sulfur atom,two cis-CO ligands,and one bi-dentate donor atom of guanylylpyridinol cofactor through its nitrogen and acyl-carbon atoms (Fig. 1.) [6, 9, 10, 11]. The coordination site trans to the acyl ligand was proposed to be the H2-binding site. It is unclear whether this site is vacant or occupied by a solvent molecule,most likely a water molecule,in the resting state.
A mechanism based on the resting state model of wild-type Hmd [6, 9] was proposed from DFT (density functional theory) calculations. The MPT+ substrate triggers the H+ release to regenerate the resting state with the Fe-Hδ+···Hδ--O dihydrogen bond after the proton transfers from the Cys176-sulfur or 2-pydinol’s oxygen [12]. The cysteine thiolate ligand in the open site which initially helps bind H2 and then works as the internal base in the theory is the possible proton acceptor in the reaction. Some models have been developed to prove that the cysteine thiolate ligand has the reversible protonation property,but it is still a challenge to activate the dihydrogen [4, 5, 6, 7, 8]. This motivated us to develop more viable alternative ligands to focus on the function of hydrogenation.
Catalytic hydrogenation via transition metal complexes has demonstrated in 1995 that the interaction of intermolecular and intramolecular M-H···H-N bonds were strong. Intermolecular H-bonds have been used to design the structure and catalytic activity of a transition metal complex in asymmetric hydrogenation reactions [13]. In the use of [FeFe]-hydrogenase [3],it is generally accepted that the coordination and subsequent heterolytic cleavage of dihydrogen occured at an iron center [14]. The reaction is likely facilitated by an amine of the proposed azadithiolate cofactor. In addition,a Noyori-type hydrogenation system based on the diamine-RuCl2 complex functions by “metal-ligand bifunctional catalysis” for the hydride transfer to an outer sphere molecule [15],which is similar to the trigger mechanism of Hmd. Noyori [15] found that an unsubstituted diamine was critical and the catalyst would be ineffective when diamines without NH groups were used. The so-called “NH-effect” has been widely investigated and was proposed to stabilize an incoming ketone substrate [16]. A similar structure and catalytic mechanism have been found in a transition metal complex like tris(o- phenylenediamine) iron(II). Transition metal ions coordinated by a nitrogen ligand have a unique property in hydrogen transformation. Aro matic amines and hydroxides,such as phenylenediamine or hydroquinone derivatives,are widely known to possess 2H+/2e- pulling capability,which resembles the function of the internal base in the [Fe]-hydrogenase enzyme [17]. This inspired us to utilize an organic skeleton coordinated with a nitrogen or binitrogen ligand to mimic the hydrogenation to obtain a functional model of Hmd. In this paper,two new functional mono-iron hydrogenase active site models coordinated by a NN ligand were synthesised and characterized. The introduced NN ligand served as an internal base,which can undergo reversible protonation/deprotonation with the acid (HBF4 or AcOH/ ethanediamine). The developed models also catalyzed the hydrogenation of quinone under mild conditions.
All synthetic operations and measurements were conducted under a N2 atmosphere using Schlenk line techniques because the precursors of these iron-series complexes are sensitive to light and air. Hence,the solvents,including n-hexane and tetrahydrofuran (THF),were distilled with Na metal to remove trace water,and were preserved with 4A sieves before use. Complexes FeI2(CO)4,FeI2(CO)3PCy3 and FeI2(CO)3PPh3 were prepared according to literature procedures. The following materials were reagent grade and used as purchased from Sigma-Aldrich: potassium tert-butoxide,o-phenylenediamine and n-Bu4NPF6. The Fe(CO)5 was obtained as a gift from Jiangsu Tianyi Ultra-fine Metal Powder Co.,Ltd (China).
The NMR spectra were measured on a Bruker AVANCE III 400MHz NMR spectrometer. 1H NMR shifts were referenced to residual solvent resonances according to literature values. The solution IR spectra was recorded on a Shimadzu FTIR-8400 spectrometer using 0.1 mm KBr sealed cells. Quinone and hydroquinone samples were analyzed by reversed phase high performance liquid chromatography (C18,ф150 × 4.6mm) using an external standard method on an Agilent 1100 spectrometer. The mobile phase was CH3CN/H2O (30/70,V/V) and the flow rate was 1.0 mL/min. The measurement was performed at the wavelength of 298 nm.

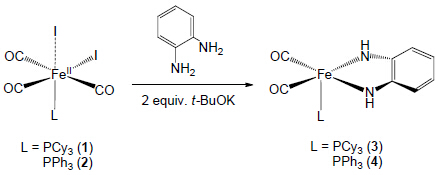

Scheme 2 shows the synthetic route for the preparation of Fe(CO)2PR3(NN). The precursors were obtained via the CO ligand substitution reaction of FeI2(CO)4 and PR3 (1:1,R =PCy3,PPh3) following the procedure reported by Li et al [18]. First,a solution of FeI2(CO)3PCy3 (500 mg,0.742 mmol) dissolved in THF (100 mL) was prepared. Then,o-phenylenediamine (240 mg,2.22 mmol) and t-BuOK (500 mg,4.44 mmol) were mixed under stirring for 10 min in a flask,to which THF (50 mL) was added later. A bluish violet well-proportioned and stable solution was generated. The solution was transformed into a third Schlenk flask at the same ratio and intervals during 1 h and then keep stirred for 1.5 h. Afterwards 0.1 mL water was added into the system to react with the excess o-phenylenediamine dianion and then the solvent was removed in vacuo. After extraction with n-hexane and filtration through celite,the filtrate was dried in vacuo to yield the crude product including the target 3 (250 mg 30%) and byproduct trans-[Fe(CO)3(PCy3)2]. The crude product can be used for single crystal growth by slow evaporation of the n-hexane solution of 3. The purified crystals were used for the characterization including NMR and elemental analysis. Complex4 used a similar preparation process. However,it was more difficult to get the pure product of 4 for further characterization due to its poor stability.
Complex 3: 1H NMR (400MHz,CD2Cl2): δ= 9.04 (s,1H,PhN2H2),7.69(s,1H,PhN2H2),7.20(s,2H,PhN2H2),6.87(br,2H,PhN2H2),1.84(br,12H,PCy3),1.74(s,6H,PCy3),1.43(s,3H,PCy3),1.25(br,12H,PCy3). 13C NMR(100MHz,CDCl3): δ = 221.11,220.97(s,2C,CO),29.28(s,1H,PhCR3).Elemental analysis (%) calculated for C26H39FeN2O2P: C 62.60,H 7.88,N 5.63; found C 62.45,H 7.95,N 5.52.
Complex 3-H+ was prepared by the protonation of complex 3 (100 mg,0.2 mmol) with HBF4 (0.2 mmol) in acetone under stirring condition. After 10 min,a light yellow precipitate was formed. The precipitate was collected by filtration,and dried under vacuum to afford the crude product of 3-H+(80 mg,0.16 mmol). Further characterization failed due to the decomposition of the crude product of 3-H+ during the purification.
Single crystal X-ray diffraction data were collected with a Rigaku MM-007 diffractometer equipped with a Saturn 724CCD. Data were collected at (173 K) using a confocal monochromator with Mo-Kα radiation (λ = 0.71073 Å). Data collection,reduction and absorption correction were performed with the CRYSTALCLEAR program. The structure was solved by direct methods using the SHELXS-97 program and refined by full matrix least squares techniques (SHELXL-97) on F2. Hydrogen atoms were located by geometry calculations. CCDC 1050778 and 1050779 for complexes 3 and 4 contain the supplementary crystallographic data for this paper which can be obtained from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.
Cyclic voltammograms were obtained in a three-electrode cell under N2 using a CHI 660B electrochemical workstation. The working electrode was a glassy carbon disc (diameter 3 mm) polished with 3 μm and 1 μm diamond paste and sonicated in ion-free water for 20 min prior to use. The reference electrode was a non-aqueous Ag/Ag+ (0.01mol/L of AgNO3 in CH3CN) electrode and the counter electrode was platinum wire. A solution of n-Bu4NPF6 (0.1mol/L) in CH3CN was used as the supporting electrolyte,which was degassed by bubbling dry N2 for 10 min before measurement. Ferrocene was used as an external standard under the same measuring conditions and all the potentials were referenced to the Cp2Fe+/0 couple at 0V.
In a typical experiment,50 mg (0.46 mmol) quinone and 3 mg (0.0056 mmol) complex 3 were dissolved in 12.5 mL of ethanol under stirring in a atmosphere of N2 (0.1 MPa). Samples were taken at 30 min intervals for HPLC analysis.
With the aim to develop a dinitrogen bidentate mono iron model complex of Hmd,the NN ligand,which was obtained from the deprotonation of o-phenylenediamine by t-BuOK (potassium tert-butoxide),was used to substitute the iodine anion of complex 1 (Scheme 2) [18]. The preparation of the NN ligand was conducted in methanol in early attempts as t-BuOK is insoluble in most organic solvents. Combining 1 with o-phenylenediamine in methanol or a methanol/THF mixed solvent was unsuccessful due to the instability of complex 1 in the polar protic solvent. Further experiments revealed that the NN ligand can be obtained by mixing o-phenylenediamine and t-BuOK powder without a solvent under vacuum. Hence,we improved the experiment methods by dissolving 1 and the NN ligand separately in THF,then gradually mixing them,which worked well on the synthetic scale of complex 1 of ca. 500 mg. FT-IR monitoring showed that 3 (1965 cm-1,1909 cm-1) and byproduct Fe(CO)3(PCy3)2 [19] (1854 cm-1) were generated in the reaction system with the yields of 25%(3) and 62%(5),respectively.
Complex 3 is soluble in most organic solvents,i.e.,n-hexane,CH2Cl2,methanol,acetone etc.,slightly dissolved in CH3CN and is poorly soluble in water. As a non-polar molecule,the byproduct is insoluble in polar solvent such as methanol,acetone,and CH3CN. Therefore,a purple-black powder of complex 3 can be separated completely from byproduct 5 via dissolution in a polar solvent,and then removing the insoluble complex 3. It was more difficult to get the pure product of 4 than complex 3 by a similar way due to the poor stability of complex 4 in the synthesis and purification process [20].
Solid complexes 3 and 4 are soluble in solvents like n-hexane,CH2Cl2,and CH3CN. Complex 3 is relatively stable in these solutions even in air,light or at 70 °C. However,complex 4 was not as stable as complex 3. According to IR monitored results,complex 4 can be handled in the nonpolar solvent of hexane solution for a few hours,but it would partly decompose within a week at 4 °C. Complex 4 decomposed faster in the polar solvents of CH2Cl2,CH3CN than in the nonpolar solvent of hexane,due to the easy dissociation of the labile CO ligands. However,in the solid state,both complexes 3 and 4 were stable and can be kept in the refrigerator for 3 months or even longer at 4 °C.

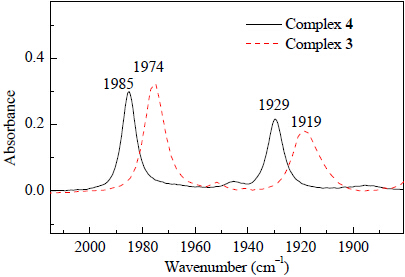

The IR spectrum of 3 showed two intense v(CO) absorption at 1974 and 1919 cm-1 in hexane solution,which were lower than those of 4 (1985 cm-1,1929 cm-1 ) due to the different phosphine ligands introduced. Fig. 2 displays the v(CO) IR spectra for the two bands which had nearly the same intensity,indicating that cis-dicarbonyls were at 90° angles [4]. The v(CO) band positions of 3 was shifted to a lower frequency by 10 cm-1 as the electron-donating ability of PCy3 is better than PPh3. Actually,complex 3 was more stable than complex 4 which was evidenced indirectly by the characteristics of the IR spectra. Since PCy3 is more bulky than PPh3, the effect of the electron-donating property on complex stability should overcome the steric effects here. Compared with the previous derivatives (Table 1),the NN ligand serves as a strong electron donor which keeps the complex stable and makes the catalytic hydrogenation possible.
The crude product(100 mg) was dissolved in n-hexane first. The solution was stored in a sealed beaker after filtration. Finally rectangle crystals suitable for X-ray diffraction analysis were obtained through gradual solvent volatilization.

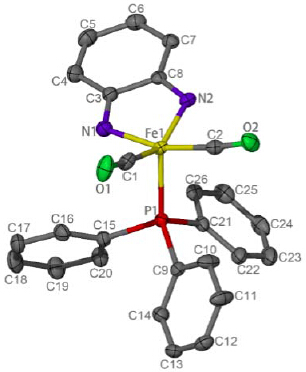

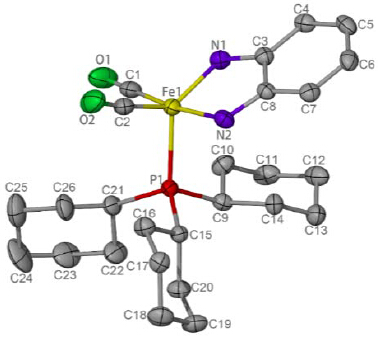

The pentacoordinate complex 3 (Scheme 2) was characterized by X-ray crystallography (Fig. 3). The structure of 3 is similar to that of Fe(CO)2PCy3(NS) [19]. The C1-Fe1-N1 angle is 171.55° and the C2-Fe1-N2 angle is 134.13°. Thus,the coordination geometry of 3 can be best described as a distorted trigonal pyramid. It is closer to a distorted square pyramid for complex 4 with the C1-Fe1-N2 angle of 163.14° and C2-Fe1-N1 angle 146.98°.
The NN ligand of both 3 and 4 coordinates with the iron center by the two amino nitrogen atoms. The two CO and the phosphine ligand are all mutually cis,while the nitrogen ligand is cis to the nearby CO ligand. The position trans to the phosphine ligand is unoccupied. Both are consistent with the existence of two cis-CO ligands (Fig. 4)[21].
Even though the electrochemical properties of many [Fe-Fe]-hydrogenase model complexes have been well discussed[22, 23],few Hmd model complexes have been studied electrochemically. We used cyclic voltammetric techniques to determine the electrochemical properties of complex 3 and 4 and made comparison with the electrochemical behavior of the Hmd model complexes reported previously. The cyclic voltammograms(CV) of 3 and 4 are shown in Fig. 5. Table 2 lists their electrochemical data along with those of the reported model complexes Fe(3,6-dichloro-1,2-benzenedithiolate)(CO)2 (PMe3)2 (A) [24],FeBr(2-acylaminopyridine)(CO)2(PMe3) (B) [25] and [2-C(O)CH2-6-PhCO2CH2C5H3N][Fe(CO)2I] (C) [26].

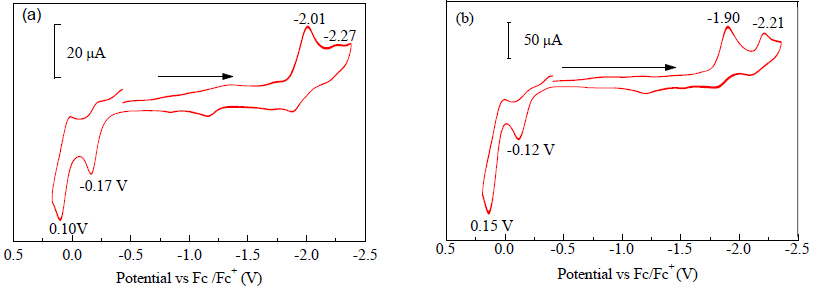

Both complexes 3 and 4 exhibited two irreversible reduction (Epc1 = -2.01 V/-1.90 V and Epc2 = -2.21 V/-2.27 V) and two irreversible oxidation (Epa1 = -0.17 V/-0.12 V and Epa2 = 1.0 V/1.5 V) versus Fc/Fc+,respectively. The reduction presumably generated FeI and Fe0 species [24],and the oxidation events were proposed to generate FeIII and FeIV species.
The electrochemical behavior of complexes 3 and 4 is similar to the previously reported complex A as shown in the Table 2. For example,two irreversible reduction (Epc1 and Epc2) of 3 and 4 were in close proximity with those of complex A at their respective potentials. The phosphorus ligand combined with the NN ligand played a key role in the large negative shift of its irreversible oxidation (Epa1) and redox potential when compared to those of B and C [26]. Complexes 3 and 4 have one more irreversible oxidation (Epa2) than A which is an octahedral iron(II) complex with a saturated coordination environment including two strong electron-donating PMe3 ligands. However,the electrochemical behavior of 3 and 4 was quite different from that of B and C,which is caused by their quite different coordination spheres.

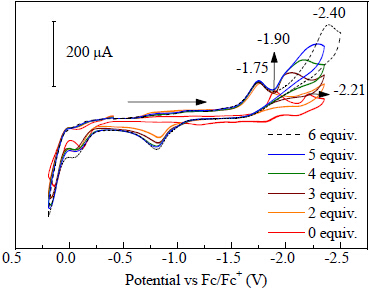

To investigate the proton reduction property,we conducted the CV in the presence of AcOH. Complexes 3 and 4 showed similar redox properties. When AcOH was added,the current intensity of the original reduction peaks of 3 and 4 increased continuously with addition of the acid. Comparatively,complex 4 showed a notable increase (Fig. 6). The peak appeared at -2.21 V and then shifted gradually to -2.40 V with the addition of AcOH. The electric current of Epc2 linearly increased to 200 μA when the acid (AcOH) quantities were raised (0,2,3,4,5,and 6 equiv.),which was suggested to be a feature of catalytic proton reduction. It is notable that the first reduction peak shifted to a positive potential (from -1.90 V to -1.75 V ) in the presence of AcOH above 2 equivalent. That was consistent with the protonation of the amine group in other diiron hydrogenase models [22].
The active site of Hmd can bind CO to yield a facial tricarbonyl species. However,there was no signal that complexes 3 and 4 took up CO under the experimental condition. Furthermore,CO binding reactivity was also not detected by FT-IR when the Lewis acid of HBF4 was added under a CO atmospheres (1 MPa). Nevertheless,the color of the acetone solution changed from dark purple to orange and the v(CO) spectra was shifted to higher frequency. The carbonyl stretches of protonated complex 3-H+were observed at 2050 cm-1 and 1999 cm-1 and no transient state species or byproduct were observed with the addition of the acid increased up to 6 eqiuv. (Fig. 7). Complex 3 or 4 can regenerated with the addition of ethidene diamine. Further experimental results indicated that the reaction was reversible and the protonation/deprotonation process was completed with 1 equiv. HBF4/ ethidene diamine. DFT calculations demonstrated that H+ thermodynamically favored combining one of the N atoms in the protonation. The NN ligand in complex 3 or 4 would be crucial to the relative stability and observation of the protonated products due to its excellent electron-donor properties. However,the attempt to grow single crystals of 3-H+ suitable for X-ray diffraction failed after numerous attempts.
Our previous studies found that the protonated products of Fe(CO)2PCy3(NS) (5,NS = 2-aminothiophnol) can only exist by binding another CO ligand to form the species 5-CO-H+ under a similar protonation condition [19]. The combination of CO is reversible according to the experimental results and DFT calculations. According to the results of the previous experiments,3-H+ and 4-H+ were stable in acetone solution in the presence of 2-4 equiv. HBF4. It can be inferred from the IR spectrum that protonated products were formed and the protonated species could be 3-H+, 4-H+ or 3-2H+, 4-2H+. Thus,DFT calculations were carried out in order to find the favored structure of protonated 3 and 4. Prior to the calculations of the protonated complexes,we performed DFT calculations for isolated 3 and 4 with experimental geometry parameters to confirm the validity of the calculation. We found that the optimized geometry parameters were in good agreement with the distance data found experimentally by X-ray diffraction (deviations < 5%),indicating the reliability of the calculation method used for the present system.

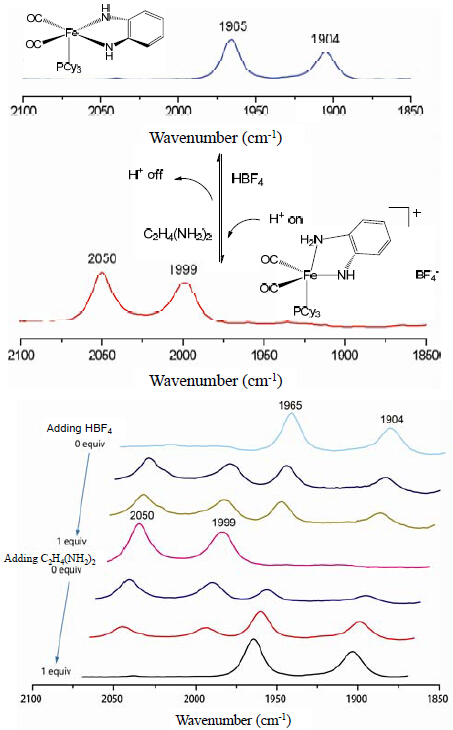

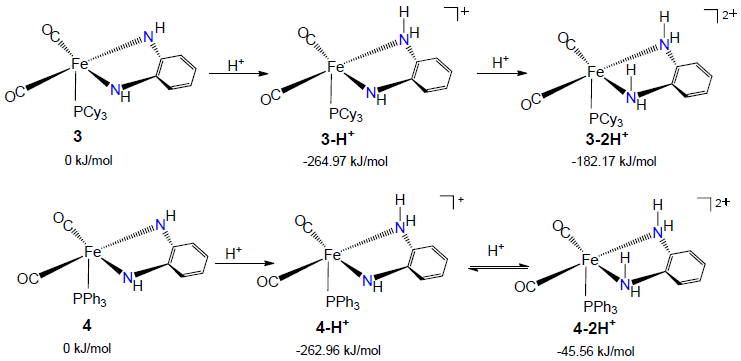

According to the IR monitor,the protonation was a one-step reaction and no transitional species were formed with the addition of HBF4. Two possible products were taken into consideration and studied by the DFT calculations. As illustrated in Scheme 3,the total free energy of product 3-H+(-264.97 kJ/mol) is lower than that of product 3-2H+(-182.17 kJ/mol). It could be concluded that complex 3-H+ is thermodynamically favored. Complex 3 is more likely to be protonated on one nitrogen atom of the NN ligand to form the product 3-H+. A similar conclusion can be drawn for the protonated product of complex 4.

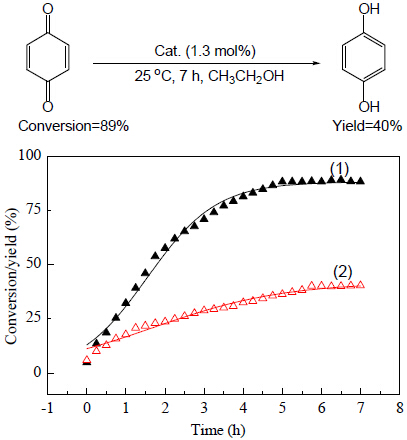

In the catalytic transfer hydrogenation experiment,the addition of catalyst complex 3 facilitated the reduction of quinone substrate. 89% quinone was converted to hydroquinone with the yield of 40% in 7 h at 25 °C (Fig. 8). The blank control experiment was conducted without the catalyst and showed that hydrogen transfer did not occur. Hence,the catalytic hydrogen transformation was achieved experimental by the mono iron catalyst with CH3CH2OH as the proton source.

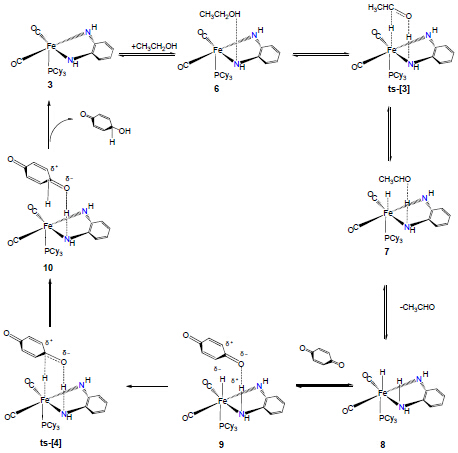

According to the experimental results and literature reports [27],a mechanism of transfer hydrogenation involving ethanol heterolytic cleavage was proposed (Scheme 4). The imine-ethanol adduct 6 was generated first by hydrogen bonding. Being polarized by the central atom Fe and imine ligand,ethanol generated the transition state species ts-[3],then the C-H and O-H bonds were broken successively. With the addition of quinone,a six-membered ring of -Fe-H-C-O-H-N- formed in ts-[4],which stabilized the formed hexatomic ring. The dipole of quinone and easy formation of the O-H-N hydrogen bond contributed to this transformation. Then the hydride transferred from Fe to the carbonyl of quinone and the H-N bond cleaved,finally generating hydroquinone.The adduct ts-[4] was similar to the transition state proved in the DFT calculation of the [Fe]-hydrogenase catalytic process by Hall et al. [12],and it also agreed with Noyori’s metal-ligand bifunctional catalytic system [15].
Two pentacoordinate mono iron complexes were synthesized and structurally characterized as models of the [Fe]-hydrogenase active site. The NN ligand in complexes 3 and 4 exhibitedinteresting reversible protonation/deprotonation reactivity. The products formed by nitrogen ligand protonation were detected,which indicated that the NN ligand was a good proton acceptor and probably served as an internal base to accept the proton from H2 before it was delivered to the bulk substrate. This protonation reactivity provides insight into the important role of the internal base in the Hmd function. Complex 3 catalyzed the reduction of benzoquinone in ethanol solution under mild conditions. This study is a progress in the functional mimic of catalytic hydrogenation.
