Phenol is an important chemical intermediate in the manufacture of many petrochemicals,agrochemicals,polymers,and plastics[1,2]. Global production of phenol is mainly performed using the well-known cumene process,but it has disadvantages such as low yields and high energy expenditure,especially in the distillation steps. Moreover,the utility of this process depends on the market demand for the by-product acetone[3]. Because of the commercial importance of producing phenol without any by-products,there is therefore much interest in direct oxidation of benzene to phenol as an alternative route,using various oxidants such as N2O[4,5],O2[6],and H2O2[7]. The use of molecular oxygen is limited,because it leads to destruction of the aromatic ring,therefore the selectivity for phenol decreases. Although N2O performs well in benzene hydroxylation,deactivation of the catalyst by heavy coke formation is a problem[8]. H2O2 is increasingly being used as the oxidant,because it is a green oxidant and the process is simple. Recently,much research has focused on the incorporation of transition metals such as Fe,V,Cu,and Co into various supports to improve the catalytic performance in benzene hydroxylation to phenol[9]. Song et al.[10] reported that a catalyst consisting of VO2 supported on multiwalled carbon nanotubes gave 23.7% benzene conversion and a phenol selectivity of 93.5%. In another study,Fe3O4 supported on CMK-3 gave 18% benzene conversion with a phenol selectivity of 92%[11]. It has been reported that V supported on mesoporous carbon nitride (V/mp-C3N4) gave a phenol yield of 18% with 95.9% phenol selectivity. The catalytic activity of V/mp-C3N4 is attributed to the high benzene-activation capability ofmp-C3N4 and dispersion of V species[12]. A 21% benzene c onversion and 94% phenol selectivity were obtained over CuO/MCM-41 in the hydroxylation of benzene to phenol with H2O2 as the oxidant[13]. Kharat et al.[14] used Keggin-type V-substituted molybdophosphoric acid supported on amine-functionalized SBA-15; they achieved 20% benzene conversion and a phenol selectivity of 95%. In a similar study,vanadium oxides supported on mesoporous silica MCM-41 functionalized with 3- aminopropyltrimethoxysilane gave 58.6% benzene conversion and 18.5% phenol selectivity[15].
In recent years,mesoporous silica materials have been successfully used as catalyst supports because of their large uniform pore sizes,large pore volumes,and high surface areas[16,17,18]. These materials have various structures; SBA-16 has three-dimensional connected channels (cage like) and a cubic structure. These characteristics lead to high mass transfer of reactants. Moreover,its small input of pores prevents metal particle aggregation[19]. A review of the literature on SBA-16-supported metal shows that its activity is appropriate for direct hydroxylation of benzene. Zhu et al.[20] investigated the catalytic hydroxylation of benzene to phenol over VOx/SBA-16 prepared using an impregnation method; they achieved 13.8% benzene conversion and 97.5% selectivity for phenol. More recently,Co-doped SBA-16,prepared using an evaporation-induced self-assembly method,gave a phenol yield of 28.8% and a phenol selectivity of 96.6%[21]. Cr compounds have also been used for benzene hydroxylation to phenol because of their high initial activities. However,only a few studies in which supported Cr was used as the active catalyst in this reaction have been reported; for example,Cr incorporated into an SAPO-37 framework,and H2O2 as the oxidant,gave a benzene conversion of 6% in acetonitrile at 353 K[22]. A phenol yield of 10.3% and a phenol selectivity of 98.4% were obtained over Cr-substituted large-pore zeolite-β[23]. Tagawa et al.[24] investigated the catalytic hydroxylation of benzene to phenol over K2Cr2O7 supported on SiO2,using H2O2 as the oxidant; 1.4% benzene conversion was obtained in acetonitrile at room temperature. In another study,Pinnavaia et al.[25] prepared a Cr-substituted MCM-41 catalyst for the hydroxylation of benzene to phenol,and obtained approximately 100% phenol selectivity.
Although some catalysts with adequate performance have been reported,from the industrial perspective,it is essential to explore and prepare new catalysts with high selectivities that can be prepared using simple methods. Benzene oxidation to phenol is a competitive process,because phenol is more active toward oxidation than benzene is,therefore achieving high phenol selectivity without any by-products is still a challenge.
In addition to developing suitable catalyst preparation processes,optimization of the operating variables plays a key role in achieving a good catalytic performance. The published literature shows that parameters such as the amount of H2O2,reaction temperature,reaction time,and catalyst dosage have significant effects on the catalytic performance. Previous studies were performed using traditional one-factor-at-a-time approaches to optimize the operating parameters for good catalytic activity[26,27,28,29,30,31]. Such experimental methods are time consuming and costly,especially if a large number of operating variables need to be considered simultaneously. These methods do not consider interactions among the process variables and result in poor optimum conditions. Statistical techniques such as response surface methodology (RSM),which is a more accurate method,can be used for optimization of a fixed process. RSM is a mixture of mathematical and statistical techniques and can evaluate the effects of process variables and their interactions on response variables[32,33,34]. We used RSM to statistically optimize the operating parameters in benzene hydroxylation using a minimum number of experiments. To the best of our knowledge,no previous study aimed at the optimization of benzene hydroxylation using RSM has been conducted. Central composite design (CCD) is the most commonly used method for the RSM technique.
In the present study,a Cr/SBA-16 catalyst was synthesized using a simple impregnation method and tested in the hydroxylation of benzene to phenol. X-ray diffraction (XRD),ultraviolet-visible (UV-vis) spectroscopy,transmission electron microscopy (TEM),and the Brunauer-Emmett-Teller (BET) method were used for catalyst characterization. The effects of four operating factors,namely the amount of H2O2,reaction temperature,reaction time,and catalyst dosage,and their interactions,on the catalytic performance were investigated using CCD coupled with RSM. The yield and phenol selectivity under the optimized conditions were determined. The results showed that Cr supported on mesoporous silica is an effective catalyst for the direct hydroxylation of benzene to phenol using H2O2 as the oxidant.
Pluronic F127 (EO106PO70EO106,Mw = 13600),sodium silicate solution (SiO2 26%,Na2O 8%) as a silica source,HNO3 (65%),Cr(NO3)3·9H2O,acetonitrile,benzene,H2O2 (30%),and toluene were purchased from the Merck Company.
Mesoporous silica SBA-16 with minor modifications was prepared using the method described in the literature[35]. Pluronic F127 (14.1 g) was dissolved in HNO3 (65%,144 mL) and deionized water (900 mL). The solution was stirred at 303 K. Sodium silicate solution (62.4 g) was added and the reaction mixture was stirred at 300 r/min for 3 h at 343 K. The product was kept at 373 K for 24 h. The surfactant was extracted using ethanol and HCl (2 mol/L),and the obtained solid was calcined at 823 K for 5 h.
The catalyst was prepared via an impregnation method as follows. SBA-16 (1 g) was dipped in a solution obtained by dissolving Cr(NO3)3·9H2O (0.92 g) in water (50 mL). The solvent was evaporated at 313 K while the reaction mixture was stirred vigorously. The obtained sample was dried at 353 K for 8 h and calcined at 823 K for 5 h. The collected powder was denoted by Cr/SBA-16; the metal content of the catalyst (determined using inductively coupled plasma atomic emission spectroscopy) was 2.2 mmol/g.
N2 adsorption-desorption isotherms were obtained using a BELSORP-mini II instrument at 77 K. The BET equation was used to calculate specific surface areas and the BJH equation was used to determine the pore size distributions and total pore volumes. Powder XRD measurements were performed using CuKα radiation (X'Pert-PRO X-ray diffractometer). TEM images were obtained using a Philips EM-208 instrument at 100 kV. UV-vis spectra were obtained using a Rayleigh UV-1600 spectrophotometer. The UV-vis absorption spectrum of a solid sample was obtained by addition of a known sample to spectral graden-decane; a quartz window with a path length of 0.5 mm was used. The solid sample had very low light scattering inn-decane. A reasonable-quality spectrum was obtained,because the reflective index ofn-decane is very close to that of silica SBA-16.
Cr/SBA-16 was used in the direct hydroxylation of benzene to phenol with H2O2 as the oxidant. The reaction was performed in a 50 mL round-bottomed flask equipped with a reflux condenser and a magnetic stirrer. The desired amount of catalyst (0.06-0.12 g) was immersed in acetonitrile (6 mL,114 mmol),and other parameters such as the amount of 30% H2O2 aq. (2-4 mL),reaction temperature (308-358 K),and reaction time (4-8 h) were adjusted according to experiments designed using Design Expert 7.1.3 Software. The mixture was heated to the desired reaction temperature,and benzene (1 mL,11.26 mmol) was added. The reaction mixture was cooled,the catalyst was separated by centrifugation,and a small amount of ethanol was added to the liquid product,resulting in formation of a single-phase liquid for gas chromatography (GC) analysis.
The liquid products were analyzed using a GC instrument (Perkin-Elmer 8500) equipped with a flame ionization detector. Quantitative analysis of the liquid products was performed based on calibration curves,with toluene as an internal standard. 1,4-Benzoquinone was identified as a by-product in some experiments.
RSM is an affordable and reliable method for optimizing certain processes. This technique reduces the number of designed experiments needed to investigate the effects of operating factors. In general,a second-order polynomial model is used in RSM analysis (Eq. (1)):
whereY is the predicted response,β0 is the intercept term,βi is the linear factor coefficient,xi is the variable attributed to factori,xj is the variable attributed to factorj,βijis the interaction factor coefficient,βii is the quadratic factor coefficient,k is the number of factors,ande is the random error[36].
Design Expert Software (version 7.1.3) was used for experimental design and analysis of the obtained results. CCD is an experimental design that includes a two-level factorial design with center points,and is completed with a set of axial (or star) points to assess the curvature. In this work,CCD coupled with RSM was used to investigate the effects of various operating factors,namely reaction temperature,H2O2 content,and catalyst dosage,on benzene hydroxylation over a Cr/SBA-16 catalyst. The phenol yield was considered as a response variable. Overall,the experimental design involved 30 experiments,in the following sections: (I) 16 runs using the two-level factorial design,(II) one center point and its five repeats to determine the curvature and pure errors (caused by replicating experiments),and (III) eight runs for axial points (shown as -α and α+). The actual and coded levels of the independent factors are shown inTable 1.

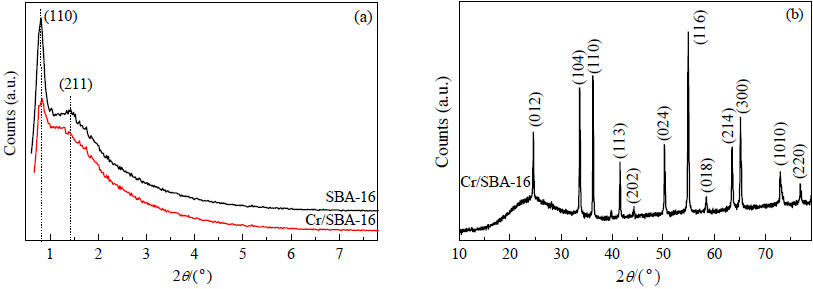

The low-angle XRD patterns of SBA-16 and Cr/SBA-16 are shown inFig. 1(a). Both patterns had one sharp reflection at 2θ ≈ 0.74° and one minor peak at 2θ ≈ 1.3°; these are indexed to (110) and (211) reflections and correspond to the SBA-16 cubic structure with the Im3-m space group. The peak intensities for SBA-16 decreased after Cr loading,possibly because of incorporation of a large amount of Cr species into the support pores. Wide-angle XRD analysis of Cr/SBA-16 with a high Cr loading showed that the strong diffraction peaks were related to the Cr2O3 phase (Fig. 1(b))[37].

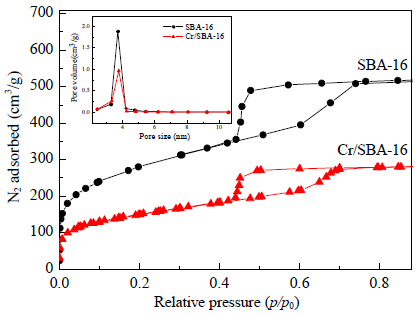

The N2 adsorption-desorption isotherms and pore size distributions of SBA-16 and Cr/SBA-16 are shown inFig. 2. Both samples showed type IV isotherms with H2 hysteresis loops in the rangep/p0 = 0.4-0.75; these are indicative of cage-like structures,i.e.,the ordered mesoporous structure of the support was retained during catalyst preparation and did not collapse. A decrease in the pore volume could be caused by the presence of Cr species inside the support pores. The textural characteristics of the samples are summarized inTable 2. The surface area,total pore volume,and pore diameter decreased after Cr loading; this shows that Cr particles were introduced into the internal surfaces of SBA-16.
TEM was used for further investigation of the structural properties of the prepared samples (Fig. 3).Fig. 3(a) clearly shows that SBA-16 has a well-ordered mesostructure. The TEM image of the Cr/SBA-16 catalyst (Fig. 3(b)) shows that the mesoporous structure of the support was retained after impregnation with chromium nitrate. The XRD patterns,N2 adsorption-desorption isotherms,and TEM images confirm that the structure of the synthesized catalyst did not collapse during its preparation.

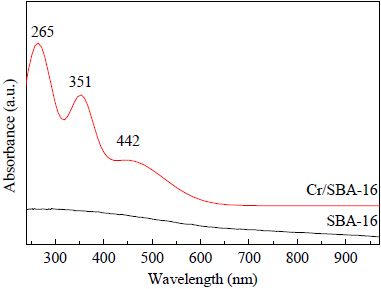

The coordination geometry of Cr depends strongly on the support type and composition,metal loading,heat treatment,and support surface chemistry. UV-vis spectroscopy was used for further investigation of the coordination of chromium oxides in the Cr/SBA-16 catalyst; the spectrum is shown inFig. 4. The two bands at 265 and 351 nm can be attributed to O-Cr(VI) charge transfer of chromium oxides,which are present in the form of monochromate. A central Cr(VI) ion could react with two silanol groups on the support surface. The weak broad band at around 440 nm can be assigned to Cr2O3 crystals,as suggested by the XRD result,or to dichromate,in which a central Cr(VI) ion could react with only one silanol group (Scheme 1)[38].
A second-order polynomial model for phenol yield was obtained using Design Expert 7.1.3 Software; the experimental results are shown inTable 3. The final regression model,based on the coded values for phenol yield,is shown in Eq. (2). In this model,Y (phenol yield) is expressed as a function ofA (reaction temperature),B (reaction time),C (amount of H2O2),andD (catalyst dosage).
Eq. (2) was used to predict the phenol yield over the prepared catalyst with various operating parameters within the selected experimental ranges. The competence of the model was assessed using analysis of variance (ANOVA) and the Fisher test (F-test),with a 95% confidence level. The statistical terms obtained from ANOVA are listed inTable 4.
The ANOVA results (Table 4) show that this model can be used in the considered design space. TheF-value of 66.34 for the phenol yield implies that the model is significant,i.e.,there is only a 0.01% chance (P < 0.0001) that the model results could arise from noise. The lack-of-fit term is the variation in the data around the fitted model. If a fixed model does not fit the data well,this will be significant. Here,theP-value of the lack of fit was more than 0.05,implying that the selected model was based on statistical logic (P greater than 0.05 is desirable). The correlation coefficient is often used to determine the goodness of fit between model and experimental data. A reasonable statistical model should have a correlation coefficient close to unity. The high coefficient of determination (R2 = 0.985) indicates that there is good agreement between the experimental and predicted phenol yields. The desirable value of adequate precision (signal-to-noise ratio) is greater than 4. Here,a ratio of 22.56 was obtained forY,implying that this model can be used to navigate the design space.

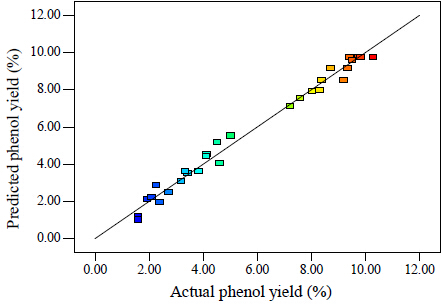

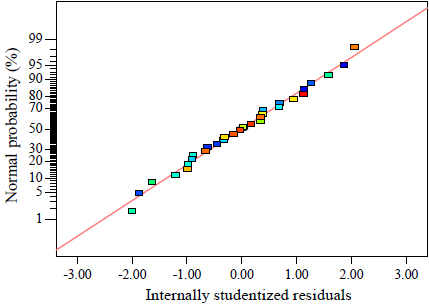

The regression plot of predicted values versus actual values for phenol yield is shown inFig. 5. It shows that the values predicted using Eq. (2) were close to the experimental ones,indicating that the proposed model is credible for expressing the correlation between the effective parameters and the phenol yield. A normal data distribution is shown by the normal probability plot (Fig. 6). It can be seen that the data were normally distributed,because the data were sorted close to a straight line.

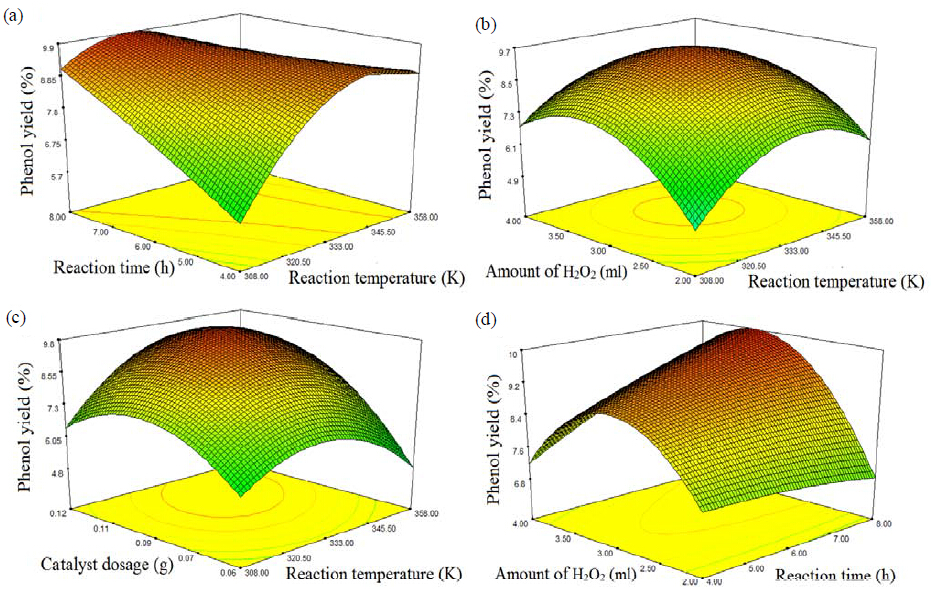

Three-dimensional response surface plots were used to investigate the effects of the operating variables and their interactions on the phenol yield. These curves show the simultaneous effects of two parameters on a response variable,while the other factors remain at the center point in the design space.Fig. 7(a) shows the effects of reaction time and temperature on the phenol yield,with two other variables kept at the center point in the design space (the amount of H2O2 and catalyst dosage are 3 mL and 0.09 g,respectively). Initially,increasing the reaction temperature and time (around 333 K and 7.5 h) improves the catalytic performance,resulting in an increased phenol yield. This may be the result of H2O2 decomposition to active species with increasing temperature.Fig. 7(a) also shows that further increasing the reaction temperature leads to a decline in the phenol yield; this can be attributed to self-decomposition of H2O2 to water at high temperature[39].
The combined effects of the amount of H2O2 and reaction temperature on the phenol yield are shown inFig. 7(b). The phenol yield increased greatly when the amount of H2O2 and the temperature were increased to 3 mL and 333 K,respectively. This may be the result of an increasing number of active species on the catalyst surface. The figure also shows that further increasing the amount of H2O2 and the reaction temperature results in a decrease in the phenol yield. This decrease can be attributed to over-oxidation of phenol to 1,4-benzoquinone,which was identified by GC. A high phenol yield was therefore achieved at the zero coded level of reaction temperature and amount of H2O2 under these conditions.
Fig. 7(c) shows the combined effects of reaction temperature and catalyst dosage on the phenol yield. The phenol yield increased when the reaction temperature and catalyst dosage were increased to 333 K and 0.09 g,respectively. This could be the result of increasing numbers of available catalytic sites on the Cr/SBA-16 surface. However,the phenol yield decreased with further increases in the reaction temperature and catalyst dosage. This may be caused by phenol conversion to 1,4- benzoquinone,which was confirmed by GC.
The effects of the amount of H2O2 and reaction time on the phenol yield are shown inFig. 7(d); the reaction temperature and catalyst dosage were 333 K and 0.09 g,respectively.Fig. 7(d) shows that the reaction time did not greatly affect the phenol yield when the H2O2 content was around 3 mL. The phenol yield increased up to 3 mL and then decreased; the reaction time had little effect on the phenol yield.

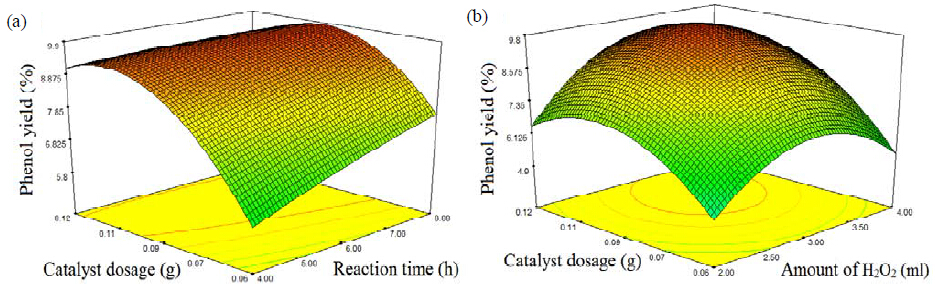

Fig. 8(a) shows the effects of the catalyst dosage and reaction time on the catalytic activity of Cr/SBA-16,while the two other factors were kept at the zero coded level (the amount of H2O2 3 mL and reaction temperature 333 K). It was observed that with increasing catalyst dosage to around 0.95 g,the phenol yield increased,whereas the reaction time did not greatly affect the phenol yield.
The effects of the amount of H2O2 and catalyst dosage on the phenol yield are shown inFig. 8(b) (the reaction time 6 h and the reaction temperature 333 K). It can be deduced that both parameters considerably affected the phenol yield. The maximum phenol yield was achieved when the amount of H2O2 and catalyst dosage were near the central points.
Design Expert 7.1.3 software was used to determine the optimum conditions for direct hydroxylation of benzene to phenol. The phenol yield was defined as a maximum in the design space. An experiment was performed under the predicted optimum conditions to verify the model. The phenol yield predicted by the proposed model was 10.16%,whereas the phenol yield obtained experimentally was 9.05%. These results show that there is good agreement between the RSM second-order polynomial model and the experimental data (Table 5). Under the optimum conditions,the prepared catalyst gave a high performance,especially in terms of phenol selectivity.
The catalytic efficiency of the prepared catalyst was compared with those of some Cr-based catalysts on other types of support in the direct hydroxylation of benzene. The data inTable 6 show that the Cr/SBA-16 catalyst gave a higher selectivity for,and yield of,phenol compared with other Cr-based catalysts. It is worth noting that the catalytic performance of Cr-MCM-41 was achieved using a high temperature and time,whereas the Cr/SBA-16 showed high activity under mild reaction conditions. The good activity of this catalyst is suggested to be the result of a high surface area,large pore volume,and the three-dimensional connected channels of SBA-16,which result in high mass transfer of benzene on the Cr/SBA-16 surface. In the present study,for the first time,we optimized benzene hydroxylation to phenol with a Cr/SBA-16 catalyst using an RSM approach.

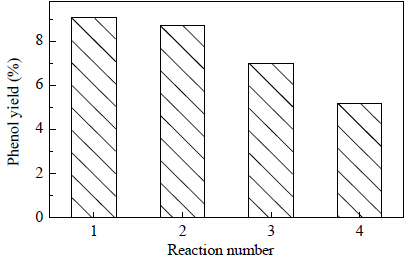

The reusability of the Cr/SBA-16 catalyst in the hydroxylation of benzene to phenol was investigated for four runs; the results are shown inFig. 9. At the end of each run,the catalyst was separated from the reaction mixture by centrifugation,washed with acetonitrile,and dried at 373 K. The recycled catalyst was used under the optimum conditions for the next run. The results show that the phenol yield over the reused catalyst decreased slowly,as a result of loss of catalyst during the reaction and recovery,or leaching of Cr particles from the extra-framework of the support[30].

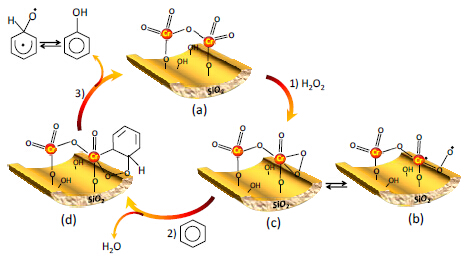

Heterolytic mechanisms have been proposed for the oxidation of cyclic compounds over modified metal oxides using H2O2 as the oxidant[40,41,42,43]. Based on the proposed reaction mechanisms,we suggest a possible reaction pathway for benzene hydroxylation in the presence of H2O2 over the Cr/SBA-16 catalyst (Scheme 2). It is worth mentioning that the mechanism only considers dichromate species as active sites on the catalyst surface. In the first stage,chemisorption of H2O2 occurs on the surface of the supported Cr,which results in the formation of an open biradical form of a Cr-peroxo complex (Scheme 2(b)). These radicals can coordinate with Cr in Cr/SBA-16,to form the Cr-peroxo complex shown inScheme 2(c). In the second stage,the open biradical form of the Cr-peroxo complex can attack a double bond in a benzene molecule (Scheme 2(d)),to produce a biradical intermediate which is stabilized by transformation to phenol.

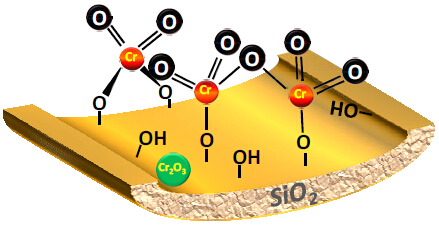

In this study,a chromium nitrate precursor was dispersed on mesoporous silica SBA-16 support using a facile impregnation method (Cr/SBA-16). Wide-angle XRD and UV-vis spectroscopy showed that the major chromium oxides on the support were monochromate,dichromate,and Cr2O3 phases. The XRD,N2 adsorption-desorption,and TEM results indicated that the mesoporous structure of the support was retained during catalyst preparation. The catalyst activity in the direct hydroxylation of benzene to phenol using H2O2 as the oxidant was investigated. Various operating variables of the catalytic reaction,namely reaction temperature,reaction time,amount of H2O2,and catalyst dosage,were optimized using CCD combined with RSM. The high regression coefficient (R2),namely 0.983,implied good agreement between the predicted phenol yield and the experimental results. The optimum conditions were reaction temperature 324 K,reaction time 8 h,H2O2 content 3.28 mL,and catalyst dosage 0.09 g. Under these conditions,high phenol selectivity (100%) was achieved. The results show that RSM is a useful and reliable technique for modeling and optimizing the conditions for hydroxylation of benzene to phenol,with the minimum number of experiments.
The authors wish to thank the University of Tehran for financial support of this work.
