Sugar alcohols, such as sorbitol and xylitol, are attractive platform chemicals because they can be readily produced by the hydrogenation of sugars, which are available in large quantities from natural sources [1, 2, 3]. Furthermore, sugar alcohols can be converted to ethylene glycol (EG) and 1,2-propylene glycol (1,2-PG) [4, 5, 6]. EG and 1,2-PG are important commodity chemicals that are widely used as starting materials for the preparation of polyesters. The main manufacturing route currently used for the industrial production of EG and PG is based on the two-step conversion of petroleum-derived ethylene and propylene feedstocks. The development of a direct method for the conversion of sugar alcohols to EG and PG is therefore highly desired as an energy-efficient and environmental friendly alternative to the existing procedures in terms of utilizing renewable resources [7, 8, 9].
The mechanism for sugar alcohols hydrogenolysis is generally believed to involve two key steps [10, 11]. According to the first step of this mechanism, the polyol substrates would be dehydrogenated over a metal catalyst under alkaline conditions to give the corresponding carbonyl intermediates. The subsequent cleavage of the C-C bonds in these intermediates under basic conditions would give the EG and PG products, most likely via a retro-aldol condensation. Sugar alcohols hydrogenolysis proceeds much more efficiently under basic conditions, which appear to facilitate the dehydrogenation and C-C bond cleavage reactions. Several inorganic bases, including Ca(OH)2 [12, 13, 14], KOH [15], NaOH [16], CaO [17, 18, 19], and Ba(OH)2 [20], have been investigated as additives for the hydrogenolysis of sorbitol in terms of their effects on the conversion of sorbitol and the selectivity of the products. In general, the results of these studies showed that the addition of an inorganic base favored the formation of glycols compared with the use of neutral conditions. However, the addition of an inorganic base to these hydrogenolysis reactions typically results in the formation of lactic acid as a major byproduct. Liu et al. [11] evaluated the effects of several different inorganic bases, including CaCO3, Mg(OH)2, and Ca(OH)2, on xylitol hydrogenolysis and found that the nature of the base had a significant effect on the selectivity towards lactic acid, as well as the activity of the reaction. The selectivity towards lactic acid increased as the pH of the reaction medium increased. In a later study, Xia et al. [21] reported that the conversion of xylitol and selectivity towards lactic acid increased as the amount of Ca(OH)2 added to the reaction increased. Unfortunately, lactic acid formation could be problematic for sugar alcohols hydrogenolysis. For example, the presence of lactic acid would result in the consumption of the alkaline material present in the reaction mixture, which would suppress the conversion of the sugar alcohols. Furthermore, the presence of lactic acid could complicate the analysis of the product mixture. To address these limitations, we wanted to develop a deeper understanding of the hydrogenolysis process. For example, we intended to understand why the addition of an inorganic base led to lactic acid formation. We also wanted to identify the pathway responsible for lactic acid formation. Based on this improved understanding, we then wanted to develop a new process capable of achieving high levels of sugar alcohols conversion with only trace quantities of lactic acid.
Supported Ni systems have been reported as effective catalysts for sorbitol hydrogenolysis [22]. Furthermore, the introduction of a La species into these catalysts led to an increase in the conversion of xylitol, as well as an increase in the selectivity towards glycols [23]. La(OH)3 has been used as a heterogeneous alkaline catalyst for the Knoevenagel reaction [24] and has also been used as an additive for the conversion of cellulose [25]. In this work, we evaluated the effects of two different alkaline additives, Ca(OH)2 and La(OH)3, on the formation of lactic acid during sorbitol hydrogenolysis over Ni/C catalyst. We also studied the reactions of pyruvic aldehyde over Ni/C catalyst in the presence of Ca(OH)2 and La(OH)3, with the aim of exploring the pathway as plausible mechanism for lactic acid formation.
All of the chemicals were purchased at analytic grade and used as received. Ni(NO3)2·6H2O, NaOH, Ca(OH)2, and lactic acid were obtained from Tianjin Kemiou Chemical Reagent Co., Ltd. Glycerol was purchased from Sinopharm Chemical Reagent Co., Ltd. La(OH)3 (99.9%) was obtained from Aladdin Industrial Inc. Sorbitol (98%) and pyruvic aldehyde (35%-45%) were obtained from Alfa Aesar (Tianjin, China). Activated carbon (80-100 mesh, BET surface area 1318 m2/g) was purchased from Beijing Guanghua Timber Mill.
The 10 wt% Ni/C catalyst was prepared according to a modified incipient wetness impregnation method. Briefly, activated carbon (1.0 g) was added to a aqueous solution of Ni(NO3)2 (1.2 mol/L, 1.6 mL) under stirring, and the resulting solution was sonicated for 0.5 h. The mixture was then aged for 24 h at ambient temperature before being dried at 383 K for 12 h. The resulting catalysts were then reduced with H2 at 723 K for 3 h prior to being used in the hydrogenolysis reactions.
The catalytic reactions were carried out in a 50-mL stainless steel autoclave. For a typical run, the reactor was charged with a 10 wt% solution of sorbitol in water (20 mL), the pre-reduced catalyst (0.3 g), and the required amount of the additive (i.e., 0.18 g of Ca(OH)2 or 0.3 g of La(OH)3). The reactor was then purged several times with H2 to remove any air and pressurized up to 5.0 MPa with H2. The reactor was then heated to 493 K and stirred at 1000 r/min for 1 h.
The products of the reaction were analyzed by gas chromatography using an Agilent 7890A gas chromatograph equipped with a 19091j-323 capillary column and a flame ionization detector. The starting materials and products were analyzed by HPLC on a Waters e2695 separations module equipped with a refractive index detector (Waters 2414) and an UV/visible detector (Waters 2489). All of the samples were acidified (pH = 2) using a aqueous H2SO4 solution (2 mol/L) prior to being analyzed by HPLC. The HPLC system was equipped with an OA-1000 column, which was eluted with an 0.2 wt% aqueous H2SO4 solution as the mobile phase at a flow rate of 0.5 mL/min.
Sorbitol hydrogenolysis was examined over Ni/C catalyst in the absence and presence of three different inorganic bases to determine the impact of these additives on the conversion and selectivity of the reaction (Table 1). NaOH, Ca(OH)2, and La(OH)3 were used as the additives in this study based on their different water solubility properties. When Ni/C (Table 1, entry 1) was used as the catalyst in the absence of any additive, the sorbitol conversion was only 19.2%. The addition of NaOH (Table 1, entry 2) led to a significant increase in the sorbitol conversion to 73.8%. However, much greater increases were observed following the addition of Ca(OH)2 (Table 1, entry 5) or La(OH)3 (Table 1, entry 13), which gave sorbitol conversions of 100% and 99%, respectively. With regard to the selectivities of these reactions, the total selectivity towards EG (C2 product) and the BG products (C4 products) was only 5.1% in the absence of any additive (Table 1, entry 1). In contrast, the total selectivity values for EG and BG were 20.0% and 24.5% following the addition of 7.90 mmol OH- for Ca(OH)2 (Table 1, entry 6) and La(OH)3 (Table 1, entry 14) to the hydrogenolysis reaction, respectively. These results therefore indicated that addition of an alkaline additive led to a significant improvement in the sorbitol conversion and selectivity of the hydrogenolysis reaction. Furthermore, these results were consistent with those from several previous reports [11, 20]. Notably, the La(OH)3 additive favored the cleavage of the C2-C3 bond in sorbitol.
Consideration of the selectivity of the reaction towards lactic acid revealed that there were significant differences between the different additives. For example, no lactic acid was detected when the reaction was conducted in the presence of the Ni/C catalyst without additive (Table 1, entry 1). When NaOH (Table 1, entry 2) or Ca(OH)2 (Table 1, entry 5) was used as the additive, the selectivities of the reaction towards lactic acid were 15.1% and 8.9%, respectively. However, when La(OH)3 (Table 1, entry 13) was used as an additive, the selectivity towards lactic acid was only 0.1%. For Ca(OH)2 and La(OH)3, the selectivities of the reaction towards C3 products (i.e., 1,2-PG, glycerol, and lactic acid) were 46.0% and 35.3%, respectively. These results therefore indicated that the addition of Ca(OH)2 to the hydrogenolysis reaction favored the cleavage of the C3-C4 bond of sorbitol. However, this increase in the C3-C4 bond cleavage products led to higher levels of lactic acid instead of the C3 polyols.
We subsequently proceeded to investigate the effects of different amounts of alkali on lactic acid formation using Ca(OH)2 and La(OH)3 as the additives; the results are shown in Table 1. When Ca(OH)2 was used as an additive (Table 1, entries 3-7), the conversion of sorbitol increased as the amount of Ca(OH)2 added to the reaction increased. For example, the use of 0.79 mmol OH- led to a sorbitol conversion of 68.8% (Table 1, entry 3), whilst the use of 4.74 mmol OH- led to a much higher sorbitol conversion of 100% (Table 1, entry 5). With regards to the production of lactic acid, the selectivity increased as the amount of Ca(OH)2 added to the reaction increased, reaching 11.7% with 11.06 mmol OH- (Table 1, entry 7). Increasing the amount of Ca(OH)2 initially led to a gradual increase in the selectivity of the reaction towards 1,2-PG, with further increase leading to a gradual decrease in 1,2-PG. Furthermore, the selectivity of glycerol decreased as the amount of Ca(OH)2 increased. When La(OH)3 was used as the additive, the sorbitol conversion reached 99.0% with only 0.08 mmol OH-(Table 1, entry 9). Notably, these conditions afforded only 0.3% lactic acid up to 11.06 mmol OH- (Table 1, entry 15). The selectivity of the reaction towards 1,2-PG and glycerol initially increased and then decreased with further increase in the amount of La(OH)3. Based on these above results, it was clear that the nature and the amount of the alkaline additive had a significant impact on lactic acid formation. In the case of Ca(OH)2, the selectivity towards lactic acid was dependent on the amount of the alkaline additive. However, the use of La(OH)3 led to only trace quantities of lactic acid.
We wanted to develop a deeper understanding of the differences between these additives for the conversion of sorbitol. We noticed that the pH of the hydrogenolysis reaction mixture changed before and after the reaction with the Ca(OH)2 additive. The pH value was 12 before the reaction and decreased to 7 after the reaction. However, when La(OH)3 was used as an additive, the pH of the reaction mixture was around 7 both before and after the reaction. It is well known that Ca(OH)2 is only partially water-soluble and that its solubility in water at room temperature is 0.165 g/100 mL. In contrast, La(OH)3 is completely insoluble in water at room temperature. The basic environment provided by Ca(OH)2 would therefore promote lactic acid formation, which would subsequently neutralize and consume the remaining Ca(OH)2.
To further explore the nature of the interactions between lactic acid and the alkaline additives, we investigated the hydrogenation of lactic acid in the presence of Ca(OH)2 and La(OH)3. The lactic acid remained unchanged in the presence of Ca(OH)2, whilst it was hydrogenated to give 1,2-PG with a conversion of 67.9% in the presence of La(OH)3. It has been reported that lactic acid can be hydrogenated to 1,2-PG under acidic and neutral conditions [26]. In the presence of Ca(OH)2, lactic acid would exist as the corresponding calcium lactate salt, which would be very stable in the solution [27]. These results also indicated that lactic acid could neutralize Ca(OH)2 but not La(OH)3. Ca(OH)2 could therefore be consumed by lactic acid. It has also been reported that the first step in the dehydrogenation of sorbitol could be promoted by an alkaline additive. The continuous consumption of the alkaline additive would consequently suppress the conversion of sorbitol. A large amount of Ca(OH)2 would therefore be required to achieve the complete conversion of sorbitol. Furthermore, the selectivity towards lactic acid increased as the amount of Ca(OH)2 added to the reaction increased. In contrast, the La(OH)3 additive could not be consumed in the same way, meaning that a much smaller amount of La(OH)3 could be used to achieve the complete conversion of sorbitol. Given that lactic acid can be hydrogenated to give 1,2-PG in the presence of La(OH)3, it seems unlikely that the trace quantities of lactic acid formed during this reaction could be attributed to the consumption of lactic acid. Based on our result for sorbitol hydrogenolysis in the presence of La(OH)3 (Table 1, entry 13) and the conversion of lactic acid, we calculated the total selectivity towards lactic acid, which was much lower than that of lactic acid (8.9%) in the presence of Ca(OH)2 (Table 1, entry 5) under the same conditions. To develop a better understanding of the role of La3+ in this reaction, we evaluated the use of La(NO3)3 (Table 1, entry 16) as an additive, which gave a sorbitol conversion of only 15.3%. This result indicated that La3+ was not the main factor responsible for the high sorbitol conversion observed with La(OH)3. The pronounced promoting effect of La(OH)3 was therefore attributed to the OH- anions of La(OH)3. These results therefore show that La(OH)3 is an effective alkaline additive for enhancing the conversion of sorbitol with negligible lactic acid formation.

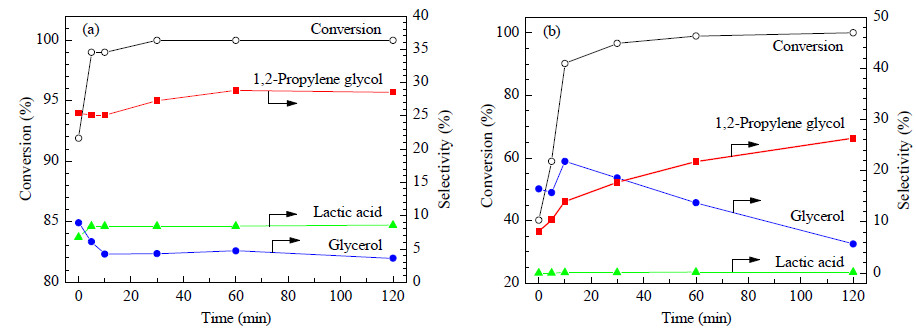

The effect of reaction time on sorbitol hydrogenolysis over Ni/C catalyst was investigated to develop a better understanding of the reaction process (Fig. 1). When Ca(OH)2 was used as the additive, the selectivity towards lactic acid increased from 6.8% to 8.4% over 30 min. Furthermore, the selectivity towards glycerol gradually decreased during the first 30 min, whilst the selectivity towards 1,2-PG increased. Further increase in the reaction time (> 30 min) did not lead to any discernible changes in the selectivity of lactic acid, glycerol, or 1,2-PG. In the case of La(OH)3, the selectivity towards lactic acid was about 0.1% and remained almost unchanged throughout the entire reaction. As for glycerol, its selectivity initially increased up to a reaction of 15 min and then gradually decreased with further increase in the reaction time. The selectivity towards 1,2-PG in the presence of La(OH)3 increased gradually with time, even after the sorbitol had been completely consumed.
These results showed that the selectivity profiles of the reaction towards glycerol and lactic acid were different for the Ca(OH)2 and La(OH)3 additives. To develop a deeper understanding of the underlying reasons for these differences, we investigated the reactions of glycerol under the same conditions to those used for sorbitol hydrogenolysis, and the results are shown in Table 2. In the presence of Ca(OH)2 (Table 2, entry 1), 1,2-PG and lactic acid were formed as the major products. The glycerol substrate was mainly converted to 1,2-PG when La(OH)3 was used as an additive (Table 2, entry 2), which was consistent with the results for sorbitol hydrogenolysis. Glycerol hydrogenolysis was also conducted without the Ni/C catalysts both in the absence and the presence of an additive (Ca(OH)2 or La(OH)3), but no reaction occurred.
To explain these differences in the selectivities of the additives towards 1,2-PG and lactic acid, we conducted three additional reactions using pyruvic aldehyde as a substrate, and the results of these reactions are shown in Table 2 (entries 5-7). When Ni/C was used as the catalyst, pyruvic aldehyde was hydrogenated to give 1,2-PG as the main product. Furthermore, the reaction of pyruvic aldehyde only resulted in lactic acid formation when Ca(OH)2 or La(OH)3 was added to the reaction. It is noteworthy that the selectivity towards lactic acid was 0.9-fold greater for Ca(OH)2 than it was for La(OH)3. Based on these results, we proposed a pathway for lactic acid formation starting from glycerol. According to this pathway, the hydrogenation reaction would occur on the active sites of the metal catalyst, and the rearrangement reaction would be catalyzed by the alkali. The reactions responsible for the formation of 1,2-PG and lactic acid would require different active sites, which indicates that the formation of these products would be competitive. The use of a metal catalyst in conjunction with an alkaline additive would therefore lead to different selectivities towards 1,2-PG and lactic acid, which would be dependent on the differences in the additives. For Ca(OH)2, which is only partially soluble in water, both the hydrogenation and rearrangement reactions would occur, resulting in the formation of 1,2-PG and lactic acid. However, for La(OH)3, which is largely insoluble in water, the pyruvic aldehyde substrate would be mainly converted to 1,2-PG through a hydrogenation reaction.

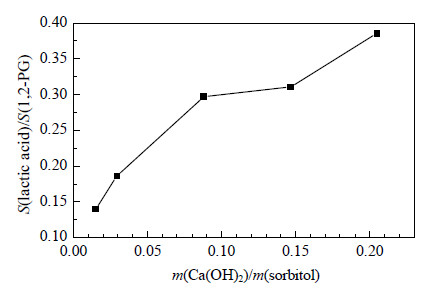

Fig. 2 shows the relationship between the selectivity ratio of S(lactic acid) to S(1,2-PG) and the mass ratio of Ca(OH)2 to sorbitol for the hydrogenolysis reactions of sorbitol, which were calculated using the data in Table 1 (entries 3-7). The selectivity ratio of S(lactic acid) to S(1,2-PG) increased as the amount of Ca(OH)2 added to the reaction increased. These results also indicated that the reactions responsible for the formation of 1,2-PG and lactic acid were competitive. More alkali was favorable for lactic acid formation.

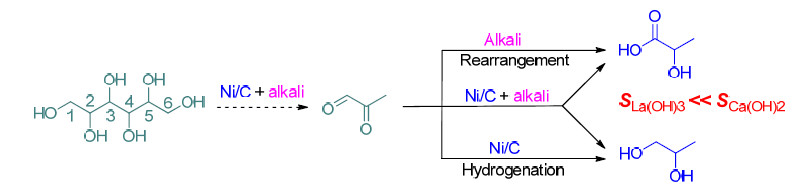

Based on the above results, we proposed a pathway for lactic acid formation during sorbitol hydrogenolysis over Ni/C in the presence of an alkaline additive, which is shown in Scheme 1. Given that a pathway for sorbitol hydrogenolysis has already been reported in the literature, we have focused primarily on the pathway responsible for lactic acid formation during this reaction. Pyruvic aldehyde would be formed as an intermediate during the course of this reaction and subsequently converted to lactic acid via a rearrangement reaction. Pyruvic aldehyde could also be converted to 1,2-PG through a hydrogenation reaction. The addition of different additives would lead to different selectivities towards lactic acid. For example, the addition of Ca(OH)2 would lead to the hydrogenation and rearrangement reactions, whilst the addition of La(OH)3 would favor the hydrogenation reaction as the major pathway, leading to only trace quantities of lactic acid.
The total selectivity of the hydrogenolysis reaction of sorbitol towards C2 and C4 products was enhanced by the presence of La(OH)3. Furthermore, the addition of La(OH)3 resulted in a sorbitol conversion of 99% with only trace quantities of lactic acid being detected. In contrast, the use of Ca(OH)2 as an additive led to an increase in the selectivity towards C3 products, which was most likely be related to the formation of higher levels of lactic acid. Pyruvic aldehyde, which is formed as an intermediate during sorbitol hydrogenolysis, was converted to 1,2-propylene glycol and lactic acid via hydrogenation and rearrangement reactions, respectively. We found that these two reactions were competitive and that the hydrogenation reaction became the dominant transformation in the presence of La(OH)3. These results are therefore of fundamental importance in terms of enhancing our understanding of sugar alcohols hydrogenolysis and the production of lactic acid.
