Proton exchange membrane fuel cells (PEMFCs) are sustainable and highly efficient energy-conversion devices that convert chemical energy directly to electricity [1]. The sluggish kinetics of the oxygen reduction reaction (ORR) on the cathode of a PEMFC significantly reduces the PEMFC performance, and highly active ORR electrocatalysts such as Pt and its alloys are usually needed [2, 3]. However, the high price and scarcity of Pt are an obstacle to large-scale applications of PEMFCs [4]. The development of high-performance and low-cost non- precious-metal catalysts, especially Fe/N/C-based materials, as alternatives has therefore attracted extensive interest [5].

Fe/N/C-based materials are usually prepared by pyrolyzing a mixture of Fe, N, and C precursors. These materials have good catalytic activities and excellent tolerances toward fuel crossover [6-8]. Although the ORR activities of Fe/N/C catalysts in alkaline media are comparable to those of state-of-the-art Pt/C catalysts, their ORR activities in acidic media are much lower, and far from satisfactory [9-11]. Previous studies have shown that additional doping of Fe/N/C catalysts with S significantly improves the ORR activity in acidic media [12]. More importantly, a high ORR activity depends on the single-site turnover and the active site density. The carbon supports in precursors are generally unable to catalyze the ORR, and probably reduce the active site density in the final product [13]. Direct carbonization of precursors leads to collapse of the carbon skeleton and formation of dense carbon materials. Colloidal or mesoporous silica is frequently used as a hard template to increase the catalyst surface area and porosity to provide internal active sites and a porous nanostructure to facilitate mass transport [14, 15]. Feng and coworkers [16] used silica nanoparticles, ordered mesoporous silica SBA-15, and montmorillonite as templates to prepare various mesoporous structures. Their studies showed that the well-defined porous structure and high Brunauer-Emmett-Teller (BET) surface area generated by silica nanoparticles greatly improved the ORR performance. However, the removal of a silica template is normally tedious and requires the use of extremely corrosive and toxic reagents such as HF. In addition, the corrosive etching procedure can damage the newly formed ORR active sites. Although catalyst preparation methods have been widely studied, the use of Fe/N/C catalysts in fuel cells is still a challenge, especially in terms of durability at high voltages [5, 17].

In this study, we developed a novel Fe, N, S-doped porous carbon (FeNS-PC) with high catalytic activity in the ORR in an acidic medium. Melamine formaldehyde (MF) resin, which has a high N content (45 wt%) and good thermostability, was selected as the C and N precursors. Fe(SCN)₃ was used as the Fe source because it can provide both Fe and S. More importantly, CaCl₂, which can be easily removed under mild conditions, was used as a template to create a porous structure. The MF resin can only be converted to porous carbon at temperatures higher than 900 ℃ under Fe catalysis. The catalyst heat treated at this temperature (FeNS-PC-900) had a high BET surface area and porosity, and showed high ORR activity in an acidic medium, as well as superior durability and methanol tolerance. The high performance of a PEMFC with FeNS-PC-900 as the cathode shows that the FeNS-PC-900 catalyst has good potential applications.

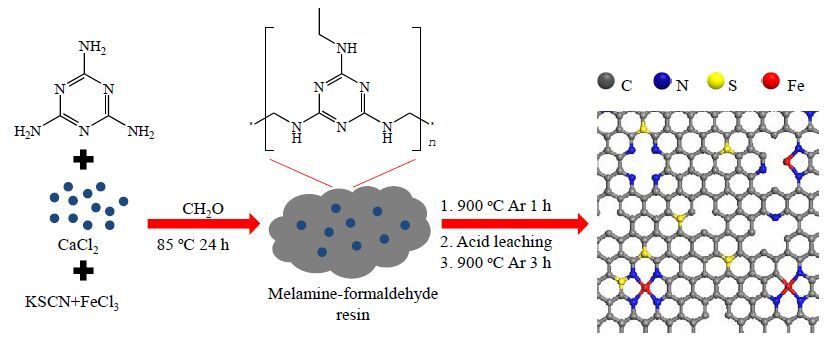

Scheme 1 shows the synthesis of FeNS-PC. The first step was polymerization of MF resin [18]. In brief, melamine (1.97 g, 15.6 mmol) and formaldehyde aqueous solution (37%, 3 mL) were dispersed in deionized water (30 mL) by magnetic stirring. The temperature was controlled at 70 ℃. Then 0.1 mol/L NaOH (1 mL) was added to the mixture to adjust the pH to 8-9. The melamine powder dissolved in a few minutes and the solution became transparent. After stirring for 1 h, the pH was adjusted to 5-6 by addition of 1 mol/L HCl (0.2 mL) to accelerate resin polymerization. CaCl₂ (2.22 g, 20 mmol) and KSCN (2.92 g, 30 mmol) were added to the mixture, followed by dropwise addition of FeCl₃ aqueous solution (1 mol/L, 10 mmol, 10 mL) under vigorous stirring. The temperature was increased to 85 ℃ and maintained for 24 h. The solvent was evaporated from the mixture at 85 ℃ in air, and the residue was thoroughly dried at 80 ℃ in a vacuum oven overnight. After thorough drying of the precursors, the CaCl₂ particles act as buffers to prevent thermo-crosslinking of the MF resin, and as a template to prevent collapse of the carbon skeleton. Unlike silica templates, CaCl₂ can be easily removed by acid leaching without using highly toxic and corrosive conditions.

The obtained monoliths (3 g) were ground to fine powders, followed by heat treatment at 800-1000 ℃ in Ar for 1 h. The sample was subjected to acid leaching in 1 mol/L HCl at 80 ℃ for 7 h to remove the template and inactive species by etching. The sample was separated by centrifugation and rinsed three times. Finally, the catalyst was subjected to a second heat treatment at the same temperature for 3 h; the product was denoted by FeNS-PC-T, where T is the heat-treatment temperature (℃).

The sample morphology was investigated using transmission electron microscopy (TEM; JEM-1400) at 100 kV. Annular dark-field scanning transmission electron microscopy (ADF-STEM) and energy-dispersive X-ray spectroscopy (EDS) mapping were performed using a Philips-FEI TECNAI F20 instrument at 200 kV. The BET surface area was determined using a Micromeritics TriStar II 3020 instrument. X-ray diffraction (XRD) was performed using a Rigaku Ultima IV diffractometer with Cu K_α radiation. X-ray photoelectron spectroscopy (XPS; Qtac-100 LEISS-XPS) was used to investigate the elemental compositions and chemical states.

All electrocatalytic properties were investigated using a rotating ring-disk electrode (RRDE) system (Pine Inc.) connected to a CHI-760D bipotentiostat. The working electrode was prepared by dropping catalyst ink onto a polished glassy carbon electrode (f = 5.61 mm) and drying under an infrared lamp in air, to give a loading of 0.6 mg/cm². A laboratory-made reversible hydrogen electrode and a graphite plate were used as the reference electrode and counter electrode, respectively. The rotational speed was fixed at 900 r/min and the potential scan rate was 10 mV/s. The potential of the Pt ring electrode was kept at 1.3 V to oxidize H₂O₂. The electrolytes were 0.1 mol/L H₂SO₄ for non-precious-metal catalysts, and 0.1 mol/L HClO₄ for a Pt/C (20 wt%) catalyst. The Pt/C loading was 0.1 mg/cm².

The kinetic current of the catalyst was calculated using the Koutecky-Levich equation to correct the mass transfer:

1/i = 1/i_L + 1/i_k

where i, i_L, and i_k are the measured current, the diffusion-limited current, and the kinetic current, respectively. The mass activity (j_m) was obtained by normalizing i_k with the catalyst loading.

The H₂O₂ yield was calculated from the oxygen reduction current (I_D) and the H₂O₂ oxidation current (I_R) according to the following equation:

H₂O₂ yield = 200I_R/(N₀I_D + I_R)

where N₀ = 0.386 ± 0.002 is the Pt ring collection efficiency, I_D is the disk current, and I_R is the ring current.

The synthesized catalyst was used as the cathode in a PEMFC. A typical catalyst ink was prepared by dispersing FeNS-PC-T (26 mg) and 5 wt% Nafion solution (600 μL) in deionized water (1 mL) by sonication for 1 h. The ink was directly coated on hydrophobic treated carbon paper at a loading of 4 mg/cm². The Nafion content of the catalyst layer was about 50 wt%. For the anode, the catalyst was a commercial Pt/C (40 wt%) catalyst with a loading of 0.4 mg_Pt/cm². Membrane electrode assemblies (MEAs) were fabricated by hot-pressing the anode, cathode, and an NRE 211 Nafion membrane at 3 MPa for 135 s. The performance of the fuel cell was assessed using a Model 850e fuel cell test system (Scribner Associates Inc.) operated at 80 ℃. The H₂ and O₂ flow rates were 0.3 L/min at 100% relative humidity and the back pressure was 1 bar.

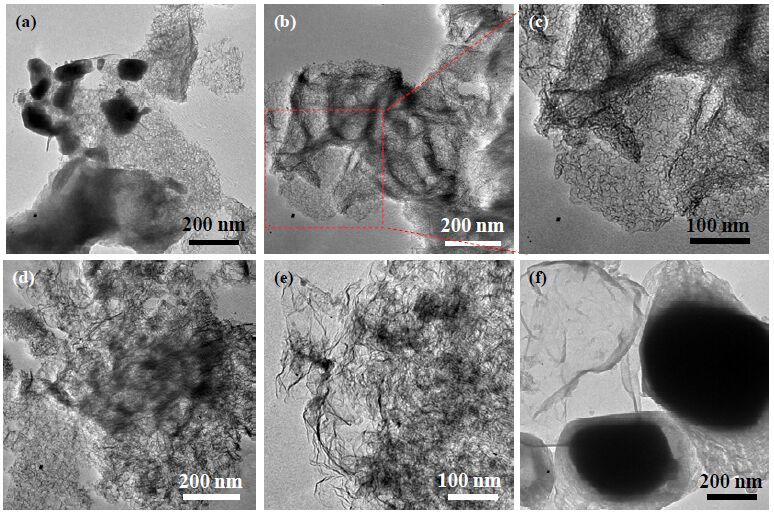

The morphologies and structures of the FeNS-PC materials greatly depended on the heat-treatment temperature because no additional carbon supports were used. Fig. 1(a)-(e) shows typical TEM images of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000. The images show that the MF resin was converted to porous carbon at high temperatures by Fe catalysis [19]. Fe-containing nanoparticles can be seen in FeNS-PC-800. FeNS-PC-900 and FeNS-PC-1000 were free of crystallized nanoparticles. Irregular porous structures can be clearly observed in the enlarged TEM images of FeNS-PC-900 and FeNS-PC-1000 (Fig. 1(c) and (e), respectively). A porous structure facilitates mass transfer and therefore improves the activity. We also synthesized a sample by heat treatment at 900 ℃ but without addition of CaCl₂ to investigate the effects of using CaCl₂ as a template. Fig. 1(f) shows that large Fe-containing nanoparticles with thick carbon shells were formed instead of porous carbon, which would not give a high surface area and good ORR catalytic activity. This confirms the important role of CaCl₂ in creating a porous structure. The mechanism of porous structure formation by CaCl₂ may be as follows. CaCl₂ dissolved in the aqueous reaction mixture during polymerization of the MF resin, along with KSCN and FeCl₃. After thorough drying of the precursors, the recrystallized CaCl₂ nanoparticles were dispersed uniformly throughout the MF resin. The inert CaCl₂ nanoparticles acted as a template and prevented thermo-crosslinking of the MF resin at high temperatures and collapse of the carbon skeleton. During acid leaching, the channels formed by the dissolution of CaCl₂ particles also facilitated exposure of Fe-containing nanoparticles to the acid. Porous carbon was therefore obtained.

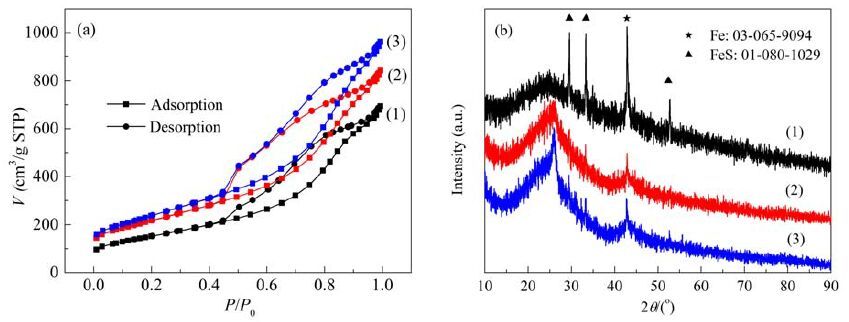

The textural properties of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 were investigated based on their N₂ adsorption-desorption isotherms (Fig. 2(a)). The calculated BET surface areas of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 were 544, 775, and 848 m²/g, respectively. The low BET surface area of FeNS-PC-800 can be attributed to the formation of Fe-containing nanoparticles. The difference between the surface areas of FeNS-PC-900 and FeNS-PC-1000 was small because of their similar morphologies and structures.

XRD was used to determine the crystal structures of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000; the results are shown in Fig. 2(b). The XRD pattern of FeNS-PC-800 shows the presence of metallic Fe and FeS nanoparticles, which is consistent with the TEM results. These Fe-containing nanoparticles were probably covered by carbon shells and survived acid leaching. The broad peak at around 25.5° indicates the co-existence of porous carbon. The FeNS-PC-900 and FeNS-PC-1000 show only two main peaks, at 2θ = 25.5° and 43°, originating from the (002) and (101) reflections, respectively, of graphene. The absence of peaks from CaCl₂ in the XRD patterns indicates thorough removal of the CaCl₂ template, in agreement with the TEM observations. EDS indicated that the atomic concentration of Ca in FeNS-PC-900 was only 0.17% (or 0.52 wt%), confirming that the most of the CaCl₂ template had been removed. The residual CaCl₂ was probably located inside the porous carbon.

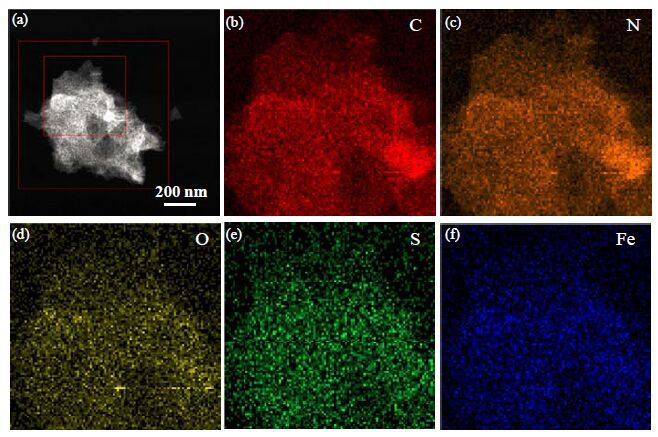

The elemental distribution in FeNS-PC-900 was determined using ADF-STEM mapping analysis. Fig. 3 shows that the major doping elements (C, N, O, S, and Fe) were all distributed uniformly on the porous carbon. Two factors could be responsible for this uniform distribution. (1) Fe(SCN)₃, which was used as the Fe and S precursor, was well dispersed in the MF resin, which has a high N content of 45 wt%. (2) Heteroatom doping was achieved simultaneously with porous carbon generation during heat treatment, leading to anchoring of the heteroatoms in the carbon matrix. All aggregated Fe-containing particles were removed thoroughly by acid leaching.

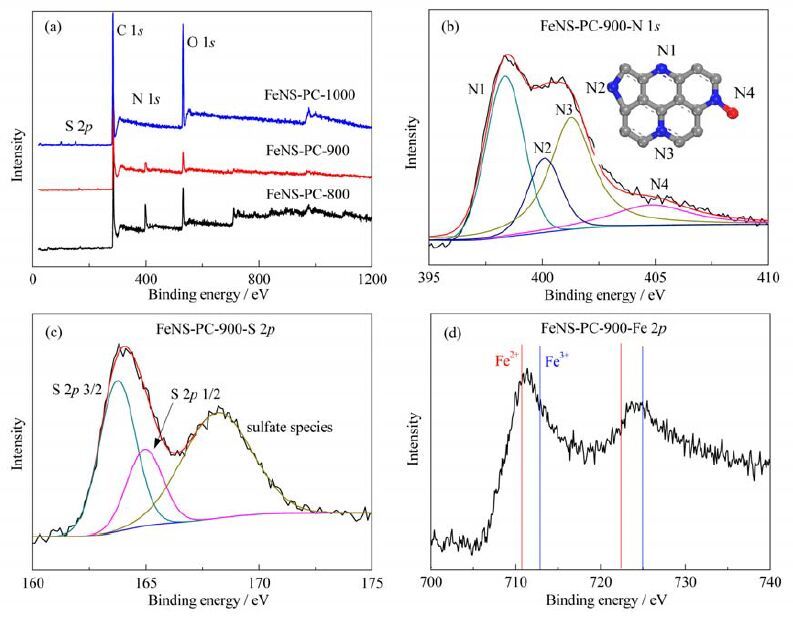

The elemental compositions and relevant chemical states of FeNS-PC-T (T = 800, 900, and 1000) were determined using XPS. The survey scan spectra show that the amount of doped N decreased significantly with increasing heat-treatment temperature; this might affect the ORR activity. Fig. 4(a) and Table 1 show that the main elements in FeNS-PC-T were C, N, O, S, and Fe. The atomic concentrations of these elements in FeNS-PC-900 were 84.81%, 6.62%, 7.45%, 0.82%, and 0.31%, respectively. The N and Fe contents of FeNS-PC-800 were 12.07% and 1.27%, respectively, both higher than those of FeNS-PC-900. This can be attributed to less loss of N species by volatilization at low temperatures and the formation of Fe-containing nanoparticles. The N, S, and Fe species in FeNS-PC-1000 were almost completely volatilized and could hardly be detected in the final product. Although XPS showed that FeNS-PC-1000 had the highest O content, EDS suggested that the O atomic concentrations of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 were 7.38%, 8.59% and 6.50%, respectively (Table 2). Oxygen-containing functional groups were probably introduced during post-treatment and when the catalysts were exposed to air. The N and S contents were also determined using EDS and CHNS elemental analysis. The results are consistent with those obtained using XPS (Tables 2 and 3). Inductively coupled plasma optical emission spectroscopy showed that the Fe contents of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 were 19.6, 3.4, and 2.8 wt%, respectively. Fe doping is important in improving the ORR activities of non-precious-metal catalysts, especially in acidic media.

The high-resolution N 1s spectrum of FeNS-PC-900 (Fig. 4(b)) can be deconvoluted into four peaks, assigned to pyridinic N (N1), pyrrolic N (N2), graphitic N (N3), and oxidized N (N4), with binding energies of 398.3, 400.1, 401.3, and 404.8 eV, respectively [20]. The inset in Fig. 4(b) shows a schematic diagram of the different bonding configurations of N. However, only pyridinic N and graphitic N give good ORR catalytic activities [21]. The percentages of pyridinic N and graphitic N were 33.9% and 37.8%, respectively, calculated from the peak areas. The difference between the pyridinic N and Fe-N species binding energies is small; therefore Fe-N species may also contribute to the pyridinic N peak [16]. The high-resolution S 2p spectrum of FeNS-PC-900 can be deconvoluted into three peaks, as shown in Fig. 4(c). The two peaks with binding energies of 163.8 and 165.0 eV can be assigned to S 2p_3/2 and S 2p_1/2 of a thiophene-type C-S-C structure in the carbon matrix [22]. The peak at around 168.2 eV can be ascribed to -SO_x species. According to previous reports [23], additional S doping would increase the number of structural defects and the electronic distribution because of the large size, electronegativity, and polarizability of the S atom. Fe, N, S co-doping has a synergistic effect and facilitates the ORR. Fig. 4(d) shows the high-resolution Fe 2p spectrum of FeNS-PC-900; both Fe²⁺ and Fe³⁺ were present in the FeNS-PC-900 catalyst.

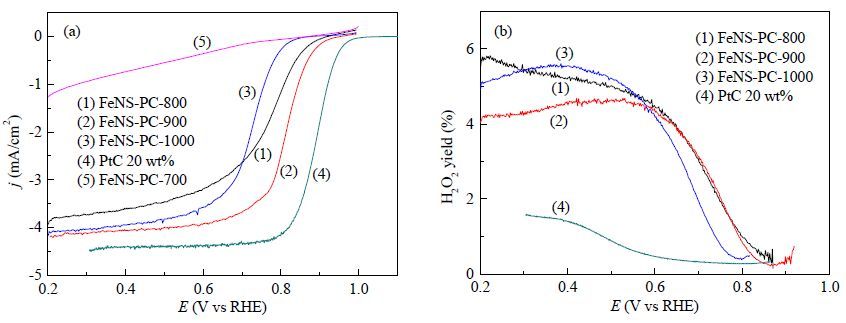

The electrocatalytic activities of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 in the ORR were examined in O₂-saturated 0.1 mol/L H₂SO₄ solution using an RRDE system. For comparison, a commercial Pt/C (20 wt%) catalyst was tested, but in O₂-saturated 0.1 mol/L HClO₄ solution to avoid specific adsorption of SO₄^2- on the Pt surface. The ORR polarization curves for FeNS-PC-800, FeNS-PC-900, FeNS-PC-1000 (0.6 mg/cm²), and Pt/C (0.1 mg/cm²) are shown in Fig. 5(a). It is apparent that the heat-treatment temperature plays an important role in inducing catalytic active sites. The MF resin was not completely converted to porous carbon at low temperatures (800 or 700 ℃). However, a too-high temperature (1000 ℃) resulted in loss of all N species, as shown by elemental composition analysis. The optimal pyrolysis temperature was 900 ℃. The half-wave potentials (E_1/2) of FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000 were 0.757, 0.811, and 0.723 V, respectively, and the apparent current densities at 0.8 V were 1.16, 2.47, and 0.28 mA/cm², respectively. The kinetic current, which reflects the intrinsic activity, can be calculated using the Koutecky-Levich equation to correct the mass transfer effect. Normalizing the kinetic current with the catalyst loading gave a mass activity for FeNS-PC-900 at 0.8 V of 10.2 A/g, which is 3.6 times that of FeNS-PC-800 (2.8 A/g) and 20.4 times that of FeNS-PC-1000 (0.5 A/g). The E_1/2 of FeNS-PC-900 was only 78 mV lower than that of the Pt/C catalyst, showing that FeNS-PC-900 is one of the best non-precious-metal catalysts reported to date [24-26]. The outstanding ORR activity of FeNS-PC-900 can be attributed to the high level of heteroatom doping and uniform atomic distribution of the Fe, N, and S dopants, which improve the intrinsic activity and active site density. The high surface area and porous structure provide channels to/from the internal active sites, facilitating the transport of reactants and products. In contrast, although FeNS-PC-800 had higher Fe, N, and S weight contents, TEM and XRD results showed that considerable portions of Fe and S were present as nanoparticles. Unlike dispersed Fe atoms, aggregated Fe-containing nanoparticles cannot catalyze the ORR; they decreased the surface area (544 m²/g for FeNS-PC-800 and 775 m²/g for FeNS-PC-900) and therefore decreased the ORR activity. For FeNS-PC-1000, which has a similar porous structure, the poor ORR activity can be attributed to low heteroatom doping.

The H₂O₂ yields were evaluated by detecting the H₂O₂ oxidation current at the Pt ring electrode. Although their ORR activities differed greatly, there were only small differences among the H₂O₂ yields on FeNS-PC-800, FeNS-PC-900, and FeNS-PC-1000, as shown in Fig. 5(b). FeNS-PC-900 gave the lowest H₂O₂ yield; the maximum value was 4.6%. Pt/C gave a much lower H₂O₂ yield, with a maximum value of 1.6%. The average electron transfer number per reduced O₂ molecule can be calculated as n_e = 4 - (H₂O₂ yield/50%). The n_e for FeNS-PC-900 was greater than 3.91 across the whole potential range. At 0.8 V, the H₂O₂ yield on FeNS-PC-900 was only 0.9% and the corresponding n_e was 3.98, indicating excellent four-electron pathway selectivity.

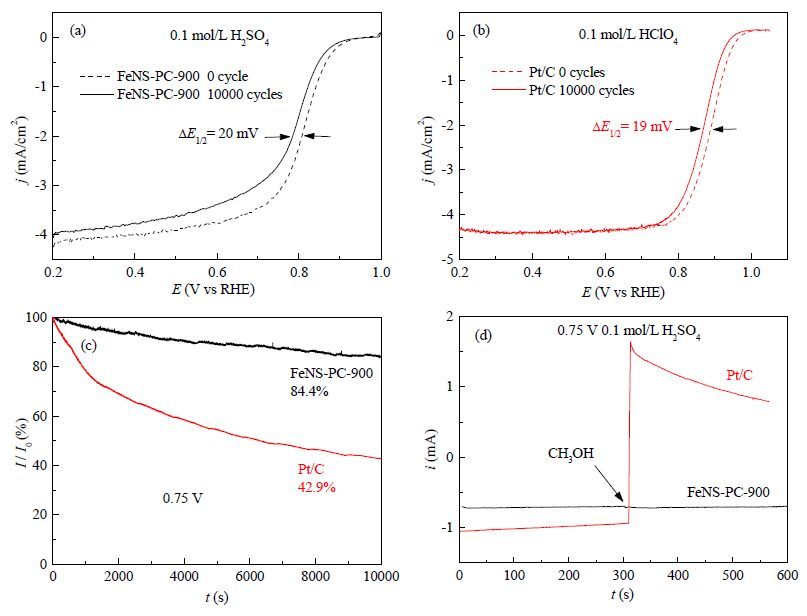

The electrochemical durability of FeNS-PC-900 was tested by performing an accelerated durability test (ADT) between 0.6 and 1.0 V in O₂-saturated 0.1 mol/L H₂SO₄. The scan rate was 50 mV/s. After 10000 potential cycles, the E_1/2 of FeNS-PC-900 had decreased by only 20 mV, as shown in Fig. 6(a). The apparent current densities at 0.8 V of FeNS-PC-900 before and after the ADT were 2.30 and 1.67 mA/cm², respectively. The corresponding mass activity decreased from 8.73 to 4.87 A/g, a loss of 44% of the initial activity. For the Pt/C catalyst, the E_1/2 decreased by 19 mV under the same conditions (Fig. 6(b)). This result indicates that the stability of FeNS-PC-900 is similar to that of Pt/C under potential cycling conditions.

The durability of FeNS-PC-900 was further evaluated by chronoamperometry at 0.75 V in O₂-saturated 0.1 mol/L H₂SO₄. The rotational speed was fixed at 900 r/min. The same experiment was conducted with Pt/C, except the electrolyte was O₂-saturated 0.1 mol/L HClO₄. Fig. 6(c) shows that the ORR activity of FeNS-PC-900 decreased slowly and 84.4% of the initial current was maintained after 10000 s of an RDE test. In contrast, the ORR current of Pt/C declined rapidly and only 42.9% of the initial activity was retained, probably because of the inhibiting effect of Pt-O species formed on the Pt surface at 0.75 V. The same E_1/2 degradation and superior ORR activity retention compared with those of Pt/C both demonstrate the excellent durability of FeNS-PC-900, which can be attributed to robust doping of heteroatoms into the porous carbon framework.

Catalytic selectivity is also important in practical fuel cell systems in the case of fuel crossover, e.g., of methanol. The methanol tolerances of FeNS-PC-900 and Pt/C were tested by injecting methanol into the electrolyte during chronoamperometric measurements (Fig. 6(d)). FeNS-PC-900 showed excellent methanol tolerance and the ORR current barely changed in the presence of methanol (0.5 mol/L). In contrast, the Pt/C catalyst clearly lacked methanol resistance. The ORR current was immediately converted to a methanol oxidation current when methanol was added. High methanol tolerance makes FeNS-PC-900 a promising catalyst for use in direct methanol fuel cells.

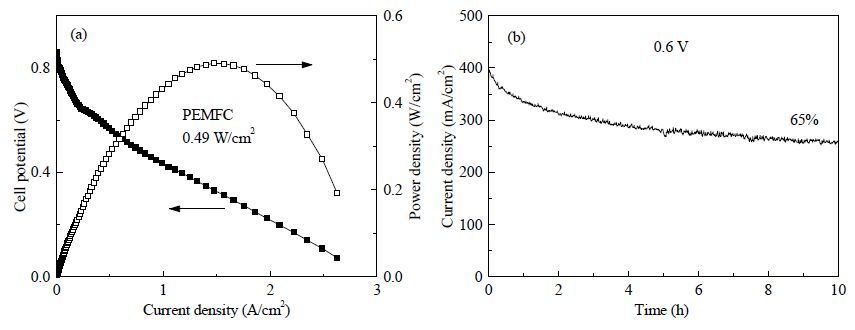

Based on the high ORR activity and durability of FeNS-PC-900 in an acidic medium, we fabricated an MEA with FeNS-PC-900 (4 mg/cm²) as the cathode, Pt/C (40 wt%, 0.4 mg_Pt/cm²) as the anode, and a Nafion 211 membrane. The MEA was tested in a PEMFC system at 80 ℃. Fig. 7(a) shows the polarization curve and power density plots of the PEMFC. The peak power density was 0.49 W/cm². The porous structure may facilitate the transport of ORR-relevant species and contribute to the high power density [27].

The long-term durability of PEMFCs using non-precious-metal catalysts, especially at high operating potentials (> 0.50 V), is still a challenge. Fig. 7(b) shows that the current density of the fabricated fuel cell degraded slowly and 65% of the initial activity was maintained after operation for 10 h at a constant voltage of 0.6 V. The current density of the PEMFC declined from 397 to 259 mA/cm². The performance degradation can be attributed to the decay of ORR active sites and partial water flooding of the catalyst layer.

We synthesized an excellent non-precious-metal ORR electrocatalyst based on Fe, N, S-doped porous carbon by carbonization of a mixture of MF resin and Fe(SCN)₃, using CaCl₂ as a template, at 900 ℃ (FeNS-PC-900). The CaCl₂ was easily removed without using tedious and highly corrosive procedures. Simultaneous Fe, N and S doping and porous carbon formation gave a uniform distribution of dopants. The mass activity of the FeNS-PC-900 catalyst was 10.2 A/g at 0.8 V in an acidic medium. The durability and methanol resistance of FeNS-PC-900 were better than those of a state-of-the-art Pt/C catalyst. The FeNS-PC-900 catalyst also showed high activity in a PEMFC; a peak power density of 0.49 W/cm² and good long-term durability were achieved. The results show that FeNS-PC-900 is a promising alternative ORR catalyst for acid fuel cells.
