Asymmetric hydroformylation is one of the most versatile methods for the synthesis of enantiomerically pure compounds such as optically active aldehydes, α-amino acids and alcohols. Although it has been researched for more than 40 years, asymmetric hydroformylation with good enantioselectivity, chemoselectivity and regioselectivity is still a challenge in the field of catalysis and fine chemical synthesis [1].

So far, Rh catalysts associated to chiral phosphine-phosphite ligands or diphosphite ligands are the most studied systems in asymmetric hydroformylation, and some satisfactory results have been reported [2-5]. For example, Nozaki et al. [6] developed the chiral phosphine-phosphite ligand (R, S)- BINAPHOS; hydroformylation of styrene with high enantioselectivity was achieved (up to 94% ee, iso/normal = 7.3) by using Rh complexes of this new ligand. However, although diphosphine ligands show excellent catalytic activities in asymmetric hydrogenation, they always lead to disappointing results in asymmetric hydroformylation of styrene [7, 8]. An ee value of 60% has been obtained in a Rh-diphosphine system by using a chiral BDPP ligand [9]. Other diphosphines such as DIOP, TREDIP and CHRAPHOS give low enantioselectivities of less than 30% [8-11]. BINAP ligand, which is unambiguously one of the most prominent chiral ligands for asymmetric catalysis [12-14], only exhibits an ee value of 25% when combined with Rh species for the asymmetric hydroformylation of styrene [9]. Many modified structures of BINAP have been prepared to increase the efficiency or enantioselectivity of asymmetric hydrogenation [15]. Lin et al. [16] developed a family of 4, 4'-substituted BINAP derivatives for asymmetric hydrogenation of ethyl benzoylacetate. The Ru catalysts based on bulky substituents of BINAP, such as trimethylsilane, diphenylmethanol and 1-cyclopentanol, provided ee values of more than 99%. When using relatively small substituents, such as methyl and phenyl, the catalysts provided ee values of less than 87%. Remarkably, the enantioselectivity was dramatically enhanced when bulky groups were introduced at the 4, 4'-positions of BINAP. The reason could be explained by the significant repulsive interactions between the bulky substituents of BINAP and the phenyl group of the substrate, which results in destabilization of the disfavored transition state, and thus, a dramatic enhancement of the enantioselectivity. These ligands with a “chiral pocket”-like design have been reported in recent years [17-20]. However, BINAP-based ligands have rarely been reported for hydroformylation reactions owing to their relatively low enantioselectivity. Considering that BINAP is one of the most important chiral ligands, can be produced at an industrial scale and has extensive applications in asymmetric catalysis, modified BINAP-related catalysts for hydroformylation reactions deserve further investigations.

The disadvantages of homogeneous catalysis, such as the waste of expensive transition metal complexes and contamination of products, drove us to explore more practical heterogeneous systems [21-24]. The immobilization of organometallic complexes onto highly porous solids is still an excellent strategy for combining the advantages of homogeneous and heterogeneous catalysts [25, 26]. Among various porous supporting materials, porous organic polymers, an emerging class of porous materials, could be a promising candidate because of their high surface areas, advanced hierarchical pore structures and outstanding stabilities [27, 28]. Recently, porous polymers with excellent swelling properties were prepared through the polymerization of vinyl-functionalized monomers under solvothermal conditions [29, 30]. The swollen polymers can be characterized as a solution to a certain degree, although they are elastic solids rather than liquids; this liquid-like nature endows the polymers with surprisingly high flexibility. Even more important, it has been well recognized that the flexibility of the active sites in solid catalysts plays a very important role in the improvement of the catalytic performance.

Previously, our group reported a series of highly efficient heterogeneous hydroformylation catalysts prepared by the copolymerization of vinyl-functionalized PPh₃ with vinyl-functionalized biphephos ligand [31, 32]. More importantly, Xiao et al. [33] synthesized chiral porous cross-linked polymers (PCP-BINAP) under solvothermal conditions. PCP-BINAPO was first obtained through the copolymerization of divinylbenzene and 5, 5'-diacryloylamino BINAP dioxide. Then, PCP-BINAP was synthesized by the reduction of PCP-BINAPO with HSiCl₃. The prepared Ru/PCP-BINAP catalyst exhibited high activity, excellent enantioselectivity, and extraordinary recyclability in asymmetric hydrogenation of β-keto esters.

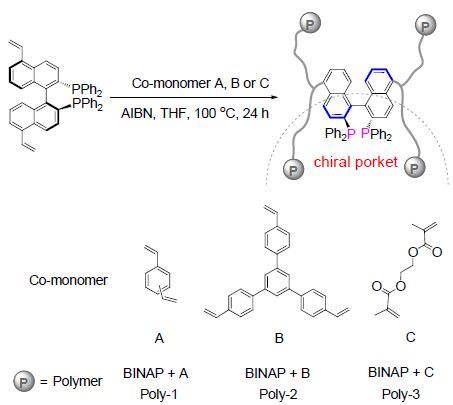

Inspired by Xiao's work, in this paper we also report a vinyl-modified BINAP, (S)-5, 5'-divinyl-BINAP, and its corresponding porous organic polymers afforded by the copolymerization with divinyl benzene and 1, 3, 5-tri(4-vinylphenyl) benzene (Scheme 1). Linear ethylene glycol dimethacrylate monomer was also copolymerized with divinyl-modified BINAP; however, a nonporous material was obtained and this material was introduced as a negative control. The BINAP ligand was not only simply incorporated into the polymers, but can also be considered as modified by bulky blocks from other co-monomers or BINAP itself. Thus, numerous highly flexible nanoporous chiral pockets were present in the polymer materials (Scheme 2). After loading with Rh species, the nanoporous chiral-pockets-based BINAP polymers should be very favorable for the improvement of the enantioselectivity of the asymmetric hydroformylation of styrene. To demonstrate the “proof-of-concept”, in this contribution, two porous polymer-supported Rh/BINAP catalysts were designed and synthesized and their catalytic performance and recyclability were investigated for the heterogeneous asymmetric hydroformylation of styrene.

All solvents were analytical grade and were purified by distillation under Ar atmosphere before use. Unless otherwise noted, all manipulations were carried out under an Ar atmosphere either in a glove-box or using standard Schlenk techniques.

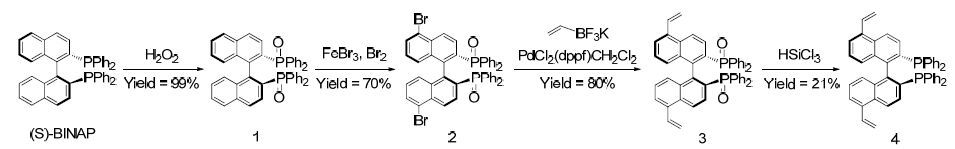

(S)-BINAP (3 mmol, 1.87 g) was dissolved in dichloromethane (DCM, 60 mL), followed by dropwise addition of H₂O₂ (18.32 mmol, 6.06 mL). The reaction was monitored by thin-layer chromatography (TLC). After stirring for 30 min at room temperature, the solution was extracted with water (30 mL). The organic phase was washed with 10% NaHSO₃ aqueous solution (50 mL) and dried over Na₂SO₄. The solvent was removed under vacuum and (S)-BINAPO was obtained as a white solid (1.95 g, 99% yield).

(S)-BINAPO (1.0 mmol, 0.65 g) was dissolved in dichloroethane (DCE, 15 mL), followed by the addition of FeBr₃ (2.2 mmol, 0.65 g) and liquid bromine (2.2 mmol, 0.35 g). After refluxing for 12 h, the solution was washed with 10% NaHSO₃ aqueous solution, saturated brine and saturated sodium bicarbonate aqueous solution, and dried over Na₂SO₄. After refluxing for 12 h, (S)-5, 5'-diBr-BINAPO was obtained.

(S)-5, 5'-diBr-BINAPO (1.0 mmol, 0.82 g), potassium vinyltrifluoroborate (2.4 mmol, 0.32 g) and PdCl₂(dppf)CH₂Cl₂ (0.08 mmol, 0.058 g) were placed in a three-necked flask. n-PrOH (10 mL) and triethylamine (2.0 mmol, 0.20 g) were added to the flask. The reaction was monitored by TLC. After refluxing for 3 h, the solvent was removed under vacuum. The precipitate was passed through a silica gel column and dried under vacuum to give (S)-5, 5'-divinyl-BINAPO as a white solid (0.565 g, 80% yield).

(S)-5, 5'-divinyl-BINAPO (1.0 mmol, 0.70 g), trichlorosilane (3.0 mmol, 0.41 g) and phenylsilane (3.0 mmol, 0.32 g) were placed in a three-necked flask containing toluene (10 mL). The reaction was monitored by TLC. After refluxing for 3 h, the solvent was cooled to 0 ℃ followed by slow addition of NaOH aqueous solution. Then the solution was extracted with water, and dried over Na₂SO₄. The solvent was removed under vacuum. The precipitate was passed through a silica gel column and dried under vacuum to give (S)-5, 5'-divinyl-BINAP as a white solid (0.15 g, 21% yield). ¹H NMR (400 MHz, CDCl₃) δ 5.47 (dd, 1H, J₁ = 10.9 Hz, J₂ = 1.6 Hz), 5.76 (dd, 1H, J₁ = 17.3 Hz, J₂ = 1.6 Hz), 6.79 (d, 1H, J = 8.4 Hz), 6.85-6.90 (m, 1H), 7.05-7.17 (m, 10H), 7.45-7.51 (m, 3H), 8.17 (d, 1H, J = 8.8 Hz); ¹³C NMR (100 MHz, CDCl₃) δ 117.2, 123.9, 124.4, 125.5, 127.6, 127.7, 128.0, 128.4, 130.7, 130.9, 132.8, 132.9, 133.0, 133.5, 134.1, 134.2, 134.3, 134.5, 135.4; ³¹P NMR (161 MHz, CDCl₃) -15.7 Hz; HRMS(ESI): m/z calc. for C₄₈H₄₄O₆P₂[M+H]⁺: 675.2370, found: 675.2373.

These polymers were prepared through a free-radical polymerization of vinyl-functionalized BINAP ligand and other co-monomers in THF at 100 ℃. In an autoclave, 0.30 g of (S)-5, 5'-divinyl-BINAP and 0.60 g of divinyl benzene (DVB) were dissolved in 9 mL of tetrahydrofuran (THF), followed by the addition of 23 mg of 2, 2'-azoisobutyronitrile (AIBN). The mixture was first stirred for 10 min at the room temperature and then heated at 100 ℃ for 24 h. The solvent was removed under vacuum at 65 ℃ and a white solid was obtained, which was denoted as Poly-1.

Poly-2 was obtained using the same synthesis method but using 0.60 g of 1, 3, 5-tri(4-vinylphenyl)benzene instead of 0.60 g DVB.

Poly-3 was obtained using the same synthesis method but using 0.91 g of ethylene glycol dimethacrylate instead of 0.60 g DVB.

Nitrogen isotherms at -196 ℃ were measured using Quantachrome Autosorb-1. The samples were outgassed at 120 ℃ for 10 h. The pore size distributions were calculated using density functional theory (DFT) method.

Thermogravimetric analysis (TGA) was measured using NETZSCH STA 449F3, and the samples were heated from 40 to 1000 ℃ at a rate of 10 ℃/min under air.

Transmission electron microscopy (TEM) images were taken on a JEM-2100 with an accelerating voltage of 200 kV. The morphologies of the polymers were investigated on a JSM-7800F scanning electron microscope (SEM).

Solid-state NMR spectra were obtained on a VARIAN infinity plus 400 spectrometer. The ³¹P MAS NMR spectra were recorded with a 2.5 mm probe at a frequency of 161.8 MHz under a magic angle spinning rate of 10 kHz and a delay of 3 s. The chemical shifts were referenced to 85% H₃PO₄. ¹³C MAS NMR spectra were recorded under a magic angle spinning rate of 6 kHz.

The K-edge X-ray absorption fine structure (EXAFS) spectra of Rh were obtained at the BL14W1 beamline of SSRF, SINAP (Shanghai, China) with the use of a Si(311) crystal monochromator. The storage ring was operated at 3.5 GeV with injection currents of 200 mA. The data of the samples were recorded in fluorescence mode. The XAFS data were analyzed by using the Demeter software package. Fourier transformation of the EXAFS data was applied to the k³-weighted functions. The theoretical scattering amplitude and phase-shift functions of all the paths for fitting the EXAFS data were calculated by FEFF6 code.

As a typical run, a mixture of Poly-1 (19 mg, 0.0096 mmol P) and Rh(CO)₂(acae) (0.25 mg, 0.00096 mmol) in toluene (2 mL) was heated to 100 ℃ for 10 h under Ar, then styrene was added. After purging with syngas (H₂/CO = 1:1) 4 times, the pressure was adjusted to the desired value and the reaction mixture was stirred at 80 ℃ for 24 h. After the reaction, the catalyst was separated by centrifugation, and the product (yield for aldehydes and regioselectivity for 2-phenylpropionaldehyde) was analyzed by gas chromatography (Agilent 7890B gas chromatography equipped with a flame ionization detector and a Cyclodex-B capillary column). A sample of the reaction mixture was treated with Jones reagent to oxidize the aldehydes to carboxylic acids, which were used to determine the enantiomeric excess (ee) by GC.

PPh₃ (30.0 mg, 0.114 mmol P), Rh(CO)₂(acae) (3.0 mg, 0.0114 mmol), 4-chlorostyrene (1.5 g, 9.71 mmol) and toluene (2 mL) were mixed in a 25-mL autoclave. After purging with syngas (H₂/CO = 1:1) 4 times, the pressure was adjusted to 3.0 MPa and stirred at 80 ℃ for 12 h. The reaction solution was collected and passed through a silica-gel column with petroleum ether/ethyl acetate (5:1 v/v). The racemic product of the branched aldehyde was confirmed by GC-MS (Agilent 7890-5975C). An aliquot of pure racemic branched aldehyde was further treated with Jones reagent to oxidize the aldehydes to carboxylic acids, which were used to determine their retention times.

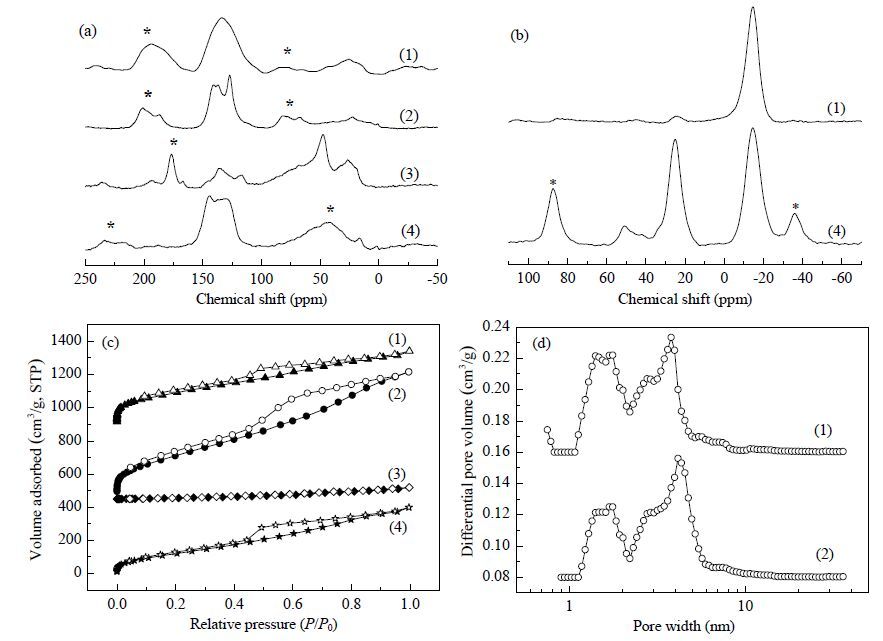

¹³C magic angle spinning (MAS) NMR spectra were used to characterize the polymers (Fig. 1(a)). All the polymers showed broad resonance peaks from 120 to 150 ppm, which were assigned to the aromatic carbons. The signals from 20 to 55 ppm were attributed to the methylene linker. The structure information of Rh/Poly-1 remains the same as that of Poly-1 in the ¹³C MAS NMR. The position of the spinning sidebands in Rh/Poly-1 was different from that of Poly-1. This is because the ¹³C MAS NMR spectra of Rh/Poly-1 was recorded under a magic angle spinning rate of 9 kHz, whereas the other materials were recorded under a magic angle spinning rate of 6 kHz. Additionally, the ³¹P MAS NMR spectrum of Poly-1 showed one main signal at -14.5 ppm (Fig. 1(b)), which was at the same position as the ligand. These observations indicated that the BINAP moieties were stable during the solvothermal polymerization process. After loading the Rh species, the ³¹P MAS NMR spectrum of Rh/Poly-1 exhibited a relatively high resonance signal at 25.1 ppm owing to phosphorous oxide. A resonance peak at 52.0 ppm was also present, which was assigned to the unprotected phosphine coordinated with the Rh species [34].

The pore properties of the materials were analyzed by N₂ physisorption isotherms (Fig. 1(c)). The curves of Poly-1 and Poly-2 collected at -196 ℃ exhibited combined features of type I and type IV hysteresis with an obviously steep step in the P/P₀ < 0.01 region and hysteresis loops in the 0.60 < P/P₀ < 0.95 region, which suggests that micro- and mesopores were present in the polymer. These data were confirmed by the pore size distribution curves calculated by nonlocal density functional theory method (NLDFT); the pore sizes of two types of pores were distributed at approximately 0.5-1.5 and 2.5-10 nm, respectively (Fig. 1(d)). The Brunauer-Emmet-Teller surface areas of Poly-1 and Poly-2 were estimated to be 697 and 997 m²/g, respectively, and the pore volumes were calculated to be 0.68 and 1.19 cm³/g, respectively. Rh/Poly-1 exhibited a lower surface area and pore volume (490 m²/g, 0.56 cm³/g, respectively) than Poly-1, because that part of the material space was occupied after loading with Rh species. Compared with the co-monomers divinyl benzene and 1, 3, 5-tri(4-vinylphenyl)benzene, which are rigid bulky blocks, the ethylene glycol dimethacrylate has longer carbon chains with a linear structure and afforded a nonporous Poly-3. Another reason to explain the condensed structure of Poly-3 is the hydrogen bonding between the hydrogen atoms and the carboxyl groups.

The Rh-based catalysts were afforded by impregnating the polymers with Rh(CO)₂(acac) dissolved in toluene. Styrene was chosen as a substrate to detect the asymmetric hydroformylation activities of the polymeric catalysts. Although the catalysts were insoluble, they were prone to swelling in many solvents. Therefore, we initially chose three solvents that have been used most frequently in asymmetric hydroformylation to test the catalytic performance of Rh/Poly-1 (Table 1). The results showed that the three solvents gave similar yield for aldehydes, but provided different regioselectivities and enantioselectivities; the highest enantioselectivity (37.8%) was afforded by Rh/Poly-1 using toluene as a solvent. Toluene was selected as a solvent to investigate the effect of temperature on the reaction in the range of 60-110 ℃ (Table 2, entries 1-6). When the temperature increased, the yield significantly increased from 7.6% to 93.5%. In sharp contrast, the regioselectivity and enantioselectivity both decreased with the increase in the temperature. As a result, 80 ℃ was selected as an appropriate temperature for further investigation. The impact of the pressure of H₂/CO was investigated (Table 2, entries 7-11). When the reaction pressure was decreased from 4.0 to 0.2 MPa, the yield increased from 7.1% to 93.5%, although the regioselectivity decreased from 12.3% to 8.5%. An unexpectedly high enantioselectivity (58.9%) was achieved when the reaction was performed near atmospheric pressure (0.2 MPa).

The catalytic performance of the three catalysts (Rh/Poly-1, Rh/Poly-2 and Rh/Poly-3) was examined under a pressure of 0.2 MPa at 80 ℃ for 24 h (Table 3, entries 1-3). These catalysts exhibited similar yields (92%-94%), whereas Rh/Poly-1 showed the best regioselectivity (8.5%) and enantioselectivity (58.9%). The results showed that the pore structures had little effect on the yields, but had a clear effect on the regioselectivity and enantioselectivity. In the swollen state, the backbones of the polymer-supported catalysts were flexible and freely movable. Therefore, the substrate could obtain rapid access to the active sites of the heterogeneous catalysts. Meanwhile, the rigid and bulky blocks around the BINAP, such as divinyl benzene and 1, 3, 5-tri(4-vinylphenyl)benzene, fabricated irregular and steric pore structures, which could be favorable for the formation of chiral pockets. Efficient asymmetric hydroformylations were conducted when the substrate was coordinated with Rh species in the chiral pockets, and as anticipated, high enantioselectivities were obtained. The Rh/Poly-1 and Rh/Poly-2 catalysts both exhibited higher enantioselectivity than the homogeneous system. However, Rh/Poly-3, which contained long carbon chain links (ethylene glycol dimethacrylate) and showed properties of a nonporous bulk material (no chiral pocket existed), only exhibited an enantioselectivity of 30.7% and a low regioselectivity of 6.8%. Rh/Poly-1 was also used to catalyze 4-substituted styrene derivatives (Table 3, entries 5-7). The presence of substrates containing electron-withdrawing groups, such as Cl and Br, seemed to decrease the ee values, although they gave good conversion results. The Rh/Poly-1 gave a high ee value of 50.7% when 4-methoxystyrene was used as a substrate.

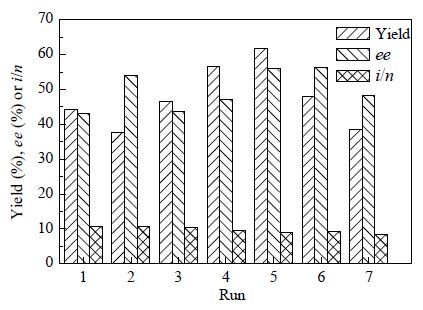

Considering the catalyst stability and reusability were of primary interests in heterogeneous catalysis, we investigated the possibility of recycling Rh/Poly-1 (Fig. 2). When the reaction was finished, the catalyst was separated by centrifugation, washed with toluene (performed under nitrogen atmosphere) and then the catalyst was used directly for the next round reaction. The catalyst was reused seven times without significant loss of activity and enantioselectivity. The fluctuation of the product yield and ee values was ascribed to the reaction pressure of H₂/CO. We previously showed that the reaction pressure had a significant influence on the activity and enantioselectivity. Meanwhile, the yield of the product was in the level of middle when the reaction time of the recycling test was 10 h. The initial reaction pressure was only 0.2 MPa; therefore, small changes in the pressure during the reaction would have a certain impact on the reaction results. The excellent stability of the catalyst could be ascribed to the covalently linked methylene groups, which firmly tied the chiral BINAP ligand.

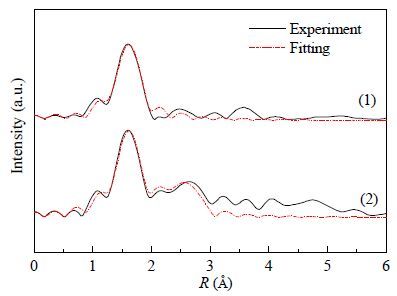

To confirm the coordination status of the Rh species in our heterogeneous catalyst, extended X-ray absorption fine structure spectroscopy (EXAFS) and high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) characterization were employed for the fresh and used Rh/Poly-1 (Figs. 3 and 4). According to the curve-fitting results, in the fresh Rh/Poly-1 each Rh atom is coordinated with three P atoms (derived form BINAP) and two O atoms (derived from acetylacetone in the Rh(CO)₂(acac) precursor) (Table 4). More importantly, no Rh-Rh bond can be detected in the fresh sample of Rh/Poly-1, which indicated that the Rh species were coordinated with chiral ligands and efficient molecular catalysts were afforded. This was further confirmed by the HAADF-STEM image (Fig. 4). After Rh/Poly-1 was used seven times, one Rh atom was coordinated with three P atoms, one CO molecule (Table 4) and one H atom. This result is in accordance with the mechanism of Rh-based homogeneous hydroformylation catalysis, in which the acetyl acetone molecule is replaced by the CO and H to form the active species for hydroformylation [7, 8]. These observations indicated that just like the homogeneous catalysis mechanism, it was reasonable to attribute the improvement of enantioselectivity in the case of Rh/Poly-1 catalyst to a favorable chiral pocket effect. In addition, only a few Rh-Rh bonds were detected after the seventh run (Table 4). The content of Rh particles was very low according to the HAADF-STEM image, and the Rh particles had no obvious effect on the enantioselectivity during recycling (Fig. 4).

We successfully synthesized a new vinyl-functionalized chiral ligand (S)-5, 5'-divinyl-BINAP and its related chiral porous organic polymers. After impregnating with Rh species, the porous polymeric catalysts with chiral nanopockets were applied in the heterogeneous asymmetric hydroformylation of styrene. Encouragingly, the enantioselectivity of Rh/Poly-1 was 1.67 times higher than that of the homogeneous analogue. This enhancement of enantioselectivity could be attributed to the introduction of the flexible chiral nanopockets. Furthermore, with excellent activity and recyclability, the easily prepared BINAP-based chiral porous organic polymeric catalyst may have further applications in the industrial production of chiral aldehydes and other fine chemicals. Other efficient heterogeneous asymmetric catalytic systems for the production of fine chemicals are being developed in our laboratory.
