Propane is an important raw material in the production of various chemicals and of great practical value in various reactions such as polypropylene, propylene oxide, and acrylonitrile syntheses. Steam cracking and fluidized catalytic cracking of naphtha are common processes for the commercial synthesis of propene [1-3]. Recently, propane dehydrogenation has been widely investigated as an effective approach to propene production because of the continuing decrease in fossil oil resources and the increasing market for propene [4-6]. Low-cost saturated hydrocarbons can be converted to value-added olefins by propane dehydrogenation, and this route is economically competitive [7]. Propane dehydrogenation is a highly endothermic and equilibrium-limited reaction, therefore a high temperature is needed to obtain a satisfactory yield of propene [8]. However, problems such as hydrocarbon cracking and coke formation arise with increasing reaction temperature, and these lead to decreases in the activity and stability of the catalyst [9].

Currently, catalysts based on chromium oxide or Pt are the main catalysts being investigated for propane dehydrogenation. Cr-based catalysts have been extensively researched, but their practical applications are limited because of severe pollution by chromium [10, 11]. Pt-based catalysts show good initial activities in propane dehydrogenation; this is because Pt activates C-H bonds without promoting C-C cleavage [12, 13]. However, undesired thermal cracking and coke deposition rapidly deactivate these catalysts [14]. The development of efficient catalysts with high selectivities for propene and excellent anti-coking abilities is therefore important.

Considerable research has been devoted to developing methods such as promoter addition for improving the catalytic performances of Pt-based catalysts for propane dehydrogenation. The introduction of Sn promoters into a Pt-based catalytic system effectively improves the catalytic activity, resistance to coke formation, and operating lifetime of the catalyst [13, 14]. The Sn promoter modifies the properties of Pt-based catalysts via geometric and electronic effects [15, 16]. A number of studies have shown that the presence of Sn reduces the Pt particle size and also alters the electronic environment of Pt as a result of migration of positive charges from Snⁿ⁺or Pt-Sn alloys [17, 18]. It has been proposed that an oxidized Sn promoter can greatly improve the catalytic performance, but metallic Sn acts as a poison [19]. The preparation method, support properties, and metal loading clearly affect the performances of Pt-Sn catalysts [20]. Supports with large surface areas and well-distributed pore sizes to improve dispersion of the metal particles are preferable [21]. The use of SBA-15 as a support for Pt-Sn catalysts for propane dehydrogenation may therefore be an excellent choice. The mesoporous structure of SBA-15 enables it to confine and stabilize Pt nanoparticles and prevent particle agglomeration, making it a good host [22].

The reported methods for introduction of a Sn promoter almost all involve traditional post-synthesis procedures [23, 24]. Such processes often give uneven distributions of Sn species, and block the pores and channels, leading to a decrease in the surface area and loss of efficiency of the Sn promoter [25]. This paper describes the preparation of homogeneous Sn-SBA-15 composites using a facile one-pot hydrothermal method. In contrast to traditional methods, the direct synthesis of Sn-SBA-15 can prevent pore clogging and achieve a good distribution of Sn species in the silica matrix. Sn/SBA-15 synthesized using a conventional impregnation method was used as a reference sample. These Sn-modified materials were used as supports for Pt-based catalysts and tested in propane dehydrogenation. The differences among the samples in terms of structure-activity relationships were identified and discussed. The conclusions were used to explain the specific catalytic properties.

The Sn-modified mesoporous SBA-15 material was prepared using a one-pot hydrothermal method. In a typical procedure, a triblock copolymer (2 g, P123, EO₂₀PO₇₀EO₂₀, Aldrich) was dissolved in HCl (60 mL; 2 mol/L) and deionized water (15 mL). A calculated amount of SnCl₂·2H₂O (Aldrich) was added. The mixture was stirred at 40 ℃ for 3 h. Tetraethyl orthosilicate (4.25 g, 98%) was added dropwise and the mixture was stirred for 24 h. The resulting suspension was crystallized in a Teflon-lined autoclave at 100 ℃ for 24 h. The mixture was filtered, and the residue was washed and dried at 80 ℃ for 12 h, and calcined in air at 550 ℃ for 6 h. The obtained samples were denoted by xSn-SBA-15 (nominal Sn mass fraction x wt% = 0, 0.5, 1, and 2 wt%). Another sample was synthesized using an incipient wetness impregnation (IM) procedure and denoted by xSn/SBA-15-IM.

The Pt-based catalysts were prepared using an incipient wetness impregnation method. The support powder was impregnated with a H₂PtCl₆·6H₂O precursor dissolved in deionized water. After sonication for 30 min, the mixture was rested for 12 h. The solution was dried at 60 ℃ for 12 h and calcined in air at 500 ℃ for 4 h. The nominal Pt content of these catalysts was 1 wt%.

N₂ adsorption-desorption isotherms were recorded at -196 ℃ using an automated surface area and pore size analyzer (Quadrasorb SI). Before each measurement, the samples were outgassed for 3 h under vacuum at 300 ℃. X-ray diffraction (XRD) patterns were recorded at 2θ = 0.5°-10° using an Empyrean diffractometer with Cu K_α (45 kV, 50 mA) radiation.

Fourier-transform infrared (FT-IR) spectra were recorded ate room temperature using a Bruker Tensor 27 FT spectrometer. The spectra were recorded in the range 4000-400 cm^-1and KBr was used as the background. Ultraviolet-visible (UV-vis) diffuse reflectance spectra were recorded using a Shimadzu UV-vis-near IR spectrophotometer (UV-3600). The NMR spectroscopic studies for Sn-SBA-15 samples were carried out on a Bruker Avance III 500 spectrometer.

X-ray photoelectron spectroscopy (XPS) was performed using an XSAM800 spectrometer with an Al K_α (hν = 1486.6 eV) X-ray source; the C 1s binding energy at 284.6 eV was used as an internal standard.

The Sn loadings on the samples were determined using inductively coupled plasma atomic emission spectroscopy (TJA IRIS Advantage spectrometer).

Temperature-programmed H₂ desorption (H₂-TPD) was performed using a Quantachrome Autosorb-1 instrument equipped with a thermal conductivity detector. The catalyst (100 mg) was reduced in situ at 500 ℃ for 1 h under a 10%H₂-90%N₂ mixture at a flow rate of 30 mL/min. The catalyst was cooled to 30 ℃ after saturation with H₂ and then purged for 3 h to remove H₂ in the gas phase. The TPD profiles were recorded from 30 to 800 ℃ at a ramping rate of 10 ℃/min.

Scanning electron microscopy (SEM) was performed using a JEOL JSM-7500F instrument at an applied voltage of 10 kV. Transmission electron microscopy (TEM) was performed using a JEOL JEM 2010 electron microscope operated at 120.0 kV. The samples were suspended in ethanol by ultrasonication. Drops of the suspension were dispersed on a copper grid.

Thermogravimetric analysis (TGA) was performed using a Q500 thermogravimetric analyzer. The samples were heated from room temperature to 750 ℃ in air at a heating rate of 10 ℃/min.

The catalytic performances of the samples were investigated using a quartz-tube fixed-bed reactor. The catalyst (0.2 g) was placed at the center of the reactor and reduced in situ at 500 ℃ for 1 h under H₂. The reaction conditions were 580 ℃, atmospheric pressure, propane:Ar = 7:3 (molar ratio), and propane weight hourly space velocity (WHSV) = 8.25 h^-1. The products were analyzed on-line using a GC-3000B gas chromatography system equipped with a thermal conductivity detector. The propane conversion (X) and the selectivity for propene (S) were defined as follows:

X = (F_{C3H8, in} - F_{C3H8, out}) / F_{C3H8, in} x 100%

S = (F_{C3H6, out} - F_{C3H6, in}) / (F_{C3H8, in} - F_{C3H8, out}) x 100%

where F_{i, in/out} is the flow rate of each component in the feed or effluent.

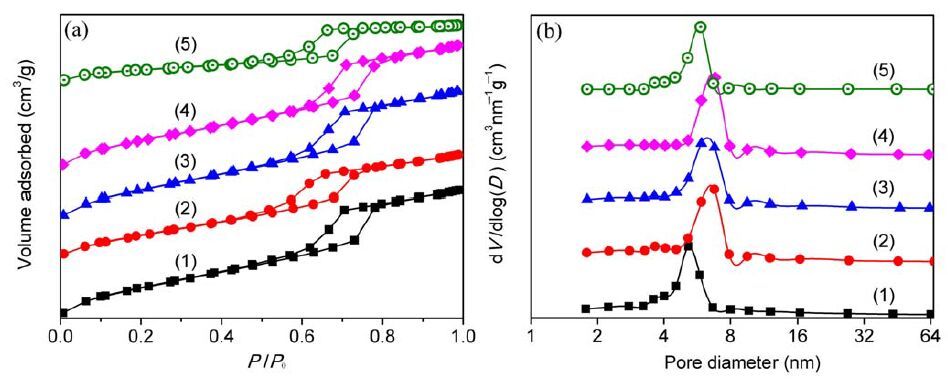

The effects of Sn addition on the pore structure of SBA-15 were determined based on N₂ adsorption-desorption; the results are shown in Fig. 1. The isotherm of SBA-15 was type IV with an H1 hysteresis loop, indicating cylindrical channels, according to the International Union of Pure and Applied Chemistry classification [26, 27]. The shapes of the xSn-SBA-15 isotherms were similar to that of SBA-15, indicating that the characteristics of the mesoporous material were retained. The pore size distributions were homogeneous and concentrated in the range 5-8 nm. The textural properties are summarized in Table 1. The total surface areas and total pore volumes of the samples increased with increasing Sn content in SBA-15. This suggests that SBA-15 contained a considerable amount of micropores, which were generated around the corona of the silica wall [28]. The decrease in the micropore volume was principally caused by micropore plugging by the incorporated Sn.

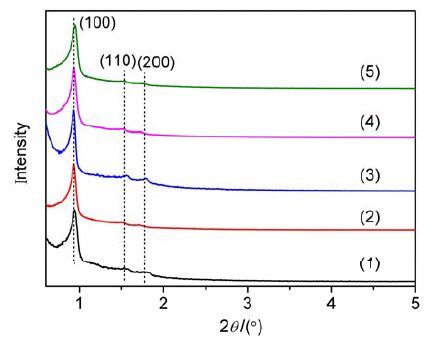

Fig. 2 shows the low-angle XRD patterns of SBA-15 and Sn-modified SBA-15 samples. The patterns for xSn-SBA-15 were similar to that of SBA-15, with three distinct peaks at 2θ = 0.94°, 1.53°, and 1.78°, corresponding to the (100), (110), and (200) reflections, respectively [29]. This shows that the characteristic hexagonal structure was retained in the xSn-SBA-15 samples. The unit cell parameters (a₀) calculated from the d₁₀₀ spacings are listed in Table 1. The unit cell parameter a₀ of SBA-15 was 10.6 nm, and those of the Sn-modified SBA-15 samples were 10.7-10.9 nm.

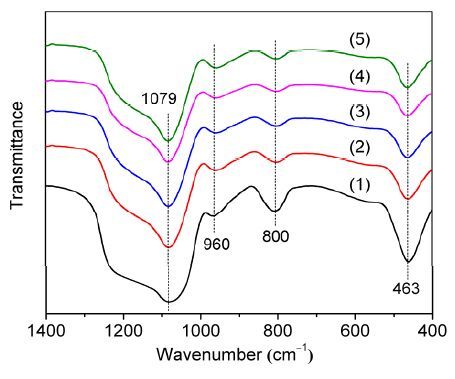

The xSn-SBA-15 structures were investigated using FT-IR spectroscopy; the spectra are shown in Fig. 3. The absorption bands at about 463, 800, and 1079 cm^-1are ascribed to the bending, symmetric stretching, and asymmetric stretching vibrations, respectively, of Si-O-Si bonds [30]. The band at 960 cm^-1 corresponds to the Si-O-H vibration mode [31]. The intensity of the peak at 960 cm^-1 decreased with increasing Sn content, indicating a decrease in the number of silanol groups in Sn-SBA-15 [32, 33]. This can be ascribed to the formation of Si-O-Sn bonds and/or the substitution of tetrahedral Si by Sn in SBA-15.

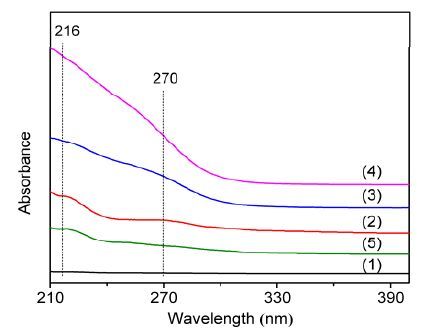

UV-vis diffuse reflectance spectroscopy was used to determine the chemical nature and coordination states of the Sn species in SBA-15; the spectra are shown in Fig. 4. The spectra of the calcined xSn-SBA-15 samples show two absorption bands at 216 and 270 nm. The band at 216 nm arises from ligand-to-metal charge transfer of O-Sn in a tetrahedral (T_d) coordination environment, and the band gap transitions of Sn⁴⁺ ions in an octahedral (O_h) environment are responsible for the band at 270 nm [34, 35]. The absorption peak below 250 nm in the UV-vis spectra shows incorporation of metal atoms into the framework [14]. Fig. 4 shows that the intensity of the absorption band below 250 nm in the spectrum of 0.5Sn/SBA-15-IM is much weaker than that of the corresponding band in the 0.5Sn-SBA-15 spectrum. The intensity of the absorbance at around 216 nm increased with increasing Sn content, suggesting that a substantial fraction of Sn (T_d) was dispersed in the silica matrix. These results confirm the incorporation of Sn species into the silica framework of SBA-15, in agreement with reported results [36, 37].

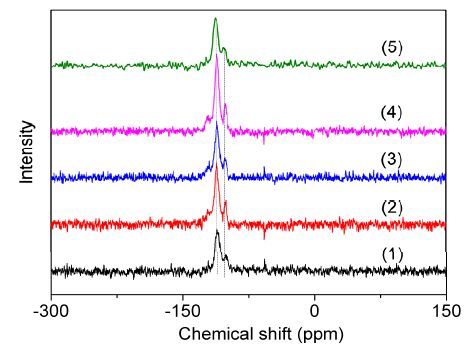

Fig. 5 shows ²⁹Si magical-angle spinning nuclear magnetic resonance (MAS NMR) spectra of the calcined Sn-SBA-15 samples. All the spectra show two lines, with chemical shifts at -110.8 and -101.5 ppm, which can be ascribed to Sn substitution in Si(OSi)₄ (Q₄) and Si(OH)(OSi)₃ (Q₃) environments, respectively [38]. The Q₄/Q₃ ratio increased with increasing Sn content, indicating Sn incorporation adjacent to the SiO₄ tetrahedral units [39]. The Q₄/Q₃ ratio for the 0.5Sn/SBA-15-IM sample was less than that for 0.5Sn-SBA-15, indicating condensation between silanol groups during the formation of Sn-SBA-15. These results show that the Sn⁴⁺species were tightly integrated into the mesoporous silica walls.

The morphologies of SBA-15 and 2Sn-SBA-15 were examined using SEM. Fig. 6 shows that SBA-15 and 2Sn-SBA-15 all consisted of many rope-like domains with uniform relative sizes of ~1 μm. The images in Fig. 6 are similar to those published by Zhao et al. [40]. The similar surface profiles of SBA-15 and 2Sn-SBA-15 indicate that the introduction of Sn did not affect the morphology.

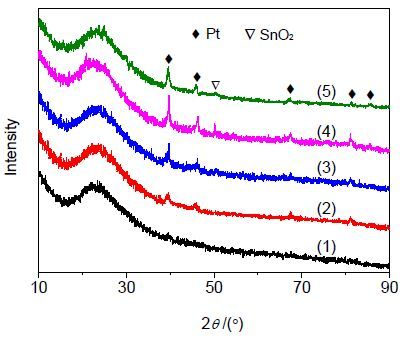

The wide-angle XRD patterns of these materials are shown in Fig. 7. A broad peak at 2θ = 23.5° corresponding to amorphous silica was present in all the patterns. The reflections at 2θ = 39.8°, 46.2°, 67.4°, 81.4°, and 85.7° are attributed to the (111), (200), (220), (311), and (222) planes, respectively, of cubic Pt metal [41]. A reflection at 2θ = 51.7° from SnO₂ was observed for the samples with more than (1-2) wt% incorporated Sn and the 0.5 wt% impregnated sample [42]. This diffraction peak is probably absent from the Pt/0.5Sn-SBA-15 catalyst pattern because of good dispersion of Sn species or the formation of amorphous SnO_x phases. These results indicate that direct synthesis of Sn-modified SBA-15 gave a better distribution of Sn species.

Fig. 8 shows TEM images of the reduced catalysts. The images show that all the samples had well-ordered mesoporous structures, with hexagonally arranged pores, indicating that the samples had the two-dimensional p6mm hexagonal structure [43]. The long-range ordered structure was well maintained without any channel plugging. The simultaneous incorporation of Sn facilitated the distribution of Sn species in the silica framework. The approximate pore size calculated from the TEM images is about 5 nm, which is in good agreement with the N₂ adsorption-desorption results. Fig. 8(b), (c), and (d) show that the supports retained well-ordered mesoporous structures after Pt loading, indicating that these materials had high stabilities. No large metal aggregates were observed on the external surface of the support, suggesting high dispersion of the metal particles on the support.

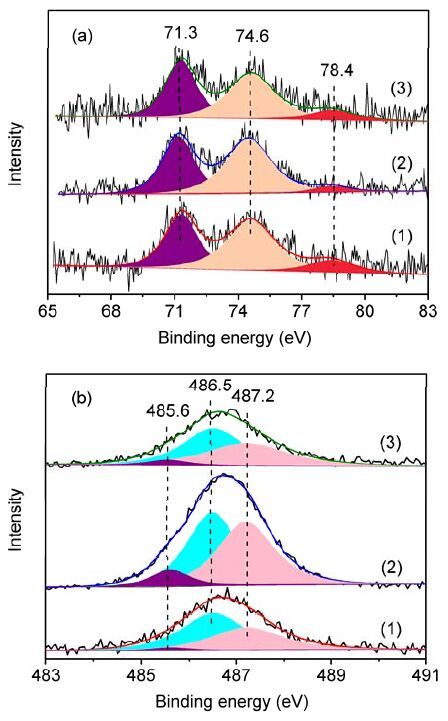

Surface elemental analysis of the catalysts was performed using XPS; the spectra are shown in Fig. 9. Fig. 9(a) shows the Pt 4f XPS profiles. The peaks at 71.3 and 74.6 eV are attributed to Pt⁰, and that at 78.4 eV arises from Pt⁴⁺species [44]. This indicates that Pt species were present in two forms on the reduced catalysts: metallic and oxidized. The data in Table 2 show that incorporation of an appropriate amount of Sn enhanced interactions between Pt species and the support, and these would help to restrain agglomeration of Pt metal particles. However, the proportion of Pt⁴⁺species decreased with increasing Sn loading, suggesting weaker interactions between Pt species and the support.

The Sn 3d_5/2 XPS profiles are shown in Fig. 9(b). Peak resolution gave three peaks at around 485.6, 486.5, and 487.2 eV, which were assigned to different Sn species. The peak at 485.6 eV is associated with the reduced Sn phase, in either the metallic (Sn⁰) or alloyed state [14]. The other two peaks are ascribed to oxidized Sn species, i.e., Sn²⁺and/or Sn⁴⁺, which have similar binding energies [45]. The proportions of Sn⁰species in Pt/0.5Sn-SBA-15, Pt/2Sn-SBA-15, and Pt/0.5Sn/SBA-15-IM catalyst were 3.1%, 8.6%, and 5.2%, respectively (Table 2); most of the Sn species were in the oxidized state. The Sn²⁺/Sn⁴⁺stabilities in Pt/0.5Sn-SBA-15 were better than those in the impregnated Pt/0.5Sn/SBA-15-IM sample, showing that the oxidized Sn species were more difficult to reduce in the former case. It can be concluded that the incorporation of a suitable amount of Sn enhanced interactions between Sn species and the support. The mass percentages of surface Pt and Sn showed that the introduction of Sn using the one-pot method gave better dispersion of Pt and Sn species on the catalyst surface than did the post-processing method [46]. However, an incorporation of an excessive amount of Sn weakened the interactions between Sn species and the support, resulting in an increased amount of metallic Sn.

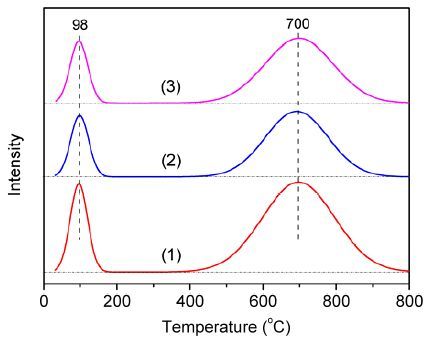

The H₂ adsorption capacities of the catalysts were determined using H₂-TPD; the profiles are shown in Fig. 10. All the catalysts showed two desorption peaks at different temperatures. The low-temperature desorption peak (98 ℃) was assigned to H₂ desorbed from metallic Pt, and the high-temperature (700 ℃) desorption peak was attributed to spillover hydrogen [47]. Table 3 shows the amounts of H₂ desorbed from the catalysts. The data show that Pt/0.5Sn-SBA-15 gave the largest H₂ desorption, especially in the high-temperature range. Metal particle sintering is usually the major cause of decreased H₂ adsorption on metallic Pt [23]. The maximum H₂ desorption capacity was achieved by the Pt/0.5Sn-SBA-15 catalyst, indicating that the Pt metal particles were well stabilized, and that the efficiency of the Sn promoter was better than that of the other catalysts. The generation of spillover hydrogen helps to remove coke from the metal sites to the support surface [48, 49]. However, the total amount of H₂ desorbed declined with increasing Sn content, implying that the metallic Pt nature changed significantly. The one-pot synthesis improved the efficiency of the Sn promoter compared with that achieved using the traditional impregnation method.

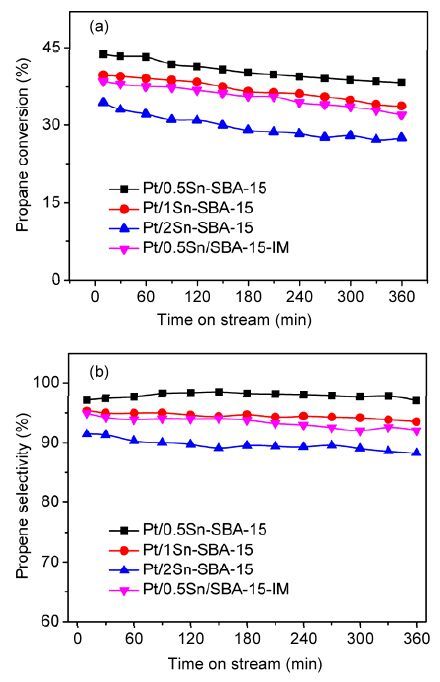

The propane conversions and propene selectivities as functions of time on stream for the catalysts are shown in Fig. 11. The best catalytic performance, with an optimal initial propane conversion of 43.8% and propene selectivity of 98.5%, was achieved with the Pt/0.5Sn-SBA-15 sample. Fig. 11(b) shows that the propene selectivities over the catalysts showed similar trends and remained steady during reaction for 6 h. However, the catalyst with a Sn content of 2 wt% suffered severe deactivation and the propane conversion decreased from 34.4% to 27.5% after 6 h on stream. The catalytic activity and stability of Pt/0.5Sn-SBA-15 were significantly better than those of Pt/0.5Sn/SBA-15-IM because of improved metal dispersion and enhanced interactions among Pt, Sn species, and the support.

Previous discussions suggest that incorporation of an appropriate amount of Sn enhances the interactions among Pt, Sn, and the support, helping to suppress the agglomeration of Pt particles and the reduction of Sn species. Under severe reaction conditions, fast sintering of Pt metal particles occurs easily when interactions between Pt species and the support are weak. This causes rapid hydrogenolysis and a decline in the propene selectivity because this undesired side reaction relies on the presence of large Pt clusters [50]. It has also been proposed that on the surface of a PtSn catalyst, the Pt active sites are present in two forms: M₁ and M₂ sites. M₁ sites are multiple Pt centers generated from Pt directly loaded on the support surface, and Pt particles anchored on the SnO_x surfaces in sandwich structures correspond to M₂ sites [51]. Generally, M₁ sites are responsible for side reactions such as hydrogenolysis and coking, and M₂ sites are the main active sites for propane dehydrogenation [51]. Enhanced interactions between Sn species and the support suppress the reduction of Sn species and stabilize the oxidation states of Sn, and this encourages the development of M₂ sites. In this case, more stable M₂ active sites are present in the Sn-incorporated catalyst and a better catalytic performance is obtained.

Table 4 shows the deactivation parameters for the catalysts after reaction for 6 h. Introduction of an excessive amount of Sn decreased the catalyst stability. The stabilities of the catalysts decreased in the order Pt/0.5Sn-SBA-15 > Pt/1Sn-SBA-15 > Pt/0.5Sn/SBA-15-IM > Pt/2Sn-SBA-15.

The changes in the surface morphologies of the catalysts after the catalytic performance tests were investigated using TEM. Fig. 12 shows that all the samples retained a well-ordered mesoporous structure even after reaction for 6 h. Coke species were found on the surfaces of the spent Pt/2Sn-SBA-15 and Pt/0.5Sn/SBA-15-IM catalysts. No coke species were observed on the spent Pt/0.5Sn-SBA-15 sample, indicating a high anti-coking ability. The metal particles in the spent Pt/0.5Sn-SBA-15 sample were confined in the channels (Fig. 12(a)). Confinement by the mesoporous structure helped to stabilize the metal particles, which enhanced the catalyst stability during propane dehydrogenation [52].

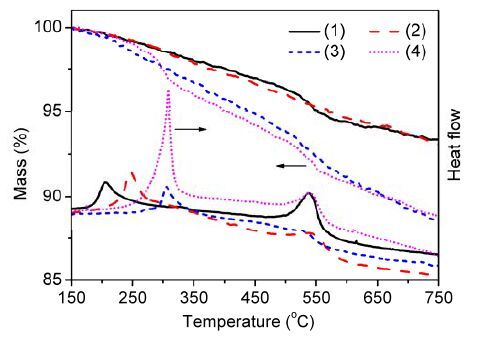

Coke deposition is a major cause of catalyst deactivation during propane dehydrogenation. TGA was used to identify and quantify carbon deposits on the spent catalysts. Fig. 13 shows that there were two successive mass loss regions for the spent catalysts, representing two types of coke deposit. In general, coke precursors are initially generated from the external surfaces of the active metal and then moved to the support, followed by dehydrogenation and condensation [52]. The first mass loss, at 150-400 ℃, is assigned to coke located on the metal surfaces, and the high-temperature mass loss (400-750 ℃) corresponds to coke deposited on the support [23]. The combustion temperature for coke deposited on the metal surfaces of Pt/0.5Sn-SBA-15 was lower than those for coke deposits on the other catalysts. This suggests that incorporation of an appropriate amount of Sn increased activation of coke on the metal sites. The amounts of coke deposited followed the order Pt/0.5Sn-SBA-15 (6.6%) < Pt/1Sn-SBA-15 (6.9%) < Pt/0.5Sn/SBA-15-IM (11.2%) < Pt/2Sn-SBA-15 (11.4%). The coke analysis results are in accordance with the H₂-TPD and XPS results.

Sn-incorporated SBA-15 mesoporous materials with high specific surface areas were prepared by one-pot hydrothermal synthesis. The catalytic performances of these catalysts were compared with that of a catalyst prepared using a conventional impregnation method. The results show that incorporation of Sn species produced strong interactions between Sn species and the support, resulting in large amounts of Sn in a stable oxidized form. The introduction of Sn using the one-pot method also improved the promotion efficiency of Sn compared with that of Sn in the impregnated sample. An excessive amount of Sn weakened the interactions among Pt species, Sn species, and the support, resulting in a decrease in the catalytic activity. The Pt catalysts supported on Sn-incorporated SBA-15 showed excellent catalytic activities and stabilities in propane dehydrogenation. The Pt/0.5Sn-SBA-15 sample showed the best propene selectivity, i.e., 98.5%, with a corresponding propane conversion of about 43.8%, and the lowest deactivation parameter (12.6%) after reaction for 6 h.
