In-situ transformation of Bi2WO6 to highly photoreactive Bi2WO6@Bi2S3 nanoplate via ion exchange
Tingting Huanga, Yuhan Lia,b, Xiaofeng Wua, Kangle Lva, Qin Lia, Mei Lia, Dongyun Dua, Hengpeng Yea
a. Key Laboratory of Catalysis and Materials Science of the State Ethnic Affairs Commission & Ministry of Education, Hubei Province, College of Resources and Environmental Science, South-Central University for Nationalities, Wuhan 430074, Hubei, China;
b. Department of Science and Environmental Studies, The Education University of Hong Kong, Tai Po, N. T., Hong Kong, China
* Corresponding author. Kangle Lv, Tel: +86-27-67841369; Fax: +86-27-67843918; E-mail: lvkangle@mail.scuec.edu.cn;
Mei Li, Tel: +86-27-67842752; Fax : +86-27-67842752; E-mail: limei@mail.scuec.edu.cn
Foundation item: This work was supported by the National Natural Science Foundation of China (51672312, 21571192, 21373275), the Science and Technology Program of Wuhan (2016010101010018, 2015070504020220), the Key Project in the National Science & Technology Pillar Program during the Twelfth Five-Year Plan Period (2015BAB01B01), and the Natural Science Foundation of South-Central University for Nationalities (XTZ15016, CZP17062)
Abstract: As a two dimensional (2D) visible-light-responsive semiconductor photocatalyst, the photoreactivity of Bi2WO6 is not high enough for practical application owing to its limited response to visible light and rapid recombination of photogenerated electron-hole pairs. In this paper, 2D core-shell structured Bi2WO6@Bi2S3 nanoplates were prepared by calcination of a mixture of Bi2WO6 (1.3 g) and a certain amount of Na2S·9H2O (0-3.0 g) at 350℃ for 2 h. The reactivity of the resulting photocatalyst materials was evaluated by photocatalytic degradation of Brilliant Red X-3B (X3B), an anionic dye, under visible light irradiation (λ > 420 nm). As the amount of Na2S·9H2O was increased from 0 to 1.5 g, the degradation rate constant of X3B sharply increased from 0.40×10-3 to 6.6×10-3 min-1. The enhanced photocatalytic activity of Bi2WO6@Bi2S3 was attributed to the photosensitization of Bi2S3, which greatly extended the light-responsive range from the visible to the NIR, and the formation of a heterojunction, which retarded the recombination rate of photogenerated electron-hole pairs. However, further increases in the amount of Na2S·9H2O (from 1.5 to 3.0 g) resulted in a decrease of the photocatalytic activity of the Bi2WO6@Bi2S3 nanoplates owing to the formation of a photo-inactive NaBiS2 layer covering the Bi2WO6 surface.
© 2018, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Bi2S3    Bi2WO6    Ion exchange    Photocatalytic degradation    Nanoplate
离子交换法制备高光催化活性Bi2WO6@Bi2S3异质结纳米片
黄婷婷a, 李雨涵a,b, 伍晓峰a, 吕康乐a, 李覃a, 李玫a, 杜冬云a, 叶恒朋a
a. 中南民族大学资源与环境学院催化材料科学湖北省重点实验室, 湖北武汉 430074;
b. 香港教育大学科学与环境系, 香港
摘要:社会经济快速发展的同时,也带来了日益严峻的环境污染问题.半导体光催化氧化技术因节能环保而在环境领域有广阔的应用前景.作为最具有代表性的半导体光催化材料,TiO2因为其禁带宽度(3.2eV)比较大,只能被紫外光激发,因而对太阳能的利用率较低.作为一种最简单的含铋层状氧化物,Bi2WO6的禁带宽度(2.7eV)相对较小,可以部分利用太阳光中的可见光,因而受到广大研究者的青睐.但是,Bi2WO6光催化材料的可见光响应范围较窄,仅能被波长小于450nm的光激发,且激发后的光生载流子容易复合,导致光催化效率不高.因此,迫切需要对Bi2WO6光催化材料进行结构修饰与改性,采用拓展其光响应范围和抑制载流子复合,来提高其光催化活性. 本文采用离子交换法原位合成了具有核-壳结构的Bi2S3@Bi2WO6纳米片,充分利用Bi2S3优良的可见光响应性能和半导体异质结光催化剂的构建,来提高Bi2WO6的光催化活性.结果表明,随着Na2S·9H2O用量从0增加到1.5g,所得催化剂的光活性不断提高,X3B的降解速率常数由0.40×10-3 min-1增加到6.6×10-3 min-1,催化剂活性提高了16.5倍.当进一步增加Na2S·9H2O的用量时(1.5-3.0g),复合催化剂的光活性下降.这是由于过多Na2S·9H2O的引入导致在催化剂表面生成了没有光活性的NaBiS2层(Bi2S3+Na2S=2NaBiS2),占据了催化剂的活性位点,阻碍了染料分子与催化剂的直接接触.Bi2WO6@Bi2S3异质结纳米片光活性的提高,可归因于Bi2S3的敏化作用极大拓展了复合催化剂的光响应范围;另一方面,Bi2WO6和Bi2S3两者之间的半导体异质结效应有效促进了光生载流子在空间的有效分离,抑制了光生电子-空穴的复合,从而提高了复合催化剂的催化效率.本研究为其他半导体复合材料的原位生长制备提供了新的思路.
关键词Bi2S3    Bi2WO6    离子交换    光催化降解    纳米片

1 Introduction

Recently, photocatalytic degradation of harmful pollutants has become an increasingly important technology for water and air purification [1]. TiO2 is considered to be an excellent photocatalyst because of its biological and chemical inertness, strong photo-oxidization power, cost effectiveness, and long-term stability to photo-induced and chemical corrosion [2]; however, TiO2 has a broad bandgap (3.2 eV for anatase TiO2) and absorbs only a small fraction of solar energy [3, 4]. Considering that UV light constitutes only 3%–5% of the solar spectrum, more efficient photocatalysts, which can be activated both by UV and visible light, are highly desired [5-7].

As one of the simplest Aurivillius oxides with a layered 2D structure, Bi2WO6 nanoplates are notable for their visible-light-response and photocatalytic performance [8-12]. The perovskite-like structure is defined by WO6 units that form a layer perpendicular to the [100] direction and sandwich (Bi2O2)2+ units [13, 14]. These nanoplate materials are usually characterized by high crystallinity and well-defined chemical compositions as well as extremely high anisotropy, with ultrathin plates [8]. However, the photocatalytic activity of Bi2WO6 nanoplates is not yet high enough for practical applications because of the rapid recombination of photogenerated electrons and holes, and the limited visible-light-response range [15, 16]. Unmodified Bi2WO6 nanoplates can only adsorb UV or visible light of wavelengths shorter than 450 nm [17, 18].

To improve the photocatalytic activity of Bi2WO6 nanoplates and/or extend the range of light response, many strategies have been studied, including semiconductor coupling [19], metal/non-metal doping and noble metal deposition [20]. For example, Ge et al. [21] reported a red shift of the light absorption and strong absorbance of visible light region after coupling Bi2WO6 with g-C3N4. The enhancement in the photocatalytic performance of the g-C3N4@Bi2WO6 composite materials was attributed to the combination of polymeric g-C3N4 and Bi2WO6, which improved separation of photogenerated electron-hole pairs [21]. Similarly, our group [3] reported the coupling of Bi2WO6 with TiO2 using a layer-by-layer deposition and calcination strategy. We found that a hybrid coated with four layers of TiO2 (containing 20 wt% TiO2) showed the highest photocatalytic activity, which was 10.45 and 3.20 times as high as that of pure Bi2WO6 and TiO2, respectively. Zhu et al. [22] reported that, doping Bi2WO6 by F resulted in a two-fold increase in the photocatalytic degradation activity of MB under visible-light irradiation (λ > 420 nm). The enhanced photocatalytic activity was attributed to increased mobility of photo-excited charge carriers and a positive shift of the valance band position. Yu et al. [1] reported the fabrication of high visible photoreactive plasmonic Ag and graphene co-modified Bi2WO6 nanosheets, combining the surface plasmon resonance (SPR) effect of Ag and the electronic properties of graphene at the surface of Bi2WO6.

Bismuth sulfide (Bi2S3) has been reported to be a semiconductor with a narrow bandgap of approximately 1.3 eV [12, 23-25], which has been used as a sensitizer because of its ability to absorb visible and even near infrared light [26-28]. Here, we propose a structure of Bi2WO6 nanoplates with a surface layer of Bi2S3 to improve the photoreactivity of the material. Considering that strong interactions between two semiconductors is of great importance for efficient separation of carriers [29], the Bi2S3 was designed to grow on the surface of the Bi2WO6 nanoplate via an in-situ ion-exchange strategy, to form core-shell structured Bi2WO6@Bi2S3 nanoplates (Scheme 1). The effects of the amount of Bi2S3 loading on the structure and photocatalytic activity of the Bi2WO6@Bi2S3 nanoplates were systematically studied.

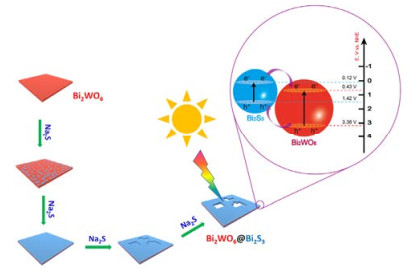

Scheme 1. Proposed formation mechanism of Bi2WO6@Bi2S3 nanoplate via ion exchange and the photoreactivity enhancement mechanism
2 Experimental
2.1 Preparation of Bi2WO6@Bi2S3 nanoplates

All reagents were of analytical purity and were used as received from the Shanghai Chem. Co., China. The Bi2WO6@Bi2S3 nanoplate hybridized photocatalyst was synthesized by an ion exchange strategy using Bi2WO6 nanoplates as a precursor, which were synthesized by a simple hydrothermal process according to the literature [8]. To synthesize the Bi2WO6@Bi2S3 nanoplates, 1.3 g of square Bi2WO6 precursor was added to a beaker containing 40 mL of Na2S∙9H2O solution under magnetic stirring. This mixture was then evaporated to dryness in an oven at 60 ℃ for 4 h. The resulting powder was further calcined at 350 ℃ for 2 h in muffle furnace at a heating rate of 5 ℃ min−1. Afterwards, the obtained samples were rinsed with anhydrous ethanol followed by drying in an oven at 80 ℃ for 2 h. The prepared hybridized photocatalysts are denoted as Sx, where x indicates the amount of Na2S∙9H2O used (0–3.0 g, Table 1). Thus, the S0 sample represents the 350 ℃-calcined Bi2WO6 precursor without treatment by the Na2S solution.

Table 1
Physical property of the photocatalyst
2.2 Characterization

X-ray diffraction (XRD) patterns were obtained on a D8-advance X-ray diffractometer (German Bruker) using Cu Kα radiation at a scan rate of 0.02° s−1. The accelerated voltage and applied current were 15 kV and 20 mA, respectively. The morphology of the catalysts was characterized with a field emission scanning electron microscope (FESEM, S-4800, Hitachi, Japan) operating at an accelerating voltage of 10 kV and a transmission electron microscopy (TEM: Tecnai G2 20, USA) with an accelerating voltage of 200 kV. The optical absorption properties of the samples were investigated through diffuse reflectance spectrum (DRS) with a UV-Vis spectrophotometer (Lambda, Bio 35, PE Co., USA). Powder photoluminescence (PL) spectrum were measured at room temperature on a Fluorescence Spectrophotometer (F-7000, Hitachi, Japan). The excitation wavelength was 240 nm with a scanning speed of 1200 nm min−1 and a PMT voltage of 400 V. The excitation and emission slits were both set to a width of 10.0 nm. The surface photovoltage spectroscopy (SPS) measurements of the samples were performed with a home-built apparatus. The SPS signals reflect the change of the potential barrier of the tested electrode surface in the presence of light and that in the dark. X-ray photoelectron spectroscopy (XPS) measurements were performed using a Multilab 2000 XPS system with a monochromatic Mg Kα source and a charge neutralizer. All the binding energies were referenced to the C 1s peak at 284.4 eV from adventitious carbon. The Brunauer-Emmett-Teller surface area (ABET) of the samples was analyzed by nitrogen adsorption in a Micromeritics ASAP 2020 nitrogen adsorption apparatus (USA).

2.3 Evaluation of the photocatalytic activity

The photocatalytic activity of the as-prepared photocatalyst was evaluated by decomposition of Brilliant Red X-3B dye (X3B) under visible light irradiation at room temperature. The photocatalytic experiments were performed with the sample powder (50 mg) suspended in X3B solution (50 mL, 1.0×10−4 mol L−1) with constant stirring. Prior to illumination, the suspensions were shaken at a constant rate in the dark for 12 h to achieve adsorption-desorption equilibrium. The suspension was then irradiated under a 350 W Xe lamp with a 420-nm cutoff filter. The reaction was performed at room temperature to prevent any thermal catalytic effects. At certain time intervals, 3.0 mL of the suspension was taken and centrifuged to remove the photocatalyst particles. The concentration of dye was monitored by UV-Vis spectroscopy at λ = 530 nm.

2.4 Photoelectrochemical performance

The photocurrents and electrochemical impedance spectroscopy (EIS) of the film electrode were measured on an electrochemical system (CHI-760e, Shanghai, China) with the use of a standard three-electrode cell. The working electrode was composed of a 2 cm × 1.5 cm ITO substrate onto which the sample was deposited, a Ag/AgCl electrode was used as a reference electrode and a platinum wire was used as the counter electrode. The ITO/sample working electrode was prepared by a dip-coating method: 50 mg of the photocatalyst was suspended in 1.0 mL of ethanol, which was then dip-coated onto the ITO glass electrode. The electrolyte was 0.1 mol L−1 Na2SO4. The photoelectric response of the sample was measured with switching of an LED lamp (3 W) emitting mainly at 420±10 nm. The EIS measurements were performed in the dark at open circuit voltage, and a sinusoidal ac perturbation of −0.3 V was applied to the electrode over the frequency range of 0.1–10000 Hz.

3 Results and discussion
3.1 Phase structure and morphology

The phase structure of the prepared photocatalyst was investigated by XRD. Fig. 1 shows that the XRD patterns of precursor (S0 sample) could be indexed to the russellite phase Bi2WO6 (PDF#26-1044) [3]. No impurity diffraction peaks were observed, indicating the high purity of the Bi2WO6 phase. After the treatment with Na2S, the peak intensity corresponding to Bi2WO6 decreased, while some unknown impurity phase was found in the S0.5 and S1.0 samples. These results suggest that a reaction occurred between the Bi2WO6 and Na2S. For the S1.5 sample, we identified the formation of Bi2S3. The reaction between Bi2WO6 and Na2S to produce Bi2S3 proceeded through ion exchange (Eq. (1)):

(1)

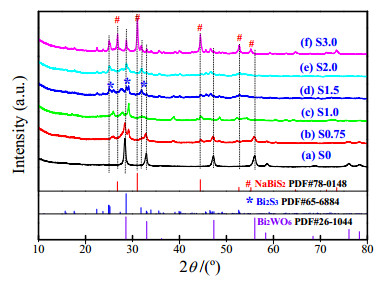

Fig. 1. XRD patterns of the prepared samples

This ion exchange reaction resulted in the transformation of the surface of the Bi2WO6 nanoplates to Bi2S3 to form a core-shell structure of Bi2WO6@Bi2S3. SEM (Fig. 2) and TEM (Fig. 3) images show the plate-like structure of the Bi2WO6@Bi2S3 sample (S1.5). The Bi2S3 layer was produced by in-situ growth at the surface of the Bi2WO6 nanoplate, thus, interactions between the Bi2WO6 core and Bi2S3 shell should be strong. The close proximity of the two semiconductors should be beneficial for efficient separation of photogenerated electron-hole pairs and improve photocatalytic activity [30].

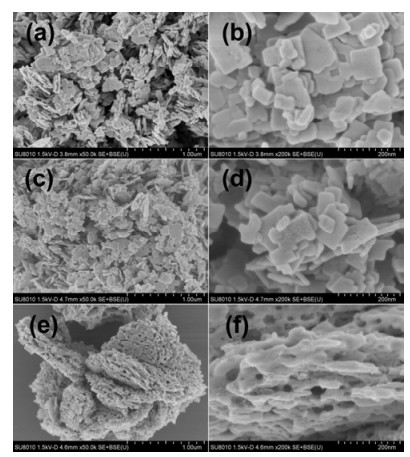

Fig. 2. SEM images of pristine Bi2WO6 (a, b), S1.5 (c, d) and S3.0 (e, f)

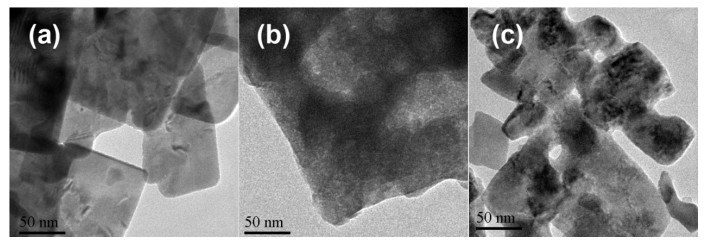

Fig. 3. TEM images of pristine Bi2WO6 (a), S1.5 (b) and S3.0 (c)

The TEM image of the S1.5 sample indicated that some holes formed in Bi2WO6@Bi2S3 nanoplate, which could be attributed to the attack of S2−, which resulted in the dissolution of Bi2WO6 units (Eq. (1)). Further increases of the amount of Na2S∙9H2O to 3.0 g resulted in a sharp diffraction peak emerging at 31° in the XRD patterns of S3 sample, which was identified as NaBiS2. This result indicates that some Bi2S3 was further transformed into NaBiS2 in the high concentration Na2S solution (Eq. (2)), and the S3 sample was a ternary composite of NaBiS2/Bi2S3/ Bi2WO6.

(2)

Fig. 2(e) and (f) show SEM images of the S3 sample, which indicate the formation of a porous structure. The TEM image (Fig. 3(c)) suggests that the S3 sample was an aggregate made up of smaller nanoplates, which resulted in the formation of porous coral-like structures.

Energy-dispersive X-ray spectroscopy (EDS) line scans and mapping analysis were used to study the composition of the photocatalyst. The elemental mapping images (Fig. 4) show that the content of S in the photocatalyst increased in the order: S0 < S1.5 < S3. The EDS elemental mapping results also show that the content of W decreased as the Na2S content of the treatment was increased. These results further indicate that the reactions described by Eqs. (1) and (2) occurred during the preparation of the photocatalyst [31, 32].

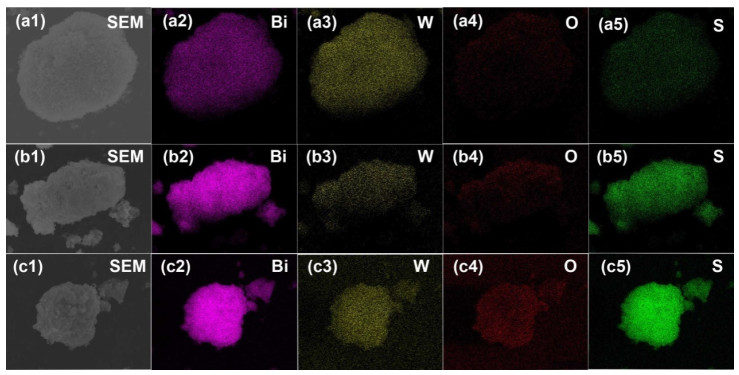

Fig. 4. EDS elemental mapping images of the photocatalysts for pristine Bi2WO6 (a), S1.5 (b) and S3.0 (c) samples
3.2 UV-vis diffuse reflectance spectrum

The UV-vis diffuse reflection spectroscopy (DRS) results of the as-prepared samples are compared in Fig. 5. Consistent with previous reports [33], the onset of the DRS for the pristine Bi2WO6 sample (S0) started at approximately 450 nm, corresponding to a bandgap of 2.76 eV. This reflects the poor visible light harvesting ability of the material. However, the light absorption of Bi2WO6 was greatly enhanced in the visible light region after the sulfur treatment of the surface and even extended to the NIR region (Fig. 5(b)-(f)). This can be attributed to the small bandgap and large absorption coefficient of Bi2S3 [34]. Therefore, the in-situ formed Bi2S3 on the surface of the Bi2WO6 nanoplate can be used as a photosensitizer to excite Bi2WO6, which might enable full use of the solar spectrum.

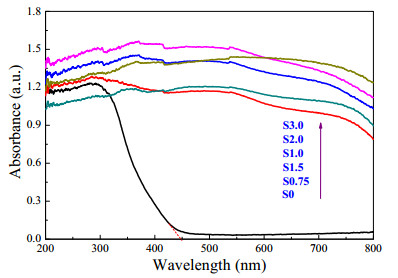

Fig. 5. UV-vis diffuse reflectance spectra of the as-prepared samples
3.3 Photoluminescence and surface photovoltage spectrum

PL analysis is commonly used to analyze the recombination rate of photogenerated electrons and holes in a photocatalyst [35]. Herein, we conducted PL measurements for Bi2WO3 before and after treatment with Na2S. The PL spectra shown in Fig. 6, indicate that the pristine Bi2WO6 (S0) sample possessed the highest light emission intensity among the three photocatalysts. This result also suggests the material has poor photocatalytic activity owing to the rapid recombination rate of carriers. The S1.5 sample exhibited the lowest light emission intensity, which suggests that the recombination of electron-hole pairs was substantially suppressed after deposition of Bi2S3 on the surface of the Bi2WO6 nanoplates. This result is attributed to the formation of a heterojunction between the two semiconductors (Bi2WO6 and Bi2S3), which facilitated efficient separation of photogenerated electrons and holes, retarding the recombination [36]. However, if the concentration of Na2S was too high, the PL intensity started to increase, as for the S3 sample.

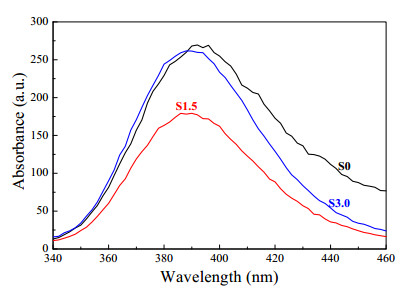

Fig. 6. Room-temperature PL spectra of the as-prepared samples (λex = 240 nm)

SPS was also performed to confirm the separation efficiency of the photogenerated carriers of the photocatalyst. The SPS signal of pristine Bi2WO6 was negligible (Fig. 7), while the S1.5 sample exhibited the strongest SPS response, which was consistent with the PL characterization results (Fig 6).

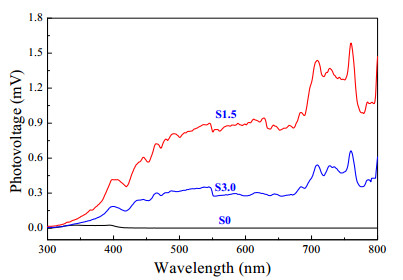

Fig. 7. Comparison of the SPS spectra of pristine Bi2WO6 (S0) and Bi2WO6/Bi2S3 nanoplates (S1.5, S3.0)
3.4 XPS analysis

XPS was used to investigate the chemical states and surface composition of the Bi2WO6@Bi2S3 composite. The XPS survey spectra of the unmodified (S0) and the S-modified Bi2WO6 nanoplate (S1.5) are compared in Fig. 8(a). The unmodified Bi2WO6 nanoplates contained the elements Bi, W, O, and C. The carbon peak was attributed to residual carbon from the precursor solution and adventitious hydrocarbons from the XPS instrument itself [37]. Peaks with binding energies of 164.43 and 159.11 eV corresponded to photoelectron emission from Bi 4f7/2 and Bi 4f5/2 of Bi (Ⅲ), respectively (Fig. 8(b)), while the peaks with binding energies of 37.6 and 35.5 eV were attributed to W 4f5/2 and W 4f7/2 of W (Ⅵ), respectively, (Fig. 8(c)) [38].

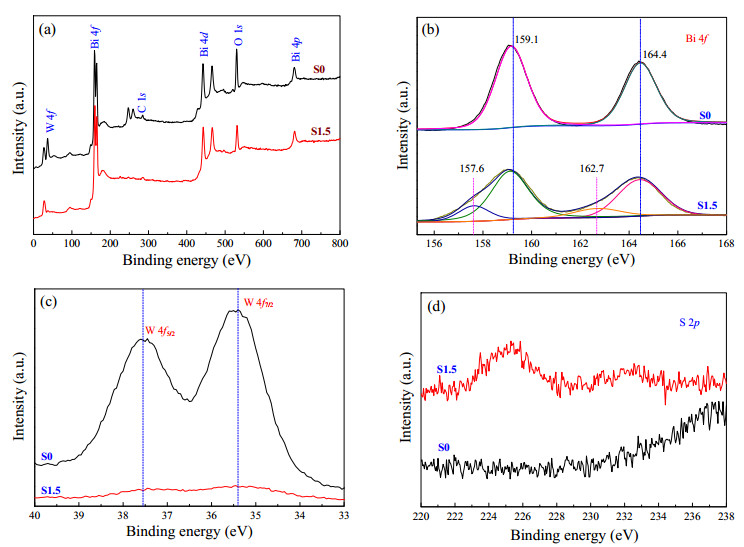

Fig. 8. XPS survey spectra (a) and corresponding high resolution XPS spectra in Bi 4f (b), W 4f (c) and S 2p (d) regions for S0 and S1.5 samples

After the Na2S treatment, the signal from W decreased (Fig. 8(c)), and a weak signal from S was observed in the high resolution XPS spectrum (Fig. 8(d)). The peaks centered at 161.7 and 162.7 eV were attributed to the S 2p3/2 and S 2p1/2 of S2− [39]. In addition, the binding energy of the spin-orbit Bi 4f could be deconvoluted into four peaks after the sulfur treatment. Two new weak peaks centered at 157.6 and 162.7 eV were related to the formation of Bi2S3 in the Bi2WO6@Bi2S3 nanoplates. These results were consistent with the XRD results (Fig. 1), and further confirmed successful substitution of S2− into WO66− through an ion exchange reaction (Eq. (1)).

3.5 Nitrogen adsorption

To determine the BET specific surface area and microstructure of the photocatalyst, nitrogen adsorption-desorption isotherms were measured (Fig. 9). The nitrogen adsorption-desorption isotherms were similar and all possessed type IV isotherms (BDDT classification) with a hysteresis loop at high relative pressures, indicating the mesoporous character of the surface. The shape of the hysteresis loop was of H3 type, suggesting the presence of narrow slit-shaped pores, which are generally associated with plate-like particles [2], agreeing well with the nanoplate morphology of the particles (Figs. 2 and 3).

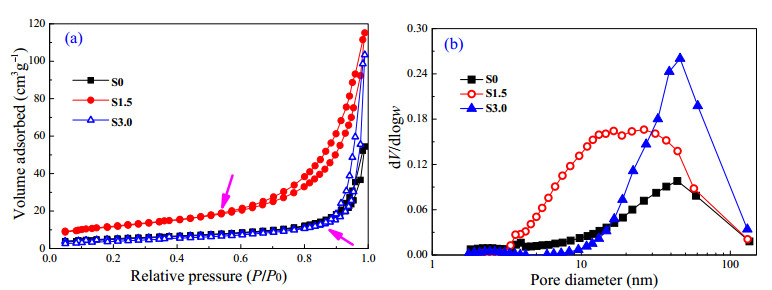

Fig. 9. Nitrogen adsorption-desorption isotherms of the catalysts (a) and the corresponding pore size distribution curves (b). Arrows in (a) indicate the beginning of the hysteresis loop

The adsorption isotherm of the S1.5 sample was shifted upward compared with those of the S0 and S3.0 samples, indicating its larger BET surface area. The BET surface areas of the S0, S1.5 and S3.0 samples were measured to be 18.8, 42.6, and 17.8 m2 g−1, respectively (Table 1). A larger BET specific area suggests that more active sites are available for adsorption and photocatalytic reactions, which might contribute to enhanced photocatalytic activity.

The hysteresis loop of the S1.5 sample begins at a relative pressure of 0.45, while those of S0 and S3 samples begin at higher relative pressures of approximately 0.9, indicating that the S1.5 sample possesses smaller mesopores than those of the S0 and S3 samples. This result was confirmed by the corresponding pore size distribution curves, as shown in Fig. 9(b). The S1.5 sample possesses a larger pore volume (PV) and a smaller average pore size (APS) than those of the S0 and S3.0 samples. The larger PV and smaller APS of the Bi2WO6@Bi2S3 nanoplates can be attributed to the etching of Bi2WO6 by the S2− to form a porous structure (Eq. (1) and Fig. 3).

3.6 Photocatalytic activity

We evaluated the photocatalytic degradation of X3B dye under visible light irradiation. Fig. 10(a) shows that the degradation of X3B was negligible under light irradiation without the addition of photocatalyst (control experiment). The photocatalytic activity of pristine Bi2WO6 (S0 sample) was very poor, owing to its limited response to visible light (Fig. 5) and rapid recombination of photogenerated electron-hole pairs (Fig. 6 and 7). As the amount of Na2S∙9H2O was increased from 0 to 1.5 g, the X3B removal efficiency steadily improved, and the S1.5 sample showed the highest photocatalytic activity among all the photocatalysts. A further increase in the content of Na2S∙9H2O caused the reactivity of the photocatalyst to decrease, likely because of the formation of a photo-inactive NaBiS2 surface layer (Fig. 1), which prevented reactions between the substrate and photocatalyst.

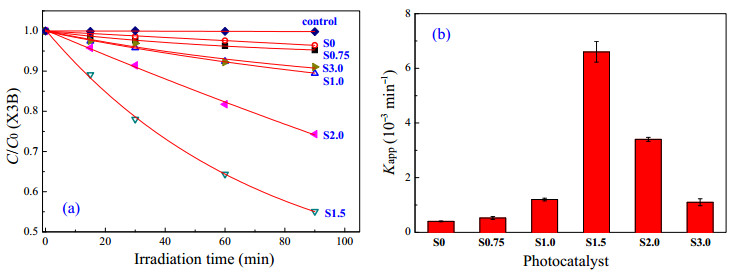

Fig. 10. Photocatalytic degradation profiles of X3B as a function of irradiation time in the presence of different photocatalyst under visible light irradiation (a), and the corresponding rate constants (b)

The degradation profiles of X3B followed pseudo-first-order kinetics, and the related degradation rate constants are compared in Fig. 10(b). The rate constant of the S1.5 sample (6.60×10−3 min−1) was 16.5 times as high as that of pristine Bi2WO6 (0.40×10−3 min−1).

To account for the photocatalytic degradation mechanism of X3B on the core-shell structured Bi2WO6@Bi2S3 hybridized photocatalyst, we performed radical trapping experiments to detect the reactive oxidative species (ROSs) by introducing isopropyl alcohol (IPA), triethonoamine (TEOA), and 1, 4-benzoquinone (BQ) into the degradation system to scavenge •OH, h+, and O2, respectively. After addition of IPA, TEOA, and BQ, the degradation rate constant of X3B decreased from 6.60×10−3 to 3.50×10−3, 1.75×10−3 and 1.03×10−3 min−1, respectively (Fig. 11). Thus, the quenching effect of TEOA and BQ on the degradation of X3B was more pronounced than that of IPA. This result indicates that both h+ and O2•− are the main ROSs responsible for the oxidization of X3B.

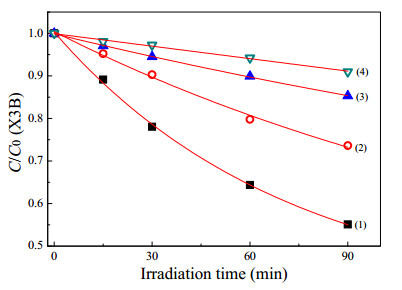

Fig. 11. Effect of scavenger on the photocatalytic degradation of X3B using S1.5 as photocatalyst under visible light irradiation. (1) Without scavenger; (2) Isopropyl; (3) Triethanolamine; (4) 1, 4-Benzoquinone
3.7 Reactivity enhancement mechanism

According to previous reports, the potentials for the valence band (EVB) and conduction band (ECB) of Bi2WO6 are 3.38 and 0.40 V [40], while those for Bi2S3 are 1.42 and 0.12 V, respectively [33]. Therefore, a heterojunction between Bi2WO6 and Bi2S3 is formed owing to their staggered energy potentials (Scheme 1). Under visible light irradiation, photogenerated electrons in the CB of Bi2S3 can transfer to the CB of Bi2WO6, while holes on Bi2WO6 can migrate to the VB of Bi2S3. This semiconductor coupling effect can efficiently improve the separation rate of photogenerated electron-hole pairs to enhance the photocatalytic activity [41].

Fig. 12 compares the photocurrents [42, 43] and EIS responses of the S0, S1.5, and S3 samples. The S1.5 sample featured the largest photocurrent (Fig. 12(a)) and the smallest arc radius in the EIS Nyquist plots (Fig. 12(b)), which further confirmed the efficient separation of photogenerated carriers at the Bi2WO6@Bi2S3 nanoplate owing to the formation of a heterojunction. The enlarged BET surface area and improved light harvesting ability owing to Bi2S3 sensitization should also benefit the photoreactivity of the Bi2WO6@Bi2S3 nanoplate.

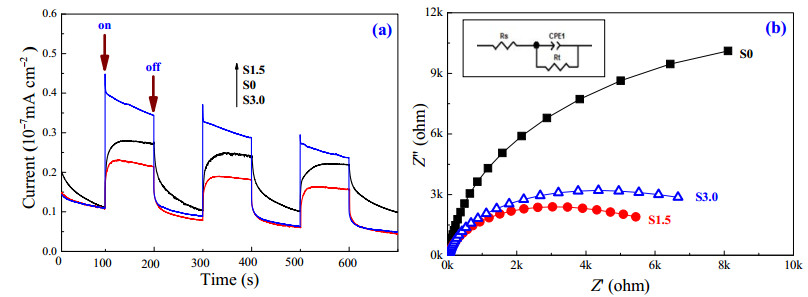

Fig. 12. Comparison of the photocurrent (a) and EIS response (b) of the photocatalysts. Rs: solution resistence; Rt: charge transfer resistence; CPE: constant phase element
3.8 Stability of the photocatalyst

The stability of the photocatalyst is of great importance from the viewpoint of practical applications. Therefore, we studied the reusability of Bi2S3@Bi2WO6 in the photocatalytic degradation of X3B over four consecutive cycles under visible light irradiation, and the results are shown in Fig. 13. It can be seen that the degradation profiles of X3B in the presence of the S1.5 photocatalyst remained almost unchanged from the first to the fourth run, reflecting the good stability of the Bi2S3@Bi2WO6 composite. The high stability of the as-prepared Bi2S3@Bi2WO6 hybrid photocatalyst suggests promise for practical applications.

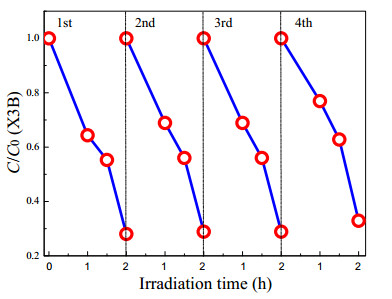

Fig. 13. Photocatalytic degradation profiles of X3B in solution for reusing of Bi2WO6@Bi2S3 photocatalyst for four consecutive runs under visible light irradiation using S1.5 sample as an example. Note that the initial concentration of X3B solution is 0.33×10-4 mol L-1, and the concentration of the photocatalyst is 50 mg in 50 mL X3B solution
4 Conclusions

Bi2WO6@Bi2S3 nanoplates were synthesized by ion exchange between Bi2WO6 and Na2S. The photocatalytic activity of the Bi2WO6@Bi2S3 nanoplates was 16.5 times as high as that of the pristine Bi2WO6. The improved photocatalytic activity of the Bi2WO6@Bi2S3 nanoplates was attributed to the formation of a heterojunction between Bi2WO6 and Bi2S3, which facilitated efficient separation of photogenerated electrons and holes and retarded their recombination. The enlarged BET surface area and photosensitization of Bi2S3 also contributed to the enhancement of photocatalytic activity for the Bi2WO6@Bi2S3 nanoplate hybridized photocatalyst. The present study provides an alternative approach to the design of highly efficient and ultra-stable hybrid photocatalysts.
