Cyclohexene (1) is a cheap, abundant, and easily accessible raw material in industry that is mostly produced through selective hydrogenation of benzene [1-3]. Though simple in its chemical structure, there are two potential oxidation sites in cyclohexene, and the usual oxidation reactions generally lead to a mixture of products with different oxidation states and functional groups (Scheme 1): oxidation of the C=C bond (site a) can lead to 7-oxabicyclo[4.1.0]heptane (2), trans/cis-cyclohexane-1, 2-diol (3), or adipic acid (4); oxidation at the allylic C–H position (site b) may produce cyclohex-2-en-1-ol (5) or cyclohex-2-en-1-one (6). Since these products (2–6) are useful industrial intermediates that have been widely employed in organic synthesis, medicinal chemistry, pesticide chemistry, materials science, etc. [4-7], selective oxidation of cyclohexene to produce one of these chemicals is synthetically valuable for applications in both the academy and industry. Hence, this subject has attracted the interest of synthetic and industrial chemists. In recent years, many reports have appeared for selective catalytic oxidation of cyclohexene. During our own research on green catalysis and synthesis [8-17], we have also been engaged in this area [15-17]. We found that reviews on this subject were rare [18]. Therefore, this short review summarizes the recent advances in this area; the contents are mainly classified based on the chosen oxidants. We hope that this review can provide a useful guide for controllable and selective catalytic oxidation of cyclohexene for interested readers from both the academy and industry.
As an olefin, cyclohexene 1 can be oxidized by stoichiometric KMnO4 under strong acid conditions to produce adipic acid 4 (Eq. (1)). This reaction is well documented in textbooks [19]. Although the reaction provides adipic acid 4, a useful industrial intermediate, in a very high yield, the reaction could not be applied to large-scale production because a large amount of manganese solid waste is generated.
Analogously, other reactions using chemical oxidants that lead to solid waste are less applicable to industrial production, but they have been reported in recent years as an example of alkene oxidation to evaluate the catalyst activity. For example, in 2017, Kim et al. [20, 21] designed and prepared nickel complexes 7 and 8 (Fig. 1), which were efficient catalysts in alkene oxidation reactions. Catalyzed by Ni(dpaq)Cl (7), cyclohexene could be oxidized by m-chloroperoxybenzoic acid (m-CPBA) to give epoxide 2 in 40% yield, while generating allylic oxidation byproducts 5 and 6 (Eq. (2)) [20]. Dinuclear Ni complex 8 was an even better catalyst, affording 2 in an enhanced yield of 65%, and the generation of allylic oxidation byproducts 5 and 6 was further restrained (Eq. (2)) [21]. Similarly, the oxidation reactions of cyclohexene by m-CPBA were also employed to evaluate the catalytic activities of cobalt complexes by the same group [22, 23].
Hypervalent iodine compounds are also popular oxidants in organic reactions, including the epoxidation of cyclohexene. For example, in the presence of the iron tris(pentafluorophenyl)corrole complex [FeⅢ(TPFC)], cyclohexene was oxidized by a slight excess of (diacetoxyiodo)benzene to produce epoxide 2 at an excellent yield (Eq. (3)). The reaction was impressively fast and it finished within 10 min under mild conditions [24]. Besides Fe [24, 25], the oxidation reaction of cyclohexene by hypervalent iodine reagents was catalyzed by complexes of other transition metals, such as Cu and Mn, and was reported as an example for substrate extension of the alkene oxidation reactions [26, 27].
t-BuOOH is cleaner than other chemical oxidants (e.g., metal salts/oxides, MCBPA, or PhI(OAc)2) because the reduction by-product of this reagent is t-BuOH, a small organic molecule without hazardous elements (e.g., Cl, Br, and S) that can be easily removed by distillation and recycled or eliminated by incineration. Therefore, oxidation methods with t-BuOOH as the oxidant are more acceptable for industrial production, regardless of cost. There have been many examples of cyclohexene oxidation using t-BuOOH as the oxidant.
In 2002, Corey et al. [28] reported Pd-catalyzed selective allylic oxidation reactions of cyclohexene with t-BuOOH, in which the reaction selectivities were controlled by the catalyst system: The Pd/C-catalyzed reaction afforded cyclohex-2-en-1-one 6 in a 79% yield (Eq. (4)); interestingly, with the Pd(OAc)2 catalyst and BINAP ligand, allylic tert-butylperoxy ether 9 was obtained as the major product (Eq. (5)). The reactions have been successfully applied on a series of cyclic, chained, aromatic, or aliphatic alkene substrates and should occur via a t-BuOO-free radical-mediated mechanism under basic conditions [28]. Copper-catalyzed allylic oxidation of cyclohexene by t-BuOOH was also investigated, and CuCl2/L-proline was shown to be a good catalyst system in water, affording the full conversion of cyclohexene and a very high cyclohex-2-en-1-one 6 selectivity at 92% [29].

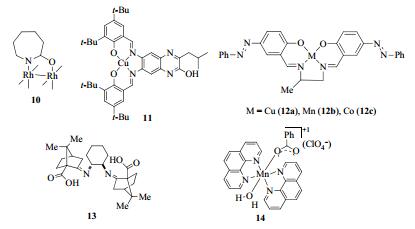

Besides the conventionally employed metal catalyst/ligand systems, a series of novel metal complex catalysts or ligands has been developed to achieve controllable and selective catalytic oxidation reactions with t-BuOOH (Fig. 2). Table 1 summarizes several typical examples. In 2004, Doyle et al. [30] reported a dirhodium caprolactamate catalyst 10 (Fig. 2), which was efficient for allylic oxidation of cyclic alkenes and could produce cyclohex-2-en-1-one 6 in more than 60% yield from cyclohexene (Table 1, entry 1). Later, Gorden et al. [31] developed copper complex 11 (Fig. 2) to catalyze the allylic oxidations with t-BuOOH and produce cyclohex-2-en-1-one 6 in 74% GC yield form cyclohexene. The reactions employed a reduced amount of oxidant and were conducted in a non-halogen solvent (Table 1, entry 2). Metal-Schiff base complexes 12a–c could also catalyze the oxidation of cyclohexene by t-BuOOH (Fig. 2) [32]. Catalyzed by 12a, the reaction afforded 6 in 87% yield, while cyclohex-2-en-1-ol 5 was also generated in 6% yield (Table 1, entry 3). The yield of 6 decreased when 12b was used as the catalyst because of the enhanced generation of 5 in 16% yield and other by-products in 27% yield (Table 1, entry 4). Co-Schiff base complex 12c was a favorable catalyst, quantificationally affording 6 (Table 1, entry 5). Using a cyclohexane-1, 2-diamine-derived nitrogen bidentate ligand 13, the catalytic activity of Mn was enhanced and could quickly produce 6 in more than 85% yield in dichloromethane (DCM, Table 1, entry 6) [33]. The Mn complex 14 was easily synthesized from Mn(ClO4)2 with 1, 10-phenanthroline and benzoic acid, and it could catalyze the oxidation of cyclohexene by t-BuOOH to produce cyclohex-2-en-1-one 6 in 76% GC yield (Table 1, entry 7) [34].
The reactions were also catalyzed by the supported/heterogeneous catalysts (Table 2). The product selectivity was determined by the catalyst reaction site. Different from transition-metal-catalyzed reactions, the reactions over the acid site generate C=C oxidation products, such as epoxide 2 and diol 3. Catalyzed by the new mesoporous titanosilicate MCM-36 material [A-40Si/Ti-MCM-36(E)], the reaction produced epoxide 2 in 58% yield (Table 2, entry 1) [35]. Ti in the catalyst was the active acid site of the reaction. The Al content in the catalyst largely affected the reaction. The strong Al acid sites could decompose the t-BuOOH oxidant and restrain the reaction. For example, cyclohexene was completely unconverted when using the high Al content catalyst AP-Si/Ti-MCM-36, but with A-Si/Ti-MCM-36, which had a lower Al content, it was converted in 38% yield and gave 2 and 3 with a high total selectivity (Table 2, entries 2 and 3) [36]. Different from Ti, the molecular sieve-supported Cr catalyst (Cr-MCM-48) was more effective for allylic C-H oxidation and provided cyclohex-2-en-1-one 6 as the major product (Table 2, entry 4) [37]. Easily prepared and separated Fe3O4 magnetic nanoparticles (MNPs) could also catalyze the oxidation under solvent-free conditions and produced 6 in a good isolated yield (Table 2, entry 5) [38]. The reaction catalyzed by nano-CuO provided a good cyclohexene conversion and cyclohex-2-en-1-one 6 selectivity, and the catalyst was further improved when supported on halloysite nanotubes (HNTs), affording cyclohex-2-en-1-one 6 in an excellent yield (Table 2, entries 7 vs. 6) [39]. Cobalt(Ⅱ) alkyl phosphonate-modified silica (CoEPS3) was a nice catalyst for allylic C-H oxidation with t-BuOOH and produced 6 in a very high isolated yield (Table 2, entry 8) [40]. Ag-doped vanadium phosphorus oxide (Ag-VPO) was also a good allylic C-H oxidation catalyst that led to a high reaction conversion and selectivity (Table 2, entry 9) [41]. The catalyst could be recycled and reused without deactivation (Table 2, entry 10) [41]. Au-catalyzed reactions were also investigated, and the catalyst was supported on silica monolith microreactors. After thiol modification, both the cyclohexene convention and hex-2-en-1-one 6 selectivity were largely improved (Table 2, entries 12 vs. 11) [42]. The reactions were tested with H2O2 as a cleaner oxidant, but the cyclohexene conversion dramatically decreased (3% vs. 18% with t-BuOOH) [42]. Besides traditional catalysts, the reactions with novel catalytic materials, such as metal-organic frameworks (MOFs) or graphitic carbon nitride (g-C3N4)-supported nanoparticles (NPs), have drawn much attention in recent years [43-46].
Hydrogen peroxide is a common oxidant. It affords no waste other than water after the reaction, and it is cheaper than t-BuOOH. Therefore, from an industrial viewpoint, H2O2 is a good oxidant because of its green features and low cost. In the field of cyclohexene oxidation, reactions with H2O2 as the oxidant have received comprehensive attention. A series of metal catalysts, including W, Mn, V, Cr, Co, Fe, Cu, Ni, Bi, Os, and rare metals, have been applied. Metal-free catalysts, such as organocatalysts, are also effective for the transformation.
Tungsten-catalyzed oxidation of cyclohexene is of great value for industrial applications because it is inexpensive and offers a high product yield. Catalyzed by H2WO4 and in the presence of H3PO4 and a phase-transfer agent (PTA), the oxidation of cyclohexene with H2O2 led to trans-diol 3 in excellent yield (Table 3, entry 1) [47]. Notably, with the same catalyst system and oxidant, the diol could be further oxidized to adipic acid 4, which is a very useful intermediate in nylon-66 production [47]. The sandwich-type polyoxometalate (POM) tungsten catalysts were designed and tested for cyclohexene oxidation: For example, catalyzed by TBA10[Zn4(PW9O34)2], the oxidation of cyclohexene with H2O2 led to epoxide 2 as the major product at 50 ℃ (Table 3, entry 2) [48]. The reaction selectivity was dramatically enhanced by decreasing the reaction temperature, albeit with a decreased cyclohexene conversion ratio (Table 3, entry 3) [48]. The POM-based stable polymeric hybrid POSS-OIM8-PW could be prepared using polyhedral oligomeric vinylsilsesquioxanes (POSSs) and ionic liquids (ILs) bearing hydrophobic alkyl chains as the building blocks, followed by ion exchange with Keggin-type phosphotungstic acid (PW), and it possessed good catalytic activities to produce epoxide 2 (Table 3, entry 4) [49]. The recyclable heterogeneous catalytic assembly of [PO4{WO(O2)2}4]3– in the IL brush was also developed to produce diol 3 in almost quantitative yield (Table 3, entry 5) [50].

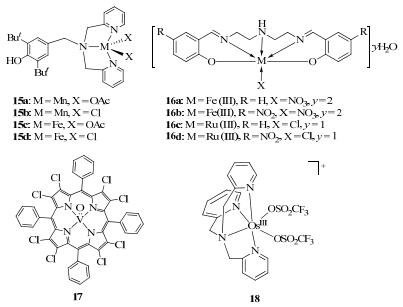

Manganese catalysts were also employed in the oxidation of cyclohexene by H2O2. Gültekin et al. [51] found that, with a 0.5 equivalent of KMnO4, the oxidation reaction of cyclohexene by H2O2 afforded diol 3 in 95% yield at 0 ℃ in N2 (Table 3, entry 6). The product yield decreased at room temperature or without N2 protection, and the manganese oxide NPs generated in situ were likely the catalytic species [51]. Louloudi et al. [52] developed Mn-non-heme catalysts 15a–b for the epoxidation of cyclohexene with H2O2, which was much more active than homologous Fe catalysts 15c–d (Fig. 3 and Table 3, entries 7 and 8 vs. 9 and 10). The supported Mn complexes were reported as heterogeneous catalysts by the same group the next year [53, 54]. Godhani et al. [55] designed and prepared a series of Schiff base-coordinated Fe and Ru complexes 16a–d for cyclohexene oxidation with H2O2 (Fig. 3), and the Ru complexes were better catalysts than the Fe complexes (Table 3, entries 13 and 14 vs. 11 and 12). The complexes could be uploaded onto zeolite-Y to develop recyclable heterogeneous catalysts [55]. Electron-deficient nonplanar β-octachlorovanadylpor-phyrin 17 (VOTPPCl8) was an efficient catalyst for cyclohexene epoxidation with H2O2, giving an almost quantitative yield of 2 with a full conversion of cyclohexene (Table 3, entry 15) [56]. The dioxidovanadium(V) complexes with thiazol-hydrazone as the NNN-donor ligands for cyclohexene epoxidation were also reported [57]. Like Fe and Ru, the V complexes could be uploaded onto zeolite-Y to fabricate recyclable and reusable heterogeneous catalysts [58].
Cr-catalyzed cyclohexene oxidation with H2O2 occurred at the allylic C–H site. When catalyzed by the Cr-MCM-41 mesoporous molecular sieves, cyclohex-2-en-1-one 6 was exclusively produced (Table 3, entry 16) [59]. The cyclohexene conversion ratio was enhanced using mesoporous zirconium phosphate (mZrP) as the support (Table 3, entry 17) [60]. The silica-supported Cr complexes as heterogeneous catalysts were also reported in the field, and both 5 and 6 were generated simultaneously [61]. By introducing cobalt, the silicate intercalated cobalt chromium-hydrotalcite catalyst (CoCr-HTSi2) enhanced the conversion ratio of cyclohexene but reduced the selectivity of 6 (Table 3, entry 18) [62]. Indeed, Co could catalyze the reaction independently. For example, in 2008, Clark et al. [63] reported microwave-assisted oxidation of cyclohexene with H2O2 catalyzed by a supported Co complex (Co-salen-SBA-15). The oxidation process could be controlled to selectively produce 2, 5, or 6 using different reaction conditions (Table 3, entry 19) [63]. Tong et al. [64] reported cerium-doped cobalt ferrite nanocrystals (CFO-Ce0.3) for cyclohexene oxidation, which produced 5 and 6 as the major products, and about half of the cyclohexene was converted (Table 3, entry 20). A magnetic Co material was also developed to easily recycle the catalyst [65].
OsO4 is an efficient oxidant that can lead to cis-diol in very high yield in an alkene oxidation reaction. However, because of its high price and toxicity, the application scope of this reaction is limited to large-scale production when using a clean oxidant with OsO4 as the catalyst instead of the oxidant. In 2006, a recyclable and reusable microencapsulated OsO4 catalyst (MC-OsO4) was invented, which could catalyze the oxidation reaction of cyclohexene with H2O2 to produce diol 3 in 96% isolated yield (Table 3, entry 21) [66]. Sugimoto et al. [67] designed a series of macrocyclic Os complexes, such as 18 (Fig. 3), that could catalyze the reaction to produce cis-diol 3 in excellent yield (Table 3, entry 22). These complexes are so active that the catalyst turnover number (TON) can be up to 5500 [68]. Hydrotalcite-and dendrimer-supported Os catalysts were also developed [69-72]. Besides the above examples, other transition metals, such as Mo [73], Cu [74-76], Ni [77], Bi [78, 79], Ti [80], and rare earth metals [81-83], could also catalyze the oxidation reactions of cyclohexene with H2O2 as the oxidant.
The reaction was also catalyzed by non-metal catalysts. In 2003, Sato et al. [84] reported that the oxidation of cyclohexene with H2O2 and catalyzed by immobilized sulfonic acid produced trans-diol 3 in 98% yield. The method did not require any organic solvents or metal catalysts, and thus was very clean for large-scale applications [84]. Latter, Afonso et al. [85] investigated the catalytic activities of a series of Brønsted acids in the dihydroxy reaction of cyclohexene to trans-diol 3, and p-toluenesulfonic acid was identified as the best catalyst, affording 3 in up to 98% yield. Organocatalysis afforded much milder reaction conditions for the transformation, and Kokotos et al. [86] found that H2O2 could oxidize alkenes to produce diols when catalyzed by 2, 2, 2-trifluoroacetophenone. In cyclohexene oxidation, trans-diol 3 was produced in 96% yield.
We found that organoselenium compounds were good catalysts for cyclohexene oxidation with H2O2 to produce trans-diol 3. Catalyzed by (PhSe)2, the reaction at 30 ℃ led to 3 in 96% yield after 42 h [15]. The reaction was accelerated using [3, 5-(CF3)2C6H3Se]2 as a catalyst, and it was completed within 3–5 h [16]. Immobilizing the Se catalyst onto the polymers facilitated the recovery process of the catalyst and reduced the amount of H2O2 because the highly active hexavalent Se species could be well stabilized on polymers to catalyze the reaction more efficiently. The reaction could even use air as the independent oxidant to produce 3 in 18% yield [17].
Although H2O2 is a green oxidant that produces no waste other than water, it is an explosive chemical that may be very dangerous for large scale production. Moreover, the price of H2O2 is somewhat high for producing basic chemicals. Therefore, for a long period, much attention has been devoted to developing cyclohexene oxidation reactions using molecular oxygen as a cheap and safe oxidant.
Early in 1993, Alper et al. [87] reported a CoCl2-catalyzed, N-methylpyrrolidinone (NMP)-assisted allylic oxidation of cyclohexene with molecular oxygen to produce cyclohex-2-en-1-one 6 in 66% yield (Table 4, entry 1). The reaction could be improved using a Co-based IL {[C10mim] [Co(F6-acac)3]} (Table 4, entry 2) [88]. The reaction with the cobalt-L-glutamic acid complex catalyst led to an 83% cyclohexene conversion and generated 2, 5, and 6 in 93% total selectivity (Table 4, entry 3). In the process, the amino acid-coordinated Co(Ⅱ) was first oxidized by O2 to generate Co(Ⅲ)OO species, which oxidized the allylic C-H of cyclohexene to produce the allylic peroxide alcohol. The reaction of peroxide alcohol with another molecule of cyclohexene afforded epoxide 2 and allylic alcohol 5, which could be further oxidized to allylic ketone 6 [89]. Catalyzed by g-C3N4-supported Co, 56% of cyclohexene was converted in the oxidation reaction, and 5 and 6 were obtained in 23% and 72% selectivities, respectively (Table 4, entry 4) [90]. By doping Fe into the catalyst (Fe/Co = 5/1), the generation of 5 was depressed to give 6 with an excellent selectivity, albeit with a decreased cyclohexene conversion ratio (Table 4, entry 5) [90]. Nam et al. [91] designed and prepared an Fe(V)-oxo complex 19 (Fig. 4), which could catalyze the cyclohexene oxidation reaction in the O2-saturated MeCN solvent to produce 6 exclusively (Table 4, entry 6). The catalyst amount and cyclohexene initial concentration were key factors to control the reaction product selectivity [91]. The Fe complex of meso-tetrakisphenyl porphyrin was a good catalyst for allylic oxidation with molecular oxygen in the presence of chloramine-T; although the reactions of some substrates, such as tertralin, diphenyl methane, and 9H-fluorene, afforded the related ketones in good yields (>80%), the oxidation of cyclohexene produced 6 in only 52% yield (Table 4, entry 7) [92]. Nickel complexes, such as Schiff base-coordinated Ni 20 (Fig. 4), also served as active catalysts in cyclohexene oxidation with molecular oxygen to produce 5 and 6, while 49% of cyclohexene was converted (Table 4, entry 8) [93]. By binding complex 20 onto multi-wall carbon nanotubes (MWNTs), both the cyclohexene conversion ratio and the alcohol selectivity were enhanced (Table 4, entry 9) [93].
Coinage metals, such as gold, silver, and copper, were also employed in the reactions. Au NPs on silica (np-Au-silica) as a catalyst led to excellent conversion of cyclohexene to produce 5 (3% selectivity) and 6 (97% selectivity), while no other by-products were detected (Table 4, entry 10) [94]. The nanoporous Au with minor Ag content could also catalyze the reaction, albeit with a decreased cyclohexene conversion and product selectivity (Table 4, entry 11) [95]. Catalyzed by Ag NPs on MCM-41, more than 99% of the cyclohexene was converted to produce 2, 5, and 6 in an excellent total selectivity of 96% (Table 4, entry 12). The reaction was initiated by catalytic t-BuOOH [96]. Since copper is much cheaper than gold and silver, using the Cu catalyst largely reduces the cost and is of great industrial application meanings. In 2016, Calvete et al. [97] developed a magnetically recyclable Cu porphyrinic catalyst (BNO2-Cu-TDCPP) for the reaction, affording 5 and 6 (Table 4, entry 13). The magnetically recoverable CuO NPs could also catalyze the reaction with an enhanced cyclohexene conversion and allylic oxidation product selectivity (Table 4, entry 14) [98]. Using recyclable copper catalysts with an imidazole salt tag (e.g., [Cu-imace-H-H] [BF4]), 99% of the cyclohexene was converted to produce epoxide 2 as the overwhelming major product (Table 4, entry 15). The reaction employs an extremely low amount of the catalyst (part per million level) and thus results in a very high TON of the catalyst [99].
The reaction catalyzed by the magnetically recoverable Mn-porphyrin catalyst also led to epoxide 2 as the major product, while 98% of cyclohexene was converted (Table 4, entry 16) [100]. Differently, reacting with the Mn-containing hollow framework catalyst was predominant via the allylic oxidation route (Table 4, entry 17) [101]. Catalyzed by an ultrathin (0.8 nm) sheet mediated uniform CdS flowers, only 6 was produced, while 75% of cyclohexene was converted (Table 4, entry 18) [102]. A TiO2-supported Mo-complex-catalyzed photo reaction afforded epoxide 2 as the major product, and the catalyst was recovered without deactivation (Table 4, entries 19 and 20) [103].
Non-transition-metal-catalyzed oxidations of cyclohexene with molecular oxygen were also reported. In 1980, Tempesti et al. [104] found that cyclohexene was oxidized to 6 (catalyzed by KOAc and induced by SO2) in 67% yield under pressured O2 (10 atm) and N2 (100 atm) (Table 5, entry 1). The reaction was also catalyzed by N-hydroxyphthalimide (NHPI) with alkaline-earth chlorides, such as MgCl2 (Table 5, entry 2) [105]. The g-C3N4/NHPI system-catalyzed reaction at 130 ℃ to produce 6 was also reported (Table 5, entry 3) [106]. Irradiated by visible light, the reaction could smoothly occur at 60 ℃ at an elevated cyclohexene conversion (Table 5, entry 4), and the catalyst could be recycled and reused at least three times (Table 5, entry 5) [107]. The carbon nanodot-doped g-C3N4 catalyst was recently reported for the reaction to produce 6 [108]. Reactions catalyzed by nitrogen-doped carbon nanotubes were also investigated, but led to 2, 3, 4, and 5 in poor selectivities, while 3-hydroperoxycyclohex-1-ene was obtained as the major product [109].
In summary, the selectivity of the oxidation reaction of cyclohexene can be affected by the catalyst and reaction conditions, such as the solvent, temperature, catalyst loading, and oxidant. By evaluating these parameters and optimizing the reaction conditions, the oxidation of cyclohexene might be controlled to occur at its allylic C–H site or C=C bond site, which would then lead to selective production of 7-oxabicyclo[4.1.0]heptane 2, trans/cis-cyclohexane-1, 2-diol 3, adipic acid 4, cyclohex-2-en-1-ol 5, or cyclohex-2-en-1-one 6 as the major product. Various oxidants, such as t-BuOOH, H2O2, or molecular oxygen (O2), can be employed as the oxidant of the reaction. Among the oxidants, O2 (or even air) is clearly the most ideal oxidant for the reaction because of its low cost, practicality in use, and waste-free feature (i.e., generating water as the only byproduct). However, this area is still rapidly developing. More novel and practical new techniques, such as electrocatalytic methods [110, 111], have recently emerged as a new selective methods in this area.
