Fe-TiO2 and Fe2O3 quantum dots co-loaded on MCM-41 for removing aqueous rose bengal by combined adsorption/photocatalysis
Guoqiang Shena,b,†, Lun Pana,b,†, Zhe Lüa,b, Chongqing Wanga,b, Fazal-e-Aleemc, Xiangwen Zhanga,b, Ji-Jun Zoua,b
a. Key Laboratory for Green Chemical Technology of the Ministry of Education, School of Chemical Engineering and Technology, Tianjin Unviersity, Tianjin 300072, China;
b. Collaborative Innovation Center of Chemical Science and Engineering(Tianjin), Tianjin 300072, China;
c. Department of Physics, The University of Lahore, Lahore 54600, Pakistan
* Corresponding author. Xiangwen Zhang, Tel/Fax: +86-22-27892340; E-mail: zhangxiangwen@tju.edu.cn;
Ji-Jun Zou, Tel/Fax: +86-22-85356969; E-mail: jj_zou@tju.edu.cn
The authors contributed equally to this work
Foundation item: This work was supported by the National Natural Science Foundation of China (21506156, 51661145026, 21676193), the Tianjin Municipal Natural Science Foundation (15JCZDJC37300, 16JCQNJC05200), and the Pakistan Science Foundation (PSF/257NSFC-Eng/P-UoL (02))
Abstract: Adsorption and photodegradation are promising approaches for removing organic pollutions. In this study, we combined these two processes by co-loading Fe-TiO2 and Fe2O3 quantum dots (QDs) on porous MCM-41, using a simple hydrolysis method. X-ray diffraction, high-resolution transmission electron microscopy, and X-ray photoelectron spectroscopy results indicated that Fe-TiO2 QDs are formed at low Fe precursor concentrations, while additional Fe2O3 QDs are formed at higher Fe precursor concentrations. The Fe2O3 and Fe-TiO2 QDs impart high adsorption capacity and high photoactivity to the porous MCM-41, respectively. Thus, their combination results in a synergic effect of the adsorption and photodegradation. The highest-performing sample exhibits excellent performance in removing rose bengal from aqueous solution.
© 2018, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Quantum dot    Titania    Ferric oxide    Photocatalysis    Adsorption
Fe掺杂TiO2和Fe2O3量子点共负载催化剂:吸附与光催化协同作用高效降解有机染料
沈国强a,b,†, 潘伦a,b,†, 吕哲a,b, 王重庆a,b, Fazal-e-Aleemc, 张香文a,b, 邹吉军a,b
a. 天津大学化工学院, 绿色合成与转化教育部重点实验室, 天津 300072, 中国;
b. 天津化学化工协同创新中心, 天津 300072, 中国;
c. 拉哈尔大学物理系, 巴基斯坦
摘要:光催化作为节能、清洁的环境处理技术,被广泛应用于污染物处理领域,如室内气体净化、尾气VOCs处理和水体有机污染降解等.在众多光催化剂中,TiO2以其良好的化学稳定性、无二次污染、无刺激性和安全无毒等优势得到广泛研究.然而TiO2是宽禁带材料,仅能吸收太阳光谱的紫外光部分,通常需要用紫外光源来激发,光生电子-空穴易复合,这限制了其应用.过渡金属离子掺杂能在TiO2价带之上形成新的掺杂能级,从而提高其光谱响应范围,提高全光谱反应活性;与体相TiO2相比,纳米尺寸的TiO2具有更高的光催化活性,尤其小于10nm的量子点尺寸TiO2有着高活性面积、较短的光生电子-空穴迁移路径和独特的量子尺寸效应;Fe2O3作为吸附材料与TiO2构建复合材料能够发挥吸附与光催化协同作用,从而提高污染物处理效率. 我们以构建Fe掺杂TiO2和Fe2O3量子点共负载催化剂为目标,以钛酸四丁酯(TBT)和硫酸亚铁为前驱体,采用常温水解方法将Fe掺杂的TiO2量子点生长在MCM-41分子筛表面,并通过调节硫酸亚铁加入量合成了MCM-41负载的Fe掺杂TiO2和Fe2O3量子点催化剂.采用透射电子显微镜和X射线衍射研究了复合晶体结构,采用X射线光电子能谱、紫外-可见光谱和傅里叶变换红外光谱等表征手段研究了复合量子点材料生长机理和能带结构.结合吸附过程和光降解过程建立了吸附与光催化协同作用与污染物处理效率之间的关联关系. 表征结果表明,硫酸亚铁水溶液加速TBT水解成功地在MCM-41表面生长了Fe掺杂TiO2量子点,并且量子点粒径随Fe前驱体量的增加而变大;前驱体比例Ti/Fe ≤ 3.0时,过量的硫酸亚铁会析出并在焙烧过程中在MCM-41上分解为Fe2O3量子点,Fe2O3量随着硫酸亚铁加入量提高而增多.通过调节Fe前驱体的量,一方面Fe掺杂在二氧化钛价带之上形成了掺杂能级,减小了带隙,拓宽了光响应范围,另一方面引入适量Fe2O3量子点,实现了Fe掺杂TiO2和Fe2O3量子点共负载催化剂的构建.复合材料实现了吸附过程与光催化降解过程的协同作用,Fe2O3将污染物富集于催化剂表面,Fe掺杂TiO2将其有效降解,大大提高了污染物处理能力,其中FT/M-3.0处理效率最高,并在10次循环处理后依然维持较高的吸附能力和光催化降解能力.该工作为高效光催化水处理催化剂的设计和构建提供了新思路和策略.
关键词量子点    二氧化钛    氧化铁    光催化    吸附

1 Introduction

Environment protection is a continuing challenge for all engineering disciplines [1-3]. Wastewater discharged by industry frequently contains high concentrations of organic contaminants in large volumes. Such wastewater is usually poorly biodegradable and difficult to treat using chemical oxidants [4, 5]. Among the many reported water treatment technologies, photodegradation and adsorption are two promising technologies with high efficiencies and low energy requirements for removing pollutants like organic dyes [4-9]. TiO2 has been extensively studied for this purpose, along with methods for improving its photocatalytic performance [10, 11]. These have included doping TiO2 with other metal ions [12-15], and controlling the TiO2 nanostructure by forming structures such as quantum dots (QDs) [16-19]. Loading QDs into porous materials with large surface areas is an effective method for avoiding QD agglomeration [20, 21]. Fe2O3 is also an efficient adsorbent for organic dyes [22-25] and has been widely investigated for water treatment because of its good chemical stability, low toxicity, and ease of preparation. However, the large dimensions of Fe2O3 limits its adsorption capacity and adsorption rate. Decreasing the Fe2O3 particle size from micrometers to nanometers can reportedly increase the adsorptive area by 100 to 1000 times [26].

The synergy of adsorption and photodegradation can enhance the removal of pollutants from water, in comparison to a single technology [27]. Herein, to realize this synergetic effect, we loaded both Fe-doped TiO2 QDs and Fe2O3 QDs into MCM-41, using a direct hydrolysis method. The Fe-doped TiO2 QDs exhibit high photoactivity due to their quantum-size effect and dopant-mediated band levels. The Fe2O3 QDs exhibit significant adsorption toward organic dye. Thus, the fabricated materials possess enhanced efficiency for degrading organic dye.

2 Experimental
2.1 Materials

FeSO4·7H2O, rose bengal (RB), tetrabutyl titanate (TBT), commercial Fe2O3 (average diameter of 100 nm, abbreviated as C-Fe2O3) and ethanol were of reagent grade and purchased from Shanghai Aladdin Reagent Co. Ltd, P. R. China. MCM-41 was purchased from Tianjin Chemist Ltd, P. R. China. Milli-Q ultrapure water (>18 mΩ·cm) was used in all experiments. All reagents were used as received.

2.2 Sample preparation

In a typical synthesis, 0.681 g of TBT was first adsorbed on the surface and pore channels of MCM-41 (0.800 g) in ethanol (50 mL), under stirring for 40 min. Then, 6.0 mL of FeSO4·7H2O aqueous solution was added dropwise to the mixture, which was stirred for another 24 h at room temperature. The resulting gel was collected by filtration, dried at 60 ℃ for 12 h, and then calcined at 550 ℃ for 2 h at a heating rate of 5 ℃/min. Ti/Fe molar ratios (x) of 30, 10, 3.0, and 1.0 were used in this study, and the resulting samples are referred to as FT/M-x. As shown in Scheme 1, pure TiO2 QDs loaded on MCM-41 synthesized without FeSO4·7H2O is referred to as T/M. A series of samples loaded with Fe-TiO2 QDs and Fe2O3 QDs were synthesized by adjusting the concentration of FeSO4 solution. Pure Fe2O3/MCM-41 synthesized without TBT is referred to as F/M. As a reference sample, pure Fe2O3 was synthesized by the direct calcination of FeSO4·7H2O at 550 ℃ for 2 h at a heating rate of 5 ℃/min, and is referred to as S-Fe2O3.

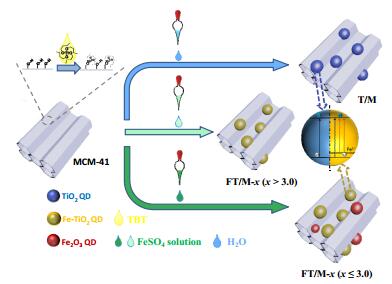

Scheme 1. Synthesis of MCM-41 loaded with TiO2 QDs and Fe2O3 QDs
2.3 Characterization

X-ray diffraction (XRD) patterns were recorded using a D8-Focus X-ray diffractometer (BRUKER AXS GMBH) equipped with Cu Kα radiation, at 40 kV and 40 mA, at a scan rate of 5°/min. Fourier-transform infrared (FT-IR) spectra were obtained using a Bruker Vertex-70 FT-IR spectrometer. Transmission electron microscopy (TEM) and high-resolution TEM (HR-TEM) observations were carried out using a Tecnai G2 F-20 microscope with a field-emission gun, operated at 200 kV. Zeta potentials (ζ-potentials) were measured in suspensions (0.5 mg/min, 25 ℃) using a Zeta Nanosizer (Nano ZS, Malvern Ltd.). Ultraviolet-visible diffuse reflectance spectra (UV-Vis DRS) were recorded using a Shimadzu UV-2600 spectrometer equipped with a 60-mm-diameter integrating sphere, using BaSO4 as the reference sample. X-ray photoelectron spectroscopy (XPS) was conducted with a PHI-1600 X-ray photoelectron spectrometer equipped with Al Kα radiation. Binding energies were calibrated to the C 1s peak (284.6 eV) of adventitious carbon.

2.4 Adsorption and photodegradation evaluation

The adsorption of the model organic dye RB was conducted in an opening jacketed glass beaker (150 mL) in the dark. Typically, 20 mg of catalyst and 0.2 mL of RB (20 mmol/L) were dispersed in 100 mL of pure water. The suspension was stirred until the adsorption of RB reached equilibrium. During this evaluation, 1.5 mL aliquots of suspension were withdrawn after given intervals, centrifuged, and the concentration of RB in the supernatant determined from the absorbance at 548 nm, using a Hitachi U-3010 UV-Vis spectrometer. 0.2 mL of RB (20 mmol/L) solution was added again, which was repeated several times until the adsorption reached saturation. In addition, appropriate volumes of pure water were added to compensate for the loss during sampling.

The photodegradation of RB was conducted in the same jacketed glass beaker (150 mL), which was irradiated from the vertical direction by a 300 W high-pressure xenon lamp (PLS-SXE300UV, Beijing Trusttech. Co., Ltd.). The irradiation area was ca. 20 cm2. The reaction conditions were: temperature 25 ± 0.2 ℃, initial concentration of RB (C0(RB)) 40 μmol/L, and synthetic photocatalyst concentration 0.2 g/L; no acidic or alkaline reagents were added. The reaction was magnetically stirred under atmospheric conditions, after stirring for 30 min in the dark to achieve adsorption equilibrium. Samples were then withdrawn, separated by centrifugation, and analyzed. Once UV-vis spectrometry indicated that the RB had been completely photodegraded, 0.200 mL of RB (20 mmol/L) was added again, and the overall process was repeated several times. To evaluate the efficiency of the decontamination process, we measured the chemical oxygen demand (dichromate method, CODCr) using a DR3900 apparatus (HACH), the final total organic carbon (TOC) contents of aqueous samples treated by synthesized catalysts in the first and tenth cycles using a Multi c/n2100s apparatus (Analytik Jena AG), and the concentrations of remanent Na+ and Cl- using a PXS-270 apparatus (INESA Scientific Instrument Co., Ltd.).

3 Results and discussion
3.1 Crystal structure and morphology

As shown in Fig. 1(a), the XRD pattern of pure MCM-41 shows a wide diffraction peak at ca. 22°, while a new peak at 25.3° appears after loading with TiO2 (T/M), which is characteristic of anatase TiO2 (JCPDS No. 21-1272). The XRD pattern of T/M shows broadened diffraction peaks at about 25.3°, which indicates that the synthesized TiO2 nanoparticles have a very small crystal size [28]. The XRD patterns of FT/M-x (with x ≥ 3.0) show characteristic peaks similar to the pattern of T/M, but a gradual main-peak shift from 25.3° to 23.7° is observed from x = 30 to x = 3.0. This is caused by distortion from crystal expansion resulting from the substitution of Ti4+ (0.075 nm) with Fe3+ (0.079 nm) [29, 30]. In the XRD pattern of FT/M-1.0, the diffraction peaks of α-Fe2O3 appear at 27.7°, 30.1° and 32.9° (JCPDS No. 52-1449). To understand the formation mechanism, we synthesized pure TiO2 and Fe-doped TiO2 without MCM-41 by the same method. The crystal sizes of undoped and Fe-doped (Ti/Fe = 10) TiO2 are 65.2 and 79.5 nm, respectively. This demonstrates that loading TiO2 into MCM-41 is an important factor accounting for the formation of quantum-sized TiO2 [12]. As shown in Scheme 1, the surface hydroxyl groups of MCM-41 provide adsorption sites for TBT. The interaction between the host MCM-41 and TiO2 is evidenced by peaks of Ti-O-Si vibrations at 960 cm-1 in the FT-IR spectra of FT/M-10 (Fig. 1(b)).

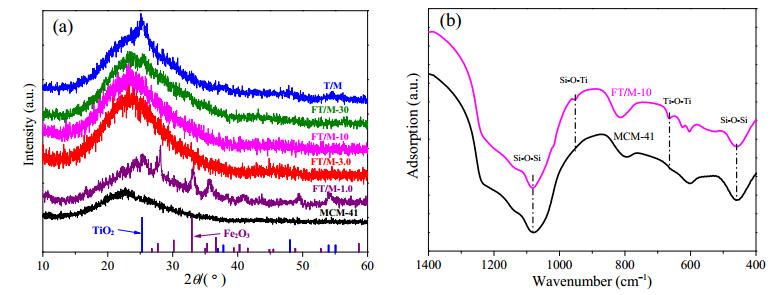

Fig. 1. (a) XRD patterns and (b) FT-IR spectra of the samples

The morphologies of samples were determined by TEM. TEM images of MCM-41 show porous channels with no obvious surface particles (Fig. 2(a)). For T/M (Fig. 2(b)), TiO2 nanoparticles with an average diameter of 4.78 nm give rise of lattice fringes at intervals of 0.351 nm ((101) plane of anatase TiO2), indicating that they are pure TiO2 QDs. For FT/M (Fig. 2(b)-(f)), the anatase (101) lattice spacing increases from 0.351 nm to 0.380 nm with increasing Fe content, which is consistent with the XRD results. Meanwhile, the average diameter of the TiO2 QDs increases from 4.78 to 6.65 nm. Fe2O3 QDs are formed when the Ti/Fe molar ratio is lower than 3.0. Fig. 2(e) and (f) show obvious Fe2O3 nanoparticles with lattice spacings of 0.271 and 0.321 nm, which are consistent with the (122) and (112) planes of α-Fe2O3, respectively. The average diameters of FT/M-3.0 and FT/M-1.0 are 3.94 and 4.51 nm, respectively, which are typical α-Fe2O3 QDs. The formation of Fe2O3 QDs is attributed to the solubility difference of FeSO4·7H2O in water and ethanol. FeSO4·7H2O is water-soluble but alcohol-insoluble, so precipitates and deposits on MCM-41 when adding high concentration FeSO4·7H2O aqueous solution to ethanol. Calcining at 550 ℃ causes the FeSO4·7H2O nanocrystals to decompose to Fe2O3 QDs. The energy dispersive X-ray (EDX) spectroscopy image in Fig. 2(i) shows uniform distributions of Fe2O3 and TiO2 on MCM-41. In addition, F/M, i.e. Fe2O3 loaded on MCM-41 (Fig. 2(g)), has an average diameter of 40 nm, while Fe2O3 synthesized in the absence of MCM-41 has an average diameter of ca. 200 nm (Fig. 2(h)).

Fig. 2. TEM images, HR-TEM images (scale bar: 5 nm), and particle size distribution of (a) MCM-41, (b) T/M, (c) FT/M-30, (d) FT/M-10, (e) FT/M-3.0, (f) FT/M-1.0, (g) F/M, and (h) Fe2O3. (i) Scanning TEM and EDX mapping images of FT/M-3.0

The Ti and Fe contents of the samples were measured by EDX. Table 1 shows that T/M contains 4.02 wt.% of TiO2 loaded on MCM-41, and that the loading amount increases with the addition of FeSO4. FT/M-3.0 and FT/M-1.0 contain about the same amount of TiO2 (8.54-8.62) wt.%. The presence of the acidic FeSO4 solution improves the hydrolysis of TBT to TiO2.

Table 1
Elemental contents (as measured by EDX spectroscopy) and ζ-potentials of the samples
3.2 Chemical states

XPS was used to characterize the chemical states of the sample surfaces, and XPS spectra are shown in Fig. 3. The Si 2p peaks in the spectra of T/M and FT/M show high-binding-energy-shifts of 0.12 eV, compared with the spectrum of pure MCM-41 (Fig. 3(a)). The Ti 2p peaks show low-binding-energy-shifts of 0.26 eV compared with the spectrum of pure anatase TiO2 (Fig. 3(b)), which confirms the formation of Ti-O-Si bonds between TiO2 and MCM-41 [12, 30, 31]. No Si 2p peak shift is observed in the spectrum of F/M, suggesting no chemical interaction between Fe2O3 and MCM-41.

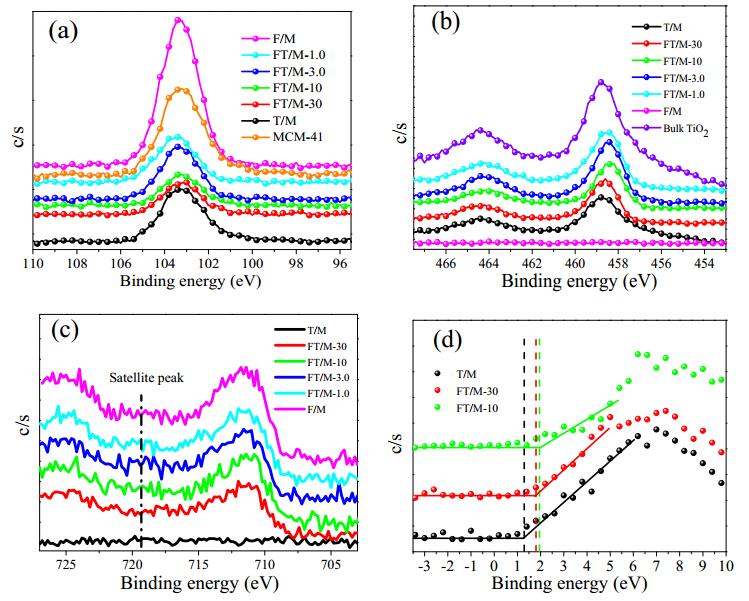

Fig. 3. (a) Si 2p, (b) Ti 2p, (c) Fe 2p, and (d) VB XPS spectra of the samples

Fig. 3(c) shows doublet Fe 2p3/2 and Fe 2p1/2 peaks of Fe(Ⅲ) at binding energies of 711 and 725 eV, respectively [32]. For FT/M-30 and FT/M-10, the satellite peak of α-Fe2O3 should be located at ca. 8 eV higher than the main peak of Fe 2p3/2, but this is not observed. This suggests that Fe(Ⅲ) is doped into the inner lattice of TiO2. The spectra of FT/M-3.0 and FT/M-1.0 show weak satellite peaks at 719 eV, because of the presence of α-Fe2O3. The valence band (VB) XPS spectra in Fig. 3(d) show obvious shifts, because of the newly formed Fe(Ⅲ) dopant-mediated band levels in TiO2.

3.3 Optical properties

Fig. 4(a) shows UV-Vis DRS spectra of the samples. MCM-41 shows no absorption of the full-spectrum light. T/M strongly absorbs wavelengths below 380 nm, but not above 380 nm. FT/M-30 and FT/M-10 show red-shifted absorption, which is attributed to the newly formed Fe(Ⅲ) dopant-mediated band levels. For FT/M-3.0, FT/M-1.0, and M-Fe2O3, absorption peaks at about 540 nm and 690 nm are observed due to the presence of the Fe2O3 QDs. The band gaps of the samples were calculated from the corresponding plots of the transformed Kubelka-Munk functions (Fig. 4(b)). Pure TiO2 QDs (3.40 eV) exhibit a typical quantum-size effect, and their bandgap is 0.20 eV wider than that of bulk TiO2, because the VB shifts towards higher energy [33, 34]. For FT/M, the bandgap decreases from 3.40 to 2.65 eV with increasing Fe content. This is because Fe doping results in a new peak due to transition between Fe3+ and the VB. The energy of this transition changes with the Fe(Ⅲ) dopant content [33, 34], as confirmed by the VB density of states in Fig. 4(b).

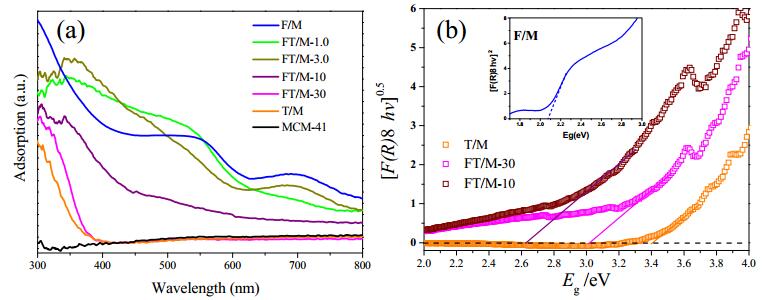

Fig. 4. (a) UV-Vis DRS spectra of the samples and (b) corresponding plots of the transformed Kubelka-Munk function versus photo energy
3.4 Adsorption and photodegradation properties of the samples

The samples were applied to remove RB, by adsorption in the dark and then subsequent photodegradation under irradiation [35-37]. Fig. 5(a) shows the adsorption capacities of the samples in the dark. Pure MCM-41 and T/M show small adsorptions of RB, of less than 10 mg/g. FT/M-30 and FT/M-10 which contain Fe-doped TiO2 QDs show slightly higher RB adsorptions. FT/M-3.0 and FT/M-1.0 which contain Fe2O3 QDs, show ca. 6.4 and 9.3 times higher RB adsorption than that of T/M, respectively. The RB adsorption capacity of F/M is the highest among the tested samples at ca. 75 mg/g. The adsorption rate constants (k1) derived from these adsorption capacities were fitted by the Lagergren rate equation, as shown in Fig. 5c [38]. The adsorption capacities of the Fe-based materials should be related to their surface charge. The ζ-potentials of the samples follow the order F/M > FT/M-1.0 > FT/M-3.0 > FT/M-10 > 0 > FT/M-30 > T/M (Table 1), which correlates with their Fe contents and adsorption capacities. In addition, a sample prepared by thermally calcining FeSO4 (S-Fe2O3), and another sample of commercial nano-Fe2O3 (C-Fe2O3), show saturation adsorption capacities of 46 mg/g and 5.68 mg/g, respectively. These are much lower than that of F/M, because F/M contains well-dispersed Fe2O3 QDs with a high surface area accessible for adsorption.

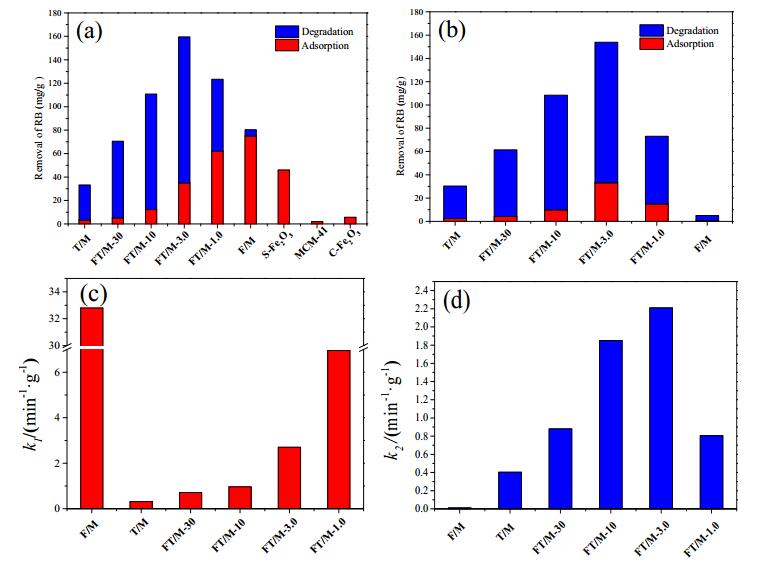

Fig. 5. Saturation adsorption and photocatalytic degradation of RB by the synthesized catalysts in the (a) first and (b) tenth cycles; (c) Adsorption rate constants (k1) fitted by the Lagergren rate equation (1st-order) and (d) real reaction rate constants (k2) fitted by the Langmuir-Hinshelwood equation

Fe2O3 is inactive in photodegradation due to its short hole diffusion length (ca. 2-4 nm) and significant recombination of photogenerated electron-hole pairs [39-43]. Fig. 5(a) shows that MCM-41, S-Fe2O3, and C-Fe2O3 exhibit no photoactivity, while weak photodegradation is observed for F/M (ca. 5.32 mg/g), which is attributed to the well dispersed Fe2O3 on MCM-41. T/M shows obvious photodegradation when using 30.2 mg/g of photocatalyst. The doping of Fe species in TiO2 significantly increases the photoactivity. The highest photodegradation is observed for FT/M-3.0 (124 mg/g). FT/M-1.0 which contains a large amount of Fe2O3 shows lower photoactivity. In Fig. 5(d), the real reaction rate constant (k2) of the photodegradation is fitted by the Langmuir-Hinshelwood equation [44] The photoactivity follows the order: FT/M-3.0 > FT/M-10 > FT/M-30 > FT/M-1.0 > T/M > F/M. The highest photoactivity of FT/M-3.0 is attributed to the effective doping of Fe(Ⅲ) into the TiO2 lattice. This leads to a new impurity band above the VB, which benefits charge separation and optical absorption.

Fig. 5(c) and (d) show that the adsorption rate (k1) is comparable to the photocatalytic rate (k2) for T/M, FT/M-30, FT/M-10, and FT/M-3.0. This enables RB to be adsorbed on the Fe2O3 QDs and then photodegraded by the Fe-TiO2 QDs. For FT/M-1.0, k1 is 12.2 times higher than k2, and the catalyst is covered by adsorbed RB after adsorption equilibrium, which will block light absorption and degradation. Therefore, during the ten cycle test (Fig. 5(b)) there are no obvious decreases in the adsorption capabilities of T/M, FT/M-30, FT/M-10, and FT/M-3.0, while the adsorption capability of FT/M-1.0 decreases significantly.

The initial CODCr, TOC, and CNa of the RB solution are 32.93, 12.59, and 1.89 ppm, respectively, and there is nearly no Cl-. The TOC and CODCr of samples treated by F/M and T/M decrease by about 23.9% and 21.5% in the first cycle, respectively, and decrease by about 79.6% when treated by FT/M-3.0 (Table 2). The increased Na+ concentration results from ionization of the RB dye. For the solution treated by F/M, the Cl- concentration shows no significant increase (from 0.31 ppm to 0.43 ppm), while those treated by T/M and FT/M-3.0 show increases after one cycle of ca. 0.96 ppm and 5.11 ppm, respectively. This confirms that the Cl atoms of RB molecules are degraded to Cl-, and dissolve into the water during the degradation process. F/M and T/M remove only about 2% and 12% of CODCr and TOC during the tenth cycle, respectively, while 96.6% of TOC and 96.9% of CODCr are removed by FT/M-3.0, respectively. The concentrations of Cl- and Na+ increase from near-zero to 58.01 ppm and 18.51 ppm, respectively, which indicates the high efficiency and stability of FT/M-3.0 for degrading RB. The high efficiency is attributed to the synergic effects of adsorption and photodegradation. To confirm the active species during photodegradation, 0.1 mol/L methanol was introduced as a hole sacrificial reagent, and 0.1 mol/L isopropanol was introduced as a radical sacrificial reagent. The photodegradation rate does not significantly change in the presence of 0.1 mol/L methanol, but significantly decreases in the presence of 0.1 mol/L isopropanol. Thus, the photodegradation is considered to occur via a free radical pathway [45-47]. Scheme 2 shows that RB molecules are first concentrated on the surface by the strong adsorption capacity of the Fe2O3 QDs, then migrate to the Fe-TiO2 QDs, and are finally degraded to CO2, H2O, Cl-, etc. To achieve the synergetic advantage of adsorption and photoreaction, the structures of the Fe2O3 QDs and Fe-TiO2 QDs should be suitably controlled. With its suitable structure, FT/M-3.0 provides a high RB elimination of ca. 160 mg/g in the first cycle, and retains this high efficiency during the ten cycle test. Even after ten cycles, FT/M-3.0 removes more than 96% of CODCr and TOC.

Table 2
CODCr, TOC, and Na+ and Cl- concentrations of treated solution samples

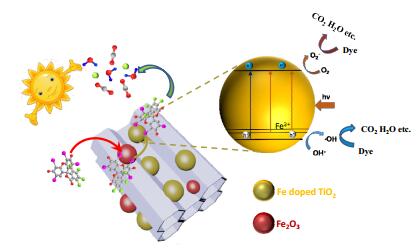

Scheme 2. Synergetic effect of adsorption and photocatalysis over FT/M
4 Conclusions

We fabricated Fe-doped TiO2 and Fe2O3 QD co-loaded MCM-41 via simple hydrolysis, to combine the effects of adsorption and photodegradation. With increasing Ti/Fe molar ratio during synthesis, Fe-doped TiO2 QDs form at low Fe precursor concentrations, while additional Fe2O3 QDs form at higher Fe concentrations. The material with a Ti/Fe molar ratio of 3.0 shows the best performance in the removal of RB (160 mg/g), which is two and four times higher than those of Fe2O3 QDs and TiO2 QDs separately loaded on MCM-41. The best performing catalyst retains its high efficiency over ten consecutive cycles.
