The demand for sustainable energy has aroused worldwide interest in the conversions of solar energy to chemical fuels. Photocatalysis using sunlight is regarded as one of the technologies with the highest potential to alleviate energy and environmental issues [1-3]. Plasmonic photocatalysis has recently received tremendous attention as an emerging method for the enhancement of the photocatalytic performance of semiconductor-based photocatalysts based on the localized surface plasmon resonance (LSPR) effect [4-6].

LSPR is refers to the collective oscillations of free electrons confined to the surface of metal nanostructures are in resonance with upon excitation with external fields (light for instance) [7]. These metallic nanostructures can substantially concentrate incident light into a nanoscale volume and can then generate hot carriers or build electromagnetic fields to assist the separation of hot carriers [8]. Since the properties of LSPR are sensitive to the size and shape of the plasmonic nanoparticles (NPs) as well as their environment, the optical absorption of plasmonic NPs can easily be tuned to match the entire solar light spectrum [9]. What is more, the extremely large absorption cross sections of plasmonic NPs can capture light more efficiently than other optical materials [10]. These potential advantages make plasmonic NPs an ideal candidate for harnessing solar energy [11-14]. Jang et al. [15] have reported that shape-controlled gold NPs on wide bandgap semiconductors can improve water-splitting photoactivity; they found that plasmonic octahedral gold NPs could be maximized near electromagnetic fields. Other plasmon-enhancement strategies have also been adopted to boost the efficiency of solar energy conversion, these include the use of aluminum or alloy metals to replace the noble metals [16, 17].

The electron-hole pairs generated through plasmon energy dissipation can be utilized for chemical reactions on plasmonic photocatalysts in the form of metal/semiconductor nanostructures [18]. Plasmonic sensitization, also known as plasmon-induced charge transfer (PICT), is the mechanism by which the electrons in a metal are transferred to an adjacent semiconductor upon the excitation of the LSPR at the metal/semiconductor interface [19]. The metal-support interface is crucial for the electron-transfer process in this mechanism. The interfacial effect is dependent on several factors including the nature of the metal NPs, the nature of the semiconductor support, and their interaction [20, 21]. The influence of the metal NPs as cocatalysts has been widely studied in conventional semiconductor photocatalysis by adjusting their size, morphology, and composition [22-25]. However, in plasmonic photocatalysts it is more complex since plasmonic NPs act as both photo-absorbers and catalytic sites. On the other hand, the interplay between the plasmonic metal and large-band-gap semiconductor is important for the overall photocatalytic reactivity. In addition to the influence on charge transfer, the metal-support interface exerts a significant impact on the surface catalytic reactions, this has been widely studied in heterogeneous catalytic science [26-29]. However, the details of the interfacial effect in plasmonic photocatalysts are still unclear.

Au/TiO₂ is the archetypical plasmonic photocatalyst widely used in plasmon-driven photocatalysis [30-35]. In particular, it has been demonstrated that it can initiate a water splitting reaction [36, 37]. The effect of the size of Au NPs has been observed in both water reduction and oxidation reactions, but offer different conclusions [32, 38]. Recently, the influence of crystallinity and the crystallite size of the TiO₂ semiconductor support has also been investigated, indicating various trends for different reactions [39-41]. There is a lack of understanding of how plasmonic reactions depend on the parameters usually involved in catalysis, particularly in oxygen evolution reactions. Photocatalytic water splitting is an ideal clean system for creating hydrogen and oxygen from water using solar energy, among which water oxidation is regarded as a bottleneck because of its sluggish kinetics and high overpotential [42]. In addition, it is still a challenge to take all of the factors into consideration for a single plasmonic photocatalyst in a water oxidation reaction.

Herein, we report on the plasmon-driven photocatalytic water oxidation reaction on preformed Au/TiO₂ photocatalysts with various sizes of Au NPs and Au-TiO₂ interactions. We have developed a facile synthetic method for adjusting both the Au size and metal-support interaction by altering the calcination temperature. The size of the Au NPs can be turned between 3 and 40 nm, and the interaction between Au and TiO₂ enhanced by elevating the calcination temperature. The joint effect of the Au size and Au-TiO₂ interaction was corroborated through X-ray power diffraction (XRD), scanning electron microscopy (SEM), and X-ray photoelectron spectroscopy (XPS) characterizations. Based on these results, we have demonstrated an optimized plasmonic photocatalyst for water oxidation with appropriate Au size and Au-TiO₂ interplay.

Rutile TiO₂ (~ 25 nm) brought from Aladdin was heated to 900 ℃ for 2 h in air. The calcined samples were used as supports for gold loading. The Au/TiO₂ photocatalyst was prepared with the deposition-precipitation (DP) method using urea as the precipitating base; this permits the gradual and homogeneous addition of hydroxide ions throughout the whole solution. Typically, 3.0 g of TiO₂ was added to 200 mL of an aqueous solution of HAuCl₄ (0.76 mmol/L) and urea (0.42 mol/L). The slurry was thoroughly dispersed by ultrasound and maintained at 85 ℃ while vigorously stirred for 4 h. The suspension was separated by centrifugation and washed with deionized water until free of chloride ions. The product was finally dried at 80 ℃ overnight. The dried sample was divided into six portions and each portion was calcined in air at a different temperature for 2 h. The obtained samples were denoted as Au/TiO₂-T, where T (300, 400, 500, 600, 700, and 800) is the heating temperature (℃).

The as-prepared samples were characterized by XRD with a Rigaku D/Max-2500/PC powder diffractometer. The sample powder was scanned using Cu-K_α radiation with an operating voltage of 40 kV and current of 200 mA. A scan rate of 5°/min was applied to record patterns in the range of 20–80° at a step size of 0.02°. UV-visible (UV-vis) diffuse reflectance spectra were recorded on a UV-vis spectrophotometer (JASCO V-650) equipped with an integrating sphere. XPS measurements were carried out on a VG ESCALAB MK2 spectrometer with monochromatized Al-K_α excitation, and the C 1s peak (284.6 eV) was used as the reference, arising from adventitious carbon. The size and morphology of the particles was examined by field emission scanning electron microscopy (FESEM, Hitachi, S-5500, 40 kV). The microstructures of the catalysts were further examined using a high-resolution transmission electron microscope (HRTEM, JEM-2100, 200 kV). The Au content for all of these samples was determined to be approximately 0.8 wt% by inductively coupled plasma-optical emission spectrometry (ICP-OES).

Photocatalytic O₂ evolution was carried out with 50 mg of photocatalyst suspended in 100 mL water with 5 mM of Fe(NO₃)₃ as a sacrificial reagent. Prior to photoirradiation, the reaction mixture was evacuated to ensure that the air was completely removed. A 300-W Xe arc lamp equipped with an optical cutoff filter (Y48, λ ≥ 480 nm) was employed as the light source. The corresponding spectra of the light source with the filter are shown in Fig. S1 (Supporting Information, SI). A flow of cooling water was used to maintain the reaction mixture at 15 ℃. The evolved gases were analyzed by gas chromatography (Agilent; GC-7890A, MS-5A column, TCD, Ar carrier). The apparent quantum yield (AQY) was measured using the same experimental setup as the photocatalytic oxygen evolution with additional band pass filters to obtain monochromatic light at λ = 480, 520, 560, 620, and 640 nm. The oxygen evolution activity under irradiation of 700–800 nm was also tested. The number of photons reaching the reaction solution was measured using a calibrated Si photodiode (LS-100, EKO Instruments Co., LTD.), and the AQY was calculated according to the following equation:

The typical plasmonic photocatalysts Au/TiO₂ were prepared using the DP method with urea as the precipitation base followed by calcination in air at various temperatures, these samples were denoted as Au/TiO₂-T (where T represents the calcination temperature). Rutile TiO₂ calcined at 900 ℃ was used as the support to make sure that the size and crystallization of TiO₂ were kept constant during the treatment of the Au/TiO₂ photocatalyst.

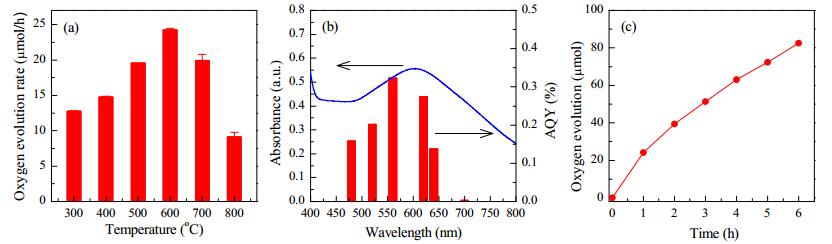

The Au/TiO₂ photocatalysts treated under various temperatures were tested to evaluate the water oxidation half reaction under visible light irradiation (λ > 480 nm). Ferric nitrate was used as sacrificial agent to consume the electrons generated from plasmonic Au. The water oxidation activity changed with the calcination temperature, and Au/TiO₂-600 exhibited the highest oxygen evolution activity (24.2 μmol/h) of all of the samples (Fig. 1). The water oxidation reaction is plasmon-driven as bare TiO₂ exhibited no photocatalytic activity under the same conditions. For a more objective comparison between the photocatalytic efficiencies of oxygen evolution under different illuminations, the AQY was calculated. As shown in Fig. 1(b), the AQY was in agreement with the subtraction spectrum obtained from the spectra of Au/TiO₂-600, and the highest AQY was approximately 0.32% at 560 nm. This result indicated that the water oxidation was induced by the surface plasmon resonance (SPR) of Au supported in TiO₂. This AQY is relatively low, but it is comparable to the reported plasmon-induced water oxidation photocatalysts and even comparable to some well-known semiconductor photocatalysts (Table S1). Furthermore, long-time-course water oxidation experiments were carried out under visible light irradiation. As shown in Fig. 1(c), the O₂ evolution steadily increased with the irradiation. The deviation from linearity is ascribed to the accumulation of Fe²⁺ ions and the re-oxidation of Fe²⁺ may compete with water oxidation. By using a facile calcination method, we succeeded in the preparation of a high activity plasmonic photocatalyst. The calcination temperature is an apparent parameter which may influence optical absorption, support properties, particle size, and metal-semiconductor interactions. It is indispensable to distinguish the role of each factor, which is discussed in detail below.

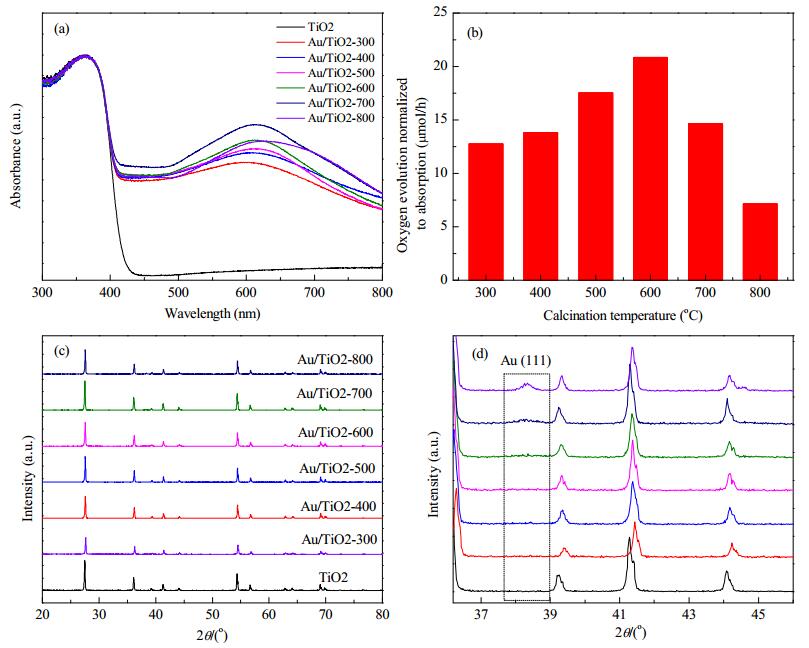

As demonstrated above, the plasmon effect of Au NPs is the main reason for visible-light-induced water oxidation. Thus, the plasmon absorption of photocatalysts is an important parameter for photocatalytic activity. As shown in Fig. 2(a), absorption in the visible region (450–800 nm) due to the plasmon effect varied with the calcination temperature. The maximum peak gradually shifted to a longer wavelength as the post-calcination temperature increased, indicating that the SPR of supported Au particles can be shifted by calcination. Meanwhile, the absorption intensity increased with the calcination temperature. The exception for Au/TiO₂-800 is possibly due to the scattering effect of large Au NPs (details are shown below).

There are a few possible reasons for the redshift of the plasmon peak and the enhanced intensity. One is the loading amount of Au. In the preparation process, the annealed samples were obtained from the same precursor. Therefore, the loading amount of Au was consistent which was confirmed by the ICP results. Other explanations include the change of the Au size due to sintering, or an increase in the contact area of Au NPs and TiO₂ since annealing is a common method of improving the interaction between Au and TiO₂. Despite the changes in the absorption of the photocatalyst, the oxygen evolution activity is irrelevant to the absorption, where the intense plasmon absorption of Au/TiO₂-700 has a lower activity than Au/TiO₂-600. In particular, the water oxidation activity after light absorption normalization from 480 to 800 nm is similar to original (Fig. 2(b)), which further indicates that the light absorption properties are not the dominating factors in this system. Consequently, the Au size effect and the Au-TiO₂ interaction should be studied to understand the change in the water oxidation performance.

The surface properties of the TiO₂ support will also influence the catalytic performance of Au/TiO₂ [33]. So the crystal structure of bare TiO₂ and Au/TiO₂-T were characterized by XRD, shown in Fig. 2(c). For the bare TiO₂ NPs, all the diffraction peaks are ascribed to the tetragonal rutile TiO₂. Once Au is loaded onto the TiO₂ surface and calcined at various temperatures, there was no obvious change in the diffraction peaks, indicating that the crystal structure of TiO₂ is similar for all of the samples, and that the titania phase differences among these samples were minimal. No diffraction of Au was observed when the photocatalysts were annealed below 600 ℃. A characteristic diffraction peak centered at 38.1°, corresponding to the (111) crystal plane of Au, emerged only when the calcination temperature exceeded 600 ℃ and the peak became more pronounced as the temperature increased (Fig. 2(d)). It is well- known that the growth and coalescence of Au NPs at elevated temperatures is inevitable. Hence the appearance of Au diffraction is a result of Au sintering and growth. These results exclude changes in the crystalline structure of TiO₂ as a dominant factor for variation in the water oxidation activity.

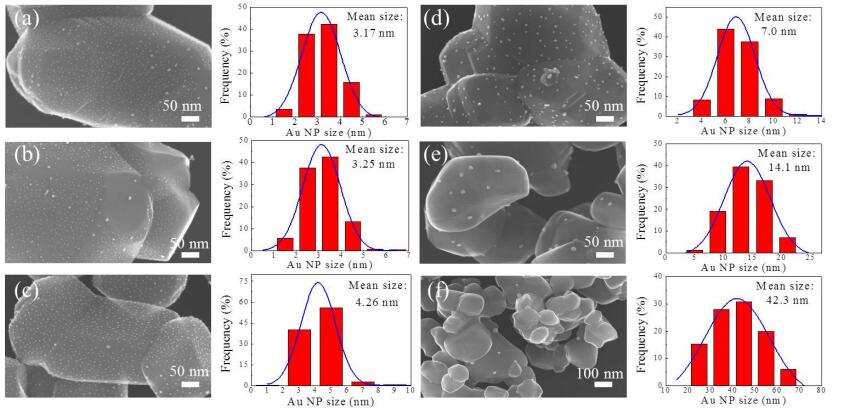

The size of the plasmonic metal is another essential factor influencing photocatalytic performance. Fig. 3 shows SEM images of the Au/TiO₂-T series annealed at temperatures between 300 and 800 ℃. Well-dispersed Au NPs were uniformly loaded on the TiO₂ surface in all six samples. The size of the resulting Au NPs was determined to be 3.17, 3.26, 4.26, 7.0, 14.1, and 42.3 nm for Au/TiO₂-300, 400, 500, 600, 700, and 800, respectively. The Au NPs become larger as the annealing temperature increases, and their dispersion become sparse due to sintering. The rate at which the Au NPs increase in size is much slower when the calcination temperature is below 600 ℃, in particular the diameters of Au/TiO₂-300 and Au/TiO₂-400 are almost the same (approximately 3.2 nm). In contrast, the Au particle size increases much more rapidly when the annealing temperature is greater than 700 ℃ and the Au grows into quite large particles, approximately 42 nm, when the annealing temperature is 800 ℃. The growth of the Au particles through annealing at elevated temperatures is due to their low Tammann temperature and high surface energy [43]. The TEM results show that the Au particle sizes are consistent with the UV-visible absorption and XRD results mentioned above.

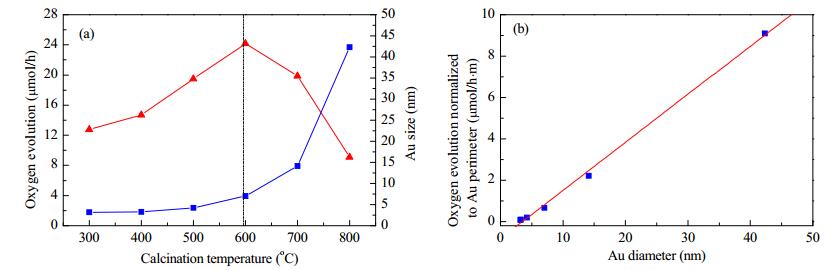

When the Au particle size and corresponding water oxidation were compared, an interesting phenomenon was observed, as shown in Fig. 4. The inflection point for the size of the Au particles is at approximately 500–600 ℃, at which point the photocatalyst has the highest water oxidation activity. Therefore, Fig. 4 can be divided into two regions (as denoted with the dotted line): one below 600 ℃, where the size of the Au NPs changes gradually and the water oxidation activities increase; the other above 600 ℃, where the size of the Au NPs increases sharply while the water oxidation activities decrease sharply. This discrepancy between the Au size variations and water oxidation change show that another factor, besides metal size, must also play an important role in plasmon-induced water oxidation, especially at lower temperatures.

It is well known that annealing at an elevated temperature can enhance the contact between metal NPs and their support via strong interfacial bonding, since metal NPs rearrange their atomic structures and form strong interactions with the support at high temperatures [44]. In this case, the Au-TiO₂ interaction may also affect the plasmonic photocatalytic performance by altering the charge separation efficiency and surface reaction. Specifically, the water oxidation performance was normalized according to the perimeter length of the Au-TiO₂ interface (Fig. 4(b)). We modeled uniformly dispersed hemispherical Au NPs on the flat TiO₂ surface based on the SEM images (Fig. 3). As a consequence, the perimeter length is inversely proportional to the square of the diameter (see the Supporting Information). After normalization, the water oxidation was proportional to the Au NP size. Considering that the perimeter region is the primary reaction site for water oxidation [33], the linear relation is mainly due to the enhancement of the Au-TiO₂ interactions.

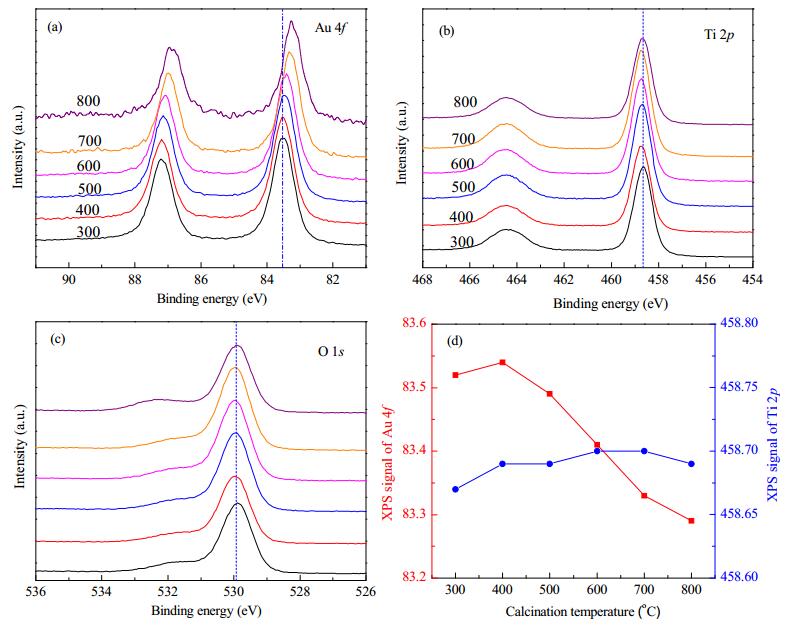

Next, XPS was conducted to characterize the metal-support interaction (Fig. 5). In the Au 4f XPS spectra, the binding energy of Au 4f_7/2 was determined to be 83.5–83.6 eV for Au/TiO₂-300 and Au/TiO₂-400, which is in good agreement with data available in the literature for metallic gold [45]. After calcination at higher temperatures (≥ 500 ℃), an obvious shift of binding energy to lower energies was observed and the binding energy decreased with increasing temperature (Fig. 5(c)), indicating that the Au NPs supported on TiO₂ had become electron-rich [46]. This result is in accord with the Schottky barrier theory, in which TiO₂ has a small work function and gives electrons to the Au NPs with a higher work function. According to previous reports, the electron transfer from the support to the metal NPs is a strong indicator of the improved interfacial contact between the Au NPs and TiO₂. In the Ti 2p spectra, no difference in the titanium species was discovered among the six samples, indicating their similar electronic properties. The improved interfacial contact between the Au and TiO₂ was further verified by TEM characterization (Fig. 6). The morphology of the Au NPs changed from spherical in Au/TiO₂-400 to ellipsoid in Au/TiO₂-600 and Au/TiO₂-700. What is more, the Au NPs were partly embedded into the TiO₂ surface when the temperature was raised. Note that the growth of the Au particles was also observed after annealing at elevated temperatures. Thus, the electronic interaction between the Au NPs and TiO₂ was enhanced by increased annealing engineering, although the Au NP size also increased.

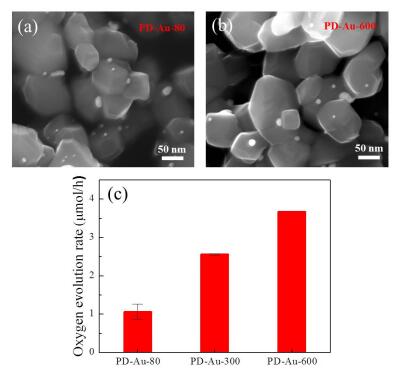

Considering the plasmon-induced water oxidation performance shown in Fig. 4, the enhanced activity of the left-hand region, below 600 ℃, is mainly due to the improvement in the Au-TiO₂ interfacial interaction. To further demonstrate this deduction, we designed another series of photocatalysts using the photodeposition-annealing method. Relatively large Au particles (30–60 nm) were obtained after photodeposition (PD) under illumination of UV light. Importantly, the size of these Au NPs remained approximately the same even after treatment at 600 ℃ (Fig. 7(a) and (b)). However, the water oxidation activity of these samples changed with the annealed temperature, where photocatalysts treated at higher temperatures had higher activity (Fig. 7(c)). This result clearly indicates that the Au-TiO₂ interaction has a vital role in plasmon-induced water oxidation, as the interfacial region between the Au and TiO₂ has previously been demonstrated to be a reactive site for water oxidation.

These results indicate that the optimized water oxidation performance is the result of cooperative synergy between the Au NP size and the Au-TiO₂ interaction. As a typical protocol of plasmonic photocatalyst, Au/TiO₂ is usually used to expand the absorption of TiO₂ due to the hot electron transfer from Au NPs to the semiconductor. The size of the Au NPs and the interaction between Au and TiO₂ are two crucial parameters responsible for the photocatalytic activity, which will affect the energy distribution of the plasmon-induced charges and the efficiency of the charge transfer, respectively. According to the theoretical results, the generation rate of hot-energy electron and holes, which can be used for photocatalysis, increases as the size of the metal NPs decreases [47]. In addition, since the interfacial region between Au and TiO₂ has been shown to be the water oxidation reaction site [33], both size the and interaction will also impact the surface reaction. The fact that best photocatalyst out of the samples was Au/TiO₂-600 is ascribed to the moderate Au NP size, which leads to sufficient high-energy hot holes and active sites for water oxidation. Moreover, Au/TiO₂-600 is treated at high temperature (600 ℃) which introduces a strong enough metal-semiconductor interaction for water oxidation and charge transfer. Therefore, the intimate integration of suitably sized Au NPs on TiO₂ results in the distinctly boosted performance for plasmonic photocatalysis.

Au/TiO₂ prepared using the DP method exhibited optical absorption in the visible light region due to the SPR of Au NPs and Au/TiO₂ was shown to be a potential water oxidation photocatalyst under irradiation with visible light. More importantly, both the size of the Au NPs and the interaction between Au and TiO₂ could be controlled by post-calcination of Au/TiO₂. As the calcination temperature was increased, both the size of the Au NPs and the Au-TiO₂ interaction gradually increased, whereas the crystallization and size of TiO₂ remained constant. A volcanic curve for water oxidation activity was presented relative to the calcination temperature and the optimized performance for the photocatalyst was achieved after post-calcination at 600 ℃. The volcanic curve is a result of the compensating effects of the Au NP size and the Au-TiO₂ interaction, in which moderate Au NP size with a strong metal-support interaction gives the highest water oxidation performance.
