Esters are extensively utilized as building blocks in organic synthesis, and they can also be utilized in fine chemicals, agrochemicals, and pharmaceuticals [1]. Conventionally, esterification strategies are based on the reaction of carboxylic acids, anhydrides, acyl halides, or ketenes with alcohols. However, these complicated reaction processes are usually accompanied by reagent waste and the production of a large number of undesired byproducts [1-5]. During recent decades, an enormous amount of effort has been focused on the development of cost-effective and environmentally friendly strategies for ester synthesis [6-14]. Of all the established methodologies, single-step direct oxidative esterification of alcohols, in which readily available alcohols are used as the starting materials instead of acids or their derivatives, is garnering increasing attention [15-21]. Catalysts for the direct transformation of alcohols to esters are mostly based on noble metals (e.g., ruthenium, palladium, and gold) [22-30]. However, owing to the limited amounts of precious metals, the development of non-noble-metal-based catalysts for the direct oxidative esterification of alcohols is crucial from the perspectives of economic development and environmental protection. Moreover, with regard to catalyst separation and recycling, the employment of heterogeneous catalysts is more sustainable than that of homogeneous catalysts.

In recent years, carbon materials have become widely applied in many fields, including materials chemistry, chemical catalysis, and electrochemical catalysis, owing to their low costs, high stabilities, and excellent electrochemical performance [31-37]. Furthermore, the introduction of exotic atoms and metals can enhance the catalytic performance of pure carbon materials. This strategy is used to tune material compositions, entire electronic structures, and surface physicochemical properties to some extent, constructing new active sites and extending the application of carbonaceous materials to a wider range of organic syntheses [38-51]. Accordingly, cobalt-based N-doped carbon materials have been proposed as potential cost-effective and environmentally benign catalysts for the direct aerobic oxidation of alcohols to esters [31, 40, 52, 53].

In 2013, Beller et al. [53] prepared Co₃O₄-N@C with Co₃O₄ nanoparticle sizes in the range 2-80 nm by pyrolyzing cobalt salts and 1, 10-phenanthroline adsorbed on Vulcan XC72R. This catalyst achieved the target reaction using 2.5 mol% Co in 24 h. In 2015, Jiang et al. [31] and Li et al. [52] almost simultaneously but separately employed ZIF-8-derived Co@C-N containing 15 mol% Co to complete the synthesis of esters, with the latter group achieving base-free esterification at room temperature in 96 h. Very recently, Li et al. [40] reported the preparation of a Mott-Schottky-type Co@NC catalyst through direct polycondensation of simple organic molecules and inorganic metal salts in the presence of g-C₃N₄ powder. However, the active cobalt species were poorly dispersed owing to the poor thermal stability of the small organic compounds and their random location on the carbon support. This unavoidable agglomeration of active cobalt species during pyrolysis greatly decreased the atomic catalytic efficiency of the resultant material. Notably, porous carbon materials are better catalytic carriers than non-porous materials owing to their large surface areas and diverse porous structures, which facilitate access to active sites and promote the transport of active oxygen species [54-56].

The design and preparation of efficient catalysts are essential activities in our field. Accordingly, we have previously fabricated mesoporous carbon materials derived from macrocyclic compounds and vitamin B₁₂ that showed high activity in the formation of imines [57, 58]. We also achieved the synthesis of nitriles using cobalt-modified N-doped mesoporous carbon materials [59].

Encouraged by these results, in the present study we have applied cobalt-modified N-doped mesoporous carbon (Co-N/m-C) to the aerobic oxidative esterification of alcohols with air as a benign oxidant, achieving excellent catalytic activity, selectivity, and catalyst recyclability. This outstanding performance can be attributed to the robust ligand bridge that separates the cobalt ions and anchors them at the molecular level in the precursor, allowing uniform active-site distribution in the resultant catalyst at the sub-nano- or atomic scale. We demonstrate that the Co-N/m-C-900 catalyst, i.e., that prepared with pyrolysis at 900 ℃, is the most active for the target reaction. Moreover, the results of a preliminary recycling evaluation are reported, revealing that Co-N/m-C-900 can be used six times without significant loss of activity, thus demonstrating its excellent recyclability.

11, 11'-bis(Dipyrido[3, 2-a:2', 3'-c]phenazinyl (bidppz), and other reagents were obtained from commercial sources and used without further purification.

To prepare the Co-N/m-C catalyst, 270 mg bidppz and 122 mg Co(OAc)₂·4H₂O were added to 40 mL DMF under vigorous stirring. The mixture was then refluxed at 160 ℃ for 2 h. Then, 400 mg SiO₂ (40 wt% Ludox HS-40 colloidal silica) was added into the above mixture, which was vigorously stirred for another 3 h. After evaporating the solvent at 180 ℃, a composite of Co-bidppz and the template was obtained and then pyrolyzed at the desired temperature for 2 h under flowing nitrogen. The heating rate was 5 ℃·min^-1. Generally, Co-N/m-C catalyst was obtained upon removal of the template by washing with HF (10 wt%) for 24 h under ambient atmosphere at room temperature.

N₂ adsorption-desorption isotherms were measured using a QuadraSorb SI4 Station at -196 ℃, and the samples were degassed at 300 ℃ for 6 h before measurement. Transmission electron microscopy (TEM) images were obtained using a JEM-2100 microscope. Scanning electron microscopy (SEM) images were obtained using a JSM-7800F microscope with an acceleration voltage of 20 kV. The Co loadings of the catalysts were measured using inductively coupled plasma atomic emission spectroscopy (ICP-AES) using a Perkin-Elmer OPTIMA 3300DV. The detection limit was 1.0 × 10^-7. Powder X-ray diffraction (XRD) patterns were collected on a Rigaku/Max-3A X-ray diffractometer using Cu K_α radiation (λ = 1.54178 Å). X-ray photoelectron spectroscopy (XPS) analysis was conducted using a Thermo Scientific ESCALAB 250Xi with Al K_α radiation anode (hv = 1486.6 eV).

A mixture of 22 mg Co-N/m-C-900 catalyst (0.44 mol% Co), 1 mL methanol, 0.5 mmol of the corresponding alcohol, and 0.1 mmol potassium carbonate was added to a 10-mL vial. The vial was placed into an autoclave, then the autoclave was filled with air to 1 bar. The mixture was stirred at 60 ℃ for 2 h. After the reaction, the autoclave was removed and cooled to ambient temperature. The air inside the autoclave was discharged and the vial was removed from the autoclave, then biphenyl was added to the vial as a standard. The reaction solution was diluted with methanol, and then centrifuged and analyzed by gas chromatography (GC) and gas chromatography-mass spectrometry (GC-MS) quantitatively and qualitatively.

The cycling test of the Co-N/m-C-900 catalyst was performed based on the model reaction of benzyl alcohol with methanol under the following reaction conditions: A mixture of 2 mmol benzyl alcohol, 88 mg Co-N/m-C-900, 4 mL methanol, and 0.4 mmol potassium carbonate was transferred into a 50-mL vial. The vial was placed into an autoclave and the autoclave was filled with O₂ to 3 bar. The mixture was stirred at 60 ℃ for 2 h. After the reaction, the autoclave was removed and cooled to ambient temperature. The air inside the autoclave was discharged and the vial was removed from the autoclave. The reaction solution was diluted with methanol, centrifuged, and then analyzed by GC and GC-MS. The catalyst was calcined at 400 ℃ for 2 h using a heating rate of 5 ℃·min^-1 in a nitrogen atmosphere and then applied to the next run. The conversion and yield of each run were confirmed by GC.

A mixture of 300 mg Co-N/m-C-900 catalyst (0.25 mol% Co), 10 mL methanol, 10 mmol benzyl alcohol, and 2 mmol potassium carbonate was added to a 50-mL vial. The vial was put into an autoclave and the autoclave was filled with O₂ to 5 bar. The mixture was stirred at 80 ℃ for 24 h. After the reaction, the autoclave was removed and cooled to ambient temperature. The O₂ inside the autoclave was discharged and the vial was removed from the autoclave. The reaction solution was diluted with methanol, centrifuged, and analyzed by GC and GC-MS.

We carried out a preliminary screening of different catalytic materials in order to identify the one with the highest catalytic performance using the reaction of benzyl alcohol with methanol as the model system. Generally, reactions were conducted at 60 ℃ using 1 bar O₂. The results are shown in Table 1. The blank experiment (not using any catalyst) demonstrates that the reaction scarcely proceeds with no catalyst (Table 1, entry 1). Similarly, the Co-bidppz precursor shows little conversion of benzyl alcohol (Table 1, entry 2), confirming that, under the conditions studied, the Co-bidppz precursor is inactive in the target reaction. For comparison, we also directly pyrolyzed the Co-bidppz precursor without using a template. When the as-prepared low-surface-area Co-N/C catalyst (227 m²·g^-1, Fig. S1) is employed, the methyl benzoate yield barely reaches 0.1% (Table 1, entry 3). Gratifyingly, the Co-N/m-C catalyst shows excellent catalytic performance for this transformation, yielding the product in 81.6% yield (Table 1, entry 4). Consequently, we deduced that pyrolysis at high temperature was crucial for producing active sites and that the existence of porosity in the catalyst was important for promoting the reaction.

We also prepared a N/m-C catalyst without using cobalt acetate tetrahydrate by pyrolysis of bidppz using a silica colloid as a hard template for comparison. This catalyst was then applied to the model reaction. However, no activity for ester formation was observed (Table 1, entry 5). Thus, it may be inferred that the cobalt sites confer the catalytic activity to the material. Carbon materials fabricated with other non-noble transition metals provide lower conversions of benzyl alcohol than that achieved with cobalt (Table 1, entries 6-11). Thus, the Co-N/m-C catalyst is the most active towards the direct esterification of benzyl alcohol with methanol. Consequently, we performed a series of exploratory experiments on the oxidative esterification of alcohols employing this Co-based catalyst.

To determine the optimum catalyst preparation temperature, catalysts prepared at different pyrolysis temperatures were utilized in the model reaction. As seen from Table 2, when the catalyst pyrolyzed at 900 ℃ is applied in the oxidative esterification of benzyl alcohol, it affords the target product methyl benzoate in 94.7% yield in only 2 h, thus demonstrating the best activity and efficiency among the as-prepared catalysts (Table 2, entries 1-4). As the best catalyst in this work, Co-N/m-C-900 provides the high turnover frequency (TOF) of 107.6 mol methyl benzoate mol^-1 Co h^-1 for the direct oxidation of benzyl alcohol. This TOF value is an order of magnitude higher than the values reported for current Co-based heterogeneous catalysts, although the TOF value that obtained under base-free conditions over Co-N/m-C-900 is not the highest (Table S1, S2). Even within only 0.5 h, the methyl benzoate yield reaches 72.8% (Table 2, entry 5), which confirms the outstanding catalytic efficiency of our selected catalyst. Notably, this catalyst system is stable and can be reused at least five times. A yield of 92.9% is achieved when air is used as the oxidant (Table 2, entry 6), which is only a little lower than that in the presence of O₂. Lower product yields are obtained in the presence of Na₂CO₃ and NaOH (58.6%-70.3%, Table S3, entries 1 and 2), whereas Cs₂CO₃, KOH, and K₃PO₄ provide slightly better yields (85.1%-87.4%; Table S3, entries 3-5). However, the highest yield is achieved with K₂CO₃ (92.9%; Table S3, entry 6).

Thus, this systematic investigation revealed that the optimal reaction conditions were 22 mg catalyst (0.44 mol% Co), 0.2 equiv. of K₂CO₃, and a reaction time of 2 h at 60 ℃ under air atmosphere. Furthermore, a very small amount of benzyl benzoate is detected after the reaction. Thus, we speculated that the catalyst might also catalyze the self-esterification of benzyl alcohol into benzyl benzoate. Consequently, we performed a self-esterification experiment with benzyl alcohol, and found that benzyl benzoate is indeed obtained (Table S4).

We performed thermogravimetric analysis to explore the relationship between the activity and structure of the catalysts. As shown in Fig. 1, the bidppz ligand exhibits very high thermal stability, with a total weight loss of only 24% at 900 ℃. However, the Co-bidppz coordination polymer exhibits significant weight loss at 250 ℃. When the temperature is further raised to 700 ℃, another weight loss occurs, bringing the total weight loss to 31%. The experimental results given in Table 2 show that the catalytic activity of Co-N/m-C-700 is much higher than that of Co-N/m-C-600, indicating that most active sites are formed above 700 ℃. The Co contents of Co-N/m-C-600, 700, 800, and 900 are 0.18, 0.27, 0.44, and 0.59 wt%, respectively, revealing that more active cobalt species are generated in the high-temperature range (700-900 ℃). As discussed above, the highest activity in the target reaction is achieved over Co-N/m-C-900 samples.

N₂ adsorption analysis was carried out to investigate the high catalytic activity of Co-N/m-C-900. The H4-type hysteresis loop is powerful evidence for the mesoporous properties of the catalyst (Fig. 2). On the basis of the Barrett-Joyner-Halenda (BJH) model, Fig. 3 reveals a broad pore-size distribution for Co-N/m-C-900 ranging from 1.0 to 82.8 nm, in which the primary pore size is 7.3 nm. The Brunauer-Emmett-Teller (BET) surface areas of Co-N/m-C-700, Co-N/m-C-800, and Co-N/m-C-900 are 506, 680, and 641 m²·g^-1. Thus, the experimental results show that there is no positive correlation between catalyst activity and specific surface area. The mesoporous surface areas of Co-N/m-C-700, Co-N/m-C-800, Co-N/m-C-900 are 424, 523 and 502 m²·g^-1.

To explore the textural properties of the superior Co-based catalyst, the SEM analysis of Co-N/m-C-900 was conducted and the results are displayed in Fig. 4(a). A sponge-like surface morphology possessing a large number of dense pores is observed, clearly indicating the introduction of spherical holes in the prepared materials. We examined Co-N/m-C-900 using TEM to obtain further detailed structural information. Many pores are observed with pore sizes ranging from a few to several tens of nanometers, which agrees with the above SEM results and confirms the special porous structure of Co-N/m-C-900. No typical diffraction patterns are displayed in the selected-area electron diffraction (SAED) image, which indicates the polycrystalline structure of the Co-N/m-C-900 sample (Fig. S2(c)). Moreover, the relevant energy-dispersive X-ray (EDX) spectrum displayed in Fig. S2(d) confirms the presence of cobalt. However, nanoparticles that contain metal could not be observed, even by HRTEM (Fig. S2(a) and Fig. S2(b)). To further verify this, SEM in backscattered electron detection mode (V_acc = 10.0 keV, providing an electron penetration depth at the µm level) was employed (Fig. S3), and no white particles are seen. The absences of discernible metallic Co phase, Co₃O₄, and CoO species are further confirmed by the XRD results (Fig. S4). Metagenic chains consisting of the ligand and cobalt comprise the Co-bidppz polymer, which may impede the aggregation of cobalt species when the material is heated. Thus, it is rational to conjecture that, after acid washing, the vestigial active cobalt species might exist at the sub-nano- or atomic scale, which, along with the mesoporous microstructure of the catalyst, is responsible for its superior catalytic activity.

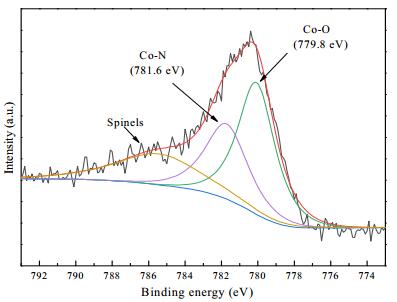

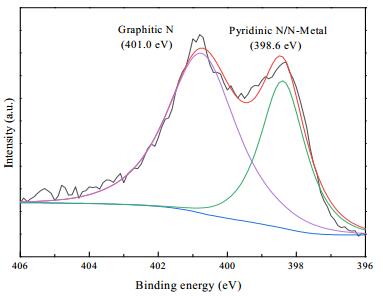

We performed XPS on the samples to determine the chemical states of the cobalt and nitrogen inside the Co-N/m-C catalysts (Fig. 5, Fig. 6, Fig. S5). The N 1s spectrum of the catalyst could only be deconvoluted into two components, i.e., pyridinic nitrogen (398.6 eV) coordinating to a cobalt ion and graphitic nitrogen bonded with three sp² carbon atoms within the graphitic plane (401.0 eV) (Fig. 5) [60, 61]. Subsequently, the Co 2p_3/2 XPS spectrum of the Co-N/m-C-900 catalyst was fitted into two distinct peaks centered at 781.6 and 779.8 eV (Fig. 6), which can be ascribed to Co-N and Co-O, respectively [62]. As shown in Fig. S6 and S7, the specific forms of the nitrogen dopants and cobalt in Co-N/m-C-700 and -800 are the same as those in Co-N/m-C-900. Many researchers have shown that the special Co chemical environment, in which pyridinic nitrogen is involved, plays an important part in furnishing the catalysts with appropriate activity in oxidation reactions. Furthermore, the N-doped carbon also helps stabilize the active Co species [53, 63, 64].

The proposed methodology exhibits general applicability to the esterification of other aromatic alcohols. Diverse benzylic alcohols are oxidized selectively to the corresponding methyl esters in good to excellent yields at 60 ℃ (Table 3). Benzyl alcohols and alkyl-substituted benzyl alcohols are esterified conveniently in high yields of up to 98.8% (Table 3, entries 1-5), and benzyl alcohols substituted with other electron-donating groups such as -OCH₃ in the para- and meta-positions give the corresponding methyl benzoates in 96.4% and 91.5% yields (Table 3, entries 6 and 7). In addition, substrates with halogen functional groups (-F, -Cl, -Br) are esterified to the target methyl esters in high yields (Table 3, entries 9-11). When the benzyl alcohol is substituted with a strong electron-withdrawing group (-NO₂ and -CF₃) in the para-position, slightly lower yields of the corresponding products are obtained (Table 3, entries 12 and 13).

Based on the above results, benzyl alcohols substituted with electron-donating and electron-withdrawing functional groups are esterified to the desired methyl esters in satisfactory yields. It is worthy of note that the more sensitive allylic alcohol is also moderately converted to the corresponding ester in our oxidative esterification system, providing the methyl cinnamate in 80% yield (Table 3, entry 14).

Next, we studied the oxidative esterification of heterocyclic alcohols. Piperonyl alcohol is transformed into methyl 1, 3-benzodioxole-5-carboxylate in the excellent yield of 98.8% (Table 3, entry 15), and the esterification of 3-thienylmethanol gives the product in the satisfactory yield of 88.3% (Table 3, entry 16).

After obtaining satisfactory results for the esterification of various benzylic alcohols with methanol, we explored the selective oxidative coupling with other aliphatic alcohols. In fact, very little research has been carried out for such cross-esterifications, i.e., when one alcohol has the possibility of being oxidized in the presence of another. As expected, benzylic alcohols and ethanol are transformed into the corresponding ethyl esters in 70.0%-78.3% yield (Table 4, entries 1-3). For propyl, butyl, and pentyl alcohols, the desired esters are obtained in 71.8%-87.4% yield (Table 4, entries 4-6).

As we all know, stability and recyclability are crucial criteria for the practical application of heterogeneous catalytic materials. Thus, in order to demonstrate its reusability, six consecutive oxidative esterifications of benzyl alcohol with methanol were performed using the Co-N/m-C-900 catalyst. In this experiment, the catalyst was washed thoroughly with methanol after the reaction was over, and it was then calcined at 400 ℃ under N₂ for 2 h before being employed in the next run. The results revealed that the Co-N/m-C-900 catalyst can be recycled successfully five times with no apparent loss of catalytic activity (Fig. 7).

The catalytic experiments above were conducted at the 0.5-2 mmol scale. Therefore, we were interested in exploring the synthetic utility of this methodology in terms of scale-up. Therefore, we performed reactions for some substrates at the 10 mmol scale. As shown in Scheme 1, the corresponding methyl esters are obtained in yields of up to 96.1%. Thus, our catalyst system is applicable to the lab-scale direct esterification of alcohols in relatively short reaction times using air as a benign oxidant.

We have developed an efficient and inexpensive strategy for the direct oxidative esterification of alcohols to produce esters under mild conditions using a cobalt-modified N-doped mesoporous carbon catalyst (Co-N/m-C-900). The catalyst is fabricated by pyrolysis of a Co-bidppz/template composite followed by removal of the template with HF, and it exhibits high catalytic activity for a broad scope of substrates with various functional groups. Moreover, the catalyst can be easily recovered and recycled at least five times with no apparent loss in activity. Thus, this strategy may provide new avenues for the development of durable and efficient catalysts for highly efficient catalytic organic transformations.
