Production of light olefins (ethene, propene, and butenes) from C1 building blocks such as syngas (CO + H₂) is highly significant because it provides a promising alternative to form bulk chemicals from nonpetroleum resources like coal, natural gas, biomass, and CO₂ [1, 2]. Among these processes, the methanol-to-olefins conversion (MTO), first developed four decades ago, has attracted broad attention and has now been commercialized in China [3-6]. Methanol can be commercially synthesized from syngas using Cu-ZnO-Al₂O₃ as a catalyst [7]. Porous silicoaluminophosphate (SAPO) zeotypes with eight-membered pores and moderate cages have been demonstrated as the most efficient catalysts for the MTO conversion, with high selectivity to ethene and propene [8-10]. H-SAPO-34 with a CHA topology structure exhibits high catalytic activity and selectivity for MTO conversion, which has been extensively investigated by both academic and industrial communities [11]. In addition, H-SAPO-18 with AEI framework topology also has moderate cages and small pore openings. Despite the same pore openings (3.8 × 3.8 Å) of both CHA and AEI frameworks, the topologies are different, and the cage diameter varies by ~ 0.3 Å, described by the largest included sphere (7.05 Å for AEI vs. 6.72 Å for CHA). These differences may lead to slight changes in the product distribution and coking behavior compared to that of H-SAPO-34 for the MTO conversion [12-20].

In addition to light olefins as primary products, higher olefins, alkanes, and aromatics can be formed in the cavities of catalysts as well. The diverse distribution of products indicates that methanol involves complex reaction networks in MTO conversion [21-23]. It is now accepted that MTO conversion proceeds via the indirect hydrocarbon pool mechanism in zeolites or zeotypes, and the active center is composed of inorganic Brønsted acid sites and in-situ organic hydrocarbon pool species [24, 25]. According to the nature of hydrocarbon pool species, two different catalytic cycles were proposed, namely the aromatic-based cycle and the olefin-based cycle [26-28]. In the aromatic-based cycle, polymethylbenzenes (MBs) were suggested as the active hydrocarbon pool, and both side chain and paring reaction pathways were previously suggested to split off light olefins [29-34]. In the olefin-based cycle, the higher olefins such tetramethylethene (TME) were suggested as the active hydrocarbon pool, which undergo methylation and cracking elementary steps [35-37]. Combining both the aromatic-based and olefin-based cycles is the so-called "dual cycle" concept first proposed by Svelle and other authors [38, 39]. Both cycles are interconnected in the reaction. Regarding the contribution to the product selectivity, it has been found that ethene is selectively favored in the aromatic-based cycle, which is less favored in the olefin-based cycle [38, 40]. As stated previously, both the aromatic-based and olefin-based cycles are mechanically similar, as both cycles involve the same sequence of elementary steps and the key is the formation of cracking precursors with alkyl chains for elimination [36, 41]. Despite the clear depiction of the hydrocarbon pool mechanism, the dominant hydrocarbon pool species is still a subject of debate, and understanding the structural effects of zeolites and hydrocarbon pool species on MTO catalytic performance is a persistent challenge [42-48].

In addition to isotopic kinetic analysis, in-situ spectroscopy and operando spectroscopy, density functional theory (DFT) calculations have been indispensable in efforts to unravel the underlying chemistry of the MTO conversion [28, 49, 50]. The direct kinetic comparison of both aromatic-based and olefin-based cycles in H-ZSM-5 and H-SAPO-34 have suggested that the olefin-based cycle plays an important role to produce light olefins based on the energetic span model [36, 51, 52]. The aromatic-based cycle in H-SAPO-18 has been theoretically studied in periodic models with dispersion-corrected exchange correlation (XC) functional [53]. It is now in a positon to investigate the olefin-based cycle in H-SAPO-18 to understand the dominant hydrocarbon pool species by comparing the kinetics of both cycles.

All periodic DFT calculations were performed using the Vienna Ab initio Simulation Package (VASP 5.3.5) [54]. The electron-ion interaction was described by the projector augmented wave (PAW) method [55, 56]. The Bayesian error estimation functional with van der Waals (vdW) correlation (BEEF-vdW) was also employed [57]. The plane wave basis set kinetic energy cutoff was 400 eV. The sampling of the Brillouin zone was only with Г point. The dimer method was utilized to locate transition states [58]. A force threshold of 0.01 eV/Å was used for the optimization of all structures. The harmonic frequency calculations employed a partial Hessian vibrational analysis (PHVA), including H atom of acidic sites and organic species part of the involved states. The zero point energies (ZPE), enthalpies, entropies, and Gibbs free energies were then calculated from harmonic frequencies [36]. The accuracy of the thermodynamics calculations using PHVA method was evaluated by comparing it to the results calculated using the FHVA (full Hessian vibrational analysis) method in H-SAPO-34 [36].

The H-SAPO-18 zeotype was modeled by periodic 48T cell. One P atom at the T2 site was replaced by a Si atom in H-SAPO-18 to generate one Brønsted acid site in one supercell, which was located between T2 and T1 sites as it is the most stable site (Fig. 1) [59]. The lattice constants were optimized using a 800 eV energy cutoff and a 0.01 eV/Å force threshold (13.91, 12.87, 18.79 Å for AlPO-18), similar to the experimental lattice constants (13.71, 12.73, 18.57 Å). The positions of all atoms were relaxed in the calculations, while the lattice constants were fixed at the optimized values.

The adsorption of methanol at the acid site of zeolites is the first step to initiate the MTO conversion. As shown in Fig. 1, methanol is physiosorbed via hydrogen-bonding with the acid site of H-SAPO-18; the distance between the proton of acid site and the hydroxyl O atom is 1.57 Å. The adsorption enthalpy in H-SAPO-18 is calculated to be -81 kJ/mol, which is very similar to that in H-SAPO-34 with the same composition and size of pore openings (-80 kJ/mol) [36]. The adsorption enthalpies of methanol at other acid sites adjacent to different substituted T sites (T1, T2, or T3) by Si atom were calculated to range from -78 to -82 kJ/mol, implying that methanol adsorption is less sensitive to the local environment in eight-membered SAPO zeotypes with moderate pore size.

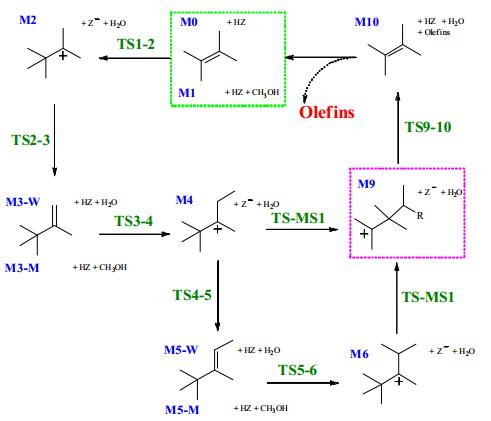

In the olefin-based cycle, the olefins themselves serve as the hydrocarbon pool species for the growth of alkyl chains, which can finally be cracked into light olefins. The elementary steps in this cycle also includes the methylation of olefins, deprotonation, isomerization, and cracking of non-cyclic carbenium ions. TME was still selected as the representative hydrocarbon pool of olefins in H-SAPO-18 to address the kinetics of the olefin-based cycle. The detailed TME-based cycle is shown in Scheme 1, and the calculated Gibbs free energy reaction diagrams at 0 K and 673 K in H-SAPO-18 are shown in Fig. 2.

The adsorption enthalpy of TME is calculated and found to be -85 kJ/mol in H-SAPO-18, similar to that in H-SAPO-34 (-86 kJ/mol). As TME cannot diffuse out of the pores, it can only be formed in situ. With the presence of TME, the adsorption enthalpy of the first methanol is -90 kJ/mol, which is higher than that of methanol adsorption in the absence of TME. This methanol then attacks TME to form a tert-C7+ ion (M2) by overcoming an enthalpy barrier of 100 kJ/mol in the first methylation step (M1 → TS1-2). The formed tert-C7+ ion is very unstable, which can easily be deprotonated into the corresponding C7 olefin (M3) with the assistance of water. The formation of higher C7 olefin from TME is exothermic by 37 kJ/mol. The desorption of water and adsorption of the second methanol then advances the propagation of higher olefins. The enthalpy barrier of the second methylation step (M3-M → TS3-4) is 103 kJ/mol. The formed C8 species may then undergo the cracking step to form light olefins or the methylation step to form C9 species. In the case of the third methylation step (M5-M → TS5-6), the enthalpy barrier is 109 kJ/mol. As shown in Fig. 3, the breaking C-O bond distance and the forming C-C bond distance at three methylation transition states are around 2.1 and 2.3 Å, respectively. From Fig. 2, the relative stabilities of the formed non-cyclic carbenium ions in H-SAPO-18 increase with the number of carbon atoms (M2 > M4 > M6); the enthalpy difference between carbenium ions and the corresponding olefins decreases from 91, 64, to 56 kJ/mol for C7, C8, and C9 species at 0 K, respectively.

The cracking elementary step is usually competitive with the methylation step for the higher olefins. Regarding the cracking of C8+ ion to produce ethene, the isomerization involving the shift of a methyl group forms the cracking precursor of tert-C8+ ion (M9); then the simultaneous breaking of the C-C bond and deprotonation of the terminal methyl group assisted by water close one catalytic cycle to split off ethene. The enthalpy barrier for this step (M9 → TS9-10/C2) is only 63 kJ/mol, which is slightly lower than the enthalpy barrier in H-SAPO-34 (75 kJ/mol) [36]. Taking stable C8 olefin as the reference (M5-W), the enthalpy barrier of C8 cracking to ethene was calculated at 137 kJ/mol. In the case of cracking of C9+ ion to produce propene, the enthalpy barrier is only 35 kJ/mol, which is lower than the enthalpy barrier in HSAPO-34 (54 kJ/mol) [36]. Taking C9 olefin as the reference (MX), the enthalpy barrier of C9 cracking is 83 kJ/mol.

The barrier dependence of the elementary step on acid sites was evaluated using the methylation of TME with methanol. As listed in Table S1, the enthalpy barriers were calculated to range from 88 to 94 kJ/mol at other acid sites, which is slightly lower than the above calculated value (100 kJ/mol). These results suggest that the enthalpy barrier calculated at the most stable acid site may represent the upper limit for each elementary step in H-SAPO-18. In addition, the uncertainty related to the enthalpy barrier was estimated by the BEEF-vdW ensemble, and a relative error of around 20% was predicted for the involved elementary methylation and cracking steps (Fig. S1).

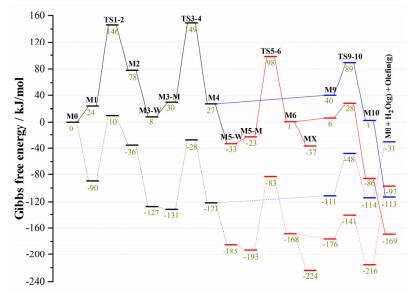

At the MTO reaction temperature (673 K), the Gibbs free energy barriers for three methylation steps are around 120 kJ/mol, which is higher than those in H-SAPO-34 by about 15-30 kJ/mol [36]. The substitution of water by methanol (M3-W → M3-M, M5-W → M5-M) requires extra energy due to the weak acidity of H-SAPO-18. The Gibbs free energy barriers for the cracking of C8+ and C9+ ions to ethene and propene are only 49 and 22 kJ/mol, which are 122 and 65 kJ/mol when taking the most stable C8 or C9 olefins as the reference. It should be noted that both barriers are 185 and 157 kJ/mol in H-SAPO-34 [36]. From Fig. 2, it appears that the methylation of higher olefins is more energy demanding than the subsequent cracking steps in the TME-based cycle. The overall Gibbs free energy barrier in the TME-based cycle is therefore less than 150 kJ/mol at 673 K in H-SAPO-18. The framework topology strongly influences the kinetics of the elementary steps in MTO conversion. Regarding the TME-based cycle, it is the cracking of higher olefins that are rate-determining in H-SAPO-34, while it is the methylation of olefins that are rate-determining in H-SAPO-18. In addition, the stability of carbenium ions increases with temperature; the free energy differences between carbenium ions and the corresponding olefins are 70, 60, and 38 kJ/mol for C7, C8, and C9 species at 673 K, respectively.

We have systematically studied the aromatic-based cycle in H-SAPO-18 [53], and suggested that hexamethylbenzene (HMB) was the dominant component of MBs evaluated from static adsorption enthalpy and interconversion thermodynamics. The overall Gibbs free energy barriers of MBs-based cycles were calculated to be greater than 200 kJ/mol at 673 K. By directly comparing the kinetics of both MBs-based cycle and TME-based cycle, we conclude that the olefin-based cycle dominates the MTO conversion in H-SAPO-18. It is olefins themselves rather than the aromatics that are likely to be the dominant active hydrocarbon pool for MTO conversion. It should be noted that the olefinic hydrocarbon pool is not limited to TME, as the methylation of higher olefins is feasible and any olefins that can be methylated could serve as the hydrocarbon pool. In addition, higher branched olefins hardly diffuse out of zeolites or zeotypes with eight-membered rings, and the concentration of which is expected to be high. Previous experimental results found that propene and butenes were predominantly formed in H-SAPO-18 and H-SAPO-34, and butenes were more prominent in H-SAPO-18 than in H-SAPO-34 [17]. This appears to be consistent with the theoretical results that olefins act as the dominant hydrocarbon pool in both zeotypes, as ethene is selectively favored in the aromatic-based cycle.

In both the aromatic-based and olefin-based cycles, methylation and cracking are the two most important elementary steps for alkyl chain propagation and elimination. The methylation and cracking steps in the olefin-based cycle in H-SAPO-18 are now addressed. In the methylation step, we assumed that methanol was first adsorbed at the acid site, then olefin was co-adsorbed in the cage of H-SAPO-18. The adsorption enthalpy of olefins with the absence of methanol is listed in Table 1. The adsorption enthalpy increases monotonously with the size of olefins; it increases by ~15 kJ/mol when one CH₂ unit is added to the chain from propene. Two different reaction barriers can be derived according to the reference state in the methylation, namely, an apparent enthalpy barrier and an intrinsic enthalpy barrier. Both enthalpy barriers have been systematically studied in a range of zeolites, including H-ZSM-5, H-SAPO-34, H-ZSM-22, and H-ZSM-58 using cluster or periodic models [60, 61]. Both values for a series of olefins from ethene to hexene (TME) in H-SAPO-18 are listed in Table 1. The corresponding Gibbs free energy diagram at 0 and 673 K in H-SAPO-18 is presented in Fig. 4.

Generally, the intrinsic enthalpy barrier relates to the branching degree of the double bond. The intrinsic enthalpy barrier for the methylation of ethene is as high as 148 kJ/mol, and that of TME is 100 kJ/mol. The apparent enthalpy barrier is usually applied for comparison to the experimental results. As listed in Table 1, the apparent methylation barriers of ethene, propene, and 2-butene in H-SAPO-18 are 114, 76, and 58 kJ/mol respectively, much higher than those in H-SAPO-34 (76, 34, and 28 kJ/mol) [35]. With the size increase of olefins, the apparent enthalpy barrier of TME is only 5 kJ/mol.

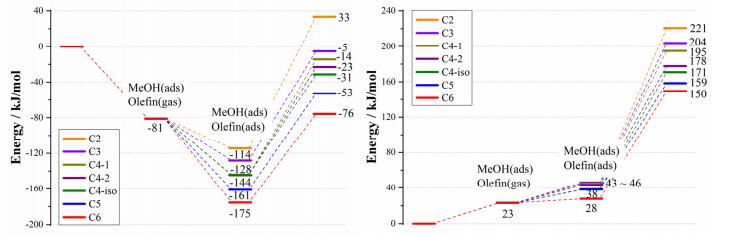

At 673 K, the co-adsorption free energies of methanol and olefins span from 28 to 46 kJ/mol; the range is less than 20 kJ/mol, much less than that at 0 K (~ 60 kJ/mol, -175 ~ -114 kJ/mol). This indicates that the stabilities of higher olefins are more sensitive to temperature than lower olefins due to the entropy effect. However, the span is ~70 kJ/mol (-150 ~ -221 kJ/mol) for the free energies of the transition states at 673 K. The dependence of this span on temperature is not obvious as that of co-adsorption intermediates. With respect to the gaseous olefins and methanol, the overall free energy barriers are over 190 kJ/mol for the methylation of ethene, propene, and 1-butene in H-SAPO-18 and less than 180 kJ/mol for the methylation of 2-butene, iso-butene, iso-pentene, and TME. The methylation of olefins is therefore very feasible in H-SAPO-18 at the MTO reaction temperature; the higher olefins, especially olefins with three or four branched alkyl chains, are very readily attacked by adsorbed methanol.

In scheme 1, we assume that the C8+ ion eliminates ethene and the C9+ ion splits off propene in order to regenerate the original hydrocarbon pool TME. In fact, other lower olefins may be produced from higher non-cyclic carbenium ions by surmounting different barriers. As ethene and propene are the two preferred olefin products in H-SAPO-18, the cracking kinetics of non-cyclic carbenium ions from C5+ ion to C9+ ion were studied. The enthalpy barriers were calculated with respect to the co-adsorption of water and stable olefins in H-SAPO-18 (Fig. 5). The corresponding error was estimated by the BEEF-vdW ensemble as shown in Fig. S1. Water was employed to assist the proton shift between organic intermediates and the framework [30, 34]. The optimized transition state structures are shown in Fig. 6. The cracking enthalpy barrier of the C5+ ion to ethene and propene is as high as 197 kJ/mol, indicating that the direct cracking of the C5+ ion is not likely in H-SAPO-18. The cracking enthalpy barrier of the C6+ ion to produce propene is 161 kJ/mol, which is slightly lower than that to produce ethene (170 kJ/mol). In the case of cracking the C7+ ion, the enthalpy barriers are calculated to be 139 and 157 kJ/mol to produce propene and ethene, respectively. Regarding the cracking of the C8+ ion, the enthalpy barrier to produce propene is only 105 kJ/mol, much lower than that to produce ethene by ~ 30 kJ/mol (137 kJ/mol).

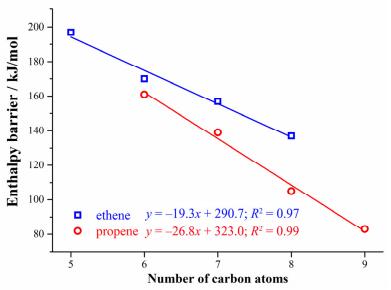

Interestingly, the enthalpy barriers of cracking step assisted by water were found to linearly scale with the number of carbon atoms of cracking precursors like higher olefins or carbenium ions. As shown in Fig. 5, the enthalpy barriers decrease by about 19 and 27 kJ/mol, with the number of carbon atoms to produce ethene and propene, respectively, indicating that the cracking barrier to produce propene is more sensitive to the size of precursors. The linear scaling relationships for the corresponding free energy barriers at 673 K can be observed as shown in Fig. S2. The formation of ethene therefore becomes more unfavorable as the size of precursors increase. As addressed previously from a reaction point of view, the olefin selectivity is controlled by the distribution of cracking precursors, which can be tailored by the catalyst structure and reaction conditions in the olefin-based cycle [35].

Finally, we further highlight the similarity between the olefin-based cycle and the aromatic-based cycle. Both cycles undergo alkyl chain propagation and elimination/cracking steps to produce light olefins. Table 2 lists the important intermediates involved in both the aromatic HMB-based cycle and the olefinic TME-based cycle. The differences between the intermediates in the HMB-based cycle and the TME-based cycle were found to be invariant. Linking two terminal methyl groups of intermediates in the TME-based cycle with a C6 motif results in the corresponding intermediates in HMB-based cycle. So do the transition states between the two cycles. An extra steric effect would be exposed in the states involved in the HMB-based cycle and may explain the higher overall free energy barriers in the HMB-based cycle compared to the TME-based cycle.

The preferred reaction mechanism of the MTO conversion in H-SAPO-18 was studied using periodic DFT calculations. Using TME as the representative hydrocarbon pool in the olefin-based cycle, the overall free energy barrier was calculated to be less than 150 kJ/mol in the TME-based cycle at 673 K, which is much lower than that in the aromatic-based cycle (200 kJ/mol), indicating that olefins themselves are the dominant hydrocarbon pool species in H-SAPO-18. The olefin-based cycle is mechanically similar to the aromatic-based cycle; both cycles involve similar intermediate and transition state structures and the same sequence of elementary steps. The methylation and cracking are two important elementary steps in MTO conversion. Interestingly, the cracking barrier linearly decreases with the number of carbon atoms in cracking precursors; the production of ethene is much less favored for the cracking of higher precursors from a reaction perspective. The results in this study further highlight the importance of the olefin-based cycle in MTO conversion catalyzed by eight-membered SAPO zeotypes and revealed the similarity between the olefin-based cycle and the aromatic-based cycle. We believe that it is essential to have a clear picture of the distribution of cracking precursors to address the effect of catalyst structure and reaction conditions on MTO conversion.
