Formic acid (FA) has attracted tremendous attention as it can be catalytically decomposed into hydrogen and carbon dioxide. Besides, FA exhibits several advantages such as easy storage and transportation, nontoxicity, and high volumetric hydrogen density (53 g/L), which makes it a potential carrier for the production and storage of hydrogen [1-4]. Thus, various homogeneous and heterogeneous catalysts for the decomposition of FA have been developed [5-7]. Transition-metal complexes with phosphorus and nitrogen donor ligands typically exhibit superior catalytic performance [8-16]; however, difficulties in catalyst separation hinder their applications. Heterogeneous catalysts have advantages due to the facile separation and recycling, but their activity and selectivity have not reached the level of homogeneous catalysts [17-19]. To solve this problem, metal complexes immobilized on silicas and polymers have been researched, and good performance obtained [20-23]. More recently, conjugated microporous polymers (CMP) prepared via a coupling reaction have been used as a support for the deployment of FA decomposition catalysts [24, 25]. Generally, due to the low surface areas, diffusion limitation remains a drawback for CMP. However, porous organic polymers (POPs), synthesized by solvothermal polymerization of vinyl-functionalized ligands, have highly porous structures and high surface areas, and have emerged as an ideal platform for the deployment of catalysts [26, 27]. In this regard, we synthesized two POPs, POPs-PPh₃ and POPs-TPP, from organic ligands bearing phosphorous and nitrogen donors, respectively (Scheme 1). After polymerizing and treating with Ru species as the precursor, the catalysts were tested for their effectiveness in the decomposition of FA.

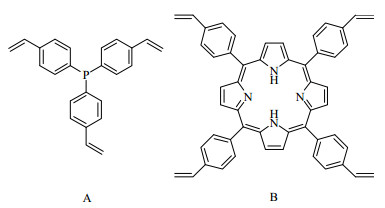

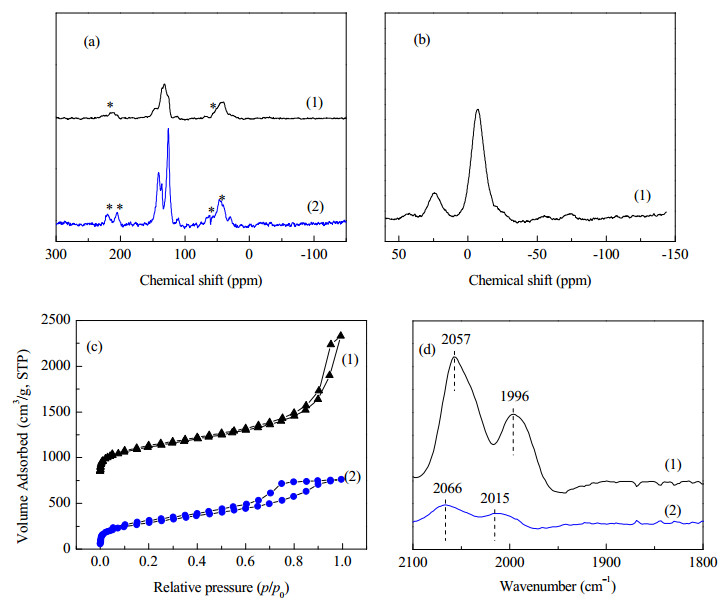

POPs-PPh₃ and POPs-TPP were prepared according to the methods reported previously [27, 28]. After metalation of Ru, the catalysts were characterized by solid-state ¹³C and ³¹P MAS NMR, N₂ physical adsorption, thermogravimetric analysis, and in situ FT-IR. The ¹³C MAS NMR spectra of Ru@POPs-PPh₃ and Ru@POPs-TPP (Fig. 1a) show broad peaks from 20 to 50 ppm, which were attributed to the polymerized vinyl group. The broad peaks from 120 to 150 ppm of Ru@POPs-PPh₃ are assigned to the aromatic carbons, while the broad peaks from 110 to 150 ppm of Ru@POPs-TPP are assigned to the tetraphenylporphyrin group. The ³¹P MAS NMR spectrum of Ru@POPs-PPh₃ (Fig. 1b) shows a single peak at –6.9 ppm, which is consistent with the uncoordinated P species. The peaks at 24.4 ppm are assigned to the P species coordinated with the Ru species and the oxidation state of phosphorous (P=O) [29]. N₂ sorption isotherms of Ru@POPs-PPh₃ and Ru@POPs-TPP (Fig. 1c) showed that both catalysts show typical type Ⅰ and type Ⅳ curves. The steep increase at relative pressures below 0.01 is due to the filling of the micropores, while the hysteresis loops are due to the mesopores. The pore size distribution curves (Fig. S1 in Supporting Information), calculated by a nonlocal density functional theory method (NLDFT), also confirm that abundant micropores and mesopores were present in these catalysts. The BET surface areas of Ru@POPs-PPh₃ and Ru@POPs-TPP are 1152 and 1045 m²/g, respectively. A high BET surface area is a typical characteristic of POP materials, which is favorable for the dispersion of active components and mass transfer in reactions. Thermogravimetric analysis (TGA) of Ru@POPs-PPh₃ and Ru@POPs-TPP (Fig. S2) shows that the decomposition temperature of these catalysts was higher than 400 ℃, which indicates their excellent thermal stability. The exact Ru content of the polymer catalysts is measured by inductively coupled plasma-optical emission spectrometry (ICP-OES) (Table S1). In situ FT-IR spectroscopy analysis, employing CO as a probe molecule, was carried out to compare the states of coordinated Ru sites on Ru@POPs-PPh₃ and Ru@POPs-TPP (Fig. 1d). The results reveal that the two absorption peaks of Ru@POPs-PPh₃ at 2057 and 1996 cm^-1 can be attributed to CO bound to Ru (Ⅱ), while Ru@POPs-TPP shows peaks at 2066 and 2015 cm^-1 [30]. The difference in wavenumbers between Ru@POPs-TPP and Ru@POPs-PPh₃ indicates that the different types of ligands in the polymer framework affect the energy state of CO bound to Ru; this is assumed to be closely related to the electron density of Ru, and further affects the performance of the catalysts during the decomposition of FA.

Subsequently, we investigated the decomposition of FA on different catalysts at 140 ℃ (Table 1). The results showed that [RuCl₂(PPh₃)₃]₂ exhibited very high initial activity with a maximum TOF of 11177 h^-1, but this performance did not last because of deactivation. The pre-catalyst, [RuCl₂(p-cymene)]₂, was also tested and a TOF of 3912 h^-1 was obtained. This result is not remarkable compared to numerous other homogeneous catalysts. As expected, the support material, POPs-PPh₃ without Ru, showed no activity. After being loaded with Ru, the Ru@POPs-PPh₃ catalyst was able to achieve near-full conversion with a maximum TOF of 7284 h^-1. Analysis of the gas phase showed high H₂ selectivity with about 0.1% CO. The other polymer, POPs-TPP loaded with Ru, was also tested. Unfortunately, Ru@POPs-TPP showed low activity (2308 h^-1) and the CO content of the gas phase was much higher (2.221%). There was no significant difference in the surface areas between Ru@POPs-PPh₃ and Ru@POPs-TPP, but the performance with regard to FA decomposition was different. The results show that the properties of the ligands in the polymer framework could significantly impact the activity and selectivity of the Ru@POPs catalysts. Subsequently, a hot filtration test was conducted. The reaction stopped when the catalysts were removed from the hot reaction mixture and restarted when the used catalysts were added again into the hot reaction mixture (Table S2). These results confirm the heterogeneous nature of the catalytic process. To confirm the state of the Ru species in our heterogeneous catalysts, transmission electron microscopy (TEM) was used to observe the fresh and used catalysts. The TEM images (Fig. 2 and Fig. S3) show that Ru nanoparticles cannot be detected in the fresh Ru@POPs-PPh₃ and Ru@POPs-TPP catalysts, which demonstrates that the Ru was highly dispersed. After the reaction, Ru nanoparticles were visible on the Ru@POPs-TPP catalyst but still were not able to be detected in used Ru@POPs-PPh₃; this demonstrates that the Ru@POPs-PPh₃ has excellent stability.

The catalytic activity can be improved with the presence of bases, according to previous research [31]. Therefore, a mixture of FA and triethylamine (TEA) was chosen as a model substrate to investigate the effect of bases on the reaction. The results showed that the activity of Ru@POPs-PPh₃ was remarkably increased when a certain amount of TEA was added (Table 1, Entry 6). The experiment resulted in a complete conversion, with a TOF of 55855 h^-1 at 140 ℃ and at atmospheric pressure. The influence of temperature on the reaction was investigated. A high TOF of 63778 h^-1 was obtained at 150 ℃ and a TOF of 24322 h^-1 was obtained at 130 ℃ (Table 1, Entries 7 and 8). To the best of our knowledge, the Ru@POPs-PPh₃ catalyst displayed higher activity than most heterogeneous catalysts. This excellent performance demonstrates that Ru@POPs-PPh₃ exhibits high activity that is similar to homogeneous catalysts [31].

A mixture of FA and TEA was chosen as the substrate to study the reusability of the Ru@POPs-PPh₃ catalyst (Table 2). The catalyst could be reused at least five times without loss of activity, indicating performance superior to that of conventional polymer catalysts [21]. ICP analysis of the filtered reaction solutions showed that the leaching of Ru was low. The excellent stability of the catalyst could be attributed to the high BET surface areas and the high P concentration around the Ru species. In addition, the CO purity remains stable even after several cycles in the test.

In summary, we successfully synthesized two heterogeneous Ru@POPs catalysts for the decomposition of FA. Compared with its homogeneous counterpart, Ru@POPs-PPh₃ showed satisfactory performance, as its catalytic functionalities were similar to those of homogeneous catalysts. On the other hand, Ru@POPs-TPP showed a significantly increased concentration of CO in the products, with a lower TOF for FA decomposition. In addition, the high BET surface areas and the high P concentration of the POPs-PPh₃ catalyst contributed to its improved performance. The FT-IR spectra show that the different types of ligands in the polymer framework affected the interaction between CO and Ru active sites, which is thought to be a key factor that influences the performance of the catalysts. This work is believed to give inspiration to heterogenize other homogeneous catalysts for FA decomposition.
