With the rapid growth of industry worldwide, energy shortages and environmental pollution have become the most challenging and urgent problems. Photocatalytic H₂ generation or pollutant removal by sunlight provides one of the most promising ways to address this issue, but the key is to develop efficient photocatalysts with high activity and low cost [1-6]. Among various semiconductor-based photocatalysts, TiO₂, which has good physicochemical stability, has received the greatest attention as it can be widely applied in H₂ generation, CO₂ reduction, and organic-pollutant degradation [7-16]. However, the fast recombination of photogenerated carriers resulting from the Coulomb force remains a critical factor that restricts its photocatalytic efficiency [17-21].

In the past decade, immense effort has been invested to eliminate the aforementioned obstacles, including the incorporation of co-catalysts, doping, surface modification, and fabricating composite systems [22-30]. Among these approaches, loading co-catalysts is widely recognized to be promising and facile, and which simultaneously results in enhanced light utility, promoted charge separation, and improved H₂-generation kinetics. Thus far, various co-catalysts, including noble metals (e.g., Au [31, 32], Pt [33], and Pd [34]) and inorganic compounds (e.g., Ni(OH)₂ [35], MoS₂ [36, 37], and CoP [38]), have been explored and loaded onto TiO₂ with the aim of enhancing the photocatalytic performance. However, the practical applications are still constrained by the high cost or harsh synthetic procedures of noble-metal-based co-catalysts. Therefore, it is highly desirable to develop more suitable co-catalysts in order to produce more efficient photocatalysts.

Recently, organic co-catalysts with exciting characteristics, for example those that are metal-free, cost-effective, and have easily adjustable properties via modification of functional groups, have seen impressive achievements in improving the photocatalytic performance [39, 40]. Choi et al. [41] incorporated dopamine with TiO₂ and found that dopamine as a co-catalyst could form a more efficient surface complex on the TiO₂ surface, thus improving the photocatalytic performance. Chen et al. [42] proved that poly(benzothiadiazole) could be conjugated with TiO₂ to improve visible-light-driven H₂ production and pollutant removal.

Herein, for the first time, oxamide (OA) was used as a co-catalyst. OA was decorated on TiO₂ nanosheets and the material was investigated as a novel photocatalyst for water splitting and dye decomposition. The OA with delocalized π-conjugated structures resulted in fast photogenerated charge separation and diminished the recombination rate. Accordingly, the TiO₂-OA hybrid exhibited higher efficiency for H₂ production and dye degradation. The present work is expected to provide new insights into the development of organic co-catalysts and the construction of environmentally friendly photocatalysts for applications in energy conversion and environmental purification.

All raw materials were analytical reagents and were used without further purification. Firstly, 5 mL of tetrabutyl titanate (98%) was dissolved in 50 mL of H₂O, and then 1 mL of hydrofluoric acid (HF, 40%) was added dropwise into the above stirred solution. Subsequently, the resulting solution was transferred to a Teflon-lined autoclave and heated at 200 ℃ for 24 h [43]. After cooling to room temperature, the as-prepared TiO₂ nanosheets were washed and dried in an electric oven at 60 ℃ overnight. TiO₂-OA hybrid samples were fabricated by a wet chemical route. In a typical process, 0.5 g of the as-prepared TiO₂ nanosheets and the corresponding amount for different weight ratios (5, 10, 30, and 50 wt%) of OA were added into 10 mL H₂O and stirred for 12 h to enable OA and TiO₂ to form effective interface contact; the pH value for the suspension was 3. Then, the whole solution was centrifuged and heated at 80 ℃ for 2 h. Finally, the samples were collected and then labeled as TOA-x, in which the x is the weight ratio of OA in TiO₂.

Powder X-ray diffraction (XRD) patterns were acquired via a Bruker D8 Advance X-ray diffractometer with Cu K_α (λ = 0.15406 nm). The morphology of the products was observed via scanning electron microscopy (SEM, JEOL JXA-840A) and transmission electron microscopy (TEM, Japan JEM-100CX II100 kV). X-ray photoelectron spectra (XPS) and valence-band X-ray photoelectron spectra (VBXPS) were obtained by a PHI-5000C system. UV-visible diffused reflectance spectra were obtained using a UV-visible spectrophotometer (UV2550, Japan Shimadzu). A fluorescence spectrophotometer (Hitachi, F-7000) and an electrochemical station (Chenhua Instruments, CHI660D) were used to record the photoluminescence (PL) spectra and photocurrent. The electron spin resonance (ESR) measurements were carried out on a JES FA200 spectrometer with 5, 5-dimethyl-1-pyrroline-N-oxide (DMPO) as the radical-capture reagent.

Photocatalytic H₂-evolving was performed in a closed system equipped with a 300 W Xe lamp (PLS-SXE 300C). Typically, 10 mg of the photocatalyst and 10 mL of triethanolamine were dispersed in 90 mL of H₂O with 80 μL of H₂PtCl₆ as the co-catalyst. The H₂ evolution was monitored through a gas chromatograph (GC D7900P, TCD detector).

Methylene blue (MB) and rhodamine B (RhB) were selected as the dyes for photocatalytic degradation characterization using a 300W Xe lamp. In each run, 15 mg of solid catalysts were well dispersed in 30 mL of an aqueous solution containing a certain amount of organic dyes (10 mg L^–1), and then the whole suspension was stirred in a dark environment for 30 min to reach adsorption-desorption equilibrium. A certain amount of the suspension was extracted to record the variations of maximum absorption of dye (552 nm for RhB and 664 nm for MB). The rates of the photocatalytic degradation were calculated using the equation ƞ = C_t/C₀ × 100%.

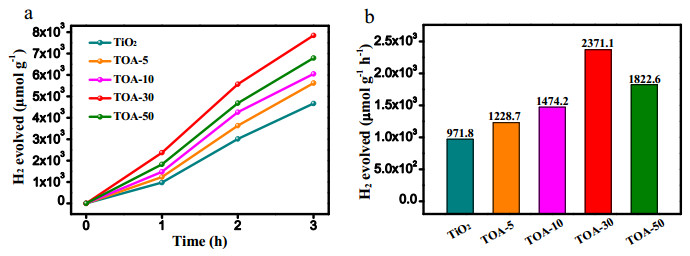

The photocatalytic performance of the as-synthesized products was measured by hydrogen evolution under visible-light irradiation. As shown in Fig. 1, the TiO₂-OA hybrids demonstrate higher photocatalytic H₂-generation efficiency than pristine TiO₂, indicating that the OA co-catalyst can promote the photocatalytic water-splitting activity of TiO₂. Besides that, a suitable content of OA co-catalyst is crucial for enhancing the performance. Among all TiO₂-OA composites, TOA-30 performs the best, with a H₂-generation rate of 2371.1 μmol g^–1 h^–1, which is 2.4 times higher than that of pristine TiO₂ (971.8 μmol g^–1 h^–1). However, excessive loading of the OA co-catalyst results in a decrease in H₂-generation; the H₂-generation rate of TOA-50 is reduced to 1822.6 μmol g^–1 h^–1, which is because the excess co-catalyst may overlap with the active sites of TiO₂ and impair the photocatalytic activity [44].

The TOA-30 sample, with the highest photocatalytic performance, was then chosen as the optimal photocatalyst for the following characterizations. The morphologies of TiO₂ and TOA-30 are shown in SEM and TEM images (Fig. 2). Pristine TiO₂ has square-like nanosheets with an average size of 50 nm (Fig. 2a and 2b), and the TOA-30 hybrid still exhibits this nanosheet-like morphology (Fig. 2c and 2d). EDX element-mapping pictures for TOA-30 shown in Fig. 2e prove that the Ti and O elements are uniformly distributed while a small amount of C and N elements are scattered on the surface of TiO₂. The HRTEM image shown in Fig. 2f reveals that the interplanar distance of the TiO₂ nanosheet is 0.35 nm, corresponding to the d-spacing of (101) lattice planes of TiO₂ [45].

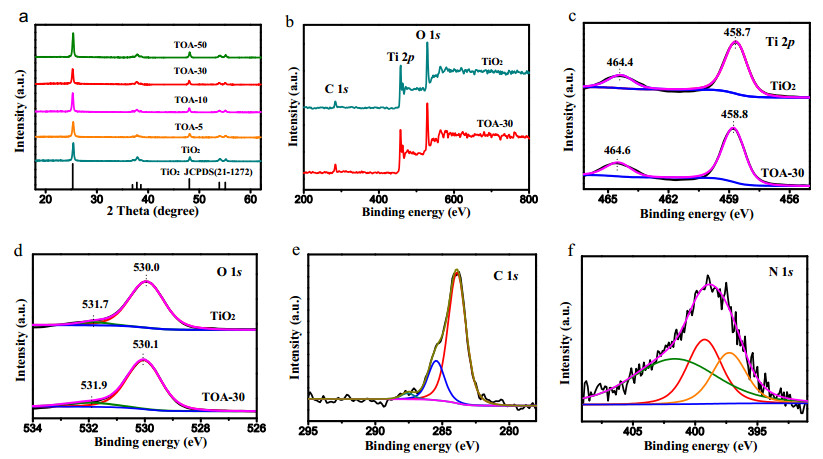

The crystal structure and chemical states of the TiO₂ and TiO₂-OA hybrids were characterized by XRD and XPS. For pristine TiO₂ (Fig. 3a), all diffraction peaks could be indexed to anatase TiO₂ (JCPDS 21-1272). No difference of diffraction peaks is observed after incorporating the OA co-catalysts, indicating that the OA may exist in amorphous form. The elements Ti and O, with the binding energies of 458 eV (Ti 2p) and 531 eV (O 1s), exist in both TiO₂ and TOA-30 (Fig. 3b). For the high-resolution Ti 2p spectrum of TiO₂ (Fig. 3c), two peaks centered at 458.8 and 464.5 eV are assigned to Ti 2p_3/2 and Ti 2p_1/2, respectively, indicating an oxidation state of Ti⁴⁺. These two Ti⁴⁺ peaks in TiO₂-OA show a slight shift towards low binding energies. The valence of the O element in TiO₂ and TiO₂-OA is reflected by O 1s XPS spectra (Fig. 3d), in which the main peak at 530 eV is assigned to Ti–O–Ti linkages while the shoulder peak at 531.4 eV is caused by the –OH of adsorbed H₂O molecules [46]. For TOA-30 (Fig. 3e), three binding energies of C 1s at 284.8, 286.5, and 288.6 eV, corresponding respectively to C–C, C–N, and C=O, are observed. The N 1s spectrum (Fig. 3f) of TOA-30 show peaks representing the O=C–NH₂ bond at 401.2 eV, the C–N bond at 399.8 eV, and the Ti–NH– bond at 398.1 eV [40]. These results indicate that the OA co-catalyst exists on the surface of TiO₂ and the appearance of the Ti–NH– bond indicates that the NH₂ group may form a covalent interaction with the TiO₂ surface.

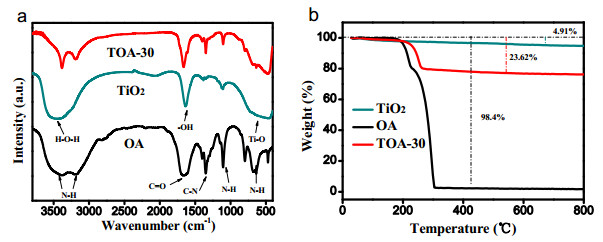

As further proof of the above viewpoint, FTIR and TG experiments were carried out and the results are shown in Fig. 4a and 4b, respectively. For bare TiO₂, the broad absorption band at 350–750 cm^–1[41] is assigned to Ti–O stretching while the bands at 3444 and 1625 cm^–1 are ascribed to H–O–H moieties and bending of H–O of adsorbed H₂O, respectively [47, 48]. For pure OA, the presence of amine groups is evidenced by characteristic N–H stretching vibrations at 3181 and 3374 cm^–1, N–H wobble vibrations at 794 and 1115 cm^–1, a C=O stretching vibration around 1654 cm^–1, as well as a C–N bending vibration at 1350 cm^–1 [49]. The TiO₂-OA sample exhibits a C=O stretching vibration at 1662 cm^–1 and two strong N–H stretchings at 3186 and 3385 cm^–1. The peaks in the hybrid composite exhibit a red shift compared to bare OA, indicating that a conjugated structure was formed between TiO₂ and OA. From the TG curves (Fig. 4b), it can be seen that the weight losses of TiO₂, OA, and TOA-30 were 4.91%, 98.4%, and 23.62%, respectively. The very low weight loss for TiO₂ may be ascribed to the removal of the adsorbed water, and the weight losses for OA and TOA-30 were attributed to the decomposition of OA. The functional groups (C–N and N–H) on the surface and the 23.62% weight loss of TOA-30 further confirm the successful incorporation of OA onto the TiO₂ surface.

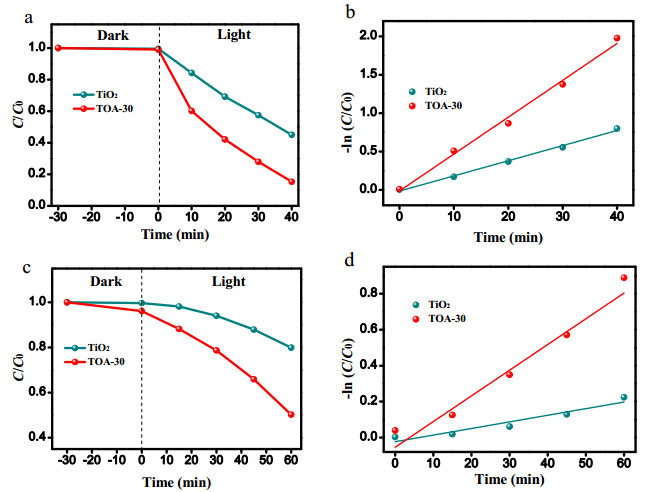

The photocatalytic degradation of RhB and MB was performed to further confirm that the OA co-catalyst can effectively promote the photocatalytic activity of the TiO₂, and the results are demonstrated in Fig. 5. For bare TiO₂, only 20.1% and 44.9% of RhB and MB are decomposed after irradiation for 60 min and 40 min, respectively. The TOA-30 sample exhibited enhanced photocatalytic performance for the degradation of both RhB and MB. The corresponding apparent rate constants (K min⁻¹) are presented in Fig. 5b and 5d, and the results indicate that the kinetics for both photocatalytic reactions of TiO₂ and TOA-30 follow the Langmuir-Hinshelwood (LH) model. The apparent rate constants (k_app) of the photocatalytic degradation of MB and RhB over TOA-30 are 4.80 × 10⁻² min⁻¹ and 1.43 × 10⁻² min⁻¹, respectively, which are 2.5 and 3.8 times higher than those of pristine TiO₂, respectively. The results of the photocatalytic hydrogen evolution and photocatalytic organic-dye degradation confirm that the utilization of the OA co-catalyst is beneficial for improving the photocatalytic performance.

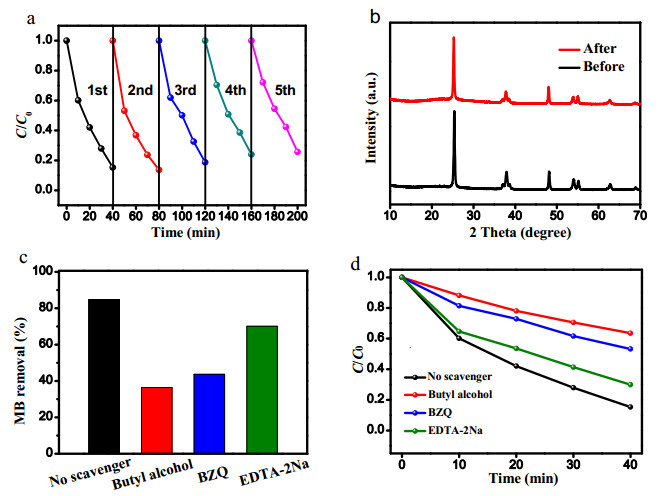

To study the reusability of the photocatalysts, the TOA-30 hybrid was chosen for the reliability test. Fig. 6a shows the photocatalytic activity of TOA-30 for 5 cycles, where a minor decrease in the degradation efficiency is detected. The slight decrease is due to the loss of some catalyst during the sampling of the MB solution. XRD results (Fig. 6b) show that there is no obvious change in the crystal structure of the TOA-30 sample after the photocatalytic reaction, indicating its acceptable chemical stability.

It is generally accepted that free radicals, such as hydroxyl radicals (•OH), holes (h⁺), and superoxide radicals (•O₂⁻), play a fundamental role in the photocatalytic degradation of dyes [50, 51]. Free-radical trapping experiments were performed to detect the main active radicals during photodegradation. Different scavengers i.e., butyl alcohol, EDTA-2Na, and p-benzoquinone (BZQ) were used to consume •O₂⁻, h⁺, and •OH species, respectively [52, 53]. It can be seen from Fig. 6c and 6d that the efficiencies of the photocatalytic degradation were lower when scavengers were applied, suggesting that •O₂⁻, h⁺, and •OH all contributed to the photocatalytic process. However, the deactivation sequence was butyl alcohol > EDTA-2Na > BZQ, revealing that •OH played the most important role.

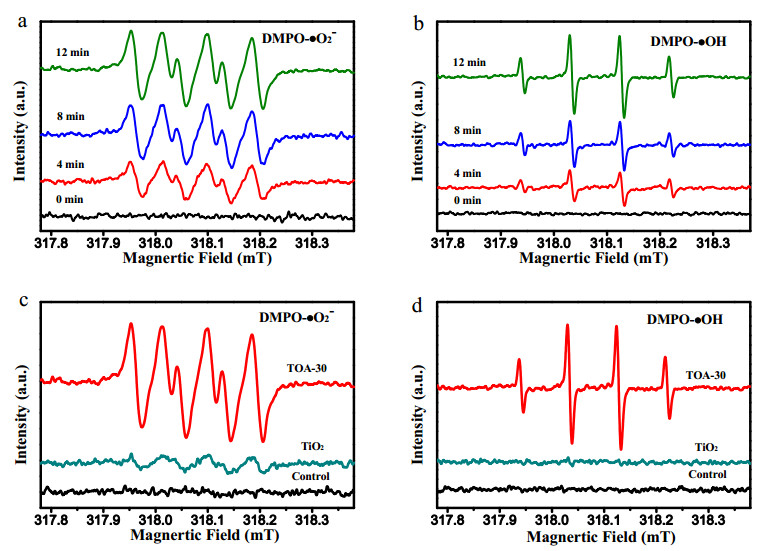

ESR measurements were performed to further elucidate the free radicals involved in the photocatalytic reaction. The ESR spin-trap signals of TOA-30 with DMPO in a methanol solution and an aqueous solution are shown in Fig. 7a and 7b, respectively. Typical ESR signals of •O₂⁻ and •OH radicals are observed only with visible-light irradiation. Upon irradiation, characteristic peaks of DMPO-•O₂⁻ and DMPO-•OH are both detected in methanol and the aqueous dispersion, illustrating that •O₂⁻ and •OH radicals are generated over TOA-30 during the photocatalytic process. However, for pure TiO₂ (Fig. 7c and 7d), the signals for DMPO-•O₂⁻ are strong while those for DMPO-•OH are very weak, illustrating that the •O₂⁻ radicals play the leading role in the photodegradation and that the •OH radicals are not the main reactive species when pure TiO₂ is utilized as the catalyst. The ESR results account for the reason of the enhancement in photocatalytic activity of TOA-30. The intensity of DMPO-•O₂⁻ radical signals for TOA-30 is obviously stronger than that of bare TiO₂ (Fig. 7c), which indicates that the concentration of •O₂⁻ in TOA-30 is higher than that of •O₂⁻ in pure TiO₂. Besides that, for the TOA-30 composite, both •O₂⁻ and •OH radicals can contribute to the photocatalytic reaction while only •O₂⁻ radicals are valid for bare TiO₂.

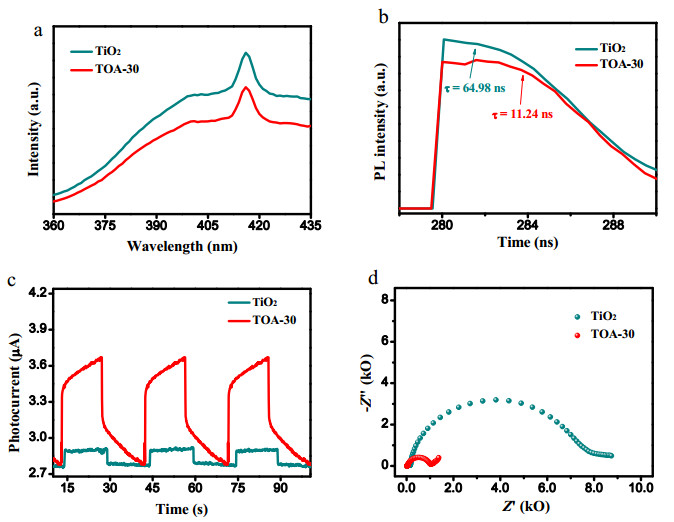

To further investigate the mechanism of the improved photocatalytic activity for OA co-catalyst loading, the separation efficiency of photogenerated carriers, a crucial step that determines the photocatalytic efficiency, should be understood [54]. The PL spectra, photocurrent, and EIS could provide an insight into the separation of photogenerated charges. The PL spectra of TiO₂ and TOA-30 sample were acquired using an excitation with a wavelength of 320 nm and are shown in Fig. 8a. The PL spectra of TiO₂ and TOA-30 sample present an emission peak at about 416 nm and the emission intensity of the TOA-30 is lower compared to that of bare TiO₂. A high separation efficiency of photogenerated charges usually is reflected by a lower PL-peak intensity [55]; the photogenerated carriers in the TOA-30 can be efficiently separated, which is in good agreement with the results of photocatalytic experiments. Time-resolved PL spectra were also explored to confirm the above results (Fig. 8b). The fluorescence lifetime of TOA-30 is determined to be 11.24 ns, shorter than that of pristine TiO₂ (64.98 ns). The curtate lifetime of carriers in TOA-30 implies a fast hole transfer process from TiO₂ to OA and the efficient recombination of the photogenerated charges, which indicates a stepped-up charge transfer motivated by employing OA as a co-catalyst. Photocurrent measurements and EIS were further utilized to study the kinetics of charge migration. The transient photocurrent responses of the TiO₂ and the TOA-30 sample are shown in Fig. 8c; they are steady and reproducible after three cycles. TOA-30 exhibits a higher photocurrent response compared to pure TiO₂, suggesting that the separation efficiency of photogenerated carriers is enhanced by the presence of the OA co-catalyst. The results of EIS shown in Fig. 8d further confirm this conclusion; it can be clearly seen that the arc-radius diameter of the TOA-30 sample is much smaller than that of TiO₂. The smaller radius of the Nyquist circle represents the lower charge-transfer resistance [56, 57], indicating that TOA-30 undergoes rapid interfacial charge migration and fast charge separation. The accelerated charge transfer in the TiO₂-OA composite improves the photocatalytic activity.

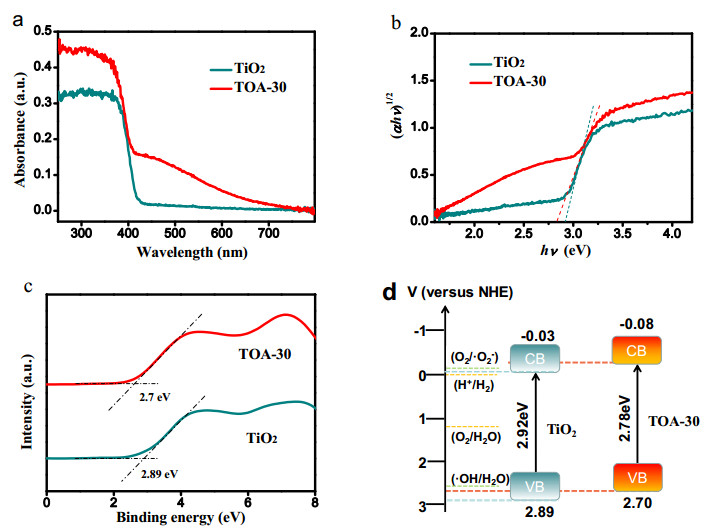

To better understand the underlying mechanism for the optimized photocatalytic performance of the TiO₂-OA hybrid, it is necessary to study the band-energy structure to explain the generation of free radicals. The UV-vis spectra of TiO₂ and TOA-30 are shown in Fig. 9a. The absorption band edge of TiO₂ is 425 nm while the absorption band edge of TOA-30 is 450 nm, showing an obvious red shift compared to TiO₂. Besides that, an enhanced visible-light response resulting from the chemical interaction between TiO₂ and the π-conjugated structure of OA is observed [40]. According to the calculated Tauc's plot, the band gaps of TiO₂ and TOA-30 are 2.93 and 2.78 eV, respectively (Fig. 9b). The narrowed band-gap energy enables TOA-30 to exhibit better solar-light utilization. The valence-band (VB) positions of TiO₂ and TOA-30 are determined according to VB XPS data, and the conduction-band (CB) edge positions are estimated via the equation: E_CB = E_VB – E_g [56]. Finally, the VB and CB edge positions of TiO₂ are determined to be 2.89 and –0.03 eV vs. NHE, respectively. The CB and VB edge potentials of TOA-30 are 2.70 and –0.08 eV vs. NHE, respectively.

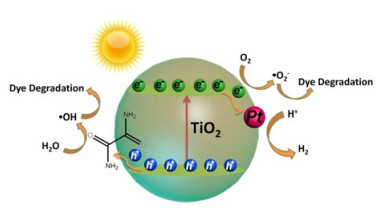

Fig. 10 shows a proposed mechanism for the charge-carrier transfer process in the TiO-OA hybrid. The electrons and holes will be generated in the CB and VB, respectively, of TiO₂ under light irradiation. Although both the band structures of TiO₂ and TOA-30 satisfy the requirements of generating •O₂⁻ and •OH (E⁰ (O₂/•O₂⁻) = – 0.046 eV vs. NHE and E⁰ (•OH/H₂O) = 2.68 eV vs. NHE) [58, 59], the •OH of bare TiO₂ can hardly be detected in the ESR spectrum due to the fast recombination of the photogenerated carriers. For the TiO₂-OA hybrid, the holes in the VB of TiO₂ can migrate to the surface of the OA because OA, with its specific π-conjugated structure, is an excellent material for transporting holes [40]. Therefore, the recombination of photogenerated carriers can be restrained while the electrons in the CB can be trapped by Pt co-catalysts in the H₂-evolving reaction, which can further retard their recombination with holes, and consequently increase the photocatalytic performance.

In this work, the organic molecule, OA, was chosen as a novel co-catalyst to promote the photocatalytic activity of TiO₂. The incorporation of OA with a unique π-conjugated structure can provide hole-transfer sites and thus greatly promote the separation and migration of photogenerated carriers from TiO₂ to OA. The H₂-evolving efficiency and RhB-removal capability of the resultant TiO₂-OA hybrid with optimal loading of OA are respectively 2.4 times and 3.8 times higher than those of pristine TiO₂ under visible-light irradiation. This work may open up a new way for the construction of efficient photocatalytic systems with a novel organic co-catalyst.
