The depletion of conventional energy resources and the environmental damage associated with their use have necessitated the development of methods to exploit renewable energy resources such as solar energy. However, the poor efficiencies of current solar-to-chemical energy conversion methods is a critical obstacle to their practical application [1, 2]. Accordingly, recent decades have seen considerable research effort being devoted to the development of artificial strategies for the conversion of solar energy [3-5]. Among them, photocatalytic H2 production from water splitting utilizing solar energy as a driving force has garnered considerable attention because it is a cost-efficient, clean, and environmentally friendly strategy for converting low-density solar energy into high-density clean H2 energy [6-8]. Polymeric graphite-like carbon nitride (g-C3N4, CN) was first identified as a promising photocatalyst for H2 generation from water splitting by Wang's group [9]. Since then, numerous theoretical and practical studies related to the application of g-C3N4 have been undertaken in a variety of fields. For example, g-C3N4 has been investigated as a means to produce high-reactivity free radicals and holes under solar irradiation for the degradation of organic pollutants, as a catalyst for the reduction of CO2 into useful energy fuels, as a means of detecting volatile organic compounds (VOCs), and for application to organic synthesis [10-17].
g-C3N4 comprises only carbon and nitrogen atoms, making it an environmentally friendly and metal-free semiconductor-based photocatalyst. Furthermore, it is suitable for water splitting under visible light owing to its appropriate bandgap (2.71 eV), visible-light harvesting capacity, and thermal/chemical stability [4, 18]. In theory, compared with traditional photocatalysis such as TiO2 [19-21] and ZnO [22-24], g-C3N4 can convert more light energy to chemical energy under visible light [18, 25-27]. However, the application of g-C3N4 is impeded because of its poor absorption beyond 470 nm, low specific surface area, significant internal resistance, and rapid recombination of photoexcited charge carriers [28]. Accordingly, many studies have been performed to address these limitations. Typically, constructing heterojunctions with other semiconductors such as CdS/g-C3N4 [29], Bi2WO6/g-C3N4 [30], BiVO4/g-C3N4 [31, 32], MoO3/g-C3N4 [33], and InVO4/g-C3N4 [34] is a promising strategy for extending the absorption edge of g-C3N4 into the visible-light region and impeding the recombination of photogenerated charge carriers therein. However, this strategy also has negative effects, such as decreasing the oxidation-reduction capacity of the photogenerated electron-hole pairs [35]. Modification with suitable co-catalysts, such as metallic oxides (e.g., NiO, CuO, and Co2O3) and metal sulfides (e.g., NiS, WS2, and MoS2) is widely considered to be a promising solution for enhancing the photocatalytic H2 generation capacity of g-C3N4 as it provides additional reaction sites and accelerates photocatalytic surface H2 generation kinetics [36-41]. Among these co-catalysts, loading with NiS has received considerable attention owing to the earth-abundance of the required elements, its low cost, and its excellent H2-evolution performance [39, 42-45]. However, no significant improvements in the photocatalytic properties of g-C3N4 upon surface-loading with NiS have been reported. Hence, the photocatalytic performance of this system can be further improved. Loading g-C3N4 with suitable noble metals such as Ag, Au, and Pt is a viable strategy for improving its visible-light harvesting capacity and photocatalytic properties [46-48]. Ag as a co-catalyst exhibits many inherent qualities for enhanced H2 production under visible light, such as its excellent conductivity, strong surface plasmon resonance (SPR) effect, and good H2-evolution capacity [6, 23, 49]. Inspired by these advantages, we reasoned that co-decorating g-C3N4 with Ag and NiS would enhance its surface H2 generation kinetics and thus its photocatalytic H2 production.

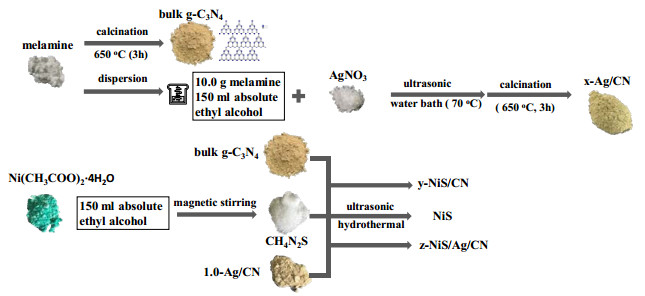

Accordingly, in the current study, dual co-catalyst (Ag and NiS)-modified g-C3N4 heterojunctions were successfully prepared by a simple and effective two-step synthesis strategy involving in situ calcination and hydrothermal synthesis, as outlined in Fig. 1. Compared with g-C3N4 alone and the as-prepared binary composites, the photocatalytic water splitting efficiency of the ternary composite NiS/Ag/CN was significantly improved. This enhanced photocatalytic activity can be ascribed to improved visible-light harvesting capacity, intimate interfacial contact, and effective charge transfer between Ag, NiS, and g-C3N4. Furthermore, a series of characterizations were performed as a means to elucidate the transfer mechanism for the photoexcited electron-hole pairs in the ternary composite. Overall, the present study demonstrates that decoration with dual co-catalysts is a promising strategy for improving the photocatalytic H2 evolution activity of g-C3N4.
g-C3N4 was prepared simply by directly calcining melamine. In detail, melamine was heated to 650 ℃ at a heating rate of 5 ℃·min‒1 in a muffle furnace and calcined for 3 h. Then, the yellow agglomerated product was milled into powder without further processing. Binary Ag/CN composites were then synthesized via a solvent evaporation and calcination method by directly calcining mixed solutions of melamine and silver nitrate. The products are labelled x-Ag/CN, where x represents the mass percentage of Ag nanoparticles (NPs) in the melamine.
Samples of g-C3N4 co-decorated with Ag and NiS were prepared via a simple hydrothermal method. Specifically, a certain amount of 1.0-Ag/CN was dispersed in ethyl alcohol containing a moderate amount of Ni(CH3COO)2·4H2O. After stirring for 30 min and ultrasonic treatment for 20 min, an appropriate amount of thiourea was add as a S source. Then, the above suspension was transferred into a reactor and heated for 12 h at 200 ℃. y-NiS/CN (where y is the mass percent of NiS in NiS/CN) composites were synthesized by the same way using pure g-C3N4 as precursor for comparison. The ternary composites were labelled z-NiS/1.0-Ag/CN, where z is the mass percentage of NiS in 1.0-Ag/CN. The details of the process are outlined in Fig. 1.
Ultraviolet visible diffuse reflectance spectroscopy was recorded on a Shimadzu UV-3600 UV-vis/NIR spectrophotometer. Morphological and structural of the samples were characterized by transmission electron microscopy (TEM, Tecnai G2 F20 S-TWIN) and a scanning electron microscopy (SEM, Carl Zeiss SIGMA). Photoluminescence spectra (PL) were tested on a florescence spectrophotometer (Hitachi F-7000). The samples were illuminated with a 300W Xe lamp. The Brunauer Emmett-Teller (BET) surface area was tested with a Quantachrome NOVA2000e. X-ray photoelectron spectroscopy (XPS) was investigated by a Kratos AXIS NOVA spectrometer. The phase structure of the samples was characterized by a Shimadzu XRD-6000 power diffractometer. Photoelectrochemical (PEC) activities were measured with electrochemical system (CHI 660E, China).
The photocatalytic H2 generation performance was implemented in a Pyrex top-irradiation reaction vessel. In a typically photocatalytic experiment process, 30 mg catalyst was dispersed in water (100 mL) containing triethanolamine (TEOA 10 vol%) as sacrificial. Before experiment, the vacuum pump was vacuumized to remove the air in instrument completely and stirred continuously under a Xe lamp (300 W) irradiation. The amounts of H2 were detected every 60 min and the system was vacuumized again for each sample. A gas chromatograph (N2 as carrier gas) was used to detect the H2-evolution on line.
The apparent quantum efficiency (QE) was measured with 420 ± 7.5 nm band-pass cut-off filter. The average intensity of irradiation was measured as 46.31 mW cm–2 and the irradiation area was 24.62 cm2. The amounts of H2 were tested every 1h and the reaction time was lasted for 7 h. The H2 generation reached to 613.5 μmol. The QE is calculated by the following equation:
E represent the total energy of incident light (W), P represent the energy density of incident light (W/m2), S represent illumination area (m2), t represents illumination time, h represents the Planck constant, c represents the speed of light.
PEC characterizations were performed in 1.0 mol/L Na2SO4 solution in a three-electrode system. The photoanode (working electrode) was prepared as follows. 5 mg photocatalyst was dispersed in 1.0 mL of ethanol and 1.0 mL of distilled water with ultraphonic dispersion for 10 min. Then the slurry was dropped onto a fluorine-doped tin oxide (FTO) glass and dried naturally. The sample thin films, Pt sheet and Ag/AgCl served as working, counter and the reference electrodes, respectively. A 300 W Xe lamp was served as light source. The PEC measurements were recorded with a CHI-660E electrochemical system.

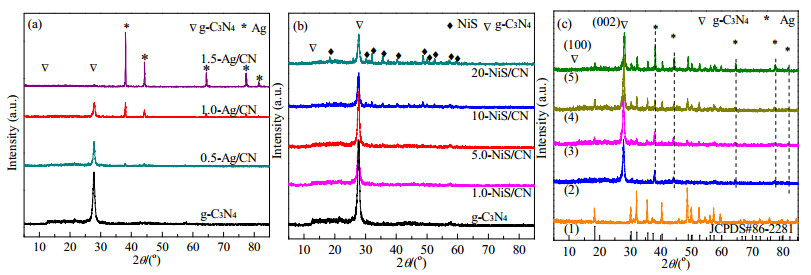

Fig. 2 displays the X-ray diffraction (XRD) patterns of x-Ag/CN (Fig. 2(a)), y-NiS/CN (Fig. 2(b)), and z-NiS/1.0-Ag/CN (Fig. 2(c)). Typical diffraction peaks for pure g-C3N4 are observed at 13.5° and 27.5°, which correspond to the (100) and (002) planes of g-C3N4, respectively [50]. The typical (002) peak at 27.5° is ascribed to interlayer stacking controlled by van der Waals forces and is in agreement with the literature [40]. As shown in Fig. 2(a), the peaks for the (002) planes of the composites are slightly narrower than that for g-C3N4, indicating an enhancement of crystallinity upon Ag introduction. Moreover, the intensity of the peak for the (002) plane becomes weaker with increasing Ag mass content, implying that loading the g-C3N4 with Ag NPs reduces its interlayer spacing and disrupts its porous layer structure [51]. For x-Ag/CN, the peak intensity for Ag increases gradually with increasing Ag content. The peaks observed for 1.0-Ag/CN and 1.5-Ag/CN around 38.2°, 44.2°, 64.3°, 77.1°, and 81.5° are assigned to the (111), (200), (220), (311), and (222) planes of Ag, respectively [49]. In Figs. 2(b) and 2(c), the characteristic peaks at 18.2°, 30.1°, 31.8°, 35.6°, 40.2°, 48.6°, 50.1°, 52.3°, 56.3°, 57.2°, 66.5°, 67.9°, 72.8°, and 76.1° are ascribed to the (110), (101), (300), (021), (211), (131), (410), (401), (321), (330), (241), (600), (312), and (431) planes, respectively, of hexagonal NiS (JCPDS #86-2281). These peaks are also observed for binary NiS/CN (Fig. 2(b)) and ternary NiS/Ag/CN (Fig. 2(c)) [42, 43]. The above results indicate that the g-C3N4 was successfully co-decorated with Ag and NiS. In addition, no peak shift is observed in the composites, indicating that the crystalline structure of g-C3N4 is not affected by the introduction of Ag and NiS [52, 53].

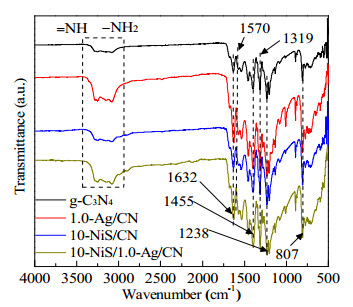

FT-IR spectra of g-C3N4, 1.0-Ag/CN, 10-NiS/CN, and 10-NiS/Ag/CN are presented in Fig. 3. The peaks around 807 cm–1 originate from the typical breathing vibration of the tri-s-triazine cycles in g-C3N4 [4, 54]. The peaks at 1238, 1319, 1455, 1570, and 1632 cm–1 are assigned to the aromatic C–N stretching of the g-C3N4, including the sp2 C=N and the sp3 C–N bond stretching modes. The broad peaks around 3000 to 3500 cm–1 are ascribed to the –NH and hydroxyl stretching vibrations [41]. All the characteristic peaks related to g-C3N4 are clearly observed for 1.0-Ag/CN, 10-NiS/CN, and 10-NiS/1.0-Ag/CN. No peaks for the bonding of sulfur with other elements are observed, indicating that the sulfur exists mainly as NiS rather than doping the g-C3N4 [52]. Therefore, the results of the FT-IR and XRD analyses demonstrate that the overall structure of g-C3N4 remains intact after loading with Ag and NiS.

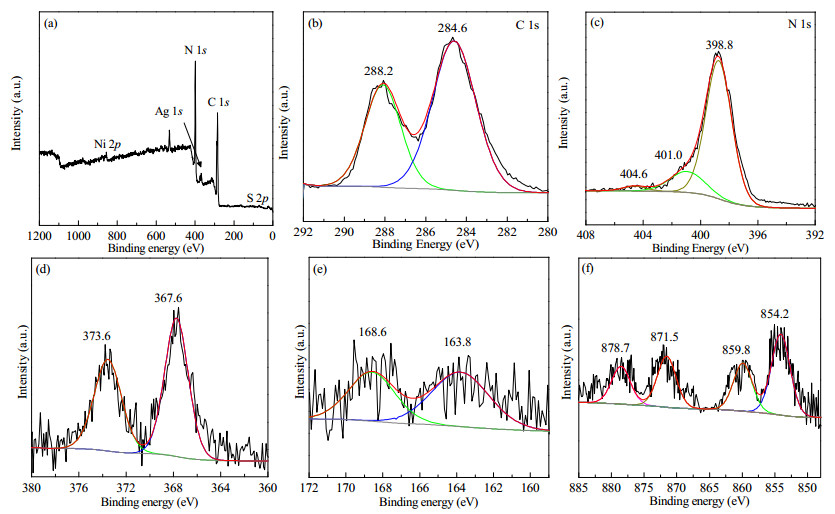

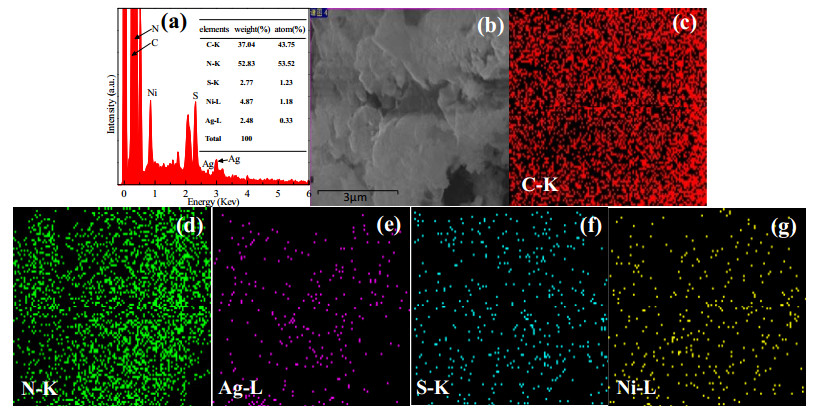

XPS was employed to investigate the local electronic structures and elementary compositions of the composites. As shown in Fig. 4(a), the ternary composites consist mainly of C, N, Ag, Ni, and S, demonstrating that g-C3N4, Ag NPs, and hexagonal NiS are hybridized in 10-NiS/1.0-Ag/CN. The presence of O might be due to surface adsorption under the experimental conditions employed. The characteristic peaks for C 1s in 10-NiS/1.0-Ag/CN at 284.6 and 288.2 eV can be attributed to the sp2 C atoms in C=C and C–C as well as to the C–(N)3 groups of g-C3N4 (Fig. 4(b)) [55]. Furthermore, the C 1s XPS spectra show no additional diffraction peaks, indicating that the structure of g-C3N4 is not changed during preparation [56]. Peaks at 398.8, 401.0, and 404.6 eV corresponding to C=N–C, N–(C)3, and π-excitations in g-C3N4 can be observed in Fig. 4(c) [57]. In Fig. 4(d), the two peaks at 367.6 and 373.6 eV originate from Ag 3d5/2 (Ag0) and Ag 3d3/2 (Ag0), respectively [58]. In Fig. 4(e), the peaks around 163.8 and 168.6 eV are related to the sulfur in NiS (S2- ions). In the Ni XPS spectrum shown in Fig. 4(f), peaks at 854.2 and 871.5 eV, which correspond to Ni 2p3/2 and Ni 2p1/2, are observed, while the peaks around 859.8 and 878.7 eV are their satellite peaks [42]. The S 2p and Ni 2p results are in good accord with previous reports [43, 59, 60]. Thus, the XRD, FT-IR, and XPS results demonstrate that the dual co-catalysts Ag and NiS were successfully loaded onto the surface of g-C3N4.

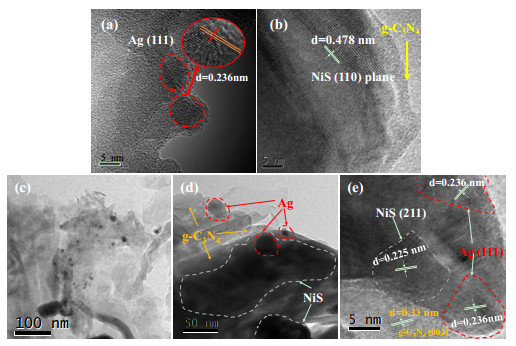

TEM images of 1.0-Ag/CN are presented in Fig. 5(a). It is evident that, in the 1.0-Ag/CN composite, Ag NPs with diameters ranging 10 to 15 nm (indicated by red dotted lines) are well dispersed on the g-C3N4 [46, 61]. The clear lattice fringe is determined to have a spacing of 0.236 nm, which corresponds to the (111) crystallographic plane of Ag0. In addition, a TEM image of 10-NiS/CN is shown in Fig. 5(b). The results show that the NiS has been deposited on the surface of g-C3N4 and the lattice distance is approximately 0.478 nm, which is in good accordance with the (110) crystallographic plane of NiS (JCPDS #86-2281) [39, 43]. TEM images of 10-NiS/1.0-Ag/CN are displayed in Fig. 5(c)–(e). It can be seen that the Ag and NiS are closely connected with the g-C3N4. In Fig. 5(d), the NiS dispersed on the surface of the g-C3N4 is marked with a gray dotted line. The high-resolution (HR)-TEM image in Fig. 5(e) further confirms the presence of Ag and NiS on the g-C3N4 surface. As expected, three kinds of lattice fringes can be observed. The clear lattice spacing of approximately 0.33 nm is assigned to the (002) planes of g-C3N4. The lattice spacings of 0.236 and 0.225 nm are ascribed to the (111) planes of Ag0 and the (211) planes of NiS (JCPDS #86-2281), respectively [39]. Energy dispersive spectroscopy (EDS) mapping images of 10-NiS/1.0-Ag/CN are shown in Figs. 6(a)–(g), showing that C, N, Ag, S, and Ni are uniformly distributed on the surface of the as-prepared catalyst [60]. The weight percentages of Ag and NiS in 10-NiS/1.0-Ag/CN are approximately 2.48% and 7.64%, respectively. Thus, the XRD, XPS, and TEM results confirm that heterojunction photocatalysts co-decorated with Ag NPs and NiS were successfully fabricated.

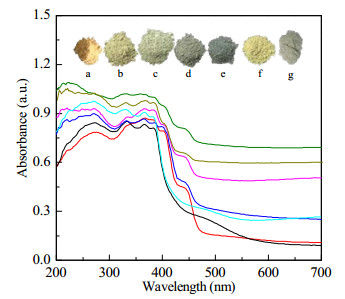

UV-Vis diffuse reflectance spectra were obtained to assess the light absorption performance of the resulting samples. As illustrated in Fig. 7, the characteristic absorption edge of g-C3N4 originating from its inherent band gap (2.71 eV) is approximately 470 nm [42, 62]. Interestingly, there is an apparent red shift in the range 450–550 nm for g-C3N4, which may be caused by increases in polymerization degree and p-plane conjugation [63]. After loading Ag NPs onto the surface of the g-C3N4, its visible-light harvesting capacity is significantly enhanced and a red shift of approximately 50 nm due to the SPR effect can be observed [64-66]. In addition, Ag NPs can act as an efficient electronic transmission channel, significantly enhancing the separation of the photoexcited charge carriers produced by g-C3N4 [67]. Moreover, upon loading with NiS, the light absorption intensity in the range 500–700 nm is clearly improved, which is in good accord with the change in sample color from canary yellow to dark grey (1.0, 5.0, and 10 to 20 wt% NiS). Furthermore, the absorption edge of g-C3N4 does not obviously shift, demonstrating that the NiS is in contact with the g-C3N4 instead of doping it [39]. Therefore, we believe that the enhanced visible-light harvesting capacity is caused by the simultaneous introduction of Ag NPs and NiS. This improved light-harvesting capacity of the ternary composites is beneficial for the photogeneration of electron-hole pairs, thus promoting photocatalytic water splitting for H2 evolution.

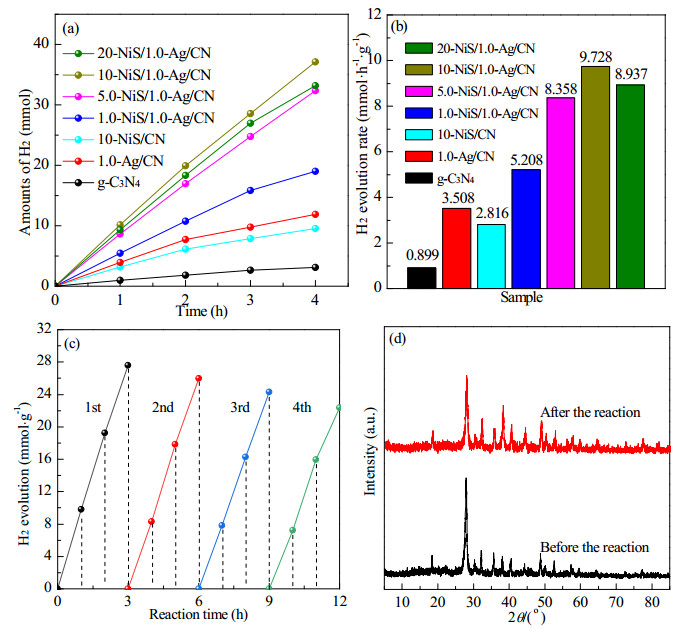

Photocatalytic H2 production was evaluated in triethanolamine (TEOA) solution under solar-light irradiation. Fig. 8(a) shows plots of H2 generation with time for the different photocatalysts. For all the samples, the H2-evolution rate is stable throughout the course of the experiments. No observable deactivation of photocatalytic H2-evolution rate can be observed, indicating that the photocatalysts exhibit considerable stability. Fig. 8(b) shows the average H2-evolution rate values. Clearly, the H2-evolution rate of g-C3N4 is significantly improved upon loading with Ag NPs and NiS, indicating that the Ag and NiS as H2-evolution co-catalysts promote the migration of photogenerated electrons and enhance photocatalytic water reduction. The binary 1.0-Ag/CN and 10-NiS/CN samples exhibit photocatalytic activity with H2-evolution rates of 3.508 and 2.816 mmol·h–1·g–1, respectively, which are 3.90- and 3.13-fold higher than that of pure g-C3N4 [68]. Additionally, the 1.0, 5.0, 10, and 20 wt% NiS ternary samples show higher H2-evolution rates of 5.208, 8.358, 9.728, and 8.937 mmol·h–1·g–1, respectively. The 10-NiS/1.0-Ag/CN sample exhibits the highest activity of 9.728 mmol·g–1·h–1, which is 10.82-, 3.45-, and 2.77-times higher than those of g-C3N4, 10-NiS/CN, and 1.0-Ag/CN, respectively. Furthermore, the apparent quantum efficiency of 10-NiS/1.0-Ag/CN is 1.21% at 420 nm, as shown in in Fig. S1. These results indicate that co-decoration with Ag and NiS provides more active sites, retarding the recombination of photoexcited charge carriers and intensifying the reaction kinetics of the H2 evolution. However, a decrease in the photocatalytic H2 evolution is observed upon a further increase in the content of NiS, indicating that, in this case, excess NiS covers the surface-active sites on the g-C3N4, negatively affecting the reaction kinetics [42].
In order to investigate the photocatalytic stability of the 10-NiS/1.0-Ag/CN catalyst, cycling tests were performed and the XRD pattern of the catalyst was obtained after four cycles. As shown in Figs. 8(c) and (d), the XRD pattern and photocatalytic H2 production rate hardly change, indicating that the as-prepared sample is stable.

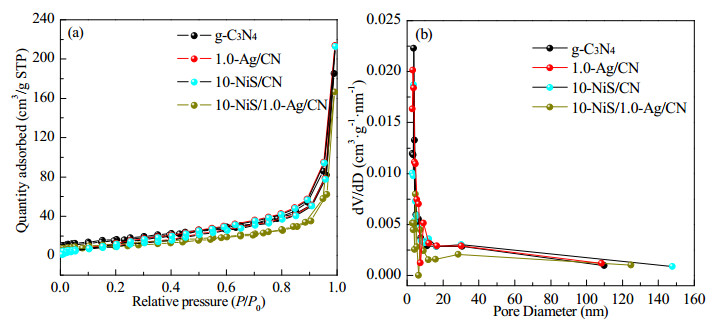

In order to further investigate the separation and migration of charge carriers during photocatalytic water splitting, we performed Brunauer-Emmett-Teller (BET), PL, and PEC analyses. The N2 adsorption-desorption isotherms of the catalysts were obtained in order to evaluate the surface area and porous structures of the materials. As depicted in Fig. 9, it is quite clear that all the composites exhibit classical type-Ⅳ curves with H3 adsorption hysteresis loops, demonstrating the presence of mesopores in the composites. Table 1 shows the corresponding surface area and porous structure parameters. Compared with g-C3N4, the 1.0-Ag/CN and 10-NiS/CN composites have larger specific surface areas (SBET) [3]. This may be caused by Ag and NiS decorating the g-C3N4, resulting in nanolayer and porous structures [69]. However, the 10-NiS/1.0-Ag/CN composite has a smaller surface area and pore volume than the binary composites. It is evident that the surface area, total pore volume, and pore size decrease because NiS may partially fill the pores in 1.0-Ag/CN [42, 43, 60]. These data clearly demonstrate that surface area does not play a key role in the improved photocatalytic activity observed in this study.

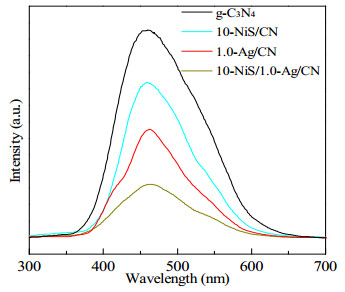

The migration and recombination processes of charge carriers can be revealed by PL spectra. The spectra for 1.0-Ag/CN, 10-NiS/CN, and 10-NiS/1.0-Ag/CN and that of g-C3N4 for comparison are shown in Fig. 10 (excitation wavelength: 270 nm). The pure g-C3N4 possesses the highest emission peak at approximately 480 nm. The emission intensity decreases significantly after loading with Ag, indicating that the recombination of photoexcited charge carriers is efficiently restrained. This is because Ag can act as an electronic sink to allow the rapid migration of the charge carriers over the interface between the Ag NPs and g-C3N4. Note that the intensity of the emission peak is also distinctly decreased after loading NiS on g-C3N4. Therefore, these results show that the dual co-catalysts Ag and NiS on the g-C3N4 effectively restrain the recombination of photogenerated electron-hole pairs, and are thus beneficial for photocatalytic H2 evolution [69].

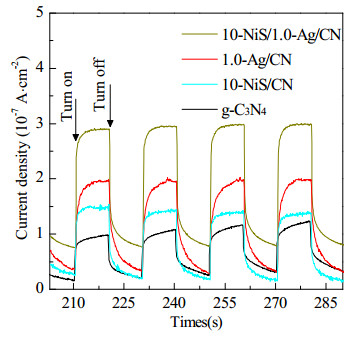

The generation and separation behaviors of photoexcited charge carriers can be explained by photocurrent response. As shown in Fig. 11, prompt photocurrent responses are exhibited by g-C3N4, 1.0-Ag/CN, 10-NiS/CN, and 10-NiS/1.0-Ag/CN. Thus, the photocurrent intensity rapidly responds and stabilizes at a maximum value during the illumination process. Moreover, the photocurrents for the 1.0-Ag/CN composites are much higher than those of 10-NiS/CN and g-C3N4, implying that the Ag NPs on the g-C3N4 effectively enhance its visible-light absorbance, which is due to the SPR effect of Ag [50]. Thus, the migration of charge carriers is effectively promoted. In addition, 10-NiS/1.0-Ag/CN exhibits the highest photocurrent density, demonstrating that the co-decoration of g-C3N4 with Ag and NiS retards the recombination of photoexcited electrons and holes, resulting in improved photocatalytic H2 generation. These results also correspond well with the PL results (Fig. 10).

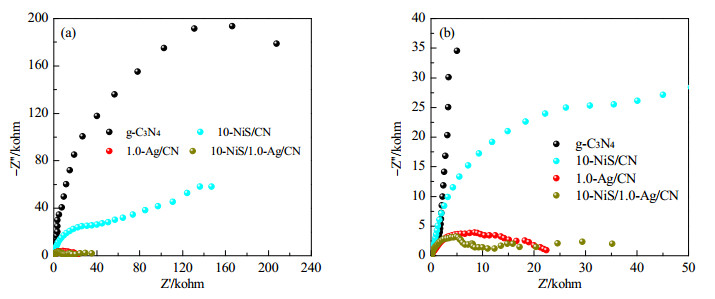

To further investigate the enhanced charge carrier separation and transfer ability, four representative samples were subjected to electrochemical impedance spectroscopy (EIS), and the results are presented in Figs. 12(a) and 12(b). The EIS Nyquist plot for 10-NiS/1.0-Ag/CN exhibits a smaller semicircle diameter than those of g-C3N4, 10-NiS/CN, and 1.0-Ag/CN, demonstrating the lower interfacial resistance and more efficient electron transfer in the ternary 10-NiS/1.0-Ag/CN sample. It is believed that the dual co-catalysts Ag and NiS accelerate charge transport and separation, leading to markedly enhanced photocatalytic H2-evolution performance. The results are also in good accord with the PL results (Fig. 10) and the transient photocurrent responses (Fig. 11).

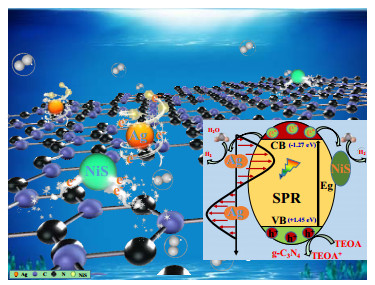

According to these results, a mechanism for the photoexcited electron-hole transfer in ternary NiS/Ag/CN samples can be proposed, as illustrated in Fig. 13. The conduction band (CB) and valence band (VB) potentials can be calculated using the following empirical formulae:
The absolute electronegativity (X) of g-C3N4 is approximately 4.71 eV [47, 48]. The energy of the free electrons (Ee) is approximately 4.62 eV. The band gap energy (Eg) of g-C3N4 is 2.71 eV based on the calculated band gap (Fig. S2). These results show that the CB and VB are approximately –1.27 and 1.45 eV, respectively. The photogenerated electron-hole pairs are generates in the CB and VB of g-C3N4 under light irradiation. Then, the photogenerated charge carriers quickly transfer to the Ag NPs, and a Schottky barrier between Ag and g-C3N4 is formed as the electrons accumulate on the Ag NPs, promoting the migration and separation of photoinduced electrons and holes [70, 71]. Meanwhile, the SPR effect of the Ag NPs induced by the visible light forms a strong local electromagnetic field, enhancing the energy of the electrons. Therefore, Ag NPs acts as electronic sinks to allow rapid electron migration and their reaction with electron acceptors (H+) more easily, leading to enhanced H2 production activity [72]. Furthermore, according to a previous report, NiS can act as an active site to enhance H2-evolution kinetics. An intermediate (HNiS) is formed upon absorption of H+ on the surface of the NiS, and H2 is then generated upon the reduction of another H+ ion [43, 73]. Furthermore, NiS can also enhance charge separation, improving H2 generation [39, 74]. In addition, the TEOA can act as sacrificial reagent, being directly oxidized by the photoinduced holes on g-C3N4. Based on these experiment results, the improved photocatalytic H2-production activity can be ascribed to the co-decoration of Ag and NiS owing to the following factors: (1) the light harvesting capacity is intensified with the help of the Ag SPR effect and NiS; (2) the SPR effect induced by visible light provides a strong local electromagnetic field leading to improvement of the captured electron energy, allowing them to react with H+ more easily; and (3) NiS can act as an effective co-catalyst to capture photoexcited electrons and then promote H2-generation kinetics by forming HNiS intermediates. Therefore, g-C3N4 co-decorated with Ag and NiS exhibits effectively enhanced light utilization, rapid migration of charge carriers, and accelerated surface H2-generation kinetics.
NiS/Ag/CN composites were successfully prepared by a facile method involving the deposition of Ag through in situ calcination and NiS by a hydrothermal method. The ternary composite 10-NiS/1.0-Ag/CN exhibited the highest photocatalytic H2-evolution activity with a rate of 9.728 mmol·g–1·h–1, which is 10.8-fold higher than that of g-C3N4. We verified that the enhancement of light-harvesting capacity, rapid photoinduced electron transfer, and enhanced surface H2-evolution kinetics are key factors in the improvement of photocatalytic properties. Thus, this study demonstrated a promising strategy for constructing excellent g-C3N4-related photocatalysts as well as valuable information for the construction of other semiconductor photocatalysts modified with different co-catalysts for photocatalytic water splitting.
