Light olefins, including ethylene and propylene, as important chemicals, have a plethora of applications in the current petrochemical industry. In the regions with a plenty of coal and natural gas, the methanol-to-olefin (MTO) reactions have attracted great interest [1-4]. In particular, SAPO-34, the archetypal MTO catalyst, displays satisfying catalytic performance and high selectivity to light olefins in the MTO reactions, attributed to the eight-membered ring (8 MR) pore openings (3.8 × 3.8 Å ) and CHA cavity (6.7 × 10.9 Å ), medium-strong acidity, as well as the high thermal and hydrothermal stability [5-7]. The hydrocarbon pool (HCP) mechanism is widely accepted in MTO reaction, and the polymethylbenzenium cation and polymethylcyclopentadienium cation are usually considered as the HCP species [1, 2, 8-10].

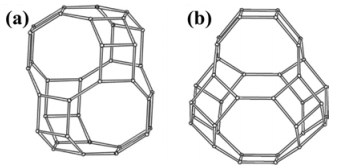

It is widely accepted that the cavity structure and pore size of molecular sieve exert great impacts on the product selectivity in the methanol to hydrocarbons (MTH) reaction [11]. In particular, the cavities of SAPO with 8 MR pore openings exert significant confinement impacts on product distribution in MTO reaction. For instance, the cavity of SAPO-18 (AEI cavity) and SAPO-34 (CHA cavity) provide enough space to accommodate the polycyclic aromatic species (Fig. 1), which results in the main formation of propylene and butylene for SAPO-18, ethylene and propylene for SAPO-34, respectively. By contrast, the cavity of SAPO-35 (LEV cavity, 6.3 × 7.3 Å ) inhibit the generation of bulky aromatic organics species, leading to the formation of ethylene and propylene, especially ethylene [12]. Similarly, the cavity size of DNL-6 (α Cavity, 11.4 × 11.4 Å ), SAPO-35 and SAPO-34 influence the molecular size and activity of the confined polymethylbenzenium cations (polyMB⁺) and polymethylcyclopentenyl cations (polyMCP⁺), leading to different catalytic activity and product selectivity in MTO reaction. Butylene and ethylene are the major products over DNL-6 and SAPO-35, respectively, while ethylene and propylene are mainly produced over SAPO-34 [13]. Considering the fact that propylene currently shows relatively lower economic value than ethylene, and the by-products of C4+ in industrial MTO process are further recycled and cracked to ethylene and propylene so as to improve the economic profits [1]. Therefore, it is important to tune the product selectivity and enhance the selectivity of light olefins, especially ethylene in the MTO reaction over SAPO molecular sieves with relatively larger cavity (e.g. SAPO-18).

As a potential alternative MTO catalyst, various approaches such as the synthesis of MeASPO-18 [15, 16], CHA/AEI intergrowth materials [17] as well as the core-shell SAPO-34@SAPO-18 composites [18] have been developed to enhance the catalytic activity of SAPO-18 catalysts. Recently, our group drawn the conclusion that the zinc ions accommodation as well as the facilitated generation of aromatic species over zinc ions modified SAPO-34 catalysts introduce extra diffusion hindrance for bulky hydrocarbons, which is beneficial for the enhancement of ethylene selectivity in MTO reaction [19-21]. Therefore, in this study, the AEI cavity of SAPO-18 was modified with zinc ions. The zinc ions promote the formation of the bicyclic aromatic species, which increases the diffusion limitation and switches the major formation of propylene to comparable production of ethylene and propylene. Furthermore, the zinc cations accommodations in the AEI cavities facilitate the generation of specific HCP species such as the methylbenzenes with two or three methyl groups which are beneficial for the ethylene generation. A novel strategy to tune the product selectivity over SAPO molecular sieves with relatively larger cavity was proposed.

SAPO-18 was synthesized via hydrothermal crystallisation from aluminophosphate-based gel. N, N-diisopropylethylamine (DIPEA), colloidal silica, phosphoric acid and aluminum hydroxide were adopted as sources of template, silica, phosphorous and aluminium, and the molar ratio Al₂O₃ : P₂O₅ : SiO₂ : DIPEA : H₂O = 1 : 1 : 0.6 : 2.0 : 50. Crystallization was carried out in stainless steel autoclave at 170 ℃ for 48 h. The solid sample was obtained after centrifugation, washing and drying at 100 ℃. The organic template was removed via calcination at 550 ℃ for 4 h, the as-prepared sample is denoted as H-SP18 [22, 23].

H-SP18 was exchanged with NH₄NO₃ aqueous solution (1 mol/L) twice at 80 ℃ for 2 h (1 g H-SP18 in 10 mL NH₄NO₃ aqueous solution) under stirring, followed by filtration, washing with deionized water, and drying in air at 100 ℃, the obtained powder was denoted as NH₄-SP18. Then the NH₄-SP18 was exchanged with 0.01 mol/L Zn(NO₃)₂·6H₂O aqueous solution at 50 ℃ for 4h (1 g NH₄-SP18 in 30 mL Zn(NO₃)₂·6H₂O aqueous solution). The solid powder was obtained after filtration, washing with deionized water, drying in air at 100 ℃, and calcination at 550 ℃ for 4 h. The obtained sample is denoted as Zn-SP18 [19, 21].

X-ray diffraction (XRD) were carried out in PANalytical X'Pert PRO diffractometer using a Cu tube equipped with monochromator (K_α radiation, 40 kV, 40 mA) [19-21].

Scanning electron microscopy (SEM) was conduct with Hitachi TM3000 operated at 15 kV [19, 21].

Nitrogen adsorption-desorption measurements were carried out over Micromeritics ASAP 2020 at -196 ℃. Before the analysis, the samples were evacuated at 350 ℃ under vacuum. The total surface area was evaluated based on the Brunauer-Emmett-Teller (BET) equation. The surface area and microporous volume were calculated by the t-plot method [19-21].

The bulk chemical composition was determined with X-ray fluorescence (XRF) analyses carried out on a Philips Magix-601 spectrometer [19-21].

X-ray photoelectron spectroscopy (XPS) was performed on Thermo ESCALAB 250Xi. with a monochromatic Al K_α radiation (1486.6 eV, 15 kV, 10.8 mA). The binding energy (BE) values were referenced to the C 1s peak of contaminant carbon (284.8 eV). The atomic ratio of surface chemical compositions was determined with the peak areas of Si 2p, Al 2p, P 2p and Zn 2p, respectively [19-21].

The temperature-programmed desorption of ammonia (NH₃-TPD) were carried out in Micromeritics Autochem Ⅱ 2920. The calcined sample was activated at 550 ℃ for 1 h in He flow. Then the samples were cooled to 100 ℃, and subjected to a flow of NH₃/He for 0.5 h to saturate the sample with NH₃. The NH₃ desorption was performed from 100 to 650 ℃ with the sample ramped at 10 ℃/min in He flow [21].

The ¹H MAS NMR spectra were recorded on a Bruker Avance Ⅲ 600 spectrometer equipped with a 4 mm H-X MAS probe. The resonance frequencies were tuned to 600.13 MHz for broad band ¹H decoupling [19-21].

The catalytic test was carried out in a quartz tubular fixed-bed reactor. The sample (1000 mg, 40-60 mesh) loaded in the fixed-bed reactor was activated at 500 ℃ in an Ar flow for 1 h. Then the temperature was decreased to 480 ℃. The methanol aqueous solution with a H₂O/CH₃OH weight ratio of 60/40 was pumped into the quartz reactor, which gave a weight hourly space velocity (WHSV) of 2.0 h^-1. The products were analysed by gas chromatograph (Agilent GC 7890A), with flame ionization detector (FID) and CP-PoraPlot Q-HT capillary column, thermal conductivity detector (TCD) and Porapak QS packed column. CO, CO₂ and CH₄ were analysed by TCD, and hydrocarbons were analysed by FID. The conversion and selectivity were calculated on a carbon mole basis. Dimethyl ether was treated as reactant[19, 20].

Typically, 50 mg catalysts loaded in the quartz tubular reactor were activated at 600 ℃ for 30 min, subsequently the temperature was decreased to the reaction condition (480 ℃). Flowing He (12.42 mL/min) was bubbled in methanol at 14 ℃, which gave a WHSV of 2.0 h^-1 [21]. The effluent products were saved in the 15 valve (Vici valco instruments) manually every 10 s, and then analyzed by gas chromatograph (Agilent GC 7890B) using FID detector with capillary column HP-Plot/Q+PT (30 m × 0.32 mm × 20 um) and TCD detector with capillary column GS-CasPPO (30 m × 0.32 mm). The conversion and selectivity were calculated via the methods mentioned above.

The chromatographic method was adopted to analyse the diffusion properties of probe molecules in the catalyst bed. The samples were activated at 500 ℃ under helium for 30 min. Pulse containing probing molecules (ethylene 4.87%, or 1-butylene 4.90%, helium gas as the background gas) was diffused into the catalyst bed of fresh or coked catalysts for just 0.6 s, then the concentration of probing molecules was recorded via Mass Spectrometer Gas Analyzer (Pfeiffer Omnistar GSD 301 T3) [19, 20].

The ethane adsorption isotherms were carried out in an intelligent gravimetric analyzer (IGA 100) from Hiden Isochema Ltd. Typically, the sample (100 mg) was loaded into the microbalance bag. Before the adsorption measurements, samples were degassed at 400 ℃ for more than 10 h. The ethane isotherms were obtained at 20 ℃. The curve of mass changes during the uptake process was determined at 10 mba [19, 21].

The coke amount of catalysts was determined by thermogravimetry using SDT Q 600 analyzer in the temperature range from 25 ℃ to 900 ℃ under flowing air. And catalysts after MTO reaction for 2 min at 480 ℃ were maintained isothermal at 150 ℃ for additional 0.5 h so as to completely remove the adsorbed water [19-21].

The carbonaceous species confined in the catalysts were analysed according to the dissolution/extraction process [24]. After dissolving the catalysts with 20% HF solution, the carbonaceous species in the samples were extracted with CH₂Cl₂ solution and then analysed using Agilent 7890A gas chromatograph (FID detector, mass sensitive detector with HP-5 capillary column) [19, 20].

The XRD patterns of the H-SP18 sample confirm the pure phase of SAPO-18 (Fig. S1), and H-SP18 sample are composed of cubic crystals with sizes ranging from 1-2 μm (Fig. S2). After zinc cations modification, no phases related to ZnO are observed, implying the homogeneous distribution of zinc species in Zn-SP18 [25]. In addition, compared with H-SP18, quite slight decreases in pore volume and surface area are observed in Zn-SP18 (Table S1), indicating the preservation of textural property after the ion exchange process.

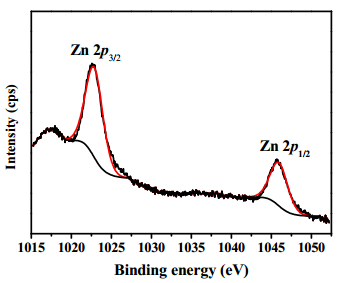

As shown in Fig. 2, Zn-SP18 show binding energy (BE) of Zn 2p_1/2 and Zn 2p_3/2 core level at 1045.8 and 1022.9 eV, respectively. Due to the lower electronegativity of the O^2- ligand in bulk ZnO than the lattice oxygen of zeolites, the bulk ZnO display lower BE than that of the Zn species at the exchangeable sites [26-28], thus the zinc species in Zn-SP18 are in the +2 valence state and stabilized at exchanged site [26-30].

The Si distributions in H-SP18 as well as the Zn distributions in Zn-SP18 are further investigated by a combination of XPS (Table 1) and XRF (Table S2). As shown in Table 1, the surface Si enrichment index R_Si is higher than 1, indicating the Si-enrichment near the external surface exists in H-SP18 [1, 31, 32]. Moreover, for Zn-SP18, the calculated zinc content in the bulk (0.35 wt%) is lower than that in the sublayer (0.96 wt%), indicating the incorporated zinc ions were basically located at the rim of the crystals [19-21].

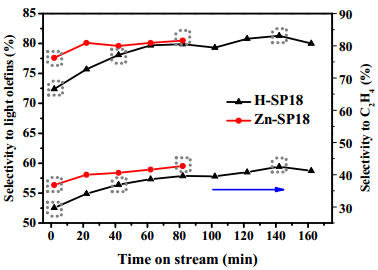

As shown in Fig. 3, the cavity modification via zinc ions incorporation efficiently adjusts the product selectivity, and remarkably increases the selectivity to light olefins, especially ethylene. For example, after identical reaction time (2 min), by contrast to H-SP18-2min, markedly increased ethylene selectivity (about 37%) and selectivity to light olefins (about 77%) are obtained over Zn-SP18-2min, with higher selectivity of ethylene and light olefins of approximately 7% and 5%, respectively. In particular, Zn-SP18-2min and H-SP18-42min exhibit nearly identical product selectivity including the selectivity ethylene (Fig. S3), implying the high efficiency of cavity modification via zinc ions incorporation in the enhancement of selectivity to ethylene. Furthermore, Zn-SP18-HS (HS is short for the highest selectivity to light olefins) and H-SP18-HS also exhibit nearly identical product selectivity including the ethylene selectivity (Fig. S4), and the reaction time required to achieve the highest selectivity to light olefins (about 81%) decreases from 142 min (H-SP18-HS) to 82 min (Zn-SP18-HS).

The products distribution as well as the ratio of C₂H₄ to C₃H₆ were further analysed. As shown in Figs. S5 and S6, the cavity modification via zinc ions incorporation remarkably enhances the selectivity to C₂H₄, and decrease the selectivity to hydrocarbons with relatively larger molecular size including C₃H₆, C₃H₈, C₄ and C₅+. Moreover, the cavity modification via zinc ions switches the major formation of propylene to comparable production of ethylene and propylene, and increases the initial ethylene/propylene ratio from 0.7 to 0.9. In particular, the highest ethylene/propylene ratio of 1.1 is attained over Zn-SP18 catalysts with relatively shorter reaction time (82 min). As shown in Table S3, only trace amount of by-products are produced (the selectivity of CO and CO₂ are 0.36% and 0.20%, respectively), indicating that no obvious side reaction such as the decomposition of CH₃OH is caused by the zinc ions [19, 33]. Nevertheless, the catalyst lifespan of Zn-SP18 experiences a slight decrease (Fig. S7).

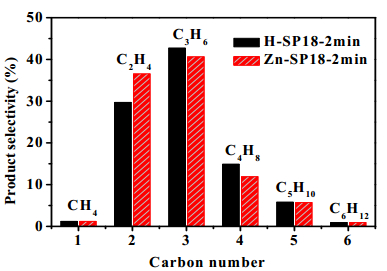

The correlation of product selectivity and carbon number over H-SP18-2min and Zn-SP18-2min are analysed. As shown in Fig. 4, the cavity modification via zinc ions incorporation effectively tunes the product selectivity, and switches the major formation of propylene over H-SP18-2min to comparable production of ethylene and propylene over Zn-SP18-2min, which makes the zinc cations modified SAPO-18 catalysts potential alternative catalysts in industrial MTO reaction.

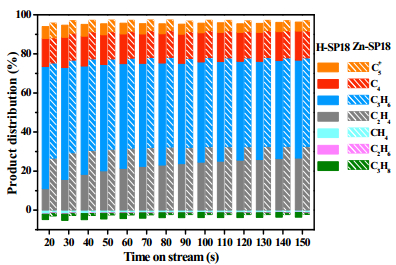

The influences of the cavity modification via zinc ions in the product distribution in the initial period of MTO reaction are deeply investigated. As shown in Fig. 5, after MTO reaction for 20 s, remarkably enhanced selectivity to ethylene from 11% over H-SP18 to 27% over Zn-SP18 is observed. By contrast to the slow increase in selectivity to ethylene over H-SP18, much higher selectivity to ethylene of about 31% are obtained over Zn-SP18 at reaction time as short as 50 s. The significantly enhanced ethylene selectivity during the initial period of MTO reaction associated with the cavity modification via zinc ions effectively testifies the potential of zinc modified SAPO-18 catalysts in MTO reaction.

The acidities of the as-prepared samples (H-SP18, Zn-SP18) are analyzed by NH₃-TPD and ¹H MAS NMR. As seen in NH₃-TPD profiles (Fig. S8), there are two desorption peaks at approximately 100-250 and 300-500 ℃ for all samples, which correspond to the weak and strong acid sites, respectively. In particular, Zn-SP18 exhibit relatively lower desorption temperature in strong acid sites, implying the relatively lowered strength of Brönsted acid sites of Zn-SP18 compared with H-SP18.

In addition, as shown in ¹H MAS NMR spectra (Fig. S9), signal at 3.6 ppm is assigned to bridging hydroxyl groups, while signal at 1.6 with much lower intensity is assigned to Si(OH) [34, 35]. By contrast to H-SP18, the signal density of Si(OH)Al of Zn-SP18 decreased to some extent, indicating that part of the bridging hydroxyl groups are substituted by the zinc cations. It is generally believed that the catalysts possessing milder acidity facilitate the formation of propylene, owing to the inhibited hydrogen transfer reactions that consume propylene [2, 36]. Thus the tuned product selectivity and enhanced selectivity to ethylene over Zn-SP18 with lower strength and concentration of Brönsted acid sites should be ascribed to the other influence factors instead of the acidity modification [19-21].

For SAPO-34 catalyst, with the proceeding of MTO reaction, owing to the accumulation of large-sized carbonaceous species confined in the CHA cavity, the products suffer from increased diffusion hindrance, leading to remarkable product shape selectivity and enhanced selectivity to light olefins, especially ethylene [11, 37]. Therefore, chromatographic method is adopted to evaluate the diffusion properties of probing molecules (ethylene and 1-butylene) in the as-prepared catalysts as well as the catalysts after MTO reaction. In the chromatographic method, the residence time distribution of probing molecules in the catalyst bed was calculated according to Eq. (1).

Eq. 1. Residence time distribution (RTD) [t: retention time; C(t): the concentration of probing molecules diffused out of the catalyst bed] [19, 20].

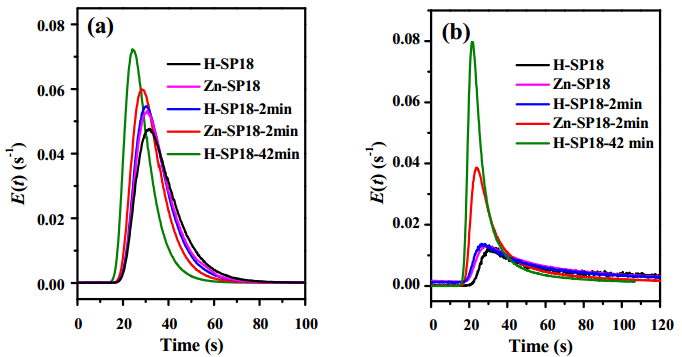

As seen in Fig. 6, by comparison with H-SP18, relatively sharper RTD profiles with shorter residence time of ethylene and 1-butylene are obtained over Zn-SP18, which confirm the incorporation of Zn ions into the AEI cavities. In addition, by contrast to H-SP18-2min, sharper RTD profiles of ethylene and 1-butylene, especially 1-butylene, are observed over Zn-SP18-2min, implying increased diffusion hindrance are encountered for probing molecular over Zn-SP18-2min. There is no doubt that the large-sized hydrocarbons such as propylene, butylene and higher olefins exhibit smaller diffusivities compared with small-sized hydrocarbons (e.g ethylene) during the diffusion from the AEI cavities out to the gaseous phase [19-21]. Thus the bulky hydrocarbon encounter much higher diffusion limitation over Zn-SP18-2min than over H-SP18-2min, leading to increased selectivity to ethylene as well as light olefins over zinc ions modified SAPO-18 after the same reaction time (Figs. 3, S5 and S6).

Furthermore, the diffusion property of ethylene and 1-butylene in Zn-SP18-2min and H-SP18-42min was compared in depth. By contrast to Zn-SP18-2min, much sharper RTD profile are observed over H-SP18-42min, implying that markedly enhanced diffusion limitation are encountered for the generated products over H-SP18-42min compared with Zn-SP18-2min during the diffusion out of the AEI cavities to the effluent phase. Therefore, higher selectivity to ethylene and light olefins ought to be observed over H-SP18-42min compared with Zn-SP18-2min. Nevertheless, in our study, close product distributions are observed over H-SP18-42min and Zn-SP18-2min (Fig. S3), implying that factors in addition to the increased diffusion hindrance account for the enhanced selectivity to ethylene for zince modified SAPO-18 catalysts

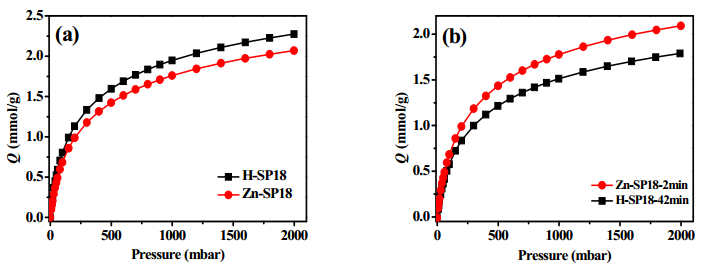

IGA is also applied to investigate the diffusion property of probing molecule in fresh catalysts (H-SP18 and Zn-SP18), as well as catalysts with close product distributions after MTO reaction (Zn-SP18-2min and H-SP18-42min). Ethane is adopted as probing molecule considering the similar diffusivity relative to ethylene [38]. As shown in Fig. 7, Zn-SP18 displays decreased saturation adsorption capacities of ethane compared with H-SP18, indicating the zinc ions incorporation in the AEI cavity of SAPO-18, which is in agreement with the slight decreased pore volume (Table S1).

Moreover, H-SP18-42min exhibit decreased saturation adsorption capacities of ethane compared with Zn-SP18-2min. The diffusion properties of ethane in the crystals are attained from the Fick's second law (Eq. S1) [39]. As shown in Fig. S10, by contrast to Zn-SP18-2min, the normalized adsorption amount of ethane on H-SP18-42min is lower (in a short time domain under 10 mba), thus the characteristic diffusion time (D/r²) of H-SP18-42min should be lower than that of Zn-SP18-2min. Considering the same characteristic diffusion length, the diffusivity of ethane for H-SP18-42min is lower than that for Zn-SP18-2min. Thus, the generated products in MTO reaction over H-SP18-42min might encounter increased diffusion hindrance compared with Zn-SP18-2min during the diffusion out of the AEI cavities to the effluent phase. Combined with the fact that lower diffusivity for products with larger molecular size (e.g propylene and higher olefins) [19-21], enhanced selectivity to ethylene should be observed over H-SP18-42min. However, close product distribution between H-SP18-42min and Zn-SP18-2min are observed (Fig. S3), therefore, in addition to the increased diffusion restriction, other influential factors play important and extra role in the enhanced ethylene selectivity over zinc ion modified SAPO-18 catalysts, which is in consistence with the conclusion drawn from chromatographic method analysis.

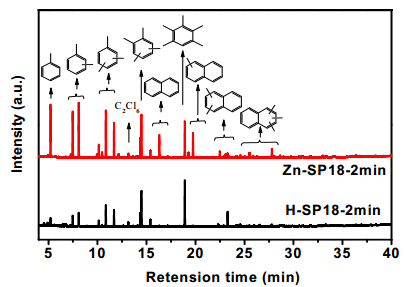

The carbonaceous species retained in catalysts are extracted and analyzed by GC-MS. As seen in Fig. 8, methyl-substituted benzenes can be found in H-SP18-2min, with tetramethyl-benzene and pentamethyl-benzene being the major species. After the cavity modification via zinc ions, the methylbenzenes with one to three methyl groups are the major species. It has been demonstrated that the generation of ethylene is promoted by the methylbenzenes with two or three methyl groups, while propylene is facilitated by the methylbenzenes with four to six methyl groups [40, 41]. Therefore, the formation of lower methylbenzenes after zinc ion modification is beneficial for the ethylene formation, leading to the increased ethylene selectivity.

Furthermore, enhanced amount of hydrogen-deficient bicyclic aromatic compound such as naphthalenes and methylnaphthalenes are observed over Zn-SP18-2min. Therefore, the incorporated zinc cations promote the generation of naphthalene and derivatives, and enhanced the diffusion limitation, which effectively tune the product selectivity and switch the major formation of propylene to comparable production of ethylene and propylene.

The relationship between the selectivity of light olefins and the amount of carbon deposit are analyzed and shown in Table 2. After the methanol conversion for 2 min, by contrast to the H-SP18-2min with coke amount of 0.9 wt%, over Zn-SP18-2min, enhanced selectivity to light olefins (approximately 77%) are obtained, with nearly the same amount of carbon deposit (1.0 wt%). Furthermore, by comparison with Zn-SP18-2min (Fig. S3), much larger coke amount are observed over H-SP18-42min, indicating that close selectivity to light olefins, especially ethylene can be obtained over zinc modified SAPO-18 catalyst with significant reduction in carbon atom consumption as well as reaction time. In addition, over Zn-SP18-HS, the highest selectivity to light olefin of about 80%-81% can be obtained with markedly lower coke deposition (coke amount of 10.4 wt%), by contrast to H-SP18-HS (coke amount of 13.8 wt%). Therefore, the cavity modification of SAPO-18 catalysts via zinc ions incorporation not only effectively tune the product selectivity, enhance the selectivity to ethylene and light olefins, but also fulfill the green requirement of carbon atom economy by means of achieving the same catalytic performance with less coke deposition [42].

The AEI cavity of SAPO-18 catalyst was modified with zinc ions with the conventional ion exchange procedure. The zinc ions accommodation as well as the generation of bicyclic aromatic species in the AEI cavity of SAPO-18 catalyst introduce additional diffusion hindrances that exert greater influence on the bulky products, which increase the selectivity to small-sized products such as ethylene, and shifts the products from mainly propylene to comparable production of ethylene and propylene in MTO reaction. The incorporated zinc ions facilitate the generation of lower methylbenzenes which favours the ethylene formation. An effective strategy via cavity modification to switch the product selectivity and enhance the selective to ethylene and light olefins is thus proposed, for SAPO molecular sieves with relatively larger cavity in the MTO reaction, which provide a potential direction to develop the alternative to SAPO-34 catalysts for industrial MTO application.
