Proton exchange membrane fuel cells (PEMFCs) are regarded as promising candidates for new-generation power sources, due to their high conversion efficiency and low environmental pollution. However, the sluggish kinetics of the oxygen reduction reaction (ORR) at the cathode hinders the wider application of PEMFCs. Owing to its extraordinary catalytic performance, platinum is an ideal electrocatalytic material for the ORR, but its scarcity and high cost limit the scaled production [1]. Thus, massive efforts have been devoted both to develop less expensive alternative catalysts, such as palladium-based [2] and non-precious metal [3] catalysts, and to improve the availability of Pt [4]. The latter strategy is generally implemented by fabricating ultrafine Pt nanoparticles (NPs) to maximize the effective surface areas for catalysis and minimize the required quantity of Pt. However, the large surface energy of the nanoparticles generally leads to severe agglomeration, thus weakening their practical performance. To avoid aggregation, surfactants with high molecular weight, such as polyvinylpyrrolidone (PVP), Pluronic F-127, and cetyltrimethyl ammonium bromide (CTAB) have been employed to stabilize the nanoparticles during the preparation process of Pt-based catalysts [5-7]. However, the elimination of these surfactants after the reaction is hard and complicated, and the residual portions around the nanoparticles would reduce the number of "clean" surface active sites, thus reducing the overall electrocatalytic activity of catalysts. Therefore, there is high interest in the design of a surfactant-free strategy for the synthesis of ultrafine Pt-based catalysts.

On the other hand, alloying Pt with transition metals (e.g., Fe, Co, Ni, Cu, Mn, Mo) can enhance the performance of Pt-based catalysts and reduce the mass requirements of Pt, further improving the cost effectiveness [8-11]. Among various Pt-based bimetallic materials, Pt-Co has been shown to be one of the most effective catalysts for ORR, with superior electrocatalytic activity and stability [12]. According to previous studies, the enhanced catalytic performance of Pt-Co alloys is mainly attributed to geometric and electronic effects. In terms of geometric properties, the incorporation of Co into the Pt lattice during the alloying process would lead to compressive strain and hence shorten the Pt-Pt interatomic distance. Moreover, the electronic structure of the Pt-Co alloy would also be modified, owing to the difference in electronegativity between Pt and Co, which leads to a downshift of the d-band center. As a result, the adsorption of oxygenated species on the catalytic surface is reduced, and more effective active sites are created. Although the favorable features of the Pt-Co alloy make it a desirable electrocatalyst, some drawbacks still hinder its practical use. In particular, Co tends to dissolve during the electrochemical process, which would negatively affect the conductance of the membrane and severely degrade the effective performance of the catalyst in real PEMFC operation [13]. An acid etching pretreatment was proposed to address this problem. The selective leaching of non-noble metals from the alloy results in increased amounts of surface defects and higher roughness, while retaining the shorter Pt-Pt distance, which may result in better electrocatalytic activity. For example, Wang et al. [14] investigated different atomic-level morphologies of the Cu₃Pt nanoparticles through chemical and electrochemical etching approaches, and showed that both etching processes led to improved electrocatalytic performances in the ORR compared with those of commercial Pt/C. Kwon and co-workers [15] also employed a chemical etching strategy to prepare dendrite-embedded Pt-Ni multiframes; the obtained Pt-Ni catalyst showed a marked enhancement in both mass and specific activity compared with the state of-the-art Pt/C catalyst.

Moreover, in order to achieve the large-scale production of catalysts enabling the practical application of PEMFCs, the fabrication process is required to be simple, scalable, and cost-effective. Many preparation methods have been developed so far, including polyol reduction, impregnation, electrochemical deposition, and magnetron sputtering [16-19]. Among these approaches, the polyol method was shown to be highly feasible and to offer advantages such as low-cost raw materials, high productivity, lower environmental pollution, mild reaction conditions, and simplified post-processing, which are beneficial for its industrial application [20]. However, the reducing capacity of polyol is insufficient for the alloying of Pt with transition metals, thus requiring the addition of a relatively strong reductant.

Herein, we have fabricated carbon-supported ultrafine Pt-Co nanoparticles through a facile and cost-effective modified glycol method, in which ethylene glycol not only acts as the solvent but also serves as the stabilizer (instead of a surfactant with high-molecular weight) to maintain the small size and homogeneous distribution the nanoparticles; moreover, the presence of excess sodium borohydride can effectively reduce the cobalt salts and contribute to the formation of the Pt-Co alloy. Thereafter, an acid etching strategy was employed in the washing process to remove the unstable Co atoms and rearrange the surface morphology and structure of the alloy, in order to further enhance its catalytic activity and stability. Following a modification of the above strategy, the resulting catalyst consisting of carbon-supported ultrafine platinum nanoparticles modified with trace amounts of Co was thoroughly characterized by physical methods. Electrochemical measurements further demonstrated that the as-prepared Pt-Co/C catalyst exhibits superior electrocatalytic activity and stability toward the ORR compared to those of commercial Pt/C, highlighting the potential of the catalyst to promote the widespread application of PEMFCs.

Hexachloroplatinic acid hexahydrate (H₂PtCl₆·6H₂O) was purchased from Shenyang Research Institute of Nonferrous Metals. Cobalt(Ⅱ) chloride hexahydrate (CoCl₂·6H₂O), ethylene glycol (EG), sodium borohydride (NaBH₄), and sodium hydroxide (NaOH) were obtained from Sinopharm Chemical Reagent Co., Ltd. Carbon black (Vulcan XC 72) was supplied by Cabot Corporation and Nafion was provided by Dupont. All chemicals were of analytical grade and used without further purification. Ultrapure deionized water was obtained from a Milli-Q Lab system and used for the preparation of all solutions.

Pt-Co/C catalysts with four different initial Pt/Co atom ratios (4:1, 2:1, 1:1, 1:2) were prepared by a one-pot method. A typical synthetic procedure is as follows: 50 mg Vulcan XC-72 was dispersed into 60 ml EG by thoroughly stirring and ultrasonic blending for about 40 min. Then, the dispersion was stirred at 60 ℃ in an oil bath with intense flow of N₂ for 30 min. Subsequently, 40 mg of NaBH₄ was dissolved in a small amount of ultrapure deionized water and added dropwise to the suspension. Soon afterward, a solution containing H₂PtCl₆ and CoCl₂ (consisting of a specific CoCl₂ amount dissolved in 3 ml water to achieve a total metal content of 20 wt% for the synthesis system) was added dropwise to the reaction mixture. After continuous stirring at 60 ℃ for 30 min, the alloying reaction was completed, and the Pt-Co/C catalysts were deposited by ultrasonic washing/centrifugation with ethanol and ultrapure water for several times. In order to release the unstable Co from the catalysts, an appropriate amount (2 mol l^-1) of nitric acid was added during every washing process, with the pH value of the cleaning solution kept at about 3. After drying under vacuum at 60 ℃ for 12 h, Pt-Co/C catalysts with trace amounts of Co were obtained.

Transmission electron microscopy (TEM) measurements were carried out on a JEOL JEM-2000EX electron microscope operated at 120 kV. High-resolution TEM (HRTEM) images and energy dispersive X-ray spectroscopy (EDS) line scan profiles were obtained with a JEOL JEM-2100 transmission electron microscope operated at 200 kV. High-angle annular dark-field scanning TEM (HAADF-STEM) images and corresponding EDS mappings and line profiles were acquired on a JEM-ARM200F instrument (JEOL). Crystalline phase X-ray diffraction (XRD) patterns were obtained on a Rigaku D/MAX-2500/PC X-ray diffractometer using Cu K_α radiation (λ = 0.154056 nm). X-ray photoelectron spectroscopy (XPS) measurements were carried out using an ESCALAB 250Xi (Thermo Scientific) spectrometer with an Al K_α radiation source. The composition of the as-synthesized catalysts was measured by inductively coupled plasma-atomic emission spectroscopy (ICP-AES, Perkin Elmer Optima 2000 DV).

Electrochemical measurements were conducted on a CHI 730D electrochemical station with a standard three-electrode cell at room temperature, using a glassy carbon disk electrode, Pt foil, and a saturated calomel electrode as working, counter, and reference electrodes, respectively. The electrolyte was a HClO₄ aqueous solution (0.1 mol/L) and all potentials were converted to the reversible hydrogen electrode (RHE) scale. The working electrode was prepared as follows: 5 mg of catalysts were dispersed by ultrasonic sonication in a mixture containing 2.6 ml isopropanol and 20 μl 5 wt% Nafion. The suspension (6 μl) was then pipetted on the glassy carbon disk and dried in natural air. Cyclic voltammetry (CV) curves were obtained in N₂-saturated 0.1 mol/L HClO₄ between 0.05 and 1.2 V, with a scanning rate of 50 mV s^-1. ORR polarization curves were recorded in O₂-purged 0.1 mol/L HClO₄ between 0.2 and 1.0 V, with a sweep rate of 10 mV s^-1 at 1600 rpm, and durability tests (ADTs) were performed between 0.6 and 1.2 V in N₂-saturated 0.1 mol/L HClO₄ at a scan rate of 50 mV s^-1.

The catalyst ink was prepared by sonicating the mixture of catalyst, isopropanol, and 5 wt% Nafion described above. The cathode electrodes were prepared by coating the catalysts ink on the gas diffusion layer (GDL), and the Pt loadings measured by ICP were 73 and 98 ug cm^-2 for the Pt-Co/C and Pt/C electrodes, respectively. The anode electrodes were commercial gas diffusion electrodes (GDEs) with a Pt loading of 0.3 mg cm^-2. Membrane electrode assemblies (MEAs) with a valuable area of 4 cm² were prepared by sandwiching a Nafion 211 membrane (DuPont) between the cathode and anode electrodes, under a pressure of 0.2 MPa, at 140 ℃ for 2 min. The single cells were then assembled by inserting the prepared MEAs between two graphite flow fields accompanied by metal end plates for the evaluation of the PEMFC performances.

An 850E single-cell test system was employed. The cells were operated at a temperature of 65 ℃, with the cathode and anode fed with fully humidified air and hydrogen, respectively, and a backpressure of 1.5 bar on both sides. The cells were first activated under a series of current densities until the corresponding voltages were stable, and then I-V curves were recorded by sweeping the current with a step of 50 mA. Electrochemical impedance spectroscopy (EIS) measurements were then performed at a current density of 100 mA cm^-2, to obtain insight into the reaction kinetics of the electrodes.

CV curves were also recorded from 0.05 to 1.2 V with a scan rate of 50 mV s^-1 at 30 ℃, with the cathode and anode purged with nitrogen and hydrogen, respectively. ADTs were performed by scanning the potential between 0.6 and 1.2 V at a scan rate of 100 mV s^-1. After the ADTs, we obtained CV, I-V, and EIS curves to further assess the PEMFC performance.

The elemental compositions of all catalysts were measured by ICP-AES and are listed in Table 1. The exact contents of Pt in the as-prepared Pt-Co/C catalysts are close to the nominal values, while the Co contents are much lower than the stoichiometric values, with residual concentrations of less than 4 at% in the catalysts. This phenomenon is probably due to the acid wash, as confirmed by previous studies on the leaching of non-precious metals [21-23]. The actual atomic ratios of Pt to Co for Pt-Co/C catalysts with initial Pt/Co atom ratios of 4:1, 2:1, 1:1, and 1:2, are 93:1, 82:1, 36:1, and 31:1, respectively. The actual atomic ratios will be used to refer to the Pt-Co/C catalysts in the following discussion.

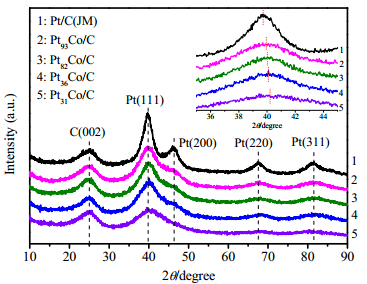

To investigate the effect of the alloy composition on the crystalline structure, we measured the XRD patterns of the as-prepared Pt-Co/C catalysts, along with that of commercial Pt/C for comparison. As shown in Fig. 1, the Pt-Co/C catalysts show typical Pt face-centered cubic (fcc) features. The broad peak located at 25° is assigned to the C(002) plane of the XC-72 carbon support, and the other four diffraction peaks at around 39.6°, 46.3°, 67.4°, and 81.4° correspond to the Pt (111), Pt (200), Pt (220), and Pt (311) planes, respectively, consistent with the fcc Pt lattice [24]. As is well known, the Pt-Pt interatomic distance is larger than the Co-Co one; hence, the incorporation of Co into the Pt lattice would lead to compressive strain and a shorter Pt-Pt distance, which will be retained after the leaching of excess Co from the intermetallic [25]. As shown in the XRD pattern, the peak positions of the Pt lattice of the Pt-Co/C catalysts are shifted to higher angles relative to those of Pt/C, due to the shorter Pt-Pt distance; moreover, the shifts increase with increasing initial Co contents in the Pt-Co catalysts, demonstrating that the smaller Co atoms are effectively doped into the fcc crystal structure of Pt to produce an alloy phase [26, 27]. On the other hand, no characteristic diffraction peaks of Co are detected in any of the Pt-Co/C samples, probably owing to the formation of the Pt-Co alloy.

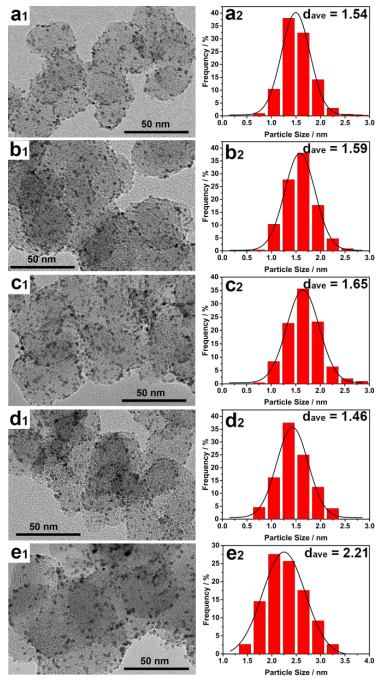

The TEM images and corresponding particle size histograms of the as-synthesized Pt-Co/C catalysts and of commercial Pt/C are presented in Fig. 2. The Pt-Co nanoparticles with different Pt/Co ratios exhibit approximately spherical shapes and are homogeneously dispersed over the entire surface of the carbon support, with a narrow size distribution. Moreover, the average particle sizes of the Pt₉₃Co/C, Pt₈₂Co/C, Pt₃₆Co/C, and Pt₃₁Co/C catalysts are estimated to be 1.54, 1.59, 1.65, and 1.46 nm, respectively. On the other hand, commercial Pt/C exhibits a larger mean particle size, with a value of 2.21 nm, which is about 1.4 times than the sizes of the Pt-Co NPs. These results indicate that the particle size and distribution of the Pt-Co NPs can be well controlled in the synthesis process based on the modified EG method, without adding any other surfactants.

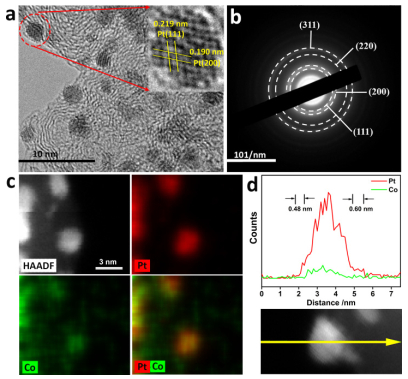

Furthermore, we performed a combined HRTEM/EDS analysis of Pt₃₆Co/C as a preliminary stage to investigate the fine morphology and elemental composition of the Pt-Co/C catalysts. The inset in Fig. 3(a) shows a well-defined fcc lattice with (111) and (200) crystalline facets, and the d-spacings of the corresponding lattice fringes decrease to 0.219 and 0.190 nm, respectively, indicating that Co is successfully incorporated into the Pt crystal structure to form an alloy phase with a contracted lattice [28, 29]. The selected-area electron diffraction (SAED) pattern of Pt₃₆Co/C exhibits a sets of concentric rings assigned to (111), (200), (220), and (311) reflections, which can also be indexed to the fcc crystal (Fig. 3(b)) [30]. In addition, the EDS spectrum also confirms the existence of a small amount of Co after the one-pot alloying and etching process, corroborating the XRD and HRTEM analyses discussed above (Fig. S1). Moreover, the elemental distribution of Pt and Co within the Pt₃₆Co nanoparticles was determined by HAADF-STEM and EDS mapping analyses. As shown in Fig. 3(c), both Pt and Co are distributed throughout the NPs, confirming the formation of the Pt-Co bimetallic alloy. To examine in higher detail the distribution of the atomic components in a Pt₃₆Co nanoparticle, EDS line scan profiles (marked with a yellow arrow) were obtained in HAADF-STEM mode across a Pt₃₆Co NP. As illustrated in Fig. 3(d), both sides of the NP shows a region of low Co atomic concentration, measuring about 0.48 and 0.60 nm in length, which denotes the formation of Pt-rich shells [12]. This illustrates the effectiveness of the acid etching strategy in removing surface Co atoms and rearranging the surface structure of the alloy, which is expected to play an important role in retaining the inner bimetallic composition, leading to enhanced catalytic activity and stability [31, 32].

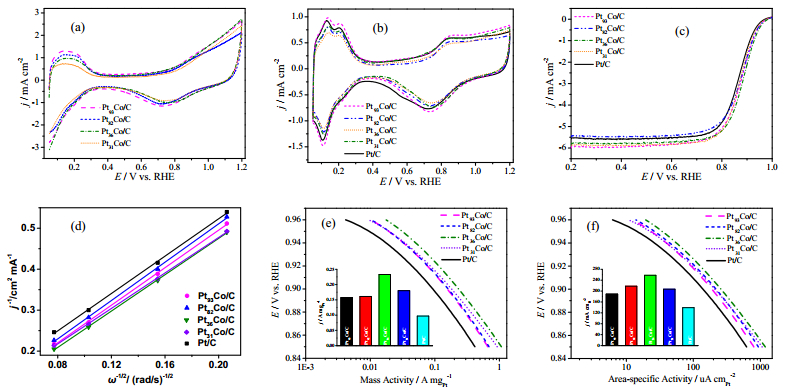

CV and polarization curves were recorded to evaluate the ORR electrocatalytic activities of the as-prepared Pt-Co/C catalysts. For comparison, commercial Pt/C was also examined under identical conditions. Prior to the electrochemical tests, the potential of the working electrode was scanned for several cycles between 0.05 and 1.2 V at 100 mV s^-1 to activate the catalytic sites, and the obtained first activation curves are displayed in Fig. 4(a). Based on a previous study, the characteristic peak related to the oxidation of Co appears at ~0.9 V [33]. However, no such peak is observed for Pt-Co/C, indicating a limited dissolution of Co from the surfaces of the catalysts. The stabilized CV curves for all catalysts were recorded in a N₂-saturated 0.1 mol/L HClO₄ solution with a sweep rate of 50 mV s^-1 and are presented in Fig. 4(b). The peak pairs corresponding to the hydrogen adsorption/desorption on Pt are observed in the potential range of 0.03-0.4 V, characteristic of polycrystalline Pt. The specific electrochemical surface areas (ECSAs) were calculated from the following relation [34, 35]:

where Q_H is the Coulombic charge associated with hydrogen desorption (mC), [Pt] represents the Pt loading (mg_Pt), and the 0.21 value (mC cm^-2) is the charge required to oxidize a monolayer of hydrogen on Pt sites. As shown in Table 2, the calculated ECSAs of Pt₉₃Co/C, Pt₈₂Co/C, Pt₃₆Co/C, and Pt₃₁Co/C are 83.2, 73.8, 90.6, and 87.1 m² g^-1, respectively, which are obviously higher than the ECSA of commercial Pt/C (69.7 m² g^-1), implying that the utilization of Pt effectively increases in the Pt-Co/C catalysts. These results further confirm the small particle size and uniform dispersion of Pt nanoparticles controlled by the modified EG method, in agreement with the XRD and TEM results. Moreover, the higher ECSA values of the Pt-Co/C catalysts suggest that they are more electrochemically accessible compared to Pt/C; this feature could play an important role in enhancing the electrocatalytic kinetics of the ORR. The peak pairs observed in the potential range of 0.6-1.2 V correspond to the oxidation/reduction of Pt/Pt-O; among them, the peak potentials of Pt oxide reduction for the Pt-Co/C catalysts show a positive shift with respect to that of commercial Pt/C. This result shows that the adsorption of oxygenated species (OH_ad) on the surface of the Pt sites is weaker for the Pt-Co/C catalysts, which would accelerate the ORR kinetics and lead to improved ORR catalytic activity [36].

Fig. 4(c) shows the ORR polarization curves of Pt-Co/C and commercial Pt/C catalysts measured in O₂-saturated 0.1 mol/L HClO₄ solution at a sweep rate of 10 mV s^-1. The electrocatalytic activity of the catalysts, as deduced from the half-wave potentials (E_1/2), reaches its maximum for Pt₃₆Co/C and subsequently decreases for Pt₈₂Co/C, Pt₉₃Co/C, and Pt₃₁Co/C, with values of 884, 877, 875, and 871 mV, respectively. All Pt-Co catalysts show positive shifts in E_1/2 compared to commercial Pt/C (867 mV), indicating that the incorporation of Co could result in improved ORR activities. To further explore the catalytic kinetics process on the surface of the catalysts, the ORR polarization curves were measured at various rotation rates from 225 to 1600 rpm (Fig. S2). For a first-order reaction, the experimentally obtained current density (j) shows a linear relation with the electrode rotation speed (ω) in the mixed control region, according to the Koutecky-Levich (K-L) equation [2]:

where j_k is the kinetic current, j_d is the diffusion-limiting current density, n is the numbers of electrons transferred per oxygen molecule, F is the Faraday constant (96485 C mol^-1), c is the O₂ concentration (1.26×10^-6 mol cm^-3), D is the oxygen diffusion coefficient in the electrolyte (1.9×10^-5 cm² s^-1), and v is the kinematic viscosity of the electrolyte solution (1.009×10^-2 cm² s^-1). The plots calculated at different potentials from 0.8 to 0.9 V on the basis of the Koutecky-Levich equation are displayed in Fig. 4(d), where the j^-1 value exhibits a good linear relationship with ω^-1/2, implying that for all catalysts the ORR could be regarded as a first-order reaction. Moreover, the n values obtained from the slopes of the plots are 3.8, 3.7, 3.9, and 4.0 for Pt₉₃Co/C, Pt₈₂Co/C, Pt₃₆Co/C, and Pt₃₁Co/C, respectively. These results demonstrate that the Pt-Co/C catalysts follows a four-electron transfer pathway, which is beneficial to improve the efficiency of the ORR [12]. To better understand the intrinsic electrocatalytic activities, the mass and specific activities (MA and SA, respectively) of the Pt-Co and commercial Pt/C catalysts were obtained by normalizing the kinetic currents (j_k) to the Pt loadings and the ECSAs, respectively [37, 38]. As illustrated in Fig. 4(e) and (f), the MAs and SAs of the Pt-Co catalysts show a clear improvement in the potential region ranging from 0.85 to 0.95 V, compared with those of commercial Pt/C; the ORR activities of all catalysts at 0.9 V are listed in Table 2. The results show that Pt₃₆Co/C possesses the highest mass activity among the Pt-Co/C catalysts, with a value of 233 mA mg ^-1, which is 2.4 times higher than that of commercial Pt/C (97 mA mg^-1). In addition, the Pt-Co/C catalysts show superior SAs compared to Pt/C; in particular, the SA of Pt₃₆Co/C (258 μA cm^-2) exhibits a ~1.9-fold increase relative to that of Pt/C (139 μA cm^-2). The enhanced ORR activity of the Pt-Co/C materials could be attributed to both the larger ECSA and the accelerated electrocatalytic kinetics on the surface of the Pt-Co catalyst. To obtain further information on the ORR kinetics, the Tafel slopes, reflecting the resistance during the ORR process, were extracted from the polarization curves of Pt₃₆Co/C and Pt/C [39]. In the low overpotential region (> 0.8 V), Pt₃₆Co/C shows a lower Tafel slope (89 mV dec^-1) compared with that of commercial Pt/C (93 mV dec^-1), confirming that the Pt₃₆Co/C catalyst exhibits a more favorable ORR kinetics (Fig. S3) [39, 40].

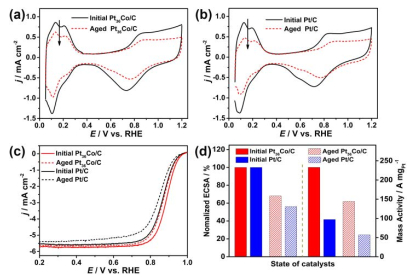

The stability is another important parameter for evaluating the performance of catalysts in PEMFCs. Herein, stability tests (ADTs) of Pt₃₆Co/C and commercial Pt/C catalysts were performed in 0.1 mol/L HClO₄ under N₂ flow; the cycling potential range was selected to be 0.6-1.2 V, as 0.6 V is the common working potential and 1.2 V would cause severe corrosion of the catalyst structures and accelerate the degradation process [4]. We investigated the changes in the ECSA and electrocatalytic activity of the catalysts. According to the CV measurements (Fig. 5(a) and (b)), Pt₃₆Co/C shows a 12% improvement in ECSA retention compared to that of commercial Pt/C, indicating that Pt₃₆Co/C possesses better durability than the Pt/C catalyst. The linear sweep voltammetry (LSV) curves of Pt₃₆Co/C and Pt/C after the ADTs were also recorded (Fig. 5(c)), and the corresponding calculated mass activities are shown in Fig. 5(d). The figure reveals that the retention of mass activity for Pt₃₆Co/C is competitive to that of commercial Pt/C, while the retained mass activity of Pt₃₆Co/C after the ADT remains greater than that of pristine commercial Pt/C. To confirm the enhanced durability, we performed a TEM analysis of Pt₃₆Co/C and Pt/C after the ADT, which revealed lower agglomeration and sintering of Pt atoms for Pt₃₆Co/C than commercial Pt/C (Fig. S4). This result is consistent with a previous work, which ascribed it to an anchoring effect, in which the migration of Pt on carbon is restrained in the presence of Co [41].

As the Pt₃₆Co/C catalyst exhibits superior electrocatalytic performance in half-cell tests, it was further evaluated in a single-cell system, which is closer to the real PEMFC conditions, and the test results were compared to those of commercial Pt/C.

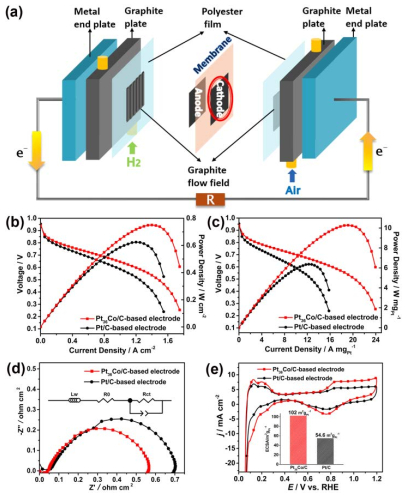

Fig. 6(a) displays the single-cell structure. The I-V curves of electrodes based on Pt₃₆Co/C and commercial Pt/C cathodes are shown in Fig. 6(b). The figure shows that the peak power density of the Pt₃₆Co/C-based electrode is 0.750 W cm^-2, which represents an obvious improvement compared to that of the conventional Pt/C one (0.624 W cm^-2). The Pt loadings for the Pt-Co/C and Pt/C electrodes are 73 and 98 ug cm^-2, respectively (Table 3). For a better comparison, the I-V curves were normalized to the Pt loadings. The maximum mass-specific power density obtained for the Pt₃₆Co/C-based electrode is 10.27 W mg_Pt^-1, which is 1.61 times higher than the value of the conventional Pt/C electrode (6.37 W mg_Pt^-1, Fig. 6(c)), and is competitive with the results of state-of-the-art Pt-based PEMFCs (Table 4). To obtain insight into the cell performance, EIS and CV tests were conducted during the performance evaluation. In particular, we performed EIS measurements at a current density of 100 mA cm^-2 to further understand the electrode kinetics [42]. As shown in Fig. 6(d), the diameter of the semicircle corresponds to R_ct, which represents the activation resistance towards the ORR [43]. The R_ct of the Pt₃₆Co/C-based electrode (0.53 Ω cm²) is smaller than that of the Pt/C-based electrode (0.65 Ω cm²); this implies that the intrinsic activity of Pt₃₆Co/C is higher than that of Pt/C. Apart from the intrinsic activity, the electrochemical activity is also positively correlated with the number of available active sites, i.e., with the ECSA [44, 45]. As shown in Fig. 6(e), the ECSA of the conventional Pt/C electrode measured in the hydrogen desorption region is 54.6 m² g_Pt^-1, while the Pt₃₆Co/C-based electrode shows a higher value of 102.0 m² g_Pt^-1. The much larger ECSA of the latter electrode is mainly attributed to the ultrasmall size of the active Pt-Co NPs, which in turn may contribute to the enhanced ORR activity.

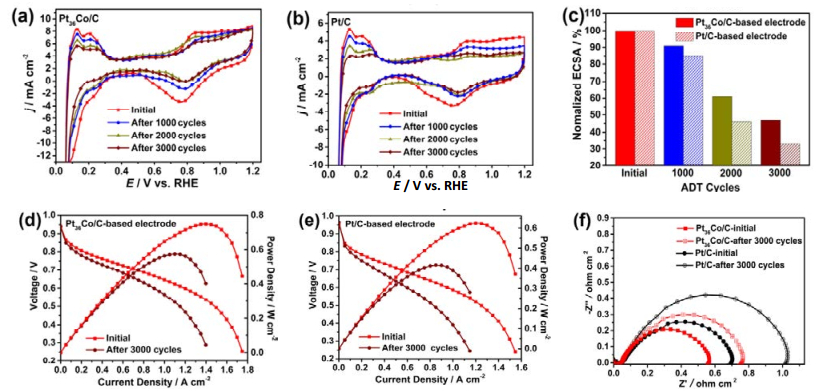

The durability of the electrodes was investigated by ADTs in the scanning potential region of 0.6-1.2 V. As shown in Fig. 7(a)-(c), during 3000 cycling scans, the ECSA of Pt₃₆Co/C-based electrode shows a smaller decrease compared to that of the conventional Pt/C one, and finally retains 47% of its initial value, which is competitive with that of the Pt/C electrode (33%). Moreover, the decrease in peak power density for the Pt₃₆Co/C-based electrode after the ADTs is measured to be 23%, which is clearly lower than that of the conventional Pt/C electrode (33%) (Fig. 7(d) and (e)). In addition, to gain further insight into the performance degradation, we also examined the changes in the EIS data. As shown in Fig. 7(f), the R_ct at 100 mA cm^-2 for the Pt₃₆Co/C-based electrode increases by 38% after the ADTs, while the value of the Pt/C electrode increases by 50%. The smaller R_ct increase implies a lower decrease of ORR activity for Pt₃₆Co/C than Pt/C. This is in agreement with the CV and I-V data, demonstrating the improved electrochemical durability of the Pt₃₆Co/C electrode.

In general, the Pt₃₆Co/C-based electrode exhibits superior activity and enhanced durability under single-cell working conditions, highlighting its great potential for practical PEMFC applications.

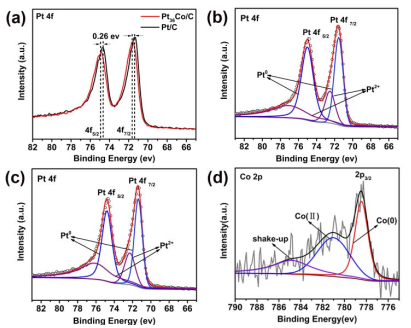

XPS measurements were performed to further investigate the enhancing effect of Co doping on the ORR for PEMFC applications. As shown in Fig. 8, the Pt 4f peaks of the Pt₃₆Co/C catalyst shift to higher binding energies (BEs) compared to those of Pt/C, with a value of 0.26 eV (Fig. 8(a)). The positive shift in the BEs of Pt can be ascribed to the electronic interaction between Pt and Co and the compressive strain induced by Co, decreasing the Pt-Pt interatomic distance [26, 56]. As is well known, the chemical interaction between oxygen species and Pt is influenced by the d-band center, which determines the ORR specific activity [31, 57]. The positively shifted BEs of Pt would reduce the adsorption of oxygenated species on the catalytic surface and thus accelerate the electrocatalytic ORR kinetics; moreover, the dissolution of Pt atoms via the formation of Pt-O bonds would also be hindered [58]. The high-resolution Pt 4f peaks of Pt₃₆Co/C and Pt/C can be deconvoluted into two pairs of doublets (Fig. 8(b) and (c)). In the case of Pt₃₆Co/C, the most intense doublet observed at 71.58 (Pt 4f_5/2) and 75.01 eV (Pt 4f_7/2) is assigned to metallic Pt(0), while the weaker doublet at 72.61 and 77.09 eV can be attributed to Pt(Ⅱ) species such as PtO or Pt(OH)₂, indicating some surface oxidation. The BEs and corresponding intensities of the Pt 4f spectra for Pt₃₆Co/C and Pt/C catalysts are displayed in Table 5, which shows that Pt₃₆Co/C possesses a higher metallic Pt(0) content (65.3%) than Pt/C (59.2%). This result is probably due to the change in electronic structure, which is consistent with previous results showing that alloying Pt with Co can effectively reduce the oxophilicity of Pt [33, 59]. The larger percentage of Pt(0) species could supply more free Pt sites available for the adsorption/desorption of O₂ during the ORR process, thus contributing to the enhanced ORR activity [32]. In addition, the XPS spectrum of Co was also analyzed and is displayed in Fig. 8(d). The high-resolution Co 2p_3/2 spectrum can be fitted by three peaks at 778.5, 781.0, and 784.8 eV, corresponding to metallic Co(0), Co(Ⅱ) species such as CoO, and shake-up peaks indexed to high-spin Co(Ⅱ) species, respectively. Notably, the peak of Co 2p in the metallic state also shows a positive shifts to higher BEs compared to that of bulk Co (778.3 eV), confirming the charge transfer from Co to Pt [33].

In summary, we have reported a facile and cost-effective method to rationally fabricate carbon black-decorated Pt-Co bimetallic nanoparticles (Pt-Co/C), in which an ultrasmall size and a homogeneous distribution of the Pt-Co NPs were obtained without the addition of an extra surfactant. Moreover, an acid etching approach was employed to remove unstable Co atoms and rearrange the surface morphology and structure of the bimetallic NPs, thus further enhancing the catalytic activity and stability. The resulting catalyst, consisting of carbon-supported ultrafine platinum nanoparticles modified with trace amounts of Co, was thoroughly characterized by physical methods. Electrochemical measurements further reveal that the as-synthesized Pt-Co/C catalyst exhibits a significantly enhanced electrocatalytic activity and stability in the ORR when applied as cathode of PEMFCs, compared with those of commercial Pt/C. This result is mainly attributed to the modification of the surface electronic properties induced by the incorporation of Co, which was also confirmed by XPS analysis. Overall, the enhanced ORR electrocatalysts developed by a low-cost route would not only support the widespread application of PEMFCs, but also provide a new pathway for their use in other catalysis and energy fields.
