Lignocellulosic biomass consists of lignin, cellulose, and hemicellulose. Effective utilization of lignocellulosic biomass is ineluctable and necessary, due to the accelerating consumption and dwindling reserves of petroleum-based chemicals [1-6]. It is well known that aromatic hydrocarbons are ideal additives for aviation fuel, due to their high energy density and other properties [7]. Lignin is rich in aromatic rings and is the only renewable energy source for aromatic compounds [8, 9]. Thus, converting lignins into aromatic hydrocarbon compounds is one of the most promising processes in biomass utilization, which usually include lignin depolymerization and subsequent hydrodeoxygenation steps [10-14].

Recently, NbO_x species have been found to play a key role in the activation and cleavage of C_aliphatic–O and C_aromatic–O bonds in both lignin and its model compounds [15-18]. For example, p-cresol, a typical lignin model compound, can be efficiently converted into toluene over Ru/Nb₂O₅–SiO₂ catalysts using 2-PrOH as the hydrogen source [17]. Reaction pathway studies show that toluene was produced via the direct deoxygenation (DDO) route (C–O cleavage without saturation of the aromatic ring). Furthermore, niobium-based catalysts have shown great promise in converting lignin into arenes, despite the robust and complex lignin structure. Shao et al. [18] reported the direct conversion of lignin over Ru/Nb₂O₅ catalytic systems in water, with a high yield of liquid hydrocarbons (a mass yield of 35.5 wt%) and an exceptionally high arene selectivity for C₇–C₉ hydrocarbons (71 wt%). The Ru/Nb₂O₅ catalyst in this process not only depolymerized the raw lignin to phenolic monomers via the effective cleavage of C_aliphatic–O–C bonds in the lignin network, but also promoted the hydrodeoxygenation of phenolics to arenes.

In this study, we compared the structures and properties of different commercial niobium-based catalysts and our lab-made layered Nb₂O₅ (Nb₂O₅-Layer), and subsequently studied the catalytic performance for both lignin and p-cresol conversion to arenes over these Nb-based carrier supported Ru catalysts. As Companhia Brasileira de Metalurgia e Mineração (CBMM) is the world's leading niobium manufacturer, we chose HY-340 and niobium phosphate produced by CBMM as supports and compared them with lab-made layered Nb₂O₅. It was found that the Ru/Nb₂O₅-Layer catalyst had the best performance and durability. Moreover, the relationship between the catalytic performance in the depolymerization and hydrodeoxygenation of lignin to aromatic hydrocarbons and the structural properties of the Ru catalysts supported on Nb-based materials was clarified by powder X-ray diffraction (XRD), Brunauer-Emmett-Teller (BET) analysis, thermogravimetry (TG), pyridine-absorbed Fourier transform infrared spectroscopy (Py-FTIR), CO-chemisorption, and X-ray photoelectron spectroscopy (XPS).

RuCl₃·3H₂O was purchased from Heraeus Materials Technology Shanghai Co. Ltd. p-cresol was purchased from J & K Co. Ltd. HY-340 and niobium phosphate (NbPO) were obtained from CBMM. Enzymatic lignin was purchased from Shandong Longlive Bio-Technology Co., Ltd. This lignin is obtained by the enzyme-catalyzed hydrolysis of cellulose from corncobs. The distribution and quantities of the lignin monomers are shown in Table S1. Layered Nb₂O₅ (Nb₂O₅-Layer) was synthesized using a hydrothermal method following the literature procedure [19]. Specifically, we used lab-synthesized niobium oxalate as the niobium precursor.

The catalysts (Ru/Nb₂O₅-Layer, Ru/HY-340, and Ru/NbPO-CBMM) were prepared by the incipient wetness impregnation method, using RuCl₃·3H₂O as the precursor. After impregnation, the resulting catalysts were dried at 50 ℃ for 12 h, reduced at 400 ℃ for 4 h under 10 vol% H₂/Ar flow, and then purged with N₂ for 2 h until they reached ambient temperature.

Additionally, Ru-loaded Nb-based catalysts with specific Ru particle sizes were prepared by adsorption of colloidal Ru nanoparticles (NPs) onto the Nb₂O₅-Layer, HY-340, and NbPO-CBMM supports, which were designated Ru@Nb₂O₅-Layer, Ru@HY-340, and Ru@NbPO-CBMM, respectively [20]. Colloidal Ru NPs with mean sizes of 1.2 and 1.8 nm were first prepared by the reduction of RuCl₃ with ascorbic acid, in the aqueous phase, at 80 ℃, for 1 and 5 min, respectively. Then, the support was added to the colloidal Ru particle solution and the mixture was stirred for 24 h. Finally, the solid product was collected by filtration, washed with deionized water, dried at 50 ℃ in a vacuum oven, and solidified at 300 ℃ for 4 h under a N₂ flow. The initial content of Ru NPs was 2.0 wt%.

The powder XRD patterns were recorded with a Rigaku D/max-2550VB/PC diffractometer, using Cu K_α (λ = 0.15406 nm) radiation, operating at 40 kV and 40 mA.

The quantities of metals in the catalysts were determined using inductively coupled plasma atomic emission spectroscopy (ICP-AES) on a Perkin-Elmer Optima 2100 DV spectrometer. Samples were digested in a mixture of HF and H₂SO₄.

X-ray photoelectron spectroscopy (XPS) was performed using a Thermo Scientific ESCA LAB-250 spectrometer with monochromatic Al Kα radiation.

Nitrogen adsorption-desorption isotherms of the catalysts were measured at -196 ℃ on a Micromeritics ASAP 2020 M sorption analyzer. Prior to N₂ adsorption, the catalysts were pre-treated under vacuum at 200 ℃ for 6 h to remove moisture and volatile impurities. The surface area was calculated using a multipoint Brunauer-Emmett-Teller (BET) method.

Thermogravimetry-differential thermal analysis (TG-DTA) of the catalyst was performed on PerkinElmer Pyris Diamond differential scanning calorimeter, under air, with a heating rate of 10 ℃/min.

Infrared (IR) spectra of the pyridine adsorption were recorded on a Nicolet iS50 spectrometer, with 32 scans at an effective resolution of 4 cm^-1. 20 mg of sample was pressed into a self-supporting wafer. The disc was mounted in a quartz IR cell equipped with a CaF₂ window and a vacuum system. Prior to adsorption, the samples were pretreated at 400 ℃ under vacuum, then cooled to 30 ℃, and pyridine vapor was introduced into the cell. The samples were heated under vacuum at 100 ℃ and spectra were recorded at room temperature. The quantification of acid sites was performed using the expressions reported by Emeis [21]:

C_L and C_B are the concentrations of Lewis and Brönsted acid sites; A₁₄₅₀ and A₁₅₄₀ are the integrated areas of the bands at 1450 and 1540 cm^-1 in the original FTIR data, as shown in the Results and discussion section. K_L and K_B are the molar extinction constants for the Lewis and Brönsted acid sites; IMEC_L and IMEC_B are the integration molar extinction coefficients, 2.22 and 1.67 cm·μmol/g for Lewis and Brönsted acids, respectively; r is the radius; and w is the weight of the self-supporting catalyst disk.

Ru dispersion was measured by the CO chemisorption method with the Micromeritics ASAP 2020 system, CO/Ru = 1 and a surface area of 8×10^-20 m² per Ru atom were set as standard. The sample was initially pretreated at 200 ℃ under hydrogen and then purged with helium. Then, the catalyst was cooled to room temperature and CO pulses were injected through a calibrated on-line sampling valve. CO adsorption was assumed to be complete after three successive peaks showed the same peak areas. The number of Ru atoms at the external surface was calculated using the total quantity of CO adsorbed, obtained from the thermal conductivity detector (TCD) signal. The dispersion of Ru is equal to the number of Ru atoms at the external surface divided by the total number of Ru atoms.

The reaction for the hydrodeoxygenation of lignin was performed in a 50 mL stainless-steel autoclave as follows: lignin (0.1 g), Ru/support catalyst or Ru@support catalyst (0.2 g), deionized water (10 mL), and cyclohexane (5 mL) were charged into the autoclave. Then, the reactor was sealed, purged three times with hydrogen, and charged to an initial pressure of 0.5 MPa with H₂. Finally, the reaction was carried out at 250 ℃, with magnetic stirring, for 20 h.

The reactions for the hydrodeoxygenation of model compounds were also performed in a 50 mL stainless-steel autoclave. A typical experiment was carried out as follows: p-cresol (0.2 g), Ru@support (0.04 g) and deionized water (15 mL) were put into the autoclave. After being charged to an initial pressure of 0.5 MPa with H₂, the reaction was conducted at 250 ℃, under magnetic stirring, for 1 h.

After the reaction, the reactor was quenched in an ice bath, and the organic products were extracted using ethyl acetate and qualitatively analyzed by gas chromatography-mass spectrometry (GC-MS) (Agilent 7890A-5975C) and quantitatively analyzed by a GC equipped with a flame ionization detector (GC-FID) (Agilent 7890B). Tridecane was added as an internal standard. After the first run, the catalysts were washed with a methanol and ethyl acetate solution, dried in a vacuum oven at 50 ℃ for 12 h, then used for a second cycle. The mole yields of hydrocarbons were calculated based on the moles of lignin monomers in enzyme lignin, determined by the nitrobenzene oxidation method (NBO) (Table S1) [22].

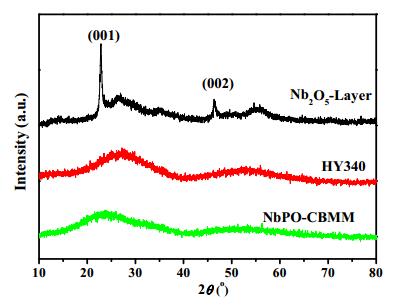

XRD analysis was initially performed to confirm the phase-structure of the different supports (Fig. 1). The XRD patterns of both HY-340 and NbPO-CBMM show two broad peaks in the 2θ ranges of 15°–40° and 40°–60°, indicating the amorphous nature of the samples. However, Nb₂O₅-Layer displays diffraction peaks at 2θ = 22.7° and 46.2°, attributed to the (001) and (002) diffraction planes, respectively [19]. This result hints at the probable layer-structure of our lab-made Nb₂O₅-Layer sample, which is verified by the high-resolution transmission electron microscope (HR-TEM) images (Fig. S1).

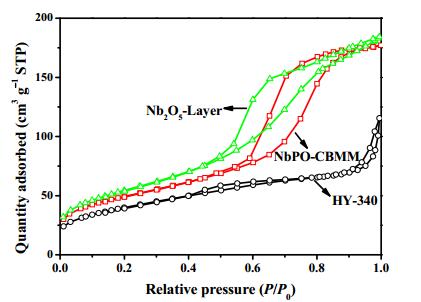

The nitrogen adsorption-desorption isotherms of the Nb-based materials are shown in Fig. 2. All the Nb-based materials exhibit Type Ⅳ isotherms with hysteresis loops, which are intermediate between the H1 and H2-types in the P/P₀ range from 0.4 to 0.8, which is attributed to capillary condensation within the mesopores. The BET surface areas, pore diameters, and pore volumes of these materials are summarized in Table 1. The BET surface area and pore volume of Nb₂O₅-Layer are 197.1 m²/g and 0.29 cm³/g, respectively. Those of HY-340 and NbPO-CBMM are 144.6 m²/g and 0.17 cm³/g, and 177.2 m²/g and 0.28 cm³/g, respectively. It is evident that Nb₂O₅-Layer has a higher specific surface area and smaller pore size relative to those of the commercial Nb-based materials.

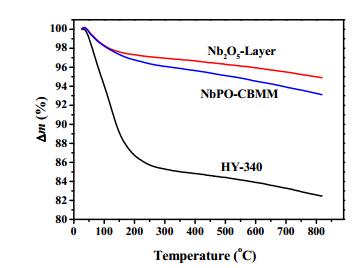

Fig. 3 shows the results of thermogravimetric analysis for the Nb-based materials. The step observed on the TG curve at approximately 100 ℃, for all samples, is associated with dehydration. The observed weight loss in this step was 5.10% for Nb₂O₅-Layer, 6.88% for NbPO-CBMM, and 17.54% for HY-340. For Nb₂O₅-Layer and NbPO-CBMM, it is caused by the desorption of physisorbed water. HY-340, a type of niobic acid, is rich in crystalline water and surface hydroxyl groups, so a higher weight loss occurred.

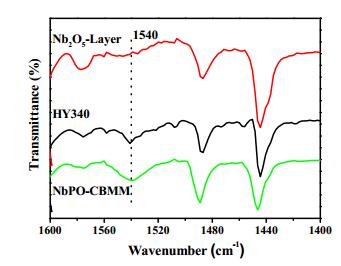

To investigate the different types of acidic sites on the support surfaces, the Py-FTIR spectra were recorded and the results are shown in Fig. 4, Table 2, and Table S2. In Fig. 4, the intense bands at 1445 and 1540 cm^–1 are assigned to Lewis and Brönsted acid sites, respectively [21]. Moreover, the band at 1490 cm^–1 is attributed to the adsorption of pyridine, due to a synergic effect of the co-existence of Brönsted and Lewis acid sites in the supports [23]. Brönsted and Lewis acid sites in the three Nb-based samples were quantified using the Py-FTIR spectra (Table 2). The NbPO-CBMM sample possesses higher acidity (921.8 μmol/g) than the other samples; 629.0 μmol/g for HY-340, and 568.7 μmol/g for Nb₂O₅-Layer, respectively. In particular, as we expected, the commercial niobium materials possess more Brönsted acid sites (473.5 μmol/g for NbPO-CBMM, and 147.5 μmol/g for HY-340) than Nb₂O₅-Layer, which possesses merely 2.2 μmol/g. Since the Nb₂O₅-Layer support contains a significantly larger number of Lewis acid sites, Nb₂O₅-Layer exhibits a lower Brönsted/Lewis acid ratio (0.004) than both HY-340 (0.3) and NbPO-CBMM (1.1).

The catalytic activities were initially studied in the direct depolymerization and hydrodeoxygenation of lignin to hydrocarbons over the Ru/Nb-based catalysts and the results are summarized in Table 3. Four phenolic monomers were found after reactions over the Ru/HY-340 (15.6%) and Ru/NbPO-CBMM (5.5%) catalysts, while none of these oxygenated intermediates were detected during the catalytic test over Ru/Nb₂O₅-Layer. It is well known that lignin is first depolymerized to phenolic monomers and that the resultant phenolic monomers are subsequently converted to arenes and cycloalkanes [24]. This is consistent with our results. Moreover, it can be seen from Table 3 that the mole yields of arenes and cycloalkanes resulting from the hydrodeoxygenation of phenolic monomers over Ru/Nb₂O₅-Layer (91.1%) are higher than those over Ru/HY-340 (67.5%) and Ru/NbPO-CBMM (69.2%). Thus, the catalytic performance results over the Ru/Nb₂O₅-Layer catalyst highlight its excellent hydrodeoxygenation activity, which results in the rapid conversion of phenolic monomers into arenes and cycloalkanes, once the lignin has been depolymerized. Based on the Py-FTIR spectra, Lewis acid sites are the predominant component of the total acid sites on the surface of the Nb₂O₅-Layer support (only a few Brönsted acid sites were observed). In addition, the quantity of Lewis acid sites over the three Nb-based supports is in the following sequence: Nb₂O₅-Layer > HY-340 > NbPO-CBMM. The quantity of Lewis acid sites on the Nb-based supports shows a strong positive correlation with the depolymerization of lignin, i.e. the total mole yields of depolymerized products (including phenolic monomers). This result suggests that increasing the quantity of Lewis acid sites on the catalyst might be a promising strategy for the design of a better Nb-based lignin-conversion catalyst.

Moreover, the selectivity for C₇–C₉ aromatic hydrocarbons over the Ru/Nb₂O₅-Layer catalyst was up to 89.7%. Those over Ru/HY-340 and Ru/NbPO-CBMM were 74.9% and 63.4%, respectively, with more cycloalkanes detected. This indicates that the hydrogenation of benzene rings is easier over both Ru/HY-340 and Ru/NbPO-CBMM catalysts than over the Ru/Nb₂O₅-Layer catalyst. Generally speaking, Ru species are widely-accepted to act as the active sites in the hydrogenation processes [25-27], and the characteristics of the metal species (particle size or electronic state) over supports may also affect the reaction performance [28-31].

First, to determine the particle size of Ru over the niobium supports, measurements of Ru content and dispersion of Ru over the three Nb-based catalysts were carried out (Table 4). The Ru was best dispersed on the Nb₂O₅-Layer support (66.5%), probably due to its higher specific surface area, while the Ru/HY-340 and Ru/NbPO-CBMM catalysts showed similar Ru dispersions (33.3% and 34.0%, respectively). In other words, the particles of Ru are smallest on the Ru/Nb₂O₅-Layer catalyst. A small ruthenium particle is not favorable for the formation of cycloalkanes. According to our previous studies [18], arenes are generated by the direct cleavage of the C_aromatic–OH bond in phenolic monomers, while cycloalkanes are formed by the removal of –OH after the hydrogenation of the benzene ring in phenolic monomers, which are competitive routes. Moreover, Nb species adsorb phenol via the oxygen atom of the C_aromatic–O bond, not via the benzene ring, thus further activating the C_aromatic–O bond. When the Ru particle size is too small to adsorb the benzene ring of the phenolic monomers, the Nb₂O₅ species first activates the C_aromatic–O bond, then arenes are generated. When the Ru particle size is large enough to adsorb the benzene ring of the phenolic monomers, the hydrogenation of the benzene ring of the phenolic monomers on Ru takes place and cycloalkanes are formed [27, 32]. Thus, more aromatic hydrocarbons were obtained over the Ru/Nb₂O₅-Layer catalyst due to the smaller Ru particles. The differences in selectivity for aromatics over the Ru/Nb₂O₅-Layer, Ru/HY-340, and Ru/NbPO-CBMM catalysts demonstrate the size effect of Ru on hydrogenation.

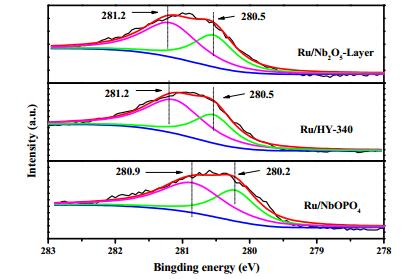

The valence state of Ru in the different catalysts was studied using XPS analysis (Fig. 5). The binding energy at 280.2 eV is characteristic of the Ru⁰ species (metallic Ru). The shift in the Ru 3d_5/2 peak to a higher value (281.2 eV) can be attributed to Ru⁴⁺ species, which most likely exist in the form of RuO₂ [33, 34]. Surprisingly, the surface Ru species over the Ru/Nb₂O₅-Layer and Ru/HY-340 catalysts had a 3d_5/2 binding energy (BE) of 280.5 eV, which indicates that they are partially positively charged species (Ru^δ+). In the case of the Ru/NbPO-CBMM catalyst, the relevant Ru species is the metallic state (280.2 eV, Ru⁰). The differences in aromatic selectivities over the Ru/NbPO-CBMM and Ru/HY-340 catalysts, which have similar Ru dispersions, show the influence of electronic density on hydrogenation activity. The metallic Ru is beneficial for the hydrogenation of the benzene ring in phenolic monomers [35]. Hence, aromatic hydrocarbons were preferentially formed over Ru/ Nb₂O₅-Layer and Ru/HY-340, which contain more positively charged metallic Ru.

These results show that the ability of Ru to hydrodeoxygenate the depolymerized products of lignin is affected by both particle size and electronic density. This provides direction for the design of Ru catalysts for lignin conversion with high aromatic selectivities.

In order to investigate the roles of the Nb-based supports and Ru in the catalytic hydrodeoxygenation process, p-cresol was chosen as a candidate to exclude the complexity of lignin. Moreover, to rule out changes in Ru state caused by support, supported colloidal Ru-catalysts on the three Nb-based carriers were used to conduct the hydrodeoxygenation of p-cresol. The interaction between Ru and Nb-based supports is relatively weak in catalysts synthesized by the colloid method and the Ru particle size is well-defined. Therefore, the actions of Ru and the Nb-based support can be distinguished. Moreover, the particle size of Ru on Nb-based catalysts synthesized by the impregnation method ranged from 0.9 to 1.9 nm, according to the dispersion results (Table 4). Accordingly, Ru colloidal particles of 1.2 and 1.8 nm were investigated. The catalytic performances for the hydrodeoxygenation of p-cresol over the Ru@Nb-based catalysts are shown in Table 5. It was found that p-cresol conversions over the three catalysts were significantly different (56.8% for Ru@Nb₂O₅-Layer, 35.8% for Ru@HY-340, and 25.1% for Ru@NbPO-CBMM), while the toluene selectivities were very similar (approximately 63.0%) (Table 5, entries 1–3), when the Ru particle size was fixed at 1.2 nm. This indicates that the conversion of p-cresol is most effective over the Ru/Nb₂O₅-Layer catalyst and the properties of the Nb-based supports have the predominate influence on the conversion of p-cresol.

Next, we used the Nb₂O₅-Layer as a support for colloidal Ru with a different particle size to study the effect of Ru particle size on the hydrodeoxygenation of p-cresol. As shown in Table 5, the selectivity for toluene decreases from 62.0 % to 53.9 % with the increase in Ru particle size from 1.2 to 1.8 nm (Table 5, entries 1 and 4). This indicates that the size of Ru particles can affect the selectivity for toluene and that small Ru particles are advantageous for high toluene selectivity. Additionally, Nb-based supports with different Lewis acids affect the conversion of p-cresol, and the quantity of Lewis acid sites on the Nb-based supports showed a strong positive correlation with the conversion of p-cresol. These trends are also consistent with those in enzymatic lignin conversion reactions.

Since the stability of the catalyst is of significant importance from an industrial standpoint, the catalytic durability of the three catalysts was investigated. The results are shown in Table 6. The selectivity for aromatic hydrocarbons showed a slight change over the spent Ru/NbPO-CBMM catalyst, and the mole yield of C₇–C₉ hydrocarbons decreased, in comparison with the fresh catalyst. This is probably due to a slight decrease in specific surface area and a small loss of Ru (Table 7). A significant decrease in both the selectivity for aromatic hydrocarbons (from 74.2% to 61.4%) and the yield of C₇–C₉ hydrocarbons (from 95.4% to 76.5%) was observed over once-used Ru/HY-340 catalyst. Comparing the properties of the fresh and spent Ru/HY-340 catalysts, it is apparent that the structure of HY-340 transformed from an amorphous state to an orthorhombic crystalline structure, accompanied by a large decrease in specific surface area (Fig. S6(b)); furthermore, an obvious leach of Ru species was confirmed by ICP analysis (Table 7). These results indicate that the Ru/HY-340 catalyst has poor stability and does not effectively retain catalytic activity in this system. However, the Ru/Nb₂O₅-Layer catalyst shows excellent recycling stability under the harsh reaction conditions, as the mole yield of C₇–C₉ hydrocarbons and selectivity for C₇–C₉ arenes remained at approximately 98% and 85%, respectively, within the three runs (Table 6), despite slight Ru leaching (from 4.2 to 3.7 wt%) and an insignificant decrease in the surface area (from 149.3 to 141.9 m²/g) (Table 7). Our results clearly suggest that the Ru/Nb₂O₅-Layer catalytic system is a promising candidate for the catalytic conversion of lignin to arenes.

In summary, we choose a variety of niobium materials, including commercial niobic acid (HY-340), niobium phosphate (NbPO-CBMM) and lab-made Nb₂O₅ (Nb₂O₅-Layer) as supports for Ru and investigated the influence of the properties of the support and Ru on the conversion of enzymatic lignin to aromatic hydrocarbons. It was found that the Lewis acid sites, rather than the Brönsted acid sites, of the support play an important role in the conversion of enzymatic lignin and p-cresol. The electronic density and size of the Ru particles have a considerable influence on the selectivity for aromatic hydrocarbons. In this study, the Ru/Nb₂O₅-Layer catalyst was found to have a large quantity of Lewis acid sites, high specific surface area, and good dispersion of Ru, which led to a mole yield of 99.1% for C₇–C₉ hydrocarbons and a selectivity of 88.1% for C₇–C₉ aromatic hydrocarbons in the reaction of enzymatic lignin to produce aromatic hydrocarbons. Moreover, the Ru/Nb₂O₅-Layer catalyst showed good catalytic stability and retained a high catalytic performance even after three reaction cycles.

The research was sponsored financially by the National Natural Science Foundation of China (21832002, 21872050, 21808063) and the Natural Science Foundation of Shanghai (18ZR1408500).
