The shale gas revolution that has begun in the USA is transforming the global energy landscape and has the potential to replace the oil-based energy industry [1, 2]. For example, it is estimated that the shale gas reserves of China amount to 134 trillion cubic meters, and the production of shale gas has reached up to 4.4 billion cubic meters in 2015 [3]. The main component of shale gas is methane, but ~10% of ethane and propane are also present. Therefore, shale gas is not only a clean energy source but also a chemical feedstock for light alkane molecules. The efficient conversion of light alkane molecules to value-added chemicals has the important role of exploiting the abundant shale gas resources. Due to their price difference, the conversion from ethane or propane to the corresponding alkene is quite profitable. Currently, the propane direct dehydrogenation (PDH) process is one of the efficient industrial routes to produce propylene [4, 5]. Platinum and chromium oxides are the conventional catalysts used in the PDH process. However, conventional PDH catalysts face several severe challenges, such as coke formation and catalyst sinister. In particular, coke covers the active sites, leading to reduced activity and loss of stability, which requires the periodic regeneration of the catalyst. The main challenge in the PDH process is that the active sites of the catalyst should be able to activate the stable C–H bond in the propane molecule, which has a strong bonding energy of 409 kJ/mol. On the other hand, the C–H bond in the desired propene product, which is much more active than its counterpart in propane, should remain intact for achieving good selectivity under the same conditions. Obviously, it is extremely important to precisely adjust the properties of the active site to achieve this dual task.

Single-atom catalysts (SACs) represent a new catalytic system, which has been applied in various catalytic processes with remarkable performance [6, 7]. SACs not only dramatically reduce metal usage, but also possess a unique electronic structure, different from that of bulk or nanosized catalysts. Recently, SACs have exhibited excellent catalytic performance in the activation of light alkanes. In particular, SACs deliver high alkene selectivity and excellent stability. Bao's group [8] used highly dispersed Fe catalysts (0.5% mass loading) supported on SiO₂ for the non-oxidative methane conversion. At 1363 K, the conversion of methane reached 48.4% and the selectivity of ethene was 48.1%. More impressively, almost no coke was formed during a 60-h test and the carbon efficiency was nearly 100%. High-resolution transmission electron microscopy (HRTEM) experiments showed that a single Fe atom was embedded into the SiO₂ crystalline structure, bonded with two carbon and one silicon atoms. This unique geometry of the active center guarantees that CH₃ radicals will be immediately released into the gas phase once they are formed, which prevents the deep reaction. This explains the high selectivity and excellent stability of the catalyst, reflecting the importance of single embedded Fe atoms. Hock's group [9-11] synthesized a series of highly dispersed single metal atom catalysts (Zn, Fe, Co) and applied them in the PDH reaction. At 550 ℃, the selectivity of propylene was above 95% and the activity remained unchanged during a 24-h test. Near edge X-ray absorption fine structure (NEXAFS) analysis indicated that the first shell of the metal catalyst contained only M–O bonds (M = Zn, Fe, Co) and no M–M bond formation was observed. Therefore, the active sites of the catalyst are the single metal atoms. On the other hand, our previous computational work demonstrated that single Pt atoms supported on nitrogen- or boron-doped graphene are potentially useful PDH catalysts [12]. More importantly, the calculations indicated the tunable effects of nitrogen or boron dopants on the graphene support, which can be used to continuously adjust the catalytic performance of the single Pt atoms.

The above experimental and computational investigations show that SACs exhibit remarkable catalytic performance in the activation of C–H bonds of light alkanes. However, there is considerable room for further improvements. On the other hand, the origin of the superior catalytic performance of SACs remains elusive to some extent. It has been suggested that the homogeneous and well-defined single centers of SACs might be the origin of their excellent selectivity. However, a SAC is never a true 'single' unit decoupled from the surrounding environment. The interactions between the single atom and the atoms of the support not only stabilize the SAC, but also have significant influence on its catalytic properties. To investigate the subtle interactions between single atom catalysts and support, single Pt atom was anchored on a boron nitride nanosheet, which has been proven to be a good support candidate for single metal atom catalysts in both experimental and theoretical studies [13, 14]. Moreover, both boron and nitrogen vacancies (B_vac and N_vac, respectively) on boron nitride nanosheets are common observed defects that can serve as stable anchoring sites for the metal catalyst [15-18].

In the current work, first-principles calculations demonstrate that a single Pt atom supported on a boron nitride nanosheet can effectively activate C–H bonds in propane and deliver a good selectivity to propene. More importantly, the interactions between reactant (propane) and products (propene and hydrogen) with single Pt atoms are carefully analyzed. The analysis provides a detailed description of the differences in the interactions between C–H bonds of propane, propene, and single Pt atoms. Furthermore, a complete reaction pathway is presented, starting from a single Pt atom anchored on both nitrogen and boron vacancies on a boron nitride nanosheet, with emphasis on the competition between propene desorption and deep dehydrogenation. The different electronic interactions between the single Pt atom and nitrogen or boron on the support and the consequent different catalytic performances highlight the importance to take into account the support effects on SACs. In summary, we demonstrate that single Pt atoms on nitrogen vacancies of a boron nitride nanosheet are effective PDH catalysts.

The calculations reported in this work were performed using periodic, spin-polarized density functional theory (DFT) as implemented in the Vienna ab initio simulation package (VASP) [19, 20]. The electron-ion interactions were described using the projector augmented wave (PAW) method proposed by Bl chl [21] and implemented by Kresse and Joubert [22]. The PBE functional was used to describe the exchange-correlation effects [23], together with a plane-wave basis set with an energy cutoff of 400 eV. Graphene was modeled with a 6 × 6 unit cell, and a 3 × 3 k-point mesh was used for the Brillouin zone sampling. All atoms in the cell were allowed to relax during the structural optimization, which was stopped when the residual force on the atoms was smaller than 0.05 eV/Å. The van der Waals contributions were taken into account using the Grimme scheme [24]. The reaction pathways and barriers were calculated using the climbing image-nudged elastic band (CI-NEB) method [25]. The adsorption energy (E_ads) was calculated as E_ads = E_{adsorbates/slab} – E_adsorbate – E_slab, where E_{adsorbates/slab} is the total energy of the adsorbates (propane, propene, and H₂) on Pt-B_vac or Pt-N_vac (which denote single Pt atoms on boron and nitrogen vacancies, respectively), E_adsorbate is the energy of the adsorbed molecule in the gas phase, and E_slab is the energy of clean Pt-B_vac and Pt-N_vac. The reaction barrier was calculated as the energy difference between the initial state and the highest-energy image in the CI-NEB calculations.

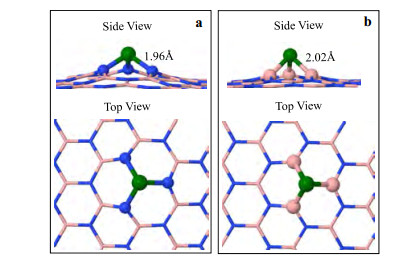

A single Pt atom was anchored on boron and nitrogen vacancies in a boron nitride nanosheet, and the optimized structures are shown in Fig. 1. The Pt atom forms three covalent bonds with three nitrogen atoms around a boron vacancy, as well as three covalent bonds with three boron atoms surrounding a nitrogen vacancy. The bond distances between platinum and the nitrogen or boron atoms of the support are similar (1.96 and 2.02 Å, respectively), as shown in Fig. 1. The Pt charge shows different features on different anchoring positions. The single Pt atom becomes positively and negatively charged at a boron and nitrogen vacancy, with charges of 0.71 and 1.06 e, respectively. Obviously, the charge transfer shows an opposite trend for single Pt atoms on boron and nitrogen vacancies, which is consistent with our previous results [12]. The decreased or increased Pt charge leads to different electronic structures, as shown by the partial density of states (PDOS) of Pt in Fig. 2. In particular, a Pt-B_vac atom has a higher number of empty d states just above the Fermi level compared with its Pt-N_vac counterpart. The PDOS features are consistent with the charge analysis indicating that Pt on a boron vacancy loses electrons, which leads to empty states just above the Fermi level. The charge and PDOS analyses show that the electronic structure of single Pt atoms has unique features, depending on the anchoring position on the support. Moreover, the above analysis clearly illustrates the electronic interactions between a single Pt atom and either boron or nitrogen vacancies. This effect was reported earlier in the literature, and is complementary to the conventional strong metal-support interaction [26]. Moreover, the different nature of the electronic metal-support interactions significantly influences the catalytic properties of Pt in the PDH process, as will be discussed below.

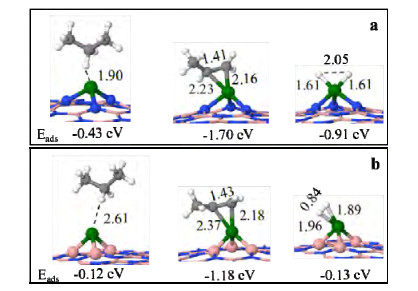

The interaction between propane, propene, and hydrogen molecules with the active site has an important role in the PDH process. The corresponding adsorption configurations are shown in Fig. 3. The binding energies of propane, propene, and H₂ on Pt-B_vac and Pt-N_vac are –0.43, –1.70, –0.91 and –0.12, –1.18, –0.13 eV, respectively. This clearly shows that the binding energies of the Pt-B_vac center are larger than those of the Pt-N_vac one, for all tested molecules. It has been suggested that Pt with empty d orbitals has a better reactivity towards binding small molecules. Therefore, it is expected that Pt-B_vac can bind molecules more strongly than Pt-N_vac, which is consistent with the calculated adsorption energies. It was also found that the binding energy of propane is much lower than that of propene, for both Pt-B_vac and Pt-N_vac. The strong binding of propene is detrimental to the selectivity of the PDH process, as the formed propene is difficult to desorb. In propane adsorption, one of the secondary hydrogen atoms points towards the single Pt atom on boron nitride, and the distances between hydrogen and Pt-B_vac and Pt-N_vac species are 1.90 and 2.61 Å, respectively. Based on the binding energy and the distance from Pt, propane adsorption can be considered as a weak physisorption. The binding energy and configuration of propane adsorption via primary hydrogen were also examined, and are shown in Fig. S1 (Supporting Information). In contrast, the interaction between propene and Pt can be considered as a strong covalent bond, which involves a much higher binding energy than propane, as shown in Fig. 4. Moreover, propene is adsorbed in a different configuration compared with propane. The C=C bond of the propene molecule directly interacts with Pt via π adsorption, and the distances of the two carbon atoms from Pt at the boron vacancy site are 2.16 and 2.23 Å, as shown in Figs. 3 and 4. It should be noted that propene prefers a di-𝜎 adsorption on Pt(111) [27]. The missing neighboring Pt atom prevents propene from assuming a di-𝜎 adsorption configuration. The above analysis clearly indicates that propene has much higher reactivity than propane. Therefore, the best strategy to obtain a reasonable yield in the PDH process is to maximize the ability of the active site to break the C–H bonds of propane while weakening the binding of propene. Another product of the PDH process is hydrogen. Hydrogen is often mixed with propane in the PDH input stream, for various purposes such as selectivity increase or coke reduction. However, the exact role played by hydrogen is still debated. The binding energies of the hydrogen molecule on Pt-B_vac and Pt-N_vac are –0.91 and –0.13 eV, respectively. The bond distance of the adsorbed hydrogen increases to 2.05 Å on Pt-B_vac, as shown in Fig. 3. Overall, the calculations indicate that a supported single Pt atom on a boron vacancy has higher reactivity towards reactant/product adsorption than its counterpart on a nitrogen vacancy.

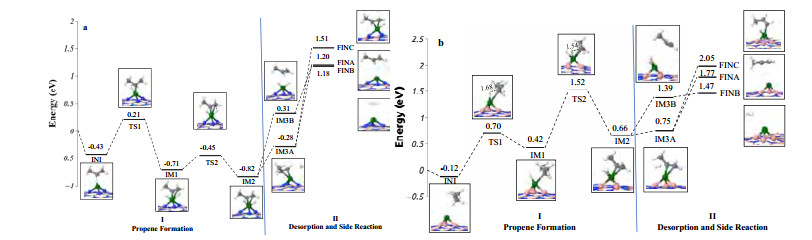

To further understand the mechanism of C–H bond activation of propane, the complete PDH reaction pathway was investigated and shown in Fig. 5 and Fig. S2. The first C–H bond activation in propane is often deemed as the step with the largest barrier in the PDH process. There are two different hydrogen atoms in propane, denoted as primary and secondary hydrogen, respectively. The calculated barriers for the first abstraction of secondary and primary hydrogens on Pt-B_vac are 0.64 and 0.74 eV, respectively, whereas the corresponding values for Pt-N_vac are 0.82 and 1.05 eV, respectively, as shown in Fig. 5 and Fig. S2 (primary hydrogen). The calculated barriers clearly indicate that the abstraction of the secondary hydrogen is more favorable than that of the primary hydrogen. Therefore, the reaction is expected to begin with the secondary hydrogen abstraction. Furthermore, Pt-B_vac shows higher reactivity towards C–H bond activation than Pt-N_vac, based on the corresponding transition state (TS1) barriers. In the secondary hydrogen abstraction on Pt-B_vac, the C–H bond is stretched to a distance of 1.60 Å in the transition state, as shown in Fig. 5(a). Compared with the propane physisorption state (INI), the secondary carbon atom moves closer to Pt at the transition state, causing the breaking of the C–H bond. A similar process is also found on Pt-N_vac, as shown in Fig. 5(b). Moreover, the bond distances between the secondary carbon and Pt are 2.24 and 2.55 Å, respectively, for Pt-B_vac and Pt-N_vac; the longer distance could also contribute to the higher barrier on the latter site. After the first C–H bond breaking in propane, both dissociated fragments (H and C₃H₇) bind with Pt, forming the intermediate labeled IM1 in Fig. 5. Instead of the dissociative adsorption of propane, the release of the C₃H₇ radical formed from the first C–H bond breaking into the gas phase is another possible pathway. As shown in Fig. S3, the barriers of the radical pathway on Pt-B_vac and Pt-N_vac were calculated to be 1.44 and 0.91 eV, respectively. It can thus be concluded that dissociative adsorption is preferred over radical generation for the first C–H bond activation of propane. Further hydrogen abstraction involves the primary hydrogen from the adsorbed C₃H₇, as shown in Fig. 5. The calculated barriers for the second hydrogen abstraction on Pt-B_vac and Pt-N_vac (TS2) are 0.26 and 1.10 eV, respectively. Again, Pt-B_vac shows higher reactivity than Pt-N_vac. On the other hand, the barrier of the second hydrogen abstraction is larger than that of the first one. After the second hydrogen abstraction, the desired propene product is formed. As shown in the IM2 structure in the reaction pathway for propene formation in Fig. 5, both propene and hydrogen atoms are adsorbed on Pt. The desorption of propene and hydrogen atoms will then lead to the formation of the PDH products and to the recovery of the active sites, completing the catalytic cycle.

The regeneration of active sites and desorption of propene are not very straightforward processes. As shown in Fig. 3, propene is strongly bound to the Pt atom; therefore, it is expected that its desorption will require a large amount of energy [28]. In a previous study, Hauser et al. [29] used DFT calculations to demonstrate that the desorption of propene from a supported Pt₄ cluster is the step with the highest energy barrier (1.38 eV) in the PDH process. A further complication is that not only propene but also hydrogen atoms should be released from the active sites. This is in contrast with the regeneration of active sites on vanadium oxide, whose two hydroxyls are easily converted into a water molecule, in an almost barrierless process [30].

The desorption of propene and hydrogen atoms were carefully investigated in the current work and are illustrated in the second part of Fig. 5. There are two possible routes for the desorption of the products, in which either propene or hydrogen are desorbed from the catalyst first. The calculations indicate that the desorption of hydrogen atoms as a hydrogen molecule is more favorable than that of propene, with barriers of 0.54 and 0.09 eV on Pt-B_vac and Pt-N_vac, respectively (IM3A). The barriers for propene desorption from Pt-B_vac and Pt-N_vac were calculated to be 1.13 and 0.73 eV, respectively, which are significantly larger than those of hydrogen desorption (IM3B). Therefore, it is reasonable to conclude that the hydrogen molecule is desorbed from single Pt before propene. In the next step, the barriers for propene desorption from Pt-B_vac and Pt-N_vac were calculated to be 1.48 and 1.02 eV, respectively (FINA). It should be noted that the calculated barriers for propene desorption are much larger than those obtained for hydrogen desorption. This can be attributed to the much weaker interactions between hydrogen and the catalyst compared with the propene-catalyst interactions. Moreover, the calculated barriers for product desorption are higher or close to the ones calculated for the pathway from propane to propene on Pt-N_vac and Pt-B_vac. This is a further indication that the product desorption and active site regeneration might be the rate-limiting step.

One of the important properties of PDH catalysts is that they limit the deep dehydrogenation of propene that could lead to coke formation and cover the active sites. The calculated barriers for hydrogen abstraction from adsorbed propene (1.79 and 1.30 eV on Pt-B_vac and Pt-N_vac, respectively) are larger than those for propene desorption. Therefore, the single Pt atom supported on boron nitride has an excellent selectivity.

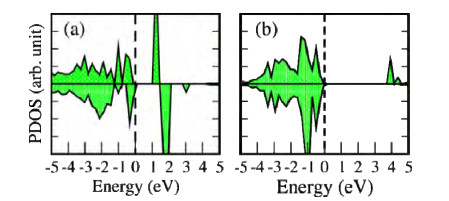

In the current work, the nature of the electronic perturbation on single Pt atoms induced by different anchoring sites was clearly elucidated based on charge and PDOS analyses. This electronic perturbation leads to Pt-B_vac having higher reactivity towards propane/propene adsorption and C–H activation than Pt-N_vac, as shown by larger adsorption energy and smaller barrier values. On the other hand, the desorption of products such as propene and hydrogen from Pt-B_vac is more difficult than from Pt-N_vac. This observation is consistent with the higher reactivity of Pt-B_vac, which leads to strong interactions with propene and hydrogen. The calculations clearly highlight the challenge faced by active centers in PDH. For propene formation, they should possess a reactivity sufficient to break the strong C–H bonds of propane; however, their reactivity should not be too active to hinder propene desorption and lead to deep dehydrogenation. Therefore, a balanced reactivity towards the C–H bonds of propane/propene is the key to obtain reasonable yields in the PDH process. The current work suggests that a single Pt atom supported on a nitrogen vacancy site on boron nitride has a balanced reactivity for C–H bond activation and propene desorption, as the two processes exhibit similar barriers. Propene could be released under the conditions favorable for C–H bond activation, thus hindering side reactions and deep dehydrogenation. Therefore, reasonable propene selectivity and propane conversion are simultaneously obtained. In addition, the present results clearly demonstrate the tunable effect of different anchoring positions on the support of the single Pt atom.

First-principles calculations were performed to study the direct dehydrogenation of propane on single Pt atoms supported on boron and nitrogen vacancies in a boron nitride nanosheet. Boron and nitrogen atoms surrounding the vacancies lead to charge transfers of opposite sign to the supported single Pt atom, and therefore significantly alter the electronic structure of Pt. The calculations indicate that Pt supported on a boron vacancy has a higher reactivity towards propane, propene, and hydrogen adsorption compared with Pt on a nitrogen vacancy. Furthermore, the calculations reveal that dissociative adsorption is preferred over radical formation for the first C–H bond activation in propane. Moreover, Pt supported on a boron vacancy exhibits a much smaller barrier along the reaction pathway leading from propane to propene, compared with its Pt-N_vac counterpart. On the other hand, the most critical step in the PDH process turns out to be the desorption of propene and hydrogen from the catalysts. The calculations indicate that the desorption of hydrogen precedes that of propene, owing to a much smaller barrier. Furthermore, Pt-N_vac exhibits a better product desorption performance than Pt-B_vac. A larger barrier is found for deep dehydrogenation of propene on a supported Pt catalyst compared with that for propene desorption, which guarantees a good selectivity. Overall, the present results suggest that a single supported Pt on a nitrogen vacancy is an effective PDH catalyst with a balanced ability to activate C–H bonds in propane and enable product desorption.
