As is well known, an energy crisis and environmental pollution, among other prominent problems, are attracting increased attention [1-3]. To solve such issues, semiconductor-based photocatalysis has been considered an important investigative field because they can be used to remove environmental pollutants and can be applied to energy conversion through solar energy [4-6]. To date, numerous semiconductor photocatalysts have been explored, including CdS [7], Ag₃PO₄ [8], and CdSe [9]. However, their potential application has been limited owing to their corrosiveness, poor stability, and toxicity, as well as their low utilization of solar energy. Therefore, searching for high photocatalytic properties, stable, and environmentally-friendly materials has become important reference in photocatalysis.

Among such research areas, bismuth titanate (Bi₄Ti₃O₁₂, BIT) has been highly considered [10, 11]. For example, Hou et al. [10] synthesized Bi₄Ti₃O₁₂ nanofibers through a simple and economical technique of electrospinning combined with a subsequent calcination, and showed that the material exhibits an enhancement in both the visible-light driven photocatalytic decomposition of rhodamine (RhB) and a favorable recycling capability. Yao et al. [12] reported Bi₄Ti₃O₁₂ prepared using a chemical solution decomposition (CSD) method, and evaluated the photocatalytic properties using photodegrade methyl orange (MO). In addition, the photocatalytic property of Bi₄Ti₃O₁₂ has been predicted using the density functional theory (DFT) [13]. Nevertheless, certain problems, such as a low capacity for the separation of electron-hole pairs and low activity under the visible light region, still urgently need to be solved.

It is well known that noble metal nanoparticles loaded onto a semiconductor surface can extend the light-harvesting scope and produce more electron-hole pairs by virtue of a strong electromagnetic field formed through surface plasmon resonance (SPR) [14-16]. As one of the most efficient plasmonic materials, Ag has frequently been used as a catalyst by providing chemically active sites [17]. For example, Sun et al. [18] applied Ag/g-C₃N₄ photocatalysts to remove NO_x under the illumination of visible light. Li et al. [19] reported a Ag/AgCl decorated Bi₄Ti₃O₁₂ nanosheet for an enhanced photocatalytic degradation of organic pollutants. Strong evidence has shown that Ag nanoparticles can cause an excellent photo response within the visible range owing to the SPR effects. Therefore, the utilization of SPR has provide a new idea to enhance the photocatalytic activity of Bi₄Ti₃O₁₂.

Carbon quantum dots (CDs) are a recently discovered class of nanocarbons that exhibit abundant unique photophysical properties. In particular, an insoluble layer of CDs on the surface of a semiconductor can greatly enhance the structural stability and photocatalytic activity. For example, CDs/TiO₂ [20, 21], CDs/BiWO₆ [22], CDs/CdS [23], and CDs/ZnO [24] have an improved photocatalytic activity and stability owing to the electron transfer, photoluminescence (PL), and electron reservoir properties of the CDs. In a previous report, CDs were synthesized from an organism, which is a greener and cheaper method, although the quantum efficiency is low.

Considering such remarkable yet defective properties of CDs, the SPR effect of Ag has been used to overcome such defects. Therefore, we propose a novel metal-CD semiconductor design as an efficient photocatalyst. In this work, we report a general program for the fabrication of 2D Ag/CDs/Bi₄Ti₃O₁₂, which exhibits a higher catalytic performance than bare Bi₄Ti₃O₁₂ and CDs/Bi₄Ti₃O₁₂. Meanwhile, the synergistic effects of CDs and Ag particles in this system were investigated. Moreover, the mechanisms for the visible-light driven photocatalytic process on 2D Ag/CDs/Bi₄Ti₃O₁₂ composites were also investigated.

The Bi₄Ti₃O₁₂ sheets were synthesized using a molten salt method as reported in the literature [25]. Briefly, Bi₂O₃, P25, KCl, and NaCl were mixed in logical order and amply grinded in an agate mortar. The mixture was then heated in a muffle furnace at 750 ℃ for 2 h in air. The obtained samples were washed with deionized water and ethanol three times, and then dried in an oven.

CDs and CD/BIT materials were prepared using the hydrothermal treatment of bamboo powder in our previous investigation [26]. Briefly, 3 g of bamboo powder was added to 30 mL of deionized water. The mixture was then transferred into a Teflon-lined autoclave and heated at 200 ℃ for 12 h. The CDs were collected through dialysis and freeze-drying. The CDs obtained were dispersed in water for further use.

Through a typical synthesis of CD-modified Bi₄Ti₃O₁₂ materials [26], a certain amount of CDs was dissolved in 5 mL of ethanol and using ultrasonic dispersion. Then, 0.1 g of Bi₄Ti₃O₁₂ was added into the above solution and magnetically stirred at room temperature. After being stirred for 12 h, the suspension was heated at 60 ℃ to evaporate the water. The dried composite was heated at 200 ℃ for 1 h in a N₂ atmosphere. The optimum CD/BIT composites were prepared based on a previous study [26].

The characteristic processing of Ag/CDs/Bi₄Ti₃O₁₂ is as follows. CDs/Bi₄Ti₃O₁₂ sheets (0.1 g) were dispersed in 30 mL of water, and a suitable amount of aqueous AgNO₃ (1 mg/mL) was added to the suspension. The mixture was then transferred to a quartz reaction flask with vigorous stirring and irradiated under a UV lamp for 30 min. Finally, the Ag/CDs/Bi₄Ti₃O₁₂ samples obtained were washed thoroughly with deionized water and ethanol several times and dried. To investigate the influence of the amount of Ag deposition on the photocatalytic activity, a series of Ag/CDs/Bi₄Ti₃O₁₂ samples with different mass percentages of Ag were prepared, which can be written as 2D Ag/CD/BIT-1, Ag/CD/BIT-2, Ag/CD/BIT-3, Ag/CD/BIT-4, and Ag/CD/BIT-5, respectively.

The photocatalyst degradation of the different as-prepared materials was evaluated by decomposing tetracycline (TC) under a 300 W Xenon irradiation lamp with a filter cutting off 400 nm light. During every experiment, a 50 mg photocatalyst was added to a 100 mL 10 mg/L TC solution. The simple process is as follows. The mixture was first stirred under dark conditions for 30 min to obtain the adsorption/desorption equilibrium between the TC and samples. Next, the mixture was irradiation with light, and a 4 mL solution suspension was obtained every 10 min, and the solid samples were removed. The TC concentration in the filtrate was detected using a UV-Vis spectrophotometer. The efficiencies (W) toward TC degradation over the different materials were calculated through equation W = 1 - C_t/C₀, where C₀ is the concentration of the solution suspension when the adsorption/desorption equilibrium was determined, and C_t is the solution concentration at time t.

X-ray diffraction patterns (XRD) of the samples were recorded at room temperature, and the patterns of the photocatalyst were obtained using a D/max-RA X-ray diffractometer (Rigaku, Japan) equipped with Ni-filtrated Cu K_α radiation (40 kV, 200 mA) at 10°-80° with a scanning step of 7°/min. An X-ray photoelectron spectroscopy (XPS) analysis was measured on an American electronics physical HI5700ESCA system with an X-ray photoelectron spectroscope using Al K (1486.6 eV) monochromatic X-ray radiation. The peak positions were corrected against the C 1s peak (284.6 eV) of the contaminated carbon. The infrared spectra were obtained on a Nicolet Magna-IR 550 Fourier transform infrared (FT-IR) spectrometer, and KBr was used as the reference sample within the wavelength range of 400-4000 cm^-1. The transmission electron microscope (TEM) images were examined using JEM-2100 transmission electron microscopy (JEOL, Japan). Scanning electron microscopy (SEM) images were recorded using field emission scanning electron microscopy (Nova Nano SEM 450, FEI). The room-temperature photoluminescence (PL) spectra were investigated utilizing a Cary Eclipse Spectrophotometer (VARIAN, USA) equipped with a xenon (Xe) lamp with an excitation wavelength of 325 nm. UV-vis diffuse reflectance spectra (DRS) were obtained using a Shimadzu UV-3600 spectrometer by applying BaSO₄ as a reference. The UV-vis absorption spectra of the samples were measured on a Cary 5000 (Agilent, USA) UV-Vis spectrophotometer. The electrochemical measurements were carried out on a VersaSTAT3 (Princeton, Inc.) electrochemical workstation in a three-electrode system with a platinum network counter electrode and an Ag/AgCl (saturated KCl) reference electrode, using a 0.5 mol/L concentration of Na₂SO₄ aqueous electrolyte under ambient temperature (25 ℃). The transient photocurrent response was determined on an electrochemical analyzer using a 0.5 V bias voltage under light irradiation (300 W Xe lamp as the light source).

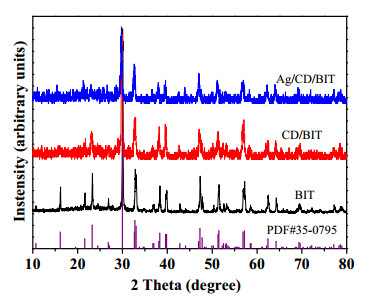

The XRD patterns of BIT, CD/BIT, and Ag/CD/BIT composites are shown in Fig. 1. The main characteristic diffraction peaks of BIT, CD/BIT, and Ag/CD/BIT composites can be indexed to Bi₄Ti₃O₁₂ crystal domains (PDF #35-0795). The XRD patterns of the CD/BIT and Ag/CD/BIT samples implied that the crystal phase of Bi₄Ti₃O₁₂ did not change with the loading of CDs and Ag nanoparticles on the Bi₄Ti₃O₁₂ surface. However, no clear signal attributable to the CDs and Ag could be observed in the CD/BIT and Ag/CD/BIT composites, which may be due to the low content, as well as the good dispersion on the sheets [27]. However, the peak intensities in the CD/BIT and Ag/CD/BIT composites were suppressed, suggesting the influence of CDs and Ag on the crystallite structure. In addition, the formation of a O=C-O-Ag bond can also affect the peak intensity [28]. It was clearly observed that the sample CDs and Ag nanoparticles did not change the crystal phase of the Bi₄Ti₃O₁₂, which was further demonstrated through the following characterizations.

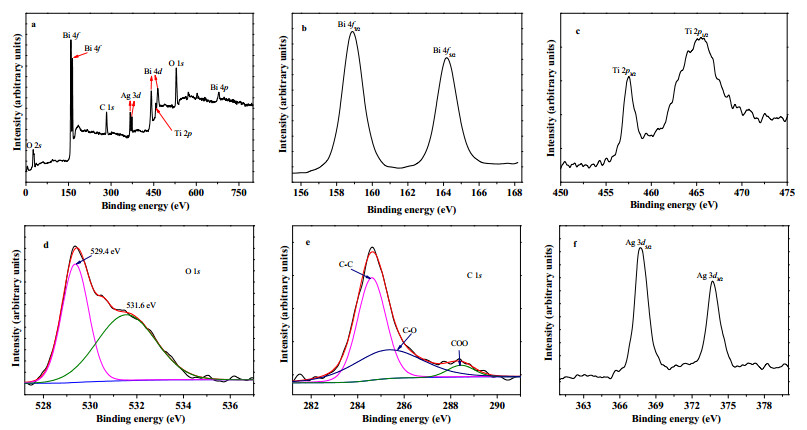

To understand the interactions, the XPS technique was applied to confirm the specific surface composition and element status. Fig. 2a shows the survey spectrum of the 2D Ag/CD/BIT-3 material, revealing that the hybrid was mainly composed of Ag, C, Bi, Ti, and O elements. The XPS signals of Bi can be attributed to Bi 4f_5/2 and Bi 4f_7/2, respectively (Fig. 2b). The two peaks were ascribed to Bi³⁺ which is consistent with the Bi₂O₃ [29]. The peaks of Ti can be ascribed to Ti 2p_1/2 and Ti 2p_3/2, which agree with TiO₂ (Fig. 2c) [30]. Moreover, the XPS spectrum of the O 1s is as shown in Fig. 2d, the major peak at 529.4 eV was assigned to the oxygen in the BIT lattice, and the peak at 531.6 eV was related to the surface-adsorbed oxygen on the BIT [26]. Meanwhile, the peaks of C 1s assigned to the C-C sp²-hybridized carbon of CDs, C-O, and COO bands with the binding energy of a C 1s orbit were centered at 284.6, 285.4, and 288.4 eV, respectively (Fig. 2e) [31]. The C-O band can enhance the bond between the BIT and CDs for speeding up the electronic transfer. The strongly shaken-up satellite doublet of Ag 3d was identified as Ag 3d_5/2 and Ag 3d_3/2 orbits attributed to the Ag nanoparticles (Fig. 2f). Moreover, as reported in [29], the groups of COO can combine the Ag ions into O=C-O-Ag groups, which may be the key to the electronic transfer and increased stability of the sample. The results indicate that the 2D Ag/CD/BIT materials were successfully and stably synthesized, which was proven through the recycling experiments.

To study the morphology and structure of the as-prepared materials, SEM and TEM images were provided [32]. The SEM images in Fig. S1 (see Supporting Information) show the sheet-like shape of BIT, CD/BIT, and 2D Ag/CD/BIT-3, respectively. From the SEM images, we cannot find any changes on the surface, which may be attributed to the low size and contents of the CDs and Ag nanoparticles, as reported in Ref. [33]. However, many small pieces are shown in Fig. S1b, which may be due to the ultrasonic characteristics. The elemental composition of the 2D Ag/CD/BIT-3 sample was analyzed using energy dispersive X-ray spectroscopy (EDS), and as shown in Fig. S2b-f, the EDS mapping revealed that bismuth, titanium, oxygen, carbon, and sliver were present and well distributed in the sheet. The 2D Ag/CD/BIT-3 composite was further observed using TEM and HRTEM. As shown in Fig. S1c, the sample was a clear visual sheet, and it was difficult to find the Ag nanoparticles and CDs owing to their small size. Moreover, the HRTEM image in Fig. 3 shows two different lattice fringes at 0.331 and 0.240 nm, which agree well with the (0 18 2) plane of BIT and the (200) plane of Ag, respectively [34]. However, the lattice fringes of the CDs were hard to find owing to the low content and complex lattice, which is consistent with a previous report [26]. The EDS mapping and XPS indicate that the CDs existed in the 2D Ag/CD/BIT composites.

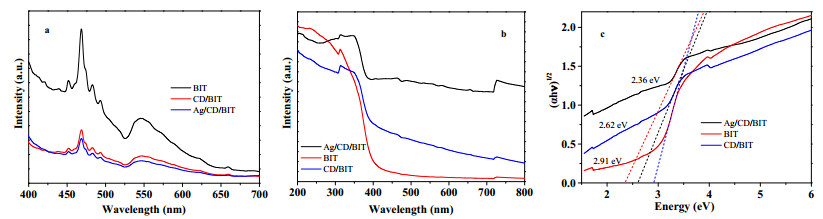

Fig. 4a shows the PL spectra of BIT, CD/BIT, and 2D Ag/CD/BIT with an intense fluorescence emission peak at 360 nm. As can be clearly seen, based on a comparison of the highest PL peak of bare BIT, the intensity of CD/BIT was decreased, indicating that the recombination of photo-induced electrons-holes achieved an efficient separation after a suitable amount of CD loading [35, 36]. This result demonstrated that the CDs acted as both electron donors and electron acceptors [37, 38]. Moreover, the intensity of 2D Ag/CD/BIT was comparatively lower than the former two, which confirmed that the photoelectrons were speedily transferred through an interface to promote the carrier separation because of the SPR effect of Ag and the unique photophysical properties of the CDs. Therefore, a 2D Ag/CD/BIT hybrid exhibited an excellent photocatalytic activity.

The UV-vis diffuse reflectance spectra (DRS) of BIT, CD/BIT, and 2D Ag/CD/BIT are shown in Fig. 4b. The pure BIT showed an absorption edge at ca. 400 nm [39]. When loaded with CDs, the absorption edge displayed a red-shift compared to bare BIT, suggesting that the CDs can expand the spectral responsive range of visible light. Moreover, an intense visible-light absorption was seen through the introduction of Ag, which may be attributed to the localized SPR effect of the Ag [40]. Meanwhile, the band gap energy (E_g) of the samples can be calculated from the DRS data based on the Kubelka-Munk function (αhv = A(hv - E_g)^n/2). Here, α, h, A, and v represent the absorption coefficient, Planck constant, a constant, and the optical frequency, respectively. The value of n is dependent on the type of electronic transition (n = 1 for a direct band-gap, and 4 for an indirect band-gap). For a Bi₄Ti₃O₁₂ based semiconductor, n was 1 for a direct band-gap [41]. Therefore, the band-gaps of BIT, CD/BIT, and Ag/CD/BIT were determined to be 2.91, 2.62, and 2.36 eV, respectively (Fig. 4c). A narrower band-gap can extend the absorption of the solar spectrum range and thus improve the photogeneration of the electron-hole pairs [42]. These phenomena may be attributed to the visible-light absorption capacity of the CDs and the SPR effect of the Ag nanoparticles, which improved the photocatalytic activity of the 2D Ag/CD/BIT composites.

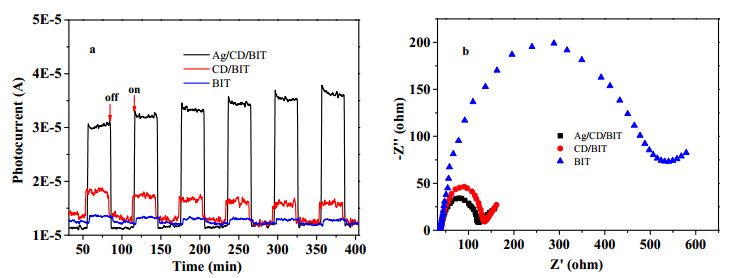

An electrochemistry analysis was applied to explain the separation, migration, and trapping of the photogenerated charge carriers [43, 44]. As shown in Fig. 5a, it was clear that CD/BIT exhibited a relatively higher photocurrent density than the bare BIT. Because a photocurrent is derived from the migration of electrons to the back contact under light irradiation, the results indicate that the introduction of CDs was in favor of photoelectron generation and transport [45]. As was particularly clear, 2D Ag/CD/BIT displayed a much stronger photocurrent intensity, confirming that the synergistic effect of the CDs and Ag separates the photogenerated electron-hole pairs more efficiently, enhancing the separation. The results coincide with the PL spectra and photocatalytic activity.

EIS Nyquist plots further acted as corroborative evidence for learning the interfacial charge transfer behavior of BIT, CD/BIT, and 2D Ag/CD/BIT photoelectrodes (Fig. 5b). As is well known, a smaller diameter means a weaker impedance and more efficient charge transfer [46]. The 2D Ag/CD/BIT composites showed the smallest diameter among the samples, which suggests that the addition of CDs and Ag can promote the interfacial charge transfer and photocatalytic behavior.

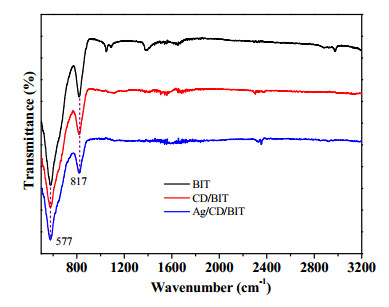

The possible interactions among the 2D Ag/CD/BIT sheets were further proved using FT-IR spectra. The FT-IR was used to determine the change in functional groups during the synthesis process. The bands at 577 and 817 cm^-1 in BIT were ascribed to the stretching vibrations of Ti-O and Bi-O. As shown in Fig. 6, the stretching vibrations of Ti-O and Bi-O can clearly be seen in both CD/BIT and 2D Ag/CD/BIT samples, respectively [47]. Compared with pure BIT, there was no change in the CD/BIT and 2D Ag/CD/BIT contract with pure BIT, indicating that the CDs and Ag did not change the structure of the BIT. Meanwhile, we cannot find any peaks for Ag and CDs, which may be attributed to the low content. The analysis results were in accord with the XRD results. In general, the BET-specific surface area of the photocatalyst was an important factor in which a bigger surface area could provide more active sites, thereby enhancing the photocatalytic activity; however, in this system we did not provide data on the surface area, which was attributed to the Ag and CDs being unable to change the surface area of the BIT sheet owing to the low content and smaller size, as reported in Ref. [48].

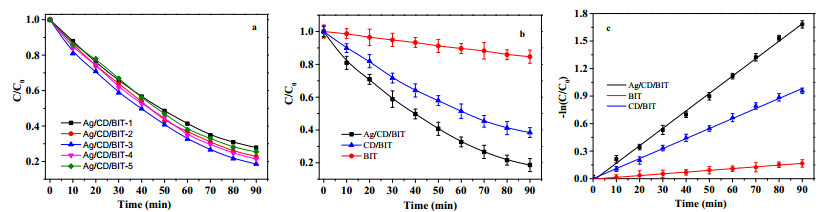

The interfacial charge transfer of the as-prepared samples and its influence on the visible light degradation of tetracycline (TC) were studied in detail. Fig. 7a shows the variation in the concentration ration versus the irradiation time in a series of 2D Ag/CD/BIT samples. All 2D Ag/CD/BIT samples displayed an excellent photocatalytic activity, among which 2D Ag/CD/BIT-3 showed the optimum degradation effect, which suggests the best proportion of the 2D Ag/CD/BIT-3 sample. These results proved that the Ag and CDs really can enhance the photocatalytic activity, which is mainly attributed to the excellent charge transfer and extend light absorption [49, 50]. Meanwhile, compared with the bare BIT and CD/BIT photocatalyst, 2D Ag/CD/BIT still exhibited higher degradation efficiencies, demonstrating that Ag played a critical role in the enhancement of the photocatalytic activity (Fig. 7b). As expected, the SPR effect can further improve the photocatalytic activity of a CD/BIT sample. Furthermore, the dynamics were also studied, and the optimum samples of 2D Ag/CD/BIT exhibited a k value of 0.01899 min^-1, which was higher than the samples of CD/BIT (0.01092 min^-1) and BIT (0.00191 min^-1) (Fig. 7c). The enhanced activity of the 2D Ag/CD/BIT may be attributed to the optical properties of the CDs, and the SPR effect of the Ag. The SPR effect of Ag could further improve the activity of the CD/BIT, which is due to the synergistic effect of the charge transfer and hot electrons over the CDs and Ag nanoparticles [51].

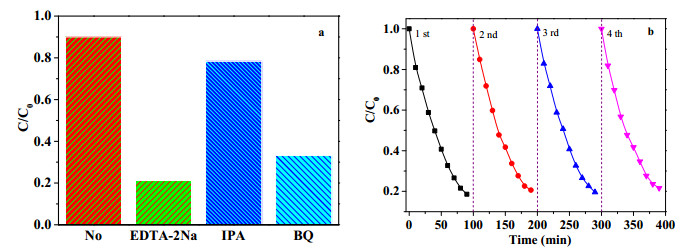

To investigate the main highly active reactors generated that are responsible for the visible-light driven photocatalytic process, the experiments were conducted in the presence of 1, 4-benzoquinone (BQ, a scavenger for ·O₂^-), isopropanol (IPA, a scavenger for ·OH), and EDTA disodium salt (EDTA-2Na, a scavenger for h⁺) [52, 53]. The results showed that the degradation efficiency of TC significantly decreased in the presence of BQ and IPA. When EDTA-2Na was added to the reaction system, it only affected the degradation efficiency slightly (Fig. 8a). It can be concluded that ·O₂^- and h⁺ were the major reactive species, and ·OH was also involved but not distinct [54, 55].

Furthermore, the photocatalytic stabilities of 2D Ag/CD/BIT were explored through recycling experiments (Fig. 8b). The pollutant was bleached after every TC decomposition experiment, and the 2D Ag/CD/BIT sample was sufficiently stale after the repeated experiments without exposure and without an obvious loss of the photocatalytic ratio. Therefore, the 2D Ag/CD/BIT sample can be used as an effective material with good stability.

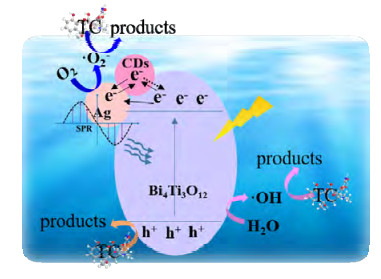

Based on the analysis discussed above, a possible photocatalytic mechanism was proposed for the 2D Ag/CD/BIT materials, as shown in Fig. 9. The CDs, Ag nanoparticles, and synergistic effect among each component play multiple vital roles in such a system. Under visible light illumination, the BIT absorbed photons to produce electron-hole pairs. Under the influence of SPR effect-induced strong local electromagnetic fields, Ag nanoparticles could aid the system in capturing photons, and thus the formation speed of the electron-hole pairs [56]. At the same time, the SPR effect of the Ag nanoparticles could further promote the light-harvesting capacity of the CDs and excited semiconductor. In this system, the CDs acted as an electron reservoir and transporter to accumulate electrons for the accelerating charge separation. Meanwhile, the results of the UV-vis spectra demonstrated that the CDs and Ag could extend the light absorption [57]. Based on the above, an efficient separation of the electron-hole pairs was enhanced at the interface of the Ag/CD/BIT composites. The e^- migrated from the conduction band (CB) of BIT to the Ag and CDs directly. In other words, the e^- in the CDs would continue to migrate to the Ag. The electrons then reacted with oxygen to form ·O₂^-, and the holes produced ·OH with H₂O/OH^-, which is consistent with related reports [58]. Therefore, the synergistic effect of BIT, CDs, and Ag nanoparticles effectively enhanced the absorption, improving the photocatalytic activity.

In summary, a highly efficient 2D complex photocatalyst (2D Ag/CD/BIT) was fabricated by combining the photoinduced electron-transfer properties of CDs, the SPR effect of Ag, and a semiconductor of BIT. The synergistic effects of CDs, Ag, and BIT lead to a degradation of pollutants. In the present system, the electrons on BIT can quickly transfer to the surface of the Ag nanoparticles and increase the amount of active species, thereby enhancing the photocatalytic activity. Here, the designed nanostructured materials achieved an excellent photocatalytic activity and electron migrated capacity. These findings may provide a new strategy for the preparation of new materials for energy sources and the environment.
