Alkynes are useful motifs that contain at least one carbon–carbon triple bond in which the carbon atoms are sp hybridized. The carbon atoms are attached to each other by two π bonds, in which the two p orbitals in the carbon atoms overlap, and one σ bond. The structure makes the molecule highly reactive and causes it to undergo various transformations [1-4]. Several novel organic transformations with alkynes have been explored to build valuable molecular skeletons in recent years [5-22]. Among these, difunctionalization of alkynes is an efficient and straightforward strategy for the synthesis of functionalized compounds, which can be transformed into diverse organic skeletons. As we approach an energy crisis, the development of sustainable organic transformations has become an urgent requirement. Solar energy, a renewable, accessible, and clean source of energy, has been applied in electric energy generation [23-26], water decomposition [27-33], and carbon dioxide reduction [34]. Organic transformations utilizing visible light date back to the early 1910s [35]. However, the inability of most organic molecules to absorb visible light has limited visible light photochemical synthesis. By introducing visible light photocatalysts (PC), which absorb visible wavelengths of light and have a long lifetime for the photoexcited state, solar energy could be transformed into the chemical energy needed for organic transformations such as synthetic methodologies [36-44], syntheses of natural products [45-48], enantioselective catalysis [49], and polymerization [50, 51]. In these processes, the ground state photocatalysts absorb visible light to afford photoexcited state photocatalysts, which could undergo a redox pathway or an energy transfer pathway [52, 53]. In the reductive quenching pathway, the excited state photocatalysts (PC*) can be reduced by an electron donor (D) to afford the PC^- species, which is a strong reductant. The PC^- species can undergo single-electron oxidation with an electron acceptor (S) or a metal salt (Mⁿ⁺) to afford the radical anion (S^·-) or lower valency of the metal (M(^n–1)+), accompanied by regeneration of the ground state photocatalysts. Alternatively, the PC* can be oxidized by an electron acceptor (A) to afford the PC⁺ species. In the most well-studied system, the PC⁺ has a strong oxidative potential, which enables the capture of an electron from an electron donor (S) or a metal salt (Mⁿ⁺) to afford the radical cation (S^·+) or high valency of metal salt (Mⁿ⁺¹). Simultaneously, ground state photocatalysts are obtained. However, an energy transfer pathway can also occur when the triplet state energy of the substrates (S) or metal complexes (Mⁿ⁺*) [54, 55] matches the triplet state energy of the photocatalysts. After energy transfer from the excited state photocatalysts (PC*), the triplet state of substrates (S*) or metal complexes (Mⁿ⁺*) can be obtained and the ground state photocatalysts were afforded to complete the catalytic cycle.

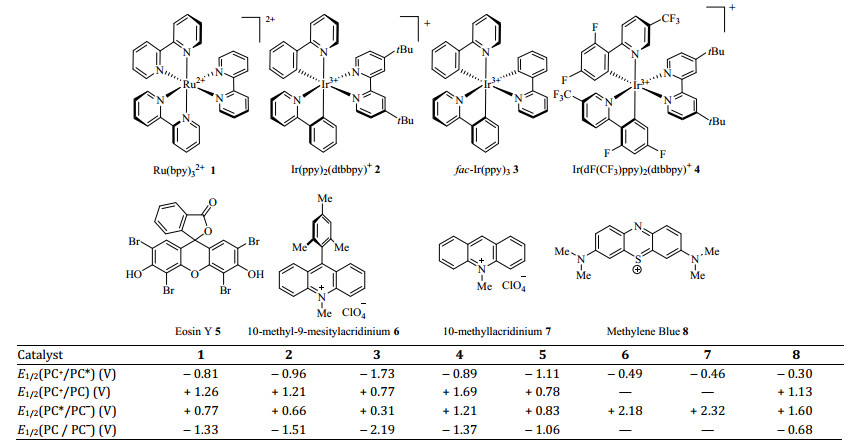

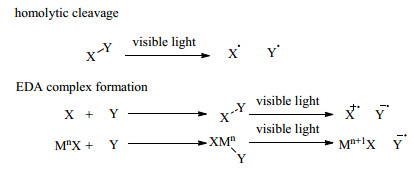

It should be noted that the photoinduced reactions could also proceed smoothly without photocatalysts. Some substrates absorbed visible light to undergo a homolytic bond cleavage to afford radicals [56-59]. The electron-donor-acceptor (EDA) complexes could undergo a charge transfer process under visible light irradiation to afford the radical. The strategies mentioned above were utilized in difunctionalization reactions [60-64]. In addition, a similar process also occurred with some organometallic reagents [65]. Complexes which were generated from organometallic reagents and substrates absorbed visible light to yield the activated organometallic species, which could be used for the further transformations.

This review focuses on the visible light promoted difunctionalization reactions of alkynes. The hydroelementation reactions of alkynes are not included. The reactions are categorized based on the different reagents: Csp³ radical reagents, Csp² radical reagents, heteroatom radical reagents, organometallic reagents, and other reagents.

The Csp²–Csp³ bond formation via radical addition to alkynes with Csp³ radical is an important route. The generation of a Csp³ radical is the key step to initiate difunctionalization reactions. Csp³ radicals were obtained from different reagents: fluoro-containing reagents, alkyl halides, and other Csp³ radical reagents.

The unique properties of fluorine have greatly enriched methodologies to synthesize fluoro-containing compounds. In our previous review on difunctionalization of alkenes [66], fluoro-containing reagents, such as perfluoroalkyl iodides, were reduced via visible light photocatalysts to give perfluoroalkyl radicals. A radical addition to alkenes occurs, forming a carbon centered radical species. A similar process could proceed smoothly when using alkynes as substrates. Perfluoroalkyl halides, bromodifluoroacetates, and CF₃ reagents can be used for the formation of fluoro-containing derivatives under visible light irradiation.

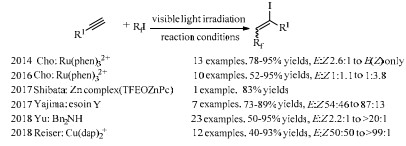

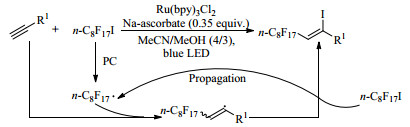

Visible light promoted atom-transfer-radical-addition (ATRA) reaction of alkynes could be achieved by perfluoroalkyl iodides. In 2012, Stephenson and co-workers explored visible light promoted ATRA reaction of terminal alkynes with perfluoroalkyl iodides [67] (Scheme 4). The reaction was conducted using Ru(bpy)₃Cl₂ as a photocatalyst and Na-ascorbate as a reductant under visible light irradiation. The terminal alkynes reacted with n-C₈F₁₇I to give perfluoroalkyl substituted vinyl iodides in 94%–96% yields, with 1.8/1 to 2/1 E/Z ratios. A propagation pathway was proposed rather than the SET process in this transformation. Similar methodologies were achieved by Cho and co-workers in 2014 [68] and 2016 [69] (Scheme 5). The corresponding fluoro-containing vinyl iodides were obtained. In 2017, Shibata and co-workers explored a visible light induced ATRA reaction of alkynes with perfluoroalkyl iodides using a zinc complex as the photocatalyst [70]. Yajima and co-workers explored an ATRA reaction of alkynes using eosin Y as the photocatalyst [71]. In 2018, Yu and Reiser also achieved photomediated ATRA reactions. In Yu's method, perfluoroalkyl radicals were generated by photodecomposition of the N-fluoroalkyl bond, which were generated from the combination of perfluoroalkyl iodides and secondary amine [72]. In Reiser's work, photoinduced ATRA reaction of arylacetylenes catalyzed by Cu(dap)₂Cl proceeded better than the reaction catalyzed by Ir/Ru photocatalyst [73].

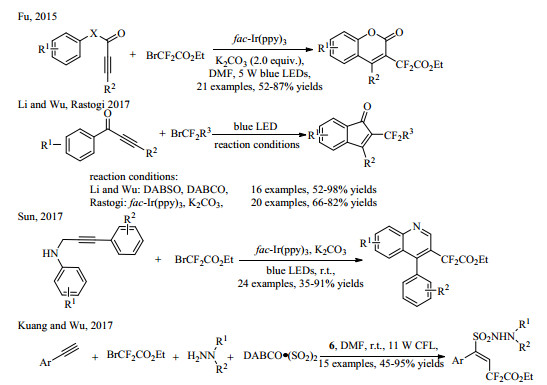

Visible light induced aryldifluoroacetylation of alkynes was achieved by Fu and co-workers in 2015 [74] (Scheme 6). Synthesis of 3-difluoro acetylated coumarins from phenyl alkynoates and 2-bromo-2, 2-difluoroacetate could be realized by employing fac-Ir(ppy)₃ as a catalyst and potassium carbonate as a base under irradiation by blue LEDs. Similar strategies were used for the syntheses of 3-aryl-2-difluoroacetyl indenones [75, 76] and 3-difluoro acetylated quinolines [77]. In addition, Kuang and Wu achieved a vinyl difluoroalkylation and aminosulfonylation of alkynes with 2-bromo-2, 2-difluoroacetate [78]. This reaction with four components proceeded through a tandem radical process, with the insertion of sulfur dioxide to afford the desired difluoroalkylation and aminosulfonylation products in 45%–95% yields with high stereoselectivity.

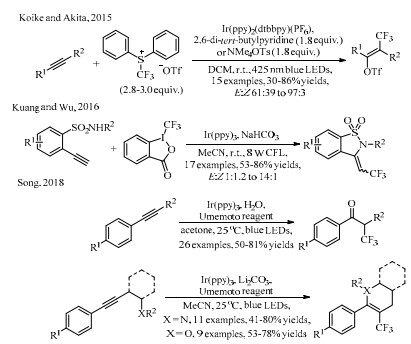

According to Koike and Akita in 2015 [79], using Ir(ppy)₂(dtbbpy)(PF₆) as a photocatalyst and 2, 6-ditertbutylpyridine as a base, internal aryl alkynes and Umemoto reagent were converted into tetra-substituted trifluoromethylated alkenes in 30%–86% yields, and 61/39 to 97/3 E/Z ratios. Similar strategies were conducted by Wu [80] and Han [81, 82] to achieve intramolecular trifluoromethylation cyclization and oxidative trifluoromethylation reactions, respectively (Scheme 7).

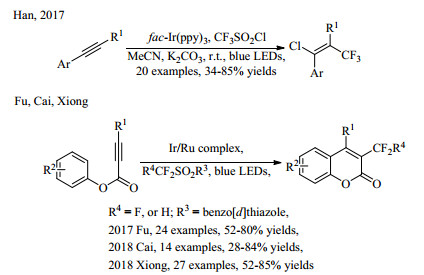

Trifluoromethanesulfonyl chloride and its derivatives can be used as a source of trifluoromethyl radicals. By the SET process, CF₃ radical can be generated along with the release of sulfur dioxide. In 2017, Song and co-workers explored a photomediated chlorotrifluoromethylation of alkynes using trifluoromethanesulfonyl chloride as a CF₃ radical source [83]. This reagent was also used for the synthesis of 3-trifluoromethyl coumarins [84-86] (Scheme 8).

Alkyl halides were widely used as Csp³ radical sources in radical reactions. This is because alkyl halides are easily available and can undergo a C–X bond dissociation to afford Csp³ radicals. In visible light promoted reactions utilizing alkyl halides as radical precursors, the C–X bond dissociation takes place to afford the desired Csp³ radicals.

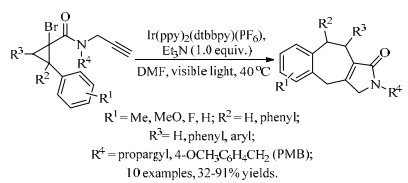

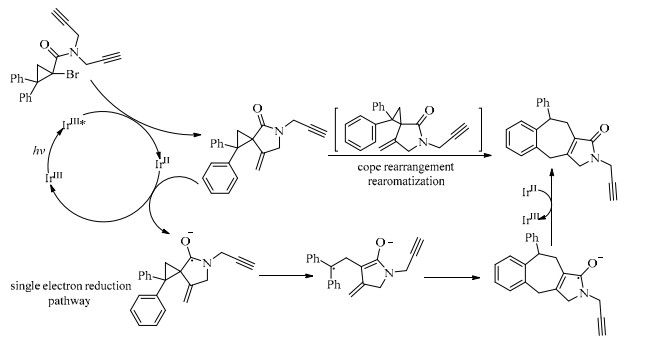

A visible light promoted radical cyclization-divinylcyclopropane rearrangement reaction was disclosed by Stephenson and co-workers in 2011 [87]. Using Ir(ppy)₂(dtbbpy)(PF₆) as a photocatalyst and Et₃N as a base under visible light irradiation, diaryl-substituted bromo cyclopropanes could be transformed into the desired tricyclic pyrrolidinones in 32%–91% yields (Scheme 9). In this transformation, the cyclopropane radical was generated by reduction of the Ir^Ⅱ catalyst, and the 5-exo-dig radical cyclization could occur, followed by hydrogen-atom abstraction of vinyl radicals. The vinylcyclopropane (VCP) intermediate underwent a [3, 3] sigmatropic rearrangement to afford the desired products. However, single electron reduction of the VCP could also take place in this transformation (Scheme 10).

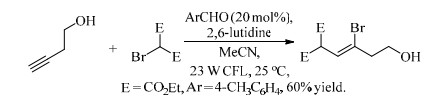

The Melchiorre group explored the photo-organocatalysis of ATRA reaction of alkynes in 2014 [88]. The bromo-2-malonate reacted with but-3-yn-1-ol leading to the corresponding bromocarbonation product in 60% yield (complete E isomer) (Scheme 11). In addition, an energy transfer pathway was proposed in this transformation; the C–Br bond cleavage from bromo-2-malonate could occur after the energy transfer process of photoexcited p-anisaldehyde.

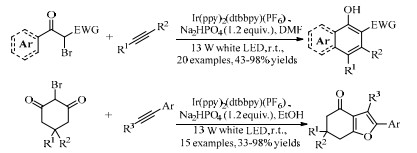

In 2013, Yu and Zhang explored the visible light induced synthesis of naphthols and furans [89]. Using Ir(ppy)₂(dtbbpy)(PF₆) as a photocatalyst and disodium hydrogen phosphate as a base, aryl ketobromides and alkynes were transformed into poly-substituted naphthols in 43%–98% yields with high regioselectivity (Scheme 12). When using ethanol as the solvent and 2-bromocyclohexane-1, 3-dione derivatives as the activated bromides, the desired furan derivatives were obtained in 33%–98% yields. Carbazole derivatives were also obtained by a similar method using indole-derived bromide compounds as substrates, which was explored by Xiao and Lu in 2016 [90].

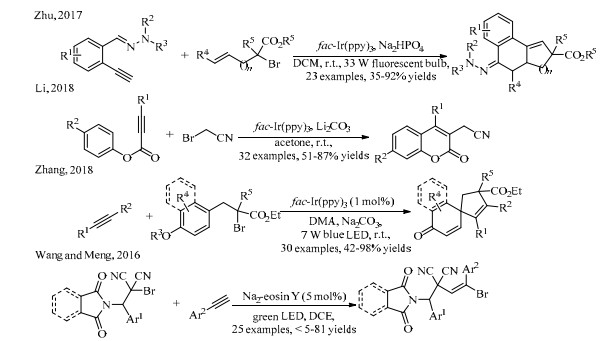

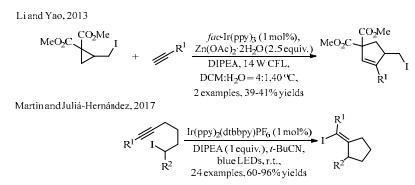

In addition, the Csp³ radicals generated from activated halides via visible light photocatalysis were further utilized in cyclization of alkynes (Scheme 13). In 2017, Zhu and co-workers synthesized cyclohexylidenehydrazine-fused polycyclics from 2-ethynylaldehyde hydrazones and α-bromo carbonyls under visible light irradiation [91]. The next year, visible light promoted synthesis of 3-cyanomethylated coumarins was reported by Li's group [92]. Very recently, the synthesis of spiro[4, 5] deca-1, 6, 9 trieno-8-ones was also reported by Zhang and co-workers, with 2-bromo-1, 3-dicarbonyl derivatives as the activated halide [93]. It should be noted that 2-bromo-malononitriles could also be utilized in visible light promoted difunctionalization of alkynes, which was explored by Wang and Meng in 2016 [94].

The reactions mentioned above that use activated organic halides contain a C–X bond adjacent to the π-system or electron withdrawing groups that could undergo a rapid SET process. However, the high reductive potential of unactivated alkyl halides (E_red [n-BuI] = −2.5 V vs. SCE in MeCN) [95] was the major challenge to obtain these Csp³ radicals. In 2013, Li and Yao explored the intermolecular visible light promoted atom transfer radical cyclization (ATRC) reactions of 2-(iodomethyl) cyclopropane-1, 1-dicarboxylate with alkynes [96] (Scheme 14). In 2017, Martin and Juliá-Hernández achieved a visible light induced intramolecular ATRC reaction using alkyl halides [97]. In these two reactions, unactivated alkyl iodides were used as substrates. Tertiary amines were also required in these strategies.

Very recently, Nagib and co-workers reported a visible light induced ketyl-alkyne coupling reaction [98]. The aliphatic ketyl radical was hard to obtain because of the high reductive potential of the corresponding aldehydes (> –2.2 V) [99]. The reaction of acetyl iodide with aliphatic aldehydes gave α-acetoxyiodides, which could undergo C–I bond dissociation by activated manganese catalyst under visible light irradiation to afford the ketyl radical species. Using this method, the corresponding vinyl iodides were obtained in 36%–81% yields, with 2:1 to > 20:1 Z/E ratios (Scheme 15). The reaction underwent a chain propagation process. Visible light irradiation could promote the efficiency and selectivity of the transformation.

Several methodologies for carbon radical generation by direct carbon-hydrogen bond cleavage were achieved via the hydrogen abstraction of nitrogen or oxygen radical generated by photocatalysis [100-108].

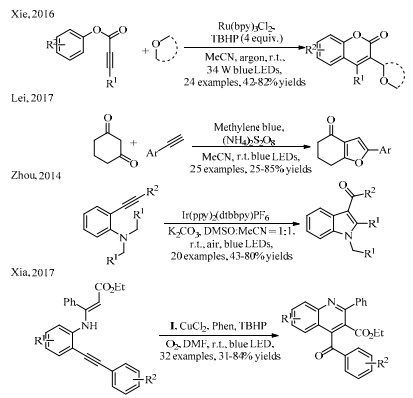

In 2016, Xie and co-workers reported a synthetic strategy for coumarins initiated by visible light, using hydroperoxide as an oxidant [109] (Scheme 16). The tert-butoxyl radical could abstract a hydrogen atom from an ether to afford α-oxo radical which reacts with alkynes. With this strategy, coumarin products were obtained in 42%–82% yields. A similar strategy was applied by Lei and co-workers [110], using (NH₄)₂S₂O₈ as a hydrogen abstractor and methylene blue as a catalyst. Meanwhile, Zhou and co-workers reported a visible light mediated method for the synthesis of 3-acylindoles through the intramolecular cyclization of N, N-dialkylamines [111]. Similarly, Xia and co-workers introduced an enamine moiety into the substrates, which could be oxidized by a photocatalyst after the tautomerization to afford the Csp³ radical, followed by further transformation to afford quinolones [112].

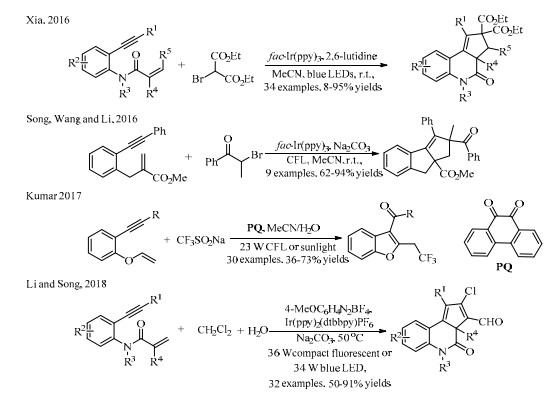

In 2016, Xia and co-workers reported a visible light induced 1, 7-enyne cascade bicyclization reaction [113] (Scheme 17). Similarly, visible light induced cascade cyclization reactions were reported by Li and Wang [114], Kumar [115], and Li [116]. Other radical precursors such as the thiyl radical could also be used in similar tandem cyclization reactions [117, 118].

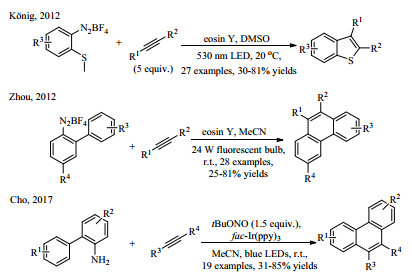

In 2012, Kӧnig and co-workers achieved a visible light promoted synthesis of benzothiophene derivatives. Using eosin Y as a photocatalyst, aryl radicals could be generated from o-methylthio-arenediazonium salts under visible light irradiation. These radicals reacted with alkynes to afford the corresponding benzothiophene derivatives in 30%–81% yields [119] (Scheme 18). Similarly, Zhou and co-workers explored a [4+2] benzannulation of aryldiazonium salt with alkynes [120]. A similar reaction was reported by Cho and co-worker in 2017 [121], which contained a diazotization process with biarylamines and tert-butyl nitrite as well as a [4+2] benzannulation reaction.

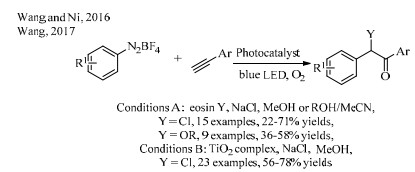

Similarly, Wang and Ni described a visible light driven domino process of alkynes with aryl diazonium salts [122]. The desired α-chloro aryl ketones were obtained in 22%–71% yields and α-alkoxy aryl ketones were obtained in 36%–58% yields. In 2017, the same reaction was carried out by Wang and co-workers using a TiO₂ complex as a photocatalyst [123] (Scheme 19).

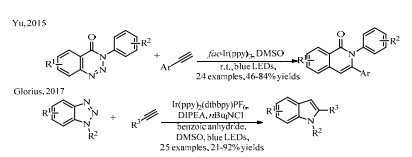

Benzotriazole derivatives could be transformed into the desired aryl radicals by a photoinduced denitrogenation process, which was similar to the generation of aryl radicals from aryl diazonium salts. Yu and co-workers explored the visible light induced synthesis of isoquinolines in 2015 [124]. Glorius and co-workers also reported a photoinduced synthesis of 2-substituted indoles [125] (Scheme 20).

Aryl radicals could also be generated from aryl halides under visible light irradiation. In 2016, Yuan and co-workers achieved the photoinduced synthesis of 2-substituted benzothiophenes [126] (Scheme 21). The intermediate, which was generated from KOH/DMSO superbase and 2-halogenthioanisoles, could undergo a single electron transfer under visible light irradiation to afford the aryl radicals. These radicals could react with alkynes, which could undergo a process similar to that reported by Kӧnig.

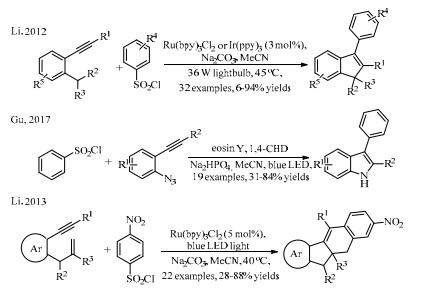

Li and co-workers explored a new methodology for the construction of functionalized 1H-indenes via visible light photocatalysis in 2012 [127]. Using aryl sulfonyl chlorides as the source of aryl radicals, the arylative cyclization products were obtained in 6%–94% yields. In this transformation, aryl sulfonyl chlorides could undergo an oxidation process promoted by visible light. With the removal of sulfur dioxide, the expected aryl radicals could be obtained. When o-azidoaryl alkynes were used as the substrates instead of o-alkyl aryl alkynes, the desired 2, 3-diaryl indoles were obtained [128]. Similarly, a tandem cyclization of 1, 6-enynes was achieved by using aryl sulfonyl chlorides as the aryl radical sources [129] (Scheme 22).

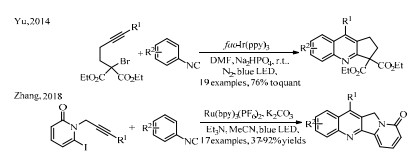

In 2014, Yu and co-workers explored a visible light promoted synthesis of quinolone derivatives from phenyl isocyanides and bromo-substituted alkyl internal acetylenes [130]. This reaction was initiated by reduction of the C-Br bond which can generate a Csp³ radical, followed by radical addition and cyclization cascade to give the corresponding quinolone derivatives in 76% to quant yields. When using N-(alkyl-2-yl-1-yl)-pyridin-2(1H)-ones as the substrates, products containing ring cores of camptothecins were obtained [131, 132] (Scheme 23).

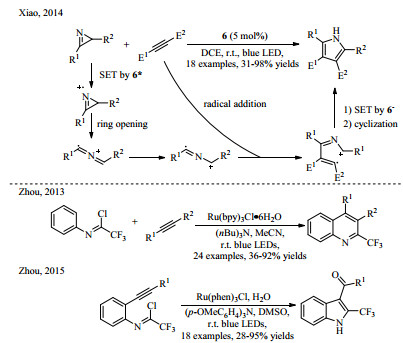

The imidoyl radical can be utilized in the photoinduced difunctionalization of alkynes. This strategy was often used in cyclization reactions. In 2014, Xiao and co-workers utilized 2H-azirines as a source of imidoyl radicals to achieve a visible light induced formal [3+2] cycloaddition [133]. 2H-pyrroles are oxidized by excited state PC to give PC^- and nitrogen centered radical cations, followed by a ring-opening process to afford imidoyl radicals. By this method, the highly functionalized pyrroles were obtained in 31%–98% yields. It should be noted that they successfully carried out an unprecedented photocascade [3+2] reaction; here, the 2H-azirines were generated in situ via energy transfer process [134], followed by photoinduced redox-neutral [3+2] cycloaddition. Zhou and co-workers explored the visible light promoted synthesis of 2-trifluoromethyl quinolones [135] and trifluoromethyl indoles [136] (Scheme 24). In this methodology, imidoyl radicals were generated from C–Cl bond cleavage by visible light photocatalysis.

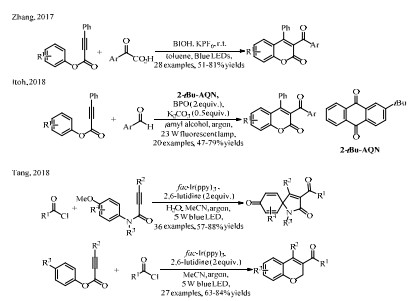

In 2017, Zhang and Wang explored visible light induced acyarylation reactions. α-Oxo-carboxylic acids were used as the radical sources, which could undergo decarboxylation to afford carbonyl radicals by iodide catalyst. The desired coumarins were obtained in 51%–81% yields [137]. Aryl aldehydes and aryl carbonyl chlorides could also be used as carbonyl radical precursors. 3-carbonyl coumarins [138, 139] and 3-acylspiro[4, 5]trienone [140] were obtained by photocatalysis (Scheme 25).

The difunctionalization/heterocyclization of alkynes initiated via a hetero radical was a direct strategy to construct molecules containing a heteroatom with an unsaturated bond in which hetero-radicals(S/P/N/Se/Br/O) were generated via photocatalysis.

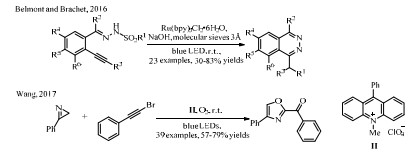

In 2016, Belmont and Brachet reported the visible light amination/Smiles cascade reaction of benzenesulfonohydrazone [141]. Using Ru(bpy)₃Cl₂·2H₂O as a photocatalyst, 1.5 equivalents of NaOH, and 3 Å molecular sieves, benzenesulfonohydrazones were transformed into the corresponding phthalazines in 30%–83% yields. In addition, these reactions could also be accomplished in a sequential one-pot process with similar outcomes. In this process, benzenesulfonohydrazones were generated by the corresponding hydrazides and aldehydes. In 2017, Wang and co-workers explored a visible light induced synthesis of oxazoles using 2H-azirines as nitrogen radical precursors [142] (Scheme 26). They identified that the oxidation ability of Ⅱ was strong enough to oxidize 2H-azirines to afford nitrogen radical cations.

In 2015, Cai and co-workers explored a methodology to synthesize β-ketophosphine oxides via visible light promoted oxidative phosphinylation of aryl alkynes [143]. With rhodamine B as a photocatalyst, in the presence of white LEDs, aryl alkynes and diarylphosphine oxides were transformed into various β-ketophosphine oxides in 64%–94% yields (Scheme 27). In this route, phosphorus centered radicals were generated through oxidation of excited state photocatalyst and deprotonation cascade.

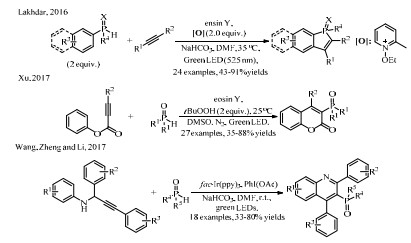

A visible light driven oxidative C-H/P-H functionalization reaction of secondary phosphine oxides with alkynes was reported by Lakhdar and co-workers in 2016 [144]. Diarylphosphine oxides reacted with internal alkynes to give the benzo[b]phosphole oxides in 43%–91% yields using eosin Y as photocatalyst, N-ethyloxy-2-methylpyridinium tetrafluoroborate as oxidant, and NaHCO₃ as base, under irradiation by green LED. It should be noted that phosphorus centered radicals were obtained by hydrogen abstraction of ethoxy radical, which was generated from the EDA-complex decomposition via visible light. Similar strategies could be used for photoinduced syntheses of 3-phosphorylated coumarins [145] and phosphorylated quinones [146] (Scheme 28).

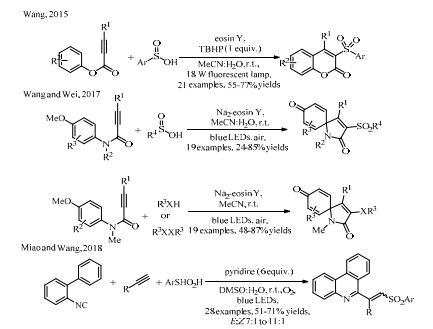

The Wang group in 2015 carried out an initiative reaction employing eosin Y as a photocatalyst, 1 equivalent of tert-butyl hydroperoxide as an oxidant, and MeCN/H₂O (1/1) as the solvent, under visible light irradiation at room temperature to achieve the arylsulfonylation of alkynes with arylsulfinic acids [147]. The sulfonyl radicals were generated by hydrogen abstraction of tertbutoxyl radical which were obtained by reduction of photoexcited eosin Y. By this method, the arylsulfonylation products were obtained in 55%–77% yields. In 2017, a similar method was utilized to synthesize 3-sulfonyl azaspiro[4, 5] trienones by Wang and Wei [148]. In addition, sulfonyl radicals were also obtained by decomposition of the corresponding EDA complexes under visible light irradiation to achieve the synthesis of polyfunctionalized phenanthridines [149] (Scheme 29).

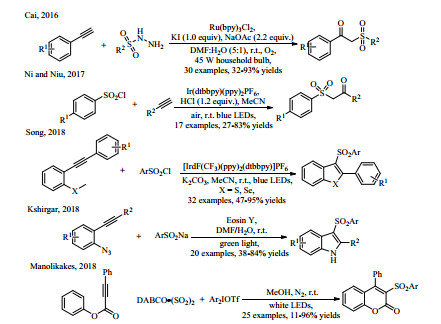

Sulfonyl radicals can also be generated by the decomposition of sulfonyl derivatives via visible light photocatalysis. In 2016, Cai and co-workers achieved a visible light promoted oxysulfonylation of alkynes [150]. In this transformation, sulfonyl hydrazides were used as the sulfonyl radical precursors; Ni, Niu [151] and Song [152] utilized sulfonyl chlorides to achieve visible light promoted oxysulfonylation and sulfonyl cyclization reactions, respectively. Single electron transfer of sodium sulfinate salts under irradiation of visible light could also take place to generate sulfonyl radicals, which was explored by Kshirsagar and co-workers to synthesize 3-sulfonylindoles [153].

Apart from the methods mentioned above, sulfonyl radicals were also generated by radical insertion of sulfur dioxide. In 2018, Manolikakes and co-workers explored visible light induced synthesis of 3-aryl sulfonyl courmains without photocatalyst. In this process, the charge transfer species, which were generated from diaryliodonium salts and DABSO, could undergo a photoinduced decomposition process to give aryl radicals. Sulfur dioxide insertion occurred to afford the corresponding aryl sulfonyl radicals [154] (Scheme 30).

Other types of thiyl radicals have also been used in the visible light promoted difunctionalization of alkynes. Diphenyldisulfides and thiophenols were often used as thinly radical precursors. In 2016, Wang and Li explored the visible light induced synthesis of α-diketone using thiyl radical as a catalyst [155]. The thiyl radical generated from diphenyldisulfide could undergo a radical addition to the alkynes. The O₂ abstraction afforded the peroxy radical species. The intramolecular radical addition could regenerate the thiyl radical. A similar strategy for the generation of thiyl radicals was applied to synthesize benzothiophenes under visible light irradiation without photocatalysts [156]. In addition, thiyl radicals generated from thiophenols have also been utilized in cyclization reactions of alkynes [157].

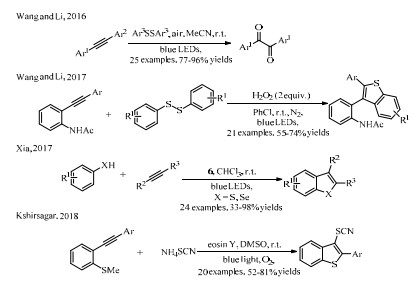

Very recently, Kshirsagar and co-workers explored the visible light promoted synthesis of 3-thiocyanatobenzothiophenes [158] (Scheme 31). In this process, the thiyl radical was generated from the oxidation of ammonium salt of thiocyanate by visible light photocatalysis.

In 2017, She and co-workers explored a methodology to synthesize 3-bromocoumarins via visible light photocatalysis. The bromo radical was generated from N-bromobutanimide under irradiation by blue LEDs with the assistance of tetrahydrofuran. The corresponding bromo radical reacted with alkynoates to afford the expected products in 40%–75% yields [159] (Scheme 32).

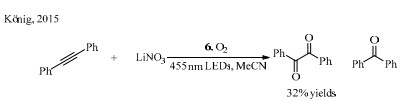

In 2015, Wille and Kӧnig achieved the visible light mediated synthesis of benzil with diphenylacetylene [160] (Scheme 33). Using Acr⁺-Mes 6 as a photocatalyst, under irradiation by blue LEDs, benzil was obtained in 32% yield. In this process, a nitrate radical was generated by photocatalysis. However, the generation of benzophenone could not be avoided in this transformation.

Transition metal catalysis could be one of the most efficient methods to obtain difunctionalized alkynes. The high regio- and stereoselectivity could be achieved by the rational design of ligands. However, strong oxidants might be needed in some reactions, which could result in the limitation of substrate scope and reduced atom-economy [161-167]. To avoid such disadvantages, strong oxidation or reduction abilities in mild conditions generated by photocatalysis could be much more favorable. So far, transition metal and photocatalyst co-catalyzed methodologies have flourished in recent years, and have been widely used in C–H functionalization and decarbofunctionalization reactions [168-170].

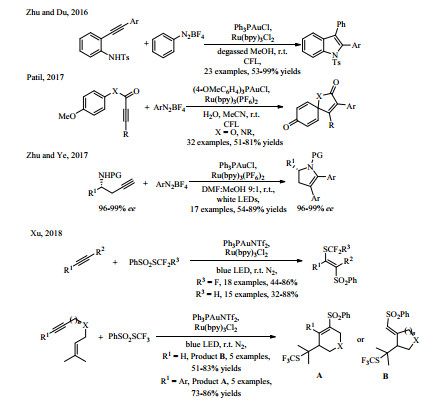

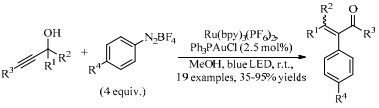

Gold and photocatalyst co-catalyzed arylfunctionalization reactions of alkynes have been reported in recent years. Organo gold reagents were often used as carbophilic Lewis acids, which could be coordinated to alkynes, followed by a nucleophilic attack to generate new C–Au and C–Nu bonds. The strategy could be based on the Au^Ⅰ/Au^Ⅲ catalytic cycle. The Au^Ⅰ/Au^Ⅲ couple was +1.41 V [171, 172], which meant that strong oxidants were needed for this transformation. Meanwhile, the oxidative quenching cycle of PC could oxidize Au^Ⅱ species under mild conditions. In 2016, Shin and co-workers achieved the gold and Ru photocatalyst co-catalyzed Meyer-Schuster rearrangement reaction of alkynes [173] (Scheme 34). Utilizing Ph₃PAuCl and Ru(bpy)₃²⁺ as catalysts, under exposure to blue LEDs, secondary or tertiary propargyl alcohols reacted with aryldiazonium salts to afford α-aryl substituted α, β-unsaturated ketones in 35%–95% yields. It should be noted that the E/Z ratio was determined by the photostationary equilibrium of products. In the same year, a similar transformation was also achieved by the Alcaide, Almendros [174], and Glorius groups [175].

When TMS-terminated alkynols were used as substrates, the corresponding tri- and tetra-substituted α, β-unsaturated ketones were obtained. A similar strategy was followed in the photoinduced synthesis of 2, 3-diarylbenzofuran with 2-(trimethylsilyl) ethynyl phenols [176]. In this process, carbon (sp) arylation of TMS-terminated alkynes could take place first to yield internal phenyl alkynes, which could undergo a gold and photocatalyst co-catalyzed process. This strategy could be utilized in the synthesis of hetero cycles, which was explored by Alcade and Almendros [177].

In the same year, Ollivier and Fensterbank also utilized a similar gold and photoredox system to achieve arylative cyclization reactions [178] (Scheme 35). Benzofuran derivatives were obtained from o-alkynylphenols and aryldiazonium salts in 6%–86% yields. This strategy could be utilized in visible light initiated synthesis of multi-substituted indoles [179], spirocarbocycles [180], enantioenriched 2, 3-dihydropynoles [181], and other compounds [182] (Scheme 36). It should be noted that visible light induced transition metal catalyzed difunctionalization of alkynes could take place without a photocatalyst. In this case, the organometallic complex acted simultaneously as a photosensitizer and an activator of alkynes. In 2015, Hwang and co-workers explored a visible light induced copper-catalyzed C–H annulation of arylamines with terminal alkynes and benzoquinones [183]. In this process, the copper(Ⅰ) phenylacetylide species absorbed visible light. A similar strategy was explored by the same group, using ynamides or ynamines instead of terminal alkynes [184]. In 2016, Hashmi reported the visible light mediated gold catalyzed aryl oxylation of alkynes [185]. Wong and co-workers also reported a similar method to synthesize quinoliziums [186] (Scheme 37). The DFT study of Hashmi's work revealed that the complex generated from gold(Ⅰ) and aryldiazonium salt absorbed visible light leading to electron transfer between the two moieties [187]. In this process, reductive elimination was the rate determining step.

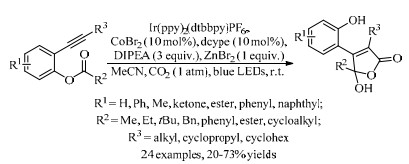

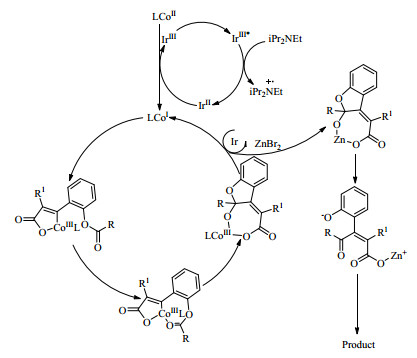

Very recently, Wu and co-workers achieved a visible light promoted cobalt-carboxylation/acyl migration cascade reaction [188] (Scheme 38). The ortho-ester substituted aryl alkynes were transformed into γ-hydroxybutenolides in 20%–73% yields utilizing CoBr₂ as a catalyst, in the presence of Ir(ppy)₂(dtbbpy)(PF₆) under irradiation by blue LEDs. Remarkably, when using 2, 6-bisalkynyl phenyl acetate as starting materials, γ-hydroxybutenolides with a benzofuran moiety were obtained in 40%–56% yields. The Co^Ⅰ species was generated upon reduction of Co^Ⅱ species by Ir^Ⅱ photocatalyst. The Co^Ⅰ species could undergo cyclometalation reaction with CO₂ and alkynes. The intramolecular reaction of the five-membered cobaltacycle intermediate afforded the carbo-carboxylation intermediate. After reduction and transmetalation with ZnBr₂, the Co^Ⅰ species were regenerated. Next, tautomerization of the Zn intermediates occurred to generate a γ, γ-keto acrylic zinc species. After further tautomerization, corresponding γ-hydroxybutenolides were obtained (Scheme 39).

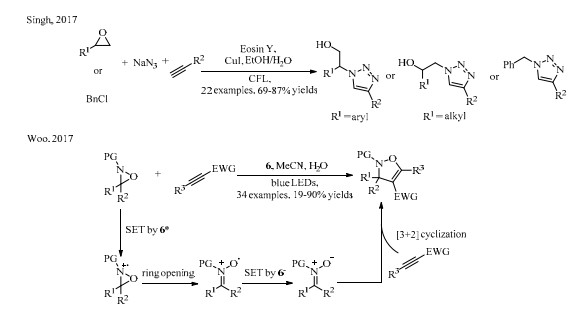

1, 3-dipole reagent, which can undergo a [3+2] cycloaddition with alkynes to afford cyclization products, can be generated by visible light photocatalysis. In 2017, Singh's group utilized benzyl chlorides or 2-phenyloxiranes and NaN₃ as 1, 3-dipole precursors [189]. However, the reaction could also occur without photocatalyst and visible light to afford products in moderate yields. The strategy was followed to achieve visible light induced synthesis of 4-isoxazoline by using oxaziridine as substrate [190]. In this process, nitrone was generated by visible light photocatalysis. The oxaziridines were oxidized by photoexcited 6*. After a ring-opening process, the intermediates were reduced by 6^– to give the nitrones. These compounds could undergo a [3+2] cyclization reaction with alkynes to afford the desired products (Scheme 40).

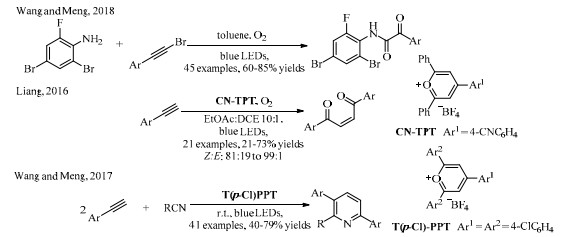

The alkynyl radical could also trigger the alkyne difunctionalization reaction initiated by visible light. In 2018, Meng and Wang explored a visible light induced synthesis of α-ketoamides with bromoalkynes and anilines [191]. The alkynyl radical was generated by the photodecomposition of bromo alkynes. After radical abstraction of oxygen, a coupling process with nitrogen radical occurred, followed by a rearrangement process to give the desired products.

Alkynes could also be oxidized by PC to achieve a difunctionalization reaction. This would require that the oxidative potential of the visible light photocatalyst is strong (the reductive potential of alkynes was +2.163 V). Liang and his co-worker achieved a visible light induced synthesis of 1, 4-enediones [192]. Wang and Meng explored [2+2+2] cyclization of alkynes via visible light catalysis [193] (Scheme 41). These two methods provided a new direction for visible light promoted difunctionalization of alkynes.

In this review, we have summarized visible light induced difunctionalization reactions of alkynes in which various recent significant advances are presented, particularly for organic synthesis.

Due to the powerful redox ability of visible light photocatalysts, the radical strategy is one of the most preferred to achieve difunctionalization. A variety of useful skeletons have been obtained by these methods. However, generally, internal alkynes and aliphatic alkynes cannot be efficiently transformed into the corresponding products, and more efforts are needed to promote the regio- and stereoselectivity. In order to understand these kinds of reactions, more data and mechanistic studies are essential. 1, 3-Dipole derivatives can be generated via visible light photocatalysis for the synthesis of heterocycles. However, these methods are limited by particular types of precursors. In addition, the single electron oxidation of alkynes can be utilized in visible light promoted difunctionalization of alkynes, which provides a new direction for alkyne difunctionalization. However, to overcome the high reductive potential of alkynes, the design of new visible light absorbing catalysts for these transformations is necessary.

Visible light induced transition metal catalyzed difunctionalization of alkynes has also been developed in recent years. In these cases, terminal alkynes and internal alkynes could be transformed into the desired products with high regioselectivity. However, several challenges still remain. For instance, the reactions of aliphatic alkynes are still not efficient. Moreover, high stereoselectivity still needs to be achieved. The earth abundant transition metals, such as iron, cobalt, and nickel, are ideal candidates for use in these transformations to meet the need for green chemistry.

Overall, we hope that this review is an informative tool to develop visible light induced alkyne difunctionalization reactions. We strongly believe that the unique reaction processes and mild conditions can provide inspiration and guidance for future investigations.
