It is always a high priority to pursue high-efficiency green energy technology in response to the drastic changes in the world's energy landscape [1-3]. Typically, electrochemical water splitting is considered to be one of the most promising strategies for environmentally friendly energy conversion [4-6]. The oxygen evolution reaction (OER), as a necessary process in water splitting, depends on continuing advances in the technology of cost-effective efficient electrocatalysts [7-11]. Currently, noble metal oxides (such as iridium/ruthenium oxides) hold the record for OER catalysts in alkaline solution [12]. However, their high cost, scarcity, and poor stability impede their widespread application [13, 14]. Therefore, considerable efforts should be made to explore cost-effective and high-performance alternative electrocatalysts for water oxidation.

Materials based on first-row transition metals are regarded as potential candidates and have sparked worldwide interest because of their natural abundance, catalytic activity, low cost, and excellent stability [15-17]. Among them, nickel-based compounds, including nickel hydroxides [18, 19], nickel oxides [20], nickel sulfides [21], nickel phosphides [22, 23], and nickel nitrides [24, 25], are representative materials that have achieved great progress as competent electrocatalysts for water oxidation reaction because of their excellent catalytic activity and remarkable electrochemical stability. In spite of their fascinating features, the OER catalytic properties of bulk Ni-based materials are still not satisfactory because of limited electroactive sites and restricted electron/ion transfer. Hence, appropriate optimization measures must be undertaken on the Ni-based materials to increase their electroactive areas and accelerate catalytic kinetics by enhancing electronic conductivity to achieve high catalytic activity. Various Ni-based electrodes have been reported as a result of developing favorable well-aligned architectures and combining them with conductive matrixes or heteroatom doping. For example, Chen and coworkers [26] fabricated a Ni/graphene electrocatalyst by combining N-doped graphene film and nickel nanoparticles through a heterogeneous reaction process and achieved a current density of 16.3 mA cm^–2 at an overpotential of 400 mV and a Tafel slope of 188.6 mV dec^–1 for OER. Wang et al. [27] designed a Ni foam/porous carbon/anodized Ni (NF/PC/AN) electrode derived from zeolitic imidazolate framework-8 (ZIF-8), achieving an overpotential of 407 mV at a current of 5 mA cm^–2 in alkaline solution. Despite the enhanced catalytic performance for OER, the aforementioned nickel-based catalysts are still not competitive with noble metal oxides. On one hand, the performance of Ni-based catalysts without organized or tailored arrays is largely limited because the aggregation reduces active sites during the OER process. The accessible areas in the form of planar nanoarchitectures and powders for electrolyte contact are restricted, resulting in limited ion diffusion and charge transfer [28, 29]. In contrast, binder-free 3D porous Ni architecture can improve electrocatalytic activity by increasing accessible areas and electrochemical active sites. Moreover, cross-linked architectures provide richer and shorter transfer channels for electron transportation and ion diffusion, leading to enhanced conductivity of catalysts. Paul et al. [30] reported hexagonal arrays of cylindrical nickel with enhanced OER performance. Their fabrication method is usually time-consuming and requires several procedures. Meanwhile, commercial nickel foam has been widely tested as a binder-free OER catalyst; however, its branch diameter and pore size are too large to provide high performance. Under such circumstances, a one-step synthesis method must be established to fabricate highly porous Ni-based arrays of electrocatalysts with high catalytic activity and good durability.

In this work, we rationally designed 3D nickel arrays with a cross-linked porous structure as efficient free-standing electrocatalysts for OER in alkaline solution by a facile one-step electrodeposition method. Owing to the enhanced electronic conductivity, increased active areas, and tight integration with the substrate, the 3D nickel arrays exhibit remarkable electrocatalytic performance for OER with a low overpotential of 496 mV at 50 mA cm^–2 and an extreme Tafel slope of 43 mV dec^–1 in an alkaline medium. Moreover, the 3D nickel arrays also show superior long-term stability with no decay after 24 h. Our facile synthesis method and rational design may provide a new approach for construction of advanced and efficient non-noble-metal-based electrocatalysts for OER.

The 3D porous nickel arrays were prepared by a facile electrodeposition method at room temperature. The synthesis procedure was performed in a typical two-electrode system. For the first step, 0.2 mol NH₄Cl and 0.01 mol NiCl were dissolved in 100 mL deionized water at a pH value of 3.5 to use as the electrolyte. Then, a piece of clean nickel foil (2 cm × 3 cm) was directly used as the working electrode while a platinum sheet was used as the counter electrode, where the distance was about 1 cm. The electrodeposition was conducted at a constant current of 2 A cm^–2 for 80 s. After being rinsed with deionized water and ethanol, the as-prepared samples were dried at 60 ℃ overnight. A 1.0 cm × 1.0 cm piece of commercial nickel foam was used for comparison; the commercial foam was ultrasonically cleaned in 1 mol L^–1 hydrochloric acid, ethanol, and deionized water, successively, and then used without any further processing.

Morphologies and microstructures of the samples were obtained by field emission scanning electron microscopy (FESEM, SU8010) and high-resolution transmission electron microscopy (HRTEM, JEM 2100F). The X-ray diffraction (XRD) patterns, which were used to confirm the crystal structure, were obtained with Cu K_α radiation (Rigaku D/Max-2550).

The OER performance of all samples was tested using an electrochemical workstation (CH Instrument 660D) with a typical three-electrode configuration at 25 ℃. The relative tests were also supported by the NEWARE system. The test samples were used directly as the working electrodes, while a platinum foil and a standard Hg/HgO electrode were used as the counter electrode and reference electrode, respectively. The electrolyte used in the experiments was a 1 mol L^–1 KOH aqueous solution. All potentials were referred to a reversible hydrogen electrode (RHE) based on the equation E_(RHE) = E_(Hg/HgO) + 0.9254. Twenty cycles of cyclic voltammetry (CV) were provided at the rate of 100 mV s^–1 to stabilize the experimental system. Then the linear sweep voltammetry (LSV) curves were obtained at a scan rate of 5 mV s^–1 in the potential range of 0 to 1 V versus the Hg/HgO electrode. The Tafel curves were derived from the LSV curves at a scan rate of 1 mV s^–1. Electrochemical impedance spectroscopy (EIS) was conducted for each sample at correlative polarization voltage with a current density of around 10 mA cm^–2, ranging from 0.01 to 100 kHz. Moreover, long-term chronopotentiometry measurements were continuously performed at a current density of 10 mA cm^–2 for 24 h to estimate the stability of samples.

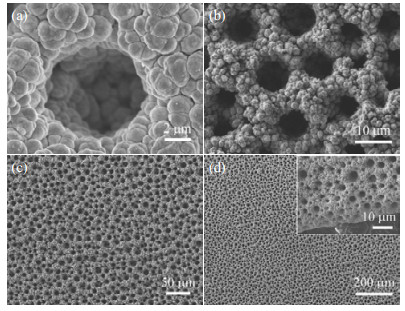

The morphologies of all the samples were determined from SEM images. Fig. 1 illustrates the electrodeposited 3D porous nickel arrays, which are tightly and uniformly grown on the nickel foil substrate. The nickel arrays display a rough surface and show a highly porous structure with cross-linked nickel branches that are composed of numerous nickel particles with diameters ranging from 0.5 to 1.5 μm. As clearly shown in Fig. 1(a) and 1(b), the typical pore size of the as-prepared nickel film is in the range from 5 to 10 μm. The free-standing cross-linked nickel branches exhibit general widths of about 4–10 μm. The specific sizes of both branches and particles in 3D nickel film can be adjusted by controlling the electrodeposition parameters including current densities and reaction time. It must also be mentioned that all the pores in the 3D nickel arrays, successfully formed both on the surface and in the inner space, are linked together and contacts extend in all directions, forming a 3D interconnected porous network (inset in Fig. 1(d)). The accompanying hydrogen evolution that occurs during the electrodeposition process plays a critical part in the formation of the cross-linked porous nickel arrays. The bubbling hydrogen, generated from the cathodic reactions on the nickel electrode, constitutes a continuous pathway from the substrate to the interface in this process. The growth of nickel is limited by the hydrogen bubbles, because no nickel ions are available to deposit nickel in the hydrogen bubbling pathway. It should be pointed out that hydrogen not only evolves from the nickel substrate, but also arises from the deposited nickel film, leading to large pores and nanopores, respectively, through the 3D nickel film. In this synthesis procedure, hydrogen bubbles serve as dynamic templates for the construction of 3D cross-linked porous nickel arrays.

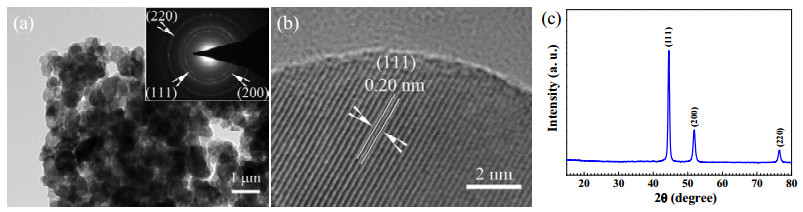

Transmission electron microscopy (TEM) examinations were conducted to obtain further insights into the detailed microstructures of the 3D porous nickel arrays. As indicated in Fig. 2(a), a nickel branch with a highly porous structure is composed of numerous nanoparticles of 200–400 nm in size, and some pores are diffusely distributed on the branch surface. The fact that the nickel phase has a well-defined polycrystalline nature is verified by the selected area electron diffraction (SAED) pattern, where the diffraction rings of (111), (200), and (220) are identified. The measured lattice spacing in Fig. 2b is about 0.20 nm, in agreement with the (111) planes of nickel phase (JCPDS 04-0850). The crystallographic structure of 3D nickel arrays is further confirmed by XRD patterns. All diffraction peaks in Fig. 2(c) match well with the nickel phase (JCPDS 04-0850). The identified peaks at approximately 44.5°, 51.8°, and 76.4° are indexed to the planes of (111), (200), and (220) belonging to the nickel phase, suggesting the successful deposition of 3D nickel arrays on the nickel foil substrate.

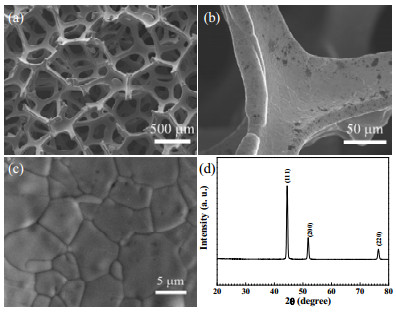

For comparison, the morphology and structure of nickel foam were also monitored by SEM images and XRD patterns, respectively. As shown in Fig. 3(a)–(c), the commercial nickel foam exhibits a porous interconnected structure made up of solid nickel branches ranging from 50 to 80 μm with a smooth surface. It can be clearly observed that the average pore size is around 200–500 μm, which is much larger than that of our 3D cross-linked nickel film. The nickel particles with joint connection on the smooth surface are generally in the size range of 5–10 μm, almost 10 times larger than those of our 3D nickel arrays. The XRD pattern in Fig. 3(d) confirms the crystal structure of the nickel foam. All diffraction peaks are characteristic peaks of nickel phase (JCPDS 04-0850), in agreement with the planes of (111), (200), and (220), respectively. It is worth noting that the peak width of 3D nickel film shows an evident broadening trend compared to that of nickel foam, which is in accordance with the reduced nanoparticle size and the successful micro-nano construction of the 3D porous nickel film. Above all, these results demonstrate conclusively that 3D cross-linked porous nickel arrays have been successfully prepared by a facile electrodeposition method. Moreover, our electrode rational design can be readily extended to construct other 3D metal nanostructures for a wide range of applications in energy conversion and storage.

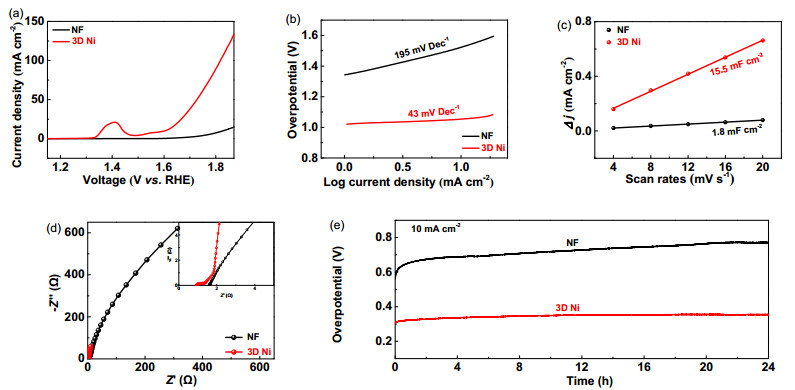

The electrochemical properties of 3D porous nickel arrays (denoted as 3D Ni) as electrocatalysts for OER were further investigated in a typical three-electrode system. Nickel foam (denoted as NF) was also investigated as comparison. The catalytic performance of 3D Ni and NF for OER was first investigated via LSV as shown in Fig. 4(a). It is not accurate to use an overpotential at the current density of 10 mA cm^–2 for 3D Ni owing to the existence of the huge redox peak. The 3D Ni arrays exhibit the best OER performance with the extremely low overpotential of 496 mV (vs. RHE) at 50 mA cm^–2, which is superior to the NF (597 mV vs. RHE at 10 mA cm^–2). Notably, the 3D Ni shows higher current densities than the NF at the same overpotential. This indicates that the cross-linked porous nanostructures are more favorable for the catalytic improvement of OER, which is further proven by Tafel plots (Fig. 4(b)). The Tafel slopes are determined to assess the OER kinetics and can be derived from the LSV curves according to the equation η =a + b log j (where η, j, and b represent the overpotential, current density, and Tafel slope, respectively). The Tafel equation is applicable to the region where the values of polarization are high. At low values of polarization, the dependence of current on polarization is usually linear, rather than logarithmic. As a result, the current range between 1 and 10 mA cm^–2 is collected. A smaller Tafel slope indicates faster kinetics of the OER, meaning a more rapid increase of current density with the same enhancement of overpotentials [31, 32]. The Tafel slope of 3D Ni is approximately 43 mV dec^–1, which is much lower than that of NF (195 mV dec^–1), demonstrating its faster OER process.

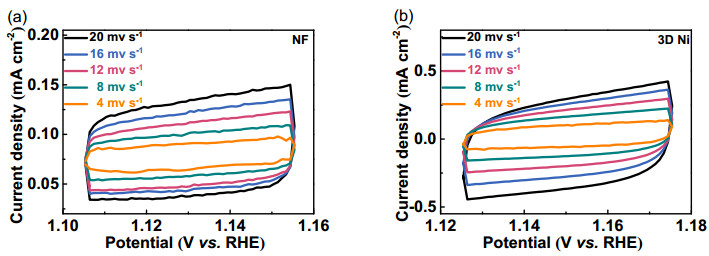

The electrochemically active surface areas (ECSA) for 3D Ni and NF are estimated from the electrochemical double-layer capacitances (C_dl) of two samples to explain the enhancement of catalytic performance for OER [12, 33]. Plots in Fig. 4(c) are obtained by measuring the non-Faradaic capacitive current in agreement with double-layer charging from the cycling voltammograms (CVs) at different scan rates (Fig. 5). The ECSA is linearly proportional to the C_dl values and is equal to half of the slope value. It is evident that the highest capacitance (15.5 mF cm^–2) is achieved by the 3D Ni electrode, and that this is much larger than that of the NF (1.8 mF cm^–2), demonstrating the increased active areas and hence better electrocatalytic properties of 3D Ni for OER. Moreover, the electrochemical behavior of samples in the OER process is revealed by EIS at an overpotential of 195 mV. As presented in Fig. 4(d), the intercept of the X-axis for 3D Ni is smaller than for NF in the high-frequency region, implying that 3D Ni possesses smaller bulk resistance, faster charge transfer, and faster catalytic reaction kinetics. The rational design of the cross-linked porous structure provides considerable improvement of the electrocatalytic performance for OER: (1) Direct growth of 3D Ni arrays on the nickel foil substrate ensures high electrical conductivity and exposes more reaction sites while avoiding the use of polymer binders [34, 35]; (2) the cross-linked 3D nickel arrays with their highly porous structure increase active areas and promote sufficient contact with the electrolyte, dramatically accelerating ion diffusion [36, 37]. The open porous framework of 3D Ni arrays promotes the penetration of electrolyte and the release of oxygen bubbles. Meanwhile, the cross-linked skeletons can serve as channels to achieve a short path-length for electron transportation and ion diffusion, leading to reduced bulk resistance and faster catalytic kinetics [38-40]. In addition, a long-time chronopotentiometry measurement was carried out at 10 mA cm^–2 for 24 h to evaluate the stability of the samples. The curve of 3D Ni remains flat while the curve of NF presents an obvious upward trend, demonstrating that the 3D Ni possesses lower overpotential and better durability in the long-term OER process. Above all, we can confidently conclude that the 3D Ni is an efficient electrocatalyst with superior catalytic performance for OER and excellent stability in alkaline solution, which opens up the potential to design advanced catalysts based on the cross-linked porous architecture for widespread applications in energy storage and conversion.

We have demonstrated that the 3D nickel arrays produced by a versatile one-step electrodeposition method are robust, high-efficiency electrocatalysts. The rational design for interconnected highly porous construction allows larger active surface area, richer transport channels for electron/ion transfer, and improved electron conductivity. The nickel arrays are firmly integrated with the Ni substrate, ensuring good mechanical stability. Moreover, the proposed fabrication approach is facile and applicable to various conductive supports and porous morphology. Thus, the as-obtained 3D nickel arrays achieve superior electrochemical performance with a lower overpotential of 496 mV at 50 mA cm^–2, a smaller Tafel slope of 43 mV dec^–1, and long-time durability for 24 h. Our work has demonstrated a promising approach for design of advanced transition metal electrocatalysts and may inspire construction of various other porous materials applicable in electrocatalysis.
