Cobalt phosphide nanocage@ferric-zinc mixed-metal phosphide nanotube hierarchical nanocomposites for enhanced overall water splitting
Xiaowei Hua, Yongheng Yina, Wei Liua, Xingwang Zhangb, Hongxiu Zhanga
a. Key Laboratory of Functional Nanomaterials and Technology in Universities of Shandong, School of Chemistry and Chemical Engineering, Linyi University, Linyi 276005, Shandong, China;
b. Key Laboratory of Biomass Chemical Engineering of Ministry of Education, College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, Zhejiang, China
* Corresponding author. Zhang Xingwang, Tel/Fax: +86-571-87952525; E-mail: xwzhang@zju.edu.cn;
Zhang Hongxiu,Tel/Fax: +86-539-7258620; E-mail: zhanghongxiu@lyu.edu.cn
This work was supported by the Natural Science Foundation of Shandong Province (ZR2018BB061, ZR2018BB060, ZR2018LB004)
Abstract: Hierarchical nanostructures have attracted widespread interest owing to their unique properties compared to their bulk counterparts. Thus, they are considered promising electrocatalytic materials. In this work, a novel hierarchical porous nanocomposite of cobalt phosphide nanocage@ferric-zinc mixed-metal phosphide nanotubes (denoted CoP@ZnFeP) was fabricated using a self-assembly approach. Because of their structural and compositional merits, the as-prepared phosphide hybrids have abundant catalytic active sites and high porosity for facile mass diffusion. In an alkaline electrolyte, the CoP@ZnFeP flower-like hybrids displayed enhanced catalytic activity for the hydrogen evolution reaction and the oxygen evolution reaction compared with a mechanical mixture of CoP and ZnFeP nanoparticles. The CoP@ZnFeP hierarchical nanocomposites also showed excellent activity for the overall water splitting reaction, yielding a water-splitting current of 10 mA/cm2 on the application of just 1.6 V, as well as excellent durability (24-h long-term operation) in a two-electrode system. Our design methodology may create opportunities to search for highly efficient and robust non-precious metal catalysts with applications in high-performance energy conversion and storage devices.
© 2019, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Hierarchical structure    Phosphide    Electrocatalysis    CoP@ZnFeP    Water splitting
磷化钴@铁-锌双金属磷化物多级纳米复合物的制备及其电催化水分解性能
胡晓炜a, 尹永恒a, 刘伟a, 张兴旺b, 张红秀a
a. 临沂大学化学化工学院, 功能纳米材料与技术山东省高校重点实验室, 山东临沂 276005;
b. 浙江大学化学工程与生物工程学院, 生物质化工教育部重点实验室, 浙江杭州 310027
摘要:氢能源因其储量丰富、高效、零污染等特性而受到广泛关注.电解水产氢作为一种有效的获取氢能源的方式成为当前研究的重点.但由于电极表面反应过电势的存在极大增加了电解水的能耗,因此需要开发高效的电催化材料以提高电解水反应动力学.考虑到实际应用,设计和构筑在同一电解液中同时具有高效催化产氢和释氧能力的双功能催化材料更为重要且更具挑战.目前,越来越多的非贵金属基双功能催化材料被开发和报道,比如过渡金属硫化物、氧化物、层状双金属氢氧化物、碳化物、氮化物和磷化物等,其中又以磷化物的研究更为广泛.金属有机骨架化合物(MOFs)因其具有独特的性能(孔隙率高、超高比表面积、可调控的化学组分和孔道结构等)在能源转化等领域得到广泛应用.但是,基于MOFs材料转化的多组分过渡金属磷化物应用于全分解水体系的报道还比较少.先前的研究表明,优化催化材料的微纳结构和化学组成是提高材料催化性能的关键.我们利用三步法(晶体生长、自组装和磷化)设计并制备了一种基于MOFs转化的新型分级纳米复合材料CoP@ZnFeP.透射电子显微镜(TEM)结果显示,自组装形成的花状Co3O4@Fe-MOF-5中空结构在磷化后形貌能够很好地保持.X射线衍射(XRD)表明,CoP@ZnFeP纳米复合物是由大量的混合纳米晶体组成,主要包括Co2P,ZnP2和Fe2P.在碱性(1.0 mol/L KOH)条件下,CoP@ZnFeP纳米复合物表现出优异的催化产氢(HER)和释氧(OER)性能,其释氢和产氧的启动电位分别为-50和148 mV(vs.RHE),相应的Tafel斜率分别为76和53.9 mV/decade.优异的电催化性能主要归功于复合材料的多级纳米结构组元(纳米粒子、纳米笼和纳米管),其有序的多孔结构和大的比表面积有利于电解液的渗透、气体的扩散和电子的转移.作为对比,我们利用相似方法制备了CoP和ZnFeP纳米粒子的机械混合物(CoP/ZnFeP).测试数据表明,CoP@ZnFeP分级复合材料的催化性能优于CoP/ZnFeP机械混合物.鉴于CoP@ZnFeP复合材料优异的催化性能,我们将其应用于全分解水体系.在两电极体系中,达到10 mA/cm2电流密度仅需1.6 V电压,表明材料具有优异的全分解水性能.同时该复合物也显示出较好的稳定性,经过24 h连续水解后,电解电位仅升高70 mV.但同时我们也注意到电极表面剧烈产生的气泡会对电极材料的稳定性有严重影响.此项研究可为设计高效的非贵金属催化材料应用于能源转化和储存等领域提供较好的思路和借鉴.
关键词多级结构    磷化物    电催化    CoP@ZnFeP    水分解

1 Introduction

The energy crisis and environmental problems have increased the urgency for the development of renewable energy sources. Hydrogen is considered one of the most promising candidates because of its high energy density and non-polluting characteristics [1]. Among the many different hydrogen production technologies, water splitting is an appealing technique for energy conversion and storage, functioning by converting solar or wind-derived electricity to hydrogen fuel [2-4]. At present, challenges remain in commercialized water electrolysis systems. The practical applications of water-splitting are very limited because splitting reactions, including the anodic oxygen evolution reaction (OER) and cathodic hydrogen evolution reaction (HER), are all strongly uphill reactions with large overpotentials (actual cell voltage is 1.8–2.4 V, whereas the thermodynamic value is 1.23 V) [5]. Therefore, it is urgent and meaningful to explore efficient electrocatalysts for the water splitting system. Noble metal (Pt or Ir)-based catalysts have long been the benchmarking materials for HER and OER, but they are costly and scarce. Therefore, the design and construction of efficient bifunctional catalysts via the exposure of more HER and OER catalytically active sites simultaneously in the same electrolyte (alkaline, acid, or neutral) are urgently needed and remain a challenge. Currently, low-cost earth-abundant transition metal compounds have been developed as possible alternatives, especially for use in alkaline electrolytes [6, 7].

To date, some non-noble metal-based bifunctional catalysts have been thoroughly explored in alkaline electrolytes [8, 9], including transition-metal based sulfides (e.g., NiCo2S4 and Ni3S2)[10, 11], oxides (e.g., NiCo2O4)[12], layered double hydroxides (LDH) (e.g., NiFe LDHs) [13-16], carbides [17], nitrides [18], and phosphides [19-21]. It should also be mentioned that the catalytic performances of these non-noble-metal-based nanomaterials have not been maximized, and, overall, the water splitting reaction still suffers from a high overpotential and sluggish reaction rate. Among the earth-abundant transition metal compounds, the transition metal phosphides have been intensively studied and are promising candidates for overall water splitting reaction [8, 22, 23]. Previous studies have indicated that optimizing the nanostructure and composition of the catalysts is key to maximizing the catalytic efficiency [24]. In the past decades, materials based on a metal–organic framework (MOF) have been shown to provide a suitable platform for designing porous nanostructure catalysts for water splitting because of their high metal content, ultra-high porosity, high specific surface areas, tunable pore structures, and easily functionalized surfaces [25, 26]. Inspired by these diverse configurations, MOF materials have been widely used in many fields, including gas storage/separation and chemical sensors [27-29]. More importantly, they serve as appealing sacrificial precursors or templates to prepare functional materials [30-32]. However, the design of transition metal phosphides derived from multi-component MOF structures as water splitting catalysts is still rarely reported.

Herein, we report a stepwise strategy to design and fabricate novel hierarchically porous cobalt phosphide nanocage@ferric-zinc mixed-metal phosphide nanotubes (CoP@ZnFeP) hollow nanocomposites derived from MOF precursors as overall water splitting electrocatalysts. The hierarchical structures are composed of CoP nanocages and ZnFeP nanotubes. The as-prepared flower-like CoP@ZnFeP hybrids show remarkable electrocatalytic activity for the HER and OER in 1.0 mol/L KOH electrolyte, having onset overpotentials of 50 and 148 mV and Tafel slopes of 76 and 53.9 mV/decade, respectively. The CoP@ZnFeP flower-like hybrids display enhanced catalytic activity compared with the mechanical mixture of CoP and ZnFeP particles. Importantly, the catalytic performance is comparable to that of commercial noble-metal catalysts. The CoP@ZnFeP hierarchical nanocomposites also show excellent activity toward overall water splitting, yielding a 10 mA/cm2 water-splitting current on the application of just 1.6 V (24-h continuous galvanostatic electrolysis) in the two-electrode system. The excellent performance is mainly due to the nano-building-blocks (nanocages, nanoparticles, and nanotubes), which have a large surface area and well-defined porous channels that are advantageous for mass and charge transport in the electrolyte. This design methodology for mixed-metal phosphides derived from MOFs may create the opportunities to search for highly efficient and robust non-precious metal catalysts for applications in high-performance energy conversion and storage devices.

2 Experimental
2.1 Sample preparation

The Co3O4 nanocages were prepared according to a previously reported method [33]. In a typical synthesis, two solutions were first prepared. Solution A contained 1 mmol Co(NO3)2·6H2O dissolved in 10 mL distilled water with stirring, and solution B contained K3[Co(CN)6]2 (0.04 mmol) and polyvinylpyrrolidone (PVP) surfactant (0.3 g) dissolved in 10 mL distilled water. The transparent red solution A was slowly added to solution B and aged for 24 h at room temperature. The resulting precipitate was washed several times with distilled water and ethanol, respectively, and then dried overnight at 60 ℃ under vacuum. The resulting powder was finally decomposed at 400 ℃ for 1 h in a N2 atmosphere in an oven. All chemicals were of analytical purity and used without further purification.

The hierarchical Co3O4@Fe-MOF-5 nanocomposites were prepared according to our previously reported method [34]. In a typical procedure, Co3O4 nanocages (25 mg), Fe(acac)3 (75 mg), Zn(NO3)2·6H2O (58 mg), and benzene-1, 4-dicarboxylic acid (H2BDC, 2 mg) were dissolved in dimethylformamide (DMF)/ethanol solution (2 mL, v/v = 5/3). This solution was treated using ultrasonic waves for 30 min. The mixed solution was transferred to a 50-mL Teflon-lined autoclave and heated at 100 ℃ for 6 h. After cooling to room temperature, the hierarchical Co3O4@Fe-MOF-5 nanocomposites were obtained after centrifugation and washing several times with distilled water and ethanol, successively, followed by drying overnight (12 h) at 50 ℃ in a vacuum. For comparison purposes, Fe-MOF-5 was also prepared in the absence of Co3O4 nanocages in the DMF/ethanol solution.

The hierarchical CoP@FeZnP nanocomposites were prepared by phosphorization. In a typical procedure, a Co3O4@Fe-MOF-5 sample was placed in the center of a tube furnace, and a combustion boat containing NaH2PO2 (0.2 g) was placed in the upstream side of the quartz tube. Before heating, the tube was flushed with Ar. The center of the furnace was slowly elevated to 400 ℃ (heating speed = 1 ℃/min) under the protection of an Ar atmosphere. The synthetic process was carried out for 30 min. Finally, the tube was allowed to cool to room temperature. The obtained samples are denoted CoP@FeZnP. Note that NaH2PO2 can decompose, readily generating poisonous PH3 in the process.For comparison, the Co3O4 nanocages and Fe-MOF-5 were also treated with the same phosphorization procedure. That is, the cobalt phosphide (denoted CoP) and Zn-Fe metal phosphide (denoted ZnFeP) were also synthesized.

2.2 Material characterization

X-ray diffraction (XRD) measurements were carried out on a Shimadzu XRD-6000 X-ray diffractometer using Cu Kα radiation. X-ray photoelectron spectra (XPS) were obtained on an Escalab 250Xi (Thermo Fisher Scientific) X-ray photoelectron spectrometer. The calibration of the binding energy was carried out by setting the binding energy of the C 1s peak to 284.4 eV. The transmission electron microscopy (TEM) images were obtained using a field-emission TEM (2100F, Japan) coupled with an energy-dispersive X-ray spectrometer (EDX) at an accelerating voltage of 200 kV. To prepare the specimens for TEM measurements, the as-grown substrates were immersed in 2 mL of ethanol and sonicated for 10 s.

2.3 Electrochemical measurements

Catalyst suspensions in 1.0 mL of an ethanol/water (v/v =1:5) solution were prepared. In addition, 5 µL Nafion solution (0.5 wt%) was also added as a binder. For the electrode preparation, 10 µL of the catalyst suspension (10 mg/mL) was dropped onto the surface of a pre-polished glassy carbon electrode (GCE). The electrocatalytic activities of the samples for the OER and HER were studied in 1 mol/L KOH solution and recorded on an Autolab potentiostat (Metrohm Autolab, Netherlands) at ambient temperature. All tests were performed in a three-electrode electrochemical cell with a saturated Hg/HgO reference electrode and a graphite rod counter electrode. The prepared GCE electrodes were used as the working electrodes to investigate the electrocatalytic activities toward the HER and OER. Electrochemical impedance spectroscopy (EIS) was performed from 200 kHz to 50 mHz and analyzed by fitting the experimental results to equivalent circuits using the program NOVA 2.1. The double-layer capacitance (Cdl) of the hollow structures was obtained by applying cycle voltammograms over a range of scan rates (20–180 mV/s). The measurement system was calibrated against the reversible hydrogen electrode (RHE). The corresponding polarization curves were calibrated after iR correction.

3 Results and discussion
3.1 Characterization

The design strategy for the preparation of the CoP@ZnFeP hierarchical hybrid is illustrated in Fig. 1. In a nutshell, three steps involving crystal growth, self-aggregation, and phosphorization were carried out. The TEM images show that the Co3O4 crystals have a well-defined hollow cubic structure with a uniform size distribution (ca. 120 nm), as shown in Fig. 1b. The high-magnification TEM image (Fig. 1c) indicates that the nanocages have a porous surface and are composed of numerous nanoparticles. In the second step, the self-aggregation process was performed in a DMF/ethanol solution, and Co3O4@Fe-MOF-5 hierarchical structures were obtained. The TEM shows that the Fe-MOF-5 nanotubes grow out from Co3O4 nanocage to form flower-like shapes. The Co3O4 nanocage is located at the center, and several Fe-MOF-5 nanotubes protrude like petals. As shown in Fig. 1d and 1e, the Fe-MOF-5 nanotubes had a well-defined morphology with tube length of 400 nm, diameter of 100 nm, and shell thickness of 5–10 nm (Fig. S1, see the Supporting Information).

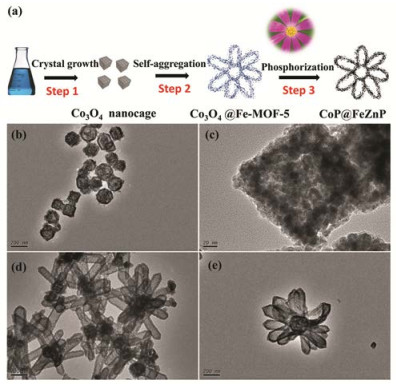

Fig. 1. (a) Schematic of the preparation of the CoP@ZnFeP hybrid. TEM images of the (b) Co3O4 nanocages and (c) magnification of one cage. (d) Co3O4/Fe-MOF-5 aggregates and (e) a typical hierarchical nanocomposite.

Furthermore, we noticed that the Fe-MOF-5 hollow nanotubes were only generated in the presence of the Co3O4 nanocages. In a control experiment performed under identical synthetic conditions but with no Co3O4 nanocages added, only irregular aggregates of Fe-MOF-5 particles formed (Fig. S2). Actually, the Co3O4 nanocage served as the surface for nucleation and could be a useful substrate for controlling the growth of the Fe-MOF-5 nanotubes. It was found that the morphology of the hybrids depends strongly on the amount of Co3O4. A detailed description of the morphological evolution of Co3O4@Fe-MOF-5 has been reported by us previously [34].

Since most MOFs are nonconductive, MOFs have been rarely applied in the field of electrocatalysis [35, 36]. In particular, to enhance the electrical conductivity of the Co3O4@Fe-MOF-5 hierarchical structure, the Co3O4@Fe-MOF-5 hybrids were generated by phosphorization via calcination. Typical TEM images show that the flower-like hollow structure was well maintained after calcination, and the nanotubes became highly porous, consisting of numerous nanocrystals (Fig. 2a and 2b). In particular, numerous nanocrystals filled the nanotubes, forming plentiful surface-active sites and increasing the surface area for the facile exchange of proton or oxygen-containing intermediates [37, 38]. The high-resolution (HR)-TEM images (Fig. 2c and 2d) reveal that the phosphide nanoparticles have diameters of ca. 10 nm. Additionally, elemental mapping was carried out to determine the distribution of Zn, Fe, and P in the nanotubes, and these measurements confirm the homogenous distribution (Fig. 2e). The corresponding EDX spectrum shows that Zn, Fe, and P are present with an atomic ratio close to 1:2.5:4 (Fig. S3). We also measured the whole elemental composition of the CoP@ZnFeP hybrids, as shown in Fig. S4. In general, Co, Zn, Fe, and P were detected, having an approximate molar ratio of 1:1.1:2.2:5.7. The chemical composition of the composites was further explored by XRD. A typical XRD pattern is shown in Fig. S5 and contains the main reflections from the CoP@ZnFeP hierarchical hybrid. The peaks at 26°, 26.7°, and 31.4° mainly originate from the ZnP2 phase and are matched well to the (1 0 4), (1 1 2), and (1 1 4) planes, respectively (JCPDF 24-1464) [39]. The peaks at 40.2° and 44.1° mainly originate from Fe2P and matched well with the (1 1 1) and (2 0 1) planes, respectively (JCPDF 51-0943) [40, 41]. All the other peaks are characteristic of Co2P (JCPDF 32-0306) and also matched well with the (1 2 1) and (2 0 1) planes [42, 43]. The results are consistent with the above-mentioned TEM analysis. The hierarchical CoP@ZnFeP nanocomposites were composed of numerous mixed nanocrystals.

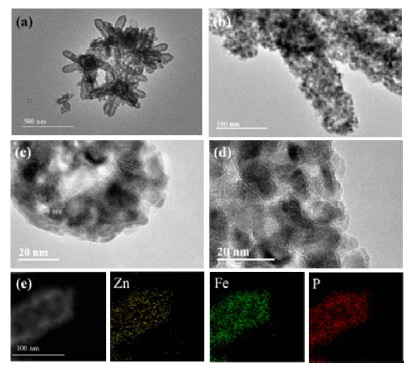

Fig. 2. (a) Low-magnification TEM image of the CoP@ZnFeP composite and (b) ZnFeP nanotubes. (c, d) HRTEM images of a typical ZnFeP nanotube composed of numerous nanocrystals. (e) TEM image and corresponding EDX elemental mapping.

Further insights into the valence and the surface chemical composition of CoP@ZnFeP were obtained through XPS measurements (Fig. 3). As shown in Fig. 3a, the Co 2p core level spectrum showed two major peaks, assigned to Co 2p3/2 and Co 2p1/2, respectively[44-46]. The peak can be fitted with four peaks. The dominant peaks around 782.1 and 797.8 eV were attributed to Co in Co2P. Fig. 3b shows the Zn 2p core level XPS spectra [47]. The binding energy of the Zn 2p3/2 peak was found at 1022.5 eV, and the other sharp peak at 1045.1 eV corresponds to Zn 2p1/2. The XPS spectrum of Fe 2p core level spectrum can be deconvoluted into three main peaks (Fig. 3c). The peaks with binding energies of 711.2 and 714.1 eV are assigned to Fe2P and, possibly, an Fe-based oxide. Another peak located at 724.5 eV contributed to the related satellite peak [48, 49]. The P 2p spectrum (Fig. 3d) contains two peaks at 129.1 and 130.2 eV, which are assigned to P 2p3/2 and P 2p1/2, respectively. The two binding energies are attributed to the phosphorus anions of the metal phosphides. The broader peak at 135 eV can be attributed to P–O species and is close to the values reported previously. The presence of O may arise from the superficial oxidation of the CoP@ZnFeP particles as a result of air contact [50].

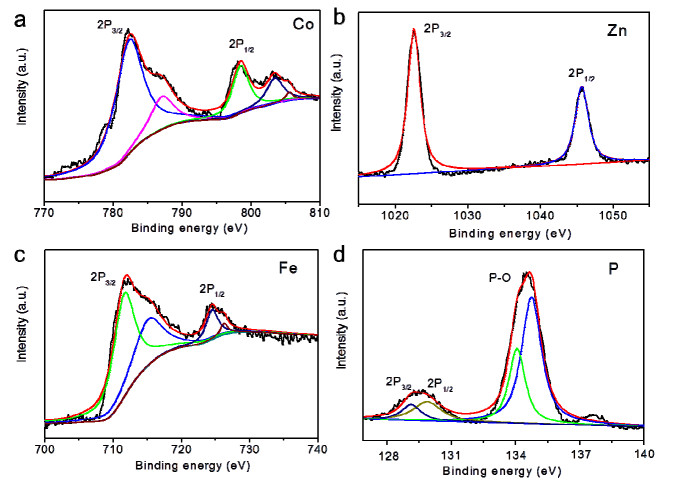

Fig. 3. (a) Co 2p, (b) Zn 2p, (c) Fe 2p, and (d) P 2p XPS spectra.
3.2 Electrocatalytic activity

The electrocatalytic HER activity of the CoP@ZnFeP hybrids was investigated in an alkaline electrolyte (1.0 mol/L KOH). The catalytic performance tests were conducted in a standard three-electrode system with a scan rate of 1.0 mV/s at room temperature. Fig. 4a shows the linear sweep voltammetry (LSV) curves of the CoP@ZnFeP hybrids, a mixture of CoP and ZnFeP (denoted CoP/ZnFeP), and commercial Pt/C (20%). It is evident that the 20% Pt/C catalyst shows the best HER activity. The CoP@ZnFeP hybrids exhibited a high current density under a low applied overpotential, where the onset potential was close to –50 mV (vs. RHE). The CoP@ZnFeP hierarchical structure reached a current density of –10 mA/cm2 at a potential of –148 mV (vs. RHE). It is evident that the mixture of Co2P and ZnFeP (CoP/ZnFeP) showed inferior HER catalytic performance. The onset potential was close to –100 mV (vs. RHE) and the mixture required a larger potential of –230 mV (vs. RHE) to deliver a current density of –10 mA/cm2. The significant intrinsic activities of different samples determined the difference in the HER activities, which were revealed by comparing the Tafel slopes. As anticipated, the Tafel value of the CoP@ZnFeP hierarchical hybrid was 76 mV/decade, which is lower than that of CoP/ZnFeP mixture (ca. 136 mV/decade, Fig. 4b).

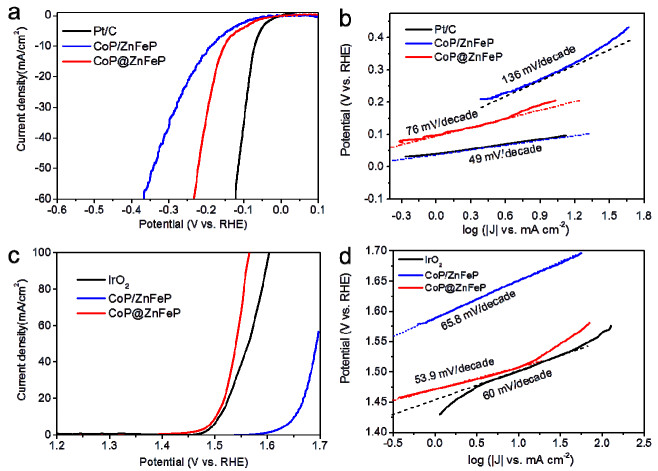

Fig. 4. (a, b) LSV and Tafel curves of the hollow CoP@ZnFeP hybrids, the mixture of CoP and ZnFeP (denoted CoP/ZnFeP), and the commercial Pt/C (20%) samples for HER; (c, d) LSV and Tafel curves for OER.

The electrocatalytic activities of the CoP@ZnFeP hierarchical hybrids for OER were also evaluated with a three-electrode electrochemical cell in 1.0 mol/L KOH solution. The polarization cures are shown in Fig. 4c. It was found that the CoP@ZnFeP hierarchical structure produced a small onset potential of 1.45 V (vs. RHE) and a high anode current density of 10 mA/cm2 at a potential of 1.50 V (vs. RHE) and was superior to that of IrO2. In contrast, the mixture of CoP and ZnFeP (CoP/ZnFeP) exhibited a low current density under the same applied overpotential, where the onset potential was close to 160 mV (vs. RHE). Meanwhile, the Tafel slope of the CoP@ZnFeP hierarchical structure catalyst was only 53.9 mV/decade, which is lower than that of IrO2 (60 mV/decade) and CoP/ZnFeP (65.8 mV/decade), as shown in Fig. 4d. The results further indicate that the hierarchical structure showed superior OER catalytic performance compared to their bulk counterparts. Indeed, the HER and OER catalytic activity of the CoP@ZnFeP hierarchical structure is superior to most of the bifunctional electrocatalysts that have been reported in alkaline electrolytes (Table S1). The CoP@ZnFeP hierarchical structure was composed of different nano-building-blocks (nanoparticles, nanocages, and nanotubes), which yielded a large surface area and well-defined porous channels that are advantageous for mass and charge transport in an electrolyte. Previous research has indicated that only surface atoms or a very thin layer of the active electrode material plays a dominate role in the electrochemical reaction. Therefore, the hierarchical hollow structure results in more accessible active surface area for electrolyte permeation, which is beneficial for enhancing the catalytic activity [51]. The superior performance may also be attributed to the synergism between the different crystalline phases (ZnP2, Co2P, and Fe2P). The results are also consistent with the scientific consensus that metal phosphides with complex metal compositions may improve the electrocatalytic activity [50, 52].

We further investigated the electrode kinetics using double-layer capacitance (Cdl) and electrochemical impedance spectroscopy (EIS) measurements. As shown in Fig. S6A and S6B, the Cdl values of the CoP@ZnFeP hierarchical structure were all higher than those of the mixture of CoP and ZnFeP (CoP/ZnFeP). Meanwhile, the EIS measurements showed the consistent order in charge-transfer resistance. As shown in Fig. S7, the EIS spectra show that the CoP@ZnFeP hybrid has a lower charge-transfer resistance, which results in faster OER and HER kinetics compared to that of the CoP/ZnFeP catalyst. Specifically, the Cdl values and equivalent circuit diagrams are different when the same catalyst was used for HER and OER. The difference may be ascribed to two factors. First, the reaction mechanism of the OER is more complicated than that of the HER because of the greater number of reaction steps. Secondly, the different active sites for the OER and HER may also be responsible for these differences, as reported previously.

Next, we utilized the CoP@ZnFeP hierarchical structure as a bifunctional catalyst. For the measurement of the catalytic activity for the overall water splitting reaction, a two-electrode configuration was used, and the CoP@ZnFeP hierarchical material was used as the anode and the cathode. The overall water-splitting characteristics in a two-electrode configuration during 24-h continuous galvanostatic electrolysis are shown in Fig. S8. Remarkably, the CoP@ZnFeP hierarchical hybrids showed excellent activity, yielding a 10 mA/cm2 water-splitting current on the application of a potential of just 1.6 V across the two electrodes. However, the potential changed by almost 70 mV over 24 h. In addition, the formation of bubbles is an issue that cannot be ignored. During continuous galvanostatic electrolysis, hydrogen and oxygen bubbles were vigorously generated on the electrode surface. Most of the bubbles did not leave the electrode surface immediately, and these adherent bubbles reduced the effective active area, thus leading to an increase in the applied potential. Worse still, the catalysts had an extremely low adhesive force to the surface, leaving the surface with ease[53]. Finally but importantly, the TEM images show that the flower-like hierarchical structure was basically maintained after long-term electrochemical testing (24 h), as shown in Fig. S9.

4 Conclusions

In summary, we report a stepwise strategy to design and fabricate novel hierarchically porous CoP@ZnFeP hollow nanocomposites. The as-prepared flower-like CoP@ZnFeP hybrids revealed remarkable electrocatalytic activity compared with the mechanical mixture of CoP and ZnFeP. The excellent performance is mainly due to the nano-building-blocks, which showed a large surface area and well-defined porous channels, which are advantageous for mass and charge transport in the electrolyte. Our study shows the potential of these novel hierarchical structures to function as highly active, bifunctional electrocatalysts for the overall water splitting reaction. This design methodology may create opportunities to develop highly efficient and robust non-precious metal catalysts for applications in high performance energy conversion and storage devices, such as batteries, supercapacitors, and electrocatalysis.
