Nanocarbons, such as graphene, nanodiamond, carbon nanotubes, activated carbons, and nanoporous carbons, are important metal-free catalysts for various catalytic reactions, including oxidative dehydrogenation [1-3], direct dehydrogenation [4-6], electrocatalysis [7, 8], oxidation [9, 10], and reactions in supercapacitors [11]. These nanocarbons possess many advantages such as high thermal stability, good conductivity, large porosity, and tunable functional groups, in comparison with traditional metal and metal oxide catalysts. However, studies on the active sites and catalytic mechanisms of nanocarbons are progressing slowly owing to their complex structure and the presence of various surface functional groups.

Recently, surface oxygenated functional groups are found to be the active sites of nanocarbons in oxidative dehydrogenation reaction, wherein the carbonyl groups acting as electron donors could active the C–H bonds [12-15]. Qi et al. [16, 17] identified and quantified the active sties of nanocarbon catalysts in ethylbenzene oxidative dehydrogenation by a chemical titration method, further demonstrating that the carboxyl groups were the main active sites. Further, carbon composite catalysts were reported to be active in direct ethylbenzene dehydrogenation [18-20]. All the surface oxygenated functional groups, defects, and heteroatom-derived groups make good contribution to the catalytic dehydrogenation. Moreover, biomass-derived carbon catalysts with rich oxygenated functional groups and high porosity are reported to exhibit high catalytic activity and stability in propane dehydrogenation (PDH) [21, 22]. However, the catalytic mechanism and active sites of these carbon catalysts in the direct dehydrogenation of alkane have not been totally clarified owing to the lack of fundamental studies on the nanocarbon materials at high reaction temperatures (~600 ℃).

Meanwhile, the structural property of carbon catalysts can influence the mass transfer of reactant and product molecules, and thus affect their catalytic performance [23-28]. Matos et al. [29] reported that the pore size of activated carbon supports (i.e., 0.8 nm for AC_M and 1.9 nm for AC_PC) could affect the catalytic performance of NiMo catalysts in ethylene hydrogenation; the catalytic stability of NiMo/AC_M was found to be much better than that of NiMo/AC_PC, because the activated carbon support with a smaller pore size permitted higher tolerance to carbon deposits. According to recent reports, only ordered carbons exhibit outstanding long-term stability in oxidative dehydrogenation reactions [30, 31]. Mesoporous carbons with a highly ordered structure exhibited superior catalytic performance in the oxidative dehydrogenation of ethylbenzene to styrene [31]. Very recently, heteroatom-doped mesoporous carbons with rich oxygenated functional groups and well-defined mesopores were reported to exhibit high catalytic performance in dehydrogenation reactions [32, 33]. However, the influence of the pore ordering on the catalytic performance of mesoporous carbons in PDH has not been investigated yet, owing to the lack of appropriate methods to prepare mesoporous carbons with controlled porous structures.

Herein, disordered, ordered, and highly ordered mesoporous carbons (MCs) were synthesized through a soft-templating method. The channels of the mesoporous carbons were controlled by adjusting the formaldehyde/resorcinol molar ratio. Then, the highly ordered mesoporous carbons were carbonized at three different temperatures (600, 700, and 800 ℃) and their activities in PDH were tested. The properties of these carbon materials were characterized by X-ray diffraction (XRD), N₂ sorption, transmission electron microscopy (TEM), thermogravimetric analysis (TGA), and X-ray photoelectron spectroscopy (XPS). Furthermore, the relationship between the oxygenated functional groups and propylene formation rates was established.

Mesoporous carbons were prepared through a facile low-temperature autoclaving method with the assistance of soft templates. Typically, 2.5 g of Pluronic F127 (BASF, WPAJ508B) was dissolved in 40 mL of ethanol/deionized water (1:1). Then, formaldehyde solution (37 wt%, 2.5 g), citric acid (2.9 g), and resorcinol (1.65 g) were added to the solution. After stirring for 1 h, the mixture was loaded into a Teflon-lined autoclave and heated at 60 ℃ for 72 h. After this time, a polymeric block solid was formed; this was washed with plenty of water and subsequently dried at 80 ℃ for 24 h. Then, the dried sample was carbonized under N₂ flow (heating rate, 1 ℃/min) and heated at 600 ℃ for 2 h. The resultant sample is denoted as MC-2-600 (the formaldehyde/resorcinol molar ratio of this sample is 2:1). The carbons prepared with the formaldehyde/resorcinol ratios of 1:1, 3:1, and 4:1, are denoted as MC-x-600 (x represents the formaldehyde ratio). For comparison, MC-2-600 was synthesized without adding Pluronic F127 and the resulting sample is referred to as MC-0-600.

The polymeric block solids (formaldehyde/resorcinol ratio is 2:1) carbonized under N₂ flow (heating rate, 1 ℃/min) and heated at 700 and 800 ℃ for 2 h are referred to as MC-2-y (y represents the carbonization temperature). Furthermore, as-synthesized MC-2-800 was oxidized with HNO₃ (6 mol/L) for 2 h and the resulting sample is denoted as MCO-2-800.

XRD was carried out on a Bruker D8 Focus diffractometer using Cu-K_α radiation (λ = 1.5418 Å , 40 kV, 40 mA). Nitrogen sorption isotherms were recorded on a Quantachrome NOVA 2000e sorption analyzer. All the samples were degassed at 200 ℃ for more than 6 h. TEM was carried out on a Jeol JEM-2800 microscope at 200 kV. TGA was performed on a TA SDT Q600 instrument. XPS was performed on a Kratos Axis Ultra DLD spectrometer. All the spectra were modified with reference to C 1s at 284.8 eV.

The PDH tests were carried out in a fixed-bed micro-reactor at atmospheric pressure. During the catalytic reaction, 0.2 g of the catalyst (450–950 μm) was packed into a tubular quartz reactor (5 mm internal diameter). The reactant gas consisted of propane (C₃H₈) and nitrogen (20 mL/min, V_propane:V_nitrogen = 1:19). The gas flow rate was 6000 mL/(g_cat·h). The products were detected by on-line gas chromatography (GC, SP-6890, FID detector). Propane conversion and propylene selectivity were calculated as follows:

Resorcinol-formaldehyde resin is known to be a good carbon precursor for preparing mesoporous carbons [34-38]. The formation of resin polymers is strongly dependent on the interaction between the resorcinol-formaldehyde resin and Pluronic F127, wherein the hydroxyl groups in the resole provide the driving force for interactions with the PEO blocks of Pluronic F127 through hydrogen bonding [34, 37]. Particularly, the macroscopic phase separation of the carbon precursor/F127 solid composites from the ethanol/water solvent is a key step in the preparation of ordered mesoporous carbons [37, 38]. The formaldehyde/resorcinol ratio plays a critical role in the regulation of the phase separation processes [24, 38]. To investigate the effect of formaldehyde/resorcinol ratio and the calcination temperature, carbon materials with different formaldehyde/resorcinol molar ratios were synthesized and subsequently calcined at different temperature.

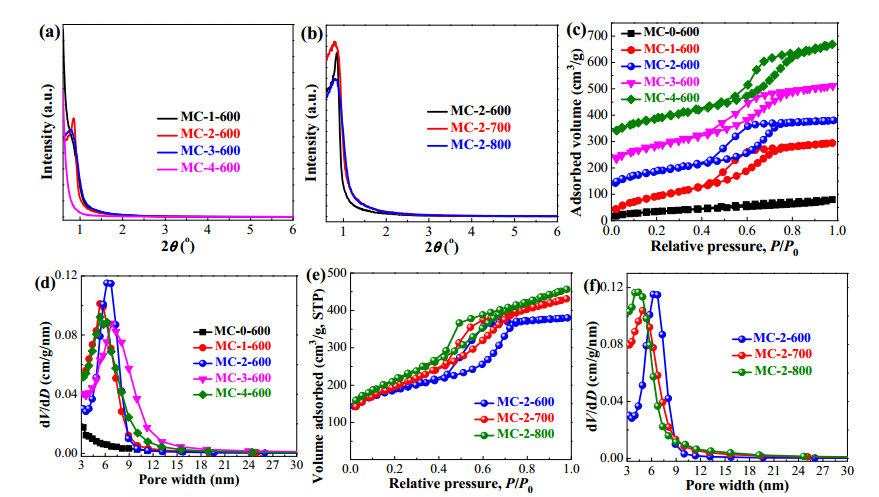

As shown in the low-angle XRD patterns (Fig. 1(a)), MC-2-600 and MC-3-600 possess an obvious diffraction peak at 2θ = 0.85° and 0.78°, respectively, which can be indexed to (100) diffraction, characteristic of hexagonal p6mm mesophase symmetry [25, 39]. However, MC-1-600 and MC-4-600 display almost no diffraction peaks. As for MC-2-y (Fig. 1(b)), their XRD patterns possess a clear diffraction peak, indicating a highly ordered mesostructure. The porosities of MCs are determined by N₂ sorption analysis (Fig. 1(c)–(f) and Table 1). MC-0-600 (prepared without Pluronic F127) exhibits a characteristic type Ⅲ sorption isotherm with a low surface area of 126 m²/g. With the addition of Pluronic F127, the N₂ sorption isotherms of MC-x-600 change to type Ⅳ with a hysteresis loop of type H1, characteristic of mesoporous materials [40, 41]. A step at P/P₀ = 0.5–0.7 can be observed in the isotherm of MC-x-600, which is attributed to the filling of mesopores due to capillary force [38, 40]. In Fig. 1(d), narrow pore size distributions can be observed for the MC-x-600 samples, and their pore sizes (calculated by BJH method) are mainly distributed in the 3–9 nm range. Particularly, the pore size distribution curve of MC-2-600 is narrower than those of the other samples, indicating the presence of more uniform pores in it [38]. The BET surface areas and pore volumes of MC-1-600, MC-2-600, MC-3-600, and MC-4-600 are higher than 600 m²/g and 0.60 cm³/g, respectively. Fig. 1(e) and (f) shows the N₂ sorption results of MC-2-y carbonized at different temperatures. The adsorbed N₂ volumes of MC-2-y increase with an increase in the calcination temperature, while their pore diameter decreases with increasing calcination temperature: MC-2-600 (604 m²/g, 0.60 cm³/g), MC-2-700 (669 m²/g, 0.67 cm³/g), and MC-2-800 (727 m²/g, 0.71 cm³/g), respectively. All the MC-2-y samples possess a narrow pore size distribution. Particularly, the mean pore sizes of MC-2-700 (4.9 nm) and MC-2-800 (4.4 nm) are slightly smaller than that of MC-2-600 (6.7 nm).

The micromorphology of MCs can be directly observed by TEM, as shown in Figs. 2 and S3. Notably, MC-2-600 and MC-3-600 display highly ordered mesopores (Fig. 2(a)–(c)). In particular, MC-2-600 presents a much better ordered long-range hexagonal arrangement with a pore size of ~6.5 nm, in good agreement with the N₂ sorption results (Fig. 1(d)). MC-1-600 (Fig. 2(d)) and MC-4-600 (Fig. 2(e)) show worm-like pores with poor ordering. Fig. 2(f) displays the TEM image of MC-0-600 with no obvious pores, indicating that Pluronic F127 plays a key role in the formation of mesopores. The pore ordering of MCs can be controlled by adjusting the formaldehyde/resorcinol ratio (Fig. S2). The TEM images of MC-2-700 and MC-2-800 in Fig. S3 exhibit a well-ordered mesoporous structure. This illustrates that the carbonization temperature (600–800 ℃) has little influence on the pore ordering of MCs, in good agreement with the XRD results in Fig. 1(b).

Carbon materials are known to possess many surface oxygenated functional groups such as ketone, carboxylic anhydride, lactone, carboxylic acid, ether, and phenol. The type and concentration of these functional groups can be controlled by post thermal treatment [42-46]. At a low carbonization temperature (~400 ℃), carboxylic anhydride groups would decompose [42, 43]. In the temperature range of 400–600 ℃, the main oxygenated functional groups including phenol and lactone groups would decompose. When the carbonization temperature is higher than 600 ℃, the main oxygenated functional groups including phenol, lactone, and carbonyl/quinone groups would progressively decompose at elevated carbonization temperatures [44-46]. As shown in Fig. 3(a) and Table 2, the TG curve of MC-2-600 shows a large weight loss of 8.4% between 600 and 1000 ℃. Upon increasing the carbonization temperature to 700 and 800 ℃, the weight losses of MC-2-700 and MC-2-800 are 3.2% and 1.7%, respectively, revealing a decrease in the surface functional groups with an increase in the carbonization temperature. Fig. S4 shows the TG curves of MC-2-y recorded in air atmosphere. The half oxidation temperatures of MC-2-600, MC-2-700, and MC-2-800 are 530.3, 560.6, and 601.0 ℃, respectively, indicating a decrease in the anti-oxidation properties of MCs with increasing carbonization temperature. The detailed trends of the weight losses and half oxidation temperatures of MC-2-y as a function of carbonization temperature are shown in Fig. 3(b). The weight losses of MC-2-y decrease with increasing carbonization temperature. These results demonstrate that the carbonization temperature can significantly affect the concentration of oxygenated functional groups on carbon materials.

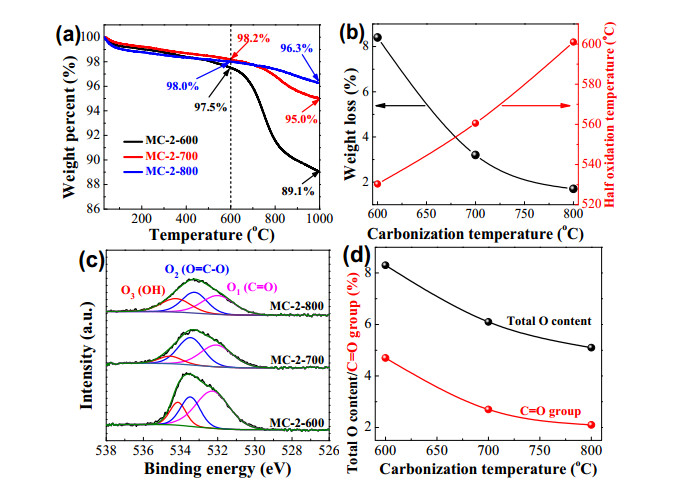

The survey XPS spectrum reveals that the main elements in MC-2-y are C and O (Fig. S5(a)). The O contents over MC-2-600, MC-2-700, and MC-2-800 are 8.3%, 6.1%, and 5.1%, respectively, in good agreement with the TG results (Fig. 3(a)). The O 1s XPS spectrum can be fitted with three peaks (Fig. 3(c)) corresponding to C=O (531.5–532.2 eV), O=C–O (532.5–533.0 eV), and OH (533.5–534.5 eV), respectively [30, 47, 48]. The C 1s spectra can be deconvoluted into five peaks at ~ 284.8 eV (C–C/C–H), ~286.2 eV (C–OH), ~286.9 eV (C=O), 289.0 eV (COOH), and 291.2 eV (π→π^*), respectively (Fig. S5(b)–(d)) [22, 29]. The proportions of these oxygenated functional groups are in good agreement with the oxygen contents estimated from the O 1s spectra. The total O and C=O contents as a function of carbonization temperature reveals that the concentrations of various oxygenated functional groups decrease with increasing carbonization temperature (Fig. 3(d)). However, there is no obvious linear relationship between the O=C–O and OH contents and carbonization temperature (Fig. S6).

The TG and XPS results demonstrate that the type and content of oxygenated functional groups on MCs could be modulated by controlling the carbonization temperature.

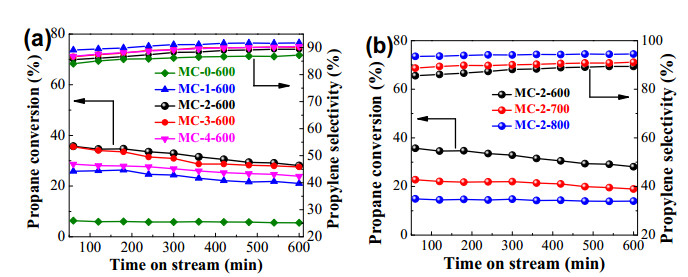

The PDH over the MCs were tested under the same conditions (0.2 g catalyst, 600 ℃, and 20 mL/min). The catalytic black test revealed that almost no propane conversion could be detected at 600 ℃. Fig. 4(a) shows the propane conversion and propylene selectivity of MCs, and the corresponding propylene yields are shown in Fig. S7. MC-0-600 shows a very low catalytic activity (~6% propane conversion). However, MC-1-600, MC-2-600, MC-3-600, and MC-4-600 exhibit much higher catalytic activities. In particular, MC-2-600 displays the highest initial propane conversion of 35.7% (the initial activities of MC-3-600, MC-1-600, and MC-4-600 are 35.5%, 28.7%, and 25.9%, respectively). Over a period of 600 min on stream, the catalytic activities of MC-2-600, MC-3-600, MC-1-600, and MC-4-600 decreased to 28.1%, 27.6%, 23.4%, and 21.0%, respectively. This result indicates that the MCs with better porous ordering exhibit higher catalytic activity. Noticeably, all the MCs possess high propylene selectivity (> 90%) after 600 min time on stream.

Fig. 4(b) shows the catalytic performance of MC-2-y carbonized at different temperatures. The catalytic activity of MC-2-y decreases with an increase in the carbonization temperature. The initial propane conversion of MC-2-600 (35.7%) is much higher than those of MC-2-700 (22.8%) and MC-2-800 (14.9%). During 600 min time on stream, propane conversions of MC-2-600, MC-2-700, and MC-2-800 decreased to 28.1%, 18.9%, and 14.0%, respectively. Meanwhile, the propylene selectivity of MC-2-y increased with increasing carbonization temperature; the propylene selectivities of MC-2-600, MC-2-700, and MC-2-800 are 85.6%, 88.7%, and 93.5%, respectively. This result demonstrates that the carbonization temperature can significantly affect the catalytic performance of carbon catalysts.

It is known that the structural properties of mesoporous carbons are remarkably dependent on the self-assembly between resorcinol-formaldehyde resin and Pluronic F127. When the synthesis is carried out without Pluronic F127, almost no mesopores are formed, as demonstrated by N₂ sorption results of MC-0-600 in Fig. 1. Therefore, almost no available active sites are accessible during the catalytic reaction [21, 22]. MC-0-600 exhibits a very low catalytic activity in PDH (Fig. 4(a)). With the addition of Pluronic F127, a large number of pores are introduced into the carbon materials, which increases the surface area considerably (as proven by N₂ sorption results and TEM images), and thus a large amount of surface active sites are available for the reaction. Therefore, MC-1-600, MC-2-600, MC-3-600, and MC-4-600 exhibited enhanced catalytic activity (Fig. 4(a)). Fig. 5(a) shows the specific activity and propane conversion of MCs as a function of formaldehyde/resorcinol ratio, which exhibit a volcano variation tendency. In particular, MC-2-600 and MC-3-600 exhibit much higher catalytic activities than those of MC-1-600 and MC-4-600, in good agreement with earlier studies that demonstrated that unique mesopores are favorable for mass transfer and can provide more active sites for the reaction [29, 49-51]. For comparison, activated carbon (920 m²/g) with many micropores was tested for PDH; it exhibited a high initial catalytic activity but low stability (Fig. S8). During 600 min time on stream, the propane conversion of activated carbons decreased from 30.6% to 6.0%. According to a previous investigation on the adsorption equilibrium, the C₃H₆ adsorption on micro/mesoporous materials mainly depends on Knudsen diffusivity, which is calculated using the equation, D_k = 9700r_p(T/M)^1/2 (r_p is the pore radius, M is the molecular weight of the adsorbate, and T is the temperature) [52]. MCs with a large pore radius possess large D_k for C₃H₆ diffusion, which is favorable for the transfer of product C₃H₆ molecules outside the pores. Therefore, the MCs have much higher catalytic stability than activated carbons.

Carbon materials possess many surface oxygenated functional groups such as ketone, carboxylic anhydride, lactone, carboxylic acid, ether, and phenol [42-46]. Table S1 lists the decomposition temperatures of these oxygenated functional groups from previous. After carbonization at temperatures between 600 and 800 ℃, the main oxygenated functional groups in MCs are C=O, O=C–O, and OH groups (Fig. 3(c)). Particularly, the concentrations of these functional groups can be controlled by adjusting the carbonization temperature (Fig. 3(c), Fig. 3(d), and Table 2). As shown in Fig. 5(b), the changes in the surface oxygen-containing groups would significantly influence the catalytic performance of carbon catalysts. More specifically, the catalytic activity of MCs decreases with increasing carbonization temperature, while the propylene selectivity increases with increasing carbonization temperature. At a low carbonization temperature of 600 ℃, the presence of acidic sites such as O=C–O groups would hinder propylene desorption and lead to deep cracking [53, 54]. With an increase in the carbonization temperature to 700 and 800 ℃, an increasing number of O=C–O groups are decomposed, resulting in an increase in the propylene selectivity. The specific activity as a function of carbonization temperature indicates that the propylene formation rates decrease with an increase in the carbonization temperature (Fig. 5(c)), owing to the decrease in surface active sites.

Carbonyl (C=O) groups are proposed to be the active sites in the oxidative dehydrogenation over carbon catalysts [12-16]. According to a recently reported catalytic mechanism, butane molecules were catalyzed by two C=O groups and each C=O group provided a single electron to graphene acting as the reservoir. Then, the residual hydrogen atoms reacted with the surrounding O from water, thus closing the oxidative dehydrogenation cycle [12]. Unlike oxidative dehydrogenation, direct dehydrogenation occurs in a condition without oxygen agents. In recent studies on carbon catalysts in direct dehydrogenation, the active sites and catalytic mechanisms are still not totally identified [18-22, 33-35]. In general, defects, heteroatoms, and surface oxygenated functional groups are regarded as the active sites for direct dehydrogenation reaction.

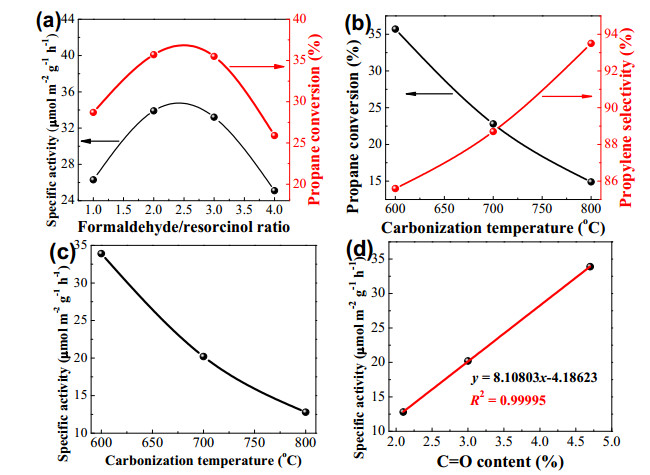

Herein, mesoporous carbons with highly ordered mesoporous structures were obtained by carbonization at three different temperatures (600, 700, and 800 ℃), and the concentration of C=O groups could be controlled well by adjusting the carbonization temperature (Fig. 3). Further, the excellent linear relationship between the C=O groups and specific activity was established (Fig. 5(d)), while no obvious linear relationship between the O=C–O and OH groups and specific activity was found (Fig. S9), confirming that the C=O groups are the most possible active sites on carbon materials in PDH.

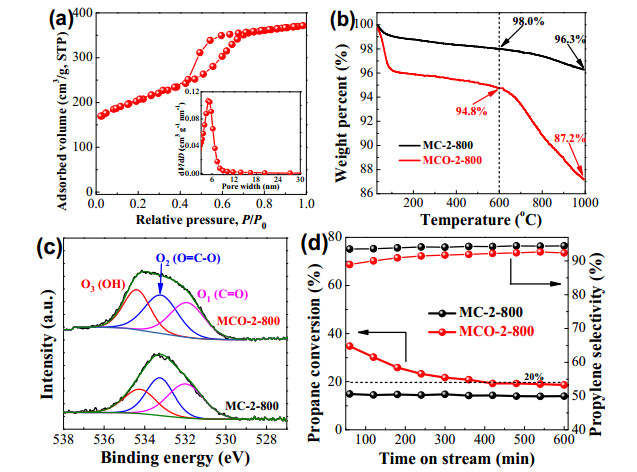

To verify the important role of oxygenated functional groups, MC-2-800 was further oxidized with HNO₃ to obtain MCO-2-800. As shown in Fig. 6(a), there is no obvious change in the structural properties of MCO-2-800 compared to those of the parent material. The TG curves (Fig. 6(b)) and O 1s XPS spectra (Fig. 6(c)) reveal an obvious increase in the oxygenated functional groups: while the weight losses for MC-2-800 and MCO-2-800 are 1.7% and 7.6%, respectively, the O concentrations of MC-2-800 and MCO-2-800 are 5.1% and 7.5%, respectively. The results of propane conversion catalyzed by MCO-2-800 indicate its enhanced catalytic activity, demonstrating that the active sites of MCs in PDH are oxygenated functional groups. During the HNO₃ oxidation process, many oxygenated functional groups such as OH, O=C–O, and C=O groups could be introduced onto the mesoporous carbon. The presence of O=C–O groups would result in cracking and lower propylene selectivity [31, 35]. However, the O=C–O groups are unstable and would decompose during the PDH reaction at the reaction temperature of 600 ℃ [42]. As shown in Fig. 6(d), the activity of MCO-2-800 decreased obviously. After 600 min time-on-stream, the catalytic activity of MCO-2-800 decreased from 34.7% to 18.6%. As shown in Table 2, the C=O concentration of MCO-2-800 is ~2.5%, which is slightly higher than that of MC-2-800 (2.1%). This result is in good agreement with their catalytic performance after 600 min time-on-stream (MCO-2-800 (propane conversion: 18.6%, propylene selectivity: 92.4%) and MC-2-800 (propane conversion: 14.0%, propylene selectivity: 94.5%)), further indicating that C=O groups are the most possible active sites in carbon materials during PDH.

On the basis of above characterizations and catalytic tests, it can be concluded that the C=O groups on the MCs are the most possible active sites for PDH. The formaldehyde/resorcinol ratio and carbonization temperature can influence the mesoporous ordering and surface concentrations of C=O groups of MCs, and thus, they influence the catalytic performance of MCs in PDH. As demonstrated in this study, mesoporous carbons with a highly ordered mesoporous structure and rich C=O groups would exhibit high catalytic performance in PDH.

Mesoporous carbons with different pore orderings were prepared by a controlled surfactant-assisted method, and they exhibit much higher catalytic performance than those of their nonporous counterparts in propane dehydrogenation. This is because, owing to their high surface area, mesoporous carbons can provide a large amount of surface active sites for the reaction. Particularly, the mesopore ordering can affect the catalytic performance of carbon materials. The highly ordered structures of mesoporous carbons are good for mass transportation and have more accessible active sites. Thus, mesoporous carbons with better pore ordering exhibit higher catalytic performance. Furthermore, the carbonization temperature can affect the catalytic performance of carbon catalysts. The number of surface oxygenated functional groups of mesoporous carbons decreases with an increase in the carbonization temperature. The specific activities (initial propylene formation rate) of these mesoporous carbons have an excellent linear relationship with the surface concentrations of C=O groups, indicating that the C=O groups are the most possible active sites for PDH. This study is instructive for the design and synthesis of carbon-based catalysts with controlled structures and surface functional groups for various reactions including propane dehydrogenation.

This work was supported by the National Natural Science Foundation of China (21421001, 21573115), the Fundamental Research Funds for the Central Universities (63185015), and the Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green Chemical Engineering (2017-K13).
