The selective oxidation of hydrocarbons to oxygen-containing compounds with dioxygen is an important process in both academic research and industrial production [1-3]. The difficulties in this process lie in the activation of the inert C-H bond and the selectivity toward the alcohols and ketones, which are more active than the hydrocarbons [4, 5]. Metal oxides nanoparticles are efficient catalysts for hydrocarbon oxidation. Several metal oxides have been developed to improve the efficiency of this process, including Mn₃O₄ [6], CoO_x [7], and CuO_x [8, 9]. Among these catalyst systems, CoO_x exhibited excellent performance, particularly the nano-sized particles. The porosity [10], particle size [11], and co-component [12] of CoO_x nanoparticles have been investigated. Many other factors that could enhance the reaction rate of a heterogeneous catalysis reaction exist, such as the electronic state [13] and the microenvironment [14]. The surface hydrophobicity of the catalyst was advantageous to the hydrocarbon oxidation owing to the nature of the process [15-19]. The CoO_x nanoparticles exhibited hydrophilic properties toward the polar hydroxyl groups on the surface. In our previous report [15, 17], silica served as the co-component, and a common strategy of organosilane modification was applied to make the surface hydrophobic. The direct hydrophobic modification of CoO_x nanoparticles, which acted as active sites, has rarely been studied. The direct modification of nanoparticles to have a hydrophobic surface is challenging.

Organic modification is an important strategy for modifying the surface of catalysts [20, 21]. Several researchers have reported the application of the modification method to improve the selectivity of certain reactions. In particular, when organic modifiers, including organophosphonic acids [22], carboxylates [23], and 2-cyanopyridine [24], were employed, metal oxides such as CeO₂, TiO₂, and MnO₂ were promoted to achieve enhanced reaction performance. Our team has previously reported the green modification of the MnO₂ surface with carboxylates to adjust the selectivity of the desired product [23]. However, little attention was paid to the modification of CoO_x with aliphatic amines for aromatic hydrocarbon oxidation.

Here, amine-modified CoO nanoparticles were synthesized through the solvothermal approach to decompose a cobalt-oleate complex in 2-octanol solvent and amines system. The amines, which acted as organic modifiers, were in-situ introduced to the CoO during the synthesis process; the CoO nanoparticle exhibited hydrophobic characteristics and showed good performance in the aromatic hydrocarbon oxidation process. Two similar CoO nanoparticles, surface-coated with butylamine (BA) and dodecylamine (DA), were obtained and were denoted as BA-CoO and DA-CoO, respectively.

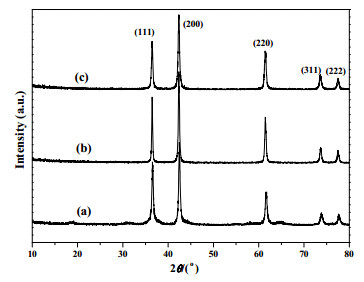

The X-ray diffraction (XRD) patterns in Fig. 1 show the bulk phase of the as-synthesized nanoparticles. Both BA-CoO and DA-CoO display main peaks at the (111), (200), and (220) planes of cubic CoO with a rock salt structure as the commercial CoO, confirming that the nanoparticles were in the CoO phase. This was also confirmed by the high resolution transmission electron microscopy (HR-TEM) (Fig. 2(d)) results, which exhibited a d-spacing value of 0.25 nm corresponding to the CoO (111) plane. The peak intensity of DA-CoO was weaker than those of BA-CoO and commercial CoO, which was attributed to the smaller particle size of DA-CoO, in agreement with the TEM results shown in Fig. 2.

The morphology of the particle and distribution of the particle size could be directly observed through TEM characterization. As can be seen in Figs. 2(c) and 2(f), the DA-CoO nanoparticles have a nano-cubic morphology and an average size of ~25 nm (Fig. S1). Similarly, the BA-CoO nanoparticles exhibit a nano-cubic morphology, although the size distribution is broad (Fig. S2). This difference may be owing to the stronger basicity of butylamine compared to that of dodecylamine, which accelerated the decomposition of Co-oleate and resulted in the larger size and broad distribution of BA-CoO. The commercial CoO has an average size of 49 nm, similar to that of BA-CoO (Fig. S3). This excludes the size effect on the reaction (vide infra). The hydrophobicity of the catalyst was characterized by water droplet contact angle measurements (WCA). The insets in Fig. 2 are the images of sessile water droplets on the material film. The commercial CoO is hydrophilic, and it has a WCA value below 20°. In contrast, BA-CoO has a WCA value of 126° and DA-CoO has a WCA value of 143°. This may be explained by the catalytic difference (vide infra). The difference in the WCA values also suggested that the surface of the as-synthesized CoO was coated by amines.

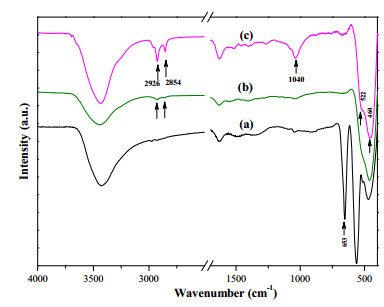

The existence of amines on the surface of the as-synthesized CoO was determined by Fourier transform infrared spectroscopy (FT-IR) and X-ray photoelectron spectroscopy (XPS). The nanoparticles were washed with hexane and ethanol until the FT-IR spectra remained unchanged to remove the organic compounds adsorbed (Figs. S4 and S5). The three samples presented broad absorption peaks at 3440 and 1630 cm^-1, which was attributed to the O-H stretching vibration and bending mode of the adsorbed water [25], respectively. The peaks at 2854 and 2926 cm^-1 in the FT-IR spectrum of DA-CoO are attributed to the C-H band vibration absorption. The peak at approximately 1040 cm^-1 could be ascribed to the stretching vibrations of the C-N bonds [26, 27], and the peaks between 1300 and 1600 cm^-1 could be due to the -NH₂ group [28], which confirmed the existence of the amines on the surface (Fig. 3(c)). In contrast, no peaks attributed to the C-H band vibration absorption in the commercial CoO were observed. In comparison with that of DA-CoO, a weaker absorption peak appeared in the BA-CoO spectrum, which was attributed to the shorter length of butylamine compared to that of dodecylamine. Comparing BA-CoO with DA-CoO, the increase in the WCA could also be attributed to the longer length of dodecylamine (vide supra).

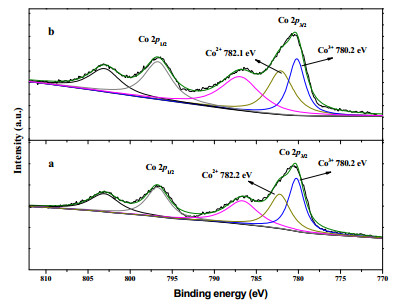

The XPS measurements confirmed that the amines existed on the surface of the nanoparticles based on the presence of N 1s peak (Figs. S7 and S8). The compositions of the samples are presented in Table S1. The N content in each sample is less than 1%, which is consistent with the TGA results (Fig. S9). The TGA results showed a weight loss of 7% for DA-CoO and nearly no weight loss for the commercial CoO. For DA-CoO, there was an obvious weight loss at 410 ℃, which was much higher than the boiling temperatures of 2-octanol (178 ℃) and dodecylamine (259 ℃). Furthermore, both the TGA results of 2-octanol and dodecylamine indicated a rapid weight loss at temperatures below 200 ℃ (Fig. S10). This confirmed the interaction between the amines and CoO nanoparticles to some extent. Although the XRD results confirmed that the nanoparticles are in the CoO phase, in the XPS measurement, Co(Ⅲ) was detected. The Co 2p XPS spectra, as illustrated in Fig. 4, exhibited two main peaks at approximately 780.0 and 796.5 eV, assigned to Co 2p_3/2 and Co 2p_1/2, respectively. Fitting the curves according to the characteristics of the cobalt oxides [29-31], the Co(Ⅲ)/Co(Ⅱ) ratio of the two samples are depicted in Table S1. Co(Ⅲ) existed on the surface of the samples, which implied that a section of the surface of the CoO nanoparticle bore high valence Co(Ⅲ). Using the FT-IR spectra to analyze the Co species, the peak located at 460 cm^-1 was attributed to the stretching vibration of the Co-O bond in CoO with a rock-salt structure, and the peak at 522 cm^-1 was attributed to the existence of small amounts of Co(Ⅲ) [25]. The two bands observed at 653 and 561 cm^-1 were the characteristic vibrations of Co(Ⅱ)-O and Co(Ⅲ)-O bonds in Co₃O₄ [25, 32], respectively, which implied the existence of Co(Ⅲ) in the commercial CoO. The existence of Co(Ⅲ) might favor the hydrocarbon oxidation [31], which can also be a factor for the enhancement of the catalytic performance.

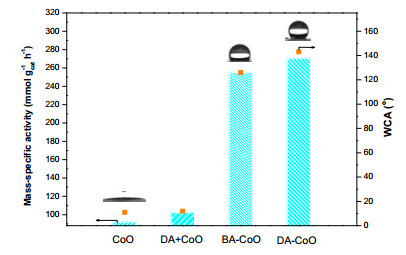

The selective oxidation of ethylbenzene was conducted as the model reaction with the above materials as catalysts (Table 1). A remarkable difference was observed between the hydrophilic and hydrophobic catalysts. With the commercial hydrophilic CoO particles, the conversion was only 18% (Table 1, entry 3); in contrast, the hydrophobic DA-CoO exhibited a high conversion of 53% (Table 1, entry 2), which is almost twofold higher than that of commercial CoO particles. In addition, the selectivity of acetophenone increased from 69% to 78%. In the selective oxidation of hydrocarbons, alcohol is one of the primary oxidation products, which can be further oxidized to ketone. Higher selectivity towards ketones means that the hydrophobic DA-CoO has stronger oxidation ability. To investigate the vital factors for the catalytic differences between the commercial CoO and DA-CoO toward the selective oxidation of ethylbenzene, a few contrast experiments were conducted. First, a reaction was designed with the commercial CoO and additional DA as a catalyst to exclude the impact of dissociative DA. From the results, with a conversion of 17%, it can be deduced that the dissociative DA had no vital effect on the reaction (Table 1, entry 4). Subsequently, the hydrophilic and hydrophobic properties of CoO for the reaction were researched. When the commercial CoO was impregnated with 2-octanol and DA under stirring at room temperature for 5 h, it still had a hydrophilic surface with a WCA of 12° (Fig. S11), and the catalytic conversion was 20% (Table 1, entry 5). However, when the commercial CoO was impregnated with 2-octanol and DA at 250 ℃ for 5 h, the WCA reached 143°, which indicated the hydrophobic property of the amine treated commercial CoO (Fig. S12). With this hydrophobic catalyst, the conversion of ethylbenzene increased from 18% to 45%, and the selectivity of acetophenone increased from 69% to 81% (Table 1, entry 6). Besides, as shown in Fig. 5, the mass-specific activity for CoO was 92 mmol g_cat^-1 h^-1 after DA impregnation, which increased to 271 mmol g_cat⁻¹ h⁻¹ for DA-CoO, along with an increase in WCA from 11° to 143°. In summary, these contrasted results can verify that the hydrophobic surface is important for enhanced catalytic activity. Furthermore, the reusability of the DA-CoO was investigated by recycling experiments. The catalyst was regenerated after the reaction through impregnation with 2-octanol and DA at 250 ℃. After the regeneration process, the catalyst could be reused for four runs.

In the distribution test, it could be observed that the hydrophobic DA-CoO remained in a highly distributed state in the organic phase (Fig. S14), while the commercial hydrophilic CoO nanoparticle was distributed in the water phase. This experiment was in accordance with the WCA test, confirming the high affinity towards the organic molecule and the strong water repellent ability. This property could hinder the inevitable adsorption of water on the active site, and uniform dispersal during the reaction could be achieved, as was the case in our previous report. Accordingly, excellent catalytic performance was achieved with the hydrophobic catalyst.

The hydrophobic DA-CoO catalyst was not only active for ethylbenzene oxidation, but also for the selective oxidation of tetralin and mesitylene (Table 2). The hydrophobic and hydrophilic DA-CoO catalyst exhibited similar effects under the same conditions; the conversion of tetralin and mesitylene increased from 32% to 63% and 25% to 52%, respectively. In addition, the selectivity of deep oxidation products also increased, in accordance with the ethylbenzene oxidation.

In summary, through surface modification, a new hydrophobic CoO nanoparticle coating by amines was synthesized, which showed high activity towards the selective oxidation of aromatic hydrocarbons. The surface-amines coated CoO nanoparticles exhibited hydrophobic properties, with a WCA of 143°. It is believed that the hydrophobic property of the CoO surface is an important factor for high catalytic performance.
