Precious metals are widely used as catalysts for various reactions [1-5]. However, their high prices and limited availabilities have sparked interest in non-precious-metal catalysts. Therefore, finding an abundant and efficient catalyst to replace precious metals has become one of the most essential tasks in the field of catalysis [6-9]. In this context, Fe is the cheapest metal and is widely distributed on the earth, accounting for 4.75% of the crustal content [10]. Further, Fe-based catalysts have showed excellent activities in ammonia synthesis [11], Fischer-Tropsch synthesis [12], and selective reduction of NO_x [13]. In recent years, Fe-N-C, in which Fe is supported by or incorporated with N-doped C, has been reported as an inexpensive and efficient catalyst because of its good catalytic properties in various typical Pt-catalyzed reactions, such as oxygen reduction reaction [14-18], CO₂ electroreduction [19], hydrogen evolution reaction [20-24], fine chemical synthesis, and, especially, catalytic hydrogenation [25-32]. There are many methods available for preparing Fe-N-C, including soft and hard template methods [33, 34], chemical vapor deposition [35, 36], sol-gel method [37], plasma treatment [38], microwave synthesis [39, 40], and pyrolysis, among which pyrolysis is the most common and the simplest method. In 1964, Jasinski [41] reported for the first time the use of cobalt phthalocyanine as a non-noble-metal oxygen reduction catalyst. Then, there were a few reports on the synthesis of Me-N-C catalysts by pyrolysis of organic transition metal macrocycles [42-44]. By synthesizing Me-N-C via pyrolysis of macrocyclic Fe-N organic compounds and organometallic framework complexes, relatively stable Fe-N coordination structures can be obtained. However, the preparation process is complicated and the cost of raw materials is high. Therefore, simple co-pyrolysis of transition metal salts (such as FeCl₃, Fe(NO₃)₃, Fe(Ac)₂, and FeC₂O₄), N-containing compounds (such as NH₃, N₂H₄·H₂O, CO(NH₂)₂, and C₃H₃(NH₂)₃), and C carriers (such as Vulcan, ECP, carbon nanotubes, and graphene) was carried out to synthesize Fe-N-C catalysts [45, 46]. Despite some progress, it is still meaningful to develop simpler methods and use more readily available materials to prepare the catalysts.

The hydrogenation of nitrobenzene to aniline is an important reaction since aniline is a versatile organic raw material and a fine chemical intermediate that is widely used in pesticides, pharmaceuticals, dyes, and other industries [47, 48]. Researchers have been focusing on the hydrogenation of nitrobenzene to prepare aniline for decades. At present, the catalysts for the hydrogenation of nitrobenzene mainly include noble metals (Pt [49, 50], Pd [51], Ru [52-54], Au [55], etc.). Although precious metals can catalyze the hydrogenation of nitrobenzene under milder conditions, they are not widely used in large-scale industrial production owing to the high costs. Therefore, it is attractive to prepare an efficient Fe-based catalyst with high activity and high stability that offers easy separation and reusability. Baylor et al. [56] carried out pioneering work by using Fe-phen catalysts prepared by pyrolyzing Fe-phenanthroline complexes on a support at 800 ℃ for the reduction of nitroarenes to produce aniline. However, as mentioned above, the cost of the raw materials was high owing to the ligands being expensive.

In our previous work, we found that N-doped C with a high surface area could be produced by pyrolysis of lignin at 800 ℃ in ammonia atmosphere [57], and N-doped C-cooperated metal catalysts such as Mo-N-C [58] and Co-N-C [59] could be obtained by co-pyrolysis of biomass and simple metal salts. However, the presences of different metals may exhibit different effects on catalyst preparation, depending on, for example, the form of the metal and the change in the C material. In this work, magnetic Fe-N-C catalysts were prepared by co-pyrolysis of the widely available cellulose and FeCl₃ under ammonia atmosphere. The catalysts synthesized at different temperatures were characterized and tested for the hydrogenation of nitrobenzene. Combined with the results of catalyst characterization and comparative tests, the factors affecting the catalytic activity were proposed. The influence of the reaction conditions was determined and the stability of the catalyst was investigated.

α-Cellulose (particle size = 50 μm) and cyclohexane were purchased from Aladdin Chemistry Co., Ltd. FeCl_3, nitrobenzene, aniline, ethanol, and tetrahydrofuran were purchased from Sinopharm Chemical Reagent Co., Ltd.

All the Fe-N-C catalysts were prepared via in situ co-pyrolysis method. The catalysts were labeled as Fe-N-C-T (where T is the pyrolysis temperature, which can be 500, 600, 700, or 800 ℃). The preparation process of Fe-N-C-700, for example, is as follows: 5 g of α-cellulose and 1.16 g of FeCl₃ were uniformly mixed by grinding. The powder was transferred into a feed tube and purged with NH₃ for 30 min, before it was added into a quartz tube slowly heated by a furnace at 300 ℃ under NH₃ flow. After feeding, the temperature was held at 300 ℃ for 30 min and then raised at the rate of 1 ℃/min to a certain pyrolysis temperature, which was 700 ℃. The temperature was then kept at 700 ℃ for 2 h, before cooling to room temperature in NH₃ flow. The powder was then purged with N₂ for 2 h.

The procedure for preparing N-C-700 was the same as that of Fe-N-C-700, but no FeCl₃ was added to cellulose. The procedure for preparing Fe-C-700 was also the same as that of Fe-N-C-700, but NH₃ was replaced by N₂. The procedure for the preparation of Fe/N-C-700 is as follows: 0.5 g of N-C-700 was added to a 100 mL round-bottom flask with 40 g of acetone and stirred at 45 ℃. 0.3027 g of FeCl₃ was dissolved in 10 g of acetone and then added to the above suspension, which could keep the Fe contents of the catalysts Fe/N-C-700 and Fe-N-C-700 same. The mixture was stirred at 45 ℃ for 24 h. The solvent was then removed by rotary evaporation and dried at 105 ℃ for 10 h. After drying, the powder was reduced by H₂ in a quartz tube furnace at 700 ℃ for 2 h at a heating rate of 1 ℃/min. After cooling to room temperature, the catalyst was purged with N₂ for 2 h. After the preparation, all the catalysts were stored in a glovebox before use.

The N₂ adsorption-desorption isotherms were measured using a Micromeritics TriStar Ⅱ system (TriStar Ⅱ 3020 V1.03). The surface area was determined by the Brunauer-Emmett-Teller (BET) method. The average pore volume and pore size were measured by Barrett-Joyner-Halenda method. Powder X-ray diffraction (XRD) patterns were recorded on an X'pert (PANalytical) diffractometer using Cu K_α radiation at 40 kV and 40 mA; the 2θ range was 20°–80°. The transmission electron microscopy (TEM) images were recorded by using a JEOL Model JEM-2010 LaB6 TEM system. High-resolution transmission electron microscopy (HRTEM) images were also obtained with the help of a JEOL-2100F system operating at 200 kV. X-ray photoelectron spectroscopy (XPS) was carried out with an X-ray photoelectron spectrometer (ESCALAB250). Elemental analysis was performed by using an Elementar vario EL cube. The combustion tube temperature was 950 ℃, and the reducing tube temperature 550 ℃. Atomic absorption spectroscopy (AAS) was performed on a PerkinElmer Corporation Analyst 800 instrument. The sample handling process was as follows: 20 mg of the catalyst was added into a 25 mL round-bottom flask with 10 mL of aqua regia and stirred at 80 ℃ for 36 h. The mixture was then diluted to 100 mL in a volumetric flask.

All reactions were performed in a 25 mL Parr reactor. In a typical experiment, 0.5 mmol of nitrobenzene, 50 mg of the catalyst, and solvent (5 mL each of water and tetrahydrofuran) were added into the reactor. After purging several times with hydrogen, the reactor was pressured with 5 MPa H₂ at ambient temperature. The reactions were conducted at a certain temperature for a certain time with magnetic stirring. After the reactions, the products were separated from the catalyst by an external magnet and then diluted with ethanol, identified via gas chromatography-mass spectrometry (GC-MS; Agilent, Model 5975C), and quantified with a gas chromatograph (Kexiao, Model GC99) equipped with a HP-INNOWAX capillary column (30 m × 0.250 mm × 0.25 μm). The GC detection conditions were as follows: N₂ was the carrier gas; injection port temperature = 280 ℃; detector (FID) temperature = 280 ℃; column temperature = 50 ℃; and heating to 250 ℃ at the rate of 10 ℃/min. Cyclohexane was used as the internal standard to quantify the products.

After the reaction, the catalyst was separated from the solution with the help of an external magnet and washed three times with tetrahydrofuran. Afterwards, the catalyst was directly reused in the next run.

In order to explore the characteristics of the catalysts, a series of tests were carried out, as the results show in Table 1 and S1. As the pyrolysis temperature increased, the surface areas of the catalysts first increased and then decreased, and the highest surface area was obtained when the catalyst was prepared at 700 ℃. As for the pore volume, as the temperature increased from 600 to 800 ℃, the pore volume increased significantly, indicating that a high temperature is favorable for the formation of pores, which is one of the main reasons for the increase in the surface area. The contents of different elements are also shown in Table 1. Consistent with our previous research, the N, H, and O contents gradually decreased with the increase in the pyrolysis temperature, whereas the C and Fe contents revealed opposite trends. When the pyrolysis temperature was raised from 500 to 800 ℃, the Fe content increased from 12.91 to 22.22 wt%.

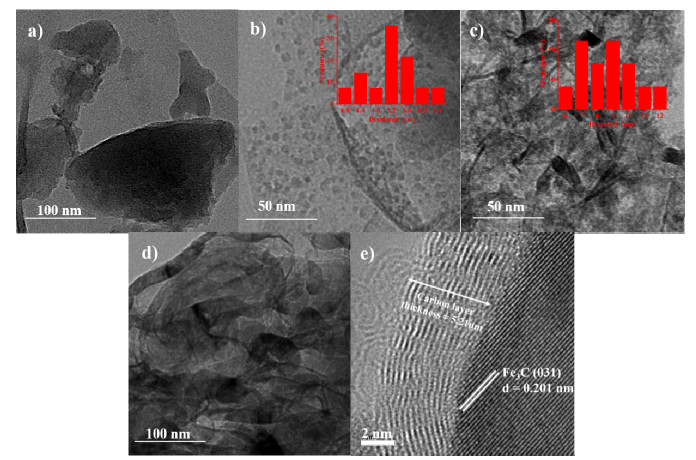

The morphologies of the catalysts were characterized by TEM. As revealed in Fig. 1, when the pyrolysis temperature was 500 ℃, only sheet-like N-doped C, formed by the carbonization of cellulose in ammonia atmosphere, was found, and no significant metal particles were observed. When the temperature was increased to 600 ℃, the metal particles, with the average size of 5.1 nm, were well dispersed on the C material. Upon further increasing the temperature to 700 ℃, larger metal particles, with an average size of 9.1 nm, were observed. Moreover, the morphology of the C material transformed into curled lamellar. These changes are better reflected in Fe-N-C-800, and more pronounced metal agglomeration and curled C materials were observed. To explore this change, XRD was carried out. As shown in Fig. 2, no diffraction peaks were detected when the catalyst was prepared at 500 ℃, which indicated that the C material was amorphous and that the metal particles were well dispersed on the C material. This is consistent with the TEM results in that no obvious particles were found (Fig. 1(a)). For Fe-N-C-600, the diffraction peaks observed at 37.7°, 40.9°, 43.0°, and 56.7° were attributed to the (021), (200), (121), and (221) planes, respectively, of orthorhombic Fe₂N. However, upon further increasing the temperature to 700 ℃, the peaks of Fe₂N disappeared and new diffraction peaks emerged. All the peaks within the range 35°–60° were attributed to the Fe₃C phase, which indicated that Fe₂N could transform to Fe₃C when the pyrolysis temperature reached 700 ℃. In addition, a new peak at 26° was observed, which should correspond to the diffraction peak of graphitic C. It was demonstrated that when the temperature rose to 700 ℃, the formed C material began to graphitize. When the temperature further rose to 800 ℃, this peak became sharper, which indicated that the material was further graphitized. Therefore, the morphological change observed in the TEM image of the C material should be attributed to the graphitization of the C support. HRTEM characterization of the Fe-N-C-700 catalyst was carried out to further explore its structure. As shown in Fig. 1(e), well-resolved fringes with an interplanar spacing of 0.201 nm were observed; this spacing was close to that of the (031) planes of Fe₃C. Moreover, a graphitic C layer of thickness about 5.2 nm wrapped around the particles. These are consistent with the results of XRD analysis.

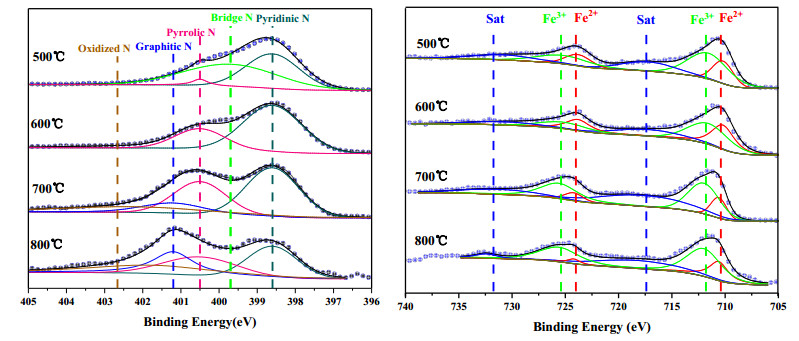

In order to confirm the valence states of Fe and N, XPS was used to analyze the catalysts. Deconvolution of the N 1s regions by peak fitting for Fe-N-C catalysts is shown in Fig. 3. Five distinct peaks were observed in the N 1s spectra of Fe-N-C. The peaks at the binding energies of 398.6, 399.7, 400.5, 401.2, and ~402–405 eV can be attributed to pyridinic N, bridge N, pyrrolic N, graphitic N, and oxidized N, respectively, and their specific contents are displayed in Table S2 [60, 61]. As for graphitic N, its content increased as the temperature increased. The content of graphitic N was 13.20% in Fe-N-C-700 and 26.05% in Fe-N-C-800. For Fe-N-C-500, a peak at 399.7 eV can be observed, which is assigned to bridge N, which refers to tertiary N bonded to C atoms in the form of N–(C)₃ or H–N–(C)₂ [62]. Upon further increasing the pyrolysis temperature, this peak disappeared. The content of pyridinic N decreased with the increase in the pyrolysis temperature, whereas the content of pyrrolic N first increased and then decreased. These results revealed changes in the N-incorporated form during the catalyst preparation. The presence of these types of N not only resulted in the formation of surface defects on the catalyst, but also contributed to the reduction and dispersion of the metal precursor as an electron-rich active site, and played an important role in enhancing the interaction between the active component and the carrier [63]. The Fe 2p XPS patterns of the Fe-N-C catalysts are exhibited in Fig. 3(b). Only Fe²⁺ and Fe³⁺ are observed, but no Fe₂N or Fe₃C is found, although they were detected in XRD. This should be attributed to the fact that the Fe species on the particle surface were easily oxidized when the catalysts were exposed to air.

The activities of the catalysts were evaluated for the hydrogenation of nitrobenzene. As shown in Table 2, the catalysts with different pyrolysis temperatures revealed significant differences in the activities. As the pyrolysis temperature increased, the catalytic activity first increased and then decreased. For Fe-N-C-500, the nitrobenzene conversion was 28.3% and the yield of aniline was 27.9%. The catalytic activity of Fe-N-C-600 increased, and, when the pyrolysis temperature increased to 700 ℃, the conversion of nitrobenzene was 99.9% and the yield of aniline was 98.0%. When Fe-N-C-800 was used as the catalyst, 94% of aniline was obtained, which suggested a slight decrease in the catalytic activity. Besides aniline, the loss of balance C was due to some intermediates such as nitrosobenzene, aromatic hydroxylamine, and azo compounds. As the H₂ pressure dropped from 5 to 3 MPa, the conversion decreased in the cases of both Fe-N-C-700 and Fe-N-C-800, though the reduction was higher in the case of the latter, which further indicated that Fe-N-C-700 showed the highest catalytic activity. In order to exclude the difference in the activities caused by the difference in the Fe contents of the catalysts, we adjusted the amount of the Fe precursor such that the Fe-N-C-T-m (where m is the mass in grams of the initial feed of FeCl₃) catalysts prepared at different pyrolysis temperatures exhibited similar Fe contents. The activities of these catalysts were compared and the results are shown in Table S3. Fe-N-C-700 still showed the highest catalytic activity. The XPS patterns and the contents of the different types of N of the catalysts are displayed in Fig. S1 and Table S4, respectively.

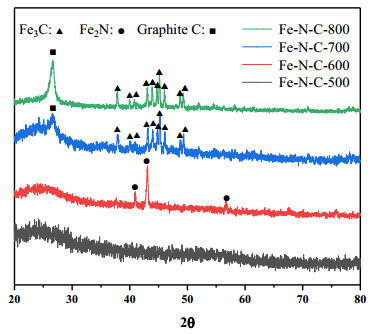

According to the results of TEM, the metal particles of Fe-N-C-600 better dispersed on the N-doped C carrier than those of Fe-N-C-700. However, Fe-N-C-700 revealed the better catalytic activity. Based on the XRD analysis, the catalyst prepared at 600 ℃ was mainly Fe₂N, whereas the catalyst obtained at 700 ℃ was mainly Fe₃C. The change in the composition of the catalyst may be the main reason for the change in the catalytic activity. On the other hand, the increase in the pyrolysis temperature caused a change in the support. Based on the XRD and XPS analyses, when the temperature reached 700 ℃, graphitized N-doped C was formed, which may improve the activity of the catalyst. According to previous studies, the doping of graphitic N into graphene structure, especially when two graphite N atoms were doped into the same hexagon, can form a non-uniform electron distribution, which enhances the catalytic activity of the C surface significantly [64]. The performance of Fe-N-C-800 further confirms this finding. When the catalyst was prepared at 800 ℃, the metal particles significantly agglomerated, but, at this time, the activity of the catalyst only changed slightly (Table 2, entries 3 and 4). XRD and XPS showed that the Fe species in the two catalysts did not change significantly, but the content of graphitized N-doped C in Fe-N-C-800 was higher. This illustrates the effect of graphitized N-doped C on catalytic activity. In addition, it should be emphasized that we cannot rule out other forms of Fe species that were not detected but which display activities towards the reaction, because the structure of the catalyst is very complicated. In addition to graphite N, other forms of N such as pyridine or pyrrole N may also promote the reaction. Previous studies reported that pyridinic N mainly appeared at the edge of the material as a Lewis base site, which can render adjacent C atom sites as active centers. Furthermore, owing to its electron donating property, the pyridinic N has been considered as a binding site of transition metals and an active center in the catalyst. In this work, these N may also combine with Fe species (Fe²⁺ or Fe³⁺) to catalyze the reaction, although they may not be the main active centers.

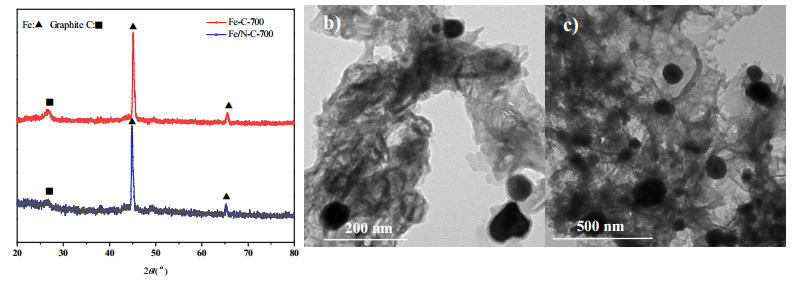

In order to further demonstrate the effects of Fe and N, comparative tests were carried out. As shown in Table 2 (entries 7 and 8), almost no aniline was produced when no Fe was present in the catalyst, which indicated that the Fe species were the active centers for the catalysis of the hydrogenation of nitrobenzene. However, when Fe-C-700, which was obtained by pyrolysis under N₂ atmosphere, was used as the catalyst, only 20.9% of aniline was obtained under the same reaction conditions. XRD analysis (Fig. 4(a)) showed that the Fe species mainly existed in the form of metallic Fe, which could have come from the Fe precursor reduced by the reducing species produced during the pyrolysis of cellulose, such as CO, H₂, and C_xH_y [65]. This indicated that without the incorporation of N, the activity of the catalyst was very low. In addition, the TEM images (Fig. 4(b) and (c)) showed that the metal particles on Fe-C-700 were significantly larger than those on Fe-N-C-700. This indicated that the presence of N was conducive to the dispersion of metal particles, which is consistent with previous studies. The well-dispersed metal particles also enhanced the activity of the catalyst. The N-C-700 supported metallic Fe catalyst (Fe/N-C-700) was also prepared and 45% aniline was obtained. This result further demonstrated that the presence of N in the support could improve the activity of the catalyst.

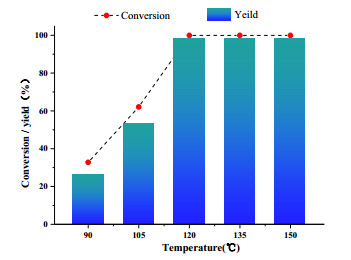

We also studied the effect of reaction temperature (Fig. 5). When the temperature was low, the reaction proceeded slowly and not much of the substance was involved in the reaction. On the other hand, when the temperature was above 120 ℃, nitrobenzene was completely converted, and the yield of aniline reached 98%. The stability of Fe-N-C-700 catalyst was investigated for the conversion of nitrobenzene to aniline, and the results are shown in Fig. 6. After five runs, the yield of aniline barely changed, which indicated excellent recyclability of the catalyst.

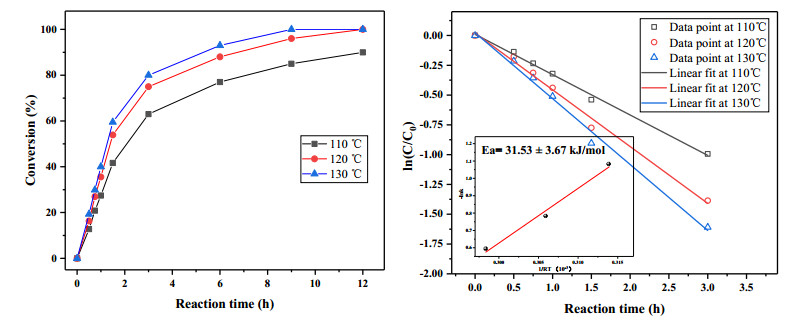

A kinetic study was also carried out, and the results are displayed in Fig. 7. According to previous reports, the activation energy of the nitrobenzene hydrogenation reaction is 91.5 kJ/mol [66]. On the other hand, in our work, the apparent activation energy was reduced to 31.53 kJ/mol when Fe-N-C-700 was used as the catalyst, which suggested that the Fe-N-C-700 catalyst can effectively reduce the activation energy of the reaction.

A simple method with cellulose as the C source, ferric chloride as the metal source, and ammonia as the N source has been proposed for the preparation of Fe-N-C catalysts. A series of catalysts were prepared at different pyrolysis temperatures and characterized. Through BET, TEM, HRTEM, XRD, XPS, AAS, and elemental analysis, it was found that the pyrolysis temperature exhibits a great influence on the morphology, elemental content, and composition of the catalyst. Using nitrobenzene as a model compound, the pyrolysis temperature displays a significant effect on the catalytic activity towards hydrogenation of nitrobenzene. Among these catalysts, Fe-N-C-700 exhibited excellent activity. The conversion of nitrobenzene was 99.9% and the yield of aniline 98.0% under 5 MPa H₂ at 120 ℃ after 12 h. Combined with the results of catalyst characterization and comparison experiments, the transformation of the Fe species and the generation of N-doped C, especially graphitized N-doped C, in the catalyst may be the main factors affecting the activity of the catalyst. A kinetic study was carried out and the apparent activation energy obtained was 31.53 kJ/mol. The stability of the catalyst was also investigated and no significant decrease in the activity was observed after 5 runs.

We gratefully acknowledge the financial supports from NSFC (51876200 and 21572213) and DNL Cooperation Fund, CAS (DNL180301).
