Hydrogen is one of the most promising power sources for clean and sustainable energy supply, with the main advantages of easy conversion to electric or mechanical energy, high energy density (3 times higher than that of fossil fuels), and producing water as the only product after reaction with oxygen [1]. Currently, the main obstacles to commercial utilization of hydrogen as a power source are controllable storage and efficient release of hydrogen. In this regard, various chemical hydrogen storage materials including formic acid (FA), ammonia borane, and sodium borohydride were investigated to replace the classic pressurization or low-temperature liquefaction [2]. FA, among these, is a convenient and safe hydrogen carrier owing to its high hydrogen content, non-toxicity, outstanding stability, easy regeneration, and availability (produced as a major byproduct of the biomass conversion process). FA dehydrogenation reaction releases hydrogen and CO₂ as a by-product (eqn. (1)) in the presence of a catalyst [3]. The dehydration reaction (eqn. (2)) can also occur to produce CO as an impurity, which is poisonous to the novel metal catalysts in hydrogen fuel cells [4].

(1)

(2)

Even though several homogeneous catalysts were reported for FA dehydrogenation [3], heterogeneous catalysts are preferred due to their better reusability and recoverability for practical applications. Some of the heterogeneous catalysts demonstrated satisfactory catalytic activity and selectivity for H₂, and various monometallic and multi-metallic nanoparticles such as Pd [5, 6], Au [7], AgPd [8], PdNi@Ni [9], and CoAuPd [10] have been reported so far for FA dehydrogenation reaction at low temperatures sometimes even without using additives (such as sodium formate, triethylamine, and others). Song et al. [6] reported that finely-dispersed Pd nanoparticles deposited on amine-functionalized graphene oxide exhibited a good turnover frequency (TOF) of 3810 h^-1 in a FA-sodium formate system at room temperature. Ojeda and Iglesia [7] prepared a Au-deposited Al₂O₃ catalyst for dehydrogenation of FA at 350 K, showing better catalytic activity than Pt-deposited Al₂O₃. Qin and co-workers [9] showed that the introduction of nickel could improve the catalytic activity of Pd nanoparticles in FA aqueous solution, and the resultant PdNi@Ni nanoparticles gave a high TOF of 577 h^-1 in a mixture of FA and sodium formate at room temperature. Among the various metal nanoparticles, Pd-based nanoparticles have been mostly employed as catalyst for hydrogen release in FA dehydrogenation because of their high catalytic activity and stability.

In addition to the selection of active metal species, the design and/or selection of a support material also strongly affect the catalytic activity of Pd nanoparticles in FA dehydrogenation [11]. However, only limited cases of solid-supported palladium nanoparticle systems have been tested for FA dehydrogenation up to now. Lee and co-workers [12] used a mesoporous silica supported Pd-MnO_x nanocatalyst system for H₂ release from FA at room temperature, and reported excellent FA decomposition with a TOF of 540 h^-1. More recently, Navlani-García and co-workers [13] used Pd deposited on zeolite (H-BETA) but observed a TOF value of only 64 h^-1. It was envisaged that a support with an open pore structure would help to improve the catalytic performance of Pd catalysts by ensuring high accessibility of the supported Pd nanoparticles to the reactant molecules [14]. In this case, KCC-1, which possesses an open pore structure and easy accessibility owing to its unique fibrous morphology, was selected as a support for Pd nanoparticles [15]. KCC-1 can be synthesized in a reverse micelle template process in organic solvent [16]. Some papers have reported KCC-1 as an effective catalyst support material for the transfer hydrogenation of alkene [14], Suzuki coupling reaction [17], reduction of 4-nitrophenol [18], and dehydration of fructose [19] as well as working as an adsorbent for dyes [20] and CO₂ capture [21].

In this work, Pd nanoparticles with different metal loadings on the N-(3-trimethoxysilylpropyl), diethylenetriamine (PDETA)-functionalized KCC-1 (Pd/KCC-1-PDETA) were prepared and tested for FA dehydrogenation reaction without additives at 323 K. The catalytic performance of Pd/KCC-1-PDETA was compared with those Pd nanoparticles supported on mesoporous silica foam (MSF) [22] and KIT-6 [23], which have been widely applied as catalyst/support because of their promising textural properties in 3-D pore structures. The influence of reaction temperature and reaction time, and the catalyst recyclability was also examined. The resultant 2 wt.% Pd/KCC-1-PDETA exhibited excellent catalytic activity with nearly 100% hydrogen selectivity towards FA dehydrogenation.

Tetraethylorthosilicate (TEOS), cetyltrimethylammonium bromide, 1-butanol, P123 (EO₂₀PO₇₀EO₂₀, M_v = 5800), acetic acid, ammonium fluoride, mesitylene, sodium silicate, N-(3-trimethoxysilylpropyl)diethylenetriamine, sodium tetrachloropalladate(Ⅱ) (Na₂PdCl₄), sodium borohydride, formic acid, HCl solution (35 wt.%), toluene, and ethanol were purchased from Sigma Aldrich. Urea was purchased from DUKSAN in Korea. All the chemicals were of reagent grade and used without further purification. Deionized water was used.

KCC-1 was prepared following the literature procedure [16] with minor modification. Firstly, TEOS (4.7 mL) was added into a solution of 1-butanol (2.2 mL) and toluene (51 mL). A solution of cetyltrimethylammonium bromide (1.7 g) and urea (1.1 g) in water (52 mL) was then introduced. This mixture was vigorously stirred for 30 min at room temperature, followed by heating at 120 ℃ (393 K) for 4 h. The white product was collected by centrifugation, washed with water, and dried at 80 ℃ (353 K) for 12 h. After that, the product was calcined at 560 ℃ (833 K) for 6 h to produce template-free KCC-1.

To study the effect of the support on FA dehydrogenation, MSF and KIT-6 were synthesized according to the methods shown in the Supporting Information (SI).

Silica-PDETA was synthesized according to the procedure reported in the literature [24]. In a typical synthesis, KCC-1, MSF or KIT-6 (0.5 g) was dispersed in toluene (30 mL) by sonication for 30 min, and PDETA (1 mmol) was added under stirring at room temperature. After stirring the mixture at 80 ℃ (353 K) for 24 h, the product was recovered by centrifugation, washed with ethanol several times, and dried at 60 ℃ (333 K) for 12 h. The samples are referred to as KCC-1-PDETA, MSF-PDETA, and KIT-6-PDETA, respectively.

Pd/silica-PDETA was prepared according to the procedure reported in the literature [25]. In the typical synthesis, silica-PDETA (0.5 g) was dispersed in water (50 mL) by sonication for 5 min followed by stirring for 10 min at room temperature. Na₂PdCl₄ solution (2 mL, 0.05 mol/L in water) was introduced, and the mixture was sonicated for 30 min followed by stirring for 2 h at room temperature. Sodium borohydride solution (1 mL, 1 mol/L in water) was then introduced for reduction. After stirring the mixture for 2 h, the prepared catalyst was recovered by centrifugation, washed with water and ethanol several times, and dried at 80 ℃ (353 K) for 16 h. These samples were designated as 2 wt.% Pd/KCC-1-PDETA, 2 wt.% Pd/MSF-PDETA, and 2 wt.% Pd/KIT-6-PDETA, respectively.

By changing the amount of the added Na₂PdCl₄ solution, 5 wt.% and 10 wt.% Pd/KCC-1-PDETA were also prepared following the same method.

The obtained Pd catalysts were characterized by various instrumentation, and the experimental details are described in SI.

Catalytic performance in FA dehydrogenation was evaluated in a 50 mL three-necked round flask with water jacket, using an experimental set up shown in Fig. S1. In a typical experiment, a predetermined amount of Pd catalyst (mole ratio of Pd/FA = 0.01) and water (15 mL) were added in the flask, which was connected to a pressure-equalization funnel (containing 5 mmol FA), a gas burette, and Ar gas line. Before starting the experiment, the reaction medium was vigorously stirred for 30 min to obtain thermal equilibrium under inert conditions. The reaction was initiated after injecting FA (5 mmol) into the flask under vigorous stirring. The reaction temperature was maintained at 323 K by using the water circulator, and the volume of gas produced was measured by water displacement in the gas burette.

The silica-PDETA supports were prepared via a post-synthetic functionalization method to immobilize the Pd nanoparticles. PDETA plays the role of a tethering ligand to bind the Pd nanoparticles with high dispersion and uniform particle size [26]. The Pd contents in Pd/KCC-1-PDETA, Pd/MSF-PDETA, and Pd/KIT-6-PDETA catalysts were found to be 1.93 wt.%, 1.75 wt.%, and 1.56 wt.%, respectively (Table 1) by ICP-OES. The actual Pd loading amounts on Pd/KCC-1-PDETA are close to the expected loadings based on the Pd precursors (2 wt.%) used during the preparation. The Pd contents on MSF-PDETA and KIT-6-PDETA were somewhat lower than the expected values due to the lower N contents (low functionalized PDETA) on these supports as detected by EA (Table 1).

The crystalline structure of the as-prepared Pd catalysts on different silica supports was examined by powder XRD as shown in Figs. 1 and S1. The pristine silica materials showed a broad peak at 2θ = 22° corresponding to their amorphous nature (Figs. 1(a), S2(a-1), and S2 (b-1)). The materials after PDETA grafting and Pd deposition showed similar XRD patterns to that of the respective pristine silica supports. The PDETA-functionalized silica supports with 2 wt.% loaded Pd did not show any extra peak in the region of 35°-80° due to high dispersion of Pd nanoparticles [27], but those loaded with 5 and 10 wt.% Pd showed a characteristic Pd(111) peak at 39.1° (Fig. 1(d-e)).

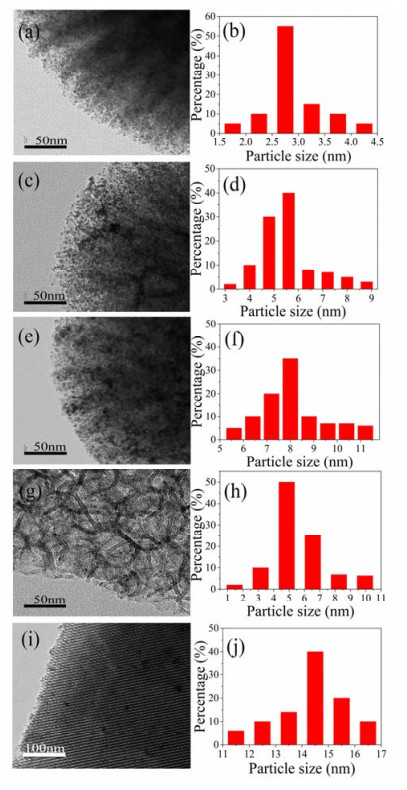

The morphology and particle size of the silica-supported Pd catalysts were characterized using FE-TEM. As shown in Fig. 2(a), the Pd nanoparticles in 2 wt.% Pd/KCC-1-PDETA were well-dispersed on KCC-1 and no coagulated Pd nanoparticles were detected, proving a strong contact between the Pd nanoparticles and the silica support [28]. The fibrous morphology of KCC-1 was maintained without any structural degradation after amine functionalization and Pd loading. The Pd particle size distribution, derived from the image in Fig. 2(a), indicates that about 90% of Pd nanoparticles are in the size range of 2-4 nm and the mean diameter of the Pd nanoparticles is ~2.8 nm (Fig. 2(b)). It is likely that the high nitrogen content on the KCC-1 support (Table 1) limits the mobility and the agglomeration of the Pd particles. Pd nanoparticles deposited in 5 wt.% Pd/KCC-1-PDETA and 10 wt.% Pd/KCC-1-PDETA had mean particle sizes of 5.6 and 8.0 nm, respectively, and some aggregated Pd nanoparticles were observed (Fig. 2(c-f)). Fig. 2(g) and 2(i) are the FE-TEM images of the as-prepared 2 wt.% Pd/MSF-PDETA and 2 wt.% Pd/KIT-6-PDETA, which showed that Pd nanoparticles were homogeneously dispersed on the respective support surfaces (MSF-PDETA and KIT-6-PDETA) with the mean particle size of 4.9 and 14.5 nm (Fig. 2(h) and 2(j)). These results clearly illustrated that the open morphology of KCC-1 has a beneficial effect in minimizing the Pd particle size due to highly accessible surface area [14]. HAADF-STEM with EDX analysis and the corresponding elemental mapping was done to examine the composition of 2 wt.% Pd/KCC-1-PDETA. Closer inspection of the elemental mapping image for Pd in Fig. S3(e) showed that the Pd atoms were uniformly distributed over the entire KCC-1 support, which is consistent with the XRD and FE-TEM results.

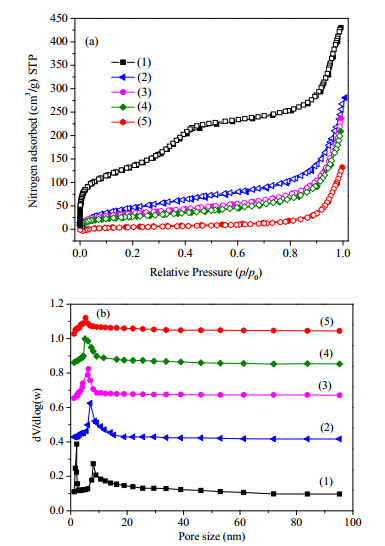

To examine the textural properties of the as-prepared catalysts, N₂ adsorption-desorption measurements were made at 77 K. The obtained isotherms of KCC-1 showed a combination of type I and IV isotherms with H1-type hysteresis (Fig. 3(a)). The surface area of PDETA-functionalized KCC-1 decreased from 520 m²/g (KCC-1) to 231 m²/g, confirming the successful grafting of amine species. After the immobilization of 2, 5, and 10 wt.% Pd particles, the surface areas further decreased to 168, 114, and 90 m²/g, respectively, accompanied by the disappearance of the pores around 2.2 nm in pristine KCC-1 (Fig. 3(b)). And these relatively small decreases in surface area could be attributed to the unique fibrous structure of KCC-1, in which the pores are not completely blocked by the introduced amines and Pd nanoparticles owing to the open structure [25]. The same tendency was also observed in other supports used in this study, and the surface areas of Pd/MSF-PDETA and Pd/KIT-6-PDETA also decreased from the respective pristine materials (see Fig. S4).

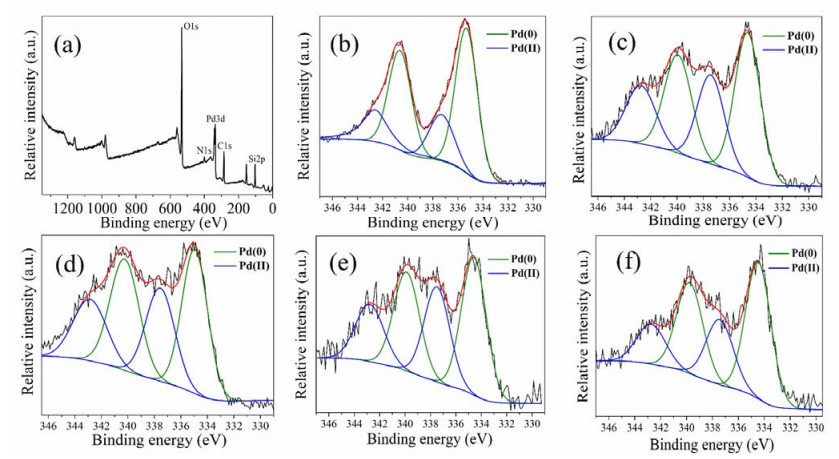

Fig. 4(a) shows the XPS spectra for 2 wt.% Pd/KCC-1-PDETA, which confirmed the presence of Si, O, C, N, and Pd. XPS analysis also allowed determination of the electronic states of Pd on different silica supports (Fig. 4(b-f)). The deconvoluted Pd 3d spectrum of 2 wt.% Pd/KCC-1-PDETA (Fig. 4(b)) showed two doublet peaks: the strong peaks at 339.9 and 334.6 eV correspond to Pd(0) 3d_3/2 and 3d_5/2, respectively [29], and the low intensity peaks at 337.5 and 342.8 eV were attributed to Pd(2+) 3d_3/2 and 3d_5/2, respectively [29]. These results indicate that 2 wt.% Pd/KCC-1-PDETA still has almost 30% of Pd²⁺ ion (Table 1). The existence of Pd²⁺ species here indicates that some of the Pd precursor interacted strongly with the electron-enriched nitrogen on KCC-1 support due to the strong complexing ability of nitrogen species, and that it was difficult to reduce all the Pd²⁺ ions [30]. The positions of the Pd 3d peaks and the amount of Pd²⁺ species for all other samples are shown in Fig. 4 and Table 1, respectively. The amounts of Pd²⁺ ions in the other as-prepared catalysts were higher than that in 2 wt.% Pd/KCC-1-PDETA.

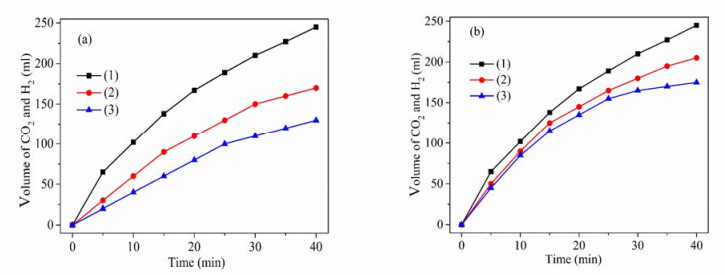

The catalytic performance of the Pd-supported silica catalysts towards FA decomposition in the absence of additives was examined, and the obtained results are given in Fig. 5. Fig. 5(a) shows the total volume of the generated gas (CO₂ + H₂) versus reaction time in the FA aqueous solution (5 mmol FA, n_Pd/n_FA = 0.01, 15 mL H₂O) in the presence of 2 wt.% Pd/KCC-1-PDETA, 2 wt.% Pd/MSF-PDETA, and 2 wt.% Pd/KIT-6-PDETA at 323 K. Clearly, 2 wt.% Pd/KCC-1-PDETA was the most active catalyst among these three (Fig. 5(a-1)) and 245 mL of gas mixture (CO₂ + H₂) evolved within 40 min, corresponding to complete dehydrogenation of FA as calculated by eqn. (S1). The TOF (eqn. (S2)) during the first 20% conversion of FA was calculated to be 332 h⁻¹ without any additives at 323 K, which is comparable to the best palladium-based heterogeneous catalysts reported for FA decomposition reaction (Table 2). By comparison, the gas production profiles of 2 wt.% Pd/MSF-PDETA and 2 wt.% Pd/KIT-6-PDETA catalysts showed lower catalytic activities, although H₂ was steadily released from the reaction mixture. The TOF of 2 wt.% Pd/MSF-PDETA and 2 wt.% Pd/KIT-6-PDETA up to 20% conversion of FA were only 147 and 97 h^-1, respectively, and the TOF of 2 wt.% Pd/KCC-1-PDETA was almost 2 and 3 times higher than that of 2 wt.% Pd/MSF-PDETA and 2 wt.% Pd/KIT-6-PDETA, respectively. This difference is possibly due to the higher amount of the electron-rich nitrogen, smaller Pd particle size, and fibrous structure of KCC-1 that allowed more FA to access the catalytically active Pd sites [23, 31-34]. The n_Pd/n_FA was kept close to 0.01 in all three catalysts, and therefore the Pd loading difference is not a factor when comparing the catalytic activities.

Since some other researchers had used far higher Pd loadings than 2 wt.% [12, 31, 35], Pd/KCC-1-PDETA with 5 wt.% and 10 wt.% Pd were also prepared to investigate how the Pd loading affects the catalytic activity of Pd/KCC-1-PDETA. FA decomposition tests were carried out using these catalysts at the same FA concentration and temperature as mentioned above, and the gas evolution profiles are presented in Fig. 5(b). For the 5 wt.% and 10 wt.% Pd loadings on KCC-1-PDETA, the volumes of released gas mixture were 205 and 175 mL with the TOF of 242 and 222 h^-1, respectively (Fig. 5(b-2) and (b-3)). The decreased catalytic activity with increased Pd loading on KCC-1-PDETA seems to be a consequence of the bigger particle size and agglomeration of Pd nanoparticles [30] as shown in Fig. 2. Also, Fig. 4 and Table 1 show that at higher Pd loadings, the portion of the unreduced Pd²⁺ against Pd⁰ was higher, which contributes to a lower catalytic activity [36]. Therefore, 2 wt.% Pd loaded on KCC-1-PDETA was used for further experiments in FA dehydrogenation reaction.

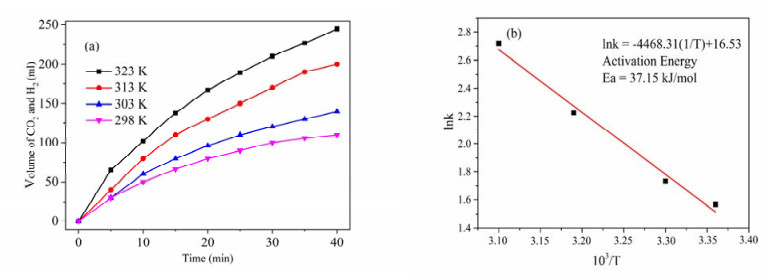

The influence of temperature on FA dehydrogenation over 2 wt.% Pd/KCC-1-PDETA is shown in Fig. 6(a). An increase in the volume of liberated gas from 110 to 245 mL was observed when the temperature was increased from 298 to 323 K, illustrating that a higher reaction temperature promotes FA dehydrogenation. However, since the FA boiling point is 373 K, the FA will evaporate at above 323 K, which limits the practical application of hydrogen generation [37]. The rate constant k at different temperatures was determined from the slope of the linear portion of each plot in Fig. 6(a). The Arrhenius plot of lnk vs. 1/T for 2 wt.% Pd/KCC-1-PDETA is shown in Fig. 6(b). The obtained activation energy (E_a) is 37.15 kJ/mol, which is comparable to those of other previously reported catalysts [5, 35, 38].

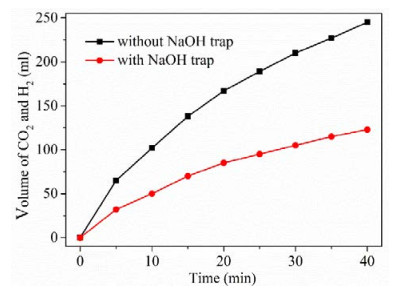

To confirm the absence of poisonous CO produced during the reaction, the evolved gas was treated with a trap (5 mol/L NaOH solution) at 323 K to remove CO₂ (Fig. 7). The gas volume decreased to half after the NaOH treatment, indicating that practically CO-free hydrogen was evolved from FA dehydrogenation over the 2 wt.% Pd/KCC-1-PDETA catalyst. GC analysis detected only the signals of H₂ and CO₂ without CO (detection limit: ~10 ppm CO), which also confirmed the H₂ selectivity of the catalyst for formic acid dehydrogenation.

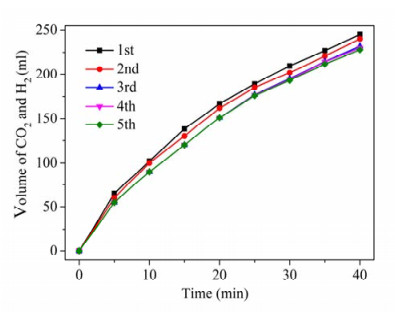

Finally, the catalyst cycling experiment was conducted with 2 wt.% Pd/KCC-1-PDETA catalyst in the additive-free dehydrogenation of FA at 323 K (Fig. 8). At the end of each reaction cycle, the Pd catalyst was recovered by filtration, washed with water several times, and dried at 60 ℃ (333 K) for 12 h before reuse. After the fifth run, the recovered catalyst showed about 7% decline in catalytic activity (Fig. 8), which can be ascribed to a reduced number of active sites due to the Pd particles grown in size from 2.8 nm (fresh) to 3.3 nm (reused) (Fig. S5) [39]. ICP-OES analysis after the first run showed no Pd leaching (detection limit: ~0.01 ppm for Pd) into the solution.

In summary, finely dispersed 2 wt.% Pd nanoparticles deposited on KCC-1 were successfully prepared with a mean particle size of 2.8 nm. The prepared sample was used as an efficient, robust, and selective catalyst for FA decomposition without additives at 323 K. The catalytic performance of Pd nanoparticles deposited on KCC-1 was systematically evaluated and compared with that of the Pd nanoparticles deposited on conventional mesoporous silica materials (MSF and KIT-6) under the same conditions. The Pd/KCC-1-PDETA exhibited the best catalytic activity, with a TOF value of 332 h^-1 and 100% of H₂ selectivity for FA dehydrogenation. This can be attributed to the unique fibrous morphology of KCC-1, which helps to increase the FA accessibility to the catalytically active palladium nanoparticle sites in smaller size. The influence of Pd loading in the FA dehydrogenation was also investigated, showing that a sufficiently low loading of Pd resulted in smaller deposited Pd nanoparticles on KCC-1-PDETA, which led to the production of more H₂ gas. Additionally, 2 wt.% Pd/KCC-1-PDETA could maintain its catalytic activity after several recycles.
