Photocatalytic H2 production from H2O splitting is suggested to be a promising strategy for solar–photon energy conversion owing to its green and renewable characteristics [1-3]. In a general artificial photocatalytic procedure, the photocatalytic process involves four procedures, i.e., photon absorption, generation of e–/h+, charge transfer from provider to active sites, and reduction of absorbed H2O or H3O+ to H2 [3, 4]. Achieving enhanced photon capture and efficient utilization of solar energy is still challenging [5]. As a result, photon energy needs to exceed the transition energy of photogenerated e– in the bandgap; the directional charge-transfer and its designated interaction with the absorbed H2O are required. The former requires significant photon energy to excite photogenerated charges; however, this requirement cannot be met. The second factor dynamically reflects a competition in the utilization of the photogenerated charge, and e– transfers to H2O slowly (~μs); however, e– recombines with h+ rapidly (~ps) [6, 7]. Although there are many strategies to be attempted [8, 9], such as the heteroatom doping, heterojunction construction, and plasmonic noble metal loading, it is still difficult to integrate the electricity and optics of semiconductors to simultaneously satisfy the thermodynamic and dynamic requirements of photogenerated carriers.
Taking 2D π-conjugated carbon nitride as a representative, g-C3N4 is a typical visible-excitation semiconductor (~2.7 eV), and its CB potential is –1.23 V (vs. NHE at pH = 7) [10, 11]. Generally, g-C3N4 has been used as a photocatalyst for reductive photocatalytic reactions, e.g., splitting H2O into H2 [12-18], CO2 [19-23], O2 [24-26], and/or heavy metal reduction [27-30]. It is known that g-C3N4 is usually in the form of the layered bulk agglomeration in thermal polymerization, which results in a small surface area, low-photon absorption, and serious charge–carrier recombination [31]. Thus, noble metal (Pt) is often used as a support for g-C3N4 to enhance its photo-induced electron migration and utilization in H2O splitting into H2. However, its H2 evolution efficiency does not match the photocatalyst cost requirements [32, 33]. Essentially, it is necessary to understand that the migration and action mechanism of photogenerated electrons from the atomic orbital structures of g-C3N4 and its electronic structure can be consequently adjusted to optimize the utilization of photo-induced electrons and H2 production performance over g-C3N4. It is revealed that g-C3N4 is composed of sp2-hybridized C-N bonds with lone electrons on the pz orbitals, which form π-conjugated structures [34-36]. When the sp2-hybridized structure of g-C3N4 deviates from the two-dimensional plane, the π-electron density shifts from the concave to the convex sp2-hybridized structure along with the hybridization intermediate between sp2 and sp3 in the g-C3N4 layers [36-38]. This causes the electron to directly trend from concave to convex. Moreover, the curved-hollow g-C3N4 can increase its surface density, and the undulating surface increases its absorbance and improves the photosensitivity of its intrinsic or composite materials [39]. In view of this, we synthesized hollow-concave carbon nitride (C3N4), and CuInS2, as the typical narrow-bandgap sample, was embedded and grown in the cavity of C3N4 by hydrothermal method. Research results confirm that the constructed CuInS2@C3N4 photocatalysts demonstrated increased light-absorption intensity from normal 455 to 480 nm due to the light scattering effect caused by the hollow structure. The good directional migration capability of the charge carriers from CuInS2 to C3N4 has been achieved under the action of the apparent potential difference between the concave to the convex of the sp2-hybridized structure of C3N4, which thus promotes the effective spatial separation, and enhances the utilization of photogenerated carriers with the direct S-scheme mechanism. As a result, CuInS2@C3N4 photocatalysts exhibit higher efficiency toward H2 evolution compared with the bulked g-C3N4 supported 1 wt% Pt and g-C3N4 loaded 3 wt% Pd.
SiO2 nanospheres with an average size in the range of 300–350 nm were prepared according to a previous report [40]. C3N4 was synthesized by direct heat treatment using SiO2 nanospheres as a template. Specifically, 2.0 g of melamine powder was evenly mixed with 1.0 g of SiO2 nanospheres. Finally, the mixture was placed in a crucible (20 mL). The crucible, including precursors and templates, was firstly heated in a muffle furnace at 320 ℃ for 2 h at a linear ramp rate of 10 ℃ min–1, and then heated at 550 ℃ for 4 h at the same ramp rate. After the temperature was decreased to room temperature, the sample was impregnated into an NH4HF2 solution (4 mol·L–1) for 6 h, and then washed with deionized water. Ultimately, a yellow powder of C3N4 was obtained.
In a typical synthesis of CuInS2@C3N4 composites, C3N4 (0.49 g), InCl3·4H2O (1 mmol), CuCl (1 mmol), and thiourea (3 mmol) were successively added into 50 mL of ethylene glycol, and stirred for 1 h at room temperature; subsequently, the mixture was transferred to a Teflon-lined stainless steel autoclave (100 mL) and heated at 200 ℃ for 12 h. After cooling to room temperature naturally, the product was collected, washed, and dried at 60 ℃ for 4 h to afford CuInS2@C3N4. Besides, the bulk carbon nitride (g-C3N4) was prepared by heating 2.0 g of melamine at 550 ℃ for 2 h. Meanwhile, pristine CuInS2 nanoparticles and CuInS2/g-C3N4 were prepared by the same method as that for CuInS2@C3N4.
The data of the composition, crystal type, and chemical valence of the photocatalytic materials were obtained by XRD-6000 and XPS (XSAM800), and the binding energy for all samples was referred according to C 1s at 284.6 eV in the XPS characterization. The morphology was determined by FESEM (Hitachi, SU-70). The optical property was examined using a UV2600 (Shimadzu) and RF6000 (Shimadzu), and the excitation wavelength of the fluorescence was 325 nm at room temperature. The specific surface area and pore radius distribution were tested on a Micromeritics ASAP 3020. The Mott–Schottky analysis, electrochemical impedance spectroscopy, transient photocurrent response, and linear sweep voltammetry were performed on an electrochemical workstation (CHI 660C Chenhua Instruments) in a Na2SO4 solution. Time-resolved photo-luminescence spectra were recorded on an FLS920 fluorescence lifetime spectrophotometer (Edinburgh, Instruments, UK).
Fifty milligrams of the prepared photocatalyst was dispersed into 100 mL of an aqueous solution containing 10 vol% triethanolamine along with Na2S (0.25 mol L–1) and Na2SO3 (0.2 mol L–1) solutions. Prior to light exposure, the oxygen in the photocatalytic system was removed by bubbling with N2. Under irradiation by a 350 W Xe lamp equipped with optical filter (λ ≥ 420 nm), a continuous magnetic stirrer was applied at the bottom of the reactor to contain the photocatalyst particles in suspension throughout the experiment. A portion (0.4 mL) of the product was sampled intermittently with septum (1 mL), and the gas was analyzed using a GC-2014 instrument equipped with a 5 Å molecular sieve column (Shimadzu).

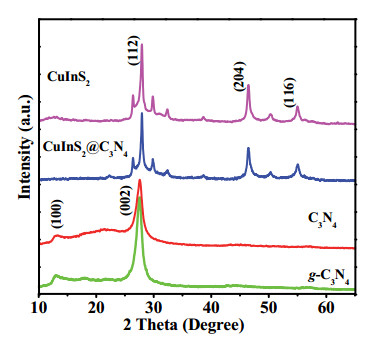

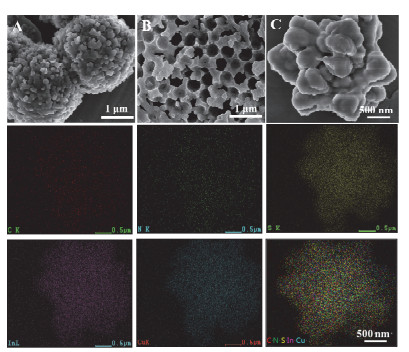

The size of the pristine CuInS2 is about 100–120 nm (Fig. 1(A)), and C3N4 demonstrates the uniform hollow-concave structure with a diameter of 300–350 nm (Fig. 1(B)). Using these hollow concave as nucleation sites, the grown CuInS2 has a larger size of 250–300 nm than that of the pristine CuInS2, and finally covers the surface of C3N4 (Fig. 1(C)). Element mappings confirm the uniform distributions of C, N, Cu, In, and S for the CuInS2@C3N4 sample in Fig. 1(D). The XRD spectra of the as-prepared g-C3N4, C3N4, CuInS2, CuInS2@C3N4 samples are shown in Fig. 2. Both g-C3N4 and C3N4 demonstrate two characteristic diffraction peaks at 13.1° and 27.4°, which reflect the (100) plane originating from the in-planar packing structure of conjugated tri-s-triazine, and the (002) plane corresponding to the interlayer stacking of the conjugated aromatic structure [23, 24], respectively. However, the intensity of diffraction peak over C3N4 is weaker in comparison with that of g-C3N4, which is because the electroneutrality of the delocalized tri-s-triazine structure is broken by the apparent potential difference between the concave and convex surfaces in the process of deviating from the plane [41, 42]. In combination with CuInS2, there are diffraction peaks at 27.9°, 46.4°, and 54.9° over the CuInS2@C3N4 sample corresponding to the (112), (204), and (116) crystal planes of the chalcopyrite-type CuInS2 (JCPDS 85-1575), respectively. It is noticed that the half peak widths of these peaks are decreased compared with those of the CuInS2 sample, suggesting that the hollow-concave as nucleation sites was beneficial to the CuInS2 growth. It is observed that the strong diffraction peak of (002) in C3N4 is almost the same with that of (112) in CuInS2, and the former is overlapped by the latter, while the peak of (100) for C3N4 is extremely weak, and does not indicate the presence of C3N4 in the composite. Thus, there appear to be no diffraction peaks for C3N4 in the XRD pattern of CuInS2@C3N4. The composite and chemical valence states of the photocatalysts were tested by XPS, and the corresponding spectra are shown in Fig. 3. The binding energies in the tests are referred to according to C 1s at 284.6 eV. In Fig. 3(A), there are two Cu 2p signals of the pristine CuInS2 at 931.7 and 951.5 eV corresponding to the Cu 2p3/2 and Cu 2p1/2 of Cu+ [43, 44]. However, for the Cu+ signal of the CuInS2@C3N4 sample, the binding-energy data are increased to 931.9 and 951.7 eV, respectively. The N 1s spectra of the C3N4 sample in Fig. 3(B) are fitted into the signals at 398.2, 399.7, and 401.2 eV, corresponding to sp2-hybridized N (C=N–C), bridging N ((C)3–N), and N–H in the delocalized tri-s-triazine structures [45, 46], respectively. In combination with CuInS2, the N 1s binding-energy data of the sp2-hybridized N is slightly decreased to 398.0 eV. This phenomenon may indicate the strong interaction between the composites attributed to the transportation of electrons from CuInS2 to C3N4 and attainment of thermodynamic balance. Moreover, the C 1s, S 2p, and In 3d spectra of CuInS2@C3N4 are shown in Fig. S1, and these binding energies were not been changed before and after combination between C3N4 and CuInS2. The BET area data were calculated to be 3.2, 30, and 120 m2·g–1 for CuInS2, CuInS2@C3N4, and C3N4, respectively; the corresponding pore-size distributions using the BJH method are 8.8, 9.0, and 6.3 nm. The elaborate data of BET areas and pore sizes, as well as adsorption-desorption isotherms and pore size distributions are listed in Table S1 and Fig. S2. Therefore, evidently, the two physical properties of CuInS2@C3N4 have been enhanced by the addition of C3N4.

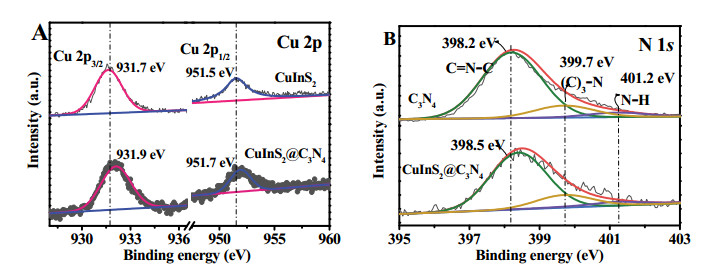

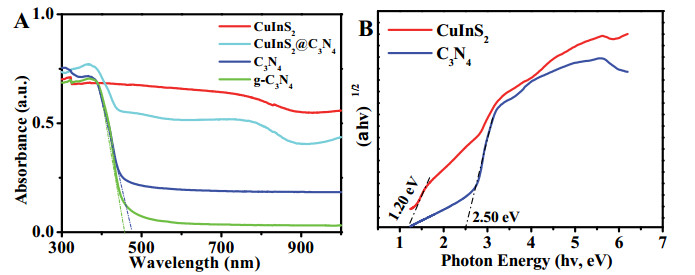

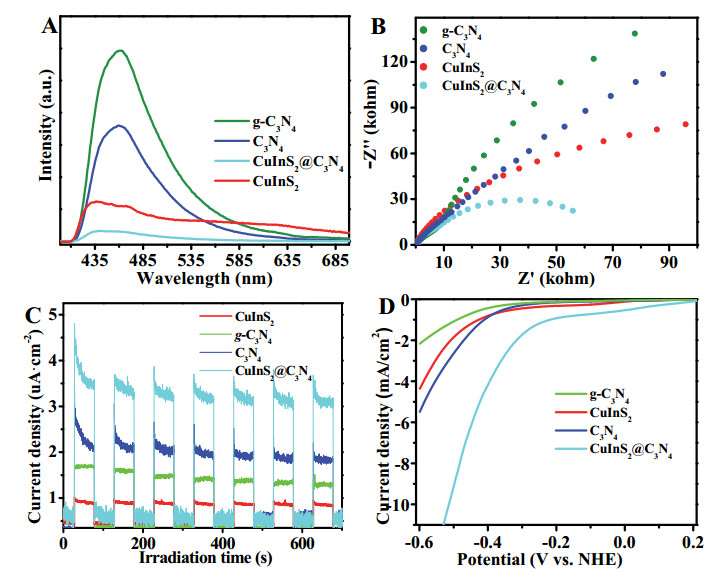

According to the above characterizations of crystal composite and morphology, the hollow-concave structure of the C3N4 obtained by deviating the delocalized tri-s-triazine from the plane will strengthen the photon absorption capabilities and electron transfer performances of its composite. In Fig. 4, it can be observed that the photon absorption edge of g-C3N4 is 455 nm; however, its absorption boundary of C3N4 shows an obvious red shift to 480 nm along with enhanced photon absorption intensity due to the light scattering effect caused by the hollow structure [47, 48]. Moreover, it is clear that pristine CuInS2 displays a wide light absorption owing to its intrinsic narrow bandgap. Taking advantage of the hollow structure of C3N4 and the narrow bandgap of CuInS2, the constructed CuInS2@C3N4 shows enhanced absorption from UV to near NIR, suggesting that the formed structure is beneficial for photon absorption and utilization [48]. According to the Kubelka-Munk function vs. light energy in Fig. 4(B), the band-gap energies of C3N4 and CuInS2 are calculated to be 2.50 and 1.20 eV, respectively. In a subsequent test of photoluminescence emission spectrum (Fig. 5(A)), g-C3N4 displays the strongest fluorescence intensity in the wavelength range of 450–1000 nm, revealing the serious recombination of photogenerated e– and h+ over g-C3N4. For the C3N4 sample, it is seen that its fluorescence intensity is much lower, suggesting the good separation and transfer efficiency of the photogenerated charge carriers over C3N4 under the effect of the apparent potential difference between its inner and outer hollow surfaces. Furthermore, the CuInS2@C3N4 sample shows a lower signal intensity compared to that of C3N4, confirming that the photogenerated charge carriers can be spatially transferred over the CuInS2@C3N4 sample. In combination with the XPS results in Fig. 3, we can preliminarily prove the electron transfer from Cu+ of CuInS2 to N of C3N4, which, therefore, is bound to improve the conductivity and charge utilization efficiency of CuInS2@C3N4. In Fig. 5(B), EIS-Nyquist characterization confirms that improved conductivity of CuInS2@C3N4 has been obtained. It is seen that the semicircle plots originate from the charge transportation from CuInS2@C3N4 to the electrolyte. As a result, the CuInS2@C3N4 sample demonstrates smaller electric-resistance in comparison to those of C3N4 and g-C3N4. Under visible-light illumination, photogenerated charge carriers over samples migrate into their back contact and interact with the electrolyte to yield photocurrent reflected as the i-t spectra (Fig. 5(C)) [49]. Clearly, CuInS2@C3N4 presents the highest anodic photocurrent intensity. Linear sweep voltammetry was used to investigate the interaction barrier between the electron and H2O [50-52]. In Fig. 5(D), polarization plots of g-C3N4, C3N4, and CuInS2@C3N4 were obtained at a scan rate of 10 mV/s. The initial potentials at 0.5 mA/cm2 are –0.42, –0.36, and 0.016 V for the g-C3N4, C3N4, and CuInS2@C3N4 samples, respectively. The overpotential at –10 mA/cm2 for C3N4 is much lower than that for g-C3N4, suggesting that the apparent potential difference of the hollow-concave C3N4 can lower the interaction barrier between the electron and H2O. Under the effect of the apparent potential difference, CuInS2@C3N4 presents the lowest overpotential (–0.52 V), which is favorable for H2 production in photocatalytic H2O splitting [52, 53].

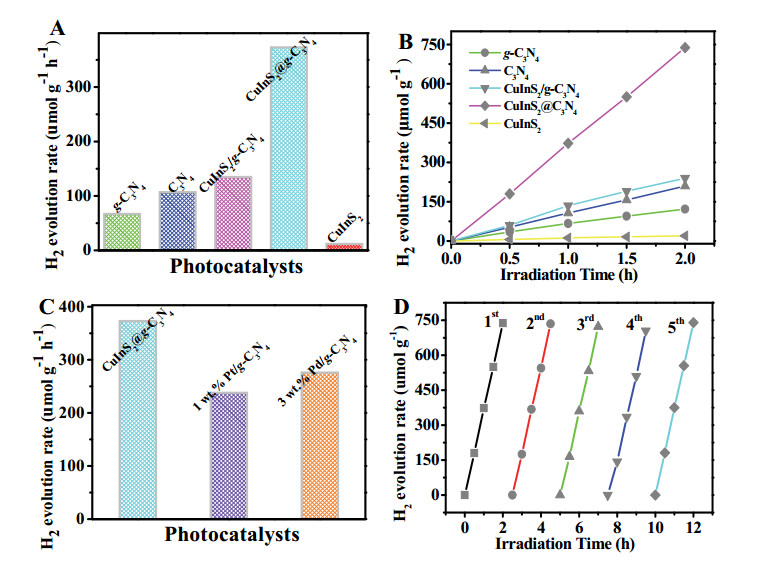

Accordingly, the photocatalytic activities have been tested by H2 yield efficiency using a Xe lamp equipped with an optical filter (λ > 420 nm), as shown in Fig. 6(A). The H2 evolution efficiencies of pristine g-C3N4 and CuInS2 are 67 and 12 μmol·h–1g–1. When C3N4 was used as the photocatalyst in H2O splitting, its H2 evolution efficiency was 107 μmol·h–1g–1. Moreover, the H2 evolution efficiencies are 135 and 373 μmol·h–1g–1 over CuInS2/g-C3N4, and CuInS2@C3N4, respectively. The effects of irradiation time on the H2 production efficiency over the g-C3N4, C3N4, CuInS2/g-C3N4, and CuInS2@C3N4 photocatalysts are displayed in Fig. 6(B), and the durative H2 evolution is achieved with no declining trend. However, the H2 efficiency trend plots vs. irradiation time are clearly distinct. Under visible-light irradiation, the H2 production efficiency over g-C3N4 increases tardily, while high H2 evolution efficiencies over C3N4, CuInS2/g-C3N4, and CuInS2@C3N4 can be obtained. In particular, CuInS2@C3N4 exhibits an excellent evolution rate. Meanwhile, the apparent quantum yield of CuInS2@C3N4 is 4.32% at a wavelength of 420 nm, which is 1.63 times higher than that of CuInS2/g-C3N4 (2.65%). Moreover, we also compared the H2 evolution efficiency of CuInS2@C3N4 with that of g-C3N4 with 1% Pt and 3% Pd prepared according to literature [45, 54]. In Fig. 6(C), it is presented that CuInS2@C3N4 shows higher activity than the 1 wt% Pt/g-C3N4 (238 μmol·h–1g–1) and 3 wt% Pd/g-C3N4 (276 μmol·h–1g–1). Thus, the hollow concave structure of C3N4 promotes the transmission and utilization efficiency of photogenerated electrons under the action of apparent potential difference, which has great advantages in replacing noble-metal co-catalysts and accelerating the photogenerated electron transmission. The stability test of CuInS2@C3N4 was performed as shown in Figure 6D. After three recycles, CuInS2@C3N4 presented efficient H2 evolution performance under visible-light irradiation. However, its H2-evolution efficiency was decreased from 373 to 355 μmol·h–1g–1 in the fourth recycle. When sacrificial agents were added into the reaction system again, the performance over CuInS2@C3N4 increased to 375 μmol·h–1g–1. Thus, the decline in performance was due to the consumption of sacrificial agents. Therefore, CuInS2@C3N4 demonstrates high stability. In combination with the series of characterizations, the strengthened light absorption from visible to the near-infrared region, effective charge-transfer capability, and the lowered H2 overpotential over CuInS2@C3N4 ensure a highly efficient H2 production, which is attributed to the hollow concave structure of C3N4 and its structure-induced apparent potential difference.

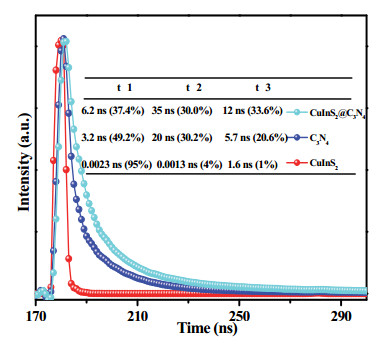

Kinetically, time-resolved fluorescence spectrum was recorded to probe the separation, transfer, and utilization of photo-induced carriers [55]. In Fig. 7, The decay spectra of CuInS2, C3N4, and CuInS2@C3N4 have been fitted into three different lifetime processes: τ1, τ2, and τ3, to demonstrate the radioactive process, non-radioactive step, and energy transfer [56, 57]. The radioactive step arises from the recombination of e– and h+. The τ1 values for CuInS2 (0.0023 ns) and C3N4 (3.2 ns) are lower than that for CuInS2@C3N4 (6.2 ns), and the percent of charge carriers decrease from 95% and 49.2% over CuInS2 and C3N4, respectively, to 32.6% over CuInS2@C3N4, revealing that the photogenerated charge carriers have been spatially transferred from CuInS2 to C3N4 over the CuInS2@C3N4 sample. In the subsequent process, the relaxation effect of the partial photo-induced carriers results in the non-radioactive step and energy transfer, which is critical for the utilization of photogenerated electrons and photocatalytic H2O splitting. It is seen that τ2 and τ3 for CuInS2@C3N4 (35 and 12 ns) are longer than those of CuInS2 (0.0013 and 1.6 ns), and C3N4 (20 and 5.7 ns), and the corresponding proportions of photo-induced carriers over CuInS2@C3N4 (67.4%) are clearly higher than those of CuInS2 (5%) and C3N4 (50.8%), suggesting that more photo-induced carriers participate in the photocatalytic H2O splitting. According to the Kubelka-Munk function vs. light energy in Fig. 4(B) [58], the band-gap energies of C3N4 and CuInS2 are calculated to be 2.50 and 1.20 eV, respectively. In Fig. S3, the Mott–Schottky plots demonstrate that C3N4 possesses the n-typical semiconductor feature, and its CB potential is –1.60 V at pH = 7. Thus, the corresponding VB is calculated to be 0.90 V. In Fig. S3(A), the CB and VB potentials of CuInS2 have been calculated to be –0.20 and 1.00 V, respectively. Based on these results, we propose a suitable photocatalytic mechanism for photocatalytically yielding H2 over CuInS2@C3N4, as displayed in Scheme 1. Since C3N4 and CuInS2 possess small band gaps, e– and h+ can favorably generate and migrate from the VB to CB of both semiconductors under visible-light irradiation. The XPS results in Fig. 3 reveal the electron transfers from Cu+ of CuInS2 to N of C3N4 over CuInS2@C3N4. For the traditional Type-Ⅱ photocatalytic mechanism in accordance with the research of Yu et al. [59], electrons migrate from a higher CB to a lower CB, and the holes migrate from a lower VB to a higher VB. Noticeably, the XPS results reveal that the electron transfer principle does not conform to the Type-Ⅱ photocatalytic mechanism; however, CuInS2@C3N4 follows the S-scheme mechanism of the photocatalytic H2O splitting into H2 [60]. The photogenerated e– tendentiously migrates from the CB of CuInS2 to the VB of C3N4 through the interaction between N and Cu+ under the action of the apparent potential difference between the concave and convex of the hollow C3N4. Furthermore, the photogenerated h+ remains on the CuInS2 surface, which efficiently completes the spatial separation and directional migration of the photogenerated carriers. Meanwhile, the H2O dissociative adsorption is advantageously performed on the convex surface of C3N4. As a result, e– smoothly reduces the H2O molecule to produce H2 on the convex surface of C3N4, while h+ oxidizes the sacrificial agent on the surface of CuInS2.

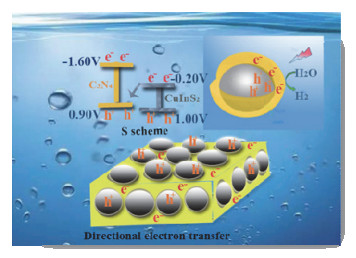

In summary, utilizing the advantage of the apparent potential difference of hollow-concave carbon nitride, CuInS2 nanoparticles have been impregnated within C3N4 for the photocatalytic H2O splitting into H2. The constructed CuInS2@C3N4 exhibits higher photocatalytic performance than the bulk g-C3N4 with 1% Pt and g-C3N4 with 3% Pd in a visible-light hydrolysis system. Experimental analyses confirm that the high efficiency of the H2 evolution over CuInS2@C3N4 mainly arises from (1) the increased light-capturing capability owing to the incident light within the hollow C3N4 by multiple light scattering, and (2) the directional migration of the charge carrier due to the apparent potential difference of the hollow-concave C3N4 caused by deviating the sp2-hybridized structure of its tri-s-triazine component from the two-dimensional plane. The research develops an effective strategy for promoting successive solar energy conversions over carbon nitride, which can also be suitable for other semiconductors.
