Photocatalytic technology has attracted extensive attention owing to its enormous potential in splitting water into hydrogen, reducing CO2 to solar fuels, nitrogen photo-fixation, and degrading harmful contaminants [1-6]. Efficient separation and transfer of photocatalytic charge carriers is still one of the main bottlenecks to improving the photocatalytic efficiency [7-10]. To overcome this problem, various effectual strategies have been considered, such as morphology regulation [11, 12], defect engineering [13], heteroatom doping [14-16], and fabrication of composites [17-20]. Among them, integration of two different semiconductors with well-matched energy band structures to form composites is regarded as a facile and feasible avenue toward improving the separation efficiency of photogenerated electron-hole pairs.
Recently, graphitic carbon nitride (g-C3N4), with a layer structure, has been receiving more interest because of its low cost, nontoxic nature, high stability, visible-light response, and possibility of large-scale preparation. Moreover, an appropriate conduction band (CB) potential (about -1.12 eV vs. NHE) endows it with a strong capability to accept photoinduced electrons [21-27]. However, the photocatalytic activity of pristine g-C3N4 is always low owing to the fast recombination of the photogenerated charge carriers. Inspired by the abovementioned heterostructure composites, tremendous efforts have been made to fabricate g-C3N4-based composites, e.g., SnS2/g-C3N4 [28], TiO2/g-C3N4 [29], CdS/g-C3N4 [30], BiOBr/g-C3N4 [31], Fe2O3/g-C3N4 [32], and so on [33-44]. These composites have all displayed significantly enhanced photocatalytic activities, compared with that of bare g-C3N4, which may be attributed to the effective transfer and separation of photoinduced charge carriers.
Cadmium molybdate (CdMoO4) as a class of metal molybdates (MMoO4, M = Ni, Ba, Cd, Pb, etc.) has also received considerable attention because of its promise for application in the photocatalytic field [45-47]. However, the relatively wide band gap (about 3.4 eV) restricts its photocatalytic activity, as it is only active under ultraviolet light irradiation. In this regard, some strategies have been employed to extend the light response range, such as elemental doping and engineering composites with narrow band gap semiconductors [48-50]. Since g-C3N4 is a visible-light-driven semiconductor, it can be considered as a candidate that couples with CdMoO4 to enhance the light harvesting capacity. Moreover, the CB and valance band (VB) potentials of CdMoO4 are both lower than those of g-C3N4, which suggest a well matched energy band structure that is favorable for the formation of a type Ⅱ heterostructure composite. To date, there are very few reports on the fabrication of CdMoO4/g-C3N4 composites. Zhao et al. [51] prepared the CdMoO4/g-C3N4 heterojunction via a simple mixing-calcination method. The resultant composite displays a remarkable improvement in the photocatalytic activity toward rhodamine B (RhB) degradation and CO2 reduction. On the other hand, intimate interfacial contact between two different semiconductors is vitally important, as it will affect the transfer and separation efficiency of charge carriers. Hence, it is still a challenge to fabricate CdMoO4/g-C3N4 composites with close interfacial contact by a facile approach.
Here, CdMoO4 particles were directly deposited on the surface of g-C3N4 through a facile precipitation-calcination process. The CdMoO4/g-C3N4 composites exhibited markedly enhanced photocatalytic activity, in contrast with those of pristine g-C3N4 and CdMoO4, as demonstrated by the degradation of RhB solution under visible light irradiation. In addition, the effects of CdMoO4 mass ratios in the composites and the active species on the photocatalytic performance were investigated. A possible mechanism for the enhancement in the photocatalytic activity was proposed based on the experimental results.
g-C3N4 was prepared according to our previous report [37]. Typically, 10 g of melamine was calcined at 550 ℃ for 3 h at the heating rate of 5 ℃ min-1. The resulting powders were ground in agate mortar and collected for use without further treatment.
CdMoO4/g-C3N4 composites were fabricated by in situ precipitation and calcination approach. As a representative example, 200 mg of as-prepared g-C3N4 was dispersed in 30 mL deionized water by ultrasonic treatment for 30 min. 18.8 mg of Cd(CH3COO)2·2H2O and 19.7 mg of Na2MoO4·2H2O were added to the above suspension solution with the molar ratio of 1:1. The mixture was stirred at 40 ℃ for 6 h. Then, the sediments were collected by centrifugation, washed three times using deionized water, and dried at 80 ℃ for 12 h. After that, the products were annealed at 300 ℃ for 2 h in a muffle furnace. CdMoO4/g-C3N4 composites with different mass ratios were obtained through the aforesaid procedure by adjusting the amounts of Cd(CH3COO)2·2H2O and Na2MoO4·2H2O added. The actual contents of CdMoO4 in the composites were determined by thermogravimetric (TG) measurements. Bare CdMoO4 was synthesized by the same procedure, except for the addition of g-C3N4 at the beginning.
The crystal phases were identified with a Shimadzu XRD-7000 powder X-ray diffractometer (XRD) using Cu Kα irradiation at 40 kV and 30 mA. The morphologies, elemental maps, and microstructures were recorded on a JSM-7100F field emission scanning electronic microscope (FESEM) and a JEOL JEM 2100F high-resolution transmission electronic microscope (HRTEM). TG analysis was carried out on a Hitachi STA 7300 instrument from 50 to 800 ℃ in air flow at a heating rate of 10 ℃ min-1. X-ray photoelectron spectroscopy (XPS) was performed on a VG Multilab 2000 instrument with Al Kα source that operated at 300 W, and all the spectra were calibrated with the C 1s peak at 284.6 eV. The ultraviolet-visible diffuse reflectance absorption spectra (UV-DRS) were recorded by using dry-pressed disk samples on a Purkinje General TU-1901 spectrophotometer with BaSO4 as the reference sample. The fourier transform infrared (FTIR) spectra were recorded on a Thermo Nicolet Avatar 360 spectrometer using conventional KBr pellets. The Brunauer-Emmett-Teller (BET) specific surface areas were determined on a Micromeritics ASAP 2020 nitrogen adsorption apparatus. Prior to the BET analysis, the samples were degassed at 120 ℃ for 10 h to remove the adsorbed water. The photoluminescence (PL) spectra were measured at room temperature on a PerkinElmer LS55 fluorescence spectrometer with the excitation wavelength of 340 nm.
The photocatalytic activities were evaluated by degrading RhB solution under visible light irradiation on photoreactive equipment (BL-GHX-IV, Shanghai Bilang Instrument Co. Ltd, China). In each experiment, 30 mg of the photocatalyst was dispersed in 50 mL of RhB solution with the initial concentration of 1.0 × 10-5 mol L-1. A 300 W long-arc Xe lamp was used as the light source, and was equipped with 420 nm cutoff filters. Before the irradiation, the suspensions were stirred in the dark for 30 min to achieve adsorption-desorption equilibrium between the photocatalysts and RhB molecules. At given irradiation time intervals, 4 mL of the suspension was withdrawn and centrifuged to remove the photocatalysts. The concentration of the RhB solution in the supernatant was determined on a Purkinje General TU-1810 spectrometer.
The Mott-Schottky, EIS, and transient photocurrent response experiments were carried out on an electrochemical system (CHI 760D, Shanghai Chenhua Instruments, China) employing the standard three-electrode system. A Pt sheet and Ag/AgCl (saturated KCl) served as the counter and reference electrodes, respectively. The working electrodes were prepared as follows. 10 mg of the sample was mixed with 1 mL ethanol and 50 μL Nafion solution by using ultrasound. Then, 0.1 mL of the mixture was dropped on indium tin oxide-doped glass with the active work area of about 1 cm2. A 0.1 mol L-1 aqueous Na2SO4 solution was used as the electrolyte. The Mott-Schottky tests were conducted at the frequency of 1000 Hz, with the bias potential varying from -1.0 to 1.0 V. The EIS measurements were performed in darkness at the amplitude of 5 mV under open circuit potential conditions. The frequency range was 1 Hz to 100 kHz. The transient photocurrent responses were obtained at 0.5 V bias potential. A 300 W Xe lamp acted as the light source.
To probe the active species in the photocatalytic reaction, triethanolamine (TEOA), isopropanol (IPA), and p-benzoquinone (BQ) were introduced into the system as the scavengers of holes (h+), hydroxyl radicals (·OH), and superoxide radicals (·O2-), respectively. The measurements were similar to the aforementioned photocatalytic activity tests, except for the addition of scavengers into the RhB solution before visible light irradiation. The concentrations of TEOA, IPA, and BQ were 10, 10, and 1 mmol L-1, respectively.

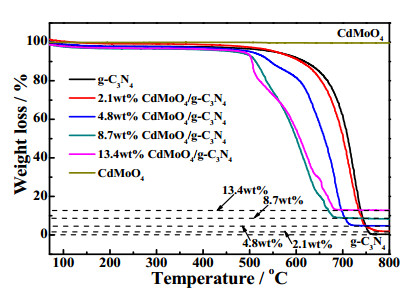

The actual mass ratios of CdMoO4 in the composites were determined by TG measurements. As revealed in Fig. 1, single-phase CdMoO4 reveals no distinct weight loss between 50 and 800 ℃ under air flow heating, which indicates that pristine CdMoO4 is relatively stable. On the other hand, bare g-C3N4 displays a perceptible weight loss at about 500 ℃ and decomposes completely at around 760 ℃. Consequently, on the basis of the remaining weight, the mass ratios of CdMoO4 in the composites can be estimated. For the CdMoO4/g-C3N4 composites, the CdMoO4 mass ratios were calculated to be 2.1, 4.8, 8.7, and 13.4 wt%. It is noteworthy that the decomposition temperatures of g-C3N4 decrease when coupling CdMoO4 with g-C3N4, which may be because CdMoO4 can accelerate the oxidation of g-C3N4 to gaseous products [51].

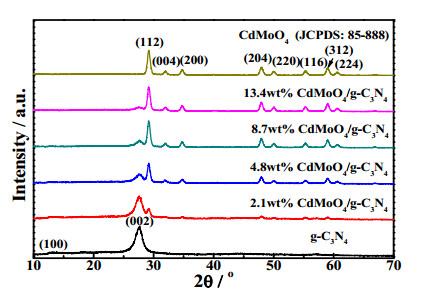

Fig. 2 exhibits the XRD patterns of CdMoO4/g-C3N4 composites with different mass ratios, together with those of bare g-C3N4 and CdMoO4. For g-C3N4, a weak peak located at about 13.0° and a strong peak situated at 27.2° are observed, which are ascribed to the (100) and (002) planes, respectively. These are the characteristic diffraction peaks of g-C3N4 that correspond to the in-planar packing motif of tri-s-triazine units and interlayer stacking of conjugated aromatic rings [32]. As for the single-phase CdMoO4, the diffraction peaks are well matched with the tetragonal phase of CdMoO4 (JCPDS # 85-888) [52]. Regarding the CdMoO4/g-C3N4 composites, the feature peaks of both CdMoO4 and g-C3N4 can be observed together, without other impurity phases. Moreover, the intensities of the diffraction peaks assigned to g-C3N4 gradually decrease and the peaks associated with CdMoO4 become stronger with the increase of CdMoO4 content in the composites. The XRD results corroborate the coexistence of CdMoO4 and g-C3N4 in the composites.

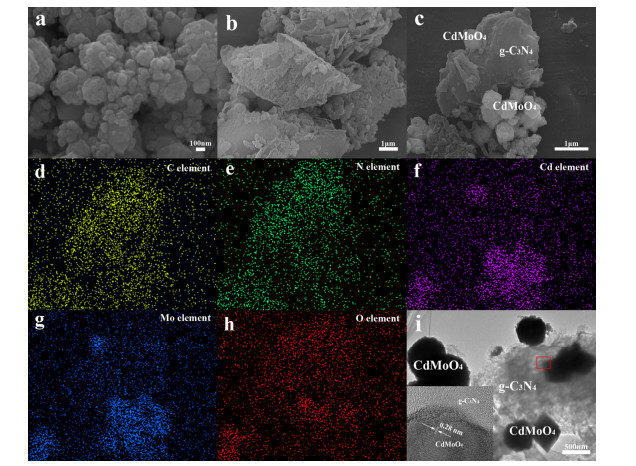

The representative FESEM images of bare CdMoO4, g-C3N4, and 4.8 wt% CdMoO4/g-C3N4 composite are exhibited in Fig. 3a-c. As can be seen, the pristine CdMoO4 (Fig. 3a) presents an irregular granular morphology, along with severe aggregation, while g-C3N4 (Fig. 3b) displays a large blocked structure with particle sizes of about 5-10 μm. The FESEM image (Fig. 3c) of 4.8 wt% CdMoO4/g-C3N4 composite reveals that there are two different morphological structures in the composites. The big blocks are assigned to g-C3N4, whereas the small particles correspond to CdMoO4. Energy dispersive X-ray spectrometer elemental mapping was used to further determine the distributions of different components in 4.8 wt% CdMoO4/g-C3N4 composite. As illustrated in Fig. 3d-h, the composite contains C, N, Cd, Mo, and O elements. In addition, CdMoO4 is discretely distributed on the surface of g-C3N4. Further investigations were performed by using the HRTEM to investigate the microstructure of the CdMoO4/g-C3N4 composite. Fig. 3i also reveals that the composite comprises two different constituents. The dark sections correspond to CdMoO4, while the grey sections are associated with g-C3N4. This is because electron beams can more easily pass through g-C3N4 than through CdMoO4 in view of their atomic weights. The red rectangular section of the TEM image is enlarged. From the HRTEM image (inset of Fig. 3i), the interplanar spacing is measured to be 0.28 nm, which corresponds to the (112) plane of CdMoO4. On the other hand, the lattice fringes of g-C3N4 are difficult to observe, which is in accordance with a previous report [36].

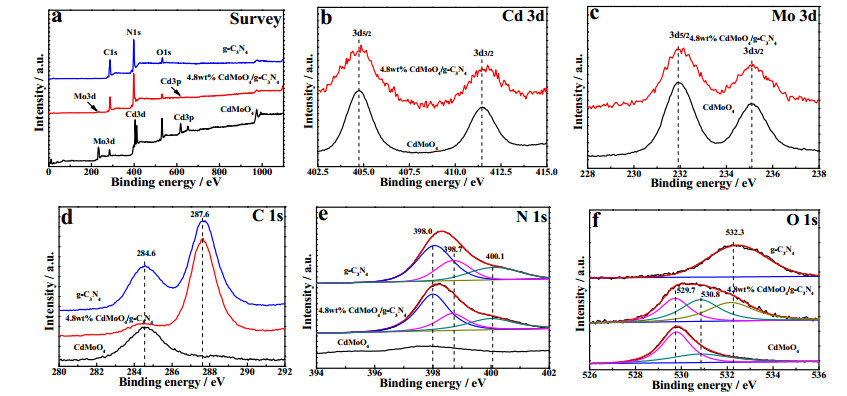

XPS was performed to further examine the surface chemical compositions and valence states of the various species. Fig. 4a depicts the XPS survey patterns of CdMoO4, g-C3N4, and 4.8 wt% CdMoO4/g-C3N4 composite. As expected, C, N, O, Cd, and Mo elements are distinctly detected in the CdMoO4/g-C3N4 composite. Fig. 4b displays the high-resolution Cd 3d XPS pattern. The peaks positioned at 404.7 and 411.4 eV can be assigned to Cd 3d5/2 and Cd 3d3/2, respectively, which are characteristic of Cd2+ [51]. From the Mo 3d spectra (Fig. 4c), two peaks are observed at about 231.9 and 235.1 eV, which correspond to Mo 3d5/2 and Mo 3d3/2, respectively. This indicates that the oxidation state of the Mo ions is +6 [51]. The high-resolution XPS C 1s patterns are shown in Fig. 4d. For CdMoO4, the only strong peak is found at 284.6 eV, which corresponds to the surface adventitious C. In the cases of g-C3N4 and 4.8 wt% CdMoO4/g-C3N4 composite, two peaks at 284.6 and 287.6 eV are observed. The former is attributed to the surface adventitious C and the latter to the sp2-hybridized C of the N=C-N aromatic rings [32]. The N 1s XPS patterns (Fig. 4e) of g-C3N4 and CdMoO4/g-C3N4 composite can be deconvoluted into three peaks at 398.0, 398.7, and 400.1 eV, which are related to the sp2-hybridized N (C=N-C) in the triazine rings, tertiary N bonded to C (N-(C)3), and amino groups (C-N-H), respectively [32]. As demonstrated in Fig. 4f, the O 1s spectrum of CdMoO4 can be fitted with two peaks. The peaks at 529.7 and 530.8 eV are associated with the O anions present in the lattice of CdMoO4 and the chemisorbed O species, respectively [46]. As for g-C3N4, a peak at 532.3 eV is detected, which can be related to the C-O bonds stemming from the incomplete pyrolytic reaction of melamine [32, 53]. Comparing with the spectra of CdMoO4 and g-C3N4, the O 1s spectrum of 4.8 wt% CdMoO4/g-C3N4 composite can be deconvoluted into three peaks, which correspond to O anions, chemisorbed O species, and C-O bonds, respectively.

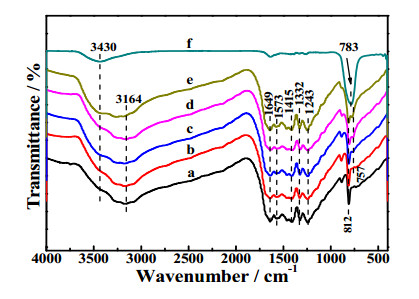

The molecular structures of pristine g-C3N4, CdMoO4, and CdMoO4/g-C3N4 with different mass ratios were investigated based on their FTIR spectra, and the relevant results are presented in Fig. 5. As for g-C3N4, the absorption bands in the range 1200-1650 cm-1 correspond to the stretching vibrations of the C-N aromatic ring [32]. The peak at about 812 cm-1 can be assigned to the characteristic breathing mode of the tri-s-triazine units [32]. In addition, the broad absorption bands centered at 3430 and 3164 cm-1 are attributed to the stretching vibrations of the O-H bonds of adsorbed water and the terminal N-H groups, respectively. For single-phase CdMoO4, a characteristic absorption peak appears at around 783 cm-1, which corresponds to the stretching vibration of the O-Mo-O bonds in the [MoO4]2- tetrahedrons [52]. In the case of CdMoO4/g-C3N4 composites, the characteristic peaks of g-C3N4 are clearly observed, while the peak belonging to CdMoO4 is only found in the CdMoO4/g-C3N4 composites with large mass ratios. Moreover, the feature absorption peak of CdMoO4 in the CdMoO4/g-C3N4 composites displays a slight shift from 783 to 757 cm-1, which may be due to the strong interaction between CdMoO4 and g-C3N4. This also implies that CdMoO4 and g-C3N4 have formed an interface with intimate contact.

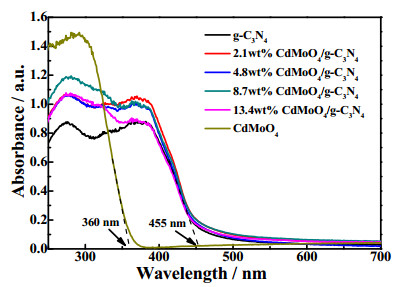

UV-DRS were used to study the optical properties of g-C3N4, CdMoO4, and CdMoO4/g-C3N4 composites. As revealed in Fig. 6, single-phase CdMoO4 and g-C3N4 show steep absorption band edges at around 360 and 455 nm, respectively. The band gaps of CdMoO4 and g-C3N4 are estimated to be 3.44 and 2.73 eV, respectively, from the equation Eg = 1240/λg, where Eg is the band gap and λg is the absorption band edge. For CdMoO4/g-C3N4 composites, they exhibit similar absorption band edges to that of bare g-C3N4 in the visible light region. This indicates that integration of CdMoO4 with g-C3N4 does not influence the structure of g-C3N4. It is noted that both the 8.7 wt% and 13.4 wt% CdMoO4/g-C3N4 composites display another absorption edge in the ultraviolet light region, which corresponds to the intrinsic optical absorption of CdMoO4.

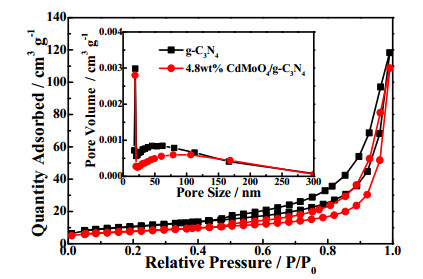

The BET specific surface areas and pore size distribution curves of pristine g-C3N4 and 4.8 wt% CdMoO4/g-C3N4 composite were obtained by nitrogen adsorption-desorption measurements, as revealed in Fig. 7. It can be seen that these two adsorption-desorption curves belong to type IV isotherm with type H3 hysteresis loops, which imply the existence of porous structures in these samples. This also indicates that introduction of CdMoO4 in g-C3N4 does not significantly block or change the pore structures of g-C3N4. The corresponding pore size distribution curves (inset) reveal that the pore size distributions mainly range from 25 to 100 nm, which confirm the presence of porous structures in these samples. Additionally, the BET specific surface areas of g-C3N4 and 4.8 wt% CdMoO4/g-C3N4 composite are calculated to be 27.2 and 25.6 m2 g-1, respectively, which represent a slight decrease in the specific surface area after the hybridization of CdMoO4 and g-C3N4.

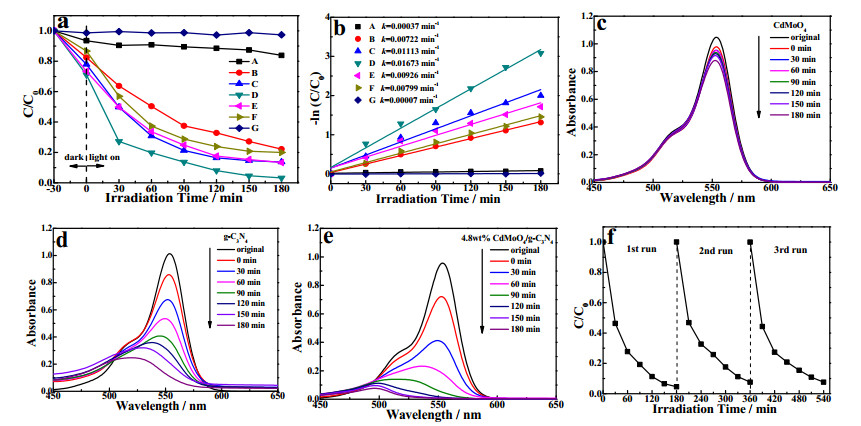

The photocatalytic performances of the as-prepared photocatalysts were evaluated by degrading RhB solution under visible light irradiation. As shown in Fig. 8a, the blank experiment reveals that RhB is quite stable under visible light illumination, which ruled out self-degradation of RhB. The decolorization percentage is estimated as C/C0, where C is the concentration of RhB after adsorption and light irradiation for a certain time interval, and C0 is the initial concentration of RhB. Single-phase CdMoO4 reveals a very low adsorption and photocatalytic activity, with a decolorization percentage of 16.1% after 180 min visible light irradiation. Bare g-C3N4 displays moderate photocatalytic activity, with the decolorization percentage being 77.8% for 180 min of visible light irradiation. The CdMoO4/g-C3N4 composites exhibit remarkable improvements in the photocatalytic activities. After 30 min dark adsorption and 180 min visible light illumination, the decolorization percentages are about 86.3%, 96.7%, 86.7%, and 80.1% for 2.1, 4.8, 8.7, and 13.4 wt% CdMoO4/g-C3N4 composites, respectively. Obviously, the 4.8 wt% CdMoO4/g-C3N4 composite exhibits the best photocatalytic activity. The degradation process could be fitted with the pseudo-first-order kinetic model, in which the value of the apparent reaction rate constant (k) is equal to the corresponding slope of the fitting curve. As depicted in Fig. 8b, the reaction rate constant of 4.8 wt% CdMoO4/g-C3N4 composite is about 2.32 times higher than that of bare g-C3N4. The temporal UV-visible spectral changes of the RhB solution during the adsorption and photocatalytic reactions over CdMoO4, g-C3N4, and 4.8 wt% CdMoO4/g-C3N4 composite are displayed in Fig. 8c-e, respectively. As for g-C3N4 and CdMoO4/g-C3N4 composite, the maximal absorbance wavelengths of RhB shift gradually from 554 to 498 nm, along with a gradual decrease in the maximal absorbance, which suggest stepwise removal of the N-ethyl groups of RhB molecules. The stability of CdMoO4/g-C3N4 composite was investigated by cyclic degradation of RhB solution. After every 180 min of the photodegradation reaction, the separated photocatalysts were washed and dried. As demonstrated in Fig. 8f, the photocatalytic degradation efficiency is still 92.4% after three successive experiments.

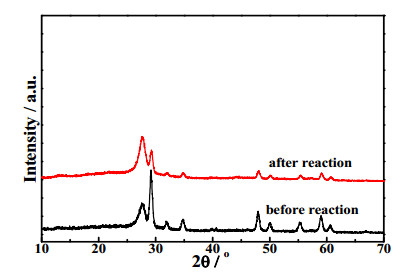

Furthermore, XRD was also used to evaluate the stability of the photocatalysts; the results are shown in Fig. 9. The pattern of the used CdMoO4/g-C3N4 composite is similar to that of the fresh one. However, the peak intensities ascribed to CdMoO4 reduce, indicating that slight photocorrosion occurs on CdMoO4.

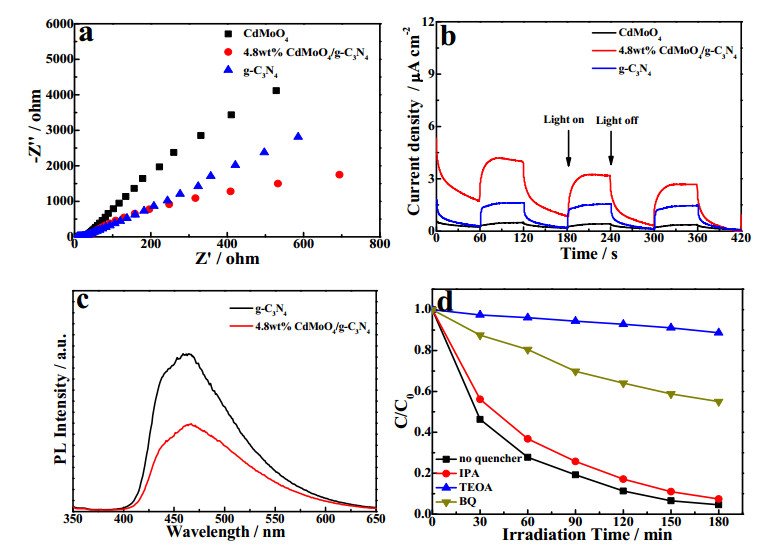

To corroborate the effective transfer and separation of the photogenerated charge carriers on the CdMoO4/g-C3N4 composite, EIS and transient photocurrent response measurements were employed to evaluate the interfacial charge separation efficiency. The EIS Nyquist plots of pure g-C3N4, CdMoO4, and 4.8 wt% CdMoO4/g-C3N4 composite are displayed in Fig. 10a. It can be observed that the diameter of the arc of CdMoO4/g-C3N4 composite is smaller than those of g-C3N4 and CdMoO4, which suggests a lower charge transfer resistance at the electrode surface of CdMoO4/g-C3N4 composite. In addition, the transient photocurrent responses (Fig. 10b) of g-C3N4, CdMoO4, and CdMoO4/g-C3N4 composite under visible light irradiation were compared. Generally, photocurrent is mainly due to the transfer of photogenerated electrons to the counter electrode, and a higher photocurrent implies more efficient transfer of the photoexcited electrons. Evidently, the photocurrent response of CdMoO4/g-C3N4 composite is larger than those of g-C3N4 and CdMoO4. These results powerfully support the idea of improved separation and transfer efficiency of the photogenerated charge carriers in CdMoO4/g-C3N4 composite. The steady-state PL spectra were also utilized to examine the separation and recombination processes of the photoinduced electron-hole pairs. As revealed in Fig. 10c, conspicuous PL quenching occurs in the 4.8 wt% CdMoO4/g-C3N4 composite, compared with the case of pure g-C3N4, which suggests suppression of charge carrier recombination and enhancement of charge separation efficiency. To obtain deep insights into the photocatalytic mechanism, active species trapping experiments were performed under visible light irradiation. From Fig. 10d, the addition of IPA only slightly reduces the degradation of RhB, which indicates that ·OH is a minor active species in the photocatalytic process. However, the addition of TEOA and BQ greatly inhibit the degradation of RhB, which indicates that ·O2- and h+ are the main reactive species in the photocatalytic system.

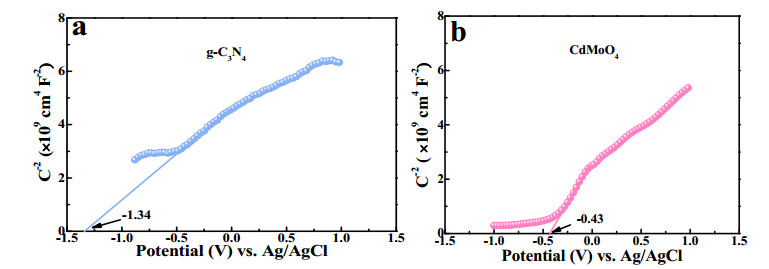

To determine the band energy positions and elucidate the possible transfer pathway of the photogenerated charge carriers between g-C3N4 and CdMoO4, Mott-Schottky measurements were performed to determine the conductivity types and flat-band potentials of the photocatalysts. As exhibited in Fig. 11a and 11b, the flat-band potentials of g-C3N4 and CdMoO4 are estimated to be -1.34 and -0.43 V (vs. Ag/AgCl, pH = 7), which are equivalent to -1.13 and -0.22 V (vs. NHE, pH = 7), respectively. Moreover, the positive slopes reveal that g-C3N4 and CdMoO4 are both n-type semiconductors. For an n-type semiconductor, the CB potential is close to the flat-band potential, and therefore, the CB potentials of g-C3N4 and CdMoO4 are about -1.13 and -0.22 eV (vs. NHE, pH = 7). By considering the band gap values, the VB potentials of g-C3N4 and CdMoO4 are determined to be 1.60 and 3.22 eV (vs. NHE, pH = 7), respectively.

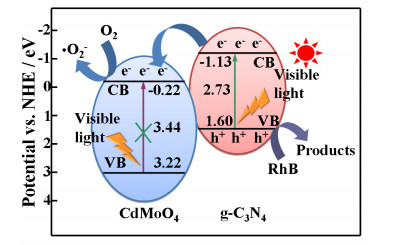

Based on the above results, a possible mechanism for the enhanced photocatalytic activity of CdMoO4/g-C3N4 composites toward the degradation of RhB under visible light illumination is proposed that is based on the improvement in the separation and transfer of the photogenerated charge carriers at the interface. As illustrated in Fig. 12, CdMoO4 cannot be excited with visible light owing to its wider band gap, therefore, it exhibits a lower photocatalytic activity. On coupling CdMoO4 with g-C3N4, the photoexcited electrons in the CB of g-C3N4 can easily transfer to the CB of CdMoO4 through the contacted interface, since the CB potential of g-C3N4 (-1.13 eV vs. NHE) is more negative than that of CdMoO4 (-0.22 eV vs. NHE). Meanwhile, the photogenerated holes tend to remain in the VB of g-C3N4. As a result, the photogenerated electrons and holes in g-C3N4 are effectively separated and recombination of the photoexcited charge carriers is greatly suppressed. The electrons in the CB of CdMoO4 can reduce O2 to generate ·O2- radicals, while the holes in the VB of g-C3N4 will directly participate in the photocatalytic reaction, because the VB potential of g-C3N4 is less positive than the potential of ·OH/H2O (2.38 eV vs. NHE), and therefore g-C3N4 cannot oxidize H2O to produce ·OH radicals. The EIS results, transient photocurrent response, PL spectra, and active species trapping experiments well support this mechanism.
CdMoO4/g-C3N4 composites were synthesized by a facile precipitation-calcination process. Compared with those of pristine g-C3N4 and CdMoO4, the photocatalytic activities of CdMoO4/g-C3N4 composites toward the degradation of RhB solution were greatly enhanced, which could be ascribed to the efficient separation and transfer of the photogenerated charge carriers. EIS results, transient photocurrent response, and PL spectra confirmed the effective separation of the photoexcited electron-hole pairs. Active species trapping experiments demonstrated that h+ and ·O2- were the main active species during the photocatalytic reaction. CdMoO4/g-C3N4 composites may be a promising photocatalyst for the degradation of organic pollutants.
