MoSe2/ZnO/ZnSe hybrids for efficient Cr(Ⅵ) reduction under visible light irradiation
Zhenxing Rena, Xinjuan Liub, Zhihao Zhugeb, Yinyan Gongb, Chang. Q Sunc
a. Institute of Applied Chemistry, Shanxi University, Taiyuan 030006, Shanxi, China;
b. Institute of Optoelectronic Materials and Devices, College of Optical and Electronic Technology, China Jiliang University, Hangzhou 310018, Zhejiang, China;
c. School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore 639798, Singapore
* Corresponding author. Xinjuan Liu, Tel/Fax: +86-571-86872475; E-mail:lxj669635@126.com;
Chang Q. Sun, E-mail: ecqsun@ntu.edu.sg
Financial support from the Natural Science Foundation of Zhejiang Province (LY18E060005, LY19E020006) is gratefully acknowledged
Abstract: Photocatalysis activated by visible light remains highly challenging. Here, we report novel MoSe2/ZnO/ZnSe (ZM) hybrids fabricated via a simple hydrothermal method for photocatalytic reduction of Cr(Ⅵ) under visible light irradiation. ZM hybrids show improved photocatalytic reduction ability under visible light irradiation compared to pure ZnO owing to good visible light absorption and rapid electron transfer and separation. The ZM hybrid shows the highest Cr(Ⅵ) reduction rate of 100%. Moreover, the photocatalytic Cr(Ⅵ) reduction process is mainly controlled by photoinduced electrons.
© 2020, Dalian Institute of Chemical Physics, Chinese Academy of Sciences.
Published by Elsevier B.V. All rights reserved.
Key words: Transition metal dichalcogenides    MoSe2    ZnO    ZnSe    Cr(Ⅵ)
MoSe2/ZnO/ZnSe复合物用于高效可见光催化还原Cr(Ⅵ)
任振兴a, 刘心娟b, 诸葛志豪b, 宫银燕b, 孙长庆c
a. 山西大学应用化学学院, 山西太原 030006, 中国;
b. 中国计量大学光与电子技术学院, 光电材料与器件研究院, 浙江杭州 310018, 中国;
c. 新加坡南洋理工大学电气与电子工程学院, 新加坡 639798, 新加坡
摘要:半导体光催化还原Cr(Ⅵ)为Cr(Ⅲ)被认为是一种能够解决环境和能源问题的绿色技术.典型光催化剂ZnO和TiO2在还原重金属离子和二氧化碳,降解有机污染物,分解水等领域均已被证明是一种有潜力的光催化剂.但是,它们窄的太阳能吸收范围和快的光生载流子复合限制了其实际应用.因此,探索能够响应可见光的高效光催化剂是非常急切的课题.研究表明,引入窄带半导体构筑异质结复合光催化剂是一种提高ZnO和TiO2可见光催化活性的有效途径.随着二维石墨烯研究的热潮,具有类石墨烯结构的材料,如过渡金属硫化物MX2(M=Mo,W,Nb,Ta,Zr;X=S,Se)以其独特的“三明治夹心”层状结构受到了研究者的高度重视.在这些MX2材料中,MoS2是间接带隙半导体,能带为1.2 eV,并且随着层数的减小,能带增加到1.8eV,因此,它对可见光具有很好的吸收能力.MoS2具有比表面积大、吸附能力强、反应活性高等优异的物理和化学性能,被广泛应用于光催化、制氢反应、太阳能电池及锂离子电池等领域.类似于MoS2,MoSe2也应该是一种具有潜力的窄带光催化剂.不幸的是,对于MoSe2在光催化还原Cr(Ⅵ)中的应用,还鲜有报道.本文基于ZnO,ZnSe和MoSe2构筑复合光催化剂,由于它们存在阶梯型的能级结构,使得此复合物能够展现优异的可见光催化性能,这是一种提高ZnO可见光催化活性的有效方法.扫描电子和高分辨透射电子显微镜结果显示,ZnO和ZnSe纳米颗粒分散在二维MoSe2片周围,形成很好的界面接触,有利于光生电子-空穴对的快速转移和分离,促进光催化反应的进行.紫外可见吸收光谱结果表明,MoSe2/ZnO/ZnSe(ZM)复合物在可见光区域展现了很好的吸收.电化学阻抗谱和光电流响应曲线结果表明,ZM复合物中光生载流子复合被有效抑制,延长了其寿命.光催化还原Cr(Ⅵ)的实验结果发现,与纯ZnO相比,ZM复合物展现了优异的光催化活性.在可见光照射180min后,ZM复合物对Cr(Ⅵ)的还原率达到100%.优异的光催化活性归因于其优异的可见光吸收、阶梯型能级结构和光生载流子的有效转移.光催化重复性实验和X射线衍射图结果表明,在光催化反应之后ZM复合物的结构没有发生变化,具有良好的稳定性.本工作可为进一步设计具有理想功能的二维复合光催化剂提供有价值的信息.
关键词过渡金属硫化物    MoSe2    ZnO    ZnSe    Cr (Ⅵ)

1 Introduction

Due to global warming and uncontrolled use of resources, environmental contamination and energy shortage have become very serious issues in the world [1-5]. Photocatalytic reduction of Cr(Ⅵ) to Cr(Ⅲ) using semiconductor photocatalysts is regarded as a green measure to solve serious environmental and energy problems [6-9]. Typical photocatalysts such as ZnO and TiO2 exhibit excellent catalytic activity toward the reduction of heavy metal ions and CO2, degradation of organic pollutants, and water splitting due to their outstanding physical and chemical properties [10-20]. Notably, the main factors that affect the photocatalytic activity are quick charge carrier recombination and narrow solar energy absorption range [21-23]. Therefore, for industrial applications, it is important to develop high-efficiency photocatalysts that respond to visible light [24-31].

It is reported that the introduction of a narrow band semiconductor into a wide band semiconductor, yielding hybrids, is an effective way to solve this problem [32-36]. To date, various narrow band semiconductors with suitable band positions such as transition metal sulfides (MoS2, NiS, and WS2) and transition metal phosphides (Ni2P, CoP, and FexP) have been used to expand the light absorption range and accelerate charge transfer, thereby improving the visible light catalytic activity of pure wide band semiconductors [37-39]. Recently, much research has been performed on transition metal dichalcogenides (TMDs) owing to their unique two-dimensional structures and good physical and chemical properties for wide applications in lubricants, batteries, supercapacitors, and photocatalysis [40-42]. MoS2 has been widely used as a highly efficient non-noble metal cocatalyst for H2 evolution because of its unique chemical and photoelectronic properties. Compared to MoS2, MoSe2 (a typical 2D TMD with a similar layered structure) is more metallic, making it an ideal support matrix for semiconductors [43]. It has been demonstrated that the introduction of MoSe2 is beneficial for charge separation and transfer, enhancing the catalytic hydrogen production activity of g-C3N4 and ZnIn2S4. However, reports on MoSe2-based hybrids for enhanced photocatalytic reduction of Cr(Ⅵ) on ZnO are rare.

In this work, a series of MoSe2/ZnO/ZnSe (ZM) hybrids were synthesized by a simple hydrothermal method for Cr(Ⅵ) reduction under visible light irradiation. The ZM hybrids obtained by the introduction of ZnSe and MoSe2 into ZnO were expected to exhibit enhanced visible light photocatalytic Cr(Ⅵ) reduction activity compared to pure ZnO, which has not been reported so far. The photocatalytic mechanism was studied by trapping experiments and characterization methods.

2 Experimental

See supporting information section.

3 Results and discussion
3.1 Formation mechanism

The possible formation mechanism for MoSe2/ZnO/ZnSe hybrids is illustrated in Scheme 1. ZnO nanoparticles were fabricated by a solvothermal reaction. After ZnO nanoparticles are dissolved in a solution containing Na2SeSO3, Na2MoO4, and NaBH4, MoO42– ions are reduced to Mo4+ by NaBH4, and then, Mo4+ cations combine with Se2– anions, forming MoSe2 nuclei, as per Reaction (1). In our previous studies, MoSe2, MoSe2/TiO2, and MoSe2/CQD composites were fabricated by a similar solvothermal reaction [32, 43, 44]. In this study, ZnO nanoparticles have been used as a template to obtain ZnSe by an anion exchange reaction with a Se2– source. The ZnO nanoparticles react with water to form Zn(OH)2 during the hydrothermal reaction at 180 ℃, as per Reaction (2) [45]. Then, Se2– anions react with Zn(OH)2 to form ZnSe nuclei by heterogeneous nucleation and growth, as per Reaction (3) [46]. The difference in the solubility product constant (Ksp) values of ZnO (6.8 × 10–17) and ZnSe (3.6 × 10–26) is the main driving force for the formation of ZnO/ZnSe hybrids [47]. Subsequently, the long reaction time and high temperature in the sealed autoclave promote crystal growth from MoSe2 sheets and ZnSe nanoparticles, resulting in the formation of MoSe2/ZnO/ZnSe hybrids.

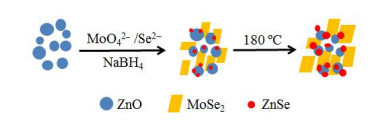

Scheme 1. Schematic illustration of the possible formation mechanism for MoSe2/ZnO/ZnSe hybrids.
3.2 Characterization

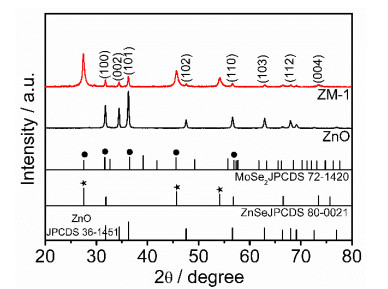

The X-ray diffraction (XRD) patterns of ZnO and ZM–1 are shown in Fig. 1. The diffraction peaks in the ZnO pattern are assigned to wurtzite-structured ZnO (JPCDS 36–1451). New peaks at 27.5°, 45.6°, and 54° corresponding to the (111), (220), and (311) planes of cubic ZnSe, respectively, are observed in the XRD pattern of ZM–1, demonstrating the formation of ZnSe (JPCDS 80–0021) [48]. The peaks at 27.6°, 31.7°, 36.5°, 45.6°, and 56.9° correspond to the (006), (101), (104), (107), (0012) planes of hexagonal MoSe2 (JPCDS 72–1420), respectively, which coincide with the diffraction peaks of ZnO and ZnSe. The XRD pattern of ZM–1 hybrid is similar to that of ZnO, confirming that the introduction of ZnSe and MoSe2 into ZnO does not change the crystal structure of ZnO.

Fig. 1. XRD patterns of ZnO and ZM–1.

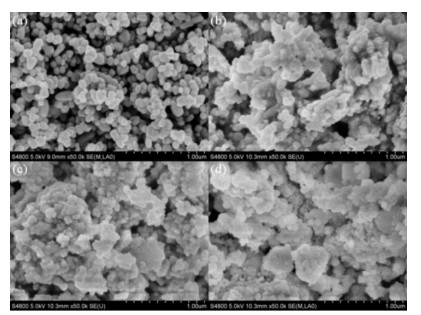

The field-emission scanning electron microscopy (FESEM) images of ZnO, ZM–0.5, ZM–1, and ZM–2 are shown in Fig. 2. The SEM image of ZnO displays nanoparticles with diameters of about 100 nm. After ZnO nanoparticles are dissolved into the solution containing Na2SeSO3 and Na2MoO4, MoSe2 sheets and ZnSe nanoparticles are formed, finally resulting in the formation of ZM hybrids (Fig. 1(c) and (d)). The thickness of MoSe2 sheets is not quite uniform, and it ranges from about 20 nm to 50 nm.

Fig. 2. FESEM images of various samples. (a) ZnO; (b) ZM–0.5; (c) ZM–1; (d) ZM–2.

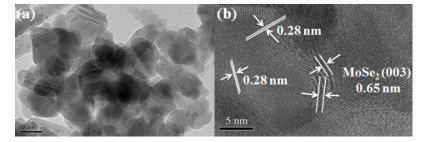

The transmission electron microscopy (TEM) image of ZM–1 are shown in Fig. 3(a). ZnO and ZnSe nanoparticles are embedded into MoSe2 sheets, forming a compact interface, which is beneficial for charge carrier separation, thus improving the photocatalytic activity. The lattice spacing is calculated as 0.65 nm, which is assigned to the (003) crystal planes of hexagonal 2H-MoSe2 (JPCDS 72–1420). In addition, the lattice spacing for (100) crystal planes of ZnO (JPCDS 36–1451) and (200) crystal planes of ZnSe (JPCDS 80–0021) is determined to be 0.28 nm.

Fig. 3. TEM (a) and high-resolution TEM (b) images of ZM–1 sample.

To further verify the presence of MoSe2, ZnO, and ZnSe, elemental distribution mapping was performed using the energy-dispersive X-ray spectroscopy (EDS) detectors connected to FESEM and HRTEM instruments, as shown in Figs. S1 and S2. In Fig. S1, the distributions of Zn, O, Mo, and Se elements are clearly observed, demonstrating the existence of ZnO, ZnSe, and MoSe2. In addition, the presence of Zn, O, and Se elements is revealed by HRTEM–EDS, as shown in Fig. S2, further proving the formation of ZnSe and ZnO. No impurity element is detected, proving the high purity of ZM hybrids.

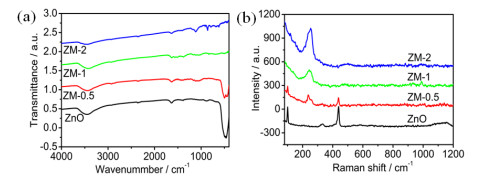

Fig. 4(a) shows the Fourier-transform infrared (FTIR) spectra of ZnO, ZM–0.5, ZM–1, and ZM–2. All samples display two absorption bands at around 3425 and 1632 cm–1 corresponding to the hydroxyl groups of surface-absorbed water molecules [49]. For ZnO, the absorption band at 450 cm–1 corresponds to the stretching mode of Zn–O [50]. The FTIR spectra of ZM hybrids are similar to that of MoSe2 previously reported [51]. Moreover, with increasing MoSe2 content, the intensity of the Zn–O stretching peak decreases, because ZnO nanoparticles are possibly covered by MoSe2 sheets and ZnSe nanoparticles. Fig. 4(b) shows the Raman spectra of ZnO, ZM–0.5, ZM–1, and ZM–2. For ZnO, four characteristic peaks corresponding to low E2, A1, high E2, and A1 modes are observed at 99, 333, 438, and 1158 cm–1, respectively [52, 53]. Compared to the Raman spectrum of pure ZnO, those of ZM hybrids exhibit a new peak at 242 cm–1 corresponding to the A1g mode of MoSe2 [51], further confirming the existence of ZnO and MoSe2 in the hybrids.

Fig. 4. FTIR (a) and Raman (b) spectra of ZnO, ZM–0.5, ZM–1, and ZM–2.

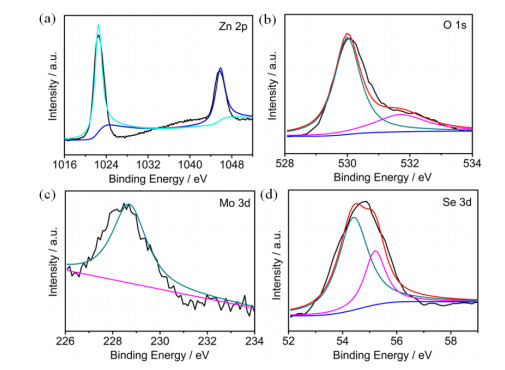

The high-resolution X-ray photoelectron spectroscopy (XPS) Zn 2p, O 1s, Mo 3d, and Se 3d profiles for ZM–1 are shown in Fig. 5. As observed in Fig. 5(a), the high-resolution Zn 2p spectrum shows characteristic Zn 2p1/2 and 2p3/2 peaks at 1045.5 and 1022.5 eV, respectively, which are assigned to Zn2+ existing in the form of ZnO and ZnSe. The O 1s peak (Fig. 5(b)) is deconvoluted into two peaks at 530 and 531.7 eV, corresponding to the lattice oxygens of ZnO and surface hydroxides, respectively. In Fig. 5(c), two peaks are observed at 228.7 and 232.4 eV, which are assigned to Mo 3d5/2 and Mo 3d3/2, respectively. The Se 3d5/2 and 3d3/2 peaks (Fig. 5(d)) centered at 54.4 eV and 55.3 eV, respectively, are ascribed to Se2– of ZnSe and MoSe2, demonstrating the formation of ZnSe and MoSe2. Fig. S3 shows the high-resolution XPS Zn 2p, O 1s, Mo 3d, and Se 3d profiles for pure ZnO and MoSe2. Compared to the O 1s, Mo 3d, and Se 3d XPS peaks of pure ZnO and MoSe2, those of ZM hybrids (ZM–1) are slightly shifted due to the interaction between them. All results confirm the successful synthesis of ZM hybrids by the hydrothermal process.

Fig. 5. High-resolution XPS Zn 2p (a), O 1s (b), Mo 3d (c), Se 3d (d) profiles for ZM–1.

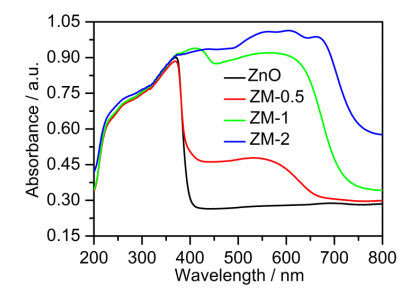

Fig. 6 shows the UV–Vis diffuse absorption spectra of ZnO, ZM–0.5, ZM–1, and ZM–2. ZnO shows good UV light absorption. On the other hand, ZM hybrids display enhanced light absorption ability in the visible light range due to absorption contribution from ZnSe2 and MoSe2. Therefore, ZM hybrids can be employed as promising visible light photocatalysts.

Fig. 6. UV–Vis diffuse absorption spectra of ZnO, ZM–0.5, ZM–1, and ZM–2.
3.3 Photocatalytic activity

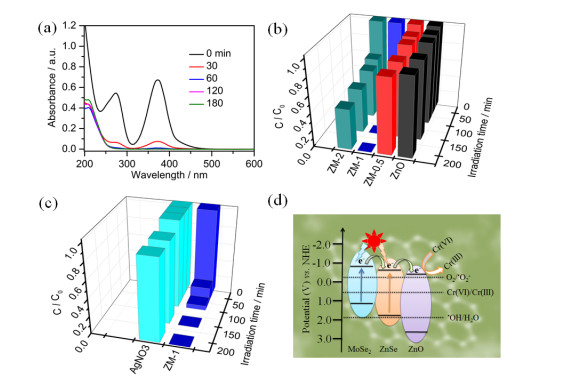

The visible light photocatalytic Cr(Ⅵ) reduction activities of ZnO and ZM hybrids were investigated (Fig. 7). As observed in Fig. 7(a), with increasing irradiation time, Cr(Ⅵ) absorption reduces, confirming the decrease in Cr(Ⅵ) concentration. Fig. 7(b) shows the time-resolved Cr(Ⅵ) reduction rates for ZnO and ZM hybrids. The Cr(Ⅵ) reduction rate for ZnO is only 7% owing to the narrow light absorption and charge recombination. After hybridization, the photocatalytic Cr(Ⅵ) reduction rate clearly increases and depends on the Na2MoO4 amount. The Cr(Ⅵ) reduction rates are 12%, 100%, and 53% after 180 min of visible light irradiation. With increasing Na2MoO4 amount, the Cr(Ⅵ) reduction rate first increases and then decreases. The values of rate constant (k) for ZnO, ZM–0.5, ZM–1, and ZM–2 are 0.0005, 0.0007, 0.0074, and 0.0043, respectively (Fig. S4). ZM–1 shows the best catalytic visible light activity and the highest Cr(Ⅵ) reduction rate.

Fig. 7. (a) Variation in UV–Vis absorbance of Cr(Ⅵ) with time using ZM–1; (b) photocatalytic reduction of Cr(Ⅵ) by ZnO, ZM–0.5, ZM–1, and ZM–2 under visible light irradiation; (c) photocatalytic reduction of Cr(Ⅵ) using ZM–1 in the presence of AgNO3; and (d) proposed photocatalytic mechanism for ZM hybrids.

The photostability of photocatalysts is very important in practical application. The long-term stability of ZM–1 toward the photocatalytic reduction of Cr(Ⅵ) under visible light irradiation was investigated, as shown in Fig. S5. No obvious decrease in the Cr(Ⅵ) reduction rate is observed after three cycles. The crystal structure of ZM–1 after the catalytic reaction was characterized by XRD. As shown in Fig. S6, no significant difference is observed before and after the catalytic reaction, indicating the good stability of ZM hybrid photocatalysts.

3.4 Possible photocatalytic mechanism

In the photocatalytic Cr(Ⅵ) reduction process using ZM hybrids (Fig. 7(d)), the valence band (VB) electrons of MoSe2 are aroused under visible light irradiation, resulting in electron–hole pairs. Subsequently, the charge carriers migrate to the photocatalyst surface to participate in redox reactions. The conduction band (CB) and VB potentials for ZnO are –0.4 and –2.8 V (vs. NHE), respectively [46], while the values for ZnSe are –0.64 and –2.16 V (vs. NHE) [46], respectively, and those for MoSe2 are –0.92 and –1.12 V (vs. NHE) [54], respectively. According to the definition of a heterojunction [55], the MoSe2/ZnO/ZnSe hybrid is a type-Ⅱ heterojunction photocatalyst. The Cr(Ⅵ)/Cr(Ⅲ) potential is 0.51 V vs. NHE [56]; thus, Cr(Ⅵ) can be reduced to Cr(Ⅲ) by electrons. The XPS Cr 2p profile (Fig. S7) confirms the existence of Cr(Ⅲ). The spectrum shows peaks at 577.3 and 586.9 eV corresponding to Cr 2p1/2 and Cr 2p3/2 orbitals, respectively, which are attributed to Cr(Ⅵ) and Cr(Ⅲ). This result confirms that Cr(Ⅵ) reduces to Cr(Ⅲ) in the photocatalytic process. Several studies have shown that the Cr(Ⅲ) species precipitate on the surface of the photocatalyst as Cr2O3 or Cr(OH)3 during the photocatalytic process. To prove the role of photogenerated electrons, a controlled trapping experiment was performed using an electron scavenger (AgNO3), as shown in Fig. 7(c). It is found that the photocatalytic Cr(Ⅵ) reduction rate obviously decreases with the addition of AgNO3, confirming that the photogenerated electrons control the Cr(Ⅵ) reduction process [57, 58]. Meanwhile, the gas chromatography measurement results from our previous work demonstrate that holes oxidize H2O, yielding O2 [32, 44]. The catalytic reaction processes are summarized as follows:

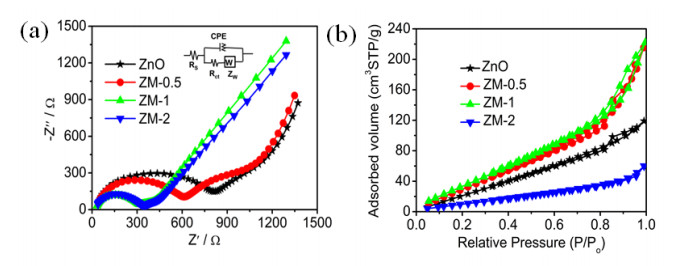

In photocatalysis, the adsorption of Cr(Ⅵ), light absorption, as well as charge transportation and separation are crucial factors [59, 60]. Charge carrier transfer and separation play a decisive role in the catalytic reaction, which was investigated by electrochemical impedance spectroscopy (EIS). Fig. 8(a) shows the Nyquist plots of ZnO, ZM–0.5, ZM–1, and ZM–2. It is found that with increasing Na2MoO4 amount, the charge transfer resistance first decreases and then increases, confirming that the appropriate MoSe2 content can facilitate the transfer and prolong the charge carrier lifetime, thereby enhancing the catalytic activity. Excessive MoSe2 recombination centers in the ZM hybrids facilitate charge recombination, thus leading to decreased photocatalytic activity [61-63]. Moreover, the charge separation and transfer behaviors of the as-prepared samples were investigated by photoluminescence (PL) and photoelectrochemical measurements. Fig. S8(a) and (b) show the transient photocurrent responses and PL spectra recorded at an excitation wavelength of 300 nm for ZnO and ZM–2. As observed, ZM–2 shows a higher photocurrent and a lower PL intensity due to the stepwise structure of band edge levels of the ZM hybrids. All results are in agreement with the EIS results. Because the CB potentials of MoSe2 and ZnSe are more negative than those of ZnO, electrons are transferred from the CB of MoSe2 and ZnSe to ZnO, thereby hindering the charge carrier recombination and prolonging the lifetimes of the photoinduced electron–hole pairs. According to the stepwise structure of band edge levels of the ZM hybrids, the introduction of MoSe2 and ZnSe can facilitate the separation of photoinduced electron–hole pairs, which is beneficial to the photocatalytic process.

Fig. 8. (a) Nyquist plots and (b) nitrogen adsorption-desorption isotherms of ZnO, ZM-0.5, ZM-1, and ZM-2.

Besides the recombination of photoinduced charge carriers, the specific surface area plays a decisive role in the catalytic reaction, as shown in Fig. 8(b). All samples show type-Ⅳ isotherms with H3 hysteresis loops, confirming the mesoporous structures of the samples. The specific surface areas, pore volumes, and average pore sizes of ZnO, ZM–0.5, ZM–1, and ZM–2 are listed in Table S1. As shown, the specific surface area and pore volume first increase and then decrease with increasing MoSe2 content, which is in accordance with the catalytic activity [64].

On the basis of the above results, a mechanism for the enhanced photocatalytic activity of the ZM hybrids is proposed. The introduction of MoSe2 and ZnSe increases light absorption in the visible light region and the specific surface area. EIS, PL, and photocurrent measurements show that the recombination of photoinduced electron–hole pairs is effectively inhibited owing to the stepwise structure of energy levels in the ZM hybrid photocatalysts. The enhanced photocatalytic activity is ascribed to the increased visible light absorption, more active sites, and reduced charge carrier recombination. Moreover, photoinduced electrons control the Cr(Ⅵ) reduction process.

4 Conclusions

ZM hybrids are successfully prepared via a facile solvothermal method. ZM hybrids exhibit enhanced visible light Cr(Ⅵ) reduction activity compared to pure ZnO. The introduction of MoSe2 and ZnSe increases the BET surface area and light absorption and inhibits charge carrier recombination due to the matched energy levels and good interfacial contact between them, enhancing the photocatalytic reaction. Moreover, the photoinduced electrons control the photocatalytic Cr(Ⅵ) reduction process. The current work can provide valuable guidance to designing novel hybrid photocatalysts for environmental purification.
