Energy is an important foundation and a safeguard for the development of economics and society. The utilization of electric energy has prompted the rapid development of human civilization in the last hundred years. Electricity is produced mostly by combusting fossil fuels, but this practice has induced extensive environmental issues. With a gradual exhaustion of fossil fuels, an urgent need has raised wide concerns for the development of clean energies, such as hydrogen energy and solar energy for electricity generation. These renewable energies are weather dependent, so the development of efficient and environmentally friendly electricity storage are essential devices for the development of clean renewable energies. Rechargeable metal-air batteries, especially water-based metal-air batteries, have received increasing concern with the safety and high specific-energy density. However, such energy technologies still cannot be applied commercially because of a lack of active and stable bifunctional electrocatalysts, which can accelerate the rates of the oxygen reduction reaction (ORR) and oxygen evolution reaction (OER). The ORR process happened with the formula O₂ + 2H₂O + 4e^‒ → 4OH^‒ in alkaline media or O₂ + 4H⁺ + 4e^‒ → 2H₂O in acidic media. The OER process happened with the formula 4OH^‒ →O₂ + 2H₂O + 4e^‒ in alkaline media or 2H₂O → O₂ + 4H⁺ + 4e^‒ in acidic media. The ORR process occurs on the discharging process in rechargeable metal-air batteries. Whereas for the OER process, which occurs on the charging process, hydroxide ions or H₂O molecules release electrons and are oxidized to form oxygen molecules. ORR and OER that involve multielectron complex processes are kinetically sluggish; so many efforts are focused on developing effective electrocatalysts to accelerate ORR and OER processes [1-4].

The ORR overpotential is closely related to the adsorption and desorption process of O₂ and its products, including the intermediate and final products on the catalyst surface. ORR is an extremely complex reaction process that involves multiple steps of elementary reactions and various intermediates (OH^*, OOH^* and HOOH, etc.). It is very challenging to explore the real reaction mechanism. There are two different possible mechanisms depending on the different modes of oxygen adsorption and dissociation barrier on the three-phase interface of the reaction in an alkaline medium, as shown in Fig. 1(a). The first one is the two-electron process, which produces a peroxide intermediate: O₂ + H₂O + 2e^‒ → HO₂^‒ + OH^‒; the second is the four-electron process, which produces OH^‒: O₂ + 2H₂O + 4e^‒ →4OH^‒. In general, a two-electron pathway with peroxide formation appears with the end-on O₂ adsorption, which occurs primarily on carbonaceous materials. The direct four-electron pathway may be happened with the bidentate O₂ adsorption, which occurs mainly on the noble metals. For metal oxide materials, different ORR pathways exist rely on various factors. Research of intermediates on the catalyst surface is an efficient and accurate means to identify the rate-determining step. As shown in Fig. 1(a), increased OOH^‒ means a greater possibility of the two-electron process. The direct four- electron process is expected to be more active and efficient than the two-electron process [5-9].

In the ORR process, Pt and Pt alloys with an overwhelming catalytic performance are commonly regarded as the state-of-the-art catalysts [10-12]. However, their scarcity, high cost and limited stability restricts the large-scale commercial applications of Pt-based electrocatalysts. On one hand, some strategies were developed to reduce the precious metal contents have been developed. Researches have indicated that the active sites on the specific facets have higher activity. For example, Zhang et al. [13] prepared Pt cubic nanocages with controllable surface structure. This cost-effective catalyst exhibited distinctive catalytic activities. In this manner, developing stable, inexpensive and non-precious ORR electrocatalysts with an excellent catalytic performance have attracted increased attention, which included carbon-based catalysts, transition metal oxides materials and so on [14-19].

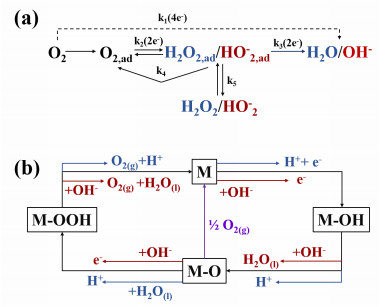

The OER process involves the formation of oxygen-oxygen bond, which include four sequential proton-coupled electron transfer steps. These steps have intrinsic sluggish kinetics and thermodynamics. Many possible mechanisms for the OER process have been proposed, and a wide acceptable mechanism is shown in Fig. 1(b) [20]. The active site is simply marked as "M". The pathways of the oxygen formation may differ in the acidic and alkaline electrolytes. Using an alkaline electrolyte as an example, the active site M combines with OH^‒ and releases electrons to form MOH, MO and MOOH intermediates gradually, then MOOH decomposes to O₂ and reverts to M. Combining two M-O to generate O₂ is also possible, depending on the M-O bond energy. The bonding interaction on the intermediates (such as MOH, MO, and MOOH) is critical for the efficiency of the electrocatalysts. From such a perspective, the M-O bond strength should not be too strong or too weak. Catalysts with an intermediate M-O bond strength have a good catalytic activity [21]. For carbon materials, the change on the electronic density is helpful to alter the OER activity. More information is shown in the subsequent section.

The theoretical thermodynamic potential of OER is 1.23 V (vs RHE) at 298 K, which may lead to the oxidation of many metals. Precious metal oxides, such as IrO₂/RuO₂, are widely considered to be the reference electrocatalysts for the OER due to their high catalytic activity [22, 23]. However, similar to Pt-based electrocatalysts for ORR, the high price and poor stability limit the large-scale commercial applications of IrO₂ and RuO₂ electrocatalysts. Therefore, non-precious OER electrocatalysts composed, such as earth-abundant elements materials, transition metal compounds and carbon-based nanomaterials, have been broadly studied over 10 years. In an acidic medium, it is difficult to avoid the performance degradation for most of non-precious metal electrocatalysts. Simultaneously carbon may be oxidized to carbon dioxide and carbon monoxide instead of oxygen evolution for carbon-based OER electrocatalysts in acid medium. Thus, non-precious metal OER electrocatalysts are studied mostly in the alkaline medium [24-26].

As mentioned above, the OER and ORR have different reaction mechanisms; thus, they require active electrocatalysts with different characteristics. Excellent bifunctional electrocatalysts can accelerate the two sluggish reactions and improve the efficiency of the metal-air batteries simultaneously. However, it is challenging to design a bifunctional electrocatalyst that is active and stable in two directions. This reversible reaction pair with different rate limiting steps requires different active sites and valence state of metals. In addition, the oxidization of ORR active sites at OER operating conditions, agglomeration of nanoparticles and corrosion of carbon support need to be solved for the development of bifunctional electrocatalysts. A series of reviews have been published on ORR or OER electrocatalysts in the past 20 years [27, 28]. However, few reviews have been published on bifunctional electrocatalysts. It is difficult to clearly show the critical factors affecting the performance of bifunctional electrocatalysts by a summarization on materials and preparation methods. Therefore, in this minireview, to describe a clear outline of the critical factors, the strategies to improve the electrocatalytic activity of bifunctional electrocatalysts are summarized into two groups, i.e. the improvement of intrinsic activity and apparent activity, as shown in Fig. 2. The intrinsic activity refers to the catalytic activity for a single active site, which can be changed with the crystal structure and electronic structure (Fig. 2). For one particular material, the change of intrinsic activity is difficult and sometime is uncontrollable. Besides, the apparent activity can be modified from varies of morphology configuration and the synergistic effect between different components in the composites. For bifunctional electrocatalysts, it is important to improve the quantity and activity of OER and ORR active sites through the skillful micro-nanostructural design. This work will focus on the design and fabrication of micro-nano structures of bifunctional electrocatalysts according to the previous researches. A variety of influence factors, including crystal structure, electronic structure, morphology effect, and synergisitic effect are summarized in the following sections. Some typical examples are introduced and discussed to illustrate how the intrinsic activity and apparent activity are affected by micro-nano structures. We wish this work would help researchers quickly catch the keypoints related to the development of bifunctional electrocatalysts.

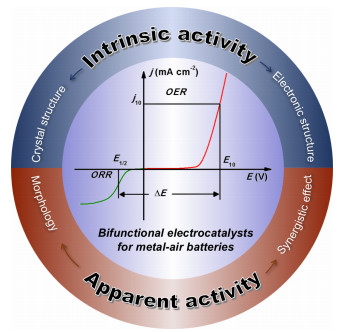

The intrinsic activity of the bifunctional electrocatalysts is crucial, which can be changed by adjusting the electronic structure and crystal structure. On one hand, electronic structure can be affected by some crystallographic factors. On the other hand, crystal structure is also an important factor for the intrinsic activity.

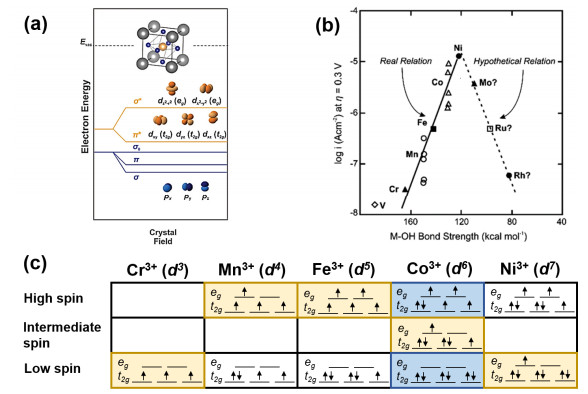

Electronic structure has a significant influence on the oxygen and the intermediates adsorption. The adsorption energy is crucial for the activation energy, rate-limiting step and the reaction path. For the transition metal electrocatalysts, the 3d electron configurations and energy are crucial for the activity. For the metal compound crystal such as perovskite oxides, the electronic energy can be changed by the crystal field, which may affect the linear combination with O 2p orbitals. Some crystallographic factors such as the strength of metal-oxygen bond, lattice strain, oxygen defects, cations doping, valence state of cations etc. Here we just show how the electronic structure and corresponding electrocatalytic activity are affected by adjusting the strength of metal-oxygen bond and lattice strain as examples. For the carbon materials and some amorphous compounds, the heteroatom doping and topological defects which are significant ways for the change of electronic structure, will be briefly introduced.

The metal-oxygen bonds with mixed ionic-covalent character have a significant effect on the electronic structure. The electron density of the active sites varies with the element and valence, which affects the adsorption and desorption energy with the reactant and intermediates. Therefore, the metal-oxygen bonds are important for the metal-containing catalysts. The linear combination of metal (M) d orbitals and O 2p orbitals form an e_g state and t_2g state according to the molecular orbital theory. In the octahedral environment of perovskite oxides, as shown in Fig. 3(a) [29], the e_g state represents the σ-bonding and σ^*-antibonding states that are overlapped spatially by the d_z²-r² and d_x²-y² lobes of the transition metal d orbitals with those of adjacent O 2p orbitals, whereas the t_2g represents the π-bonds and π^*-antibonds through spatial overlap with the d_xy, d_yz and d_xz lobes of the transition metal d orbitals and the O 2p orbitals. The combination degree of metals and oxygen states depends on the transition metal ion and its oxidation states. According to the principle of energetic similarity in the molecular orbital theory and band theory, the degree of metal-oxygen hybridization will increase with the energy of the metal d states close to that of the O 2p states by increasing the electronegativity of the transition metal. Based on the Sabatier principle, the strength of metal-oxygen bonds for ideal bifunctional electrocatalysts should not be too strong or too weak. The volcano trend of the relationship between the M‒OH bond strength and the catalytic activity has been reported by Bockris et al. [30], as shown in Fig. 3(b). Yang et al. [28] proposed that e_g-occupancy can be the ORR/OER activity descriptor for perovskite oxides because it can indicate the strength of metal-oxygen bonds from the molecular orbital theory. The Fig. 3 showed at room temperature the d-electron configurations and typical spin states for LaMO₃ (M = Cr, Mn, Fe, Co, Ni) [28]. The descriptor assumes that the number of electrons in the σ^* states determines the strength of the metal-oxygen bond and the activity is in line with the Sabatier principle. The activity is optimal when e_g = 1. The metal oxygen bond is strong at a low eg occupancy (e_g < 1), which favors the ORR and is weak at a high eg occupancy (e_g > 1), which favors the OER. The eg is also related to the spin state. The energy of the t_2g states is lower than that of the e_g states at a low-spin configuration when the splitting energy is larger than the electron pairing energy on the d orbitals.

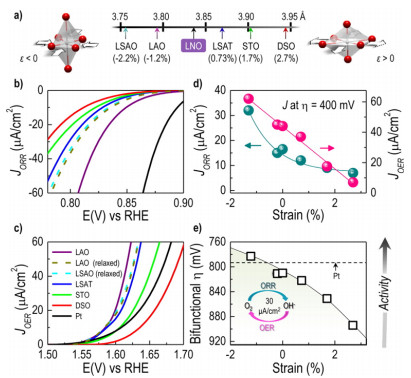

By changing the orbital overlap, strain has a significant effect on the oxides electronic structure. The LaCoO₃ (LCO) thin films were pulsed laser deposited on a conductive interlayer (La_0.67Sr_0.33MnO₃ (LSMO)) and various substrates (SrTiO₃ (STO), (LaAlO₃)_0.3(Sr₂AlTaO₆)_0.7 (LSAT), LaAlO₃ (LAO), respectively) to investigate the strain effect [31]. The lattices mismatch between the catalysts and substrates cause the epitaxial strain. The investigation indicated that the compressive strain is not conducive to the improvement of the activity, which was attributed to the reduction of electronic conductivity by the compressive strain. However, different from that of occurring on LCO films, the LaNiO₃ (LNO) films with high conductivity at room temperature showed an increase of the activity towards the compressive strain. Lee et al. [32] investigated the strain influence of the perovskite LaNiO₃ on both the ORR and OER. By using different lattice-mismatched substrates, the strain degree was controlled from ‒2.2% to 2.7%, as shown in Fig. 4(a). The performance of ORR and OER can be enhanced as the LAO (LaAlO₃) substrate was used to produce a strain of -1.2% in the LaNiO₃, as shown in Fig. 4(b) and (c). A direct relationship between the strain and the performance is shown in Fig. 4(d) and (e). The investigation showed that the compressive strain enhances the activity of ORR and OER, which was attributed to a splitting of the e_g orbitals induced by the compressive strain. The splitting of the e_g orbitals decreases the energy of e_g-center and results in the weaker strength of the metal-oxygen bond, thus enhances the electrocatalytic activity. The density functional theory (DFT) on the LNO (001) surface was used to prove the above conclusion. Cooper et al. [33] further explored the influences of strain on the ORR and OER thermodynamic pathways on the LNO (001) surface. Strain affects the Ni-O hybridization on the surface. Tensile strain blocks the formation of ‒O₂H intermediate, which increases the ΔG of ORR and decreases the ORR activity. On the other hand, the tensile strain increases the adsorption energy of hydrogen species. However, the enhancement is not beneficial for the OER process.

Carbon materials have been investigated extensively as electrocatalysts owing to their inexpensive cost, unique morphology and excellent electrical conductivity properties [34]. The catalytic activities of pristine carbon materials, including carbon blacks, graphene and carbon nanotubes (CNTs), tend to be lower compared with those of metal oxides for the reason of pristine carbon materials usually take a two-electron pathway. This is because that the electrically neutral carbon materials have high adsorption and desorption free energy to the reactants and intermediates. Heteroatom doping is an effective strategy to change the charge-density and electronic-structure. By doping with a heteroatom, the electrical neutrality of the sp² hybrid carbon is destroyed and the spin density is increased, which yields a catalytic process from a two-step two-electron process to a direct four-electron process. The heteroatoms with different electronegativity can affect the material properties to different extents. Among heteroatom doped carbon materials, nitrogen-doped carbon materials have been investigated extensively because various precursors and synthesis methods can be used for electrocatalysts preparation [35]. The introduction of a secondary element on the nitrogen-doped carbon basis favors a modulation of charge density and an increase in catalytic activity. Zhang and co-workers [36] reported a promotion mechanism on the N and S dual-doped hierarchical carbon material. The larger electronegativity of N (3.04) provides adjacent C (2.55) atoms with a positive change. They proposed that if the charge density or spin density of carbon atoms exceeds 0.15, the carbon atoms can be considered as activated sites in the catalytic process [37]. The introduction of N can increase the number of active carbons. The similar electronegativity of C (2.55) and S (2.58) results in a small change in atomic charge distribution. Even though the activity of S is weaker than that of C, the synergistic effect of S, N-dual-doping still improves the activities observably. Qiao et al. [38] prepared S-doped N-C nanotubes. The introduction of S in the material changes the spin density of the adjacent C atoms and the carbon atoms in other positions. As a result, a large number of atoms are activated to accelerate the OER process. B as an electron-deficient atom produces the effective active sites [39]. Similarly, S-doping and P-doping also activate the ORR and OER processes in some materials [40, 41].

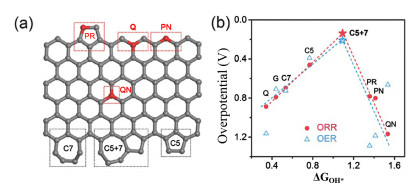

Heteroatom-doping and edge-induced topological defects can redistribute the electron density, and increase the adsorption of intermediates. Yi et al. [42] removed nitrogen from a N-doped precursor to obtain the graphene with carbon defects. The ORR, OER, and HER activities of the carbon defects material are higher than that of the N-doped graphene. Wei et al. [43] investigated the influence of heteroatom-doping, edge-rich and topological defects on the electrocatalytic activity. The prepared ultrathin hexagonal graphene flakes are self-assembled into a porous and layered stent. The catalyst exhibited a large number of holes and edge defects verified by Raman spectra and was used as a model system to study the influence of heteroatom-doping, edge effects and topological defects. As shown in Fig. 5(a), several models, including a pyrrolic (PR), quaternary nitrogen on the edge (Q), a quaternary nitrogen in the bulk phase (QN), a pyridinic nitrogen (PN), a five-carbon ring (C5), a seven-carbon ring (C7), and a five-carbon ring adjacent to a seven-carbon ring (C5+7) were proposed as the possible active sites. The sites of topological defects at the edge were more active than those of the doping and edge sites. The DFT calculation indicates that the pentagon and heptagon carbon rings decrease the overpotential remarkably. The overpotentials of ORR and OER were decreased to 0.14 and 0.21 V, respectively, by C5 adjoining C7 to form a curved configuration C5+7. This C5+7 active site shows much lower overpotentials than other active sites, as shown in Fig. 5(b). This material exhibits a good ORR electrocatalytic activity in alkaline and acidic solutions. The E_onset and E_1/2 are 0.89 and 0.77 V (vs RHE), respectively, which are lower than the commercial 20 wt% Pt/C in alkaline solution. The number of transfer electrons approached 4 in 0.10 M HClO₄. The OER activity was good and the potential gap (ΔE) between the E_1/2 of ORR and the E₁₀ of OER was 0.9 V. Wang et al. [44] prepared the porous graphene structure enriched with edge topological defects. The edge topological defects act as the active sites and enhance the activity. The topological defects produced in situ by pre-oxidation and hydrogen etching without N-doping.

Transition metal materials, including transition metal oxides or hydroxides, have attracted considerable attention in the electrocatalytic applications of ORR and OER because of their abundant reserves, various valence states and flexible structures and compositions. [45] Crystal structure is also one of the most important factors for the transition metal catalytic activity. Different types of crystal structures and oxygen vacancies may change the intrinsic activity of transition metal electrocatalysts.

Among numerous transition metal materials, perovskite-type materials are one kind of the highest efficiency electrocatalysts in alkaline media because of their flexible physical and chemical properties, superior ionic and electronic conductivity and exceptional thermal stability. Perovskites tend to have the formula ABO₃. The A site is occupied by rare earth, alkaline or alkaline-earth metal ions with larger cation radii and is more electropositive coordinated with twelve-fold oxygen anions. The B site is occupied by smaller transition metal ions, such as Mn^3+/4+, Co^2+/3+/4+, Fe^3+/4+, Cr^3+/4+ etc., that are coordinated with six-fold oxygen anions. Electronic and geometric structures are affected by the substitution of A or B site cations with different sizes and valence states. The substitution would result in non-stoichiometric oxygen, including oxygen deficiencies and oxygen excess denoted as A_1-xA'_xB_1-yB'_yO_3-δ [46].

Owing to the varying composition and variable physical and chemical properties by substituting A- and B-sites, the perovskite-type materials provide ORR and OER active sites in alkaline medium. Typically, the Ba_0.5Sr_0.5Co_0.8Fe_0.2O_3-δ (BSCF5582) with a cubic perovskite structure was used as the highly active solid oxide fuel cells cathode material owing to the high activity on the ORR process. BSCF5582 is a high active OER electrocatalyst comparable with the state-of-the-art IrO₂ [47]. The ORR and OER activity of BSCF5582 can be further improved after heat-treating it in O₂ atmosphere at elevated temperatures. The improvement is attributed to the increased in crystallinity of the whole cubic perovskite structure and the removement of the spinel phase between amorphous layer and cubic perovskite particle bulk[47]. Recently, the cobalt-free perovskite oxides, BaFeO_3-δ and BaM_0.05Fe_0.95O_3-δ (M = Ti, Zr and Ce) were used as the cathode of the intermediate-temperature solid oxide full cells [48]. Through changing the doping amount of Zr, cubic BaZr_xFe_1-xO_3-δ perovskite can be obtained, and it exhibits high OER activity comparable to Ba_0.5Sr_0.5Co_0.8Fe_0.2O_3-δ [49].

In addition to the perovskite-type materials, the transition metal hydroxides were widely used as the OER catalysts. Our group developed an atomic-scale topochemical transformation route to prepare the Fe-doped β-Ni(OH)₂, which shows higher catalytic activity than the γ-Ni(OH)₂ counterpart [50].

Layered double hydroxides (LDHs) or anionic/hydrotalcite- like clays are a family of layer materials composed of divalent and trivalent metal cations coordinated to hydroxide anions or guest anions (e.g. CO₃^2‒) [51]. LDHs have been investigated widely as OER electrocatalysts owing to their tunable metal composition and ratio, guest anions and interlayer spacing [52]. The poor electronic conductivity of the LDHs can be improved by combining them with carbon materials. The formed nanocomposite structure favours an enhancement of the electrocatalytic activity of the materials.

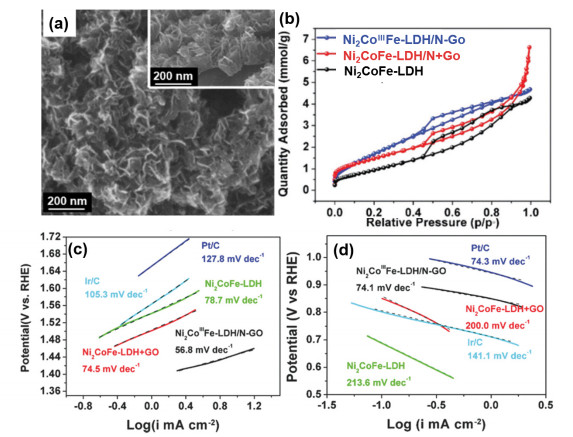

Recently, Duan et al. developed a bifunctional electrocatalyst with ternary NiCo^ⅢFe-LDHs grafted on N-doped graphene oxide (N-GO) [53]. Materials with a three-dimensional (3D) open structure were prepared by the LDHs grown in situ on defective and N-doped wrinkle GO. As shown in Fig. 6(a), part of LDH nanosheets grown vertically to the substrate formed the array-like structured Ni₂Co^ⅢFe-LDH/N-GO. At first, the LDH grew parallel to the substrate because of the electrostatic attraction. With the growth of LDH, the LDH laminates were repulsive to LDH/N-GO composites and tended to grow vertically. The array-like structure is conductive to the gas diffusion and the increase of surface area. The hysteresis loop area of NiCo^ⅢFe-LDH/N-GO is larger than other materials, as shown in Fig. 6(b). The multi-stage pores and hierarchical structure may provide more active sites to increase the catalytic activity. The Tafel slope of this material is shown in Fig. 6(c) and (d), which indicating an excellent electrocatalytic activity. The onset potentials of the ORR and OER are 0.88 V vs RHE and 1.41 V vs RHE in 0.1 M KOH, and this electrocatalyst shows a ΔE of 0.769 V. The excellent OER activity of the material is attributed to the hierarchical structure design to exposing amounts of Ni and Fe active sites. The introduction of Co³⁺ tuned the electronic structure, which can improve the ORR activity of the material. This work demonstrated the possibility of using LDHs as ORR/OER bifunctional electrocatalysts. Despite this significant work, it is still urgently required to develop bifunctional electrocatalysts with a low overpotential and a good stability. Beside of the transition metal materials mentioned above, other transition metal-based materials, including amorphous metal oxides, nitrides, phosphates and sulfides, were developed as a bifunctional electrocatalyst recently. A family of amorphous bimetallic oxide-graphene hybrid was prepared through a general three-stage synthesis strategy [54]. About 5 nm Prussian blue (PB) or FeCo Prussian blue analogues (PBAs) nanocrystals were grown on polyethylenimine (PEI)/graphene oxide (GO) hybrid. Then the FeCo PBAs nanocrystals were decomposed into amorphous FeCo oxide nanoparticles at optimized temperature. The prepared materials with the amorphous Fe_0.5Co_0.5O_x nanoparticles showed superior ORR and OER activity. Shan et al. [55] prepared Fe₂P@Fe₄N-coupled nanoparticles embedded in N-doped carbons by carbonizing prepared planar multidirectional porphyrin polymer (Fe-Triphenylphosphine (TPP)-Covalent porphyrin frameworks (CPFs)). Fe-TPP-CPFs used rigid iron(Ⅲ)- 5, 10, 15, 20-tetrakis(p-bromophenyl)porphyrin (Fe-TBPP) and 1, 3, 5-benzenetriboronic acid trivalent alcohol ester (BTA) as building blocks. This material carbonized at nitrogen atmosphere in 800 ℃, Fe₂P/Fe₄N@C-800, exhibited great ORR catalytic activity comparable to commercial Pt/C catalysts and efficient OER and hydrogen evolution reaction (HER) activities. NiFe disulfides were used as the precursor in situ electrochemical oxided to form NiFe(Oxy) hydroxides as the electrocatalysts. The resultant electrocatalyst exhibited a good OER catalytic activity with an overpotential of ~297 mV at 10 mA cm⁻² [56]. This material was composited with CNTs and used in a Zn-air battery test, and showed a good activity and stability during 150 charge-discharge cycles. Part of the high activity was attributed to the surface S residues according the theoretical calculation.

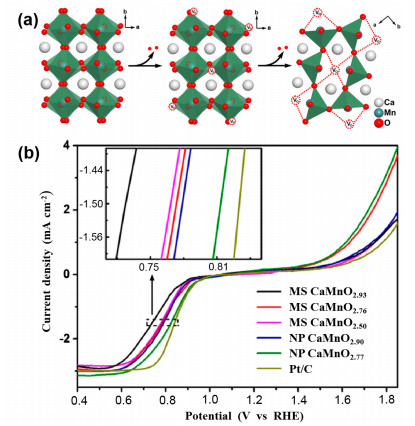

Oxygen vacancies exist widely in transitional metal oxides due to their low formation energy. The oxygen vacancies can adjust the adsorption of oxygen species by increasing the electron transfer from the oxygen vacancies to the metal d-band. In addition, based on the studies of solid oxide fuel cells and oxygen permeation membranes, the oxygen vacancies signifiacntly impact the material properties such as the electronic structure, ionic/electronic conductivity, magnetic property, etc. Usually, oxygen vacancies are introduced by substituting the A and B sites with elements with lower valence states on the perovskite-type materials. For example, introducing the alkaline earth elements such as Ca²⁺ or Sr²⁺ into the A site of La(Fe, Co, Ni)O₃ based perovskite oxides can increase the oxygen mobility in the lattice [57]. Extremely high temperature and specific atmosphere may also contribute to the formation of oxygen vacancies. Some reducing regents were used to produce oxygen-vacancies. For example, NaBH₄ was used to introduce oxygen vacancies into NiFe-OOH [58]. Our group treated the Sr₂Fe_1.3Ni_0.2Mo_0.5O_6-δ (SFNM) at different atmospheres (e.g., air and Ar), and found that the sample treated in Ar with more oxygen vacancies exhibited higher OER activity than that treated air. The DFT calculations indicated that the oxygen vacancies increase the adsorption energy of H₂O to boost the activity [59]. Wu et al. prepared an oxygen-deficient BaTiO_3-δ electrocatalyst in an extremely high temperature and vacuum atmosphere [60]. This oxygen-deficient BaTiO_3-δ perovskite oxide exhibited high catalytic activities for ORR and OER simultaneously in the alkaline electrolyte. They found that reactant (OH^-) adsorption and charge transfer are accelerated by oxygen vacancies in the perovskite oxide. The formation energy of oxygen vacancy is inverse to the distance between the O 2p-band center and the Fermi level. Therefore, the formation energy of the oxygen vacancy can be decreased by changing the distance through the substitution at the A and B sites. Chen et al. [61] reported a serious of nonstoichiometric CaMnO_3−δ (0 < δ ≤ 0.5), as shown in Fig. 7(a). With an increase in oxygen vacancies, the MnO₆ octahedral in CaMnO₃ was transformed into MnO₅ square pyramids in CaMnO_2.5. According to the polarization curves of the nonstoichiometric CaMnO_3−δ shown in Fig. 7(b), the perovskite oxides exhibited the highest ORR/OER activity and stability with δ near 0.25 and an average Mn valence close to 3.5. Single-crystal CoO nanorods with oxygen vacancies on the {111} facet showed ideal ORR and OER activities with an onset potential, E_1/2 and E₁₀ of 0.96, 0.85 V and 1.56 V (vs RHE), respectively [62]. The overall potential gap (ΔE = E₁₀ ‒ E_1/2) is 0.71 V, which is better than most bifunctional ORR/OER electrocatalysts reported in literatures. However, excessive oxygen vacancies may change the crystal structure and reduce the catalytic activity.

Except the improvement of the intrinsic catalystic activity by changing the crystal and electronic structure, the increase in the apparent catalytic activity is also effective for the application of electrocatalysts in metal-air batteries. The apparent activity is mainly related to the the morphology effects and synergistic effects. A skillful design on morphology can provide more active sites to increase the apparent activity. The synergistic effects between different components can improve the apparent activity through constructing a composite with an optimized nano structure.

The nano-structured electrocatalyst have high electrocatalytic activity because the higher surface area exposed more active sites and provided efficient electron transfer routes. Various nano structures with different morphologies have been investigated extensively in oxygen bifunctional electrocatalysis. Fu et al. designed a catalyst with a structure of CoFe alloy nanoparticles embedded in bamboo-like N-doped carbon nanaotubes (CNTs) entangled with reduced GOs. The material exhibits a good ORR/OER catalytic activity and stability [63]. Through the functional modification of hollow nanomaterials, more materials with a high performance have been developed. Urchin-like NiCo₂S₄ sub-micron spheres with nano- and micro-sized structures was prepared by a facile one-pot method [64]. This material exhibits a good bifunctional electrocatalytic activity owing to its urchin-like nano structure, composition, and unique d-electronic configuration. For the reason of the bulk of catalyst has poor catalytic activity compared with the surface of the catalyst, the morphology with more surface area and active sites is significant for the electrocatalytic activity. We will introduce some typical morphologies in the following sections.

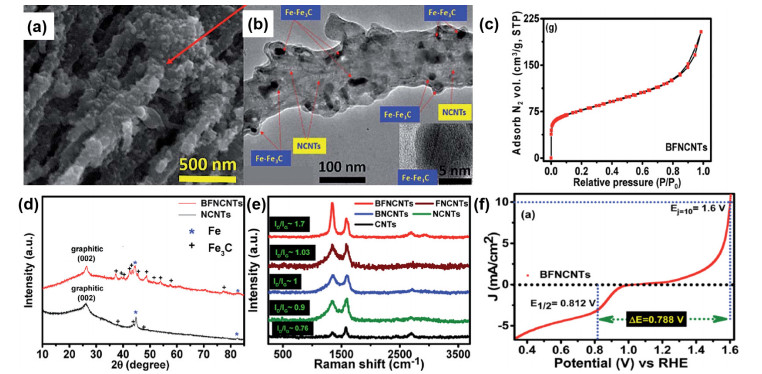

As mentioned above, CNTs is one of the important carbon materials for the bifunctional electrocatalysts. A series of 1-D materials derived from CNTs were prepared with good ORR and OER activities. Xiao et al. [65] combined a composite with cobalt-iron bimetallic nitrides and N-doped multi-walled carbon nanotubes (Co-Fe-N@MWCNT). The nitride nanoparticles were dispersed on the multi-walled carbon nanotubes. On the one hand, the multi-walled carbon nanotubes dispersed the nitride nanoparticles to provide more active sites for the ORR and OER. On the other hand, the multi-walled carbon nanotubes provided a great electronic conductivity and connect for the nitride nanoparticles. A novel core-shell N-doped carbon material with a core of pristine CNTs and a shell of N-doped carbon layers exhibited excellent electrocatalytic activities in ORR and OER. The surface-enriched nitrogen atoms provided more ORR and OER active sites. The complete inner walls od the CNTs played the role of effective support and electronic conduction channel [66]. Nanda et al. [67] co-embedded N-doped carbon nanotubes (N-CNTs) and Fe-Fe₃C nanostructure in the B-doped mesoporous carbon nanostructures (BFNCNTs) through the pyrolysis of ferrocence-melamine and ferrocence-triphenyl borane (TPB) sequentially. The SEM image of the obtained materials (Fig. 8(a)) revealed that the BFNCNTs were rougher than the NCNTs obtained by the pyrolysis of melamine and ferrocene. The transmission electron microscopy (TEM) image shown in Fig. 8(b) indicated that the NCNTs and the Fe-Fe₃C was co-embedded in the boron-doped carbon nanostructures. The N₂ adsorption-desorption isotherm shown in Fig. 8(c) exhibited the macro- and meso- porosity of the structure and the high specific Brunauer-Emmett-Teller (BET) surface area (about 272 m²g^‒1). The X-ray diffraction (XRD) shown in Fig. 8(d) also confirmed the existence of Fe and Fe₃C. From the Raman spectra in Fig. 8(e), the I_D/I_G ratio of BFNCNTs is higher than others is, indicating more defects on BFNCNTs. More active sites enhanced the ORR and OER activities. The ΔE (= E₁₀ ‒ E_1/2 = 0.8 V) is much lower than several hetero-atom/co-doped carbon materials as shown in Fig. 8(f). The fabricated Al prototype battery with the electrocatalysts powered a light emitting diode.

Nanosheet materials have caught widely concern because of their huge surface area indicating that more active sites can be put on. Typical examples such as LDHs, graphene and the graphene derivatives have been widely used as the electrocatalysts. A 3D network hybrid (NGSH) with N-doped graphene and single-walled CNTs (SWCNT) was fabricated by CVD growth on a layered double hydroxide [68]. This 3D interconnected network formed by the simultaneous growth of graphene and SWCNTs has a high dispersion of graphene, CNTs and the N-containing functional groups. The NGSHs with a large specific surface area (812.9 m²g^‒1) and a high electron conductivity (53.8 S cm^‒1) exhibit an excellent ORR catalytic activity compared with commercial 20wt% Pt/C catalysts, and a good OER catalytic activity. Ni-doped CoO nanosheets with numerous nanopores at the micro-and nanoscale using ZnO nanosheets as sacrificial templates also exhibited a great improvement in ORR catalytic activity [69]. Hierarchical porous carbon sheets with boron (B)-doped Co-N-C active sites were synthesized by a soft template self-assembly pyrolysis method [70]. The prepared materials with crumpled two-dimensional sheets and an internal porous structure exhibit good ORR and OER catalytic activities. The Co-N-C provided the active sites, while the B introduction activated the electron transfer around the active sites to accelerate the reaction kinetics. The Zn-air battery with this material as the air electrode exhibited an excellent performance (~1.4 V open-circuit potential and ~ 100.4 mW cm^‒2 peak power density) and durability (128 cycles for 14 h of operation). A Co and N codoped ultrathin porous carbon nanosheet (Co-N-PCN) was prepared through a direct carbonization of graphene oxide sandwiched cobalt ion adsorbed polyaniline-co-polypyrrole (PACP) precursors [71]. The ultrathin porous carbon nanosheets exposed abundant active sites, in which the Co-N_x-C active sites was produced by the carbonization of PACP, and the graphene ensured the charge transfer and electrode conductivity. Benefiting from the larger surface area and the synergistic effect between the abundant active sites and the high conductivity, the material presented excellent bifunctional electrocatalytic activity with the ΔE (ΔE = E₁₀ ‒ E_1/2) as low as 0.81 V in 0.1 M KOH.

Exposing more active sites on the bifunctional electrocatalysts is beneficial to the enhancement of the ORR and OER activities. Some investigators have fabricated several of skillful designed three-dimensional structural catalysts. Hollow sphere and box are the common structures used in the preparation of catalysts. CoMn double hydroxide hollow spheres as ORR, OER and HER catalysts were prepared [72]. The materials exhibited superior ORR and OER activity with the ΔE (ΔE = E₁₀ ‒ E_1/2) of 0.794 V in 0.1 M KOH. Because this material has ultrathin surface and the hollow sphere structure, the all-solid-state Zn-air battery composed of the material exhibited excellent stability with 14 h cycling measurements unchanged. A novel Co₃O₄/Co-Fe oxide double-shelled nanobox was synthesized through an anion-exchange reaction between ZIF-67 nanocube precursors and [Fe(CN)₆]^3‒ ions and subsequent annealing treatment, as shown in Fig. 9(a) [73]. The double-shelled nanobox structure (DSNBs) yielded a better electrocatalytic performance than single-shelled nanoboxes (SSNBs) for ORR and OER in alkaline solution as shown in Fig. 9(b) and (c). Fig. 8(d) indicated that the material stability was also good.

Usually, it is feasible to find an electrocatalyst with a high activity toward ORR or OER, but difficult to find an electrocatalyst with both high activities toward ORR and OER, for the reason of the two reactions require different active sites or valence states of metal ions. To resolve this problem, researchers proposed combining the advantages of two single-functional electrocatalysts to form a bi-functional electrocatalyst, in which the ORR and OER activities can be increased by the advanced synergistic effects.

Noble metals have high activities but high costs for ORR or OER. The composites of transition metal compounds and noble metals can reduce the entire material cost. A reasonable micro-nano composite structure designing can yield a remarkable synergistic effect between the two types of materials. Researchers deposited Pd on the bonded MnO₂ nanowires and carbon nanotubes (CNTs). The material exhibited superior ORR and OER catalytic activity and stability [74]. The single Pd atom dispersed on the 3D interwoven α-MnO₂ and CNTs displayed the 5-fold higher activity than that of Pd-based electrocatalysts the state-of-the-art operated in alkaline medium. The activity was two magnitudes higher than that of Pd/CNT owing to the synergistic effect between the Pd atom and the surrounding Mn sites on the MnO₂ surface. The introduction of Ru as NiRu-LDHs also further enhanced the electrocatalytic activity of Ni(OH)₂. Chala et al. [75] developed an efficient and stable bifunctional electrocatalyst composed with the NiRu-LDHs and silver nanoparticles. The reason for the high bifunctional electrocatalytic activity was partially attributed to the strong synergetic effect between LDHs and Ag nanoparticles. The strong synergetic effect affected the site activity and population on the catalyst surface. The strong synergetic effect between FeCo, FeCoNi alloys and N-doped carbon species also exhibited excellent ORR and OER activities. Wang et al. [76] reported a kind of bifunctional oxygen electrocatalyst with the Fe_0.5Co_0.5, Fe_0.5Co_0.4Ni_0.1 alloys encapsulated in the nitrogen-doped carbon materials. The material was used as the air cathode of a Zn-air battery showing excellent charge/discharge ability and outstanding cycling stability (360 cycles).

The most common form of bifunctional oxygen electrocatalysts is the combination of transition metal materials (including oxides, hydroxides, nitrides, sulfides etc.) with carbon materials. Transition metal materials have poor electronic conductivities but could provide abundant active sites, whereas carbon materials have high electronic conductivity. A skilful design of the composite structure can improve the catalytic activity by a synergistic effect. Many investigators have made significant contributions in this field. The perovskite/carbon composites display an excellent electrocatalytic activity toward ORR and OER. Spinel, LDHs and other metal oxides have been used extensively in composites to improve the activity. Liu et al. [77] prepared an excellent ORR/OER bifunctional electrocatalyst of ZnCo₂O₄/N-CNT (N-doped CNT). The N-CNTs can couple with Zn²⁺ and Co²⁺, thus the ZnCo₂O₄ crystallites are anchored on N-CNTs and are dispersed as quantum dots (3.0‒3.5 nm). This structure can expose more active sites and ensure electron transport. Low Tafel slopes were achieved for ORR and OER in this work, which indicated an excellent electrocatalytic activity. The synergistic effect needs effective electronic conductivity. A core/shell structure with NiFe alloy core and NiFeO_x shell exhibited high OER activity owing to the synergistic effect. The metal core accelerated the electron conduction between the active sites and the oxides also protected the metal core from oxidation [78]. In addition, metal-organic framework (MOF) derived carbon materials and carbonized MOFs are widely used as the ORR and OER catalysts. Recently, a novel bifunctional oxygen electrocatalyst, MOF-N-doped carbon nanotubes (MOF-NCNTs), was prepared through the carbonized of ZIF-67 [79]. The porous cage structure of MOF-NCNTs provided high surface area. The NCNTs obtained through the pyrolysis of ZIF-67 enhanced the electronic conductivity. The directly heat-treatment of ZIF-67 ensured the well connect between the active sites and NCNTs. The carbonized material give the mass and charge transfer routes for the OER and ORR process. The synergistic effect resulted a high ORR and OER activity and stability. Dong et al. [80] deposited TiO₂ onto the surface of nano-B₄C. The introduction of TiO₂ promoted the graphitization of B₄C, resulting in the both excellent ORR and OER activities.

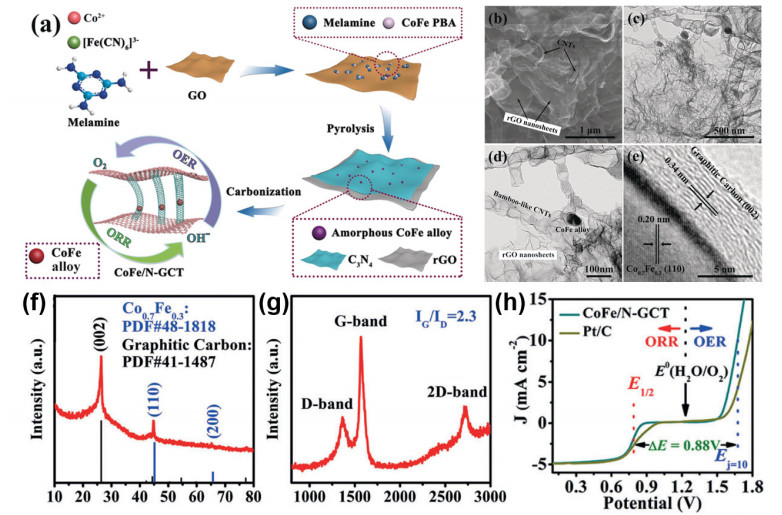

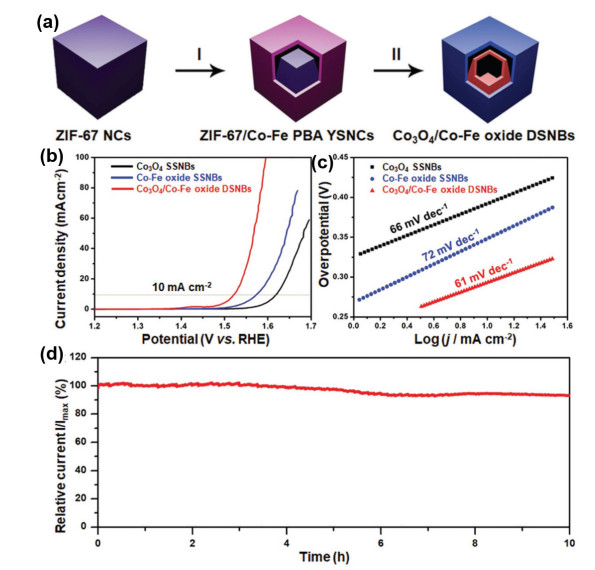

In addition, Fu et al. [63] combined CoFe alloy, N-doped carbon nanotubes (NCNTs) and reduced graphene oxide (rGO) to a novel material with CoFe alloy nanoparticles embedded in N-doped bamboo-like CNTs tangled with reduced graphene oxide (rGO) nanosheets (CoFe/N-GCT). As shown in Fig. 10(a), the CoFe Prussian blue analogues (PBA) was used as the precursor of CoFe alloy nanoparticles. The melamine was carbonized to the plane C₃N₄ and the NCNTs successively to fabricate the 3D nanostructure. The NCNTs connected with the rGO and the alloy nanoparticles confirmed the high exposed surface area and electronic conductivity. The morphology of the material is shown in Fig. 10(b)‒(e). The CNTs was tangled with the rGO nanosheet and embedded into the CoFe alloy nanoparticles. The XRD shown in Fig. 10(f) also confirmed the existence of CoFe alloy and the graphitic carbon. The Raman spectra (Fig. 10(g)) with I_G/I_D reflects the low concentration of defects and better conductivity. With the synergistic effect of plentiful active sites and high electronic conductivity, the ORR and OER activity were enhanced drastically as show in Fig. 10(h).

The ORR and OER are important reactions for many energy storage and conversion processes. However, ORR and OER processes are kinetically sluggish, thus more efforts are needed to develop active electrocatalysts to speed up the two reactions. One of the most useful strategies, metal-air batteries, can be commercially applied only with high active ORR and OER bifunctional electrocatalysts to decrease the voltage gap and improve the energy efficiency. In recent years, extensive exploration has been conducted on cost-effective and high performance bifunctional electrocatalysts. These bifunctional electrocatalytic materials include carbon-based materials, transition metal materials and composites. Two strategies to improve the activity of the bifunctional electrocatalysts include an increase in the intrinsic activity and the apparent activity. The intrinsic activity can be improved by changing the crystal structure and electronic structure. For example, the medium-strength of metal-oxygen bond can accelerate the electrocatalytic process. Doping with heteroatoms in carbon-based material can change the electric neutrality of the carbon to accelerate the reaction process. The apparent activity can be improved by changing the morphology and utilizing the synergistic effect. Morphology fabrication with special nanostructures is the most often used strategy to improve the electrocatalytic activity. In this case, electrocatalysts have high surface area, a large number of active sites and a considerable electronic conductivity. At the same time, the synergistic effect between components of composite electrocatalysts on accelerating the catalytic process cannot be ignored. An increased number of materials that were designed by considering the micro-nanostructures were synthesized as bifunctional electrocatalysts for metal-air batteries.

We propose that the development of novel bi-functional electrocatalysts for ORR and OER requires the cooperative development of synthesis methods with the fine adjustment of electrocatalyst micro-nano structures and more cognition about underlying reaction mechanism. First, the enhancement of intrinsic activity and apparent activity causing by the elaborate adjustment of structures are significant factors to evaluate of the ORR and OER activities. In addition, deep understanding of the reaction mechanism with well-designed characterization methods would help in the enhancement of bifunctional electrocatalysts activity [81]. We expect the development of excellent bifunctional electrocatalysts could accelerate the commercialization of rechargeable metal-air batteries for the storage and conversion of renewable energies.
