With the further development of industrialization and the continuous increase of the global population, human society is facing an increasingly severe crisis of resource depletion and environmental degradation. The excessive consumption of fossil fuel, such as oil, coal, and natural gas, has accelerated the increasingly serious energy crisis and environmental pollution. The exploration and development of renewable and sustainable clean energy to replace fossil fuels has therefore become an important direction in the field of catalysis and energy research [1-3]. Of particular interest are studies on fuel cells, electrolytic cells, and metal–air batteries as clean energy storage and conversion devices [4, 5]. For conversion of electrical and chemical energy, these devices depend on electrocatalytic reactions (e.g., oxygen reduction and evolution reactions, hydrogen evolution/oxidation reactions, etc.) and charge transfer processes occurring on the electrode material. Electrocatalysts are the core components of electrode materials in such devices, and the thermodynamic and kinetic processes of electrocatalytic reactions are closely related to the physical properties and chemical states of electrocatalysts. Almost all of these electrocatalytic reactions rely heavily on the use of precious metal materials such as Pt to reduce the overpotential and accelerate the catalytic reactions, but precious-metal catalysts have drawbacks such as high price, scarce resources, and poor long-term cycle stability. Therefore, the further development of low-cost, durable electrocatalysts to effectively facilitate these electrocatalytic reactions at the cathode remains the Achilles' heel of the technology and seriously hinders its widespread implementation [6-8].

As an important catalytic system, metals have made significant contributions to energy conversion, chemical conversion, and environmental governance. Metal-based catalysts have been used in many applications, such as fuel cells, petroleum refining, emission reduction, chemical semi-finished products, and drugs and pesticides [9-12]. Such catalysts rely primarily on coordination unsaturated metal atoms on the surface of the catalyst or the interaction between metal atoms and adsorption groups in order to adsorb the reactants and intermediates, thereby completing the catalytic reactions. However, the utilization rate of metal atoms is relatively low because most catalytic reactions of metal-based catalysts occur on the metal surface, the reactant molecules cannot be close to certain metal atoms, and the coordination unsaturated metal sites located on the surface only account for a fraction of the metal components of the catalyst material. An increasing number of studies are therefore focusing on reducing the geometric size of granular catalysts in order to increase the proportion of metal centers with low coordination. The most effective method is to reduce the size of the metal to a single atom, thus making full use of each metal atom in a metal catalyst fixed by supporting substrates [13-16]. The decrease in the size of the particles also leads to other novel characteristics such as quantum size effects and interactions between the metal and the supporting substrates. This size effect is particularly evident in sub-nanometer-scale metal-cluster catalysts. Even the sub-nanometer-scale metal cluster catalysts have multiple catalytic sites. Owing the abovementioned factors, many studies have shown that reducing the size of metal particles can significantly enhance the catalytic activity of metal-based catalysts [17-24]. Theoretically, the limit of dispersion of loading metal catalysts on the supporting substrates is that the metal is evenly distributed on the supporting substrates (mainly carbon-based materials) in the form of a single atom, which not only achieves the ideal state of metal-based catalysts, but also introduces the science of catalysis to a smaller-scale, single-atomic catalysis. Thus, among these fixed metal atoms, only a single isolated single metal atom is used as the main active center, i.e., "single-atom catalysts (SACs)" [25, 26]. The active center can also be an atom adjacent to these isolated single atoms, and the physicochemical properties of the fixed single metal atoms depend on their interaction with the supporting substrate material.

In 2011, Zhang and co-workers synthesized Pt single-atom catalyst loading on the surface of FeO_x by the co-precipitation method, and thus proposed the concept of SACs [27]. Subsequently, SAC synthesis based on metal-oxide supporting substrates has been extensively explored, and numerous successful examples have been demonstrated, such as FeO_x [14, 28-33], Cu₂O [34], Al₂O₃ [35], Co₃O₄ [36, 37], CeO₂ [38], and MgO [39, 40]. The limit of single-atom dispersion as a metal-loading catalyst has many novel characteristics. For instance, metal atoms exhibit higher unsaturated coordination, quantum size effects, and favorable interaction between the metal and the supporting substrates. Owing to these characteristics, the single-atom central electron structure of the loading catalyst metal is different from the metal coordination of nano- or sub-nano-sized particles and thus exhibits unique catalytic activity. Owing to these excellent characteristics, SACs form a bridge between homogeneous and heterogeneous catalysts. For precious-metal catalysts, SACs greatly reduce the material cost owing to the extremely high utilization rate of metal atoms. Precious-metal SACs also have great prospects in industrial application.

However, although many remarkable achievements have been made in the field of the SACs in recent years [41-43], most of them have only been carried out in the laboratory. The further application of SACs is limited mainly because SACs only have a single active site, which makes it difficult to break linear scaling relationships between the adsorption energies of reaction intermediates, leading to a fundamental limitation to the catalytic efficiency [44-46]. Meanwhile, in order to avoid the formation of metal nanocrystals due to the large surface energy of single metal atoms, the catalyst loadings of most reported syntheses are relatively low, generally less than 1.5%, resulting in a lower overall activity [47-55]. These problems pose a huge challenge to the synthetic process of the SACs. Considering the small contact area between the single atom and the supporting substrate material and the relatively weak interaction, dual atomic catalysts (DACs) have recently emerged as a further expansion to the family of SACs in order to further increase the active sites and the single-atom loading. Although research on DACs is still in the early stages, the research work reported so far has mainly focused on two aspects: homonuclear DACs and heteronuclear DACs [56-65]. Most of these studies are related to homonuclear DACs. Zeng et al. [56] demonstrated that the synergistic effect of the adjacent Pt monomers on MoS₂ greatly increases the catalytic activity of CO₂ hydrogenation and reduces the activation energy relative to the isolated monomers. Pt has a mass loading of 7.5%, maintaining its atomic dispersion. Xing et al. [58] used the organic framework as a precursor to precisely synthesize a diatomic center catalyst with a highly active structure by adjusting the content of the active component Co, and thus, the active site reached 12 times that of the current SACs. Theoretical calculations show that the reaction energy barrier at this active site is greatly reduced, and the reaction kinetics is significantly accelerated during the oxygen reduction reaction (ORR) process. Lu et al. [59] reported remarkable activity of graphene-supported Pt₂ dimers during the hydrogen production process of ammonia borane, which is about 17 times more active than graphene-supported single-atom Pt₁.

Furthermore, studies have shown that the dual-metal M₁, M₂–N_x–C sites in macrocyclic compounds are more active than the single-center sites [66, 67], and the synergistic effect between M₁ and M₂ in DACs can significantly improve the catalytic performance [68]. Some researches on the heteronuclear DACs have therefore gradually begun to emerge in recent years [69-75]. Chen et al. [69] proved the heteronuclear Fe₁–Cu₁@C₂N DACs compared with the homonuclear Fe₂@C₂N and Cu₂@C₂N DACs exhibit excellent catalytic performance for CO oxidation, which is attributed to the fact that the center of the d-band of Fe₁–Cu₁@C₂N is between Fe₂@C₂N and Cu₂@C₂N, and the strength of the adsorption energy of the reactants has good correlation with the center of the d-band. This is consistent with the theory of d-band center proposed by Hammer and Nörskov [76, 77]. Zhao et al. [70] revealed that Zn–Co dual atomic pairs coordinated with doped nitrogen in a carbon support (Zn/Co–N–C) could enhancing the binding abilities for O₂ during the ORR process, significantly elongating the O–O length from 1.23 to 1.42 Å and thus facilitating the cleavage of O–O bonds, which is vital for the 4e^– pathway ORR process [73, 75, 78-81]. Wu et al. [71] reported host–guest design of a hollow carbon-derived material with porphyrin-like Fe–Co dual sites ((Fe, Co)/N–C) and compared its ORR activity in acidic conditions against that of commercial Pt/C. As a cathode catalyst for fuel cells, the Fe–Co DAC not only reduces the cost of the fuel cell catalytic layer, but also has a maximum output power density of 0.51 W cm^–2, which is 76% of commercial Pt/C under the condition of less than 1 mg cm^–2 loading. The excellent performance is attributed to the existence of Fe–Co bonds, which is more conducive to the cleavage of O–O bonds, thus making the structure highly active in ORR reaction. Zhao et al. [72] also reported host–guest design of the Ni/Fe–N–C DAC, which has higher electrocatalytic activity and higher CO Faraday efficiency than Ni–N–C and Fe–N–C SACs. In addition, DFT calculations showed that the diatomic sites exhibit suitable adsorption/desorption energy of CO₂ and intermediates, which reduces the potential barrier of CO₂ reduction and reveals the essence of its excellent electrochemical performance.

Inspired by these works, we believe that the DACs may become the target of atomic catalyst in the future, mainly because in addition to the advantages of SACs, DACs also have higher metal atomic loading and more flexible active sites (top and bridge sites) [57]. In addition, since two metal atoms that are different will constitute more heteronuclear DACs and owing to the fact that two metal atoms can cooperate with each other in the heteronuclear diatomic metal catalyst, the center position of the d-band is more effectively adjusted. Thereby, the interaction of the reactant or intermediate with the catalytically active site is optimized. In this regard, there are more possibilities for heteronuclear DACs that can be explored in the future.

DACs, as a further extension to the family of SACs, have attracted a lot of attention by virtue of its high loading, the synergy between the two metals, and the strong interaction between the metal and the supporting substrate materials. However, the preparation of highly dispersed DACs remains a key challenge due to the inevitable tendency of metal atoms to aggregate during the synthesis process. Based on the synthesis method of SACs, the currently reported methods for DACs synthesis include atomic layer deposition (ALD) [59], wet chemical adsorption [61], and high temperature heat treatment [70, 71, 73]. It is worth noting that the large-scale commercial application is limited by the high cost of ALD resulting from its requirements for equipment and processes. Based on physical and chemical adsorption, metal ions are adsorbed to the surface of the supporting substrate materials such as oxides by the wet chemical adsorption method in order to construct diatomic sites. In general, DACs synthesized by this method have low thermal stability and chemical stability. Unlike the two abovementioned mild methods, the high-temperature heat treatment method (HTHM) utilizes a higher-temperature-induced chemical reaction, such as phase transformation, decomposition, and remodeling, to transfer or decompose the precursor adsorbed on the supporting substrate materials, and further interaction with the coordinating atoms on the surface of the substrate materials to construct a coordination center of the diatomic metal catalyst. Such DACs obtained by HTHM have excellent thermal and structural stability [82-84].

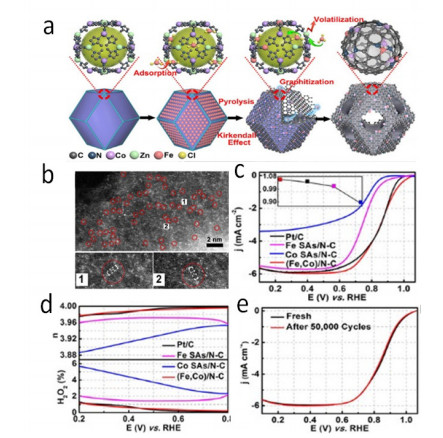

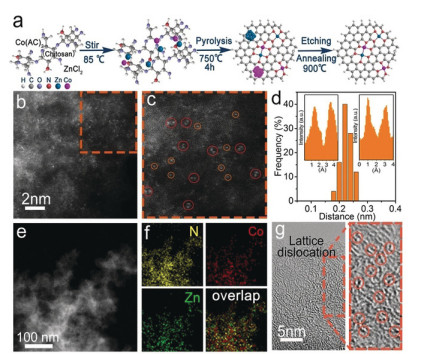

We recently reported a uniformly and highly dispersed Zn/Co–N_x–C diatomic high efficiency oxygen reduction catalyst prepared by HTHM (Fig. 1(a)) based on competitive coordination strategy. The characterization of high-angle annular dark field scanning transmission electron microscopy (HAADF–STEM) (Figs. 1(b) and (c)) combined with X-ray absorption fine structure spectroscopy (XAFS) confirmed that the Zn–Co diatomic pair exists as ZnCoN₆. Density functional theory (DFT) calculations indicated that the ZnCoN₆ diatomic pair can significantly increase the O–O bond from the original 1.23 to 1.42 Å, which is beneficial to the cleavage of O–O bond (Fig. 1(d)). In particular, HAADF–STEM (Figs. 1(e)) and elemental mapping (Fig. 1(f)) reveal that N, Zn, and Co are homogeneously distributed in the Zn/Co–N–C. The HR-TEM image (Fig. 1(g)) demonstrates lattice distortion defects characteristics, which might be attributed to the coordination of single or dual Zn/Co atoms with nitrogen. Theoretical calculations and in-situ XANES tests further confirmed that a Co atom is the active center of the ZnCoN₆ diatomic structure, and the structure remained stable after long-cycle testing. The synthesis strategies provide a reference for the mass preparation of DACs with high activity. In addition, the combination of detailed characterization and theoretical calculation provides a deeper understanding of the origin of the DAC activity, and has important significance in guiding the synthesis and mechanism discussion of other electrocatalytic catalysts [70].

It can be seen that the supporting substrate materials play a crucial role in the remarkable performance of the DACs. It is crucial to determine the influence of the structure, modification, and functionalization of the supporting substrate materials on the surface of the substrate materials in order to understand the preparation and formation mechanism of diatomic catalysts. There are many reports on the design of N-doped carbon as the supporting material for dual metal sites, among which the "–C₂N" architecture is quite popular. As reported, the N atom located in the "–C₂N" hole has a lone pair of electrons, and the transition group non-precious-metal atoms (Cr, Mn, Fe, Co, Ni) can be anchored in the "–C₂N" hole, which makes diffusion difficult in thermodynamics and dynamics, thus avoiding the agglomeration of metal atoms and resulting in outstanding stability [57, 60]. The Mn₂–C₂N has stronger activation effect on nitrogen for nitrogen reduction catalytic reactions (Mn₂–C₂N is more strongly adsorbed to the intermediate state of NNH^*, which is conducive to the first hydrogenation of nitrogen). The catalytic activity of Mn₂–C₂N was significantly higher than that of Mn–C₂N (–0.23 V vs. RHE), which is the best reported value thus far. It is pointed out that DACs can replace SACs and become the best choice for nitrogen reduction catalytic reaction, which provides a new idea for catalyst design of nitrogen reduction catalytic reaction [57].

Furthermore, "graphitic carbon nitride (g–C₃N₄)" is also popular because it contains a large number of "Pyridinic–N", which provides many lone-pair electrons to capture metal ions. Wang et al. [61] reported a "precursor-preselected" wet-chemistry strategy to synthesize highly dispersed Fe₂ clusters that are supported on mesoporous carbon nitride (mpg–C₃N₄). The obtained Fe₂/mpg–C₃N₄ sample exhibits superior catalytic performance for the epoxidation of trans-stilbene to trans-stilbene oxide, showing outstanding selectivity of 93% at high conversion of 91%. In contrast, under the same condition, iron porphyrin, single-atom Fe, and small Fe nanoparticles (ca. 3 nm) are almost reactively inert. First-principles calculations reveal that the unique reactivity of the Fe₂ clusters originates from the formation of active oxygen species. The general applicability of the synthesis approach is further demonstrated by producing other diatomic clusters such as Pd₂ and Ir₂, which lays the foundation for discovering diatomic cluster catalysts. It is worth noting that the drawback of "g–C₃N₄" is the poor electronic conductivity, so it is often combined with carbon carriers such as carbon nanotubes and graphene to enhance the charge transfer and electrocatalytic activity.

The selection of the synthesis methods and the supporting substrate materials are very crucial to the performance of DACs. Nevertheless, there are some unavoidable shortcomings in many reported DACs, such as the low proportion of dual atoms in the catalysts with single/dual-atom co-existence. As both the single- and dual-atom sites are thermodynamically stable, it is hard to control the proportion between single- and dual-atoms experimentally. The following approaches maybe helpful for manipulating the dual-atom sites: (a) Improvement on the synthetic technique; (b) careful adjustment of the proportion between the metallic precursors and synthetic procedures, and (c) optimization of the substrate architecture so that it can provide more suitable energy barriers for dual-atom sites.

The active site acts as the center of the catalyst, and its properties are crucial in the performance of the catalyst. The identification of the active site will help us gain a deeper understanding of the reaction mechanism occurring on the catalyst surface, which will provide strategies for further rational design of catalysts [85-89]. Compared with SACs, the metal sites in DACs are dispersed on the supporting substrate materials at the diatomic level, and hence, there is still some controversy about the identification of bimetallic sites in homonuclear and heteronuclear DACs. The high-resolution scanning transmission electron microscope (HRSTEM) with spherical aberration correction has become one of the main tools to detect metal dual-atoms sites because of its subatomic structure resolution. The brightness of atoms is proportional to the square of their atomic number in the atomic-scale resolution images obtained by a high-angle ring dark field detector [90]. The existence, composition, and distribution of atoms on the surface of the catalyst can also be observed by the combination of atomic resolution scanning tunneling microscope (STM) and energy-dispersive X-ray spectroscopy (EDS). In addition, the absorption spectroscopy based on synchrotron radiation can not only provide the statistical average results of information about metal dual-atoms, but also further reveal the chemical valence state and coordination environment of the metal dual-atoms. The absorption spectroscopic characterization methods based on synchrotron radiation mainly include X-ray absorption near edge structure (XANES) and extended X-ray absorption fine structure (EXAFS) [91]. The different X-ray energies used can be subdivided into soft light and hard light [92, 93]. Further fitting and analysis of the results of the hard X-ray synchrotron radiation absorption spectroscopy can provide the electronic filling state of the central metal, the coordination environments of the surrounding atoms, and the bonding state conditions of the DACs. In particular, the characterization of synchrotron radiation absorption spectroscopy based on soft light can further provide important information on the electronic structure and chemical valence states of the metal dual-atoms on the catalyst surface. In addition, quantum chemistry and molecular simulation have become important techniques in the field of catalysis owing to the current high-performance computing technology. Infrared (IR) spectroscopy has also been widely used in the study of surface properties of catalysts, which is a method to identify substances and determine their chemical composition, structure or relative content by using the absorption characteristics of substances to infrared radiation of different wavelengths [94, 95]. Because the atoms that make up chemical bonds or functional groups are in the state of constant vibration, their vibration frequencies are equal to that of infrared light, so when the sample is irradiated by infrared light, the chemical bonds or functional groups in the molecules may absorb vibration, resulting in energy level transition. Different chemical bonds or functional groups have different absorption frequencies and will be at different positions in the infrared spectrum, and thus, the information of which chemical bonds or functional groups are contained in the molecules can be obtained. This method is very significant for revealing the catalytic reaction mechanism. Density functional theory (DFT) has played a significant role in the research of DACs. It can effectively simulate and calculate the atomic structure, electronic structure, reaction path, and intermediate state process of active sites [96, 97]. For example, the rationality of atomic active site structure can be verified by comparing the bond length with experimental data via relaxation optimization of the model structure. According to the calculation of bond energy, electron transfer number, bond lengths, and other parameters of the dual-atoms at different adsorption sites, the most favorable adsorption sites can be determined through comparison with experimental data. The most favorable reaction path can be determined by simulating the adsorption of reaction molecules, the more possible reaction path, and the formation energy of intermediate products, and the reaction mechanism can be preliminarily explored. DFT calculation has been widely used in DACs as an important means to study the microstructure and reaction mechanism of chemical systems. It not only deepens the understanding of the microstructures and reaction kinetics of the active sites of catalysts at atomic and electronic levels, but also provides an effective theoretical basis for the further design of new efficient and stable DACs. The present reported work further confirms the existence of dual atoms and the corresponding valuable information by characterizing the relative morphology and structure analysis and by combining DFT calculations. Some common DAC characterization techniques to study the catalytic activity sites and molecular structure activity/selectivity relationship are listed above. In fact, owing to the complexity of metal dual-atom interaction in DACs, it is still necessary to explore how to obtain the reaction essence of the DACs by characterization technology, sequentially providing theoretical guidance for the rational design, and development of efficient and stable DACs.

DACs exhibit remarkable catalytic activity in a series of catalytic reactions owing to their high loading, synergy between two metals, and strong interaction between the metals and the supporting substrates materials. In addition, the special geometry and electronic structure between the two metals in DACs allow some reactions to show different catalytic selectivity from conventional nanoparticles. Reported works on DACs have mainly applied ORR [58, 70, 71, 73-75] and CO₂ reduction reaction (CO₂RR) [60, 63-65, 72], (Tables 1 and 2). We discuss some recent examples in order to demonstrate the catalytic capacity and great potential of DACs.

Hydrogen–oxygen fuel cell is a new energy technology that is clean, efficient, safe, and environmentally friendly. Fuel cell vehicles are an important development direction of new energy vehicles in China. Cathode ORR is one of the core catalytic reactions of fuel cells [102-108]. Common ORR reactions mainly include the following three pathways: (a) the "direct" four-electron reaction path is reduced to H₂O (acidic medium) or OH– (alkaline medium); (b) reduction of the two-electron reaction pathway to generate hydrogen peroxide; (c) a series of reactions in which "two electrons" and "four electrons" coexist. Many intermediates (such as O*, OOH*, OH*) are produced during oxygen reduction, and their adsorption on the electrode surface is a key step in ORR kinetics [109]. Ideal catalysts should have appropriate binding energy with reaction intermediates. According to the volcanic relationship between the oxygen reduction activity on the surface of some metal electrodes and reaction intermediates (such as O*, OOH*, OH*), it is obvious that the electrocatalytic activity of the precious metal Pt is superior to that of other precious metals [110]. However, the scarcity of Pt resources and its high cost as well as the kinetic inertia of ORR severely limit the further development of energy devices. In order to solve these problems, reducing the activity species of the catalyst from the particles to the atomic scale is an effective strategy for improving the catalyst performance. Designing DACs at the atomic scale not only overcomes the drawback of low SAC loading, but also utilizes the strong interaction between the double-metal atoms and the supporting substrates material that enhances the intrinsic activity of the active sites. In addition, the synergy between the metal diatoms has a great auxiliary advantage for the rupture of the O–O bond.

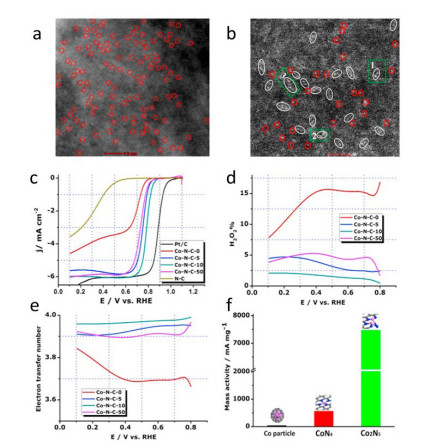

Xing et al. [58] used the metal–organic framework (MOF) as a precursor to precisely prepare a diatomic central catalyst with a highly active structure by adjusting the content of the active component Co under the conditions of Co–N–C–10. The existence of the central active site structure of diatomic Co was confirmed by spherical aberration correction electron microscopy (ACEM) and extended X-ray absorption near-edge spectroscopy (EXANES) (Figs. 2(a) and (b)). The linear sweep voltammetry results (Fig. 2(c)) reveal that the N–C material exhibits negligible activity for ORR compared with the Co–N–C–x catalysts. The RRDE measurements demonstrate that the yield of H₂O₂ is suppressed on Co–N–C–10, which is as low as 2% over the scanned potential range, much lower than that on Pt/C (Fig. 2(d)). The corresponding electron transfer number also reveals a four-electron pathway (Fig. 2(e)). Finally, the activity is increased by more than one order of magnitude and reaches 12 times the current single-atom active site catalyst (Fig. 2(f)), which has great practical significance. Theoretical calculations show that the reaction energy barrier of the ORR process is greatly reduced, and the reaction kinetics is significantly accelerated at this active site. In this work, the advantages of diatomic active centers are confirmed theoretically and experimentally for the first time, and this opens up new ideas for designing efficient non-precious-metal catalysts.

Wu et al. [71] use zinc–cobalt bimetallic MOF as the precursor to adsorb iron salts by double-solvent method. Under high temperature environment, Fe³⁺ was gradually reduced by surrounding graphitized C and bonded with adjacent Co, thus forming the bimetallic active site of Fe and Co. Fe catalytic support generates nitrogen-doped graphitized carbon; decomposes and releases the fragments of C and N, accelerating the cleavage of the metal-imidazole-metal bond; and forces the formation of voids in MOF. Eventually, a hollow structure is formed under the Kirkedall influence (Fig. 3(a)). Through spherical aberration electron microscopy, synchrotron radiation, Mossbauer spectroscopy, and other means, the diatomic material is found to contain Fe–Co bonds and coordinate with the surrounding N (Fig. 3(b)). Theoretical calculation results show that the existence of Fe–Co bond is more conducive to the cleavage of O–O bond, which makes the catalyst highly active in ORR. The E_1/2 was 0.863 V and the E_onset was 1.06 V in the acidic ORR (Fig. 3(c)). Similar to the catalytic behavior of Pt/C, H₂O₂ yields with the best (Fe, Co)/N–C were always below 1.17% over the potential range 0.2 to 0.8 V (Fig. 3(d)), demonstrating almost complete avoidance of the less efficient two-electron reaction to peroxide. The current density was 2.842 mA cm^–2 at 0.9 V, and the excellent performance for 50, 000 cycles was observed (Fig. 3(e)).

Compared with traditional CO₂ reduction technology, electrocatalysis has the potential to promote the transfer of electrons in order to achieve CO₂ catalytic conversion under mild conditions. However, when an aqueous solution is used as an electrolyte, hydrogen protons in the solution are susceptible to electron transfer to generate H₂, which becomes the main side reaction in electrocatalytic CO₂RR and considerably restricts the process efficiency. Therefore, the design of catalysts with excellent performance to reduce overpotential and improve the reaction selectivity and stability has become the focus of CO₂ electrocatalytic reduction research. DACs have the highest diatomic utilization and a large number of active centers for unsaturated coordination, which can facilitate catalyst activity [111-113]. Owing to the unique geometric and electronic properties of the DACs, the binding energy of active intermediates (such as *COOH, *OCHO, etc.) in the CO₂ reduction process can be significantly enhanced, thus promoting selective reduction of CO₂. The adsorption energy of *H species was weakened, and the side reaction of hydrogen evolution was inhibited effectively [114]. Therefore, The DACs exhibit great potential in the high efficient electrocatalytic reduction of CO₂.

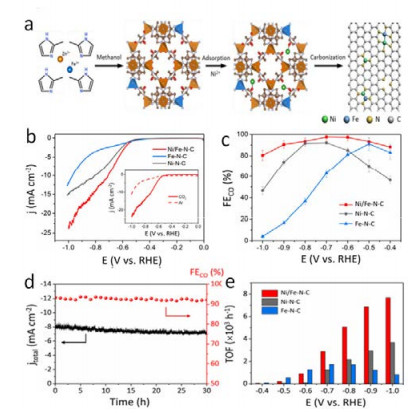

Zhao et al. [72] successfully synthesized Ni–Fe diatomic catalysts based on the ZIF-8 template by the host–guest method (Fig. 4(a)). Based on the prepared catalytic materials, the electrocatalytic performance of carbon dioxide was further investigated. The results show that Ni/Fe–N–C of the diatomic sites has higher electrocatalytic activity (Fig. 4(b)) and higher CO Faraday efficiency (up to 98% at –0.7 V) (Fig. 4(c)), excellent catalytic stability for more than 30 h) (Fig. 4(d)), and higher catalytic activity (TOF, 7682 h^–1) (Fig. 4(e)) than Ni–N–C and Fe–N–C of the single-atomic sites. From the DFT calculation, the diatomic sites showed appropriate adsorption/desorption energy of CO₂ and intermediates, which reduced the potential barrier of CO₂ reduction and revealed the essence of its excellent electrochemical performance.

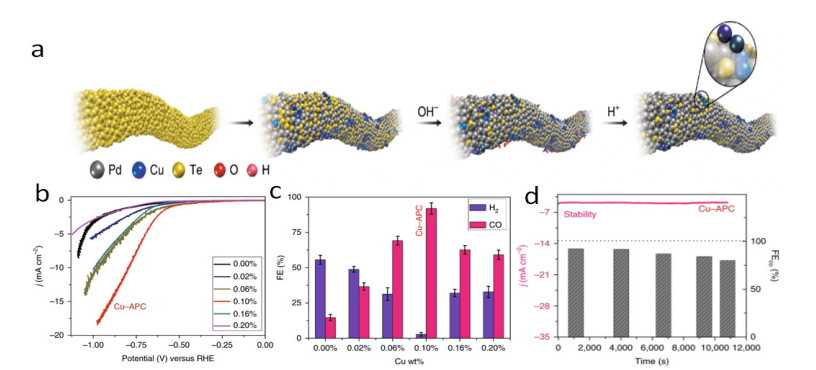

Xiao et al. [65] reported a strategy to construct a Cu atom-pair sites anchored on Pd₁₀Te₃ alloy nanowires (Fig. 5(a)). At the optimal Cu loading ratio (0.10%), one in every four Cu atoms binds with O to form Cu₁^x+, which, in association with a neighboring Cu₁⁰ atom, forms a stable Cu₁⁰–Cu₁^x+ atom-pair structure. The current density and Faradaic efficiency of the reduction products are the indices to evaluate the performance for CO₂RR (Fig. 5(b)). In the critical step of CO₂ reduction, the H₂O molecule adsorbed on Cu₁^x+ stabilizes the CO₂ molecule chemisorbed on the neighboring Cu₁⁰, and thereby promotes CO₂ activation. This leads to a FE_CO of over 92% (Fig. 5(c)), and the competing HER is almost completely suppressed. The sample at -0.78 V for 180 min (Fig. 5(d)) was subjected to stability assessment. The current density remained virtually unchanged, and the FE_CO showed only a small decline from the initial 92% to the final 80%, indicating a relatively high CO selectivity. Experimental characterization and DFT revealed that the adsorption configuration reduces the activation energy, which generates high selectivity, activity, and stability under relatively low potentials. It is also notable that the atom pair is stabilized by surface defects of the nanostructures, which offers a novel and efficient method to construct functional interfaces at the atomic level. We believe that this method can also be applied to other catalytic systems, and opens up new opportunities for atomically dispersed catalysts to be used in more complex reactions.

Hydrogen energy is a very important part of the exploration of many new energy sources. Since the 1970s, hydrogen molecules have been considered to be good energy carriers [115]. The storage of energy in the form of hydrogen fuel, which is used for combustion or converted into other forms of energy, has become a major part of the planned energy structure for the future. Hydrogen is considered a very good energy source because it has the highest energy density per unit mass, and in the process of combusting and releasing energy, it produces only water, a non-polluting product [116]. Compared with all types of fossil energy, hydrogen energy is a highly efficient, renewable, and non-polluting energy source. Therefore, research on hydrogen production and storage has been ongoing. Hydrogen evolution reaction (HER) can make full use of secondary energy to achieve the high-purity preparation of H₂, and the selection of the catalyst is the key in this process. Currently, Pt and Pt-based materials are recognized as the most effective HER catalysts, but the high cost and scarce resources limit their large-scale application [117-120]. In order to better promote the development of hydrogen economy, it is imperative to design non-precious-metal catalysts with high catalytic performance and low cost to replace Pt. As an extension to the SAC family, DACs have attracted considerable research focus owing to their specific advantages.

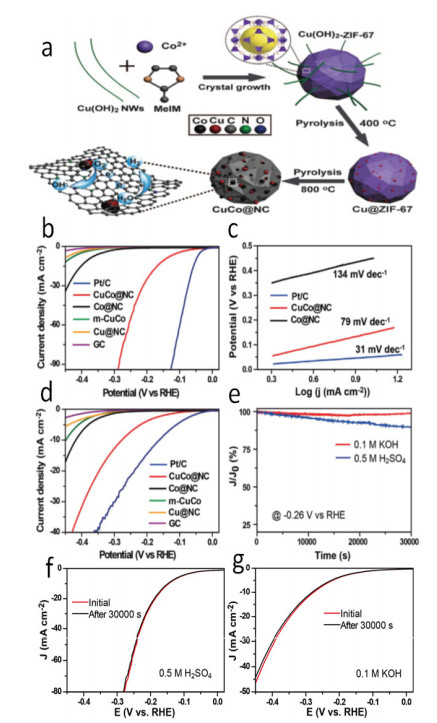

Recently, Zhen et al. [74] prepared a nitrogen-doped mesoporous carbon structure material (CuCo@NC) embedded with Cu and Co dual metals by using the constrained copper thermal conversion method by pre-growing zeolite imidazole framework (ZIF–67) on Cu(OH)₂ nanoparticles (Fig. 6(a)). The formation of the Cu–N bond further increases the nitrogen content in the carbon skeleton material from ZIF–67 under high pyrolysis temperature conditions. Through this method, the materials obtained by researchers have the advantages of rich reactive active sites, high nitrogen doping, strong synergistic coupling and better mass activity, and have exhibited excellent performance in HER. The CuCo@NC composite exhibited excellent HER catalytic activity with a low onset overpotential of 115 mV, which is much smaller than that of Co@NC (320 mV), m–CuCo (360 mV), and Cu@NC (380 mV) (Fig. 6(b)). The Tafel slopes of the CuCo@NC and Co@NC catalysts were calculated as 79 and 134 mV dec^-1, respectively (Fig. 6(c)). The low overpotential and small Tafel slope of CuCo@NC are comparable to the best reported non-precious-metal HER electrocatalysts. The similar trend of enhanced HER electrocatalytic activity for CuCo@NC was also observed in an alkaline electrolyte (Fig. 6(d)). The current density retention of the CuCo@NC catalyst was about 92.79% and 98.31% in 0.5 M H₂SO₄ and 0.1 M KOH electrolytes, respectively (Fig. 6(e)), comparable to the values for commercial Pt/C, clearly demonstrating the excellent HER catalytic activities and durability of the CuCo@NC catalyst over a wide pH range. The LSV curves showed almost no change after continuous operation for 30, 000 s (Figs. 6(f) and (g)). From the above reactions, the material shows broad application potential in the field of HER electrocatalysis.

Nitrogen reduction reaction (NRR) utilizes nitrogen and water to synthesize ammonia, which can directly convert electric energy generated by renewable energy into ammonia for easy storage and transportation, and ensure zero emission of carbon dioxide, providing a new idea for solving the current severe energy and environmental problems [121-123]. Ammonia is one of the significant inorganic chemical products and occupies an important position in the national economy. It is mainly used in synthetic fertilizers and chemical or medical raw materials. In recent years, ammonia is also been considered as a potential hydrogen storage material [124-126]. Therefore, for the sustainable development of society and economy, it is very crucial to transform the abundant nitrogen in the atmosphere into ammonia with high usable value. Nitrogen activation is difficult due to the strong bond energy (945 kJ mol^–1) in the nitrogen–nitrogen triple bond (N≡N) in nitrogen gas. The traditional industrial nitrogen fixation method is expensive. Therefore, the main challenge in the ammonia synthesis process is the design of an efficient and low-cost catalyst for use in the nitrogen activation process that helps to achieve normal temperature and pressure synthesis [127]. As an extension of the SAC family, DACs have attracted considerable research interest owing to their specific advantages.

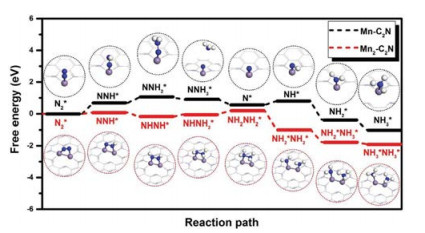

Chen et al. [57] demonstrated the outstanding advantages of DACs in NRR owing to the unique geometric and electronic properties. The authors constructed a catalytic system with high loading, high dispersion, and high stability; C₂N with uniform pore distribution was selected as the supporting substrate material of SACs and DACs. The N atom located in the pore of C₂N has a lone pair of electrons, which can anchor the transitional non-precious-metal atoms (Cr, Mn, Fe, Co, Ni) in the pore of C₂N, preventing them from diffusing in thermodynamics and dynamics, avoiding the agglomeration of metal atoms (abbreviated as TM–C₂N, TM₂–C₂N), and exhibiting excellent stability. The results showed that the catalytic activity of TM₂–C₂N was significantly higher than that of TM–C₂N for NRR owing to the stronger activation of nitrogen by the DACs (the adsorption of the DACs to intermediate state NNH* is stronger and favors the first hydrogenation of nitrogen) (Fig. 7). The NRR catalytic activity of Mn was the best (–0.23 V vs. RHE) (Table 3), which was better than the reported value. It is pointed out that DACs can replace SACs and become the best choice for NRR, providing a new idea for catalyst design of NRR.

The CO oxidation with low ambient temperature has significant industrial application value, and is widely used in many practical processes, such as air purification and automobile exhaust pollution [128, 129]. The combination of the supporting substrate materials and metal clusters can promote the activation of O₂ and the oxidation of CO. Typically supported metal clusters, especially those composed of precious metals, such as Pt, Pd, Au, Rh, and Ru, have high activity for the oxidation of CO. However, the conversion rate of CO oxidation catalyzed by noble metal nanoparticles is not high enough, and it is difficult to synthesize nanoparticles of uniform size and morphology experimentally, while the precious metal itself is expensive and its reserves on earth are limited. Therefore, it is crucial to develop low-temperature CO oxidation catalyst with low cost and high efficiency. As the catalytic activity of loading metal nanoparticles is related to their size and shape, DACs are preferred by researchers owing to their specific advantages for CO oxidation [130-134].

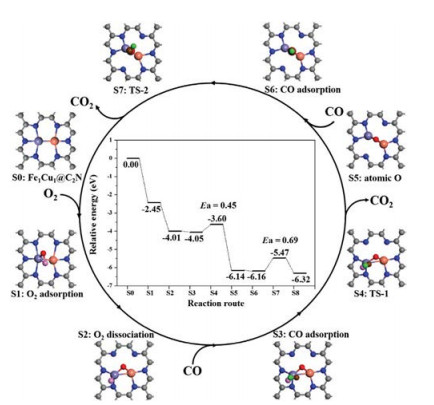

The catalytic properties of the heteronuclear DAC Fe₁Cu₁@C₂N and its homonuclear DACs Fe₂@C₂N and Cu₂@C₂N for CO oxidation were systematically compared by Chen et al. [69]. Compared with homonuclear diatomic system Fe₂@C₂N and Cu₂@C₂N, the heteronuclear diatomic system Fe₁Cu₁@C₂N has superior catalytic performance for CO oxidation reaction: Fe₂@C₂N has strong adsorption for O₂ and O, which is not conducive to the formation of CO₂. Although Cu₂@C₂N has a very low reaction energy barrier, the adsorption strength of CO is much higher than that of O₂, indicating that homonuclear DACs are prone to CO poisoning and thus lose their catalytic activity. Compared with Cu₂@C₂N, the adsorption energy of O₂ on Fe₁Cu₁@C₂N is slightly higher than that of CO, and O₂ can react with it to form CO₂ in the case of CO adsorption and excess adsorption (two CO adsorptions first) (Fig. 8). The catalytic activity of the heteronuclear diatomic system Fe₁Cu₁@C₂N was improved because two different metal atoms could coordinate with each other to more effectively adjust the center position of the d-band, so that the interaction between reactants or intermediates and the catalytic activity sites could be optimized. This work extends the research of SACs to heteronuclear DACs and provides a new horizon for the development of new catalysts. Considering the diversity of heteronuclear bimetallic atomic combinations, we expect more heteronuclear bimetallic atomic systems to be developed.

Fuel cells have broad development prospects because of their numerous advantages [135-137]. However, Pt, a precious metal, is still the most widely used electrocatalytic catalyst for oxygen reduction in fuel cells, and its price, activity, and stability are the main factors limiting the large-scale commercial use of fuel cells. DACs have attracted considerable research interest owing to their higher loading and stronger interaction between the metal and the supporting substrates materials compared with SACs, which ensures the highly efficient implementation of the four-electron oxygen reduction reaction of the fuel cell in the ORR.

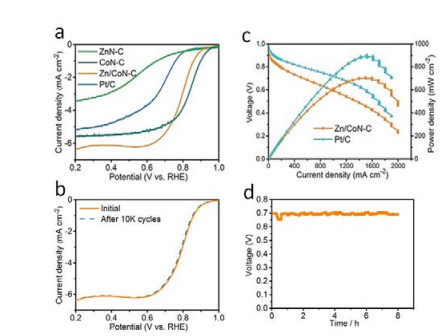

Zhao et al. [70] prepared a uniformly dispersed Zn/o–NC_x–C diatomic high-efficiency oxygen reduction catalyst based on the competitive coordination strategy. Owing to the active site of Zn–Co diatomic pair with high activity, the catalyst showed remarkable catalytic activity and stability under both alkaline (E_onset = 1.004 V, E_1/2 = 0.861 V) and acidic conditions (E_onset = 0.97 V, E_1/2 = 0.796 V) (Figs. 9(a) and (b)). The catalyst was applied to a power density of 705 mW cm^–2 (about 78% of commercial Pt/C) in H₂/O₂ fuel cells (Fig. 9(c)) and exhibited no degradation of activity after 8 h of stability testing (Fig. 9(d)). The above results indicate that the catalyst has great practical application potential in fuel cells.

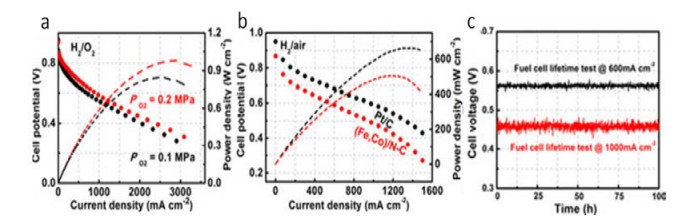

Wu et al. [71] successfully synthesized an electrocatalyst in which diatomic Fe–Co was co-anchored on porous nitrogen-doped carbon (Fig. 3(a)). Diatomic materials have demonstrated high ORR performance for both H₂/air and H₂/O₂ fuel cells. In acidic ORR, the E_1/2 was 0.863 V, E_onset was 1.06 V (Fig. 3(c)), the current density at 0.9 V was 2.842 mA cm^–2, and the performance was excellent after 50, 000 cycles (Fig. 3(e)). The highest output power of the H₂/O₂ fuel cell is up to 0.98 W cm^–2 (Fig. 10(a)). In the H₂/air fuel cell, the maximum output power is 0.51 W cm^–2 (Fig. 10(b)), and the stable operation is more than 100 h (Fig. 10(c)). The H₂/air fuel cell of the diatomic materials has the highest performance among the non-Pt catalysts, and increases the existing maximum activity by 20%. In this research, DACs have been successfully applied as the cathode catalyst of fuel cells, greatly reducing the cost of the catalytic layer, which is a major breakthrough in the field of fuel cells. This increases the potential for commercial development of fuel cells, and is expected to facilitate the development of fuel cell vehicle in the future.

For commercial applications of zinc batteries, low cost and high performance ORR catalysts are urgently needed. It is highly desirable to explore non-precious-metal catalysts that exhibit ORR performance comparable to that of noble metal catalysts. Heteronuclear DACs formed by the combination of transition metals has shown promising prospects as a cathode catalyst for Zn–air batteries, demonstrating its high potential in practical applications [138-141].

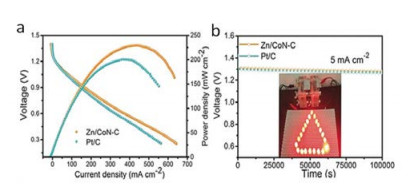

Zhao et al. [70] prepared a uniformly dispersed Zn/Co–N_x–C diatomic highly efficient oxygen reduction catalyst based on competitive coordination strategy. Owing to the active site of Zn–Co diatomic pair with high activity, the catalyst applied to Zn–air battery exhibits a maximum power density of 230 mW cm^–2 outperforming the Pt/C-based counterpart (201 mW cm^–2) (Fig. 11(a)). Furthermore, no significant potential change was detected at a current density of 5 mA cm^–2 for 100, 000 s (Fig. 11(b)), indicating stable practical application performance. As shown in Fig. 4(b) inset, two series-connected Zn–air batteries based on the Zn/Co–N–C as the cathode can power a series of red light-emitting diodes (LEDs) in parallel (2.2 V) with outstanding stability. These results not only indicate that the catalyst has great application potential in the metal–air batteries, but also provide a reference for the preparation of highly active DACs in large quantities. The detailed characterization and theoretical calculations provide a deeper understanding of the origin of the activity of the DACs, and are important for guiding the synthesis and mechanism of other electrocatalytic catalysts.

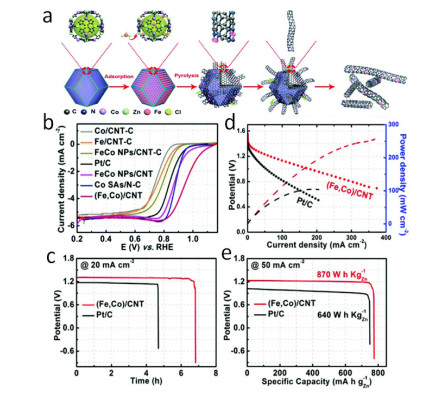

Wu et al. [75] constructed a novel electrocatalyst by precisely controlling the bonding between the Fe species and the Co node in the original bimetallic MOF, in which Fe–Co double sites are embedded in N-doped carbon nanotubes ((Fe, Co)/CNT) (Fig. 12(a)). The resulting catalyst exhibited the most advanced ORR activity and excellent Zn–air battery performance. It has an admirable initial potential (E_onset, 1.15 V vs. 1.05 V) and a half-wave potential (E_1/2, 0.954 V and 0.842 V), which is superior to commercial Pt/C (Fig. 12(b)). ORR tests showed that (Fe, Co)/CNT has better performance than most reported non-precious-metal catalysts in alkaline electrolytes. Further, when used as a cathode catalyst in the Zn–air battery, (Fe, Co)/CNT exhibited high voltages of 1.31 and 1.23 V at discharge current densities of 20 and 50 mA cm^–2, respectively (Figs. 12(c) and (e)). In addition, the power density and specific energy density reached 260 and 870 Wh kg_Zn^–1 (Figs. 12(d) and (e)). Experimental and DFT results show that the synergy between the Fe–Co dual metals effectively weakens the O–O bond in favor of oxygen activation. These results not only help to deepen the understanding of the relationship between the structure and properties of non-precious-metal electrocatalysts and the identified active sites, but also provide new possibilities for the advancement of catalyst design in the field of metal–air batteries.

Advanced nanocatalysis technology brings new opportunities in the fields of energy, environmental protection, and chemical synthesis, and is an important way to realize the transformation of society from fossil energy to emerging energy systems. In recent years, the sudden emergence of SACs has injected new vitality into this field [142]. When the dispersion of metal particles reaches the size of a single atom, it will result in novel characteristics such as the quantum size effect, unsaturated coordination environment, and interaction of metals and the supporting substrates materials. Compared with traditional catalysts, SACs have obvious advantages, such as fully exposed active sites, high selectivity, and maximized atom utilization. However, single atoms have a significantly increased surface free energy, which can lead to the aggregation of particles and the reduction of catalytic activity sites during the preparation and catalysis. In order to avoid the formation of metal nanocrystals due to the large surface energy of individual metal atoms, the currently reported loading of synthetic catalysts is relatively low, generally less than 1.5%, resulting in low overall activity. These problems seriously restrict the development and application of SACs.

Considering the small contact area between the single atom and the supporting substrate materials and the relatively weak interaction, DACs have recently emerged in order to further increase the number and loading of monatomic active sites. DACs have been successfully applied in various catalytic systems, fuel cells, and metal–air battery, and have exhibited remarkable performance. Compared with SACs, DACs have many distinct advantages, such as higher metal atomic loading and more flexible active sites. In addition, the two metal atoms can cooperate with each other to more effectively adjust the center position of the d-band, so that the interaction between reactants or intermediates and catalytic active sites can be optimized. This advantage is particularly prominent in heteronuclear DACs. In this review, we summarize the work of currently reported DACs, especially in terms of the advantages, synthesis, and characterization of DACs, and we describe the applications of DACs in electrochemical energy conversion and storage devices. In particular, we classify the current work related to DACs into homonuclear DACs and heteronuclear DACs, and we fully summarize the catalytic systems currently used in both types of DACs. It can be seen that, compared with precious metal DACs, the work on non-precious-metal DACs is more general. Considering the high cost and shortage of resource reserves of precious metals, DACs containing "precious metals atom–non-precious-metal atom" and "non-precious-metal atom–non-precious-metal atom" have great prospects for future research. In principle, two different metal atoms will form a variety of heteronuclear DACs, so there are more possibilities for researching heteronuclear DACs with excellent performance.

Although DAC application and research has been rather successful, it is important to recognize that the preparation of highly dispersed DACs remains a key challenge because metal atoms inevitably aggregate during the synthesis process. In addition, the accurate identification of active sites in DACs remains a problem that requires additional research. Moreover, the properties of active sites are very significant in the performance of the catalysts. The identification of active sites will help us gain a deeper understanding of the reaction mechanism occurring on the catalyst surface, which in turn will provide strategies for further rational design of DACs. It can be seen that the current application of the DAC catalytic system is mainly focused on ORR and CO₂RR, and there is relatively little work on other catalytic systems. Although this is a drawback, it provides direction for future research on DACs (Fig. 13).

It can be foreseen that the development of DACs will cover for the drawbacks of SACs and offer an overall advantage in electrochemical energy conversion and storage. With the help of the diversity of two different metal atoms in heteronuclear DACs, research on transition-metal-based DACs will contribute significantly to the conservation of precious metal resources and the environment. Further design and optimization of DACs will also provide greater economic and social benefits for fuel cells and metal–air batteries. Therefore, we believe that the combination of DACs with electrochemical energy conversion and storage will be a new frontier in materials research and open up new research paths for the synthesis of more efficient electrocatalysts.
