Single atom catalysts have attracted significant interest in recent years due to their ability to maximize the utilization of expensive noble metals [1, 2] as well as the unique catalytic properties single atoms provide when compared to metal nanoparticles [3-7]. However, single atom catalysts are particularly vulnerable to agglomeration of metal atoms to form nanoparticles under reaction conditions [8]. It is also difficult to produce high metal loadings of single atoms to the exclusion of metal nanoparticles [8]. In order to become industrially relevant, procedures must be developed that are capable of producing high loadings of stable single atoms. Several groups have developed protocols to produce such catalysts with metal loadings as high as 3 wt.% active metal dispersed on a metal oxide support [8].

Work is emerging that suggests that the interaction between the isolated metal atom and the oxide support is critical both for the formation of a single atom catalyst as well as for that catalyst's long-term stability [4, 9, 10]. One support that has drawn significant interest is CeO₂. Besides showing promise as a reducible support capable of activating oxidation catalysts [11-13], CeO₂ has been shown to excel at stabilizing a wide variety of single metal atoms including Pt [1, 10, 14-16], Ru [17, 18], Pd [5, 19], and Au [15]. It is hypothesized that CeO₂ is able to stabilize single transition metal atoms in a square pocket of 4 oxygen atoms on the surface of CeO₂ that is stable to high temperatures [10]. In fact, it has been suggested that the bonding energy of these single atoms in square pockets is stronger than in metal nanoparticles [10]. In this way, CeO₂ provides single atoms sites stable to high temperatures, even at high metal loading [8, 9].

However, the exact number of sites on CeO₂ capable of stabilizing single atoms remains difficult to quantify. Techniques exist to determine the concentration of oxygen on the CeO₂ surface [20], as well as to quantify the amount of oxygen vacancies in CeO₂ [18, 21] but they are not yet capable of predicting the number of single atoms that can be stabilized by a given CeO₂ support. In fact, it has been hypothesized that several different support sites may be capable of stabilizing single atoms, each with unique catalytic behaviors [14]. The determination of the number of each type of support site will be critical for future catalyst synthesis to ensure maximum single atom loading without the formation of less active metal nanoparticles.

Several recent works have shown that single atom catalysts can be generated by dispersing pre-formed colloidal nanoparticles [16, 17, 22]. Once the proper set of conditions are reached, nanoparticles will emit atoms that can be stabilized by the support. If there are sufficient sites for single atom stabilization, these catalysts can be transformed entirely into single atom catalysts [17]. However, if there are insufficient sites to stabilize all the emitted atoms, they eventually rejoin existing nanoparticles [19]. This technique has the benefit of tight control over the amount of metal added and fewer confounding factors for single atom stabilization such as counterions or ligands released from metal salt impregnation. The colloidal particle technique can also eventually be applied to a variety of metals that can be dispersed into single atoms [17] to provide comparisons in support stabilization capacity between metals.

In this work, we aim to leverage nanoparticle redispersion along with the unique catalysis of single atoms to develop a procedure for determining the number of sites capable of stabilizing single atoms that are contained in several different CeO₂ samples. To do this we started with pre-formed Ru nanoparticles and dispersed them into single atoms using conditions from our previous work [17], tracking the products of CO₂ hydrogenation as a function of metal loading. We then compared our experimental surface concentrations of Ru to several features of the CeO₂ including surface area, surface

Triruthenium dodecacarbonyl (Ru₃(CO)₁₂, 99%) and 1-oleylamine (OLAM, 70%) were purchased from Sigma-Aldrich. Cerium oxide (98.5%) was purchased from Treibacher Industrie AG and calcined at three different temperatures, 400, 500, and 600 ℃, for 5 h before use. All solvents were of reagent grade and all reagents were used as-received. All calcined supports and samples were ground and sieved below 180 μm grain size.

Ru NPs were prepared by thermal decomposition of Ru₃(CO)₁₂ via colloidal synthesis using standard Schlenk techniques using a literature procedure with slight modifications [23]. For the synthesis of Ru NPs, 8 mL of OLAM were added to 40 mg of Ru₃(CO)₁₂ in a three-neck flask. The reaction solution was degassed (< 2 Torr) for 30 min at room temperature. The flask was then flushed with nitrogen, heated to 270 ℃ at a rate of ~20 ℃/min and kept at this temperature for 30 min. The particles were washed with ~30 mL ethanol twice and recovered by centrifugation (8000 rpm, 3 min), and finally dispersed in hexanes. After the first washing, the NPs were first dispersed in 5 mL hexanes with the addition of 1‒2 drops OLAM before adding ethanol. The concentration of Ru in the obtained solutions was determined by thermogravimetric analysis.

Catalysts were synthesized using the NPs described above along with CeO₂ that had previously been calcined at 400, 500, and 600 ℃. In a typical synthesis, 1 g of CeO₂ powder was dispersed in 10 mL hexanes using vigorous stirring. A solution of Ru NPs was then added to give the desired nominal weight loading. The mixture was then stirred for 5 min before the solvent was removed using a rotary evaporator. The collected powder was dried at room temperature overnight before being ground and sieved through a 180-mesh sieve. The organic ligands remaining on the NPs were removed using a rapid thermal treatment [24], where the powders were inserted into a furnace preheated to 700 ℃ for 30 s in air.

Transmission electron microscopy images were collected using an FEI Tecnai transmission electron microscope equipped with an Orius CCD operating at 200 kV. NPs in solution were examined by drop-casting solutions onto ultrathin carbon films supported on Cu (Electron Microscopy Sciences), while Ru on CeO₂ catalysts was first dispersed in 2-propanol before drop-casting onto lacy-carbon films supported on Cu (Electron Microscopy Sciences). Particle size distributions were calculated by measuring at least 100 particles per sample using the ImageJ software. X-ray diffraction patterns were obtained using a PANalytical X'Pert PRO X-ray diffractometer in the 2θ range of 15° to 85° (Cu K_α radiation, λ = 1.5418 Å ). Raman spectra of CeO₂ were collected on a Horiba Xplora laser Raman microscope with 638 nm laser excitation. N₂ physisorption experiments were carried out on a Micromeritics 3Flex instrument. For physisorption measurements, support powders were degassed under vacuum at 300 ℃ for 12 h prior to N₂ adsorption at liquid nitrogen temperature. TPR measurements were conducted using 200 mg of ceria in 25 mL/min flow of (1 vol.% H₂)/Ar. Temperature was increased from room temperature to 1000 ℃ with a ramp rate of 10 ℃/min, holding the sample at 1000 ℃ for 30 min. Prior to TPR measurements, catalyst was pretreated in (5 vol.% O₂)/Ar at 400 ℃.

Catalytic experiments were conducted under atmospheric pressure in a U-shaped quartz reactor with an internal diameter of 1 cm. For 0.5 wt.% Ru/CeO₂, approximately 20 mg of catalyst powder was diluted with Al₂O₃ in a 1:10 dilution ratio, physically mixed and loaded into the reactor between two layers of granular acid-washed quartz. Amounts of samples with higher weight loading of Ru were adjusted to keep the same amount of metal. The reactor was heated by a Micrometrics Eurotherm 2416 furnace while the catalyst bed temperature was measured using a K-type thermocouple inserted in the middle of the reactor bed. The reaction mixture consisted of 1 vol.% CO₂, 4 vol.% H₂, with the balance Ar. Measurements were conducted at 235 ℃ and the gas-hourly space velocity (GHSV) was adjusted to maintain CO₂ conversion below 5%. Prior to catalytic activity testing, catalyst was oxidized in O₂ (5 vol.%)/Ar at 350 ℃ for 30 min, then in Ar at 235 ℃ for 10 min, followed by reduction in H₂ (5 vol.%)/Ar at the same temperature for 30 min.

In order to probe the number of sites for single atom Ru stabilization we aimed to add precisely controlled amounts of Ru in the form of nanoparticles to several samples of CeO₂. Nanoparticles were used as they allow for deposition of Ru without the addition of ligands or counterions found in metal salts that could skew the calculated number of sites in CeO₂. After dispersing the nanoparticles into single atoms or mixtures of single atoms and nanoparticles using conditions we have described previously [17], we conducted CO₂ hydrogenation using the product distribution of these tests to determine the Ru species present. In this method we assume that all available sites in CeO₂ capable of stabilizing single Ru atoms are first filled by the dispersing atoms. Once these sites are filled, the remaining emitted atoms are assumed to rejoin existing nanoparticles or form new nanoparticles. A schematic of this proposed process is presented in Scheme 1.

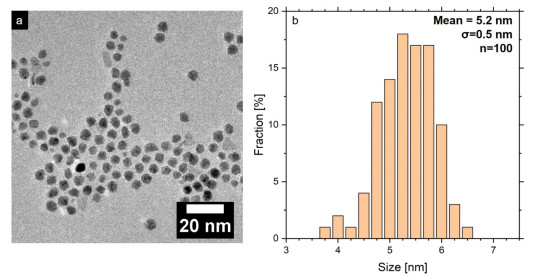

To accomplish this goal, we synthesized colloidal 5 nm Ru NPs following a process described previously in the literature [23]. A representative TEM image of these particles can be seen in Figure 1a along with a particle size distribution in Figure 2b. Both exhibit the high degree of uniformity in NP size possible with this colloidal synthesis technique. After determining the NP solution concentration using thermogravimetric analysis, the NPs were then immobilized on a series of CeO₂ supports that had previously been calcined at 400, 500, and 600 ℃ in air. The supports were characterized prior to NP addition using X-ray diffraction shown in Figure 2 along with a diffraction standard for CeO₂. All samples showed the expected diffractions with no signs of secondary phases. Using the Scherrer equation, the crystallite sizes were determined to be 8.0, 8.9, and 13.8 nm at 400, 500, and 600 ℃, respectively. The supports were also characterized using N₂ physisorption, which determined that samples calcined at 400, 500, and 600 ℃ had surface areas of 96, 80, and 46 m²/g, respectively.

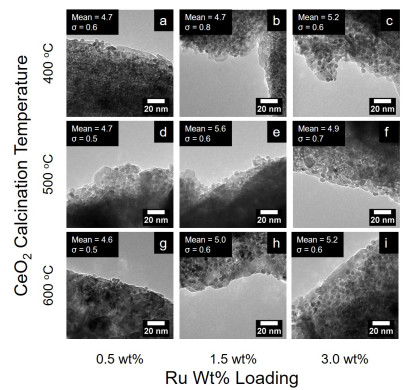

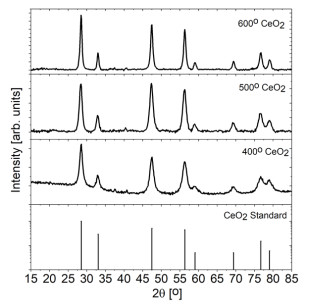

In order to provide a broad range of Ru atom concentrations to populate CeO₂ defects, Ru NPs were immobilized onto each calcination temperature of CeO₂ at loadings of 0.5 wt.%, 1.5 wt.%, and 3 wt.% producing an initial set of nine samples. Synthesis ligands were removed following immobilization using a high temperature thermal treatment [24]. Representative TEM images of these catalysts after thermal treatment, along with relevant particle size distribution statistics, are shown in Figure 3. NP are only visible at the edge of catalyst grains due to the high z-contrast of CeO₂. All catalysts maintained the initial Ru NP size throughout the catalyst synthesis process.

Once the catalysts were synthesized, they were diluted with calcined Al₂O₃ and loaded into a plug flow reactor. Dilution ratios were chosen such that all catalyst beds would contain the same mass of Ru, regardless of Ru loading on CeO₂. All samples were then pretreated in a flow of 5% O₂ in Ar at 350 ℃ for 30 min. Past studies have found that this high temperature oxidative treatment is capable of dispersing Ru nanoparticles into single atoms on CeO₂ [17]. Following this oxidative treatment, the samples were cooled in Ar to 235 ℃ and reduced at the same temperature in 5% H₂ for 30 min. It has been shown that this reducing treatment is insufficient to agglomerate dispersed Ru single atoms on CeO₂ [17].

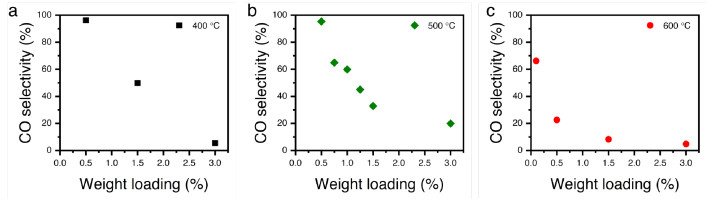

The reduced samples were then exposed to a reaction gas mixture containing 1% CO₂ and 4% H₂ in Ar and were allowed to equilibrate for up to 6 h until a steady state was reached. In all cases the CO selectivity increased during the approach to steady state, possibly due to deactivation of methanizing nanoparticles. Gas flow rates were modified to ensure that all measurements were conducted at a constant CO₂ conversion of between 2% and 4%, well within the differential regime. Gas chromatography only detected CH₄ and CO as products of the reaction. The selectivity for CO for all catalysts is plotted in Figure 4 as a function of Ru loading. It was found that low loadings of Ru on both 400 ℃ and 500 ℃ calcined CeO₂ were able to produce exclusively CO. This selectivity is in line with previous reports that show that fully dispersed atoms of Ru [17] and other metals [6] are selective for CO production under CO₂ hydrogenation conditions. However, at increasing weight loadings the 400 ℃ and 500 ℃ calcined CeO₂ samples showed a selectivity shift towards CH₄ production until it became the primary product at 3 wt.% Ru. To better illustrate where this selectivity change began, weight loadings of 0.75 wt.%, 1.0 wt.%, and 1.25 wt.% were also synthesized on the CeO₂ calcined at 500 ℃. These results are included in Figure 4b. The selectivity transition never occurred for the 600 ℃ calcined CeO₂ which produced primarily CH₄ at all Ru loadings, indicating a low ability to stabilize single Ru atoms.

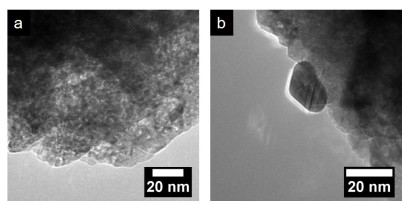

It is unlikely that Ru atoms would migrate through the gas phase onto the Al₂O₃ used as a diluent during redispersion due to the high temperatures (over 700 ℃) needed to volatalize Ru [25]. However, to confirm that Ru atoms are not being stabilized as single atoms by the Al₂O₃ diluent, a control experiment was conducted where a pure bed of 3 wt.% Ru on CeO₂ calcined at 500 ℃ was compared to a diluted bed of the same catalyst with the same catalyst mass. In both cases CO selectivity was roughly 20%. Had the Ru been stabilized as single atoms on the Al₂O₃ it would be expected that the overall CO selectivity would be greater, despite Ru single atoms on Al₂O₃ having a lower activity for CO₂ hydrogenation [7].

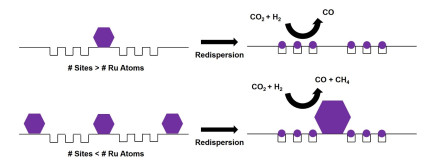

These selectivity results are in line with different relative populations of nanoparticles and single atoms being created at different Ru weight loadings and support areas. When the total number of Ru atoms is lower than the number of CeO₂ sites able to host them, all Ru atoms remain isolated. However, once the number of Ru atoms exceeds the number of CeO₂ sites, the Ru atoms unable to locate a stable site reattach to existing nanoparticles in an Ostwald ripening process. As a result, samples that contained fewer Ru atoms than CeO₂ sites showed no distinguishable nanoparticles when observed using TEM (Figure 5a) while those containing more Ru atoms than CeO₂ sites contained large Ru agglomerates (Figure 5b). These observations are supported by previous studies that followed nanoparticle dispersion into single atoms [8, 19].

Using catalytic selectivity as an indicator, we attempted to quantify the number of single Ru atoms that could be stabilized by CeO₂ calcined at several different temperatures. This was done by first assuming samples that were 100% selective to CO contained entirely dispersed atoms and that all Ru remained on the CeO₂ surface. The second assumption is supported by several literature sources proposing that Ru can only be doped into CeO₂ at temperatures exceeding 550 ℃ [26, 27]. Direct quantification of Ru remaining in the catalyst by ICP-OES was not possible due to the inability of aqua regia to solubilize Ru. In cases where CO selectivity was 100%, the total number of Ru atoms could be divided by the CeO₂ surface area to estimate a density of sites and establish a lower bound to their concentration. The upper bound for this estimate could be calculated in the same way for the first weight loading of Ru that was not 100% selective to CO. In this way, a range of possible defect densities could be calculated and are shown in Table 1. No lower bound could be established for the 600 ℃ sample because there were no conditions under which the catalyst was fully selective to CO. As a result, only an upper bound from the 0.5 wt.% sample could be calculated.

Despite the sharp selectivity differences between single Ru atoms and nanoparticles, their relative abundances cannot be calculated from selectivity alone. This is a result of several side reactions that can occur over Ru nanoparticles. For example, Ru nanoparticles are known to be active catalysts for the methanation of CO [28-30] as well as for the water gas shift reaction [31]. In fact, it has been shown that Ru nanoparticles methanize CO at a higher rate than they methanize CO₂ [32]. As a result, a catalyst containing a population of both single atoms and nanoparticles will appear to contain more nanoparticles if populations are calculated through linear interpolation because the existing nanoparticles will consume CO, concealing the presence of some single atoms. A further complication to using samples that were not completely selective to CO for determination of defect site density is that Ru atoms on the inside of nanoparticles are inactive. If the particle size was maintained during the redispersion process, these atoms could be accounted for. However, since the particle size increases unpredictably under redispersion conditions when there are not enough CeO₂ sites to stabilize exclusively Ru single atoms, this calculation cannot be carried out accurately. As a result, the current method can only provide a range of vacancy concentrations. Increasing accuracy can be attained by testing smaller steps in Ru weight loading.

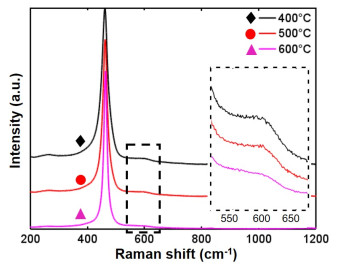

We then set out to compare our surface concentration results with several other techniques used to measure surface oxygen vacancies. First, we employed Raman spectroscopy, which has been used to determine the relative concentration of oxygen vacancies in CeO₂ [18, 21]. Raman spectra of different ceria supports showed distinct features at 598 cm^–1 that is assigned to oxygen vacancies and at 460–465 cm^–1 that corresponds to the vibrational F_2g mode of fluorite-type structure [18, 21] (Table 1, Figure 6). By integrating areas of the corresponding peaks and calculating the ratio I_D/I_F2g for each sample, we obtained relative concentrations of oxygen species for each support. The higher the ratio, the larger the concentration of oxygen vacancies. The ratio of these peaks was quite similar for the samples calcined at 400 and 500 ℃ and significantly lower for the sample calcined at 600 ℃. The similarity between the results for 400 and 500 ℃ calcined CeO₂ supports indicates that the two samples have similar concentrations of oxygen vacancies, which is higher than that of the 600 ℃ calcined sample. This trend follows the catalytic results where the CeO₂ calcined at 400 and 500 ℃ appeared to have similar capacities to host single atoms while the sample calcined at 600 ℃ could only host a much smaller number of single atoms. It is important to realize however, that with CeO₂ supports on the order of 100 nm, Raman is a bulk technique that cannot distinguish surface oxygen species, which are of the most interest for forming stable single atom catalysts.

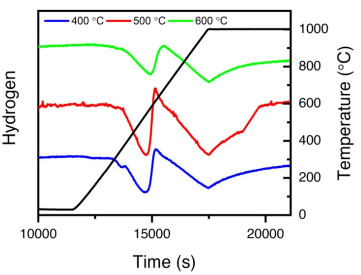

To address this question, temperature programmed reduction (TPR) was employed. It is known that CeO₂ surface oxygen will reduce at lower temperatures than oxygen in the bulk of CeO₂ [20]. To monitor this reduction, we tracked hydrogen consumption by reaction with the oxygen of CeO₂ as a function of temperature. In these profiles in Figure 7, two distinct peaks are observed. The peak at 500 ℃ corresponds to reduction of surface oxygen, while the peak at 1000 ℃ is related to reduction of bulk oxygen [33]. By integrating the first peaks we were able to calculate concentrations of surface oxygen (Table 1). This was accomplished by first determining the area of H₂ consumed during the full reduction of a CuO standard. With this information, we were then able to convert all experimental hydrogen areas into moles of oxygen removed from the CeO₂. Once this was known, the moles of oxygen from the surface peak could be distributed across the known surface area of the catalyst bed, resulting in the surface concentration found in Table 1.

Like the Raman results, the results in Table 1 follow a similar trend to the catalytic data where the samples calcined at 400 and 500 ℃ contained similar concentrations of surface oxygens while the sample at 600 ℃ contained much less. Interestingly, in the case of the samples calcined at 400 and 600 ℃, the concentration of surface oxygen falls within the range of possible single Ru atom concentrations. This finding supports the idea that single atoms can be hosted by oxygen at the CeO₂ surface [10, 34]. However, TPR results for the sample calcined at 500 ℃, where smaller Ru concentration steps were taken, provides a number of surface oxygens much higher than the range of surface Ru atoms that could be supported. This could suggest that not all surface oxygen sites are capable of hosting Ru due to other factors required for hosting single metal atoms. Recent work has shown that single sites with different conformations within the support can have different stabilities and activities [14], suggesting that some CeO₂ surface sites may be unsuitable for stabilizing single atoms. As a result, it is not surprising that the amount of surface oxygen exceeds the maximum number of stabilized surface atoms because some surface oxygen may reside in sites unable to stabilize single atoms. In this case, the Ru redispersion test may prove to be more valuable for determining the capacity of a support to host single atoms than standard methods used for measuring surface oxygen concentrations and defects. Regardless, it is interesting to note that the surface concentration of oxygen in CeO₂ is on the same order of magnitude as dispersible Ru atoms for all samples.

In this work we have shown a catalytic method for measuring sites capable of hosting single atoms. This was accomplished by taking advantage of the different catalytic selectivity of Ru single atoms and nanoparticles in the CO₂ hydrogenation reaction. By monitoring the maximum Ru weight loading that provided only single atom selectivity, an estimate of the ability of a support to host single atoms could be calculated. Our estimations from catalysis followed trends exhibited by established methods for measuring surface oxygen content with samples showing less oxygen content also dispersing less Ru. Beyond matching trends, our method also provided estimates for Ru dispersion ability on the same order of magnitude as the surface oxygen concentration. Importantly, it appears that the amount of Ru that could be dispersed lies below the total amount of surface oxygen present on CeO₂, possibly indicating other factors determining which sites Ru can occupy. Overall, the methods outlined in this paper are valuable for determining the number of singles atoms a support material can host which will have important consequences for the synthesis of future single atom catalysts.

We gratefully acknowledge support from the Stanford Precourt Institute for Energy. M.C. acknowledges support from the School of Engineering at Stanford University and from a Terman Faculty Fellowship. A.A. acknowledges support from a Stanford Graduate Fellowship (SGF) and an EDGE fellowship. Part of this work was performed at the Stanford Nano Shared Facilities (SNSF), supported by the National Science Foundation under award ECCS-1542152.
