Catalysis has been, and will continue to be, of paramount importance to the human society since most chemical processes involve catalysts for the manufacture of a wide range of chemicals that are indispensable to our daily life [1]. The vast majority of catalysts for the chemical production, environmental remediation, and energy conversion and storage contain metals or even precious metals as the active sites. Although these metal-based catalysts show promising catalytic activity and/or product selectivity, their commercial utility is hindered by the high cost, limited reserves, easy metal sintering and undesirable metal leaching during the catalytic process [2]. Hence, it is highly desirable to find highly efficient and affordable alternatives to traditional metallic catalysts. Among the nonmetallic catalysts, emerging carbon materials [3-8] with multiple advantages of earth abundance, high stability, cost effectiveness and structural tunability at the molecular and morphological levels have raised tremendous interest in terms of both fundamental research and industrial applications, and have displayed promising applications in the oxygen reduction reaction [9], hydrogen evolution reaction [10], photocatalytic water splitting [11], CO2 reduction [12], C–H bond activation reaction [13], acetylene hydrochlorination [14] and oxidative amidation of primary alcohols [15]. Previous studies have demonstrated that the incorporation of hereroatoms (e.g., nitrogen, boron, sulfur and phosphorus) with electro-donating or electron-withdrawing characteristics into the carbon matrix is a feasible strategy to improve the catalytic performance by creating point defects through electron modulation [2, 10, 16-19]. Among these alien atoms, nitrogen, the neighbor element next to carbon in the periodic table, is the most studied since it has an atomic radius similar to that of carbon but different electronegativity [5, 17]. N-doping can break the chemical inertness of carbon by changing the electronic configuration, and thus the carbon structure can be turned to be highly active for catalytic applications [13, 16, 20-22]. Different nitrogen dopants as shown in Scheme 1 can be generated after nitrogen modification, i.e., graphitic N (N atoms substituting for C atoms in a six-membered ring, also called substituted N or quaternary N), pyridinic N (N atoms bonded to two C atoms and contributing to the aromatic π system with one p electron), pyrrolic N (N atoms incorporated in a five-membered ring and contributing two p electrons to the π system) and pyridine N-oxide (N atoms bonded with one O atom and two C atoms) [21, 23-26].
Thanks to the various research works in this area, N-doped carbon catalysts such as carbon nanotubes [27], carbon spheres [28], graphene [29], mesoporous carbon [20] and carbon nanofibers [30] have been developed and exhibited satisfactory catalytic reaction performances. However, the wide spread and commercialization of these carbon-based catalysts are generally impeded by the harsh reaction condition, the usage of highly toxic reagent and complex or time-consuming preparation process. This is even more difficult since we are living at a time when the global energy and environmental crises pose serious challenges to the human race. As we search for solutions to these problems for a sustainable future, it is vital to get ideas from mother nature by utilizing cheap and renewable biomass as the carbon source for N-doping. For example, Zhao et al. [31] reported that alfalfa-derived N-doped porous carbon prepared by a pyrolysis method was active for the electrocatalytic N2 reduction reaction. The sample with a nitrogen content of 6.35 at% presented high catalytic activity, and the experimental and theoretical calculations results suggested that the doped pyridinic N in the catalyst can break away from its surface to generate N vacancies in the carbon matrix as catalytically active sites for N2 adsorption and activation. Yao and coworkers [32] prepared a N-doped nanoporous carbon sheet derived from Typha with high surface area, pore volume and pyridinic N content, which achieved a much higher selectivity for CO in the CO2 electroreduction reaction. They found that the calcination temperature had a great influence on the porous structure and the kinds of N species in the catalyst. Li et al. [33] developed a dual-templating approach to prepare hierarchically macro-/meso-/microporous heteroatom-doped carbon materials using several biomass precursors. The obtained hierarchically porous nitrogen/oxygen-doped carbon catalysts showed enhanced electrocatalytic performance for the oxygen reduction reaction. Unfortunately, it is not difficult to find that the majority studies performed up to now have focused on the electrocatalytic area of these biomass-derived carbon catalysts, while their potential applications remain largely unexplored. Thus, it is quite essential to develop cost-effective and high-performance N-doped carbon catalysts from common biomass and explore them in more catalytic fields such as organic catalysis.
Among such catalytic reactions in which metals, especially precious metals play significant catalytic roles, the NRR [34-38] and SOR [39-42] are among the most notable and important ones. 4-Nitrophenol (4-NP), which can cause severe threat to the environment and various diseases in human, is a common and bio-refractory pollutant in the chemical industry and listed as a priority toxic pollutant by the United States Environmental Protection Agency [43, 44]. Of all the ways to alleviate its contamination and harm, the catalytic reduction of 4-NP to 4-aminophenol (4-AP) is the most economical way from both the environmental and industrial views since the obtained 4-AP is widely used in the production of pharmaceutical products [37, 45]. While metals have been demonstrated to be effective for this reaction, the design of an efficient biomass-derived carbon catalyst is more appealing and still challenging. For the SOR, it is of vital importance for the production of many value-added chemicals, e.g., styrene oxide (SO), which is an important intermediate for the synthesis of plasticizers, perfumes, drugs, pharmaceuticals, etc. [40, 41]. Although various metal catalyst including homogeneous and heterogeneous ones have been employed for this reaction, there have been no reports on developing N-doped carbon catalyst from biomass as the precursor for the SOR.
In this study, various NKC catalysts were prepared by simultaneous N-doping and KOH activation from radish as the carbon source with different urea dosage and carbonization temperature. The obtained catalysts were thoroughly characterized and employed as intriguing bifunctional catalysts for the NRR and SOR. Various reaction parameters such as reaction temperature, reaction time, catalyst dosage and amount of reactants on the catalytic performances were fully investigated to screen the optimum reaction condition and better understand the catalytic process. Graphitic N content in the carbon framework was found to be of vital importance for both reactions. A full kinetic and thermodynamic analysis was also carried out, and some important parameters including apparent rate constant, activation energy, activation enthalpy, activation entropy and Gibbs free-energy of activation were carefully calculated in order to deeply explore the reaction behavior.
The radish was commercially available and purchased from the vegetable market of Hanjiang District, Yangzhou City, Jiangsu Province. Urea, KOH, hydrochloric acid, styrene, acetonitrile, tert-butyl hydroperoxide (TBHP, 65 wt% in water), acetone, N, N-dimethyl formamide, N, N-dimethyl acetamide and ethanol were of analytical grade, purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China) and used directly without further purification. Deionized (DI) water was used throughout the experiments.
The radish was washed thoroughly with DI water to eliminate the impurities (dust and water soluble substances), cut into small pieces, dried at 120 ℃ for 12 h, and then crushed into powders (~250 μm). Afterwards, the obtained carbon precursor was fully mixed with KOH and urea with a mass ratio of 1:1:x (x = 1, 2, 3). The mixture was then heated in a tube furnace under a nitrogen atmosphere at 130 ℃ for 2 h, 210 ℃ for 2 h and finally carbonized at a temperature of y ℃ (y = 700, 800, 900) for 1 h at a heating rate of 5 ℃/min. After cooling down to room temperature naturally, the sample was washed repeatedly with 2 M HCl solution and DI water, and then dried at 100 ℃ for 10 h. The final product was labeled as NKC-x-y, in which x denotes the mass ratio of urea to carbon precursor powder and y denotes the carbonization temperature. The process used to prepare the NKC samples is schematically illustrated in Scheme 1. For comparison, the sample prepared without urea at 800 ℃ was labeled as KC-800; the sample prepared without KOH at 800 ℃ was labeled as NC-3-800; the sample prepared without urea and KOH at 800 ℃ was labeled as C-800.
The powder X-ray diffraction (XRD) analysis was performed on a D8 Advance diffractometer with Cu Kα radiation. Raman spectra of the samples were obtained on a Renishaw inVia laser Raman spectrometer. The scanning electron microscopy (SEM) images and energy dispersive spectroscopy (EDS) data were obtained on a Zeiss_Supra55 field emission scanning electron microscope. Thermogravimetric (TG) analysis was conducted on a Pyris 1 thermogravimetric analyzer. The nitrogen adsorption-desorption measurements were conducted on a Quantachrome Autosorb-iQ3 sorption analyzer. The surface area was calculated by the Brunauer-Emmett-Teller (BET) method, and the pore size distribution was obtained by the Barrett-Joyner-Haleda (BJH) and the Horvath-Kawazoe (HK) methods for the mesopore and micropore analyses, respectively. The transmission electron microscopy (TEM) and high resolution TEM (HRTEM) images were obtained on a Tecnai G2 F30 S-TWIN microscope, equipped with an EDS attachment. The surface properties of the sample were investigated using the X-ray photoelectron spectroscopy (XPS, Thermo, Fisher Scientific ESCALAB 250Xi).
The series of samples were employed as bifunctional catalysts for the NRR and SOR. For the NRR, as a representative example, 20 mL of 4-NP aqueous solution (0.1 mM) was firstly mixed with 5 mL of freshly prepared NaBH4 aqueous solution (0.08 M). Thereafter, a certain amount of catalyst was added into the solution, and the progress of the reaction was consecutively monitored by recording the absorption spectra with a UV-vis spectrometer. Based on the Beer-Lambert law, the absorbance of the peaks at 400 and 300 nm can be used to calibrate the concentrations of 4-NP and 4-AP, respectively. In addition, for the thermodynamic and kinetic analysis, the reduction reactions were performed at 25‒40 ℃ and with various concentrations of 4-NP and NaBH4. For the SOR, typically, styrene, solvent and catalysts were mixed in a three-necked glass flask equipped with a reflux condenser. When the desired reaction temperature was reached, TBHP as the oxidant was added under continuous stirring. The reaction mixture was sampled with an interval of 1 h and analyzed by gas chromatography equipped with a KB-1 column. Different reaction parameters including reaction temperature, catalyst dosage and styrene/TBHP ratio were systematically investigated.

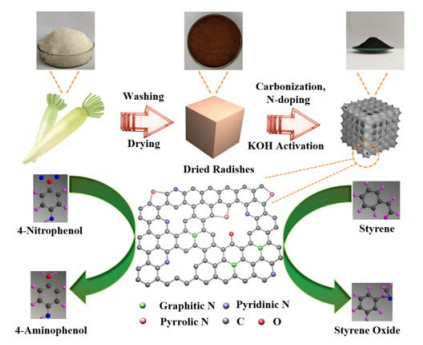

The schematic illustration for the preparation process is shown in Scheme 1. In this study, cheap and abundant radish is used as a carbon precursor, and it can be transformed into carbon materials after high-temperature carbonization. Fig. 1 shows the representative SEM images of the radish-derived samples. It can be observed that the two samples of C-800 (Fig. 1(g) and NC-3-800 (Fig. 1(h)) without KOH activation show irregular bulk morphologies while the KC-800 prepared with the introduction of KOH activation has large cavities (Fig. 1(a)). Interestingly, the samples (Fig. 1(b)–(f)) prepared with KOH activation and N-doping at the same time present honeycomb-shaped porous structures. This suggests that the simultaneous activation and doping process has a great effect on the morphologies of the samples. In addition, compared with the urea dosage, the carbonization temperature seems to have a more obvious effect of the morphology. With the increase of the carbonization temperature from 700 ℃ (NKC-3-700, Fig. 1(e)) to 800 ℃ (NKC-3-800, Fig. 1(d)), the morphology turns to be looser and the holes become larger. However, further increasing the carbonization temperature results in structure collapse in the NKC-3-900 (Fig. 1(f)). This indicates a suitable carbonization temperature of 800 ℃ combined with simultaneous N-doping is more favorable for the formation of a good morphology. It is also interesting to note that in comparison with the unactivated samples, the activated ones are lighter and fluffier (Fig. S1). Of all the samples, the NKC-3-800 presents the best 3D porous carbon structure and should be given more attention. The highly porous structure of the NKC-3-800 can also be observed from the TEM image in Fig. 2(a). An enlarged view of the structure (Fig. 2(b)) shows numerous worm-like nanopores homogeneously distributed in the sample. The EDS mapping images (Fig. 2(c)–(f)) further show the homogeneous elemental distribution of C, N and O in the NKC-3-800 sample.
The XRD patterns (Fig. S2) show that all the samples exhibit two weak and broad diffraction peaks at around 24.5° and 43.8°, which can be attributed to the (002) and (100) planes of amorphous graphitic carbon, respectively. The samples with high N-doping content (Table 1, discussed later in this study) such as NC-3-800, NKC-3-700 and NKC-3-800 show shifting of the peak of the (002) plane to higher angles as compared with the others. This is due to the increase in the interlayer attractive force due to the uneven distribution of charges induced by the high N-doping content [46]. TG analysis (Fig. S3) of the NKC-3-800 indicates that it was burned off with almost no residue content. Fig. S4 presents the Raman spectra of the samples. The two distinct peaks located at around 1350 (D band) and 1606 cm−1 (G band) of the samples can be attributed to the defected carbon and crystalline graphite, respectively [47]. Generally, the ratio of D band and G band (ID/IG) is used to evaluate the structure distortion [16]. It can be found that the samples with N-doping and/or KOH activation show larger ID/IG values than the C-800, suggesting that both the incorporation of nitrogen atoms and the KOH activation can induce the occurrence of structural deformation in the samples.

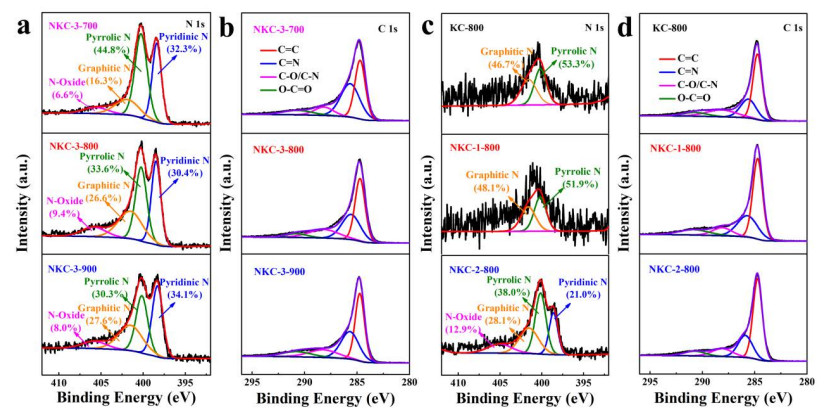

The XPS tests were carried out to gain more insights into the chemical environment and surface elemental compositions of the samples. As shown in Fig. S5, all the samples show the presence of C, N and O elements. The nitrogen content in the samples is closely connected with the preparation conditions. The C-800 subjected to direct pyrolysis without extra N-doping shows a nitrogen content of 3.63 at%, which decreases remarkably to only 0.35 at% in the KC-800 after KOH activation (N atoms in these two samples should come from the radish itself). This suggests that the KOH activation can lead to the loss of N atoms in the N-doped samples due to the partial replacement of nitrogen by oxygen in the activation reaction, which has also been also observed in other reports [48, 49]. After N-doping, the NC-3-800 presents a very high N content of 18.7 at%, while this value decreases to 11.8 at% in the NKC-3-800. With the increase of the urea usage in the carbonization process, the N contents in the series of NKC samples exhibit a good regularity, following the order of NKC-3-800 (11.8 at%) > NKC-2-800 (4.50 at%) > NKC-1-800 (1.29 at%). As for the carbonization temperature, it can be observed that the N contents in the NKC-3-700, NKC-3-800 and NKC-3-900 are 15.3, 11.8, and 9.61 at%, respectively. This indicates that the higher carbonization temperature can cause a decrease of the N content in the sample. For the high-resolution XPS C1s spectra displayed in Fig. 3(b, d) and Fig. S6(a, c), they can be deconvoluted into four peaks, which can be ascribed to C=C (~284.7 eV), C=N (~285.7eV), N-C/C=O (~288.2 eV) and O-C=O (~290.7 eV) [50]. The high-resolution XPS N 1s spectra of the samples in Fig. 3(a, c) and Fig. S6(b, d) can be deconvoluted into a maximum of four peaks, corresponding to the presence of pyridinic N (~398.5 eV), pyrrolic N (~400.2 eV), graphitic N (~401.6 eV) and pyridine N-oxide (~405.7 eV) groups [16, 23]. The detailed contents of N species in the samples are listed in Table 1.

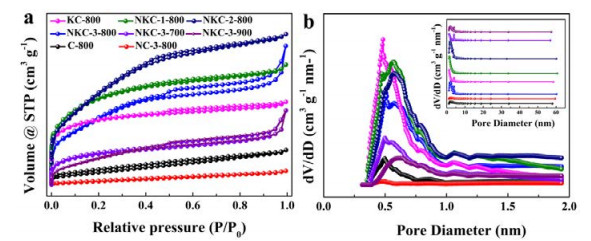

The porous textures of the samples were characterized by the N2 adsorption–desorption experiments, and the results are shown in Fig. 4 and Table 1. For the samples activated with KOH, the N2 uptake at a low relative pressure (P/P0 < 0.01) displays an obvious vertical rise (Fig. 4(a)), suggesting the existence of micropores. In addition, the hysteresis loop with a H4 character (0.45 < P/P0 < 0.99) is generated by capillary condensation in slit-shaped mesopores [51]. As shown in Table 1, the KOH activation process causes significant enhancement of the specific surface area (SSA) for all activated samples, while the samples subjected to only N-doping without any activation show small SSA values. Especially, the samples activated at 800 ℃ show SSA values higher than 2000 m2 g−1, indicating that this temperature is beneficial for the deep impregnation of molten KOH [52]. This finding is also in accordance with that of the SEM analysis as indicated above. Among the samples, the NKC-2-800 shows the highest SSA of 3062.7 m2 g−1, which is 18.9 and 6.2 times higher than those for the unactivated samples of NC-3-800 and C-800, respectively. In addition, the activated samples show the total pore volume higher than 1.00 cm3 g−1, and the highest value is also obtained in the NKC-2-800 (2.04 cm3 g−1). The pore size distributions (PSD) (Fig. 4(b)) show that the samples exhibit hierarchical porous structures, with micropore PSD centered at ca. 0.5 nm and mesopore PSD at ca. 2.1 nm, respectively. The hierarchical porosity coupled with plentiful pore channels, high SSA and pore volume is expected to boost the catalytic performance by facilitating the mass transportation of reactants and their easy accessibility to the active sites.

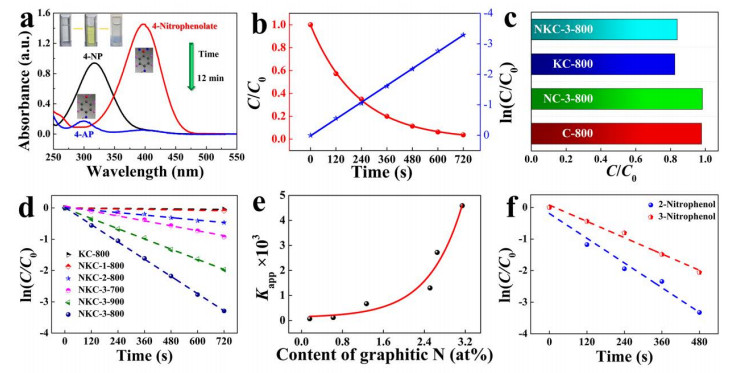

The series of radish-derived carbon catalysts were firstly employed in the NRR with the presence of NaBH4 as the reductant. As shown in Fig. 5(a), after the addition of NaBH4 solution, the absorption peak at 317 nm corresponding to the 4-NP aqueous solution shifted to 400 nm due to the formation of 4-Nitrophenolate ions. Simultaneously, the solution color changed from light yellow to bright yellow (Fig. 5(a), inset). In the absence of a catalyst, the peak intensity was maintained, indicating this reaction can't proceed without catalysts due to the high kinetic barrier between the two negatively charged reactants [34, 38]. Upon the addition of an efficient catalyst such as NKC-3-800, the absorption peak at 400 nm decreased quickly and a new absorption peak at 300 nm attributed to 4-AP was established at the same time and increased gradually in peak intensity. After reaction of 12 min, the peak at 400 nm vanished and the solution became colorless. Surprisingly, the C-800, KC-800 and NC-800 are incompetent to drive this reaction, showing almost no catalytic activity (Fig. S7). The slight decrease in peak intensity at 400 nm of these samples should be due to the adsorption effect. This suggests that both the N-doping and KOH activation play important roles in the preparation of efficient carbon catalysts for the NRR.
Generally, the doping of N atoms in the carbon framework can trigger the charge modulation, which renders the carbon atoms adjacent to the N dopants with high electropositivity for the counterbalance of the strong electronic affinity of N atoms [17, 23]. It can be inferred that the negatively charged 4-Nitrophenolate and BH4– ions can be readily adsorbed on the catalyst surface via electrostatic attraction in the N-doped carbon catalysts [53]. This can be verified by the adsorption experiments of the 4-NP solution (Fig. 5(c)), in which the KC-800 and NKC-3-800 with similar SSA (2068.7 vs. 2163.3 m2 g−1) also shows similar adsorption ability of 4-NP. However, as indicated above, the KC-800 shows very little adsorption of 4-nitrophenolate ions (Fig. S7). The KOH activation can endow the carbon catalyst with advantages of high surface area and large pore volume (Table 1), which can provide abundant active sites and facilitate the molecular diffusion within the channels. The importance of KOH activation can be reflected from the reaction results of NKC-3-800 and NC-3-800 (Fig. S7). Although the latter has a higher N-doping content, it presents a negligible catalytic activity when compared with the former. What's more, it's interesting to find that the samples exhibit quite different hydrophilcity. As shown in Fig. S8, the samples with KOH activation (KC-800 and NKC-3-800) present much better dispersability in water than the unactivated samples (C-800 and NC-3-800). The good hydrophilcity of the catalysts can assist in the transportation of 4-nitrophenolate and BH4– ions in the aqueous solution to the active sites, promoting the mass utilizing efficiency of the catalysts. To sum up, both the N-doping and KOH activation are indispensable for the construction of a high-performance NRR catalyst.
Fig. 5(b) shows a linear correlation between ln (C/C0) and the reaction time t (C and C0 are the 4-NP concentrations at time t and 0, respectively), suggesting that the reaction adopts the pseudo-first-order kinetics [34]. The apparent rate constant (Kapp) determined from the slope is 4.59 × 10–3 s–1 for the NKC-3-800. In addition, all the other NKC catalysts were also tested under the same reaction conditions (Fig. 5(d)), resulting in the Kapp values of 1.23 × 10–4 s–1 (NKC-1-800), 6.66 × 10–4 s–1 (NKC-2-800), 1.31 × 10–3 s–1 (NKC-3-700) and 2.72 × 10–3 s–1 (NKC-3-900). Obviously, the NKC-3-800 shows the best catalytic performance. Interestingly, although a high SSA is favorable for heterogeneous catalytic reaction, there is no evidence to suggest that the NRR performance depends on these data (Table 1) since the NKC-2-800 with the highest SSA does not show the best activity. Hence, there must be some inner difference in the series of catalysts, which produces this enormous disparity on the NRR performance. As shown in Fig. 5(e), the catalytic activity is irrespective of the total N content but correlates positively with the graphitic N content. And the variation of Kapp with respect to the content of graphitic N can be well described by the exponential relationship. The importance of graphitic N was also found in a previous study where the researchers reported that the graphitic N with the lowest adsorption energy was the key determined for impelling the NRR rather than the amount of N atoms in the N-doped graphene catalysts [54]. Furthermore, the reduction of other two isomeric nitrophenols, i.e., 2-NP and 3-NP were tested as well under the similar reaction conditions with that of 4-NP. To our delight, the NKC-3-800 is also effective for the reduction of these two isomers (Fig. 5(f) and S9), suggesting its generality in the nitrophenols reduction reactions.
The catalytic efficiency is further interpreted by the turnover frequency (TOF) value, defined as the molar amount of 4-NP that 1 mg of a catalyst can convert into 4-AP per unit time for the comparison of our result with the literature reports. Excitingly, the TOF value of the NKC-3-800 catalyst is calculated to be 1.67 × 10–4 mmol mg−1 min−1. This value is comparable to some of the precious metal-based catalysts such as Ag/carbon nanofibers (4.50 × 10–4 mmol mg−1 min−1) [55], Au/graphene hydrogel (2.33 × 10–4 mmol mg−1 min−1) [56] and Pt1Au1-PDA/RGO (1.50 × 10–4 mmol mg−1 min−1) [57], and is much higher than the N-doped graphene (6.05 × 10–5 mmol mg−1 min−1) [58] and 3D N-doped graphene foams (7.41 × 10–5 mmol mg−1 min−1) [16].

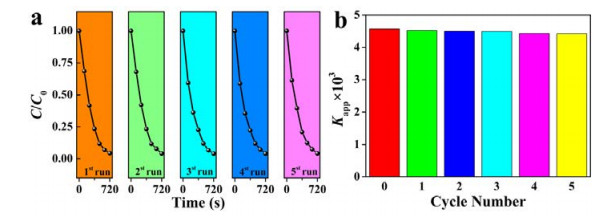

Cycling stability is also a key factor for the actual application of a catalyst. Herein, the NKC-3-800 demonstrates a good catalytic stability without obvious loss in catalytic activity during five cycles (Fig. 6). The Kapp value has no obvious decrease after the cycling experiments. All these results demonstrate that the NKC-3-800 catalyst is a highly efficient and robust catalyst, making it a promising candidate catalyst for the NRR and beyond.

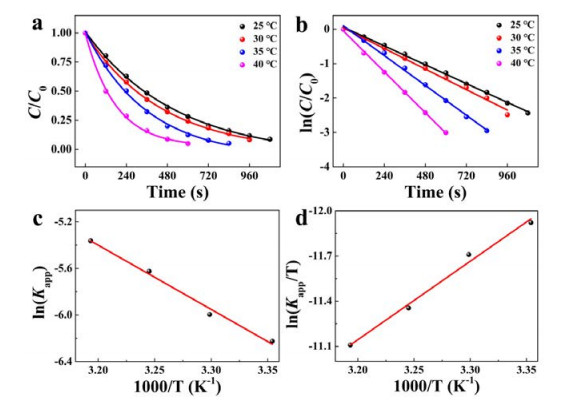

For a better understanding of the NRR catalyzed by these N-doped porous catalysts, the NRRs were performed at various reaction conditions in the presence of the NKC-3-800 as the catalyst. Firstly, the effect of reaction temperature on the catalytic performance was explored, and the results were shown in Fig. 7(a, b). It is easy to understand that the higher reaction temperature favors a faster completion of the reaction, and hence a larger Kapp value can be expected. With the help of these Kapp vlues, we can calculate the activation energy (EA) using the Arrhenius equation:
where R is the molar gas constant, T is the reaction temperature, and A is the pre-exponential factor.
The activation enthalpy (ΔH) and activation entropy (ΔS) can be calculated using the Eyring equation:
where kB is the Boltzmann constant and h is the Planck constant.
Then the Gibbs free-energy of activation (ΔG) can be calculated as the following:
The thermodynamics parameters for the NRR over the NKC-3-800 catalyst were listed in Table 2. From the slope of the linear fitting of lnKapp versus 1000/T (Fig. 7(c)), the EA value was calculated to be 45.9 kJ mol−1, which is similar with those of the reports such as Pd/spherical polyelectrolyte brushes (44.0 kJ mol−1) [59], the 18.0 nm Cu polyhedrons (47.6 kJ mol−1) [60] and the 3D N-doped graphene foams (44.3 kJ mol−1) [16]. From the slope and intercept of the linear fitting of ln(Kapp/T) versus 1000/T (Fig. 7(d)), the ΔH and ΔS values were calculated to be 43.4 kJ mol–1 and ‒151.4 J mol–1 K–1, respectively. The ΔG value was increased from 88.5 kJ mol–1 at 298.15 K to 90.8 kJ mol–1 at 313.15 K.

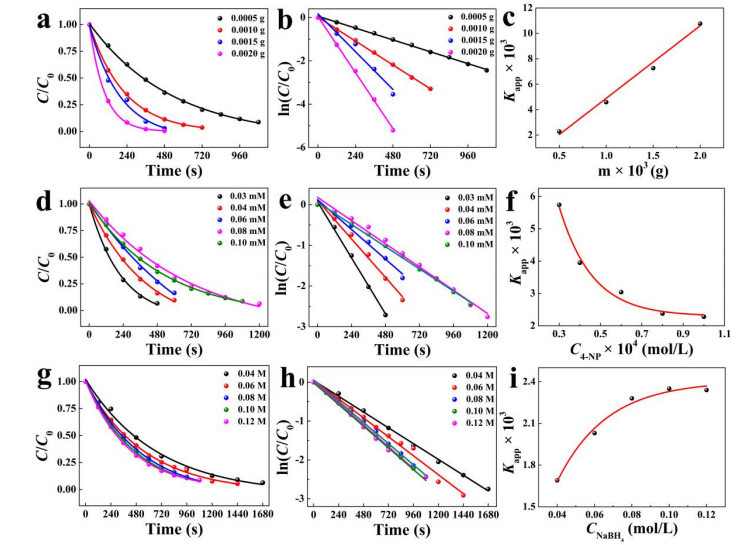

Fig. 8(a–c) shows the effect of dosage of the NKC-3-800 on the NRR performance. With the increase of the catalyst dosage from 0.5 to 1.5 mg, the reduction time needed was shortened from 18 to 8 min due to more active sites provided by the catalyst. Further increasing the catalyst dosage to 2.0 mg did not help the reduction of reduction time, but can obtain a higher Kapp value. The effects of concentration of 4-NP and NaBH4 on the catalytic performance were also investigated, and the results were presented in Fig. 8(d–f) and Fig. 9(g–i). respectively. As observed, the Kapp value decreases firstly and then levels off with the increase of the 4-NP concentration at a fixed NaBH4 concentration. On the contrary, as the NaBH4 concentration increases while keeping the 4-NP concentration constant, the Kapp value increases initially and then remains at a certain level. These results suggest that there exists competitive adsorption on the catalyst surface between the 4-nitrophenolate and BH4– ions, and the Langmuir−Hinshelwood mechanism should apply to the NRR catalyzed by the N-doped porous carbon in this study.
The reaction kinetics can be described as the following:
where S is the surface of catalyst, k is the intrinsic rate constant, and θ4-NP and are the surface coverage of 4-nitrophenolate and BH4‒ respectively. In this equation, the surface coverage can be described by the Langmuir-Freundlich model:
where Ka is the adsorption constant of component a, and na is the Freundlich exponent.
Thus, Kapp can be obtained as follows:
The parameters in Eq. (6) can be obtained by the fitting of the kinetic data in Fig. 8(d–i), and finally we can get

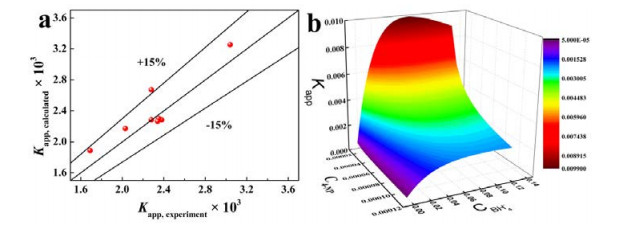

A favorable consistency, as displayed in Fig. 9(a), exists between the calculated Kapp values and the experimental ones. In addition, Fig. 9(b) shows a 3D plotting of the calculated model with respect to the Kapp value as a function of C4–NP and . It should be noted that the K4–NP value is calculated to be 4748.9 L·mol–1, which is remarkably larger than the value (17.3 L·mol–1). This indicates the stronger adsorption of 4-nitrophenolate than that of on the catalyst, further demonstrating the competitive adsorption between the substrate and the reductant. As indicated above, the charge modulation within the framework of the N-doped porous carbon is beneficial for the adsorption of the 4-nitrophenolate and ions and is expected to facilitate the electron relaying process from the donor to the acceptor. The two reactants were firstly adsorbed on the catalyst surface in a fast and reversible way as postulated by the Langmuir−Hinshelwood model. Then, the surface activated hydrogen species from the cleavage of the B–H bond will be taken up by the 4-nitrophenolate, which is the rate-determining step for the NRR. The generated 4-AP formed on the catalyst surface then diffuses into the reactive solution.
Furthermore, the radish-derived carbon catalysts were employed for the SOR with TBHP as the oxidant. For all the reactions, SO and benzaldehyde were detected to be the main products along with little phenylacetaldehyde, benzoic acid, and 1-phenyl-1, 2-ethanediol as the by-products. As shown in Table 3, the C-800, KC-800 and NC-3-800 show the styrene conversion lower than 30% and the selectivity of SO lower than 60%, while the NKC-3-800 presents a notably better catalytic performance with a styrene conversion of 83.5% and a selectivity of 76.7% to SO. The yield of SO for the NKC-3-800 is 2.93, 2.64 and 3.60 times higher than those for the C-800, KC-800 and NC-3-800, respectively. Encouragingly, this yield value of 64.0% is higher than the previously reported values for metal or even precious metal catalysts under similar reaction conditions, such as Ce0.95Zr0.05O2 (22.0%) [61], Au/CaO(HDP) (32.9%) [62] and Au/Fe3O4 (54.9%) [63]. These results indicate that the NKC-3-800 with both N-doping and KOH activation simultaneously shows excellent catalytic performance not only in NRR but also SOR.
Obviously, among the series of NKC catalysts, the NKC-3-800 shows the best catalytic performance. Another similar finding with that of the NRR as stated above is that the SOR performance is also not decide by the total N densities but is highly associated with the N-doping species (graphitic N). As shown in Fig. 10(d), the more N there was at graphitic sites in the catalyst, the higher the yield of SO. These results show the important role of graphitic N for driving the SOR. This finding was also reported by Gao et al. [13] in the oxidation of ethylbenzene in the aqueous phase. In this work, they demonstrated that the graphitic-type dopant in the N-doped graphene can induce high charge and spin density at the adjacent ortho carbon, which is critical for the activation of the C–H bond by promoting the generation of reactive oxygen species. Moreover, various reaction parameters such as the choice of solvent, reaction temperature, catalyst amount and molar ratio of styrene/TBHP on the SOR performances catalyzed by the NKC-3-800 were systematically investigated to gain deep insight into the reaction, and the results were shown in Table 3 and Table S1. An optimal reaction condition can be obtained from these experiments and described as the following: acetonitrile as the solvent, catalyst amount of 20 mg, reaction temperature of 80 ℃, and molar ratio of styrene/TBHP of 1:3.

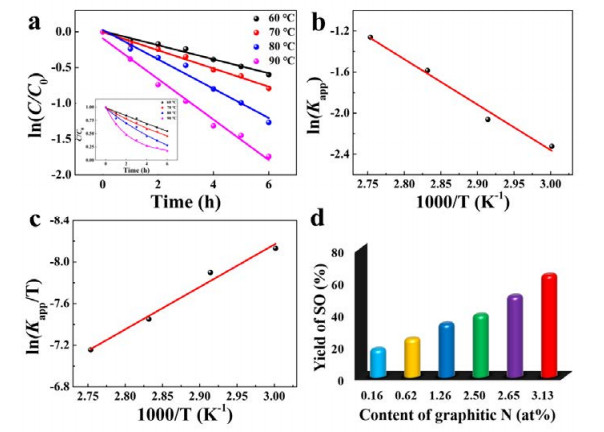

Kinetics studies also show that pseudo-first-order kinetics can be well applied for the SOR with the NKC-3-800 as the catalyst at different reaction temperatures (Fig. 10a–c). The apparent rate constant (Kapp) values were 0.098, 0.127, 0.205 and 0.283 h–1 for the SORs at 60, 70, 80 and 90 ℃, respectively. With the help of the Eq. (1) and Eq. (2), the thermodynamic parameters EA, ΔH and ΔS were calculated to be 36.8 kJ mol–1, 33.9 kJ mol–1 and –164.2 J mol–1 K–1, respectively. And the ΔG values according to the Eq. (3) obtained at 60, 70, 80 and 90 ℃ were 88.6, 90.2, 91.9 and 93.5 kJ mol–1, respectively.
In conclusion, we have developed radish-derived NKC catalysts with hierarchical porosity readily prepared by N-doping with urea and activation with KOH at the same time. The catalytic results of both the NRR and SOR suggest that the reaction performances of the series of NKC catalysts exhibit significantly positive correlations with the content of graphitic N species rather than the total N content and the structural properties. Among all the catalysts, the NKC-3-800 is the most suitable one for these two reactions, presenting attractive catalytic results comparable to many metal or even precious metal catalysts. Encouragingly, in the NRR, it shows a TOF value reaching up to 1.67 × 10–4 mmol mg−1 min−1, while a high SO yield of 64.0% is achieved in the SOR with a styrene conversion of 83.5% and a SO selectivity of 76.7%. Furthermore, various kinetic and thermodynamic parameters were calculated for both reactions, and catalytic mechanisms were analyzed. Further experimental and theoretical calculation studies are encouraged to gain deeper molecular-level insights into the catalytic nature of these reactions. This study not only sheds a new light on the high value-added utilization of biomass, but also opens up more application possibilities of carbon-based catalysts derived from cheap and abundant biomass in practical organic reactions.
