The asymmetric photocatalytic organic synthesis (APOS) process is a sustainable and environmentally benign method for the production of optically active chemicals with sunlight as an energy source [1-3]. Most APOS processes employ a dual catalysis approach consisting of organic dyes/inorganic semiconductors and chiral catalysts for light absorption and chiral induction, respectively. In general, organic dyes confront problems with narrow absorption bands and low photostability, while the band gap and band edge of inorganic semiconductors are difficult to be tuned [4, 5]. Furthermore, the efficiency of APOS is strongly related to the textural structure and surface properties of the semiconductors, because the interphases of the semiconductors with the asymmetric catalysts and the reactants play an important role in achieving efficient electron transfer and chiral induction [6, 7]. Therefore, the development of semiconductors with designable band structures, textural structures, and surface properties is of extreme importance for APOS.

Covalent organic frameworks (COFs) [7-14] with periodically ordered structures, high surface areas, and tunable band gaps and band edges are potential organic semiconductors in the field of photocatalysis and have been successfully used for photocatalytic H₂ production [7, 15-21], CO₂ reduction [22-25], and organic synthesis [26-32]. The COFs with reversible C=N or B-O-B as a linkage are not stable enough in acid/base medium and under light irradiation, which is one of the biggest obstacles to their applications. Intensive efforts have been devoted to improving the stability of COFs by replacing the reversible chemical bond with an irreversible bond [29, 32-42]. For example, the direct cascade transformation of the imine linkage of COFs with phenolic hydroxyl to oxazole linkage [32] and the post-synthesis conversion of imine-linked COFs to amide-linked and quinoline-linked COFs have been reported [33, 34]. Recently, Yaghi's groups successfully constructed highly stable dioxin-linked and olefin-linked COFs via an irreversible nucleophilic aromatic substitution reaction and Knoevenagel condensation reaction, respectively [35, 36].

However, the reported stable COFs synthesized via the one-pot approach are only limited to some special monomers [32, 36-38]. This not only makes the monomer synthesis tedious but also limits the universality of the synthesis method. It is highly desirable to use independent transformation reagents instead of attaching them to the monomers. Through a literature survey, we found that tetrahydroquinoline derivatives could be formed by cascade condensation and cycloaddition reactions of amine, aldehyde, and alkene (Povarov cascade reaction, Scheme 1) with Lewis acids as catalysts, such as Yb(OTf)₃ and Sc(OTf)₃ [43-45]. More importantly, the Povarov cascade reaction has a wide substrate scope. Previous reports also demonstrated the efficiency of M(OTf)₃ (M = Sc, Eu, In, Yb, Y, etc.) for the formation of COFs with imine linkage [46]. Therefore, the cascade condensation and cycloaddition reactions may provide a general method for the synthesis of ultrastable COFs with irreversible linkages via the judicious selection of the Lewis acids.

Herein, we report an efficient and general method for the synthesis of ultrastable tetrahydroquinoline-linked COFs (QH-COFs) via cascade condensation and cycloaddition reactions with Sc(OTf)₃/Yb(OTf)₃ as the catalysts. As far as we know, this is the first example of the one-pot synthesis of COFs via cascade reactions using aldehydes and amines in the presence of transformation reagents. The successful formation of a tetrahydroquinoline linkage was confirmed by FT-IR and ¹⁵N NMR spectroscopies of the QH-COFs. The QH-COFs exhibited extremely high stability under the acidic/basic conditions and light irradiation. More interestingly, the QH-COFs with visible-light absorption expanding to more than 560 nm could efficiently catalyze the visible-light-driven asymmetric alkylation of aldehydes in combination with a chiral secondary amine to afford both high yield and high ee for a large substrate scope.

A 10 mL high-pressure flask was charged with 1, 3, 5-tris(p-formylphenyl)benzene (32.5 mg, 0.083 mmol), benzidine (23.0 mg, 0.125 mmol), ethyl vinyl ether (72 mg, 1 mmol). A mixture of 1, 2-dichlorobenzene and n-butyl alcohol (4:1 v/v, 2.5 mL) was added, and the resulting suspension was sonicated at room temperature until the monomers were fully dispersed. Sc(OTf)₃ (2.5 mg, 0.005 mmol) and Yb(OTf)₃ (8.0 mg, 0.013 mmol) were added, and the resulting suspension was further sonicated for 30 s. The flask was left standing for another 1 h at room temperature, after which it was degassed through three freeze-pump-thaw cycles. The flask was charged with N₂ and sealed under positive N₂ pressure; thereafter, it was placed without stirring in a 120 ℃ pre-heated oil bath for three days. The solid product obtained after filtration was washed with methanol several times and extracted by Soxhlet extraction using methanol for 1 day, followed by a supercritical CO₂ drying process to obtain a brown solid, which was denoted as QH-COF-1.

QH-COF-2 was synthesized in a similar way to QH-COF-1 with 1, 3, 5-tris(p-formylphenyl)benzene and 1, 3, 5-tris(4-amin- ophenyl)benzene as monomers in the presence of ethyl vinyl ether.

An oven-dried 15 mL flat-bottomed flask equipped with a piece of quartz glass and magnetic stir bar was charged with a semiconductor (30 mg), the corresponding bromide (0.809 mmol, 1.0 equiv.), and (2R, 5S)-2-tert-butyl-3, 5-dimethylimi- dazolidin-4-one triflate (0.162 mmol, 0.2 equiv.). The flask was charged with N₂, and 2.0 mL of dry DMF was added using a syringe, followed by the corresponding aldehyde (1.62 mmol, 2.0 equiv.) and 2, 6-lutidine (1.62 mmol, 2.0 equiv.). The flask was sealed with parafilm and placed approximately 10 cm from a 30 W blue light LED (460-470 nm). After the reaction was complete (TLC analysis), the mixture was poured into a separatory funnel containing 5 mL of ethyl acetate and 5 mL of H₂O. The layers were separated and the aqueous layer was extracted with ethyl acetate (3 × 5 mL). The combined organic layers were dried with Na₂SO₄ and concentrated in vacuo. The crude product was purified by column chromatography. The enantiomeric excess was determined by ¹H NMR analysis of the corresponding diastereomeric acetals obtained by derivatization with (2S, 4S)-2, 4-pentanediol (for details, see supplementary methods in SI).

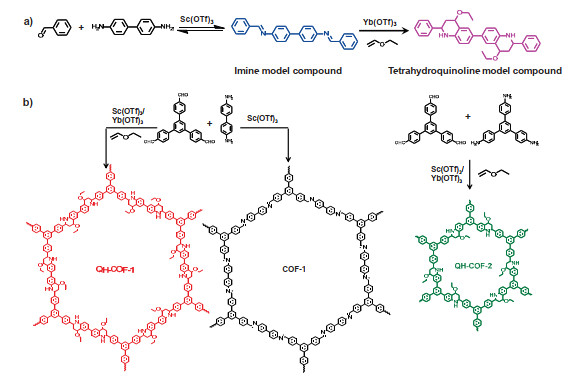

Firstly, benzaldehyde and benzidine were used as model substrates to explore the feasibility of the Povarov reaction for the formation of the tetrahydroquinoline model compound (Scheme 1a). The imine model compound could be facilely obtained by the reaction of benzaldehyde and benzidine in the presence of 0.02 equiv. Sc(OTf)₃ under ambient conditions. Next, the imine model compound was reacted with ethyl vinyl ether (EVE) in the presence of Yb(OTf)₃ under N₂ to afford the tetrahydroquinoline (THQ) model compound.

Inspired by the successful formation of THQ model compound, we attempted to synthesize a tetrahydroquinoline-linked COF (QH-COF-1) via a one-pot reaction of 1, 3, 5-tris(p-formylphenyl)benzene with benzidine in the presence of EVE (Scheme 1b). Initially, the synthesis conditions for QH-COF-1 were screened, and the results of powder X-ray diffraction (PXRD) studies show that the QH-COF-1 with the best crystallinity was obtained when a mixture of Sc(OTf)₃ and Yb(OTf)₃ was used as the catalyst in o-dichlorobenzene/n-butanol (4/1, v/v) at 120 ℃ under N₂ atmosphere (Fig. S1). A control sample, COF-1, with an imine-linked framework was also synthesized with 1, 3, 5-tris(p-formylphenyl)benzene and benzidine as monomers using Sc(OTf)₃ as the catalyst in the absence of EVE.

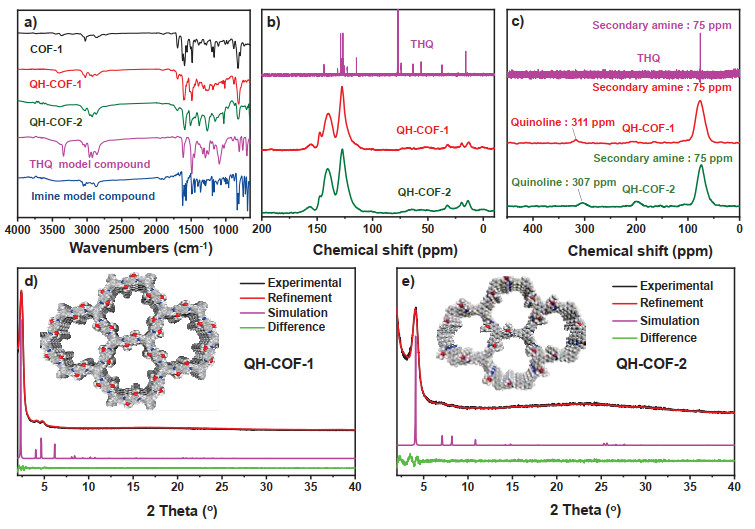

The chemical composition of QH-COF-1 was characterized by FT-IR, ¹³C NMR, and ¹⁵N NMR spectroscopies, and the results were compared with those of COF-1 and model compounds (Figs. 1a-c). In the FT-IR spectrum of COF-1, the characteristic vibration of C=N at 1622 cm^-1 matched well with the vibration of C=N in the imine model compound at 1621 cm^-1, suggesting the formation of an imine linkage for COF-1 [47]. QH-COF-1 displays a FT-IR spectrum quite different from that of COF-1. The characteristic vibration of C=N disappeared completely accompanied by the appearance of a new peak at 3410 cm^-1 assigned to the secondary N-H vibration, and the peaks in the range of 2962-2870 cm^-1 were attributed to the C-H vibrations of the ethylene group. The FT-IR spectrum of QH-COF-1 is almost identical to that of the THQ model compound with a slight red-shift of N-H vibration (3410 versus 3340 cm^-1), possibly due to the formation of intramolecular hydrogen bonds among THQ model compounds. The FT-IR results suggest the successful formation of tetrahydroquinoline linkage in QH-COF-1 via the one-pot Povarov cascade reactions.

In the ¹³C CP-MAS NMR spectrum of QH-COF-1, the signals at 13-70 ppm are derived from the carbons of alkyl and alkoxy groups formed via the cycloaddition reaction of imine and EVE, referenced with the corresponding THQ model compound. The aromatic carbons appeared in the range of 149-115 ppm. The weak signal at 156 ppm could be assigned to the carbon of the quinoline ring possibly formed by the oxidation during the Soxhlet extraction process (confirmed by ¹⁵N NMR studies, discussed later). No signals in the range of 13-70 ppm could be observed in the ¹³C CP-MAS NMR spectrum of COF-1. With the ¹³C NMR spectrum of the corresponding imine model compound as a reference, the signals at 158 ppm and in the range of 150-116 ppm in the ¹³C CP-MAS NMR spectrum of COF-1 could be assigned, respectively, to C=N and aromatic carbons (Fig. S2) [48].

To further confirm the formation of the tetrahydroquinoline linkage in QH-COF-1, ¹⁵N labeled QH-COF-1 and COF-1 were synthesized using ¹⁵N enriched benzidine as a monomer (for details, see SI). The signal at 75 ppm assigned to the secondary amine in the ¹⁵N CP-MAS NMR spectrum of ¹⁵N enriched QH-COF-1 clearly confirmed the formation of a tetrahydroquinoline linkage, which is consistent with the liquid ¹⁵N NMR spectrum of the ¹⁵N enriched THQ model compound. The weak signal at 311 ppm could be assigned to the nitrogen of quinoline, as discussed above [49]. Only the signal indicative of C=N at 325 ppm together with a weak signal at 54 ppm assigned to unreacted terminal amine appeared in the ¹⁵N CP-MAS NMR spectrum of ¹⁵N enriched COF-1 with the liquid ¹⁵N NMR spectrum of the ¹⁵N enriched imine model compound as a reference (Fig. S3) [40, 50].

The PXRD pattern of QH-COF-1 presents excellent crystallinity with three diffraction peaks at 2.42°, 4.16°, and 4.84°, assigned to (100), (110), and (200) reflections, respectively (Fig. 1d). Both the eclipsed and staggered models of QH-COF-1 were constructed using a Material Studio software (Fig. S4). The simulation of the PXRD patterns showed that the structure of QH-COF-1 was consistent with the eclipsed model. Pawley refinement afforded optimize parameters of a = b = 43.751 Å, c = 4.334 Å (Table S1), which provided good agreement factors (R_wp = 4.25%, R_p = 2.90%). The cell parameter (c) value (usually expresses the distance between layer to layer) was significantly larger than the value of the traditional imine COF. This is possibly due to the conformational flexibility of the secondary amine linkages, which weakens the π-π interaction between the adjacent COF layers. Similar to QH-COF-1, the PXRD patterns of COF-1 also presented high crystallinity with three diffraction peaks at 2.46°, 4.26°, and 4.91°, assigned to the (100), (110), and (200) reflections, respectively (Fig. S5). COF-1 was also consistent with the eclipsed model, and Pawley refinement afforded the optimize parameters of a = b = 44.493 Å, c = 3.900 Å with good agreement factors (R_wp = 5.95%, R_p = 4.58%) (Table S2).

The N₂ sorption isotherms of QH-COF-1 and COF-1 measured at -196 ℃ after activation in vacuo are of type IV, which is typical for mesoporous materials (Fig. S6). The Brunauer-Emmett-Teller (BET) surface areas of QH-COF-1 and COF-1 were calculated to be 674 and 1308 m² g^-1, respectively (Table S3). QH-COF-1 and COF-1 have total pore volumes of 0.43 and 0.76 cm³ g^-1. respectively. The nonlocal density-functional theory gave rise to a narrow pore size distribution with average pore sizes of 2.2 and 2.7 nm for QH-COF-1 and COF-1, respectively. Scanning electron microscopic (SEM) images revealed that all the COFs are composed of irregularly shaped particles with a particle size of ~1 µm (Fig. S7).

The results of all the above characterizations confirmed that QH-COF-1 with high crystallinity was successfully formed via one-pot cascade reactions.

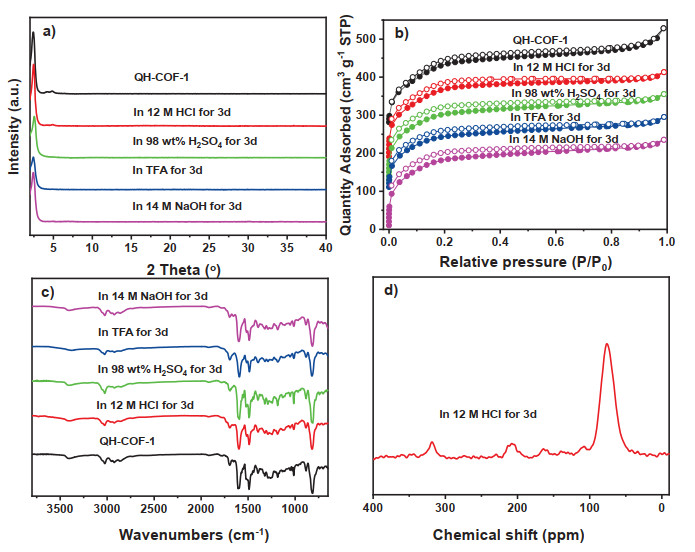

In general, stability is critical for COFs; therefore, the thermal and chemical stabilities of QH-COF-1 were investigated and compared with those of COF-1. The thermogravimetric analysis (TGA) showed that both QH-COF-1 and COF-1 are thermally stable up to 400 ℃ in air, suggesting the high thermal stability of both COFs (Fig. S8). To our delight, the PXRD patterns, N₂ sorption isotherms, FT-IR spectra, and SEM images of QH-COF-1 after treatment in TFA, 12 mol L^-1 HCl, 14 mol L^-1 NaOH, and even concentrated H₂SO₄ (98%) remained almost unchanged, indicating that QH-COF-1 could tolerate strong acid and base conditions (Figs. 2, S9). Furthermore, the ¹⁵N NMR spectrum of ¹⁵N enriched QH-COF-1 after treatment in 12 mol L^-1 HCl for 3 days was almost identical to that of the fresh one, which further confirmed the excellent chemical stability of QH-COF-1. The weak signal at ~210 ppm was possibly derived from the protonated nitrogen of the secondary amine. On the contrary, the imine-linked COF (COF-1) was destroyed almost completely in acid or base solutions under similar conditions, indicating that the imine-linked structure was not stable under harsh acid or base conditions. The above results confirmed the ultrastability of QH-COF-1 under harsh conditions. As far as we know, QH-COF-1 is one of the most stable COFs ever reported.

Theoretically, most of the monomers employed for the synthesis of imine-linked COFs could be used for the construction of tetrahydroquinoline-linked COFs under suitable conditions. To explore the universality of this one-pot cascade method for the construction of tetrahydroquinoline-linked COFs, 1, 3, 5-tris(p-formylphenyl)benzene and 1, 3, 5-tris(4-aminophenyl)benzene were used as monomers for the synthesis of QH-COF-2 in a similar way to that of QH-COF-1 (Scheme 1). QH-COF-2 exhibits similar a PXRD pattern to that of QH-COF-1 with three diffraction peaks at 4.12°, 7.02°, 8.20°, assigned to the (100), (110), and (200) reflections, respectively (Fig. 1e). The simulation results showed that QH-COF-2 was consistent with the eclipsed model, and the Pawley refinement afforded optimize parameters of a = b = 26.380 Å, c = 5.484 Å with good agreement factors (R_wp = 5.13%, R_p = 3.95%) (Table S4). The FT-IR (-NH-, 3405 cm^-1; -OCH₂CH₃, 2870-2960 cm^-1), solid-state ¹³C CP-MAS NMR (alkyl and alkoxy, 13-68 ppm), and solid-state ¹⁵N CP-MAS NMR (-¹⁵NH-, 75 ppm) spectra of QH-COF-2 confirmed the successful formation of a tetrahydroquinoline linkage in QH-COF-2 (Fig. 1). The weak signals at 307 and 200 ppm are assigned to the nitrogen of quinoline and the nitrogen coordinated with a metal salt, respectively. Similar to QH-COF-1, QH-COF-2 was also chemically stable in TFA, 12 mol L^-1 HCl, 14 mol L^-1 NaOH, and concentrated H₂SO₄ (98%) as evidenced by the PXRD results (Fig. S10). The successful formation of QH-COF-2 suggests that the one-pot cascade condensation and cycloaddition reaction is a versatile method for the synthesis of ultrastable COFs with tetrahydroquinoline linkage.

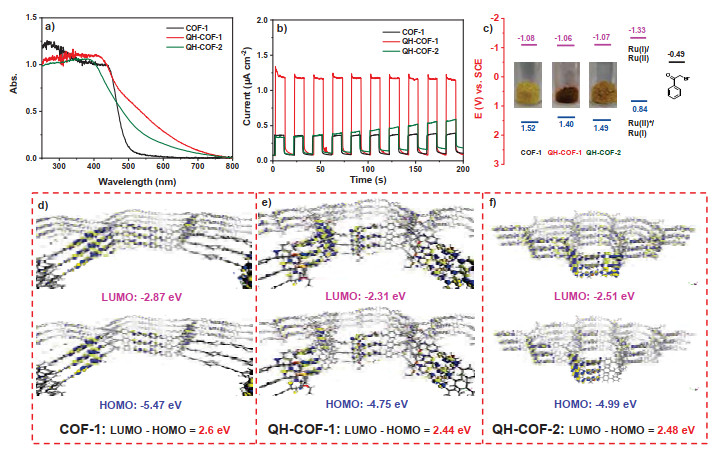

Diffuse reflectance ultraviolet-visible (UV-vis) spectroscopy showed that all the COFs could efficiently absorb visible light (Fig. 3a). In comparison with the COF-1 spectrum, the QH-COF-1 spectrum exhibited a noticeable red-shift of the absorption edge from ~480 nm to > 560 nm. The spectrum of QH-COF-2 showed an absorption edge extending to more than 550 nm. The optical band gaps of QH-COF-1, QH-COF-2, and COF-1 were estimated to be 2.46, 2.56, and 2.60 eV from Kubelka-Munk plots, respectively (Fig. S11). The corresponding THQ and imine model compounds only absorb UV light and exhibit considerably broad band gaps (Fig. S12). The band gaps of QH-COF-1, QH-COF-2, and COF-1 were further calculated using the self-consistent-charge density-functional tight-binding (SCC-DFTB) method based on the DFTB + Material Studio Software (Fig. 3; for details, see SI). The calculated results showed that the band gaps of QH-COF-1 and COF-1 are almost similar to the experimental data. For QH-COF-2, the calculated band gap is relatively narrower than the experimental data. This is possibly due to the fact that precise modeling is difficult for QH-COF-2 with moderate crystallinity. All the COFs show a noticeable photocurrent under visible-light irradiation, suggesting the efficiency of the separation of the photogenerated charges in COFs (Fig. 3b). Electrochemical impedance spectroscopy (EIS) was exploited to investigate the electrical conductivity of the COFs (Fig. S13). The semicircular radius on the EIS Nyquist plot of QH-COF-1 was smaller than those of QH-COF-2 and COF-1, indicating that the charge transport efficiency in QH-COF-1 is higher. QH-COF-1 afforded much higher photocurrent under visible-light irradiation than those of QH-COF-2 and COF-1, which could be attributed to the narrow band gap and enhanced charge transportation efficiency. The conduction band (CB) levels of QH-COF-1, QH-COF-2, and COF-1 were respectively located at -1.06, -1.07, and -1.08 eV vs. SCE, respectively, as determined by cyclic voltammetry measurement (Fig. S14). The estimated band gaps, band structures, and energy levels of QH-COF-1, QH-COF-2, and COF-1 are summarized in Fig. 3c. The above results suggest that the band gap could be narrowed by the formation of a tetrahydroquinoline linkage and that the band edge could be finely tuned by varying the chemical composition of the monomers.

The merging of photo-redox catalysis with asymmetric catalysis has attracted great research interest over the past decades [51-60]. One of the milestone work focused on combining photocatalysis with asymmetric organocatalysis was reported by MacMillan and co-workers [51]. To date, most asymmetric photocatalysis processes employ [Ru(bpy)₃]²⁺ or organic dyes as photocatalysts. The narrow light absorption range, difficult recyclability, photobleaching, and low anti-photo corrosion ability are the main shortcomings for the molecular photosensitizer. The potentials of visible-light responsive QH-COF-1, QH-COF-2, and COF-1 materials in the field of photocatalysis were investigated in asymmetric MacMillan reactions considering their suitable band structures, based on the previous reports using (2R, 5S)-2-tert-butyl-3, 5-dimethylimidazolidin- 4-one triflate as a chiral organocatalyst (Table 1).

QH-COF-1 could efficiently catalyze the MacMillan reaction to afford the corresponding product with a 75% isolation yield and 91% ee. Under similar conditions, [Ru(bpy)₃]²⁺ afforded an 80% yield with 91% ee. The almost comparable catalytic performances of QH-COF-1 and [Ru(bpy)₃]²⁺ suggested that QH-COF-1 is an efficient photocatalyst for the asymmetric MacMillan reaction. QH-COF-2 afforded less yield than QH-COF-1 (60% versus 75%), possibly due to its wider band gap and reduced charge separation efficiency. COF-1 afforded a much lower yield (30% versus 75%) and ee value (84% versus 91%) than QH-COF-1, possibly due to its low stability under photocatalytic conditions. After one cycle, less than 20% of the initial COF-1 amount could be recovered and most COF-1 decomposed during the photocatalytic process. Due to its ultrahigh stability, QH-COF-1 could be recovered without notable weight loss after the photocatalytic reaction, further confirming the superiority of tetrahydroquinoline-linked COFs in photocatalysis.

Inorganic photocatalysts, BiVO₄, WO₃, and TiO₂, could also catalyze the asymmetric MacMillan reaction under similar conditions. The ee value over BiVO₄ and TiO₂ could reach up to 91%, while WO₃ afforded a slightly lower ee value of 88%. All the inorganic photocatalysts screened here afforded much lower product yields than QH-COF-1. The photogenerated electrons and holes are both involved in the asymmetric MacMillan reaction based on the reaction mechanism (discussed later). An efficient photocatalyst should be able to absorb visible light and possess suitable redox properties of electrons and holes. The visible-light responsive BiVO₄ and WO₃ have relatively low electron reducing power [61], while TiO₂ with stronger redox properties has a wide band gap [62]. Consequently, they are not efficient photocatalysts for the asymmetric MacMillan reaction. As far as we know, QH-COF-1 is the most active organic semiconductor for the asymmetric MacMillan reaction. The superiority of QH-COF-1 for the organic asymmetric photocatalysis is mainly related to its narrow band gap and suitable band edge.

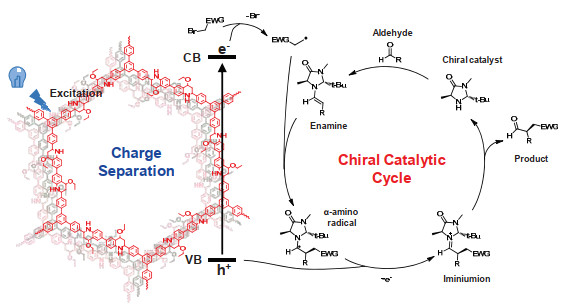

To investigate the reaction mechanism of the asymmetric photocatalysis, we performed a series of controlled experiments. In the absence of photocatalysts or without light, no product was detected, confirming that the asymmetric MacMillan reaction indeed involves the photocatalytic process. With THQ as the photocatalyst, no product was detected under similar conditions, suggesting that it was not the tetrahydroquinoline fragments but QH-COFs that acted as the photocatalyst. When the reaction was performed in the absence of a chiral secondary amine, no product was obtained. This implies the QH-COFs cannot catalyze the condensation of a secondary amine with an aldehyde. In the presence of 2 equiv. of TEMPO (radical scavenger) or DIPEA (hole scavenger), the yield of isolated chiral products decreased to less than 3%, suggesting that radical species [63] and oxidative holes both participated in the photocatalytic process. Further, the radical species produced by 2-bromoacetophenone were captured and separated in the presence of 1 equiv. of TEMPO and 2 equiv. DIPEA (for details, see SI). The above-controlled experiments indicated that the QH-COF acted as an electron and hole provider. Based on the above results, the schematic diagram of the photocatalytic reaction process is outlined in Scheme 2. Under light irradiation, the photogenerated electrons transferred from the CB of QH-COF-1 to α-bromocarbonyl substrate to form an electron-deficient alkyl radical. In the following step, an α-amino radical was produced by the addition of the electron-deficient alkyl radical to the enamine formed by the condensation of the chiral secondary amine with the aldehyde. The hole in the VB of QH-COF-1 would remove a single electron from a sacrificial quantity of α-amino radical to form the iminiumion that decomposed into the catalyst and product to complete the cycle [51, 53].

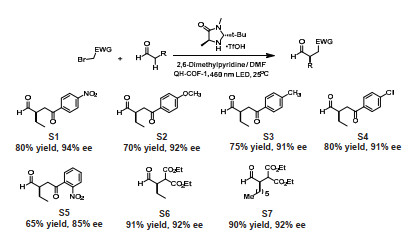

As shown in Fig. 4, a series of 2-bromoacetophenone derivatives with both electron-withdrawing and electron-donation substituents and diethyl bromomalonate could be smoothly reacted with aldehyde for the production of corresponding alkylation products in the presence of QH-COF-1 with high isolated yield (65%-91%) and ee value (85%-94%). The wide substrate scope of the asymmetric photocatalysis validates the generality of QH-COFs as a privileged photocatalyst.

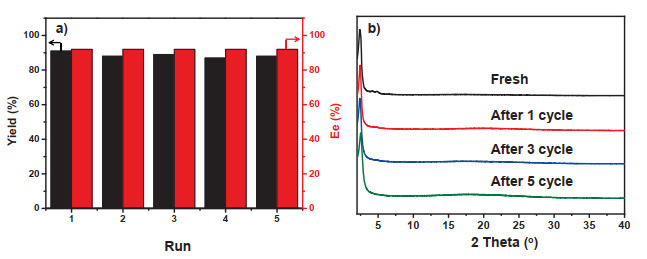

The recycling stability of QH-COF-1 was investigated in the production of S6 (Fig. 5). Even after five cycles, QH-COF-1 still afforded a high yield (87%) and high ee (92%). The recovered QH-COF-1 produced an almost identical PXRD pattern, FT-IR spectrum, and SEM image compared with those of the fresh one, showing the structural and morphological stability under light irradiation (Figs. 5, S9, and S15). This suggests that QH-COFs have ultrahigh photostability, which makes them superior to most reported COFs.

In summary, we successfully developed an efficient and general method to build QH-COFs as robust photocatalysts via the one-pot Povarov reaction. QH-COFs could endure strong acidic/basic conditions and light irradiation, which is attributed to the irreversible tetrahydroquinoline linkage. The formation of tetrahydroquinoline linkage could effectively narrow the band gap of QH-COFs to widen the absorption spectrum. The QH-COFs exhibited high activity, enantioselectivity, and excellent recyclability in the photocatalytic asymmetric MacMillan reaction by merging with a chiral secondary amine. Theoretically, all imine-linked COFs that have been reported could be converted into stable tetrahydroquinoline-linked structures under optimized conditions, considering that the functional groups for further transformation are no longer required to be attached to the monomers. Our work would shed light on the designable synthesis of robust COFs with novel irreversible linkages. This research also demonstrates the promising applications of ultrastable COFs with designable band structures, porosity, and lipophilicity in the field of visible-light-driven APOS.
