Glycerol is a typical polyol compound produced from biomass including fat, seed oil and even lignocellulose. In particular, with the fast development of biodiesel in the past decade, a huge amount of glycerol has been produced as the byproduct in the manufacture of biodiesel via transesterification (one tonne of glycerol is generated in producing per 10 ton of biodiesel) [1, 2]. The low cost and excess supply of glycerol calls for its valorization in order to improve the economics of the biodiesel industry. Among various possible transformations, the selective hydrogenolysis of glycerol to 1, 3-propanediol (1, 3-PDO) has attracted a great deal of attention. 1, 3-PDO is an important monomer for the production of polypropylene terephthalate (PTT), a high quality polyester combining the advantages of nylon and terylene [3]. Currently, 1, 3-PDO is mainly produced by fermentation of glycerol or glucose. Nevertheless, this bio-transformation route suffers from the low production efficiency (low substrate concentration, slow reaction rate, etc.) and the high separation cost [4], which limits the large-scale production of 1, 3-PDO. Compared with the fermentation process, chemical transformation of glycerol to 1, 3-PDO via hydrogenolysis possesses inherent advantages of high glycerol concentration in the feedstock, continual operation and good scalability. The key to the hydrogenolysis of glycerol to 1, 3-PDO is the development of highly active and selective catalysts.

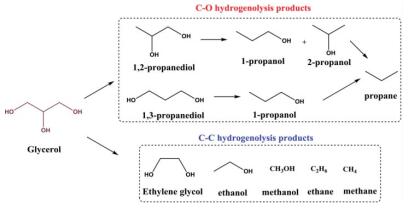

The hydrogenolysis of glycerol involves a complex reaction network including a series of competitive and consecutive reactions. As shown in Fig. 1 [5], the hydrogenolysis of primary and secondary C‒O bonds of glycerol can lead to the production of 1, 2-PDO and 1, 3-PDO, respectively. Further hydrogenolysis of both diols can result in the formation of C3-alcohols such as 1-propanol (1-PO), 2-propanol (2-PO). The complete hydrogenolysis of all the three C-O bonds leads to the formation of propane, however, usually at higher temperatures. In parallel with the C‒O cleavage, C‒C bond cleavage can also take place if the reaction is conducted at relatively harsh conditions (e.g., lower hydrogen pressure and higher temperature), which lead to the production of ethylene glycol (EG), ethanol, methanol, ethane and methane. In order to direct the reaction towards the formation of 1, 3-PDO, both the catalyst and reaction conditions need to be optimized such that all the other side reactions can be limited to the least extent. Based on theoretical studies [6], the dehydration activation energies of neutral glycerol for primary and secondary –OH groups are very close (70.9 vs. 73.2 kcal/mol), and their proton affinities are almost identical (~ 195 kcal/mol). Moreover, the steric hindrance for cleaving the secondary C‒O bond is more than for the primary one. These unfavorable thermodynamic factors raise significant challenges for the selective formation of 1, 3-PDO. Therefore, an effective catalyst should be developed so that the formation of 1, 3-PDO is kinetically favorable.

It has been accepted that the hydrogenolysis of C‒O bonds usually requires bifunctional catalysts composed of a transition metal (for hydrogenation) and an acidic promoter/or support. However, it is more or less surprising that most of these metal-acid pairs unfortunately lead to the selective formation of 1, 2-PDO [7, 8]. In fact, there have been only two typical catalysts that are effective for the hydrogenative transformation of glycerol to 1, 3-PDO. One is Ir-Re based catalysts which were first developed by Tomishige and coworkers [9-14]. Among them, the representative Ir-ReO_x/SiO₂ catalyst was the most active and selective one, with 1, 3-PDO yield of 38% at 81% glycerol conversion at the reaction condition of 120 ℃ [9]. The structure and reaction mechanism of this catalyst has been extensively studied [10-14] and summarized in an excellent review by Tomishige et al. [15] Briefly, the ReO_x is able to adsorb the primary –OH group of the glycerol molecule, and then the hydride formed by dissociation of H₂ at the Ir sites attacks the secondary –OH group, followed by dehydration and hydrogenation to form 1, 3-PDO. The intimate synergy between Ir and ReO_x is supposed to be responsible for the high selectivity of 1, 3-PDO. Besides the Ir-Re based catalysts, the other type of effective catalysts is Pt-W based catalysts [16-18]. Compared to the Ir-Re based catalysts, the Pt-W based catalysts appear more attractive for practical applications, probably due to the low-price of W, being active without the addition of liquid acid (e.g., H₂SO₄), as well as the tunability by the use of a variety of supports. Table 1 compares some typical features of Ir-Re and Pt-W based catalysts. One can clearly see that their structures are quite different; Ir-Re is featured with 3D ReO_x clusters decorated on the surface of Ir NPs, while the Pt-W is typically in the form of Pt NPs on the 2D WO_x sub-monolayers. Moreover, the Ir-Re catalysts can be highly active at a lower temperature than the Pt-W catalysts (120 vs. 160–180 ℃). More in-depth comparative study of Pt-W and Ir-Re based catalyst is believed beneficial to the development of improved catalysts.

As far as we know, there is no review on the Pt-W based catalysts for glycerol hydrogenation. In this review, we summarize the various supported and unsupported Pt-W based catalysts in terms of their catalytic performances (activity, selectivity and durability) and reaction mechanism, aiming for providing an in-depth understanding of this industrially important reaction and a guide to the design of highly active, selective and stable catalysts.

The catalytic performances of the Pt-WO_x systems are dependent on a variety of catalysts and operation parameters, including the supports, the loadings of Pt and W, the catalyst preparation and treatment trajectory, the presence or absence of additional promoters, the operation temperature and pressure, the reactor type (batch or flow type) and the concentration of feedstock glycerol. These variants make it difficult to rationally compare the performances of different catalysts although in some literatures the turnover frequency (TOF) regarding the formation of 1, 3-PDO was provided [19]. Table 2 gives a summary of the performances in terms of glycerol conversion and 1, 3-PDO selectivity over various Pt-WO_x catalyst systems under the specified reaction conditions. It should be noted that the conversion and selectivity are interdependent and often show a seesaw relationship due to the consecutive reactions in Fig. 1. For providing more detailed information about the catalyst nature and correlating the structure with performance, we classify these catalysts into three types and discuss them separately in the below subsections.

The pioneering work of using tungsten in glycerol hydrogenolysis was conducted by Che [20] at Celanese Corporation in 1980s. According to his work, by using Rh(CO)₂(acac) and H₂WO₄ homogeneous catalysts in the solvent of 1-methyl-2-pyrrolidinone under synthesis gas (CO/H₂ = 1/2) atmosphere at 200 ℃, the yields of 1, 3-PDO and 1, 2-PDO were 21% and 23%, respectively. Moreover, when H₂WO₄ was replaced by other protonic acid, 1, 3-PDO and 1, 2-PDO were not detected, which is a strong indicator that H₂WO₄ plays an important role in hydrogenolysis of glycerol. Meanwhile, the catalytic performance is sensitive to the amount of H₂WO₄: when twice the amount of H₂WO₄ was added, the catalytic activity and the product yield decreased by 2/3. In 2004, Chaminand et al. [21] used heterogeneous Rh/C to replace homogeneous Rh(CO)₂(acac) for glycerol hydrogenolysis reaction. The result showed that the selectivity ratio of 1, 3-PDO/1, 2-PDO was 2 in sulfolane solvent at 180 ℃, but the 1, 3-PDO selectivity was not high (12%). When the reaction was operated in water, the selectivity ratio of 1, 3-PDO/1, 2-PDO reversed. In 2011, Dam et al. [22] investigated the effect of various tungsten-based additives, including H₂WO₄, phosphotungstic acid (H₃PW₁₂O₄₀) and silicotungstic acid (H₄SiW₁₂O₄₀), on the glycerol hydrogenolysis over commercial catalysts (Pd/SiO₂, Pd/Al₂O₃, Pt/SiO₂ and Pt/Al₂O₃) in water at 200 ℃. Among various dual catalysts, Pt/Al₂O₃+H₄SiW₁₂O₄₀ (HSiW) showed the best performance with 49% conversion of glycerol and 28% selectivity of 1, 3-PDO. By contrast, when Pd was used as the active metal, the main product was 1, 2-PDO. Although this work has shown a sign of the uniqueness of Pt-W pair in the formation of 1, 3-PDO, how they worked synergistically was not clear yet.

Compared with dissolved homogeneous polyoxometalates, supported heterogeneous catalysts should be more favored for practical applications. Zhu et al. [23] prepared Cu-H₄SiW₁₂O₄₀/SiO₂ catalyst for vapor-phase glycerol hydrogenolysis. At the optimum conditions (210 ℃, 0.54 MPa H₂ without water), the glycerol conversion and 1, 3-PDO selectivity reached 83.4% and 32.1%, respectively. Later, the same group reported that aqueous phase glycerol hydrogenolysis over Pt-H₄SiW₁₂O₄₀/SiO₂ catalyst [24] with a flow reactor. Under the optimum conditions, glycerol conversion and 1, 3-PDO selectivity reached 81.2% and 38.7%, respectively. IR spectra of adsorbed pyridine showed that the addition of H₄SiW₁₂O₄₀ increased the acid sites, especially BrØnsted acid sites. Control experiments showed that under the same conditions Cu-H₄SiW₁₂O₄₀/SiO₂ catalyst gave only 9.1% glycerol conversion and 8.9% 1, 3-PDO selectivity, again demonstrating the uniqueness of Pt-W pair in favoring the 1, 3-PDO formation. In addition to metal type, the support was also found to have profound effect on the activity and selectivity. For example, Pt-H₄SiW₁₂O₄₀/ZrO₂ was able to catalyze the reaction at lower temperatures; 44% 1, 3-PDO selectivity and 58% glycerol conversion were achieved at 160 ℃ [25]. The performance of Pt-H₄SiW₁₂O₄₀/ZrO₂ was further improved by modification with alkali metals. Alkali metals (Li, K, Rb and Cs) were doped onto Pt-H₄SiW₁₂O₄₀/ZrO₂ by an ion-exchange method using alkali nitrate. The ratio of alkali metal to polyoxometalate was set to 2. Among various alkali-metal promoted systems, Pt-Li₄SiW₁₂O₄₀/ZrO₂ [26] showed a higher activity and 1, 3-PDO selectivity than unmodified catalyst, attaining 43.5% glycerol conversion and 53.6% 1, 3-PDO selectivity at 180 ℃. The introduction of Li cations not only modified the acidity but also improved the tolerance to water solvent. Zhang et al. [27] synthesized a structurally modified PtNps-HSiW/mAl₂O₃ catalyst by assembling platinum nanoparticles (PtNPs) into ordered mesoporous alumina, which could increase the BrØnsted acid sites and the dispersion of Pt, and even decrease the loss of Pt during reuse. This catalyst offered 60.5% glycerol conversion and 33.3% 1, 3-PDO selectivity at 200 ℃.

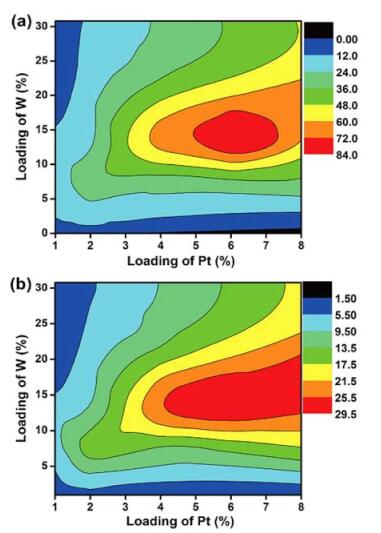

In summary, both tungstic acid and tungsten HPAs, when in combination use with supported Pt catalyst, can lead to the selective formation of 1, 3-PDO via glycerol hydrogenolysis. In addition to the acidity of HPAs as well as the deposition sequence relative to Pt, one key parameter to affect the efficiency of 1, 3-PDO formation should be the ratio of Pt to W, which was, however, overlooked. Moreover, either tungstic acid or tungsten HPAs was difficult to recover and then reuse. Even when the tungsten HPAs were supported on certain oxide support, they also run the risk of being leaching during the hydrothermal reactions. Thereby, more robust Pt-W catalysts are required.

A wide sort of supported Pt-WO_x catalysts have been investigated for glycerol hydrogenolysis thanks to their tunable acidity, improved Pt-WO_x interaction as well as desirable robustness. In as early as 2008, Kurosaka et al. [16] investigated Pt/WO₃ supported on different oxides including Al-MCM-41, SiO₂-Al₂O₃, Al₂O₃, anatase TiO_2, HY zeolite and ZrO₂ for glycerol hydrogenolysis in 1, 3-dimethyl-2-imidazolidinone (DMI) solvent. Among them, Pt/WO₃/ZrO₂ showed the highest activity, 1, 3-PDO/1, 2-PDO ratio and 1, 3-PDO yield (24.2%). Nevertheless, due to lack of in-depth characterizations of the catalyst, the reason for the superior performance of Pt/WO₃/ZrO₂ catalyst was not clear. In 2010, Qin et al. [28] reported that Pt/WO₃/ZrO₂ catalysts were highly active and selective for hydrogenolysis of glycerol in aqueous phase; 70.2% glycerol conversion and 45.6% 1, 3-PDO selectivity were achieved at 130 ℃ and 4 MPa H₂ over the catalyst with 3.0 wt% Pt and 10 wt% W loadings. The significantly different performances of the above two Pt/WO₃/ZrO₂ catalysts are partially due to the effect of solvent. In fact, Gong et al. [29] compared the performance of Pt/WO₃/ZrO₂ in different solvents, and found that 1, 3-PDO selectivity was higher in water than in MDI. More interesting, when 1:1 DMI-water mixture was used as the solvent, the 1, 3-PDO yield was almost doubled compared with that in the individual single solvent. Besides the solvent effect, the catalyst preparation method as well as the relative loading of Pt and W in the above works is also different, which resulted in different dispersion of Pt and W as well as their interfacial structure, and consequently different activity and selectivity. Gonget al. [30] also prepared a series of Pt/WO₃/TiO₂/SiO₂ catalysts with different loadings and employed them to the hydrogenolysis of aqueous glycerol. The dependence of catalytic performance on the loading amount of Ti and W showed a volcano-curve. The optimal loadings of Ti and W as oxides were 10% and 5%, respectively, and the glycerol conversion and 1, 3-PDO selectivity reached 15.3% and 50.5%, respectively. The XRD patterns verified one role of TiO₂ is to improve the dispersion of Pt. The profiles of temperature-programmed desorption (TPD) of NH₃ and IR spectra of adsorbed pyridine showed that the addition of W enhanced the acidity of the catalyst in terms of both acid amount and strength, especially BrØnsted acid sites. All these results have demonstrated that BrØnsted acid sites are demanded in the reaction and they are closely related with the W content.

Compared with Pt/WO₃/ZrO₂, alumina-supported Pt-W catalysts show higher activity and 1, 3-PDO selectivity. Suzukiet al. [31] of KAO Corporation first reported that 67% selectivity to 1, 3-PDO was obtained at 23% glycerol conversion using Pt (5 wt%)-W (5 wt%)/Al₂O₃ catalyst in their patent in 2007. Then, Kaneda et al. [17] reported that boehmite-supported Pt-W catalyst gave rise to superior activity and selectivity; the glycerol conversion and 1, 3-PDO selectivity achieved 100% and 66%, respectively, at 180 ℃ and 5 MPa H₂. This is the best result reported so far. The superior performance was ascribed to the abundant surface Al-OH species on the surface of boehmite, which was, however, not sufficiently supported by the data provided. Recently, Lei et al. [32] studied the glycerol hydrogenolysis over Pt/WO_x/Al₂O₃ catalyst in fixed-bed reactor, and achieved the highest space-time yield of 1, 3-PDO (191.7 mg_{1, 3-PDO}/g_Cat..h) at 180 ℃ and 5 MPa H₂. They also found that both the glycerol conversion and 1, 3-PDO selectivity were highly dependent on Pt and W loadings (Fig. 2) and the appropriate Pt/W molar ratio was in the range of 1/2‒1/4. Based on their studies, at the optimum Pt (~5 wt%) and W loadings (10 ~15 wt%), WO_x existed as submonolayer polytungstates on the alumina surface and Pt was highly dispersed (dispersion > 50%) on the WO_x, which promoted the in situ formation of strong BrØnsted acid sites through hydrogen dissociation and spillover. As a result, the selective hydrogenolysis of glycerol to 1, 3-PDO was favored.

In addition to metal oxides supported Pt/WO_x catalysts [16, 17, 28-41], Pt-WO_x supported on zeolites [42, 43] were also reported. In particular, when W was incorporated into SBA-15 by a sol-gel method followed by deposition of Pt, the resulting Pt/W-SBA-15 (W/Si = 1/640) exhibited 1, 3-PDO selectivity of 70.8% even at a high glycerol conversion of 86.8% [43]. This catalyst is quite different from the other metal oxides supported Pt-W systems in that the tungsten in the Pt/W-SBA-15 (W/Si = 1/640) was in the form of isolated WO₄ rather than submonolayer polytungstates. While the authors assumed that the hydride WO₄ was the active center, more characterization data are required to explain the superior performance of the Pt/W-SBA-15 catalysts.

In order to study the interaction between Pt and WO_x without interference of a third oxide support, Wang and coworkers developed mesoporous WO_x-supported Pt and Pt-Au bimetallic catalysts [18, 19, 44-47]. The mesoporous WO_x was featured with large surface area (126 m²/g) and abundant oxygen vacancies (x = 2.8), which favored the dispersion of Pt as pseudo-single atoms. Such super-high dispersion of Pt gave rise to moderate glycerol conversion (37.4%) and 1, 3-PDO selectivity (35.1%) even at relatively low temperature and pressure (413 K, 1 MPa H₂) [19]. When a minor amount of Au was incorporated, the resulting Au-Pt/WO_x provided greatly enhanced glycerol conversion (52.0%) and 1, 3-PDO selectivity (56.3%) under identical conditions [18]. Characterization results revealed that the incorporation of Au facilitated the reduction of WO_x and increased the in situ BrØnsted acid sites, thus leading to improved activity and selectivity.

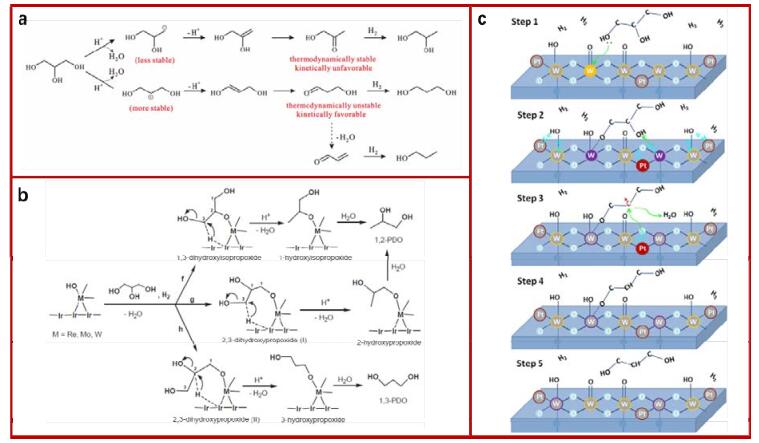

There are two main mechanisms that have been proposed for the glycerol hydrogenolysis: dehydration-hydrogenation [48] and direct hydrogenolysis [11]. As shown in Fig. 3(a), the dehydration-hydrogenation route involves acid-catalyzed dehydration of glycerol and the subsequent hydrogenation of intermediate in the presence of metallic sites to obtain the final product. In this mechanism, there are two possible intermediates: acetol and 3-hydroxypropanal (3-HPA) which can be further hydrogenated to 1, 2-PDO and 1, 3-PDO, respectively. Since the secondary carbocation is more stable than the primary one, 3-HPA should be kinetically favored. However, due to the thermodynamically unstable nature of 3-HPA, it must be quickly hydrogenated upon formation, otherwise it will undergo the further dehydration to more stable acrolein leading to the formation of 1-PO. On the other hand, acetol is thermodynamically stable and therefore was experimentally observed under certain conditions (e.g., reduced H₂ pressure) [48]. Zhu et al. [36] investigated the product selectivity as a function of acid sites over Pt/Al₂O₃ and Pt-WO_x/Al₂O₃, and found that the 1, 2-PDO yield correlated well with the Lewis acid sites while the 1, 3-PDO yield correlated well with the BrØnsted acid sites. Similarly, García-Fernández et al. [35] found that the maximum 1, 3-PDO selectivity was reached as the largest B/L ratio, which also suggested that the BrØnsted acid sites are required for the formation of 1, 3-PDO. While the dehydration-hydrogenation mechanism can explain the formation of 1, 2-PDO, it is difficult to rationalize the indispensable role of WO_x in the formation of 1, 3-PDO. Moreover, when the reaction was performed in N₂, glycerol was barely converted at all, let alone observing the key intermediate 3-HPA although the Pt/WO_x/support catalyst contains both Lewis and BrØnsted acid sites. In this case, alternative reaction mechanism needs to be developed.

Direct hydrogenolysis mechanism was first proposed by Tomishige and coworkers [11] over the Ir-ReO_x/SiO₂ catalyst, where glycerol is first adsorbed on ReO_x surface to form terminal alkoxide, and then the hydride activated on the Ir metal attacks the 2-position of the alkoxide to cleave the secondary C‒O bond (Fig. 3(b)). Because 6-membered-ring transition state is more stable than 7-membered-ring transition state, the cleavage of secondary C‒O bond is favored over the primary C‒O bond. In comparison with the dehydration-hydrogenation mechanism, the direct hydrogenolysis mechanism combines the oxophilic nature of Re and the interface with Ir (Re-Ir bonding), and appears more plausible although the 6-membered-ring transitional structure is difficult to detect by experiment.

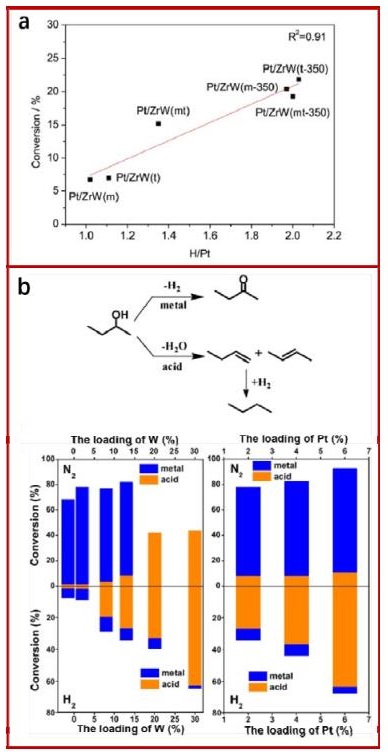

Different from the above mechanism over the Ir-ReO_x/SiO₂, the formation of 1, 3-PDO over Pt-WO_x system was proposed to follow a proton-involved direct hydrogenolysis mechanism (Fig. 3(c)), instead of hydride-involved one. One supporting evidence for this mechanism is the observation of in situ formed BrØnsted acid sites by dissociation of H₂ at Pt surface and then spillover to the WO_x. Ma and coworkers investigated the correlation between H spillover and glycerol conversion over Pt/WO₃/ZrO₂ catalyst [39], and obtained a nearly linear relationship (Fig. 4(a)). In line with this result, Wang and coworkers also observed a positive relationship of H spillover with the 1, 3-PDO yield on the best-performance catalyst 2Pt/7.5W/Al₂O₃ [32]. Moreover, they used dehydration/dehydrogenation of 2-butanol as the probe reaction to investigate the in situ generated BrØnsted acid sites under H₂. As shown in Fig. 4(b), while the dehydrogenation dominates under N₂, the reaction switches to the dehydration in H₂, indicating that the BrØnsted acid sites are generated by H₂ dissociation on Pt and spillover to the neighboring WO_x. The similar conclusion has also been drawn by other groups on Pt/WO₃/ZrO₂ [38] and Pt/W-SBA-15 [43] catalyst systems.

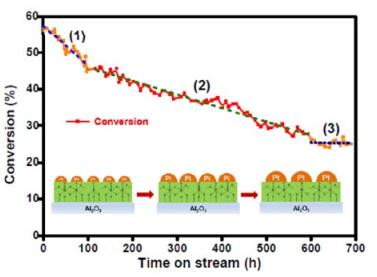

The promising activity and selectivity of Pt-W based catalysts have attracted a great deal of attention from industry. For practical applications, catalyst stability under long-term running and being exposed to impurities in glycerol is of at least equivalent importance to activity/selectivity. Unfortunately, this issue has rarely been concerned in the reported literatures. Recently, Lei et al. [49] investigated the stability of Pt/WO_x/Al₂O₃ catalyst under an industry-relevant condition of 50% aqueous glycerol, LHSV of 1 h^‒1, GHSV of 1000 h^‒1, 180 ℃, and 5 MPa H₂. A three-stage deactivation (Fig. 5) curve was observed and the fastest deactivation occurred at the initial 100 h. Characterization results revealed that the deactivation was mainly caused by the aggregation of Pt particles, which significantly decreased the number of accessible Pt sites (the Pt dispersion was reduced from 29.1% to 10.1%) and consequently the number of in situ formed BrØnsted acid sites. Therefore, in order to meet the requirement of practical applications, a great deal of efforts should be devoted to the improvement of catalyst durability. To this end, clarification of the deactivation mechanism at the molecular scale is necessary.

The selective hydrogenolysis of glycerol to 1, 3-PDO is of highly importance to both fundamental research and practical applications, yet rather challenging due to a spectrum of competitive side reactions. So far, Pt-W bifunctional catalysts have been proved effective for this reaction and various supported and unsupported Pt-W based catalysts have been developed. Among them, Pt/WO_x/Al₂O₃ has shown the most promising activity and selectivity, yet its long-term stability needs to be improved.

The reaction mechanism for the glycerol hydrogenolysis over Pt-W based catalysts is still in debate although three possible reaction mechanisms have been proposed. One key question in addressing the mechanism is the origin of BrØnsted acid [32, 39]. Some studies correlate the 1, 3-PDO yield with the permanent BrØnsted acid sites on the supported WO_x surface, while others believe that the transient BrØnsted acid sites which are formed by hydrogen dissociation and spillover at the Pt-WO_x interface are responsible for the 1, 3-PDO production. More spectroscopy evidences, in particular under working conditions, are required to address this key question.

There are several key factors affecting the catalytic performances of Pt-W based catalysts. (1) Domain size of WO_x. A lot of researches have shown that medium-sized WO_x dispersed as sub-monolayer on the underlying substrate is favorable for the dispersion of Pt and the generation of strong BrØnsted acid, both of which are required for the cleavage of the secondary C-O bond of glycerol. (2) Dispersion of Pt. The reaction is rather sensitive to the dispersion of Pt as it relates to the rates of hydrogen dissociation and hydrogenation of unsaturated intermediate. (3) Interaction between Pt and WO_x. Since the reaction occurs probably at the interfacial sites between Pt and WO_x and strong metal support interaction (SMSI) tends to take place in this system upon reduction at higher temperature, the exquisite control of Pt-WO_x interaction is of paramount importance to the hydrogen spillover and the in situ formation of BrØnsted acid. By innovating the synthesis methods and optimizing the pre-treatment and reaction conditions, the three key structure parameters can be regulated such that they are the most favorable to the formation of 1, 3-PDO. There is still a large space to be explored in this direction.
